    #1 Mar 1, 2018
    Last edited: Oct 10, 2018
    EDIT: Covers are shipping! *First to market* These are professionally welded by hand, and *CNC Machined Flat* on their mating surface after welding to ensure that any warping from heating/cooling is taken care of.

    Update #2: 10/10/18: Rear Diff Skids Shipping!
    https://www.nextventuremotorsports.com/product/jl-rds-m220/

    http://www.nextventuremotorsports.com/product/dana-m220-rear-differential-cover/
    http://www.nextventuremotorsports.com/product/dana-m210-front-differential-cover/

    More updates can be found here:
    https://www.jlwranglerforums.com/forum/forums/next-venture-motorsports.86/

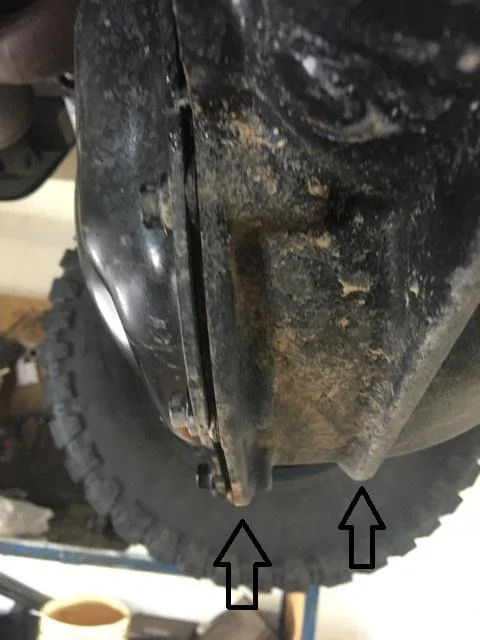

    Did anyone else notice the rock grabbing shape on the bottom of the new "next gen" axles? Looks like the weight savings/material reduction in the center section was a bit of a compromise for those of us that might rock crawl.

    Our HD Differential Covers should beef up the mating flange/lip area on the bottom and help distribute any hits. We're also looking at offering a differential skid for the sake of making things smooth on the bottom. A couple of these items have already been shipped out for testing, so I'll update this thread as we go :)


    Updated:










    TTEChris and Drawls like this.
  2. Jsds1011

    Jsds1011 New Member

    First Name:
    Jeffrey Donna
    Vehicle(s):
    2018 JL RUBICON
    Joined:
    Jul 5, 2018
    Location:
    North, SC
    Posts:
    2
    Liked:
    2
    Any updates on skid plate set up for rear?

    NextDan likes this.
  3. OP
    OP
    NextDan

    NextDan Well-Known Member
    Peak Sponsor (Level 2)

    First Name:
    Dan
    Vehicle(s):
    1949 Willys VJ, 1973 Jeep Commando, 2018 JLUR
    Joined:
    Jan 9, 2018
    Location:
    Grand Junction , Colorado
    Posts:
    77
    Liked:
    59
    Occupation:
    CAD Designer, Adventure Machine Outfitter
    #3 Oct 8, 2018
    Last edited: Oct 10, 2018

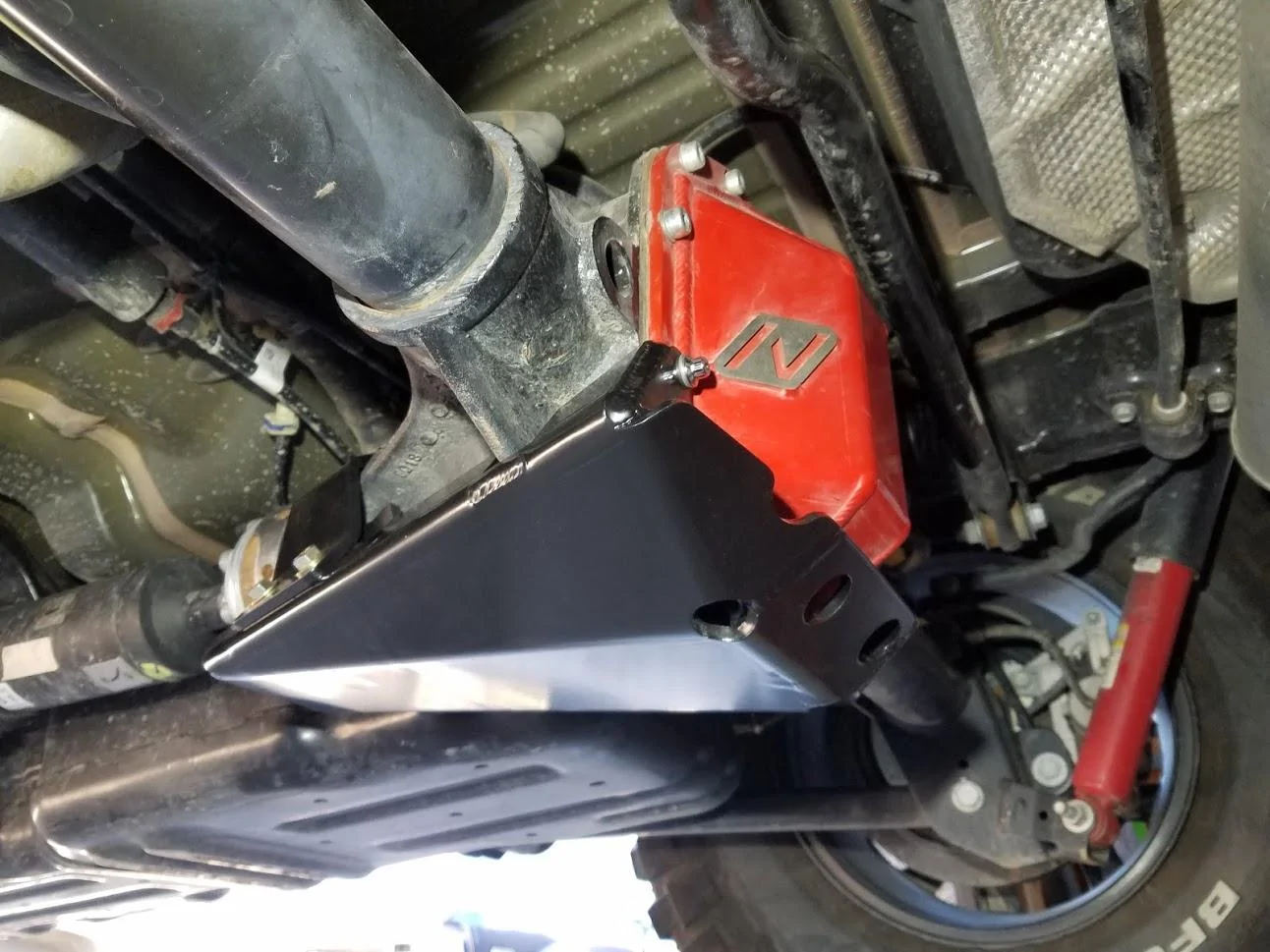

    Rear Diff Skids are up!

    Details:
    The new JL Wrangler axle’s are a fantastic upgrade over the previous Jeep Wrangler axles, but their shape is not ideal for rock crawling. The thin, exposed lip on the very back of the housing is not only a rock grabber, but a potential risk of a cracked housing/fluid loss if hit hard enough or worn through over time.

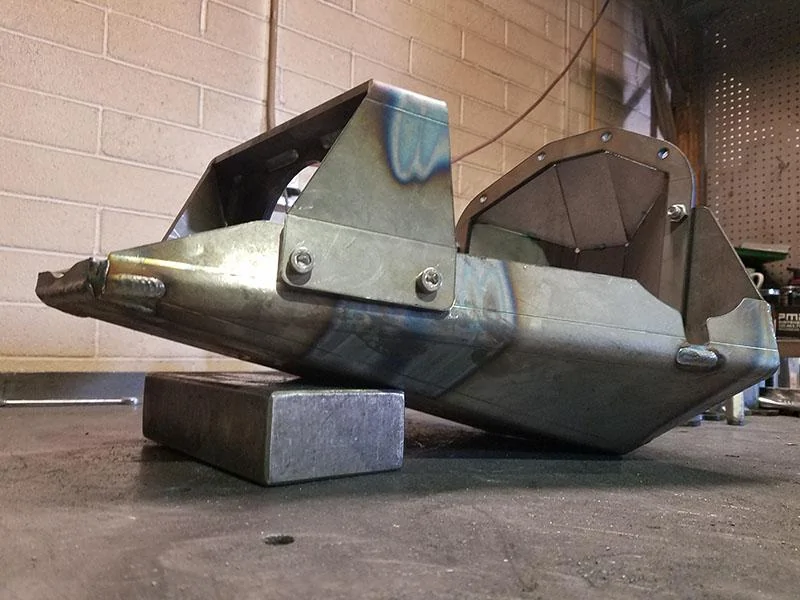

    The Next Venture RDS is a heavy duty skid designed to protect the vulnerable ribs on the JL rear differential, and provides a smooth surface to slide over obstacles. This skid is built from a combination of 1/4″ and 3/8″ thick steel, that ties into multiple locations on the differential flange, as well as clamping tight to the snout of the differential, distributing any force (such as the weight of the vehicle on a rock) over a much larger area.

    This skid is CAD designed using 3D models for a precise fit, and to retain every bit of possible ground clearance. All the components are CNC laser cut, and CNC press brake formed for a proper, precise fit.


    https://www.nextventuremotorsports.com/product/jl-rds-m220/





    Karl_in_Chicago likes this.
  4. jl_colllllllorado

    jl_colllllllorado Well-Known Member

    Vehicle(s):
    2018 JLUR 37s
    Joined:
    Jun 17, 2018
    Location:
    Thornton, Colorado
    Posts:
    119
    Liked:
    183
    Garage Profiles:
    1
    With the need to add the diff cover for the armor, is there a forum discount?

  5. OP
    OP
    NextDan

    NextDan Well-Known Member
    Peak Sponsor (Level 2)

    First Name:
    Dan
    Vehicle(s):
    1949 Willys VJ, 1973 Jeep Commando, 2018 JLUR
    Joined:
    Jan 9, 2018
    Location:
    Grand Junction , Colorado
    Posts:
    77
    Liked:
    59
    Occupation:
    CAD Designer, Adventure Machine Outfitter
    Use code "jlwranglerforum" at check out!

  6. Chocolate Thunder

    Chocolate Thunder Well-Known Member

    Vehicle(s):
    2019 Wrangler Unlimited Rubicon
    Joined:
    Feb 20, 2018
    Location:
    Texas
    Posts:
    2,278
    Liked:
    2,769
    Can you powdercoat in colors other than black, such as OEM paint colors?

  7. OP
    OP
    NextDan

    NextDan Well-Known Member
    Peak Sponsor (Level 2)

    First Name:
    Dan
    Vehicle(s):
    1949 Willys VJ, 1973 Jeep Commando, 2018 JLUR
    Joined:
    Jan 9, 2018
    Location:
    Grand Junction , Colorado
    Posts:
    77
    Liked:
    59
    Occupation:
    CAD Designer, Adventure Machine Outfitter
    I have a Red and a White that are a close match. It's also hard to tell if there's a difference on body paint vs powder coat that is under the rig since the lighting is different... Matching the granite, silver, blue, mojito etc is best left for a local powder coater that could compare samples to your rig in real life to get a good match.

    If the black one comes off our rig for any reason, we'll probably look at doing a black zinc, or clear coat over bare metal ;)

  8. JLRubiTron

    JLRubiTron Well-Known Member

    First Name:
    Todd
    Vehicle(s):
    2020 Gladiator, 2018 JL Rubicon,
    Joined:
    Apr 18, 2018
    Location:
    Scottsdale, AZ
    Posts:
    233
    Liked:
    341
  9. GhostDivers

    GhostDivers Well-Known Member

    First Name:
    Don
    Vehicle(s):
    2018 JLUR 6speed MT, 2014 X5 35d, 2003 Jetta TDI
    Joined:
    Aug 15, 2018
    Location:
    Davidson, NC
    Posts:
    220
    Liked:
    236
    I put this RDS on a couple weeks ago before heading to VA for some wheeling. @NextDan provided great responses to my questions prior to purchasing. Top notch service and product, plus the welds are exceptional.

    I’d recommend going with their powder coating, but I wanted it to match my diff covers…so, a little cleaning, acetone, primer, paint and install! The RDS is heavy duty and, well, heavy. A second person to help hold it in place would be a plus. Also, follow the directions on putting the nut sticks in before the top clamp…I didn’t and had to do a little puzzle trial to set them in place.

    Maybe lost a ¼ to 3/8 inch of clearance, but easy insurance and I really like that it give some protection to the pinion flange.

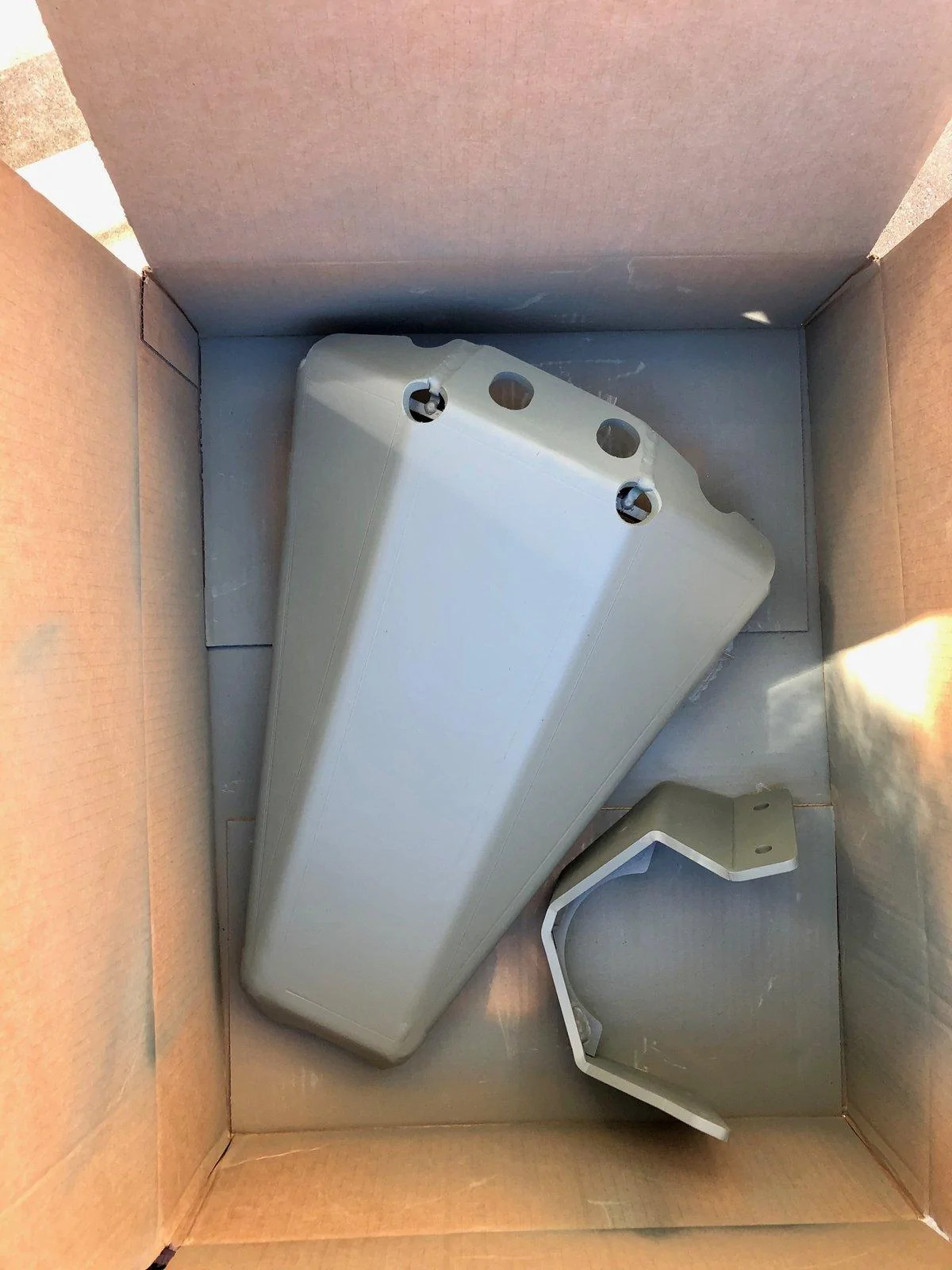

    Prime 1.jpg

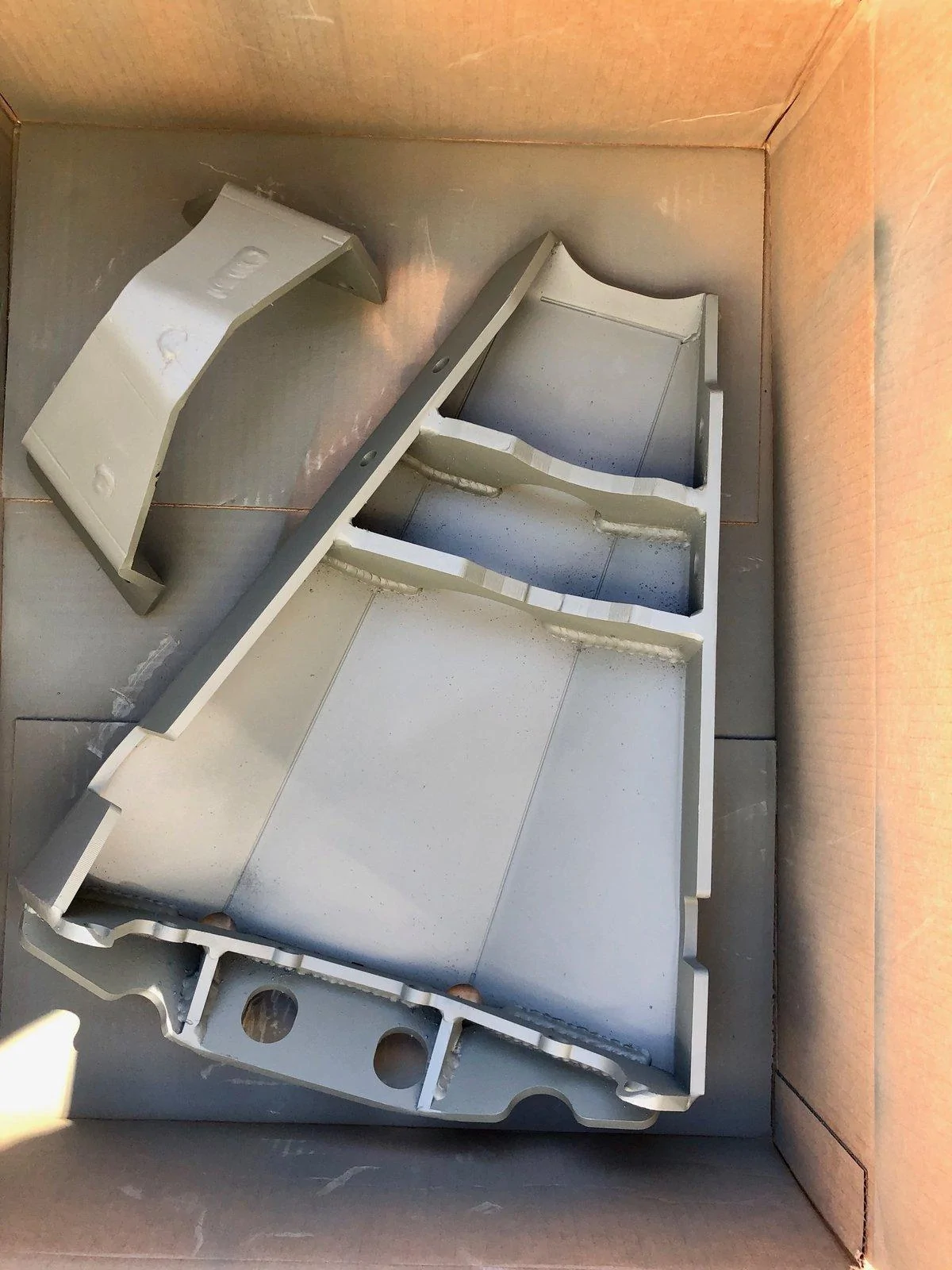

    Prime 2.jpg

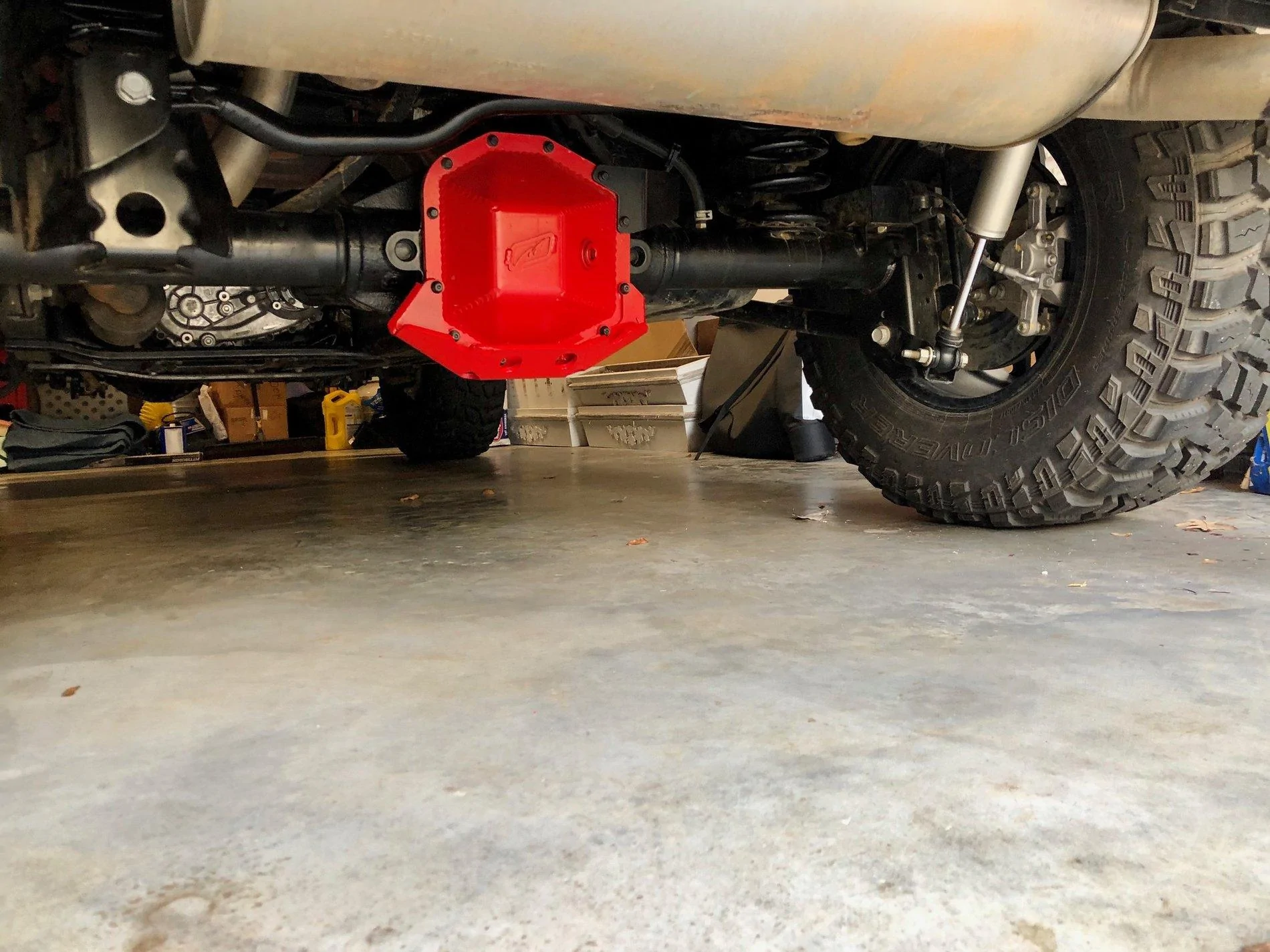

    Install 1.jpg

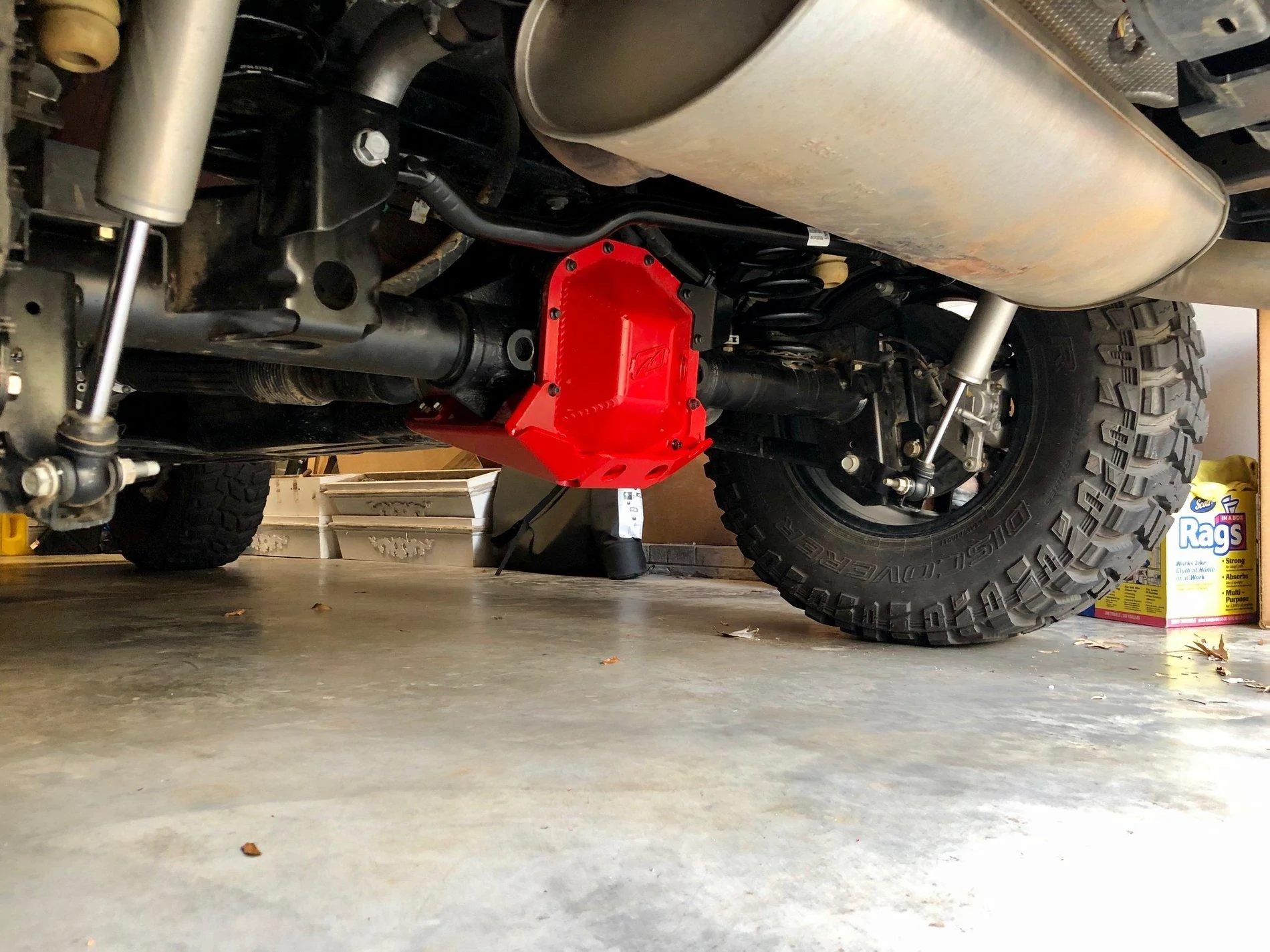

    Install 2.jpg

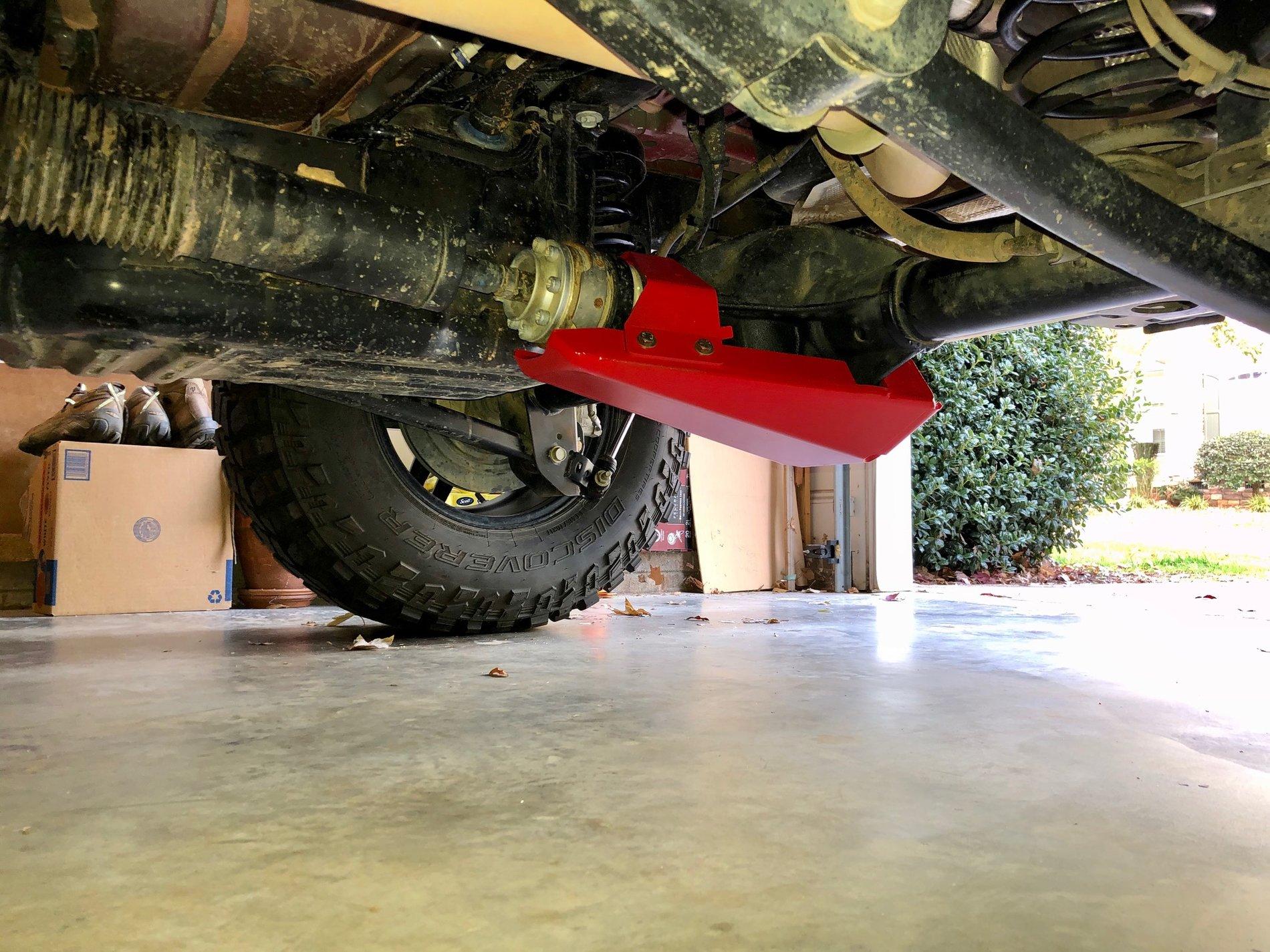

    Install 3.jpg

    NextDan likes this.
  10. OP
    OP
    NextDan

    NextDan Well-Known Member
    Peak Sponsor (Level 2)

    First Name:
    Dan
    Vehicle(s):
    1949 Willys VJ, 1973 Jeep Commando, 2018 JLUR
    Joined:
    Jan 9, 2018
    Location:
    Grand Junction , Colorado
    Posts:
    77
    Liked:
    59
    Occupation:
    CAD Designer, Adventure Machine Outfitter
    Thanks for the feedback Don; that paint job turned out great!
