Need help removing armrest lid

Cliebo

Well-Known Member
First Name
Craig
Joined
Sep 22, 2018
Threads
13
Messages
95
Reaction score
96
Location
Ny
Vehicle(s)
2018 Jl Sahara Unlimited
I have a replacement leather armrest center console lid being shipped to me. It’s just the armrest leather lid, not the entire center console. Anyone know how to remove the existing one, i assume it’s not to hard . I looked at the existing one installed and don’t see how to do it . Please help, pics would be great to if possible. Thanks in advance
Sponsored


OP
OP

Cliebo

Well-Known Member
First Name
Craig
Joined
Sep 22, 2018
Threads
13
Messages
95
Reaction score
96
Location
Ny
Vehicle(s)
2018 Jl Sahara Unlimited
Bump


Jitzy

Well-Known Member
First Name
Joe
Joined
Apr 5, 2020
Threads
1
Messages
246
Reaction score
484
Location
Orlando, Florida
Vehicle(s)
2020 JLU Willys
Occupation
Retired Police, Now Certified Custom Club Fitter
Should be the same process for the JL shows how to remove at about 1:20



Sponsored

jeepinization

Well-Known Member
First Name
Ryan
Joined
Oct 23, 2018
Threads
16
Messages
75
Reaction score
44
Location
Utah
Vehicle(s)
2021 Rubicon 4XE
I have a replacement leather armrest center console lid being shipped to me. It’s just the armrest leather lid, not the entire center console. Anyone know how to remove the existing one, i assume it’s not to hard . I looked at the existing one installed and don’t see how to do it . Please help, pics would be great to if possible. Thanks in advance
Do you happen to have the part number for the center console lid? I would like to order it as well. Thanks


Sponsored

Hound Dog

Well-Known Member
First Name
Don
Joined
Sep 21, 2020
Threads
15
Messages
356
Reaction score
514
Location
Haymarket, VA
Vehicle(s)
2020 JL Rubicon, 2002 TJ Rustomatic
I wouldn't want to be leaning on my console with my phone under my elbow.


TorturedMargot

Well-Known Member
Joined
Jul 22, 2021
Threads
6
Messages
221
Reaction score
526
Location
Washington, USA
Vehicle(s)
2021 Jeep Wrangler JL, 2013 Dodge Charger R/T
Clubs

Just picked up a Mopar leather armrest from the dealer today. Can't believe it's just the 4 bolts! My new armrest came with the entire folding assembly, but it looks like I wont need to mess with that. Only challenge will be removing the existing key mechanism and installing into the new console, as I want to retain my lockable equipment.


jeepinization

Well-Known Member
First Name
Ryan
Joined
Oct 23, 2018
Threads
16
Messages
75
Reaction score
44
Location
Utah
Vehicle(s)
2021 Rubicon 4XE
Just picked up a Mopar leather armrest from the dealer today. Can't believe it's just the 4 bolts! My new armrest came with the entire folding assembly, but it looks like I wont need to mess with that. Only challenge will be removing the existing key mechanism and installing into the new console, as I want to retain my lockable equipment.
You don't need to remove the key mechanism. There are 6 screws that you can remove from the plastic part holding the key mechanism. Once those are removed you can simply switch them out. I did it and it was way easy. 5 minutes. PM me if you need help. I can do a quick video.


TorturedMargot

Well-Known Member
Joined
Jul 22, 2021
Threads
6
Messages
221
Reaction score
526
Location
Washington, USA
Vehicle(s)
2021 Jeep Wrangler JL, 2013 Dodge Charger R/T
Clubs

You don't need to remove the key mechanism. There are 6 screws that you can remove from the plastic part holding the key mechanism. Once those are removed you can simply switch them out. I did it and it was way easy. 5 minutes. PM me if you need help. I can do a quick video.
Oh awesome! That is great news. I'm pretty savvy with this stuff, I'm sure I can manage. Thank you for your kindness!


TorturedMargot

Well-Known Member
Joined
Jul 22, 2021
Threads
6
Messages
221
Reaction score
526
Location
Washington, USA
Vehicle(s)
2021 Jeep Wrangler JL, 2013 Dodge Charger R/T
Clubs

Was feeling restless and got it all done already! Really easy job. (10) T20 screws total.

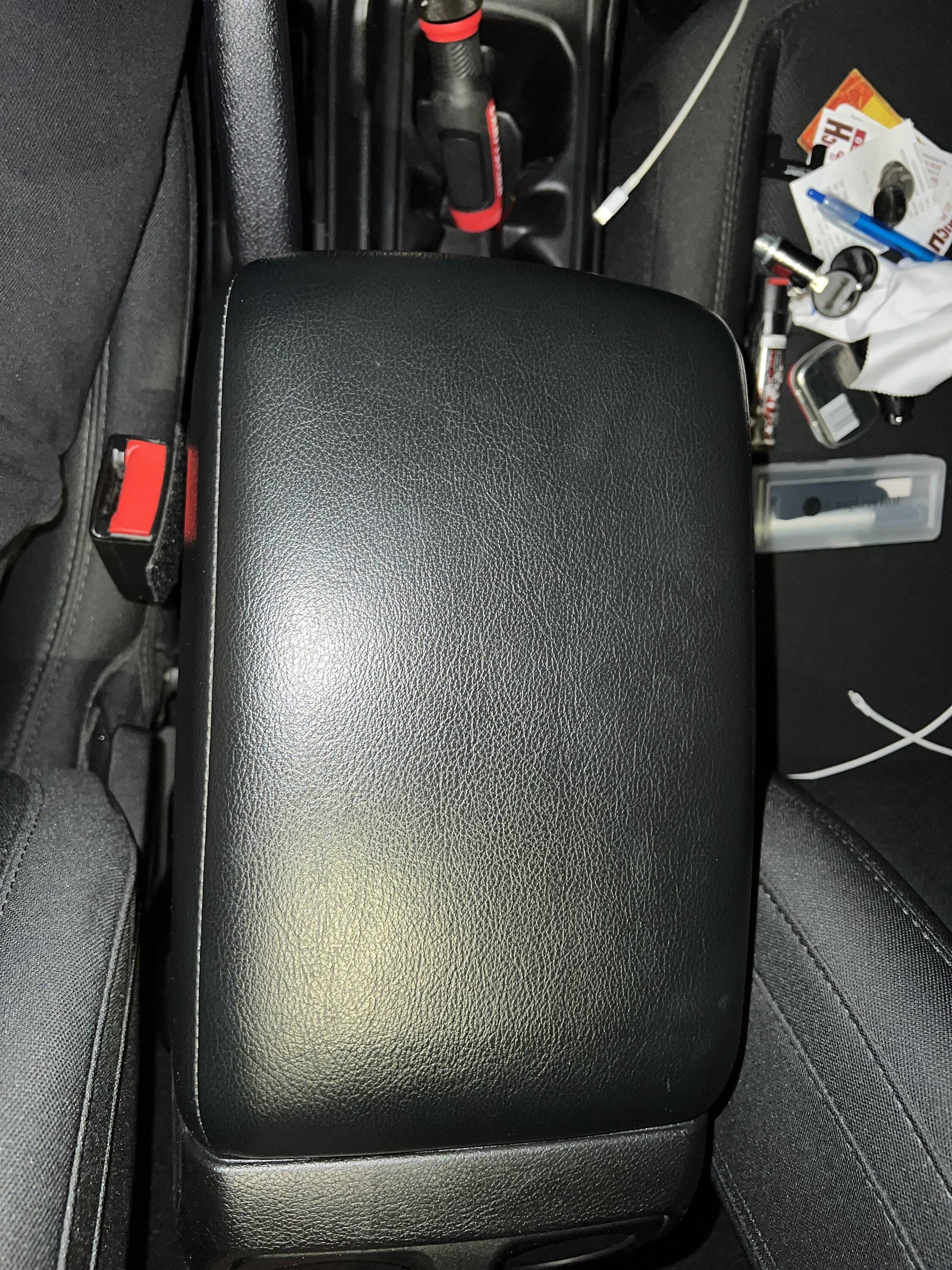

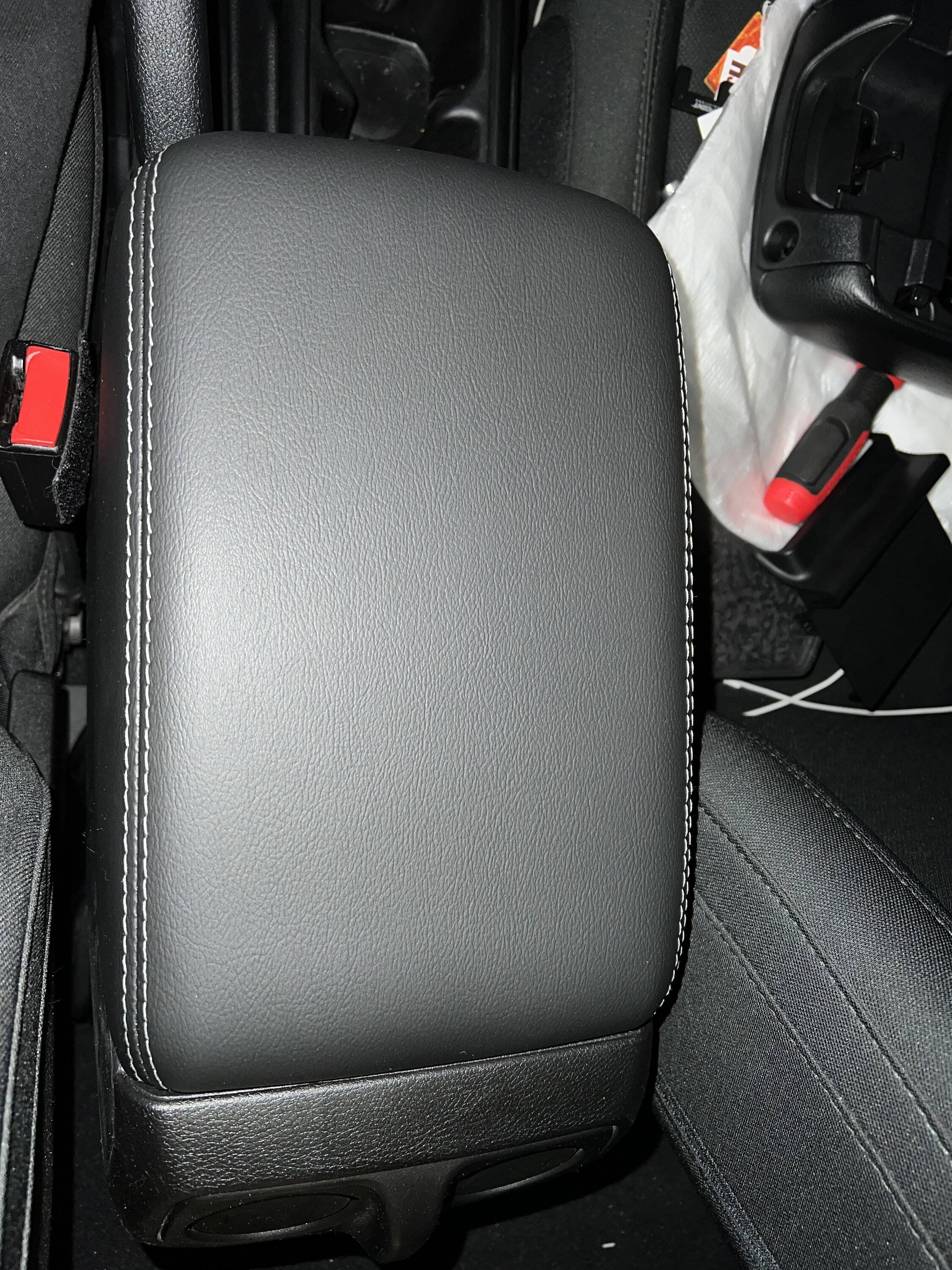

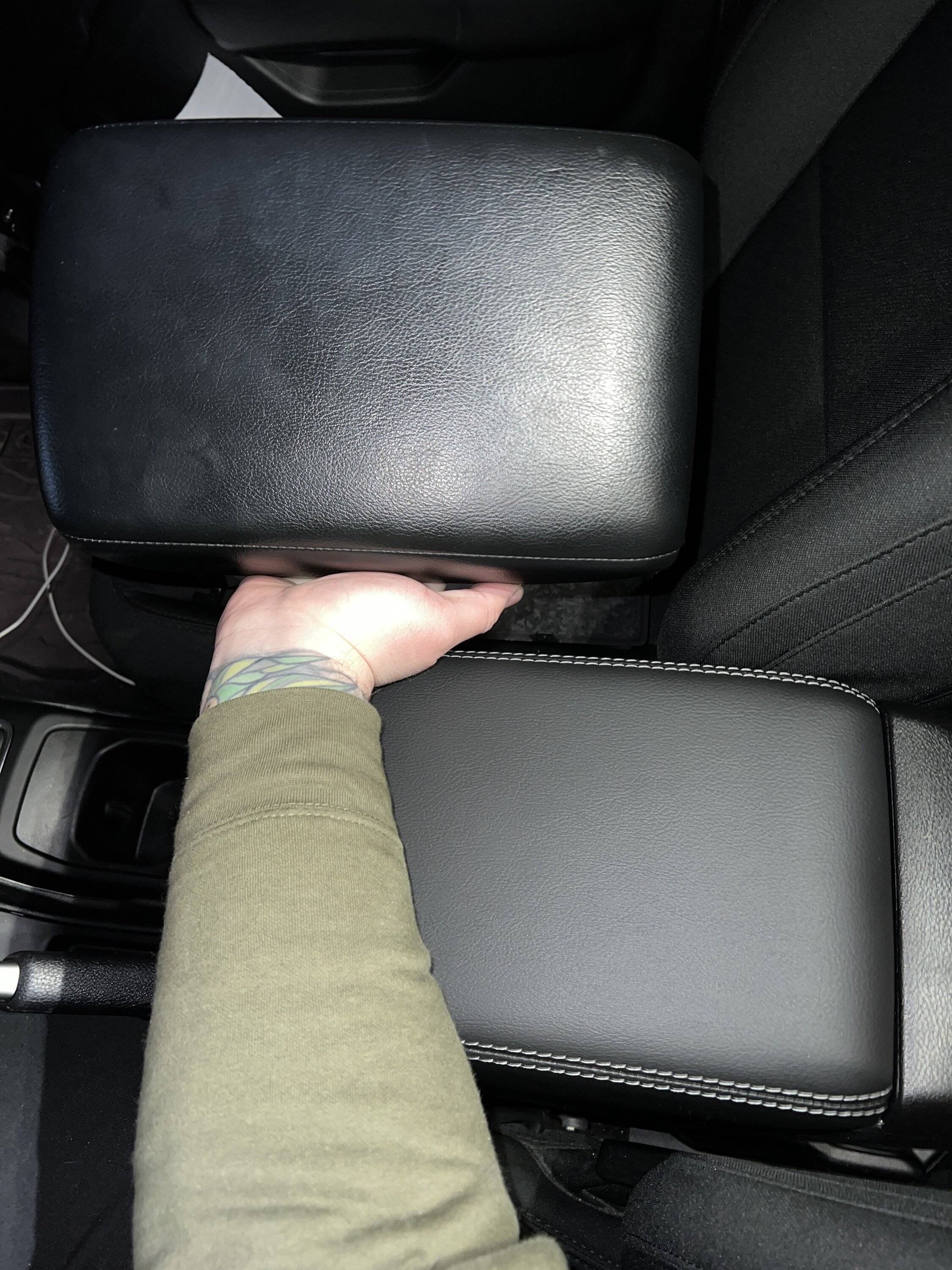

Before and after. Lock works great! Will probably do the e-brake handle next.
Jeep Wrangler JL Need help removing armrest lid 9D51BCDD-88B8-4D94-B020-DB6FD1DBF10E
Jeep Wrangler JL Need help removing armrest lid 1D1C7F2C-A656-4C30-8370-1214118888A4
Jeep Wrangler JL Need help removing armrest lid C5828644-6643-4091-B757-515D3A89032E
