Need Advice: What Relay?

xtopherm

Well-Known Member
Joined
Feb 13, 2019
Messages
239
Reaction score
364
Location
Boston, MA
Vehicle(s)
HellaYella 2019 JLUR
I am working on wiring some halogen driving lights and I am looking for recommendations for the right relay to use.

They are vintage Hella 170s, which are classic large diameter halogen driving lights. (I know they are not as power efficient as the newer LED lights, but they have a ton of sentimental value because they are from the first car I worked on with my Dad when I was young, and I have the tow package with the upgraded alternator, so should have plenty of power for occasional trail use.)

Anyone have any advice in terms of what is the right relay to use for a pair of 100W halogens? (Wiring advice or diagram would be really welcome too!)

Thanks!

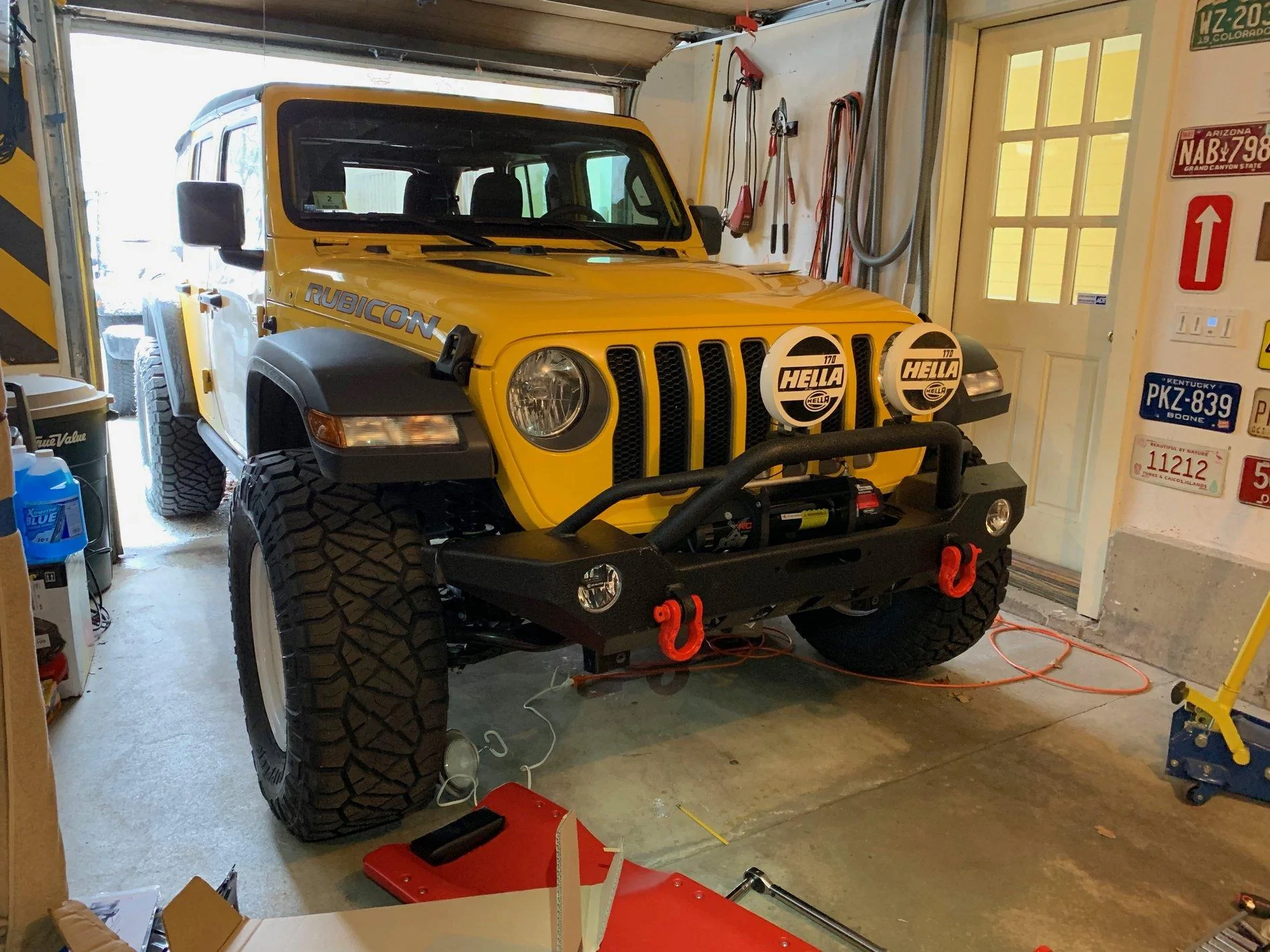

Jed Hellas - 1.jpg
Advertisement



Midwest22

Well-Known Member
First Name
Scott
Joined
May 11, 2018
Messages
134
Reaction score
149
Location
So Cal
Vehicle(s)
2018 JLUR
I am working on wiring some halogen driving lights and I am looking for recommendations for the right relay to use.

They are vintage Hella 170s, which are classic large diameter halogen driving lights. (I know they are not as power efficient as the newer LED lights, but they have a ton of sentimental value because they are from the first car I worked on with my Dad when I was young, and I have the tow package with the upgraded alternator, so should have plenty of power for occasional trail use.)

Anyone have any advice in terms of what is the right relay to use for a pair of 100W halogens? (Wiring advice or diagram would be really welcome too!)

Thanks!

Jed Hellas - 1.jpg

If each light is 100 watts then you will have 8.33amps flowing through the wires (100w / 12v = 8.33amps). This means your relay needs to be capable of this. Go to Amazon and search for:

12V 30 40A SPDT Bosch Style Automotive Relays & 5 Wire Socket

OP
OP
xtopherm

xtopherm

Well-Known Member
Joined
Feb 13, 2019
Messages
239
Reaction score
364
Location
Boston, MA
Vehicle(s)
HellaYella 2019 JLUR
If each light is 100 watts then you will have 8.33amps flowing through the wires (100w / 12v = 8.33amps). This means your relay needs to be capable of this. Go to Amazon and search for:

12V 30 40A SPDT Bosch Style Automotive Relays & 5 Wire Socket
Thanks!
