Okay so there is a lot of great threads on how to delete the auxiliary battery both from the top and from the bottom. One thing I think I did differently and thought you would all like to know is you can move the aux wiring to the main battery WITHOUT removing the fuse box. Quite frankly removing the fuse box scares the hell out of me. :surprised:

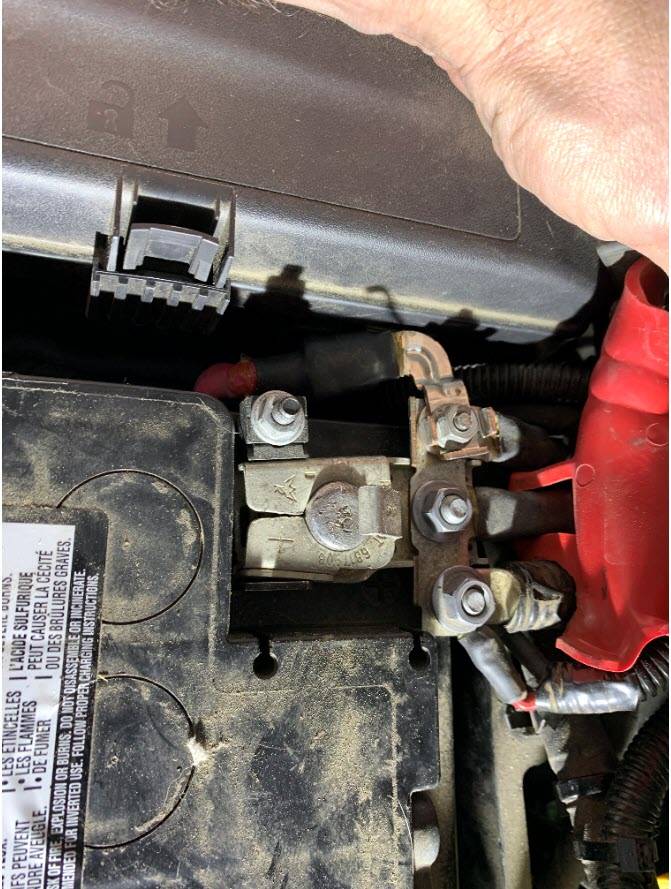

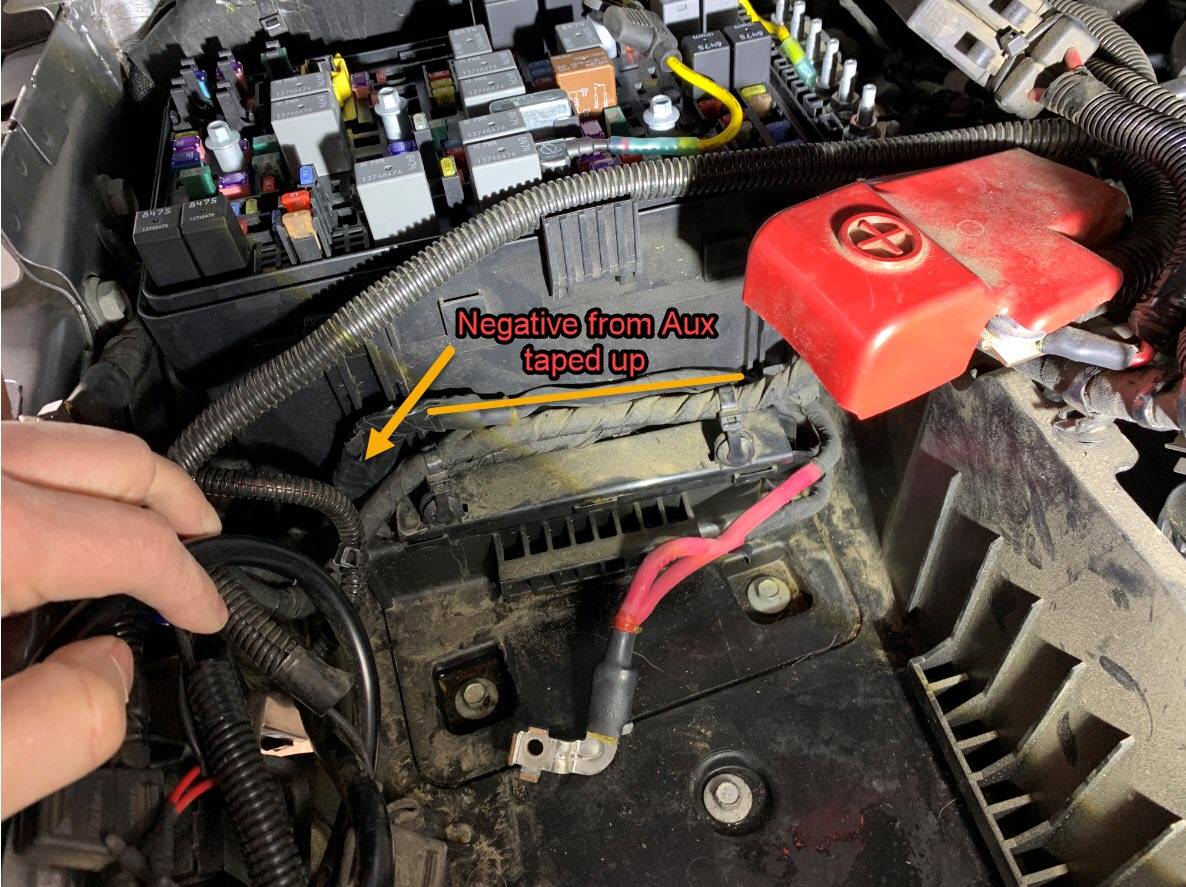

You need to remove the aux battery from the bottom and also remove the main battery. With both batteries removed, you can then push/pull the aux wiring through the small hole in the aux battery area to the main battery area.




OP
TroyBoy

TroyBoy

Well-Known Member
First Name
Troy
Joined
Jun 14, 2017
Messages
1,303
Reaction score
1,320
Location
Vancouver Island, Canada
Vehicle(s)
2018 JLUR
  • Thread starter
  • Thread Starter
  • #4
@TroyBoy has everything been aok since u did this? seems like the easiest solution
The only negative is if you want to use the start/stop feature. After 6 ess stops ess will throw an error. Once you stop your jeep and start it again the counter starts over.
i have ess turned off with the tazer so I never run into that.
