Good afternoon,

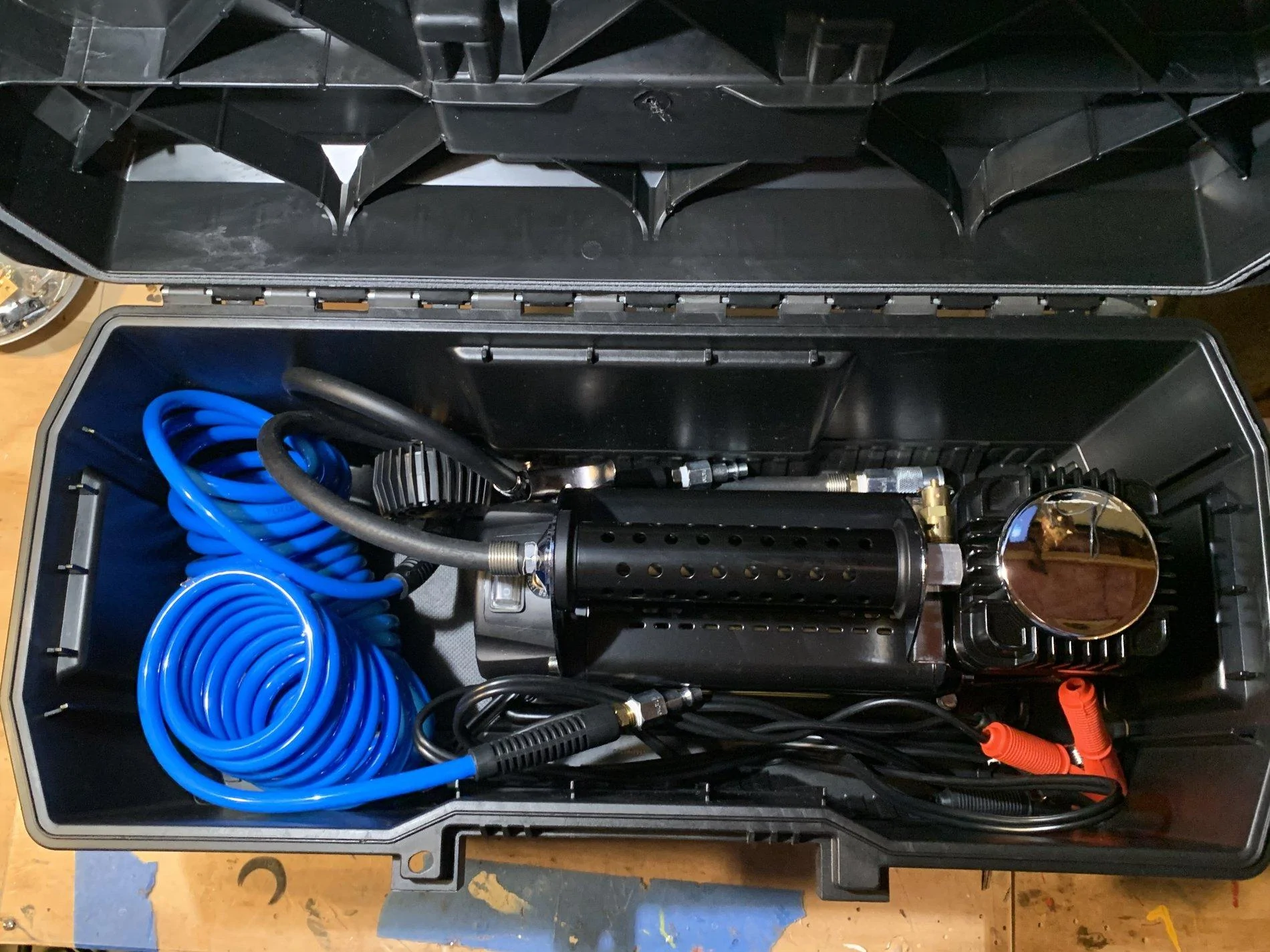

When I got my Smittybuilt air compressor I knew there was a few things that I needed to change right away. 1st thing was to get rid of the flimsy bag that it came with and decided to put it in a tool box. I spent few weeks looking around the web for a big enough tool box that was strong and not too expensive. The second thing I need to do was change the fittings from the Chinese fitting it came with and make them standard. Here is a list of things I used with links.


Smittybilt 2781 5.65 CFM Universal Air Compressor:

https://www.amazon.com/gp/product/B004K25GMG/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1


YOTOO Heavy Duty Air Compressor Accessories Kit 20 Pieces with 1/4 inch x 25 feet Polyurethane Air Compressor Hose, 100 PSI Tire Inflator Gauge, Air Blow Gun and Air Hose Fittings:

https://www.amazon.com/gp/product/B07GC4XBYS/ref=ppx_yo_dt_b_asin_title_o05_s00?ie=UTF8&psc=1


Air fitting 5/8 hose to ¼ standard fitting

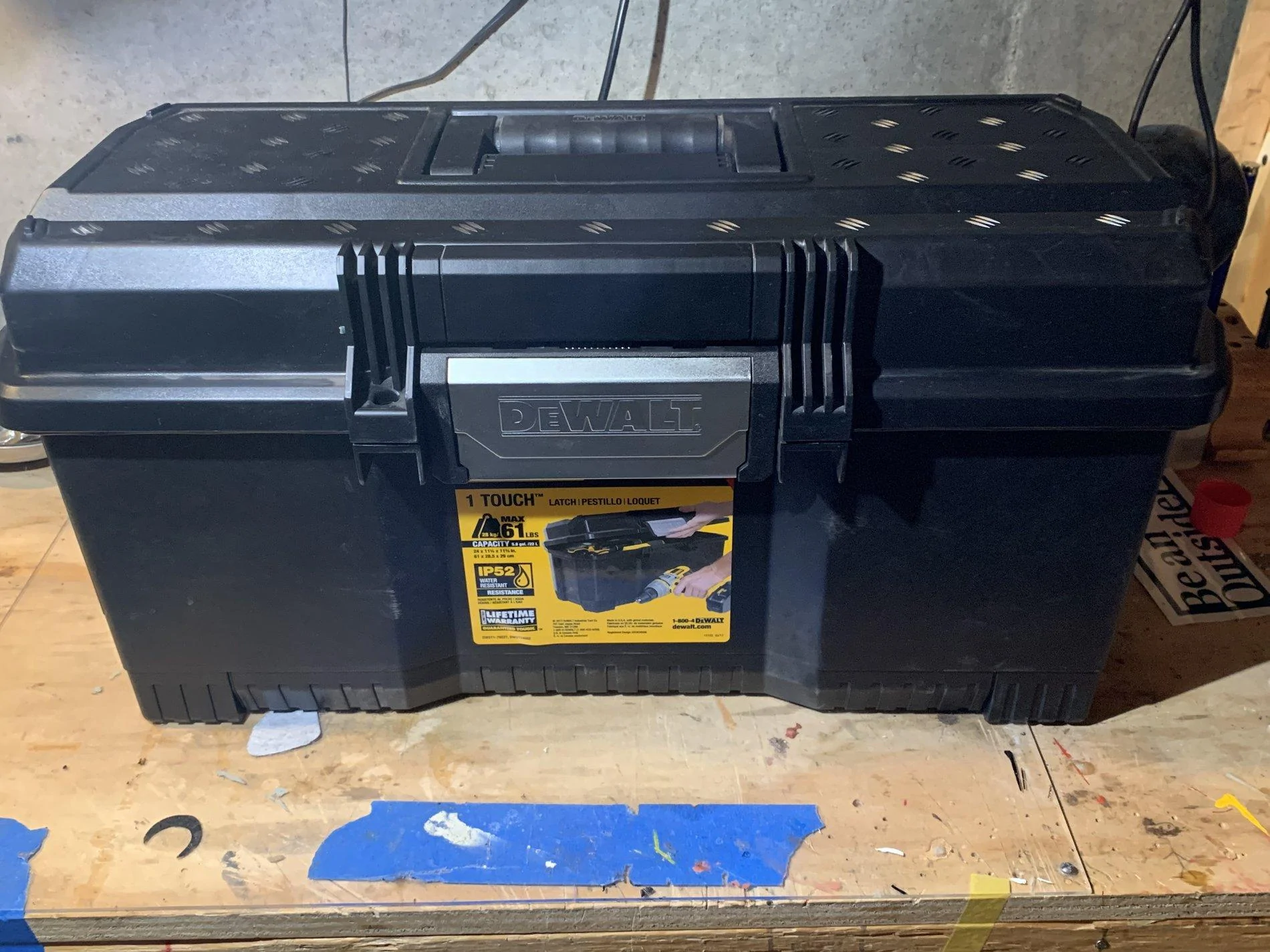

DEWALT 24 in. 1-Touch Latch Tool Box:

https://www.homedepot.com/p/DEWALT-24-in-1-Touch-Latch-Tool-Box-DWST24082/202710560






Advertisement


OP
Larrymuld

Larrymuld

Well-Known Member
First Name
Larry
Joined
Oct 30, 2019
Messages
140
Reaction score
256
Location
Huntingtown
Vehicle(s)
2020 JLU Rubicon
Occupation
Retired
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #2

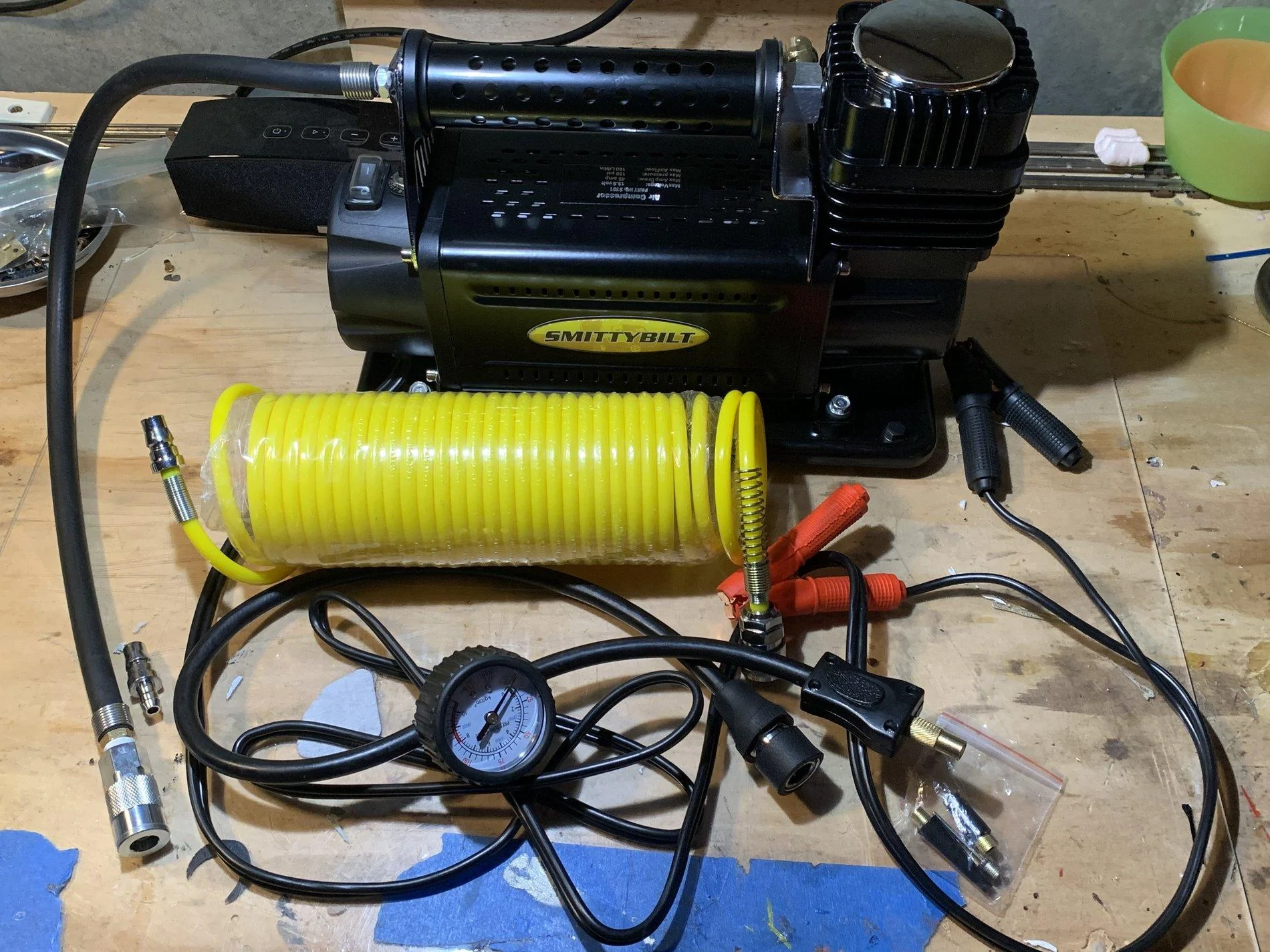

This is what comes with the SmittyBuilt air compressor.



OP
Larrymuld

Larrymuld

Well-Known Member
First Name
Larry
Joined
Oct 30, 2019
Messages
140
Reaction score
256
Location
Huntingtown
Vehicle(s)
2020 JLU Rubicon
Occupation
Retired
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #3

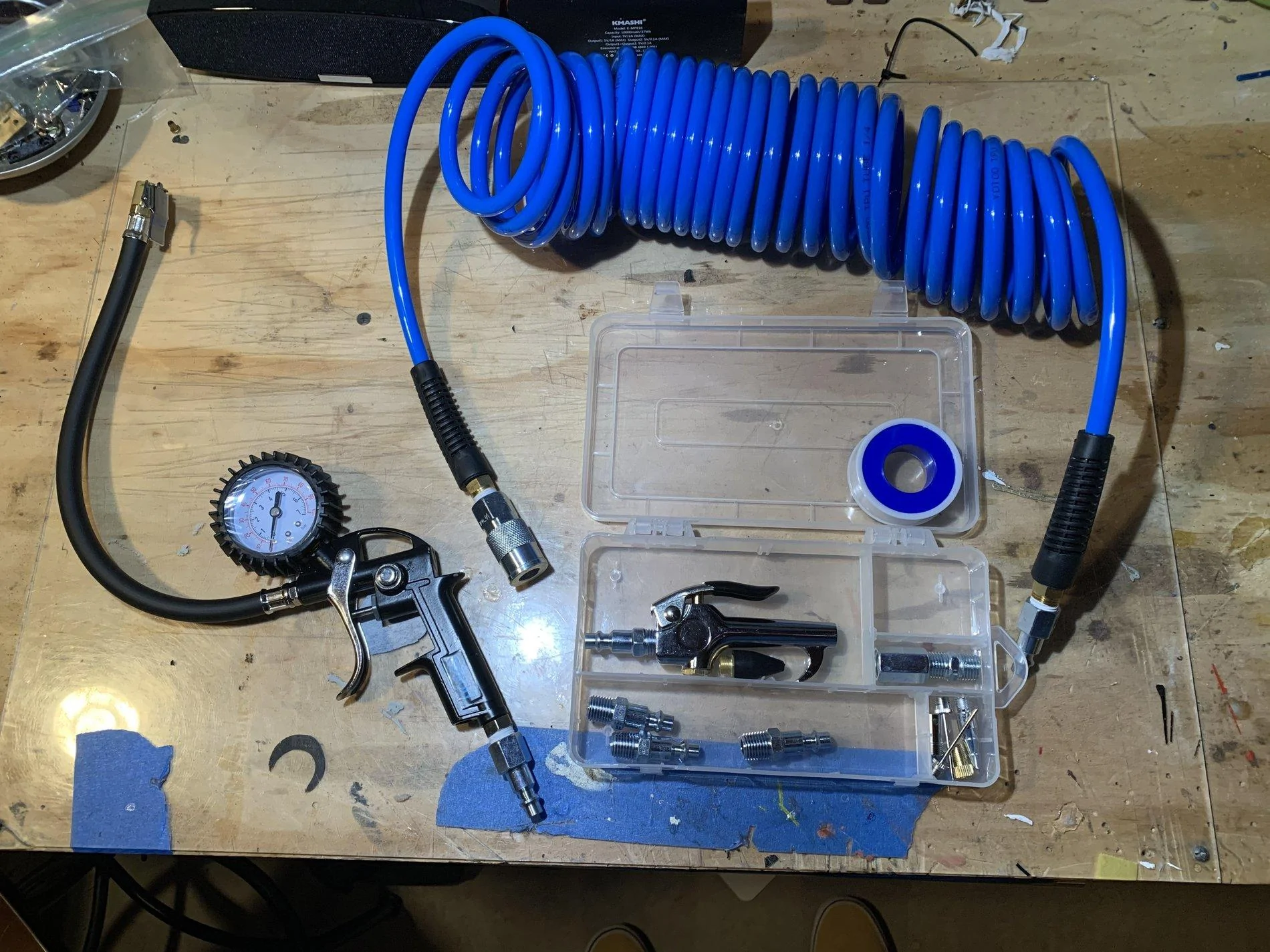

Air fitting Kit.


OP
Larrymuld

Larrymuld

Well-Known Member
First Name
Larry
Joined
Oct 30, 2019
Messages
140
Reaction score
256
Location
Huntingtown
Vehicle(s)
2020 JLU Rubicon
Occupation
Retired
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #5
The Air Compressor is bolted to the base plate with 4 M6 bolts, They take a 10mm wrench to remove.


OP
Larrymuld

Larrymuld

Well-Known Member
First Name
Larry
Joined
Oct 30, 2019
Messages
140
Reaction score
256
Location
Huntingtown
Vehicle(s)
2020 JLU Rubicon
Occupation
Retired
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #6

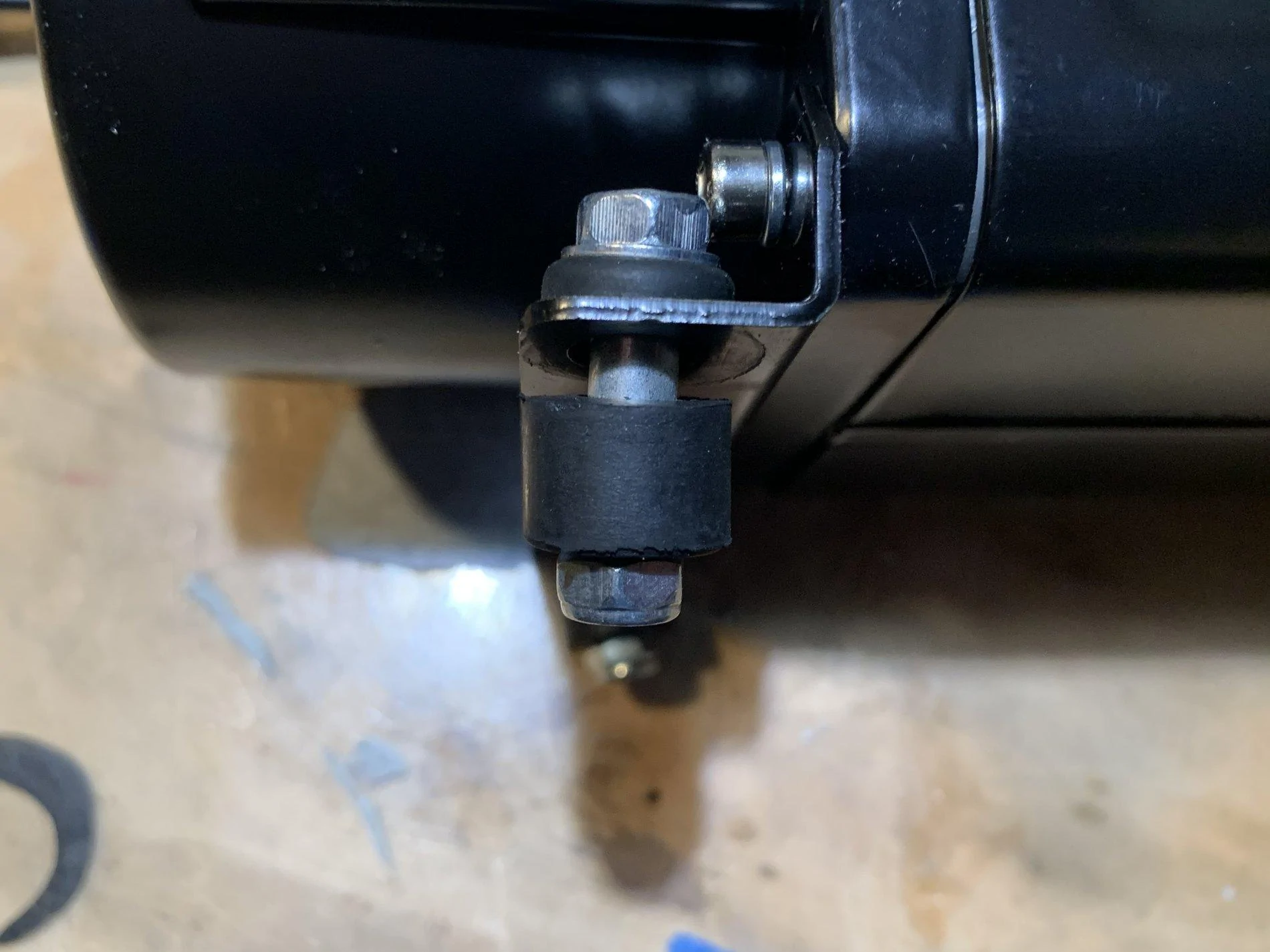

I reused the the metal and rubber spacer. There are three pieces to this.


OP
Larrymuld

Larrymuld

Well-Known Member
First Name
Larry
Joined
Oct 30, 2019
Messages
140
Reaction score
256
Location
Huntingtown
Vehicle(s)
2020 JLU Rubicon
Occupation
Retired
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #7
I used the bottom plate as a template to drill the holes using a 1/4 drill bit.


OP
Larrymuld

Larrymuld

Well-Known Member
First Name
Larry
Joined
Oct 30, 2019
Messages
140
Reaction score
256
Location
Huntingtown
Vehicle(s)
2020 JLU Rubicon
Occupation
Retired
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #8

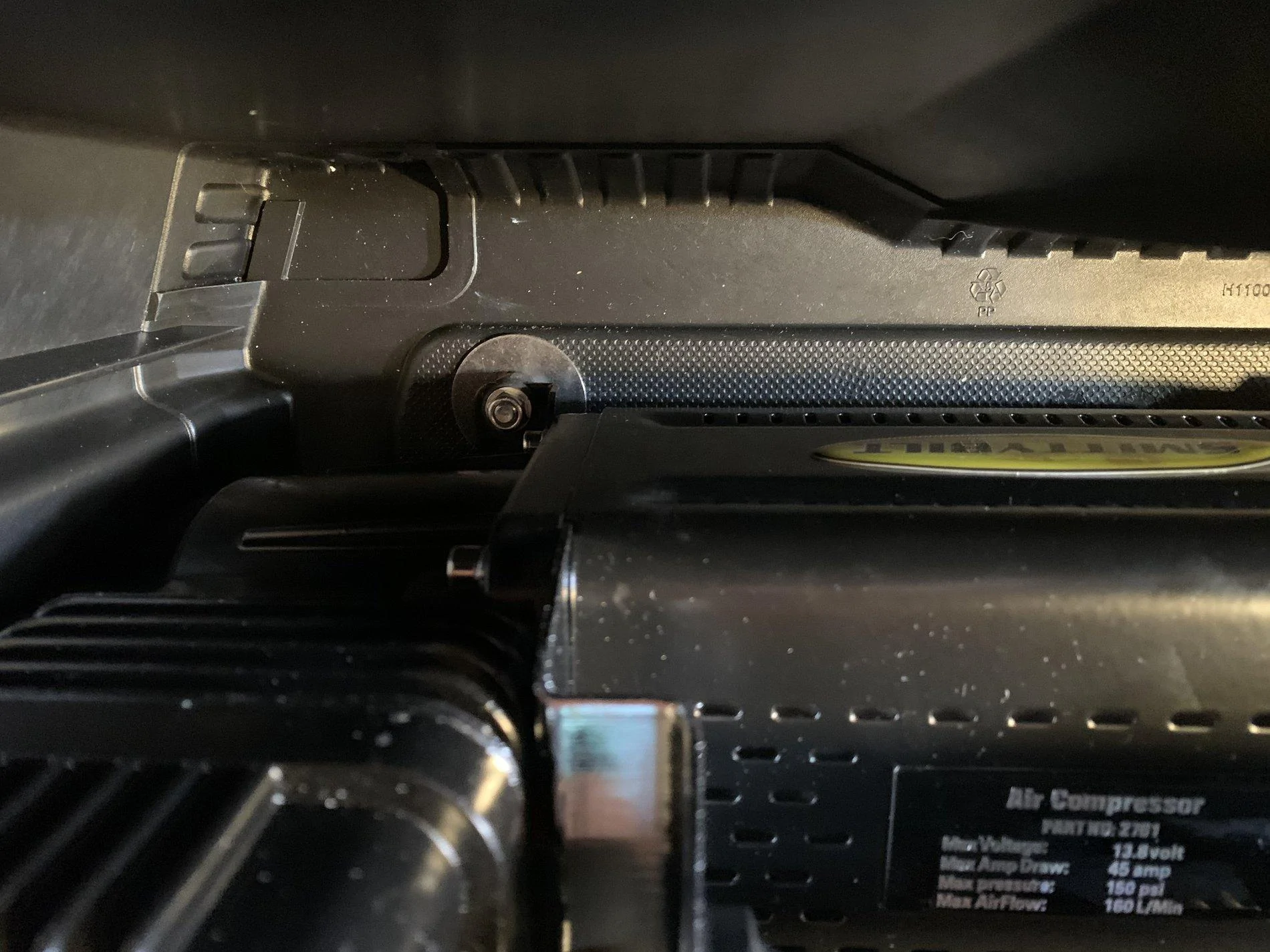

In the original configuration the bolts were facing down. I did not want dirt messing up the threads so I put the bolt heads on the bottom. I used the 1 1/2 in washers to re-enforce the bottom. There is one on each side of the toolbox.


OP
Larrymuld

Larrymuld

Well-Known Member
First Name
Larry
Joined
Oct 30, 2019
Messages
140
Reaction score
256
Location
Huntingtown
Vehicle(s)
2020 JLU Rubicon
Occupation
Retired
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #9


jlewissystem

Well-Known Member
First Name
J
Joined
Jan 24, 2019
Messages
973
Reaction score
1,828
Location
STL
Vehicle(s)
2019 JLUR MANUAL Mojito!
Build Thread
Link
Vehicle Showcase
1
Cool!


jeepdriver99

Well-Known Member
First Name
JD
Joined
Jan 27, 2018
Messages
155
Reaction score
110
Location
Central Ohio
Vehicle(s)
JL 2-door Rubicon, 15 Renegade, 06 GC, 67 Jeep M725, 54 Willys SW (WIP)
Occupation
W8BWD
I have that same compressor and used it last fall in the Rockies for my Jeep and a friend's Jeep. Worked like a charm. Watch that it has enough air and doesn't get too hot. It was snowing when we used it for ours going from 18 to 32 pounds on all tires and the compressor was quite warm.


MyLilPonyJeep

Active Member
Joined
Sep 26, 2019
Messages
37
Reaction score
80
Location
Georgia
Vehicle(s)
2018 Jeep Wrangler Unlimited Sahara, 2006 Dodge Viper SRT-10
I have that same compressor and used it last fall in the Rockies for my Jeep and a friend's Jeep. Worked like a charm. Watch that it has enough air and doesn't get too hot. It was snowing when we used it for ours going from 18 to 32 pounds on all tires and the compressor was quite warm.
How long did it take you to air up from 18 to 32 psi? I'm debating a compressor or a 10LB Power Tank setup. Thanks!


IndustrialAction

Well-Known Member
First Name
Patrick
Joined
Jun 21, 2018
Messages
568
Reaction score
734
Location
Northern VA
Vehicle(s)
Wrangler JLUR
Vehicle Showcase
1
I have that same compressor and used it last fall in the Rockies for my Jeep and a friend's Jeep. Worked like a charm. Watch that it has enough air and doesn't get too hot. It was snowing when we used it for ours going from 18 to 32 pounds on all tires and the compressor was quite warm.
I was just thinking that putting it inside an enclosed case wasn't a good idea
