I'm the first picture that is how I had it when I first put the compressor and mount in place but the air fitting held the front of the bracket off the floor by about 1.5". I then took the 90* off and it still teatered. The way it sits now in the last picture there is no fitting, just how it comes in the box. Still does not sit flat, can't see in the picture but it teaterd on that seam that runs across where the compressor sits.
Kinda figured that's what you did... Are you referencing the ARB install instructions? The black manifold cap that those fittings get screwed into needs to be rotated. You have to take off that shield with the big ARB sticker on it, unbolt the manifold cap from the compressor, thread the fittings and braided hose on, and then bolt the cap back on in the proper (rotated) position. The fittings WILL NOT be protruding through the hole in the shield when you're done.

Please read the directions carefully, it only gets more complicated from this point on...

Here's a link: ARB JL Under Seat Mount Instructions
Advertisement



Snowboardinwny

Well-Known Member
Joined
Aug 3, 2020
Messages
48
Reaction score
46
Location
Buffalo NY
Vehicle(s)
2014 528i
That is upside down I believe. I have the same mount. I will take pics tomorrow but the valve is on the top of mine. .
Kinda figured that's what you did... Are you referencing the ARB install instructions? The black manifold cap that those fittings get screwed into needs to be rotated. You have to take off that shield with the big ARB sticker on it, unbolt the manifold cap from the compressor, thread the fittings and braided hose on, and then bolt the cap back on in the proper (rotated) position. The fittings WILL NOT be protruding through the hole in the shield when you're done.

Please read the directions carefully, it only gets more complicated from this point on...

Here's a link: ARB JL Under Seat Mount Instructions
I see what I did wrong now. I assumed the fitting had to come thru the top hole of the compressor. I am referenceing the ARB instructions but I am guilty of not carefully reading that part and I see it now in the pictures. Thank you

I do still have the problem of the compressor not sitting flat but it is minimal. Probably going to use something in the front to shim it up a bit. Has anyone not drilled the front mounting points? I really do hate driling into things and potentially causing a spot for rust to form.

Not looking forward to the wiring process but I think I'm I can handle it!


FRV

Active Member
Joined
Sep 25, 2020
Messages
25
Reaction score
83
Location
NC
Vehicle(s)
2003 Suburban 4x4, 2021 JLU Rubicon
Installed a single ARB HO compressor in the wheel well using "Way of Life" ACB bracket of my 2021 JLUR with manual transmission. The compressor mounts right below the brake booster. No issues and no spacers required. No drilling required. Took a couple hours. Read his posted instructions and followed his YouTube video. Installed the one meter extension hose to front bumper. Slipped a 5" length of bicycle innertube over the chuck to keep any mud out of the chuck. The compressor works great on stock K02 33" tires. Takes about 1 min 20 seconds to inflated from 18 to 35 psi per tire. No noise in the jeep. No loss of interior space. Wire to Aux 4. So far, so good. I purchased all the components via the link in his YouTube video.



Snowboardinwny

Well-Known Member
Joined
Aug 3, 2020
Messages
48
Reaction score
46
Location
Buffalo NY
Vehicle(s)
2014 528i
1. Just run one wire from the ignition switched lead to 2 (input), and then run a small jumper from 2 to 6 (switch lighting). Keep in mind the switch will be lit at full brightness whenever the ignition is on (may be distracting at night).

2. Yes, purple wire from the compressor goes to 3 (output) on the switch.

3. Not sure where you got 5 and 6 to ground. Diagram shows 7 and 8 to ground, no?

I took a different approach to switch lighting. Hooked mine up to the dome light circuit so it comes on full brightness when I open the door, and then fades to black after closing the door. Takes a little bit of digging in the harness under the seat, but I’m happy with how it turned out.
Are you able to tell me what wire you tapped into for the switch lighting? I tried to search but am totally clueless! I'm still going back and forth on the wire harness, probably going to end up chopping it up, I hate birds nests!


tonygiotta

Well-Known Member
First Name
Tony
Joined
Aug 21, 2018
Messages
449
Reaction score
621
Location
Turlock, CA
Vehicle(s)
'18 Firecracker Red JLUR
Build Thread
Link
Occupation
Fire Captain
Are you able to tell me what wire you tapped into for the switch lighting? I tried to search but am totally clueless! I'm still going back and forth on the wire harness, probably going to end up chopping it up, I hate birds nests!
I chopped a majority of my wiring harness out. If you’re not using ARB air lockers, much of the harness really isn’t necessary. It’s been awhile since I did my install, and I’m not going to undo it to check on the wiring for you. Wiring diagrams available on this forum indicate the dome circuit should be either an Orange/Grey or a Yellow/Violet wire in the large bundle near the passenger seat. Going to need to probe some wires, if that’s something you’re comfortable with...


tonygiotta

Well-Known Member
First Name
Tony
Joined
Aug 21, 2018
Messages
449
Reaction score
621
Location
Turlock, CA
Vehicle(s)
'18 Firecracker Red JLUR
Build Thread
Link
Occupation
Fire Captain
Are you able to tell me what wire you tapped into for the switch lighting? I tried to search but am totally clueless!
It’s been awhile since I did my install, and I’m not going to undo it to check on the wiring for you. Wiring diagrams available on this forum indicate the dome circuit should be either an Orange/Grey or a Yellow/Violet wire in the large bundle near the passenger seat. Going to need to probe some wires, if that’s something you’re comfortable with...

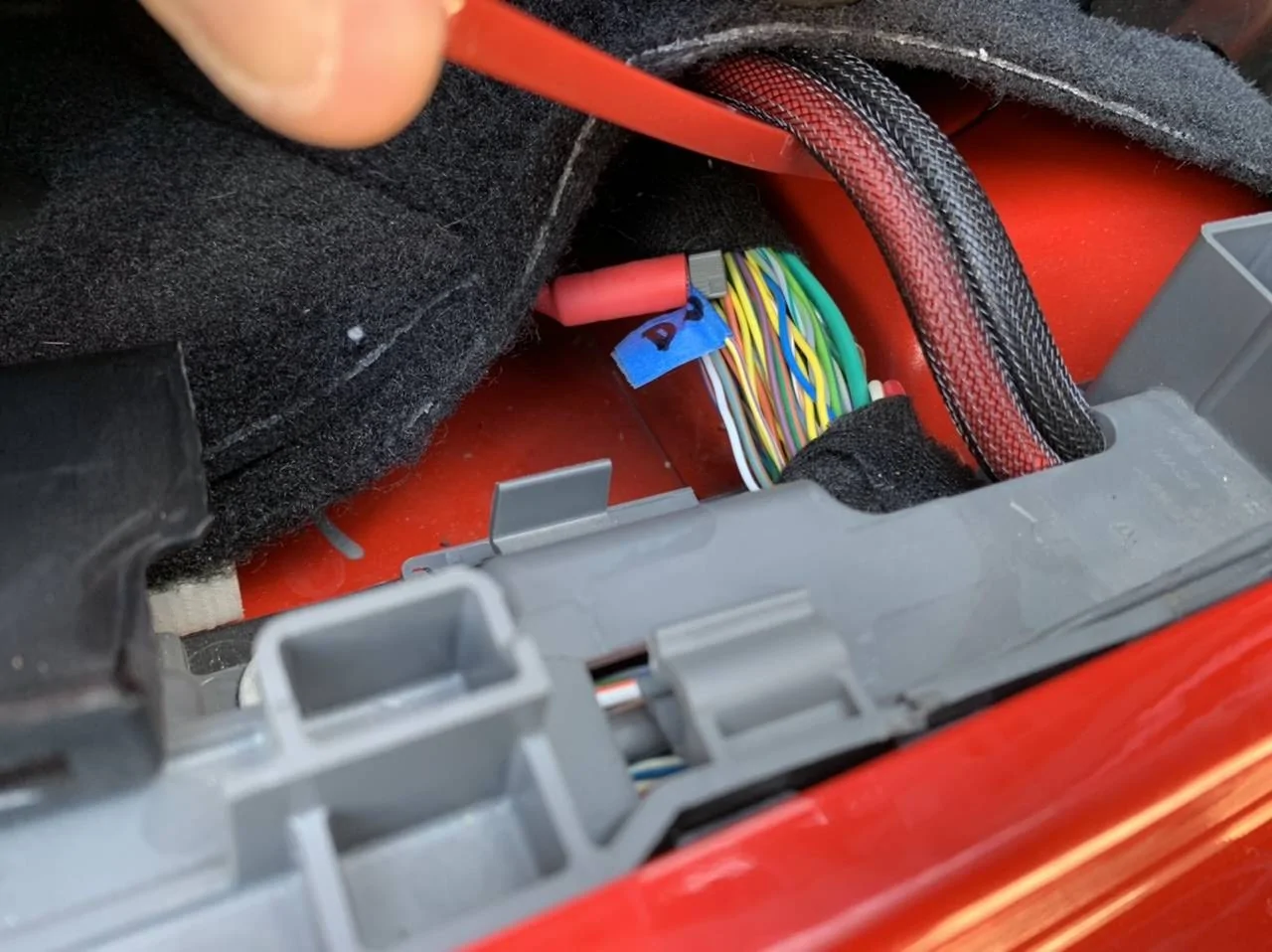

Well, you’re in luck. I had to open up my front passenger trim to do a little wiring project, and it opened up the spot where I tapped my dome light wiring. It’s in the wiring bundle just behind the front seat legs and it is in fact the Yellow/Violet wire. Posi-tapped and marked with some blue tape in the following picture...



Snowboardinwny

Well-Known Member
Joined
Aug 3, 2020
Messages
48
Reaction score
46
Location
Buffalo NY
Vehicle(s)
2014 528i
Well, you’re in luck. I had to open up my front passenger trim to do a little wiring project, and it opened up the spot where I tapped my dome light wiring. It’s in the wiring bundle just behind the front seat legs and it is in fact the Yellow/Violet wire. Posi-tapped and marked with some blue tape in the following picture...

Thank you, I really appreciate the added info. I am just finishing up my install now. I decided I didn't want to mess with that bundle because we'll, I don't want to screw anything up lol. I'm going to splice into the light by the foot well instead as I'll be attaching my ignition wire at that spot anyhow.

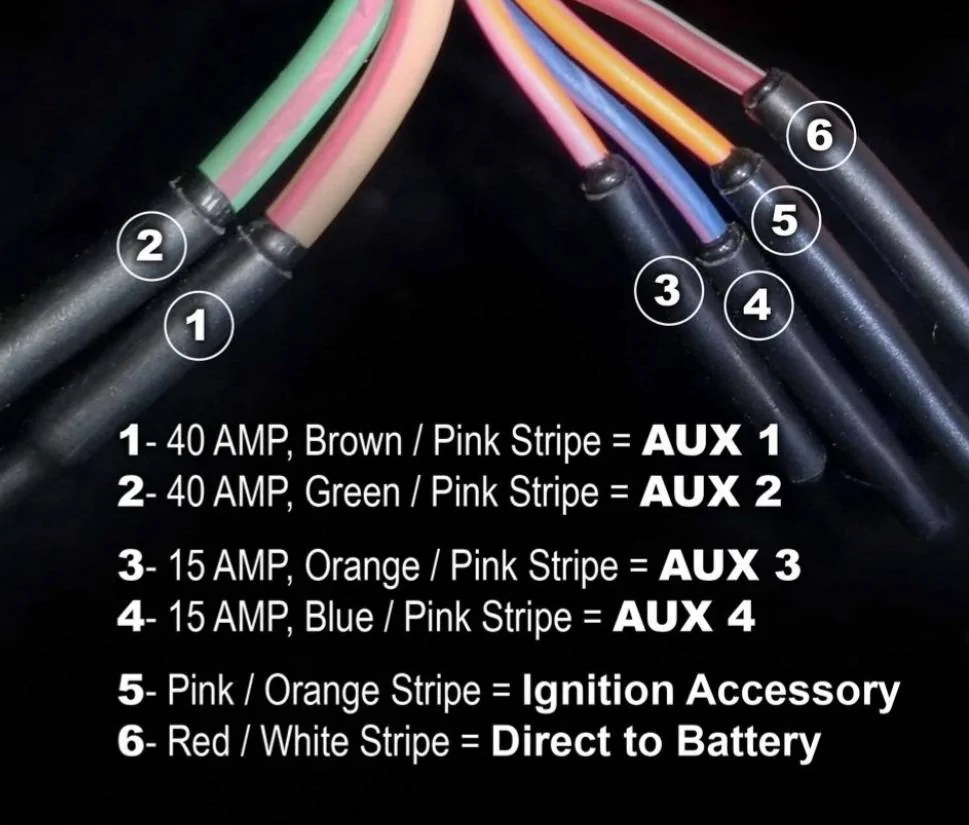

That brings me to my last question. What wire is the ignition accessory? The picture says pink with orange stripe, but the wire labeled #5 looks to be orange with pink stripe. Regardless, is that the correct wire to connect to?



Goin2drt

Well-Known Member
Joined
Oct 25, 2017
Messages
2,400
Reaction score
2,832
Location
Kentucky (formerly Peoples Republik of Kalifornia)
Vehicle(s)
18 Rubicon, 17 Grand Cherokee Trailhawk
Thank you, I really appreciate the added info. I am just finishing up my install now. I decided I didn't want to mess with that bundle because we'll, I don't want to screw anything up lol. I'm going to splice into the light by the foot well instead as I'll be attaching my ignition wire at that spot anyhow.

That brings me to my last question. What wire is the ignition accessory? The picture says pink with orange stripe, but the wire labeled #5 looks to be orange with pink stripe. Regardless, is that the correct wire to connect to?

This diagram is correct. I have used it for 3 years. Pic may look that way but it is pink with orange stripe. Go by the description, not the pic.


Snowboardinwny

Well-Known Member
Joined
Aug 3, 2020
Messages
48
Reaction score
46
Location
Buffalo NY
Vehicle(s)
2014 528i
This diagram is correct. I have used it for 3 years. Pic may look that way but it is pink with orange stripe. Go by the description, not the pic.
Thank you, I actually wrapped up my install this morning at 7:30 EST. Just in time to go wheeling today, even helped another air back up! I used process of elimination after seeing that there are only four wires in the engine bay when I was browsing youtube. I will reference the description in the future for sure, thank you!

I have to figure out something with the air tank tho, I'm assuming my transfer case for the rock trac is larger than the regular transfer case. My tank doesn't fit in the designated space. I'll have to makes a couple brackets to shift the tank towards the back of the Jeep 2-3 inches. The compressor wasn't too loud either.

Thanks to everyone in this thread for all the helpful information.
