Ok, compressor fixed and I decided to give it another try under the hood. With a heat shield and air filters relocated.
Love this - I am getting so much good info! I plan to remount using the new bracket, now I want to relocate the filters and add a valve splitter so it goes to my UpDownAir system and has a separate connector for a regular air hose. That way I can help my fellow Jeepers air up as needed. Always looking for improvements :)
Advertisement



Mantacon

Well-Known Member
First Name
Eric
Joined
Jul 30, 2018
Messages
365
Reaction score
417
Location
California
Vehicle(s)
2018 Sting Grey JLUR
Love this - I am getting so much good info! I plan to remount using the new bracket, now I want to relocate the filters and add a valve splitter so it goes to my UpDownAir system and has a separate connector for a regular air hose. That way I can help my fellow Jeepers air up as needed. Always looking for improvements :)
Took out my UpDownAir. That shit never worked right.


1996cc

Well-Known Member
Joined
Aug 19, 2019
Messages
340
Reaction score
265
Location
Oregon
Vehicle(s)
19 JKUR
That looks great. However, the ARB manual has restrictions on how long the intake extensions can be based on the ID of the extension hoses. By going down first and then back up, you’re well past their recommendations. At the very least, I would exit the compressor strait up to lessen the overall length as much as possible.


ExitLeft

Well-Known Member
First Name
Wes
Joined
Sep 5, 2018
Messages
585
Reaction score
560
Location
Philly ‘burbs
Vehicle(s)
2003 Jeep Wrangler TJ
Vehicle Showcase
1
That looks great. However, the ARB manual has restrictions on how long the intake extensions can be based on the ID of the extension hoses. By going down first and then back up, you’re well past their recommendations. At the very least, I would exit the compressor strait up to lessen the overall length as much as possible.
Or increase the inner diameter of the hose.


Mantacon

Well-Known Member
First Name
Eric
Joined
Jul 30, 2018
Messages
365
Reaction score
417
Location
California
Vehicle(s)
2018 Sting Grey JLUR
That looks great. However, the ARB manual has restrictions on how long the intake extensions can be based on the ID of the extension hoses. By going down first and then back up, you’re well past their recommendations. At the very least, I would exit the compressor strait up to lessen the overall length as much as possible.
Really? Do you have the manual page by chance? I am curious why?


word302

Well-Known Member
Joined
Sep 13, 2017
Messages
3,419
Reaction score
3,671
Location
Oregon
Vehicle(s)
JLU
I can shorten them a bit by routing upwards but I was trying to make it cleaner and away from the heat.
Your issues are likely not caused by intake air temperature anyway. Your failure was likely from the motor getting heat-soaked.


Remmy

Well-Known Member
First Name
Corey
Joined
Jun 22, 2019
Messages
59
Reaction score
56
Location
Alaska
Vehicle(s)
2019 JL Rubicon, 2017 F250 6.7, 2018 Expedition
Up here we are in and around way to much water for me to risk an underhood mount. I'm really digging the seat mount though....may have to take the plunge on a new compressor.

Jeep looks great Mantacon, I may have to powder coat my rings after seeing that thing. :like:


jeepdabest

Well-Known Member
First Name
Bobby
Joined
Mar 27, 2019
Messages
821
Reaction score
1,187
Location
Arizona
Vehicle(s)
2019 JL Sahara
I have an ARB Dual Compressor, I am curious how people are mounting it in a JL?

<EDITED WITH UPDATED THREAD INFO>

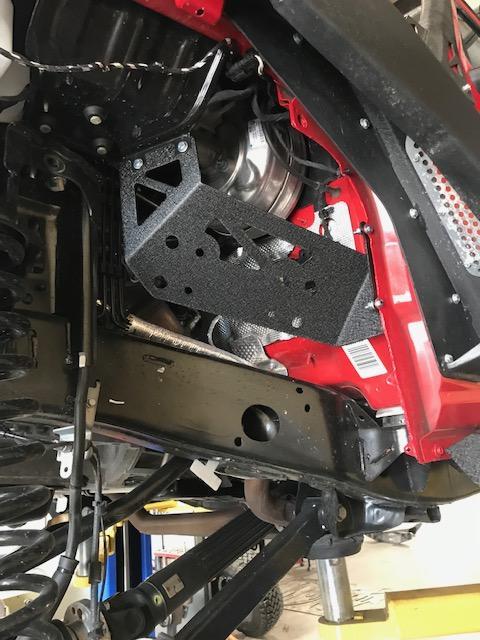

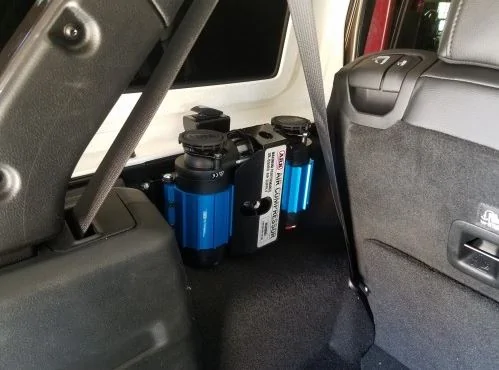

MORE bracket
Con: I am not that happy about the spot for when I have the hard top off...
https://www.mountainoffroad.com/jeep-jl/jl-accessories/air-compressors/815572023674.html

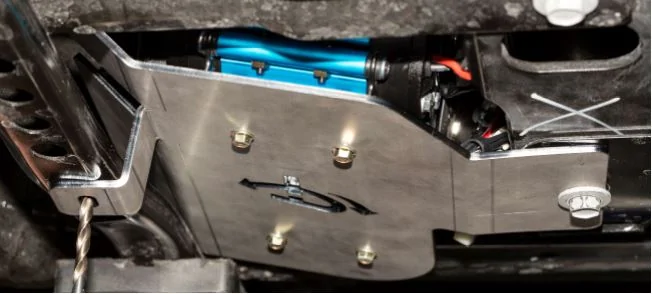

Up Down Air skid mount
Con: Mounts low and ARB compressor cannot handle being submerged in water
https://updownair.com/jeep-jk-2/


Innovative JK Products
Con: Due to the air vent, it is mounted really far back... fear my kids will kick it all day
http://www.innovativejkproducts.com...or-jeep-jlu-for-use-with-arb-twin-compressor/


American Adventure Lab
Con: I usually have a trunk full of stuff when wheeling, so getting access to the under storage would be annoying
https://americanadventurelab.com/product/jeep-jl-dual-arb-compressor-mount/

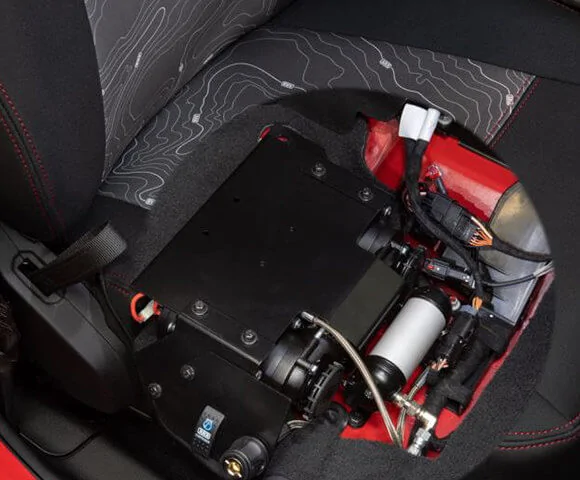

DV8
https://dv8offroad.com/products/jee...b-ckmta12-cmjl-01?_pos=1&_sid=c00223ba6&_ss=r


ARB (part # 3550220)
https://arbusa.com/air-compressors/on-board-air-compressors/
Have you ever mounted a compressor and never called it again? Be honest.
