Mounting ARB Air Compressor

Rudolph Hart

Well-Known Member
First Name
John
Joined
Feb 23, 2019
Messages
3,491
Reaction score
25,642
Location
Cheshire UK
Vehicle(s)
2018 JLUR GME Mojito!
Occupation
Semi retired
Looks good, any insights on how you wired it? Where did you get it also? I am still showing it as backordered/preorder? Thank you.
Hi Luis, I’m getting the wiring done for me tomorrow, that’s above my pay grade lol. All the wiring harnesses are included in the kit.

ARB’s instructions weren’t very good but I figured it out. I did need to source (locally here in the U.K.) some fittings and a hose which weren’t included with the kit, these were easy to get and cost less than £20...maybe $25.

I already had the compressor but was waiting for a bracket I liked...so I preordered it from Qudratec when it was first launched. Looks like they’re out of stock but could supply again 9th November...
https://www.quadratec.com/p/arb/twin-air-compressor-mounting-bracket-jeep-wrangler-jl-3550220
Advertisement



Escareno187

Member
First Name
Robert
Joined
Oct 27, 2019
Messages
7
Reaction score
1
Location
Apple Valley
Vehicle(s)
2019 JLU
I installed my ARB dual compressor today using ARB’s new underseat mount. It’s much further under the seat than the other underseat product I’ve seen.

Nice product, terrible instructions!

I really like the installation by @Kansascoast especially with the male attachment below the drivers side door. Once Aux 3 is engaged you can air up all the tires. Very clean install and no concerns of passengers kicking the compressor. I will be purchasing the ARB dual.
Looks good, any insights on how you wired it? Where did you get it also? I am still showing it as backordered/preorder? Thank you.
I went with UPDOWN AIR. underseat mount and their quick connect system for airing up and down all four tires at one time. Install was pretty easy.


FitBliss

Well-Known Member
First Name
Gabriel
Joined
May 31, 2019
Messages
261
Reaction score
441
Location
MN
Vehicle(s)
2019 Jeep Wrangler Limited Rubicon
Vehicle Showcase
1
Really want a good one in the engine bay as well!


aerosynch

Well-Known Member
First Name
Luis
Joined
Mar 21, 2018
Messages
130
Reaction score
328
Location
Miami, FL
Vehicle(s)
2018 JLUR Bright White
Hi Luis, I’m getting the wiring done for me tomorrow, that’s above my pay grade lol. All the wiring harnesses are included in the kit.

ARB’s instructions weren’t very good but I figured it out. I did need to source (locally here in the U.K.) some fittings and a hose which weren’t included with the kit, these were easy to get and cost less than £20...maybe $25.

I already had the compressor but was waiting for a bracket I liked...so I preordered it from Qudratec when it was first launched. Looks like they’re out of stock but could supply again 9th November...
https://www.quadratec.com/p/arb/twin-air-compressor-mounting-bracket-jeep-wrangler-jl-3550220
Thanks for the info I’ll try to order it now.


RubenZ

Well-Known Member
First Name
Ruben
Joined
Jun 24, 2018
Messages
1,767
Reaction score
1,621
Location
Deep South Texas
Website
myjlproject.com
Vehicle(s)
2020 Toyota Tacoma TRD Off-Road, 18’ Toyota 4Runner

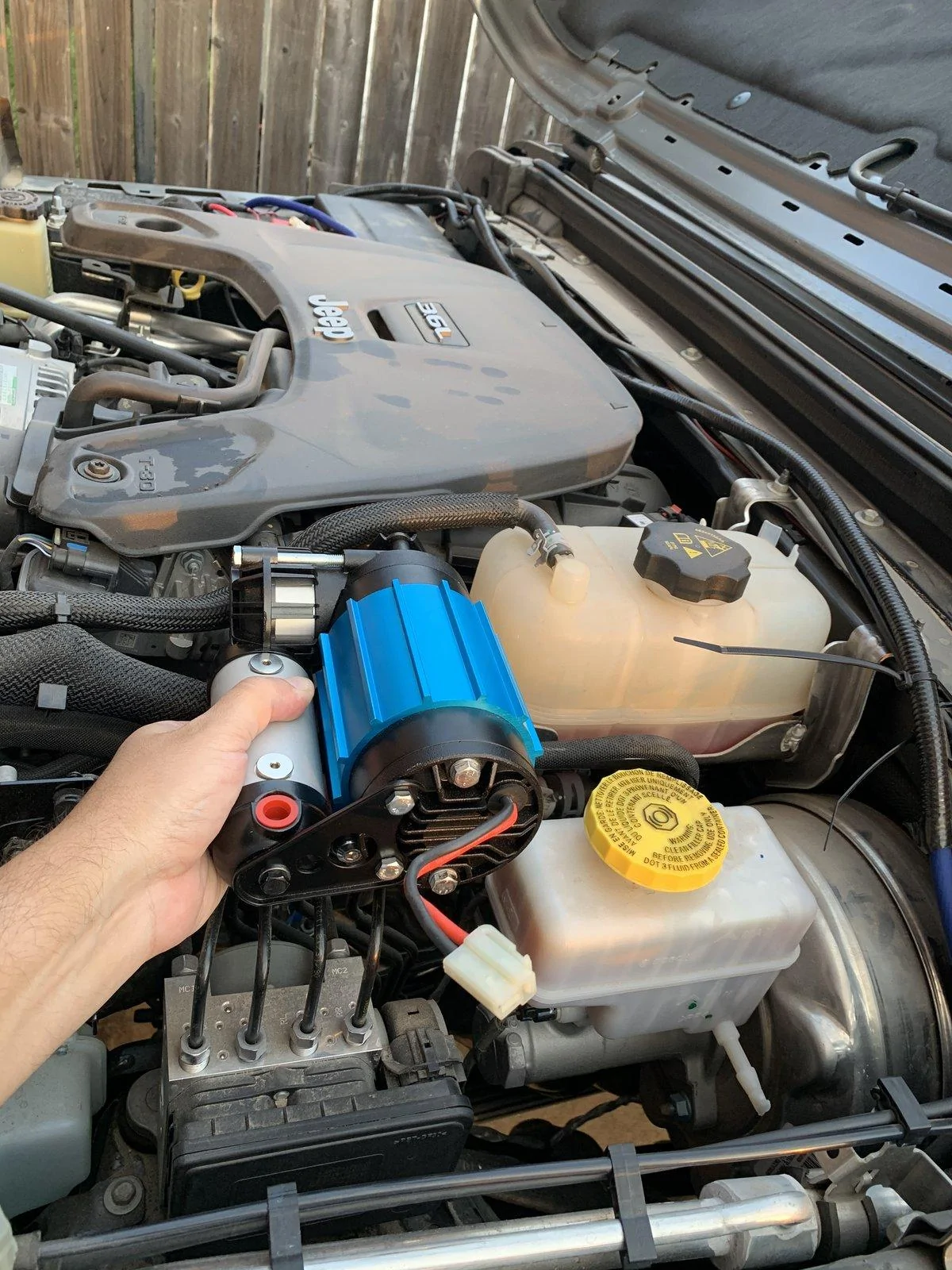

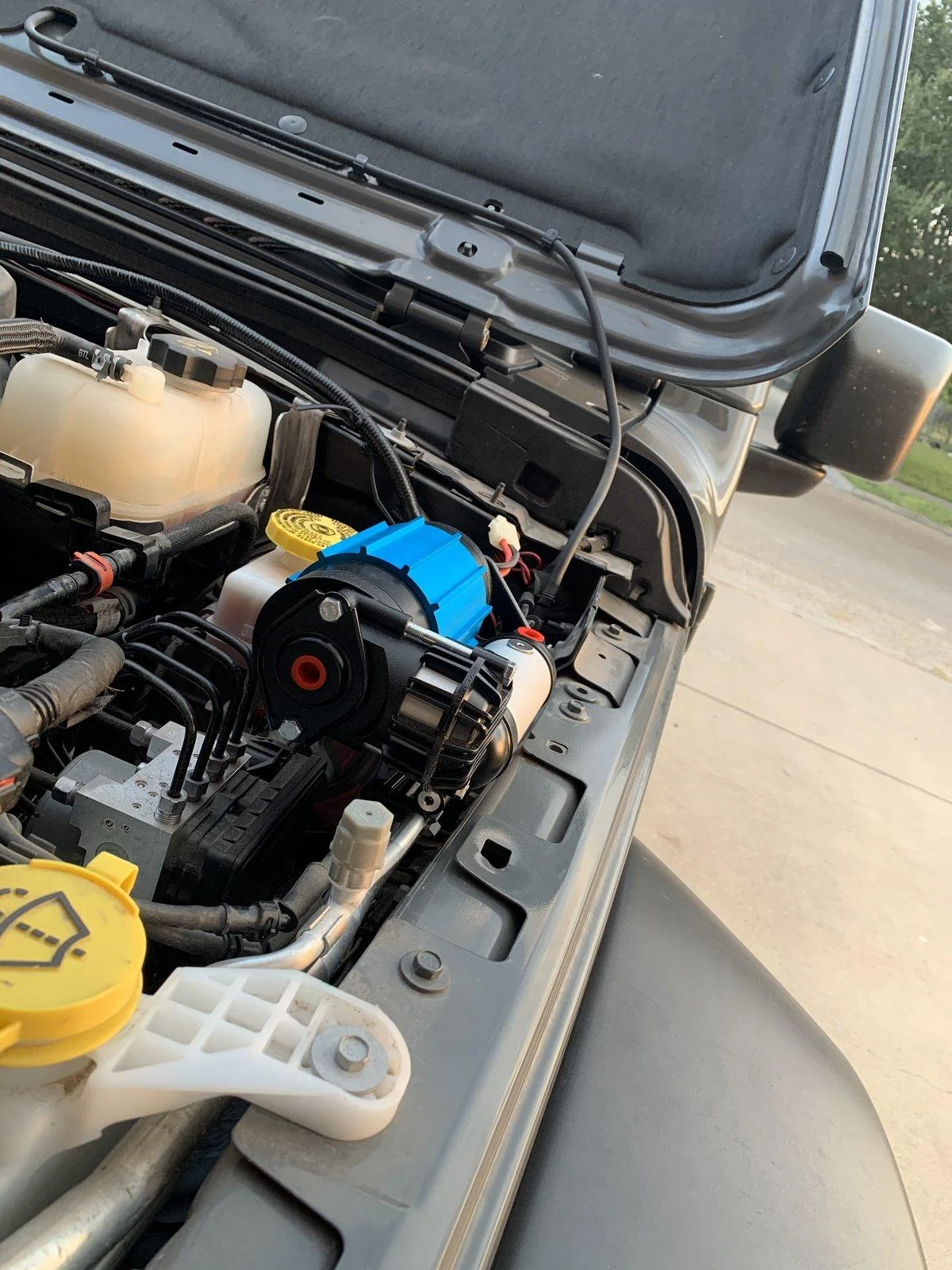

Here’s what I’m thinking. I tested hood clearance and seems good in either location. Just trying to see which spot is easiest to design and weld up a bracket for.





_olllllllo_

Well-Known Member
First Name
William
Joined
Jul 18, 2018
Messages
858
Reaction score
1,404
Location
The Wild Wild West in AZ
Vehicle(s)
2019 Hellayella JLU Rubicon 6-speed
I installed my ARB dual compressor today using ARB’s new underseat mount. It’s much further under the seat than the other underseat product I’ve seen.

Nice product, terrible instructions!

I like that a lot. It should definitely not get wet going across a stream and if it does you may have bigger issues. How was wiring it up?


roaniecowpony

Well-Known Member
Joined
Dec 4, 2018
Messages
2,291
Reaction score
2,484
Location
90505
Vehicle(s)
2018 JLUR, 14 GMC 1500 CC All TERRAIN
Occupation
Retired Engineer
That’s the route I went. Got a smittybilt 2781 for $134. Seems comparable to the single ARB in speed. I’d like have an air compressor mounted but none of the options available appealed to me and overall cost was way more.
I was packing for a hunting trip that I'm on now and realized I didn't really have room for the big Viair 440P I have. So, I bought a little cheapo compressor and tossed it in the cargo compartment with my recovery gear, a tire plug kit, and some basic tools. At least I'll be able to plug a small hole and inflate a tire....eventually. I recall years ago, a very experienced off-roader had a flat and had one of these cheapo compressors and a plug kit. He fixed a flat and was ready to go in short order.


_olllllllo_

Well-Known Member
First Name
William
Joined
Jul 18, 2018
Messages
858
Reaction score
1,404
Location
The Wild Wild West in AZ
Vehicle(s)
2019 Hellayella JLU Rubicon 6-speed
I’m waiting for an adult to help me with the wiring, maybe Friday.
The wiring is my biggest concern. I am waiting to see if there are any Black Friday deals, but definitely want the ARB dual compressor and hooked up to the aux switch. Think I still prefer it in the engine compartment. I am unsure if I need the extra air tank, but could add it later.


Goin2drt

Well-Known Member
Joined
Oct 25, 2017
Messages
2,379
Reaction score
2,795
Location
Kentucky (formerly Peoples Republik of Kalifornia)
Vehicle(s)
18 Rubicon, 17 Grand Cherokee Trailhawk
I used the @Kansas JL Mount in the engine and ran all the wiring myself. I am a total newb and was able to do it. If I can anyone can. Using Aux 3 or maybe 4 I forget. It has held up all year and in some bad weather as well. So far so good.


_olllllllo_

Well-Known Member
First Name
William
Joined
Jul 18, 2018
Messages
858
Reaction score
1,404
Location
The Wild Wild West in AZ
Vehicle(s)
2019 Hellayella JLU Rubicon 6-speed
I used the @Kansas JL Mount in the engine and ran all the wiring myself. I am a total newb and was able to do it. If I can anyone can. Using Aux 3 or maybe 4 I forget. It has held up all year and in some bad weather as well. So far so good.
That is great from an experience side. I will give it a go. I will probably go with the DV8 mount unless I can get in touch with @Kansas JL and buy the mount from him.


Escareno187

Member
First Name
Robert
Joined
Oct 27, 2019
Messages
7
Reaction score
1
Location
Apple Valley
Vehicle(s)
2019 JLU
The wiring is my biggest concern. I am waiting to see if there are any Black Friday deals, but definitely want the ARB dual compressor and hooked up to the aux switch. Think I still prefer it in the engine compartment. I am unsure if I need the extra air tank, but could add it later.
Wiring is pretty much 3 wires.. positive (red) & negative (black) to the battery make sure the fuse is located at battery so your wiring is protected if it grounds out. Pretty sure all that was needed was the purple wire, ran to the spod or MLC-6. That sends power to compressor to turn it on... no other wire was needed unless you plan to use their switch with the indicator light that dims...


_olllllllo_

Well-Known Member
First Name
William
Joined
Jul 18, 2018
Messages
858
Reaction score
1,404
Location
The Wild Wild West in AZ
Vehicle(s)
2019 Hellayella JLU Rubicon 6-speed
I installed my ARB dual compressor today using ARB’s new underseat mount. It’s much further under the seat than the other underseat product I’ve seen.

Nice product, terrible instructions!

Do you have the all weather floor mats? If so do they still fit without modification in the rear?
