Mopar Tow Harness Install

duke114

Member
First Name
Jonathan
Joined
May 13, 2018
Messages
16
Reaction score
7
Location
Land O Lakes, FL
Vehicle(s)
2018 JLU Sport
Does anyone know where the inline fuse is? While installing I sparked a few times when running the power line from the battery to the back. I think the fuse in that wire needs replaced but it is not obvious to me where it is. If you haven’t installed yours yet do not connect the power to the fuse box until you are completely done connecting all the other wires in the back.
Advertisement



Halstem1

Well-Known Member
First Name
Mike
Joined
Jun 23, 2019
Messages
1,048
Reaction score
668
Location
Grimes, IA
Vehicle(s)
2019 Jeep Wrangler Unlimited Rubicon
Does anyone know where the inline fuse is? While installing I sparked a few times when running the power line from the battery to the back. I think the fuse in that wire needs replaced but it is not obvious to me where it is. If you haven’t installed yours yet do not connect the power to the fuse box until you are completely done connecting all the other wires in the back.
It’s directly off the battery lead. There is a little black fuse holder inline with the power that’s wrapped in tape. I popped my fuse too. I didn’t know you have to disconnect the second battery for the ESS that’s under the fuse box. It’s a 5 amp fuse if I remember.


duke114

Member
First Name
Jonathan
Joined
May 13, 2018
Messages
16
Reaction score
7
Location
Land O Lakes, FL
Vehicle(s)
2018 JLU Sport
It’s directly off the battery lead. There is a little black fuse holder inline with the power that’s wrapped in tape. I popped my fuse too. I didn’t know you have to disconnect the second battery for the ESS that’s under the fuse box. It’s a 5 amp fuse if I remember.
Thank you for the info. I removed the tape and the 30 amp fuse. Unfortunately, the fuse was good. So now I am going to replace the fuse case array 68368853AA and see if that fixes my problem. Stay tuned.


Halstem1

Well-Known Member
First Name
Mike
Joined
Jun 23, 2019
Messages
1,048
Reaction score
668
Location
Grimes, IA
Vehicle(s)
2019 Jeep Wrangler Unlimited Rubicon
Thank you for the info. I removed the tape and the 30 amp fuse. Unfortunately, the fuse was good. So now I am going to replace the fuse case array 68368853AA and see if that fixes my problem. Stay tuned.
30 amp made more sense. Even as I typed that I thought 5 amp was small. I must have changed another that was 5 amp becuase I had to go buy one.

Let me know what you find. Do you not have power to the 7 pin? is that the problem you are having? I had the same issue and ended up being my fuse. Could check your connectors behind the taillight or your ground. Hopefully something simple.


duke114

Member
First Name
Jonathan
Joined
May 13, 2018
Messages
16
Reaction score
7
Location
Land O Lakes, FL
Vehicle(s)
2018 JLU Sport
30 amp made more sense. Even as I typed that I thought 5 amp was small. I must have changed another that was 5 amp becuase I had to go buy one.

Let me know what you find. Do you not have power to the 7 pin? is that the problem you are having? I had the same issue and ended up being my fuse. Could check your connectors behind the taillight or your ground. Hopefully something simple.
Yes, I have no power to the 7 pin and 4 pin. The reason I think it is the fuse is because not once but twice or maybe 3 times I saw a spark as I was running the cable to the back. If it is not the fuse array then I will have to start looking at the other connections.


kosinar

Well-Known Member
First Name
Joe
Joined
Apr 3, 2018
Messages
208
Reaction score
163
Location
South Carolina
Vehicle(s)
2020 Black JLUR 3.0 EcoDiesel received 3/6/20
I am not getting any response to my question on other thread so I want to try here.

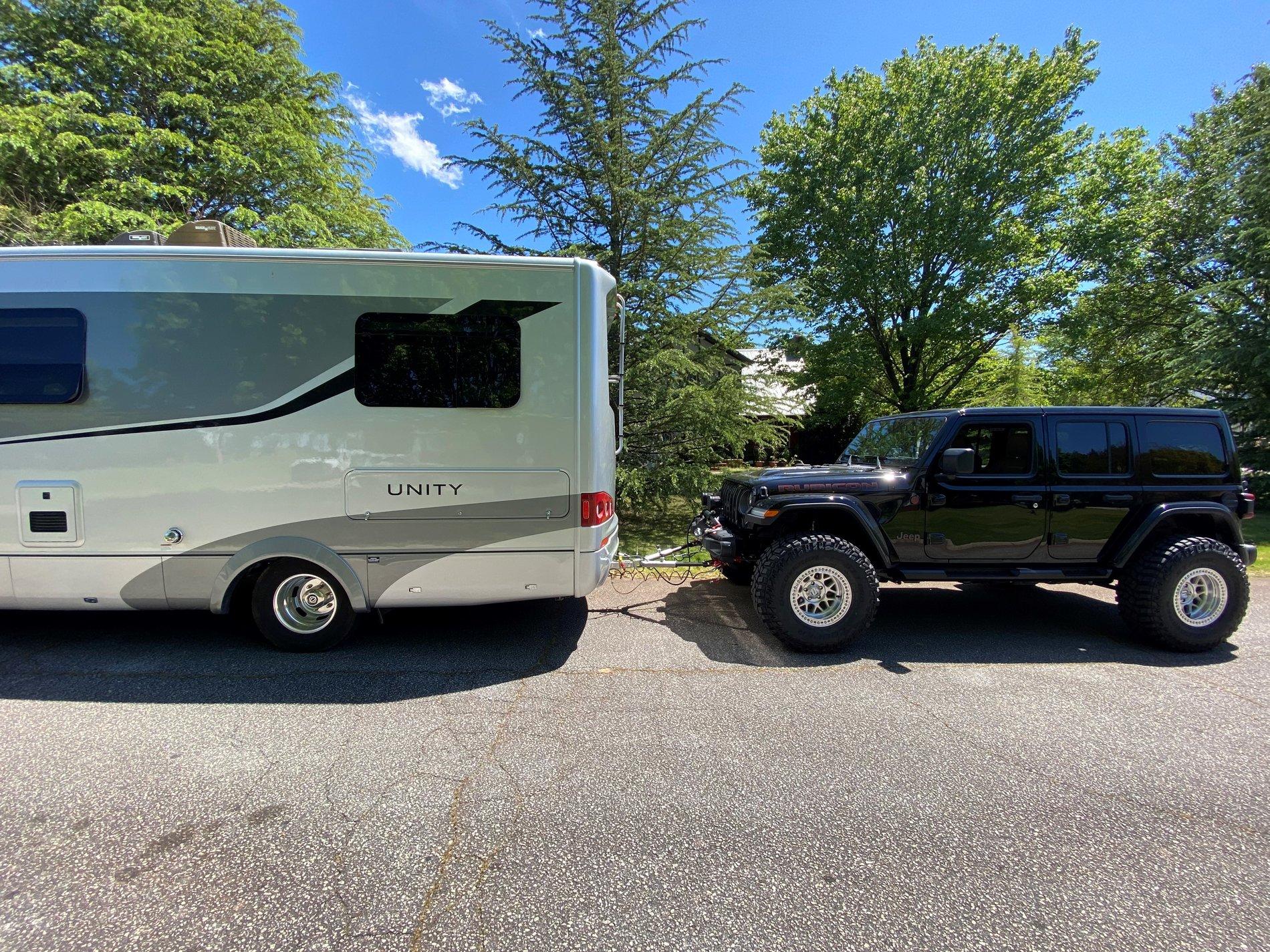

I have Mopar flat towing wire harness installed in my 2020 JLUR diesel and towing it with the RV. I am using ready brute tow bar that is actuating breaks in jeep by pulling jeep break pedal with a cable. I just completed my towing setup and did few towing test drives. I had my wife following me behind and recording video of break lights and behavior of the jeep. I have noticed that depending on how hard I apply breaks on my RV my jeep third break light will or will not come on. Light application of the breaks will turn only left and right break light but third light will not come on. Only heavier break application will turn all 3 break lights on. Not sure if i can assume that left and right break light will come when RV break signal is send to jeep by Mopar wire harness and third break light is turned on by jeep break pedal being pulled and actuating jeep break light circuit. I would appreciate input from someone familiar with the subject.



mbar1156

Well-Known Member
First Name
Matt
Joined
Feb 23, 2020
Messages
53
Reaction score
3
Location
Pennsylvania
Vehicle(s)
2019 Jeep Wrangler Unlimited Sahara
Yes, I have no power to the 7 pin and 4 pin. The reason I think it is the fuse is because not once but twice or maybe 3 times I saw a spark as I was running the cable to the back. If it is not the fuse array then I will have to start looking at the other connections.
Any luck? I’m having this same issue.


NotMyJLU

New Member
First Name
Shane
Joined
Aug 6, 2020
Messages
1
Reaction score
0
Location
Bush, LA
Vehicle(s)
2019 JLU Rubicon
I had the same issue. Wired up the Mopar harness (4 hours) and no power to the 7 or 4 way. 30A fuse was blown in the new harness.


laniercruzer

Well-Known Member
Joined
Oct 25, 2019
Messages
84
Reaction score
49
Location
N Georgia
Vehicle(s)
2019 JLUR
How do you like your Leisure Travel Van? My wife and I are considering the same brand...



I am not getting any response to my question on other thread so I want to try here.
I have Mopar flat towing wire harness installed in my 2020 JLUR diesel and towing it with the RV. I am using ready brute tow bar that is actuating breaks in jeep by pulling jeep break pedal with a cable. I just completed my towing setup and did few towing test drives. I had my wife following me behind and recording video of break lights and behavior of the jeep. I have noticed that depending on how hard I apply breaks on my RV my jeep third break light will or will not come on. Light application of the breaks will turn only left and right break light but third light will not come on. Only heavier break application will turn all 3 break lights on. Not sure if i can assume that left and right break light will come when RV break signal is send to jeep by Mopar wire harness and third break light is turned on by jeep break pedal being pulled and actuating jeep break light circuit. I would appreciate input from someone familiar with the subject.



entropy

Well-Known Member
Joined
Sep 19, 2018
Messages
2,922
Reaction score
4,662
Location
Pasadena
Vehicle(s)
Jeep Wrangler Sport S JL 2-D
Build Thread
Link
Occupation
Data Scientist
Can I pay someone other than the dealer to do this install? I am looking to buy a camping trailer with breaks and need the 7 pin. Anyone knows of a trailer store that would do this?

First Name
Darin
Joined
May 28, 2020
Messages
12
Reaction score
2
Location
Rochester
Vehicle(s)
2018 Jeep Rubicon, 2018 Chevy Suburban
Finished my Mopar trailer harness install today tested for voltage at the plugs and I have nothing. I’ve got power at the fuse by the battery and I have power at the red wire on the passenger side tail light. I haven’t checked at the drivers side tail light yet. The modular plug in the passenger side is a pain to unplug because it’s attached so low. Should I have power on the yellow wire in the driver side tail light?

First Name
Darin
Joined
May 28, 2020
Messages
12
Reaction score
2
Location
Rochester
Vehicle(s)
2018 Jeep Rubicon, 2018 Chevy Suburban

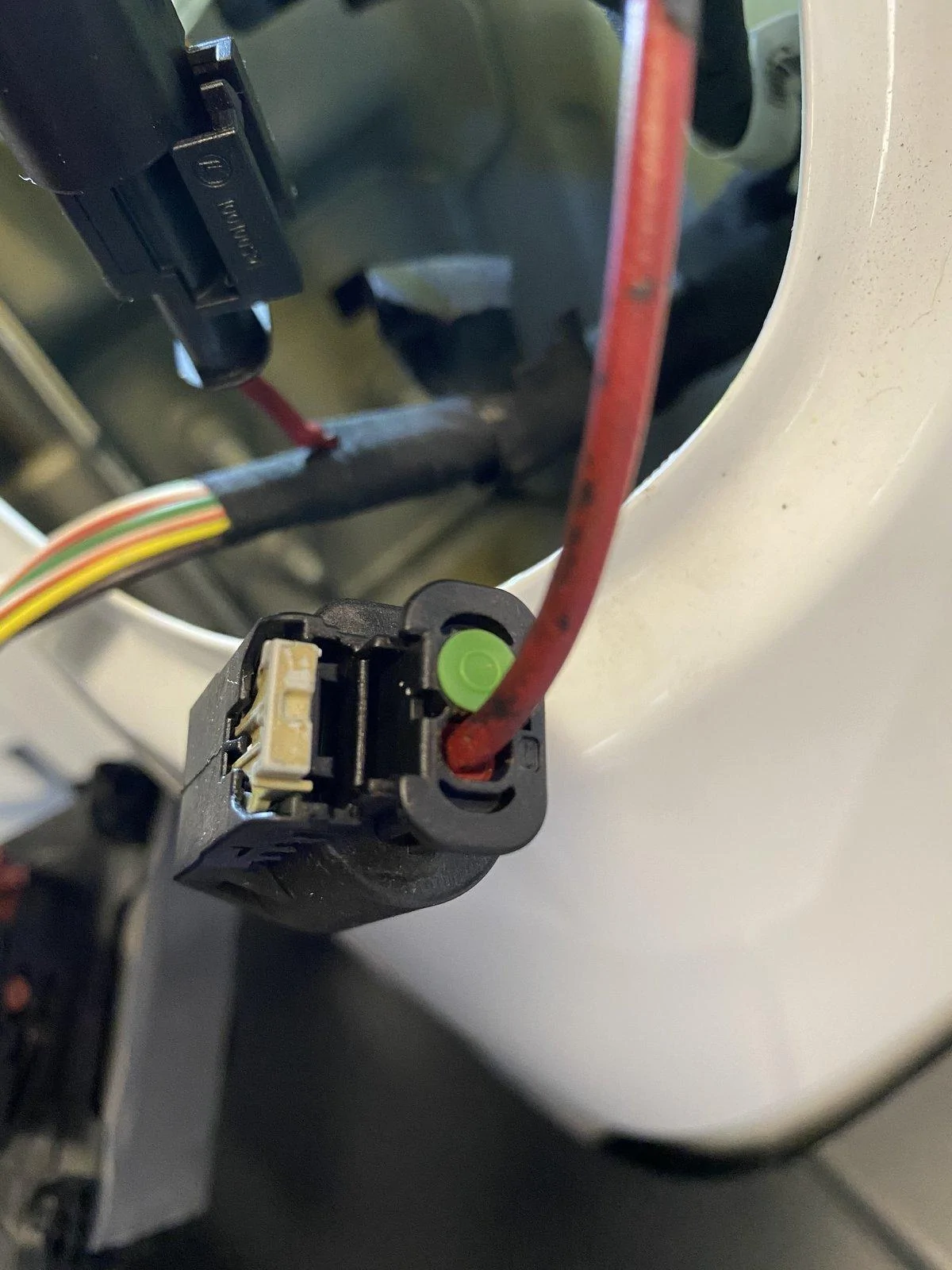

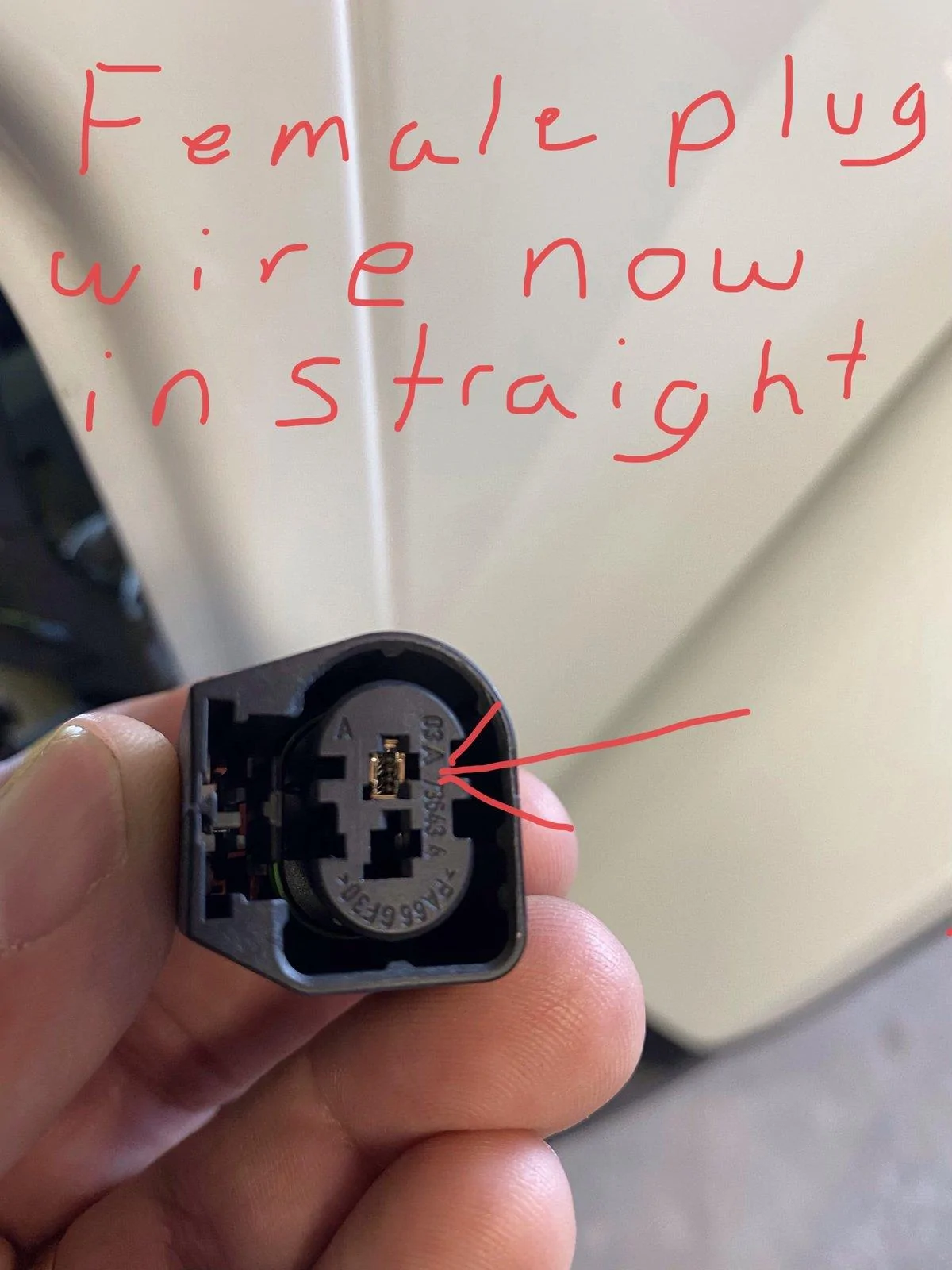

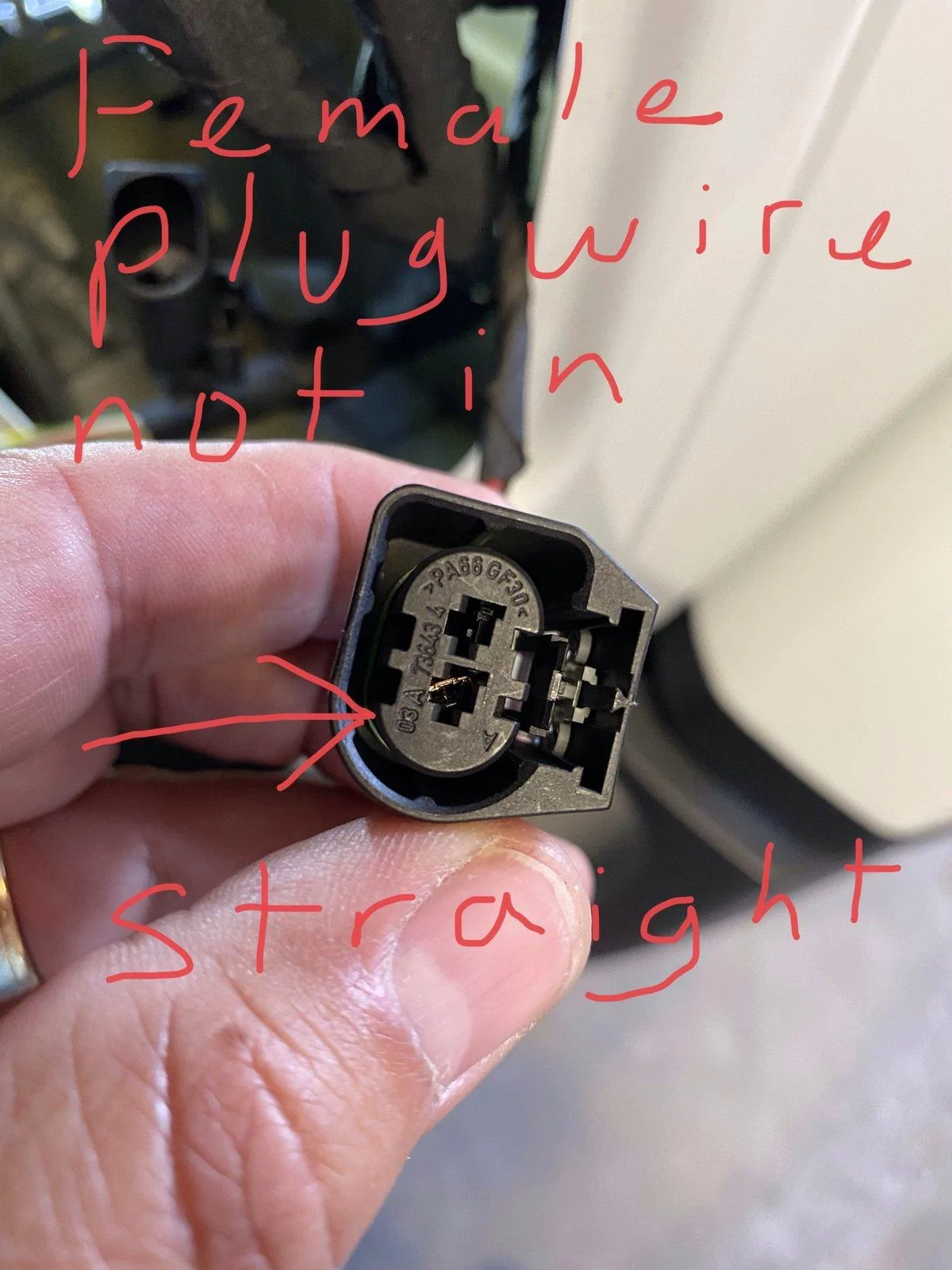

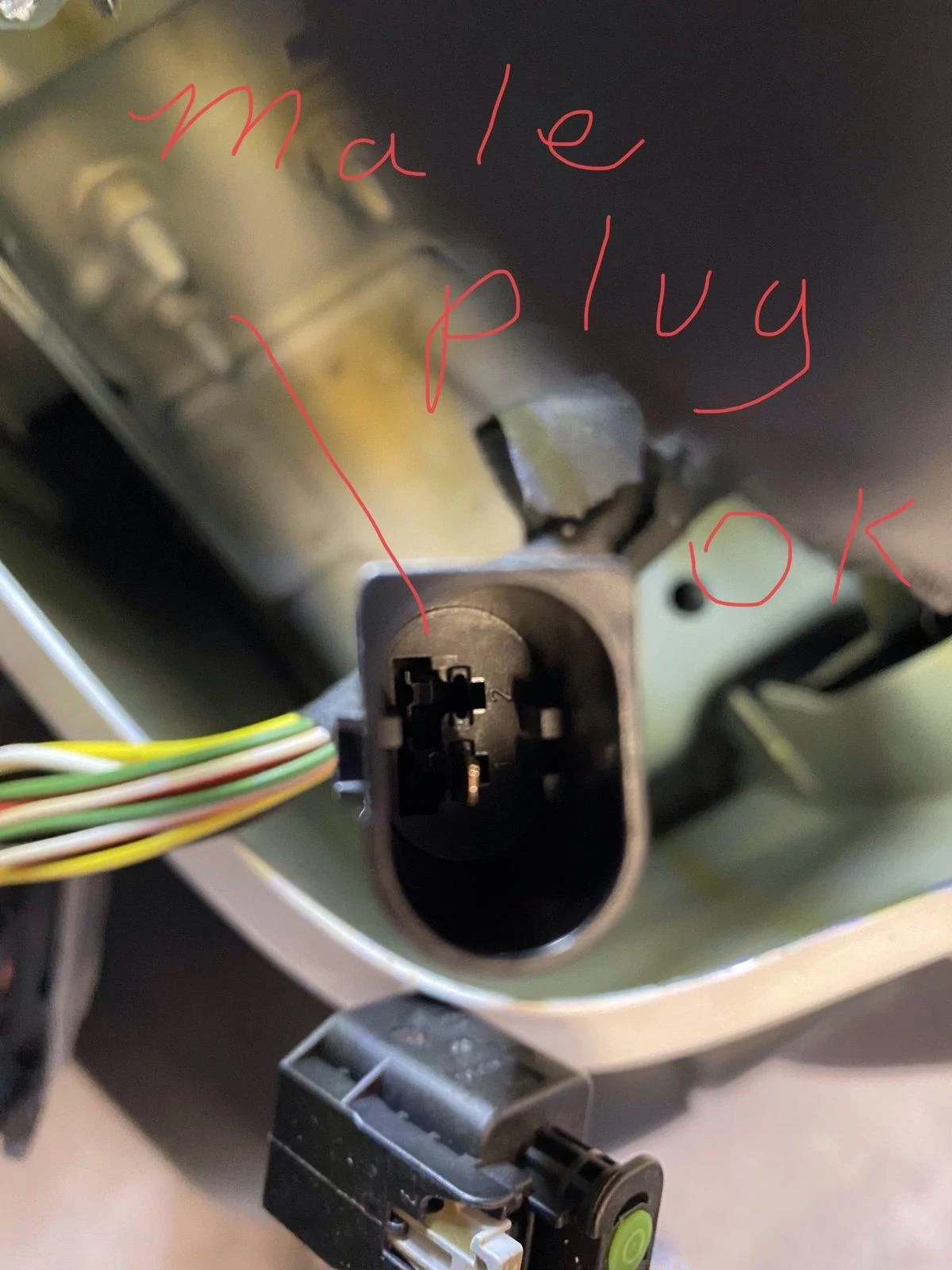

ok I figured my issue out. The red wire from the battery terminal to the passenger side taillight was not seated right. I remember it going in hard. It wasn’t straight in the plug and not all the way in. Hope this helps.









ktfjammer

Active Member
First Name
Jim
Joined
Jun 6, 2021
Messages
28
Reaction score
0
Location
Arizona
Vehicle(s)
2018 Wrangle Sahara Unlimited

ktfjammer

Active Member
First Name
Jim
Joined
Jun 6, 2021
Messages
28
Reaction score
0
Location
Arizona
Vehicle(s)
2018 Wrangle Sahara Unlimited
CURT®T-Connector(1 review)# mpn1067436Jeep Wrangler JL Rubicon / Sport / Unlimited Sahara / Unlimited Sport 2018, T-Connector by CURT®. For Models without Tow Plug, 2-wire System, Location: S1. This provides all you need to connect a trailer to the tow vehicle. Generous...Plugs into vehicle tail light assembly to provide a 4-way flat socketSimple plug-and-play design eliminates the need for cutting or splic more details on - https://www.carid.com/2018-jeep-wrangler-hitch-wiring/?filter=1&sub-model[BodyNumDoors][]=4+Doors
I could be wrong. My understanding is it won't fit work for the Sahara JL unlimited since the vehicle has Blind Spot sonar and LED lights.
