Mopar LED headlight installation manual (new??)

butcho

Well-Known Member
Joined
Sep 2, 2018
Messages
227
Reaction score
213
Location
Charlotte, NC
Vehicle(s)
2018 Jeep Wrangler JLU

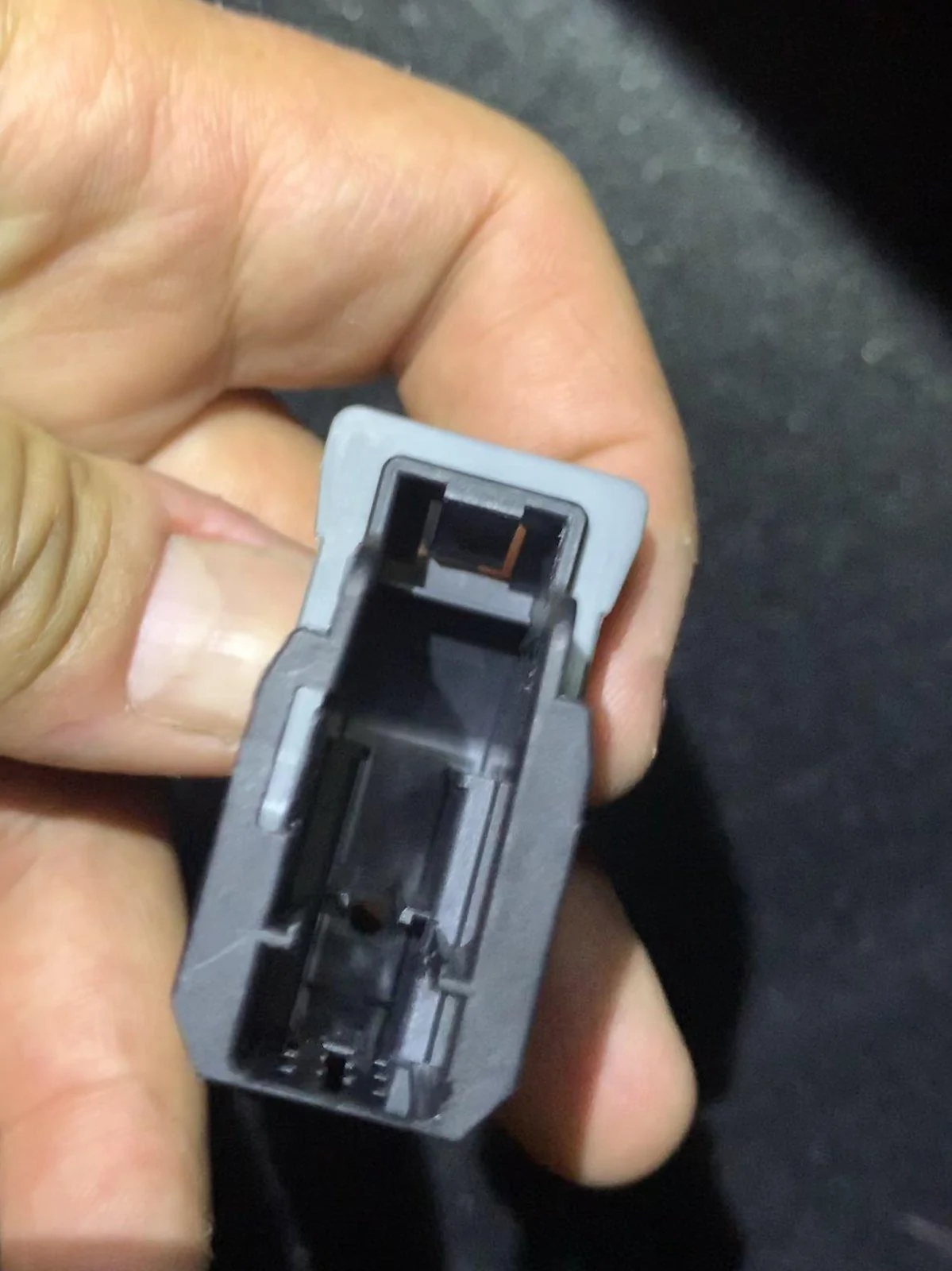

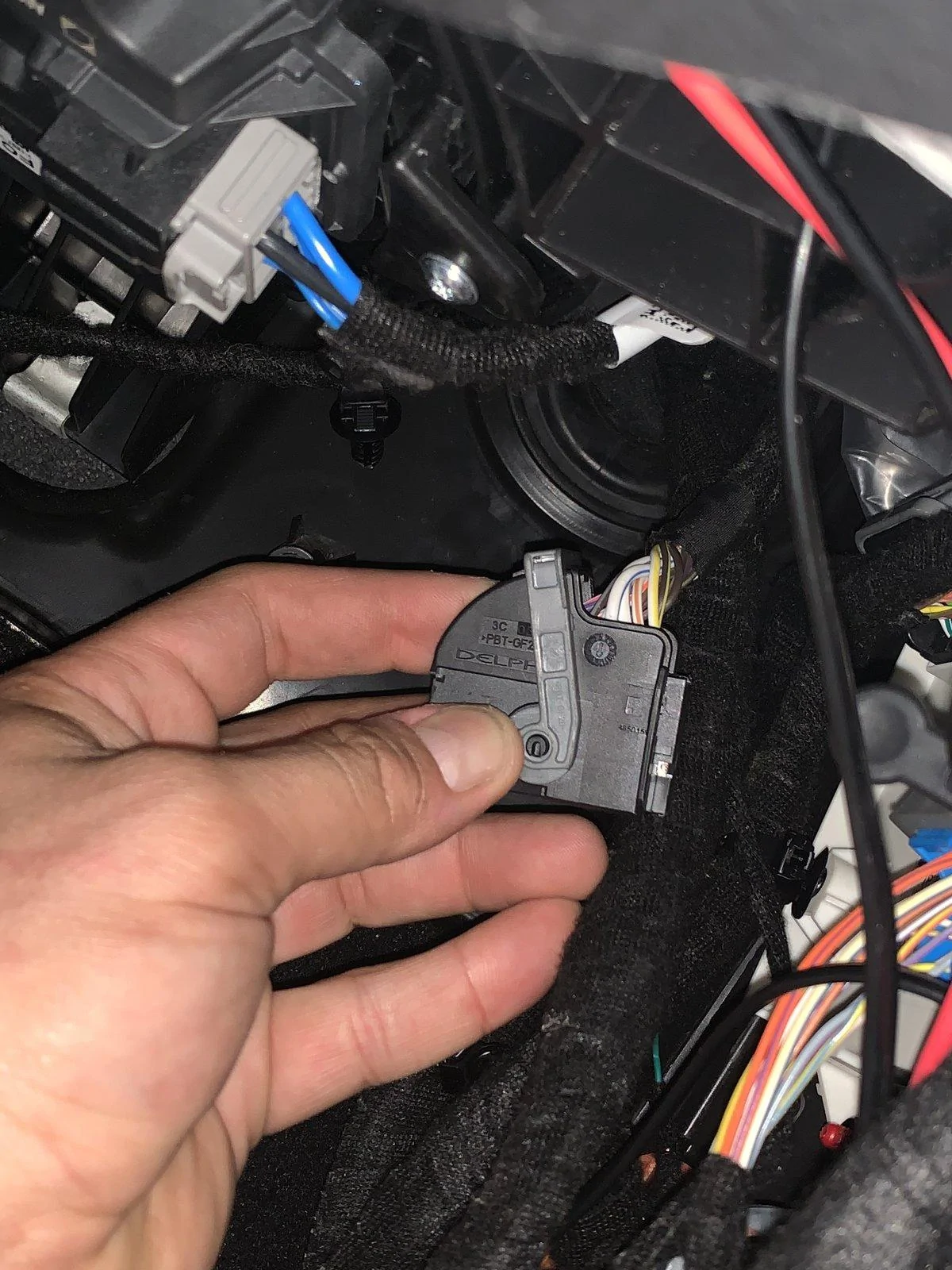

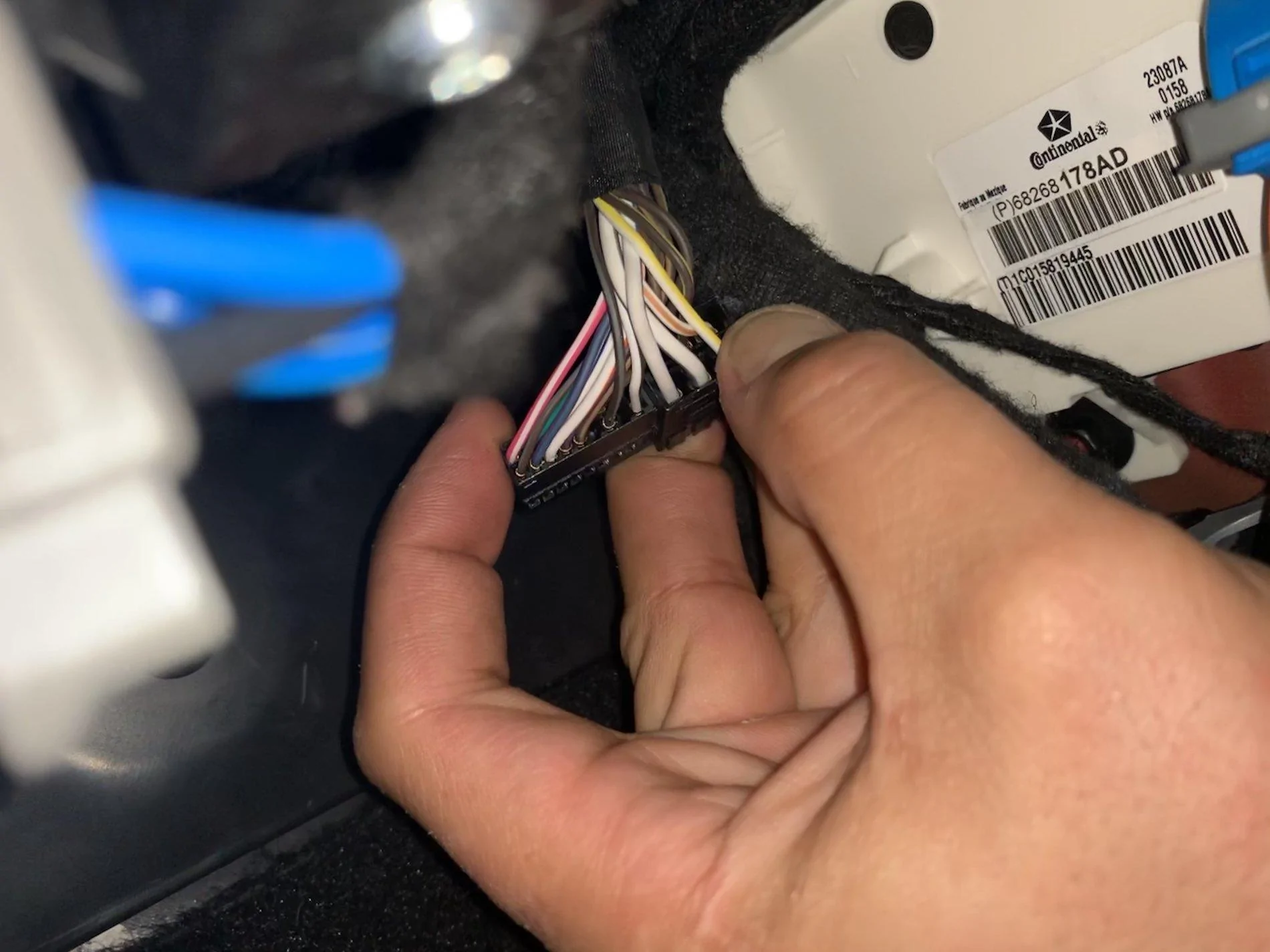

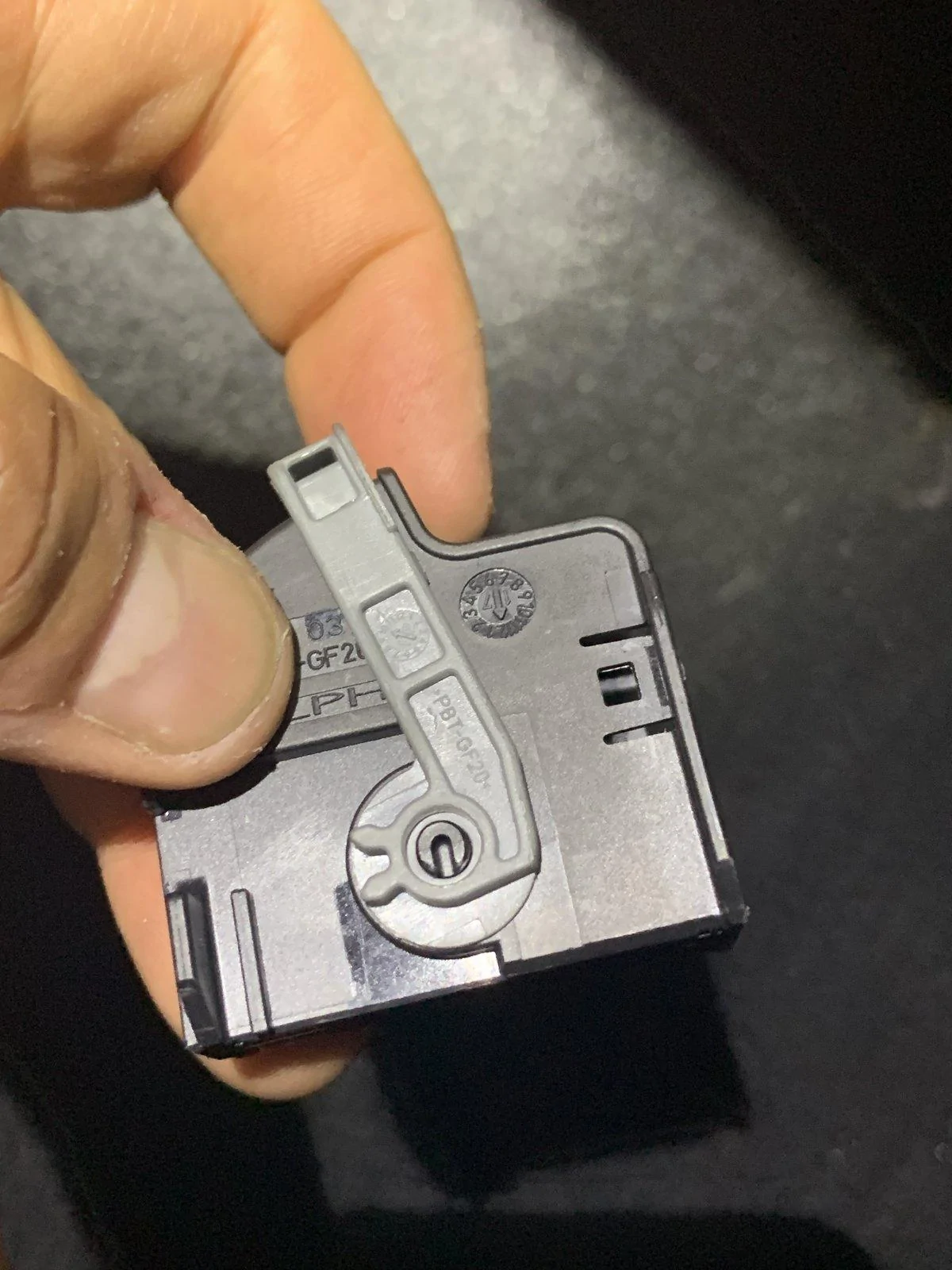

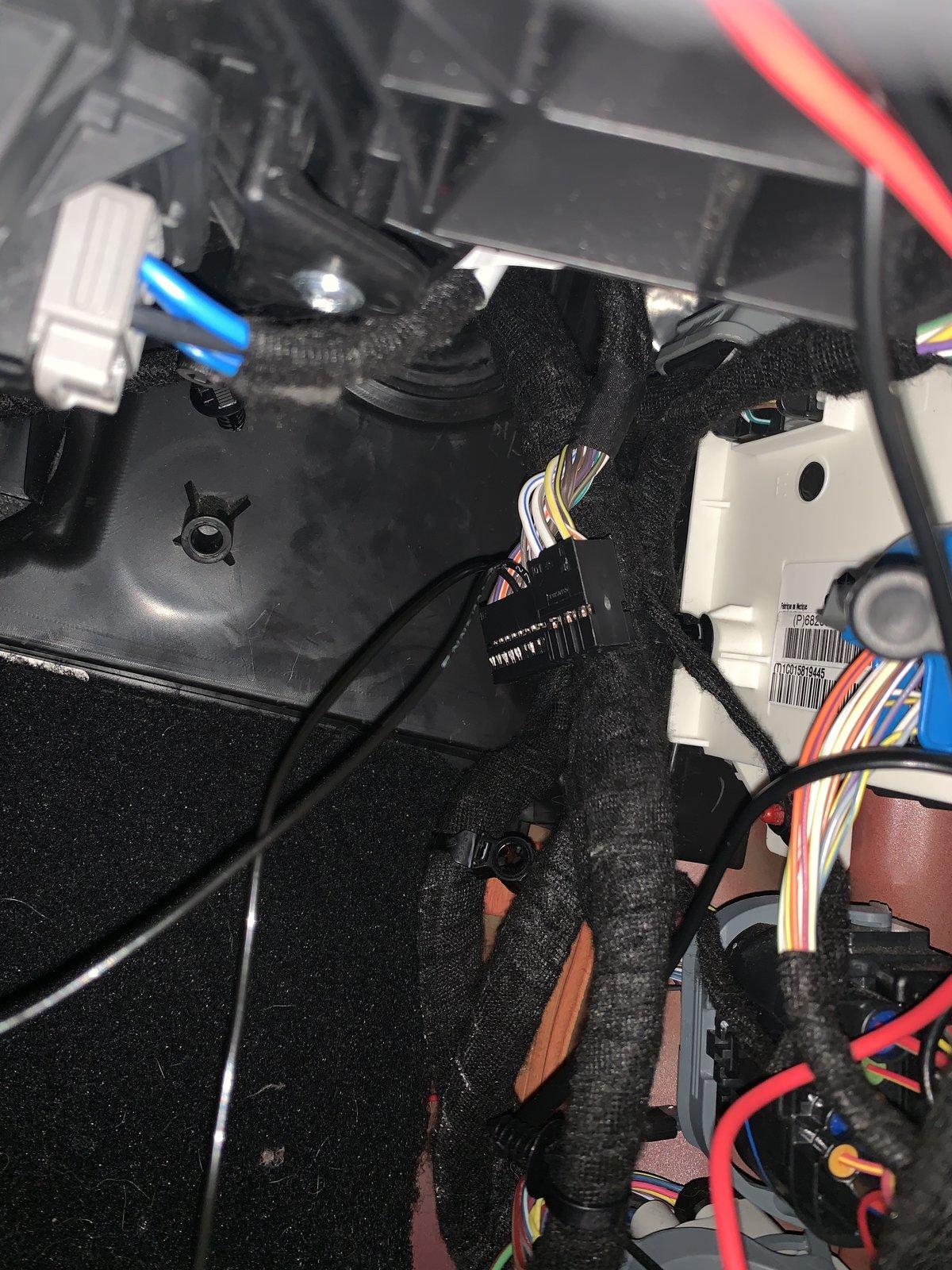

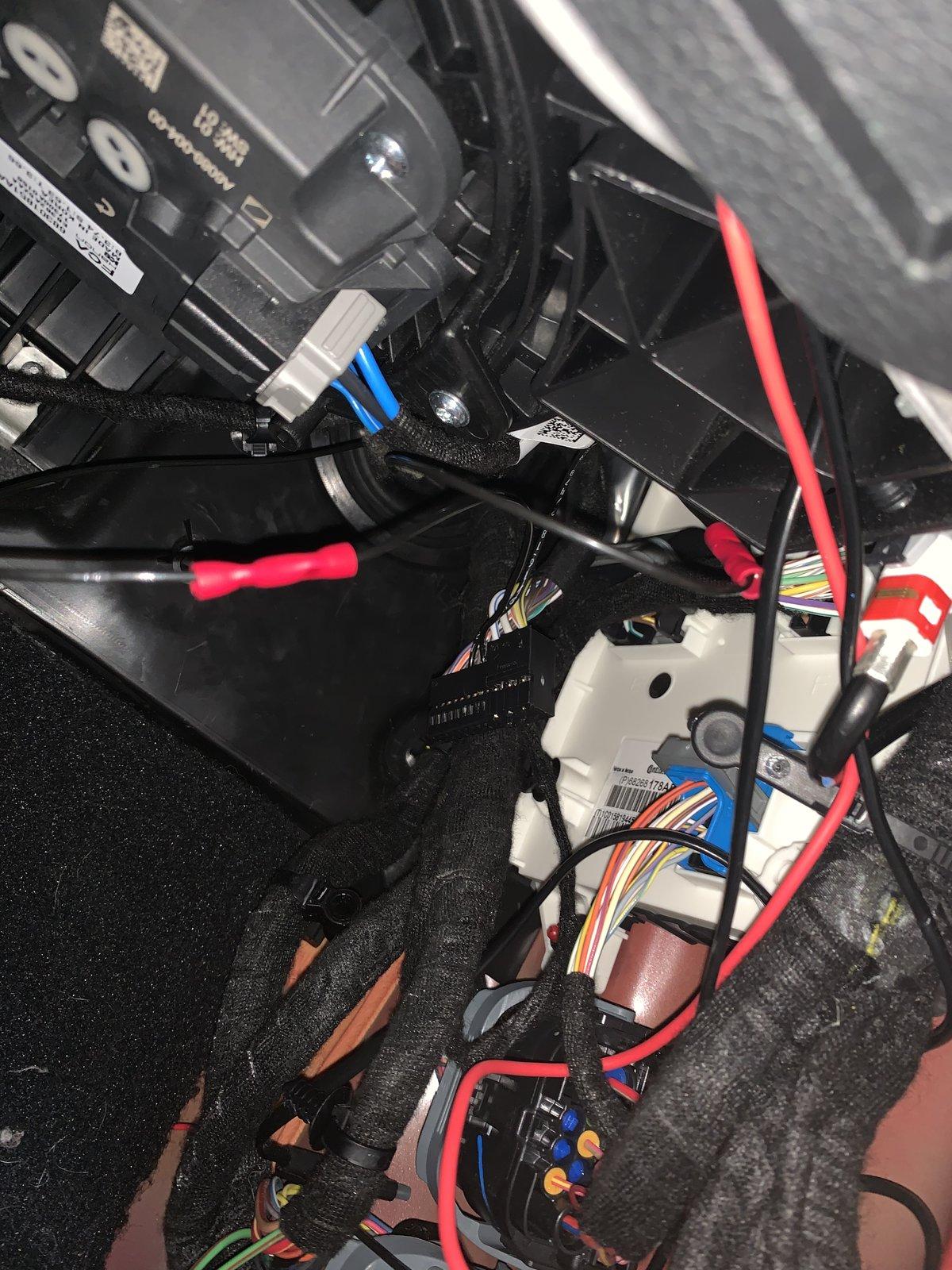

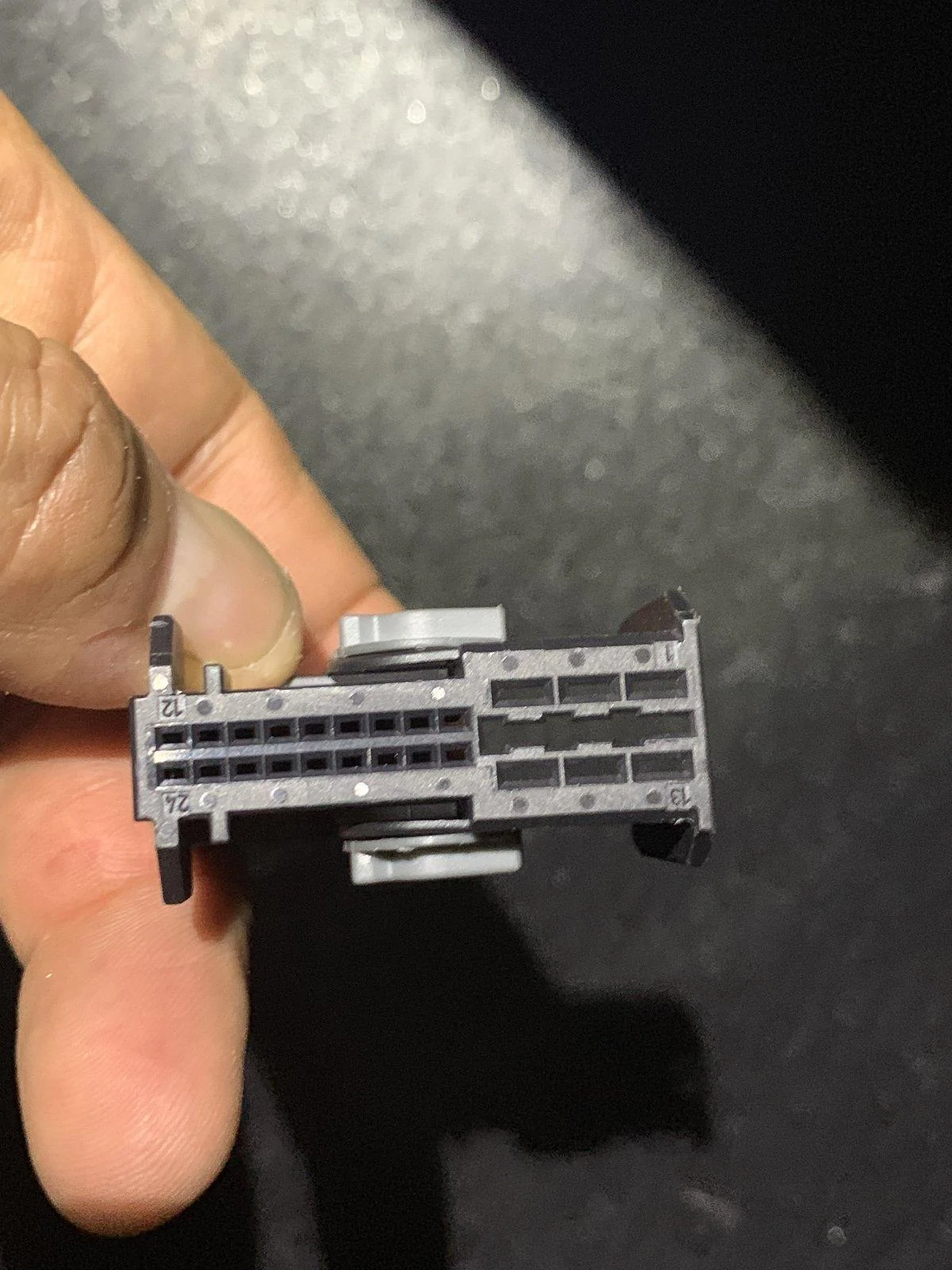

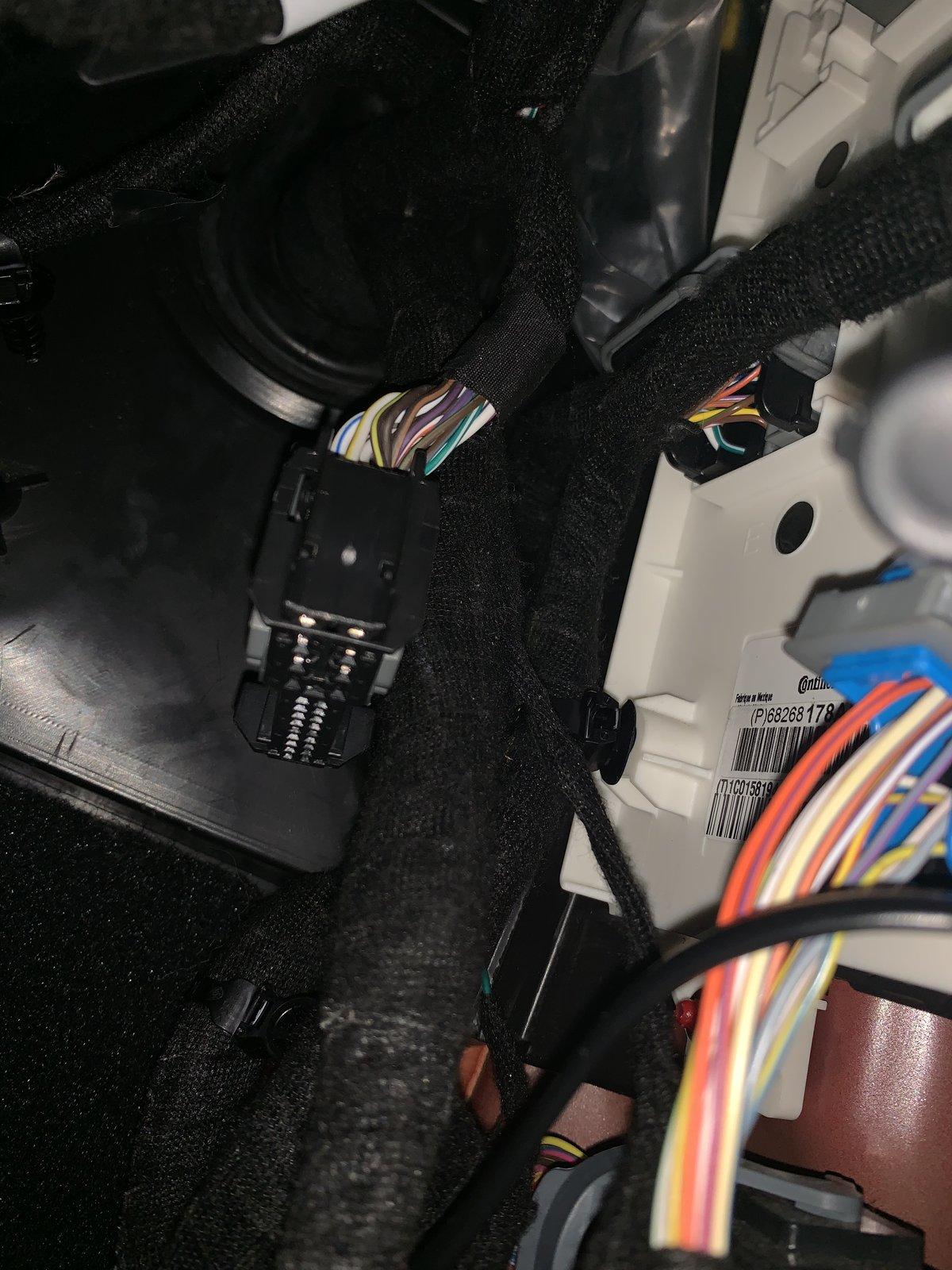

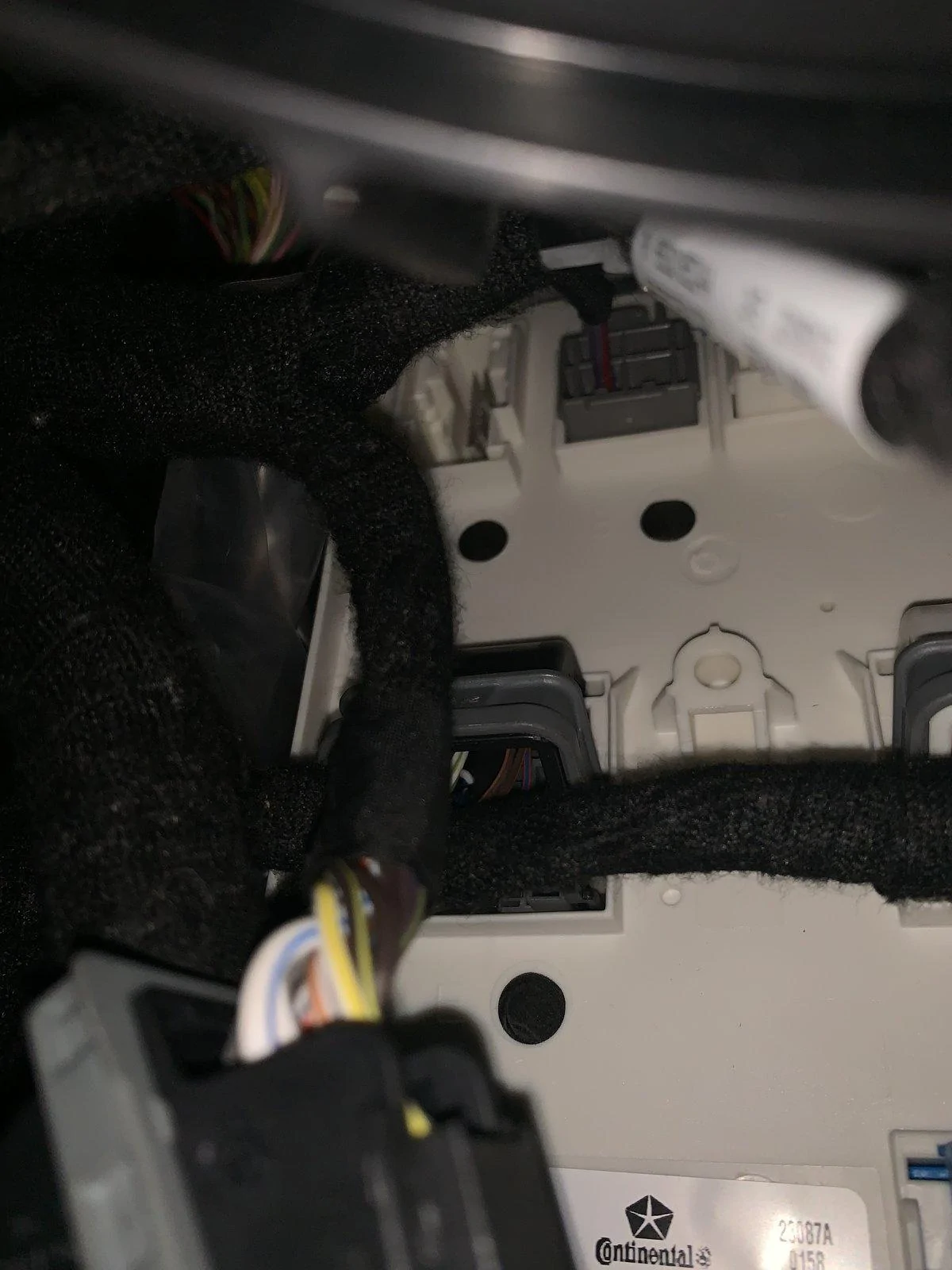

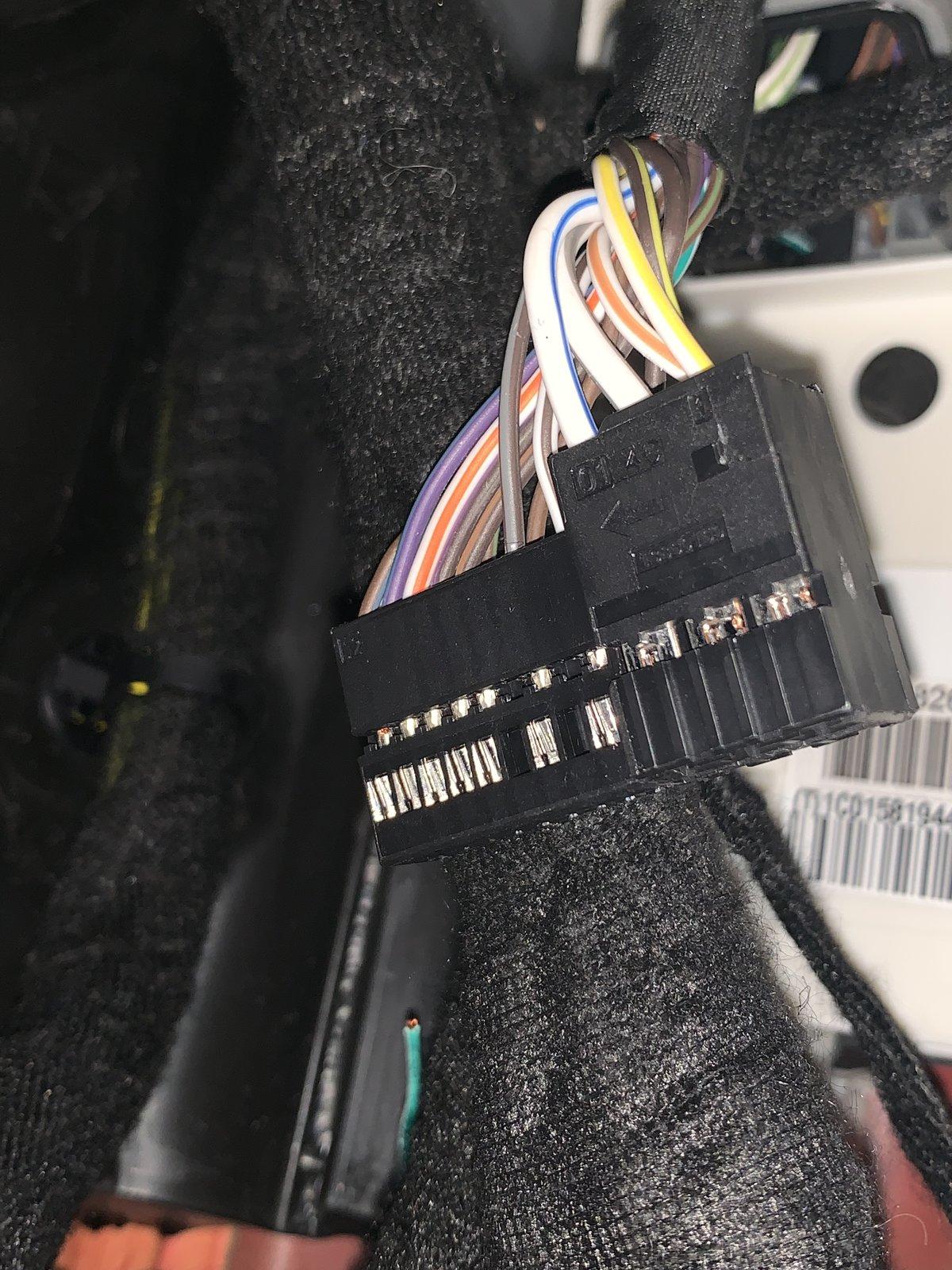

So I've been looking for OEM headlights for my Rubicon for a while now. Then today I came across moparonlineparts.com and found an installation manual on their website. It details how to change the sale code, how to tap the 4th wire fromBCM to molex connector in headlamp and etc. Manual is in attachment if anyone's interested.

I think I've looked through almost all the threads related to this topic, but haven't seen anybody mention this manual. Date on this manual is Apr 5, 2019, but maybe it's been there the whole time and I just didn't know. But more importantly, has anybody actually used this manual and does it work???
So do the Halos work as DRLs?


fonzie

Well-Known Member
Joined
Mar 22, 2018
Messages
110
Reaction score
73
Location
TX
Vehicle(s)
Rubicon JL, & Gladiator
need help too. bought LED DRL's from another owner and wanting to install/replace my factory oem halogen DRL's...any suggestions?
The LED fender lights are plug & play, however, I do think you need programming or a Tazer to change the setting for led lights or you will get warning lights.


Mark Elliott

Well-Known Member
First Name
Mark
Joined
Nov 24, 2018
Messages
363
Reaction score
289
Location
Orlando
Vehicle(s)
2018 Rubicon
The LED fender lights are plug & play, however, I do think you need programming or a Tazer to change the setting for led lights or you will get warning lights.
Yes, you will need a Tazer or you will get warning lights and improper signals. I did this 4 months ago, the dealer had no clue how to make it work. Just saying......


DHW

Well-Known Member
First Name
David
Joined
May 30, 2019
Messages
625
Reaction score
1,333
Location
Atlanta
Vehicle(s)
2018 Rubicon
Occupation
Attorney
Yes, you will need a Tazer or you will get warning lights and improper signals. I did this 4 months ago, the dealer had no clue how to make it work. Just saying......
Just curious, I put the steel front bumper on my 18 Rubicon and have the LED headlights and fender lights ready to go, but the Mopar instructions are intimidating me. Point was, I have had no issues at all with flickering or warning lights running halogen headlights and fender lights with the LED fogs. Is it just the headlights and fender lights with the flickering issues?

Also, has anyone heard from @EgGreg lately? PM'd him Monday I think to see if I could get one of his harnesses, but haven't heard from him.


mwilk012

Well-Known Member
Joined
Mar 10, 2018
Messages
4,828
Reaction score
4,409
Location
Oklahoma
Vehicle(s)
2018 Ocean Blue JLU Rubicon
Just curious, I put the steel front bumper on my 18 Rubicon and have the LED headlights and fender lights ready to go, but the Mopar instructions are intimidating me. Point was, I have had no issues at all with flickering or warning lights running halogen headlights and fender lights with the LED fogs. Is it just the headlights and fender lights with the flickering issues?

Also, has anyone heard from @EgGreg lately? PM'd him Monday I think to see if I could get one of his harnesses, but haven't heard from him.
Mopar LED fog lamps can/will flicker too. No other LED fog lamp assemblies or bulbs seem to have the issue.


fonzie

Well-Known Member
Joined
Mar 22, 2018
Messages
110
Reaction score
73
Location
TX
Vehicle(s)
Rubicon JL, & Gladiator
Correct, they will flicker. Mine flickers slightly then turned into a full on light show until I got the tazer!

OP
OP

rayxu

Active Member
Joined
Aug 1, 2018
Messages
39
Reaction score
12
Location
Boston, MA
Vehicle(s)
2018 JLUR
Just curious, I put the steel front bumper on my 18 Rubicon and have the LED headlights and fender lights ready to go, but the Mopar instructions are intimidating me. Point was, I have had no issues at all with flickering or warning lights running halogen headlights and fender lights with the LED fogs. Is it just the headlights and fender lights with the flickering issues?

Also, has anyone heard from @EgGreg lately? PM'd him Monday I think to see if I could get one of his harnesses, but haven't heard from him.
Curious where you got your headlights?


TexaClone

Well-Known Member
First Name
Dave
Joined
Aug 9, 2019
Messages
59
Reaction score
12
Location
Iowa
Vehicle(s)
2018 Jeep JLU Sport S
Curious where you got your headlights?
I got my LED headlights from Jegs(I was shocked to not have issues based on reviews, but they sent the factory kit with the MOPAR wiring harness).

I got the LED fogs from Mopar America.

I got the LED tail lights from Jeepsareus.

I also see there are Rubi High Top LED fender sets that are available for pre order that will ship in September, so that’s interesting.

I had to use the Tazer to get the LED headlight HALOs working.

When I got the fogs, they have a DealerConnect code, just like the headlights did. But my dealer had problems apparently and didn’t get it entered.
