Mopar 7 pin wiring harness issues

  1. CJ-ING-RJ

    CJ-ING-RJ Well-Known Member

    First Name:
    RJ
    Vehicle(s):
    18 JLUR, 73 CJ5, 07 Electra Glide
    Joined:
    Nov 14, 2018
    Location:
    Iowa
    Posts:
    84
    Liked:
    38
    Need some help please no lights. I’ve been reading through the forums and am only finding general discussions about how bad the install sucks. I am a electrician so I can get pretty technical with this.

    I’ve got a 18 JLUR with steel bumpers and LED lighting packages for reference. I installed the Mopar 82215896 wiring harness this weekend. Install took time but went pretty easy. All connections look good.

    The problem I am having is I’ve got only 12v power from the red wire at the 7 pin connector. Absolutely nothing else. I do have power at the input connector going into the module that is added behind the RR tail light. It’s seems like the Module is bad. Mopar is not willing to offer any over the phone assistance, they tell me it has to go to the dealer for troubleshooting then they will warranty it after I pay for labor.

    Anyone have this issue or ideas on how to test the module.

    Thanks in advance.

  2. Cutterwolf

    Cutterwolf Well-Known Member

    First Name:
    Dave
    Vehicle(s):
    2018 Wrangler Rubicon JL, 1963 Ford Fairlane, 2012 Honda Civic EXL
    Joined:
    Jan 17, 2018
    Location:
    Ontario , Canada
    Posts:
    49
    Liked:
    25
    Hi...Ive got the exact same issue...did you find a solution yet?

  3. OP
    OP
    CJ-ING-RJ

    CJ-ING-RJ Well-Known Member

    First Name:
    RJ
    Vehicle(s):
    18 JLUR, 73 CJ5, 07 Electra Glide
    Joined:
    Nov 14, 2018
    Location:
    Iowa
    Posts:
    84
    Liked:
    38
    I have not..... yet.....
    I plan on diving into it more tonight. Knowing the module pins and what it does would be helpful.

  4. Cutterwolf

    Cutterwolf Well-Known Member

    First Name:
    Dave
    Vehicle(s):
    2018 Wrangler Rubicon JL, 1963 Ford Fairlane, 2012 Honda Civic EXL
    Joined:
    Jan 17, 2018
    Location:
    Ontario , Canada
    Posts:
    49
    Liked:
    25

    Okay...good luck sir!..
    There is another thread on here with the same issue...I've reached out to him as well...if I find a solution..Ill let you know...

  5. OP
    OP
    CJ-ING-RJ

    CJ-ING-RJ Well-Known Member

    First Name:
    RJ
    Vehicle(s):
    18 JLUR, 73 CJ5, 07 Electra Glide
    Joined:
    Nov 14, 2018
    Location:
    Iowa
    Posts:
    84
    Liked:
    38
    Can you provide me a link to that thread so I can start following it.

  6. Cutterwolf

    Cutterwolf Well-Known Member

    First Name:
    Dave
    Vehicle(s):
    2018 Wrangler Rubicon JL, 1963 Ford Fairlane, 2012 Honda Civic EXL
    Joined:
    Jan 17, 2018
    Location:
    Ontario , Canada
    Posts:
    49
    Liked:
    25
  7. OP
    OP
    CJ-ING-RJ

    CJ-ING-RJ Well-Known Member

    First Name:
    RJ
    Vehicle(s):
    18 JLUR, 73 CJ5, 07 Electra Glide
    Joined:
    Nov 14, 2018
    Location:
    Iowa
    Posts:
    84
    Liked:
    38
    Well this totally sucked!!!!

    Alright guys I got my system working. To say the least I’m VERY disappointed in this Mopar product. I will be referencing the Mopar supplied paper work when I’m talking about connector identification.

    Here is what I found;
    1 the factory side of connector B1 (12V power connector) was not seated properly so the 12V was not making it to the 7 pin connector.
    2. The pin input side on connector B6 of both turn signals were not seated.
    3. on the running lights Connector O had the spade that makes a connection to connector J bent towards the center of the connector. Which results in no connection to the outgoing pin that connects to your trailer.

    AND now to top it all off I’m getting a “no right rear turn signal “ notification. The shit part is I clearly have all running, brake and turn signals working so I’m in the process of pulling both negative battery cables to hopefully reset the message.......

    Good luck

  8. W1ck3d

    W1ck3d Well-Known Member

    First Name:
    Scott
    Vehicle(s):
    2019 jl rubicon
    Joined:
    May 20, 2018
    Location:
    Toledo
    Posts:
    269
    Liked:
    131
    There is 3 spots to check this..... Right at the 7way in the rear bumper.... Behind the rt rear flare it runs up to it, and at the 401 connector under the right dash(pain in the ass to get too)

  9. Cutterwolf

    Cutterwolf Well-Known Member

    First Name:
    Dave
    Vehicle(s):
    2018 Wrangler Rubicon JL, 1963 Ford Fairlane, 2012 Honda Civic EXL
    Joined:
    Jan 17, 2018
    Location:
    Ontario , Canada
    Posts:
    49
    Liked:
    25



    Glad you have it working :)
    Im not sure why, (maybe because Im in Canada) but my paperwork is not referencing the same as yours..I hate to ask..do you mind taking a pic of what you have referenced?..or do you have a PDF link of the instructions?

  10. OP
    OP
    CJ-ING-RJ

    CJ-ING-RJ Well-Known Member

    First Name:
    RJ
    Vehicle(s):
    18 JLUR, 73 CJ5, 07 Electra Glide
    Joined:
    Nov 14, 2018
    Location:
    Iowa
    Posts:
    84
    Liked:
    38
    I will see what I can do this evening after work.

  11. Cutterwolf

    Cutterwolf Well-Known Member

    First Name:
    Dave
    Vehicle(s):
    2018 Wrangler Rubicon JL, 1963 Ford Fairlane, 2012 Honda Civic EXL
    Joined:
    Jan 17, 2018
    Location:
    Ontario , Canada
    Posts:
    49
    Liked:
    25
    its APPRECIATED! Thank you

  12. OP
    OP
    CJ-ING-RJ

    CJ-ING-RJ Well-Known Member

    First Name:
    RJ
    Vehicle(s):
    18 JLUR, 73 CJ5, 07 Electra Glide
    Joined:
    Nov 14, 2018
    Location:
    Iowa
    Posts:
    84
    Liked:
    38

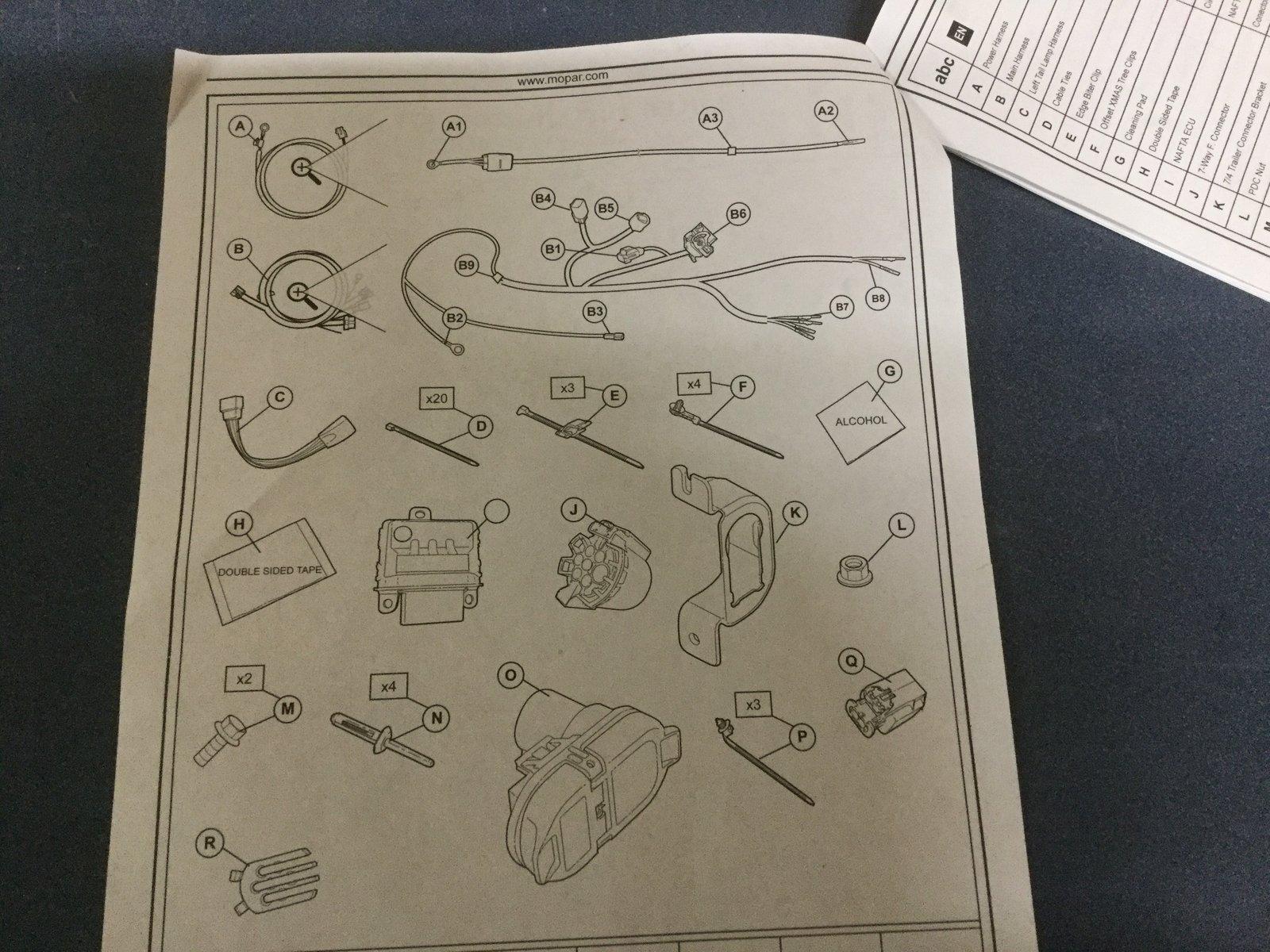

    Hope this helps.


  13. Cutterwolf

    Cutterwolf Well-Known Member

    First Name:
    Dave
    Vehicle(s):
    2018 Wrangler Rubicon JL, 1963 Ford Fairlane, 2012 Honda Civic EXL
    Joined:
    Jan 17, 2018
    Location:
    Ontario , Canada
    Posts:
    49
    Liked:
    25

    Yes..I can see what B1 was now...thanks

    CJ-ING-RJ likes this.
  14. Cutterwolf

    Cutterwolf Well-Known Member

    First Name:
    Dave
    Vehicle(s):
    2018 Wrangler Rubicon JL, 1963 Ford Fairlane, 2012 Honda Civic EXL
    Joined:
    Jan 17, 2018
    Location:
    Ontario , Canada
    Posts:
    49
    Liked:
    25
    No Luck....I get power (red) at the module but not after that.....unless the red isn't seated right after i connect it..it may be the module
    looks like I'm bringing it in to my local Jeep guys

  15. Cutterwolf

    Cutterwolf Well-Known Member

    First Name:
    Dave
    Vehicle(s):
    2018 Wrangler Rubicon JL, 1963 Ford Fairlane, 2012 Honda Civic EXL
    Joined:
    Jan 17, 2018
    Location:
    Ontario , Canada
    Posts:
    49
    Liked:
    25
    Okay...guys at Just Jeeps (www.justjeeps.com) got mine working :) ...seems like there is a difference in the Canadian version and the US version...
    If I understood correctly it had something to do with the "red" and the extra module (I think the daytime running lights may have also been a factor).

    I will get the actual info and post as soon as I see them again...
