Mopar 7” light help

  1. hookedtarpon

    hookedtarpon Active Member

    Vehicle(s):
    1984 CJ, 2018 JL
    Joined:
    Nov 8, 2017
    Location:
    Pensacola Beach, FL
    Posts:
    33
    Liked:
    19
    Sorry if this was posted but I can’t find it. I cant find amperage for these 7” lights and the directions suck. I lost my “ jeep for dummies” book. Can someone tell me which aux button to tie into? Is 4 ok? Can both lights be crimped to #4?

    cwadle likes this.
  2. OP
    OP
    hookedtarpon

    hookedtarpon Active Member

    Vehicle(s):
    1984 CJ, 2018 JL
    Joined:
    Nov 8, 2017
    Location:
    Pensacola Beach, FL
    Posts:
    33
    Liked:
    19

  3. OP
    OP
    hookedtarpon

    hookedtarpon Active Member

    Vehicle(s):
    1984 CJ, 2018 JL
    Joined:
    Nov 8, 2017
    Location:
    Pensacola Beach, FL
    Posts:
    33
    Liked:
    19

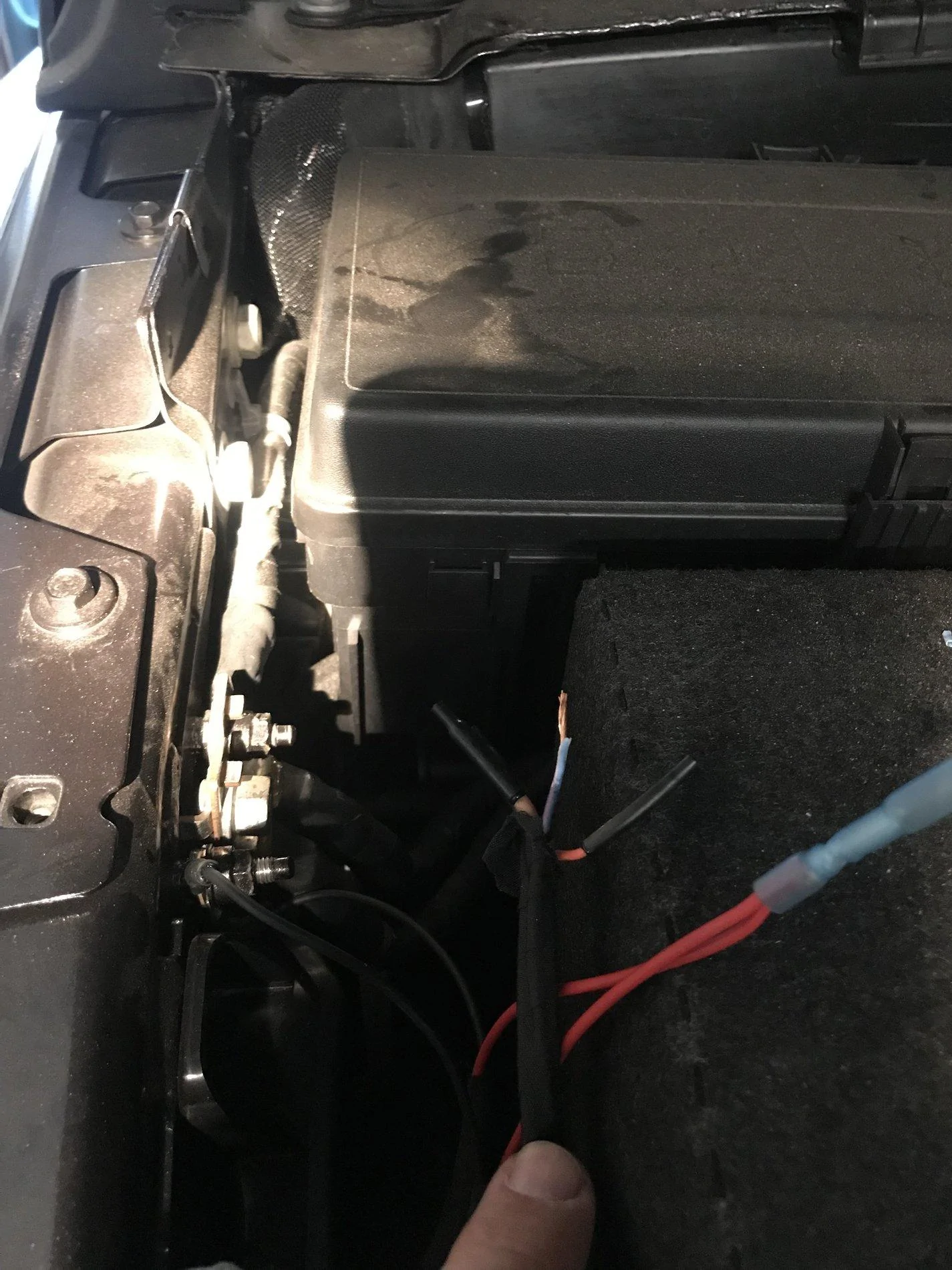

    AB32D98A-D888-4D21-8F48-E40A7D8C8BF5.jpeg I wanted to post a pic of what has been done. I pre spliced the two lights together and grounded to the bolt on the left. I’m just now sure in my #4 pink and blue wire can handle the load. Thanks a ton in advance for any help. I hate electrical!

  4. Sloxkhart98

    Sloxkhart98 Well-Known Member

    First Name:
    Scott
    Vehicle(s):
    2018 Wrangjer JL Rubicon
    Joined:
    Aug 12, 2017
    Location:
    Cumming, GA
    Posts:
    159
    Liked:
    229
    I used the pink and blue as well. For the mopar lights they require aux 3 or 4, which is the orange or blue//pink.

  5. Mugzzzee

    Mugzzzee Well-Known Member

    First Name:
    Hal (aka Mugs)
    Vehicle(s):
    2018 Jeep Wrangler JLUR, 2016 Jeep Grand Cherokee Overland
    Joined:
    Mar 19, 2018
    Location:
    Bayfield, Colorado
    Posts:
    172
    Liked:
    138
    Occupation:
    Retired since 2004
    #5 Jul 2, 2018
    Last edited: Jul 3, 2018
    Someone posted the Mopar instructions for the lights installation and I read that for the lights to use only auxiliary 3 or 4. Do you have any idea why? I have after market lights on order and I was going to use Auxiliary 1.

  6. Sloxkhart98

    Sloxkhart98 Well-Known Member

    First Name:
    Scott
    Vehicle(s):
    2018 Wrangjer JL Rubicon
    Joined:
    Aug 12, 2017
    Location:
    Cumming, GA
    Posts:
    159
    Liked:
    229
    #6 Jul 2, 2018
    Last edited: Jul 2, 2018
    These lights do not have an inline fuse and aux 3 and 4 are 15amp vs 1 and 2 which are 40 amp I believe

  7. OP
    OP
    hookedtarpon

    hookedtarpon Active Member

    Vehicle(s):
    1984 CJ, 2018 JL
    Joined:
    Nov 8, 2017
    Location:
    Pensacola Beach, FL
    Posts:
    33
    Liked:
    19
    Yes that is my understanding also. I used aux 3 and works great! those lights are crazy bright and well made. Expensive but now that I have them, they are very nice. Thanks for the advice!

  8. Mugzzzee

    Mugzzzee Well-Known Member

    First Name:
    Hal (aka Mugs)
    Vehicle(s):
    2018 Jeep Wrangler JLUR, 2016 Jeep Grand Cherokee Overland
    Joined:
    Mar 19, 2018
    Location:
    Bayfield, Colorado
    Posts:
    172
    Liked:
    138
    Occupation:
    Retired since 2004
    Page 183 of the owner's manual shows the wire colors and amps per switch. Thanks Sloxkhart98 for your help.
