For those who are putting Rubicon Axles in their non-Rubicon and are shocked by the price of the locker wire harness (I may be a cheap bastard but $90 seems like a lot of money for one connector and a couple wires). I looked all over the interweb for the connector but couldn’t find it. I thought it had to be used in other applications and knew I had seen it before.

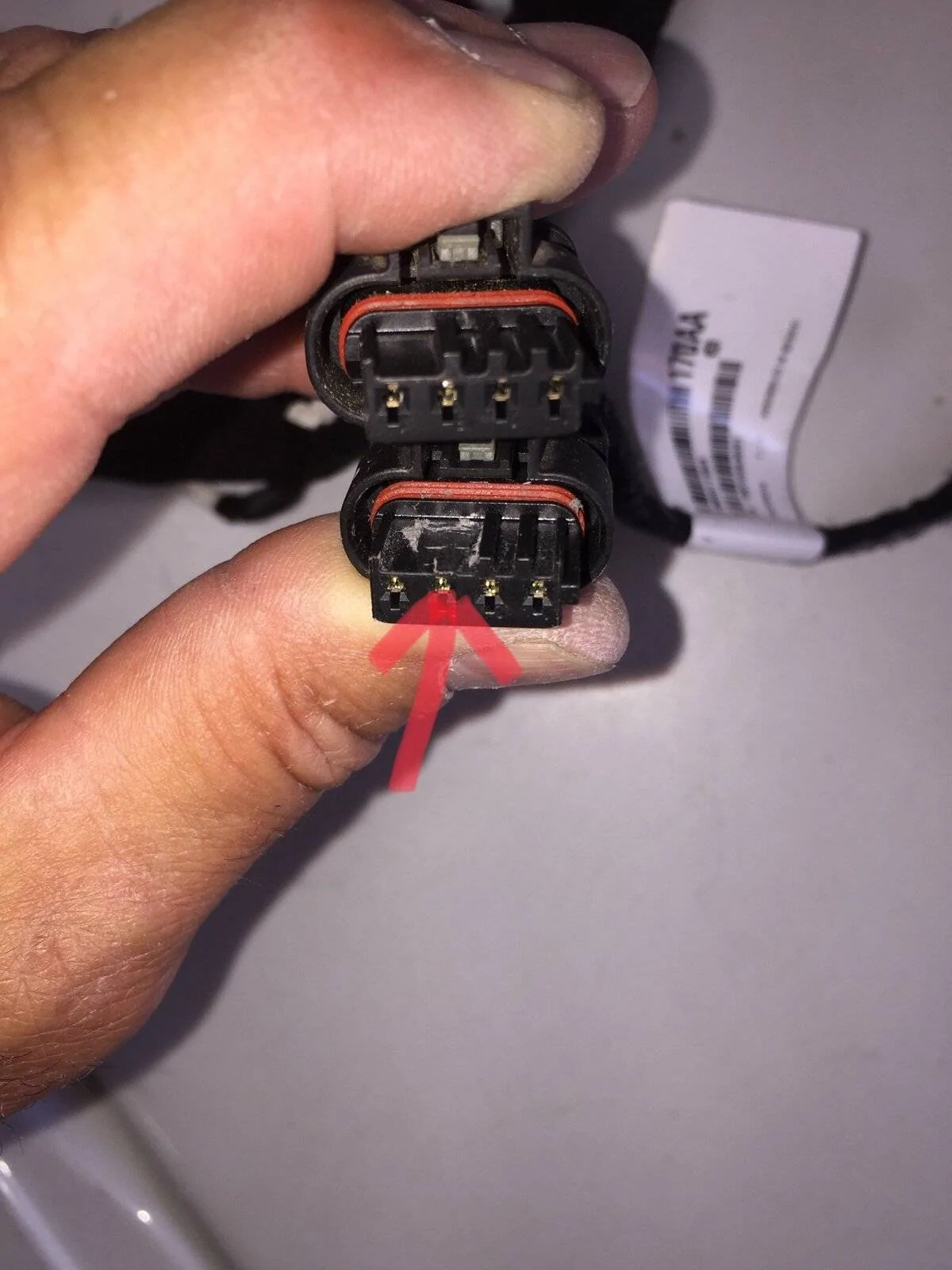

Turns out that family of connector is used in the doors for the latch and I have the old harness from the Proximity install. The locker connectors are 805-122-582 and the connector in the door harness is 805-122-581, it’s the same connector that is keyed slightly different. I just had to use the dremel to remove one ridge in the connector.


Other than that, just lengthen the wires and done.
Gregj

Last edited:

MadDog27

Well-Known Member
First Name
Jon
Joined
Mar 5, 2019
Messages
725
Reaction score
1,181
Location
Aurora, Colorado
Vehicle(s)
2021 JLUR 2.0T, 2021 GMC Terrain
Vehicle Showcase
1
I’ll have to write that down in case I’m ever in need of one. How much was that connector?

OP
Gregj

Gregj

Well-Known Member
First Name
Greg
Joined
Dec 15, 2018
Messages
909
Reaction score
867
Location
West Texas
Vehicle(s)
JT Overland North Edition, JlU Rubicon, JLU Sport, upgrades in progress!
  • Thread starter
  • Thread Starter
  • #3
Swing Gate Wiring - 68351167AA
This is for the tailgate with Proximity, about $14. I have the old harness out of mine because I added Proximity Locks, I'll have to look at the part number on that harness when I get home.

Gregj
The non Proximity harness is pn 68351170AA
