Ordered a 2018 UJL with LED headlight package last fall. It arrived with Halogen on the front and LED tail lights. Dealer said I was not charged for the LED headlights and there was nothing I could do about it other than order another vehicle. They also said I could order a set from the factory and install them at the time they became available. That is what I did. When the lights arrived I had the software changed by the dealer to accept the headlights and installed them. The headlights wink intermittently and blink on and off, one side then the other. Anyone have any thoughts on this? Just to clarify, these are the FCA LED headlights.

On a side note, my radio freezes up and they have ordered a new unit. Since the radio is the "brain" for my JLU, is it possible that the issue with the headlights may also come from the radio issues? There were 7 different sensor codes set from the radio.
Advertisement


Last edited:

robaw

Well-Known Member
First Name
Rob
Joined
Oct 26, 2018
Messages
1,611
Reaction score
2,094
Location
Iowa
Vehicle(s)
2019 JLU MOAB (MOJITO!), 2009 Honda CBR600RR
The dealer has to enable the LED lighting option in the computer. Or you can use something like a Tazer to do it yourself.

OP
OP

rafterw

New Member
Joined
Apr 2, 2019
Messages
3
Reaction score
1
Location
Texas
Vehicle(s)
2018 JL Sahara
The dealer has to enable the LED lighting option in the computer. Or you can use something like a Tazer to do it yourself.
The dealer did set the switch in the vehicle computer. Still did not work.


wrangster

Well-Known Member
First Name
Ray
Joined
Dec 8, 2018
Messages
261
Reaction score
234
Location
Texas
Vehicle(s)
Sold the JLUS, New Ford Ranger 4X4 Lariat
Occupation
Retired and happy!
Vehicle Showcase
2
Ordered a 2018 UJL with LED headlight package last fall. It arrived with Halogen on the front and LED tail lights. Dealer said I was not charged for the LED headlights and there was nothing I could do about it other than order another vehicle. They also said I could order a set from the factory and install them at the time they became available. That is what I did. When the lights arrived I had the software changed by the dealer to accept the headlights and installed them. The headlights wink intermittently and blink on and off, one side then the other. Anyone have any thoughts on this? Just to clarify, these are the FCA LED headlights.

On a side note, my radio freezes up and they have ordered a new unit. Since the radio is the "brain" for my JLU, is it possible that the issue with the headlights may also come from the radio issues? There were 7 different sensor codes set from the radio.
After reading this I think I will stay with my regular headlights! sorry you are going thru this.


ThirtyOne

Well-Known Member
Rock Sponsor (Level 1)
Joined
Apr 18, 2017
Messages
5,348
Reaction score
7,877
Location
Chapel Hill, NC
Website
www.jeepdoodles.com
Vehicle(s)
2021 JLU Rubicon, 2017 Chevy Tahoe
Build Thread
Link
There is a sub forum dedicated to lighting.

You will find that the LED headlights don’t work well on halogen keeps. There’s a wire missing. They were supposed to release a package with a conversion harness but they never did.

If i get a chance i will find a link.

Edit: A couple of relevant links:

https://www.jlwranglerforums.com/forum/threads/mopar-led-take-offs-highbeam-and-halo-issue.16537/
https://www.jlwranglerforums.com/forum/threads/hyperflashing.18226/
Mopar LEDs installed on JL Sport
OEM LED headlights

Last edited:

wrangster

Well-Known Member
First Name
Ray
Joined
Dec 8, 2018
Messages
261
Reaction score
234
Location
Texas
Vehicle(s)
Sold the JLUS, New Ford Ranger 4X4 Lariat
Occupation
Retired and happy!
Vehicle Showcase
2
Man we got some softies here. You’re going to change your plan based off of one opinion?
No I am going to mount some good spots on the front soon, keeping the headlights.


Joaozao

Well-Known Member
First Name
Joao
Joined
Oct 28, 2018
Messages
107
Reaction score
46
Location
New Jersey
Vehicle(s)
2019 Wrangler Sport S
LEDs will work fine if flashed properly. I did mine with a tazer



ThirtyOne

Well-Known Member
Rock Sponsor (Level 1)
Joined
Apr 18, 2017
Messages
5,348
Reaction score
7,877
Location
Chapel Hill, NC
Website
www.jeepdoodles.com
Vehicle(s)
2021 JLU Rubicon, 2017 Chevy Tahoe
Build Thread
Link

JeepCares

Well-Known Member
Joined
Feb 1, 2018
Messages
4,609
Reaction score
2,276
Location
Auburn Hills, MI
Vehicle(s)
JL
Ordered a 2018 UJL with LED headlight package last fall. It arrived with Halogen on the front and LED tail lights. Dealer said I was not charged for the LED headlights and there was nothing I could do about it other than order another vehicle. They also said I could order a set from the factory and install them at the time they became available. That is what I did. When the lights arrived I had the software changed by the dealer to accept the headlights and installed them. The headlights wink intermittently and blink on and off, one side then the other. Anyone have any thoughts on this? Just to clarify, these are the FCA LED headlights.

On a side note, my radio freezes up and they have ordered a new unit. Since the radio is the "brain" for my JLU, is it possible that the issue with the headlights may also come from the radio issues? There were 7 different sensor codes set from the radio.
Hi rafterw,
We're truly sorry to hear about the troubles you're having with your Jeep. Please send us a private message if you would like additional assistance while you work with your dealer to address these concerns.
Lydia
Jeep Social Care Specialist


EgGreg

Active Member
Joined
Jan 25, 2019
Messages
31
Reaction score
14
Location
Upstate NY
Vehicle(s)
2003 Jeep
The dealer did set the switch in the vehicle computer. Still did not work.

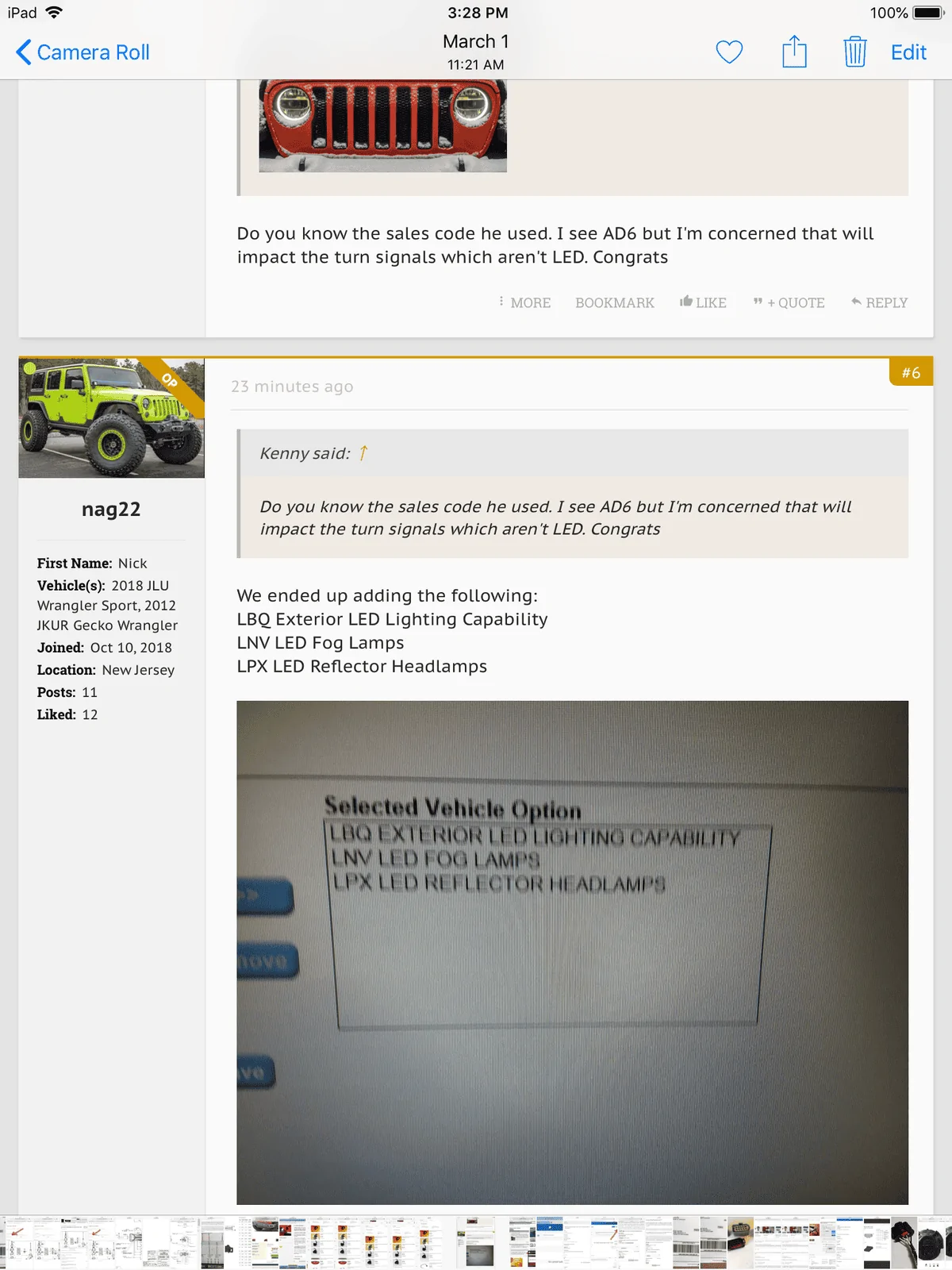

Ive seen this several times now, the dealer is not uploading / reflashing the proper code for the lights to work properly. See attached screen shot of dealer software - you need the “LPX” code properly flashed


OP
OP

rafterw

New Member
Joined
Apr 2, 2019
Messages
3
Reaction score
1
Location
Texas
Vehicle(s)
2018 JL Sahara
Hi rafterw,
We're truly sorry to hear about the troubles you're having with your Jeep. Please send us a private message if you would like additional assistance while you work with your dealer to address these concerns.
Lydia
Jeep Social Care Specialist
I'm going to verify the Flash Code as per a message further down. I'm also going to wait until the new radio shows up to see if that makes a difference. I will take all the help I can get. This is my 4th Jeep and never had an issue like this.


mwilk012

Well-Known Member
Joined
Mar 10, 2018
Messages
4,299
Reaction score
3,867
Location
Oklahoma
Vehicle(s)
2018 Ocean Blue JLU Rubicon
I'm going to verify the Flash Code as per a message further down. I'm also going to wait until the new radio shows up to see if that makes a difference. I will take all the help I can get. This is my 4th Jeep and never had an issue like this.
That's because you didn't have Mopar LED headlights in the past. No aftermarket headlight has this issue on the JL.
