Wired up my KC Rack Lights.

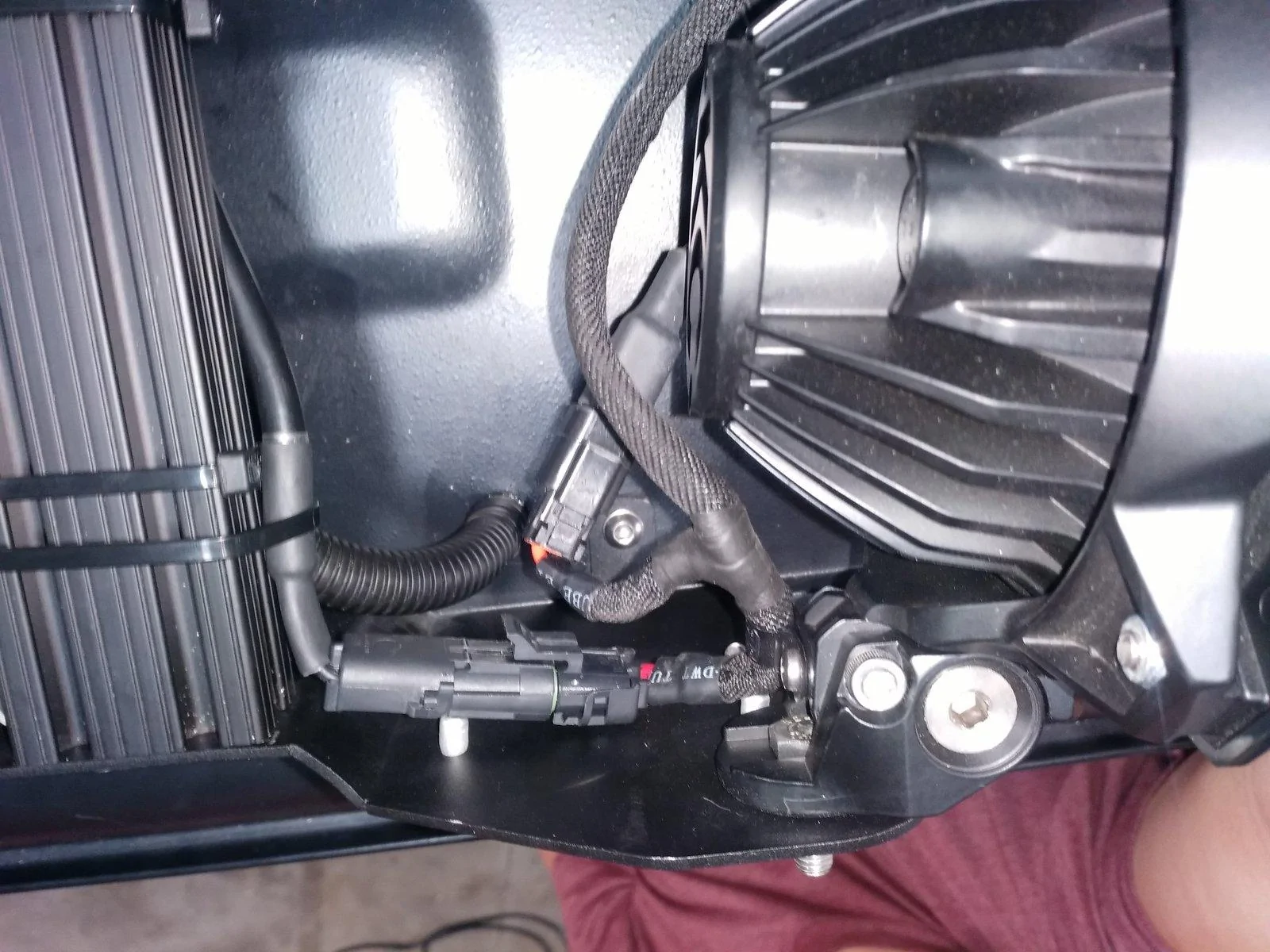

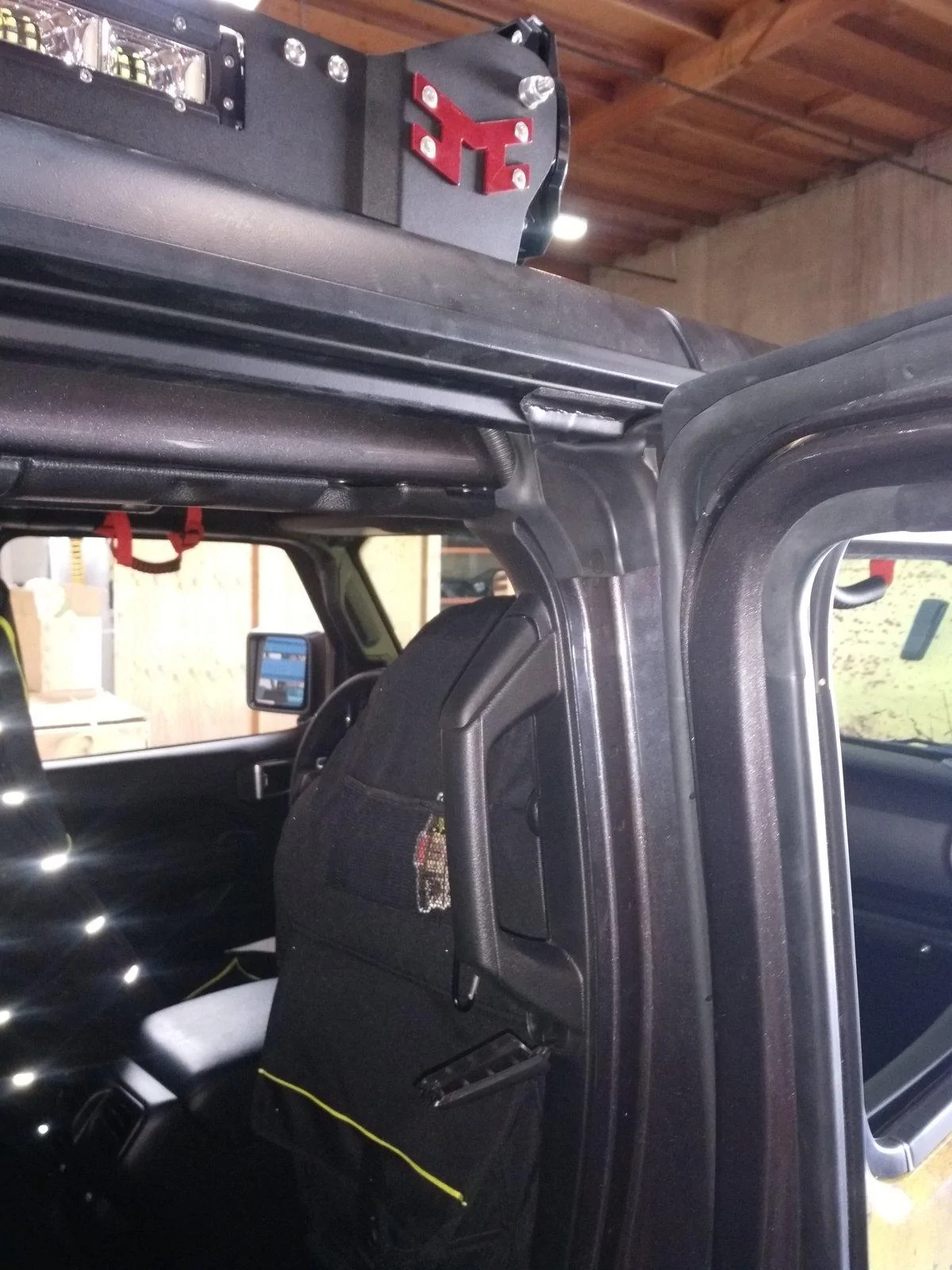

This is how I routed the wiring through the hard top and to the battery.

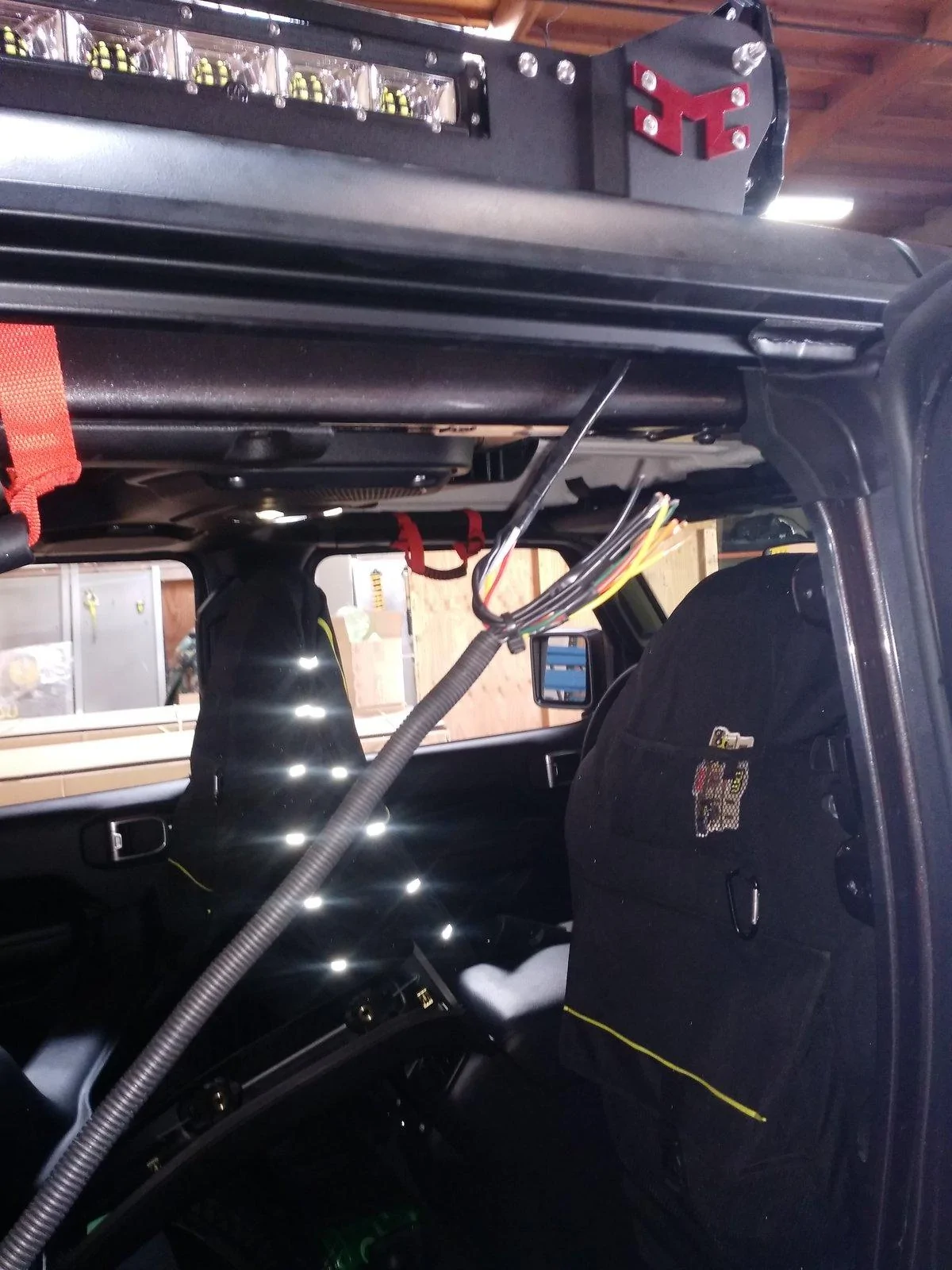

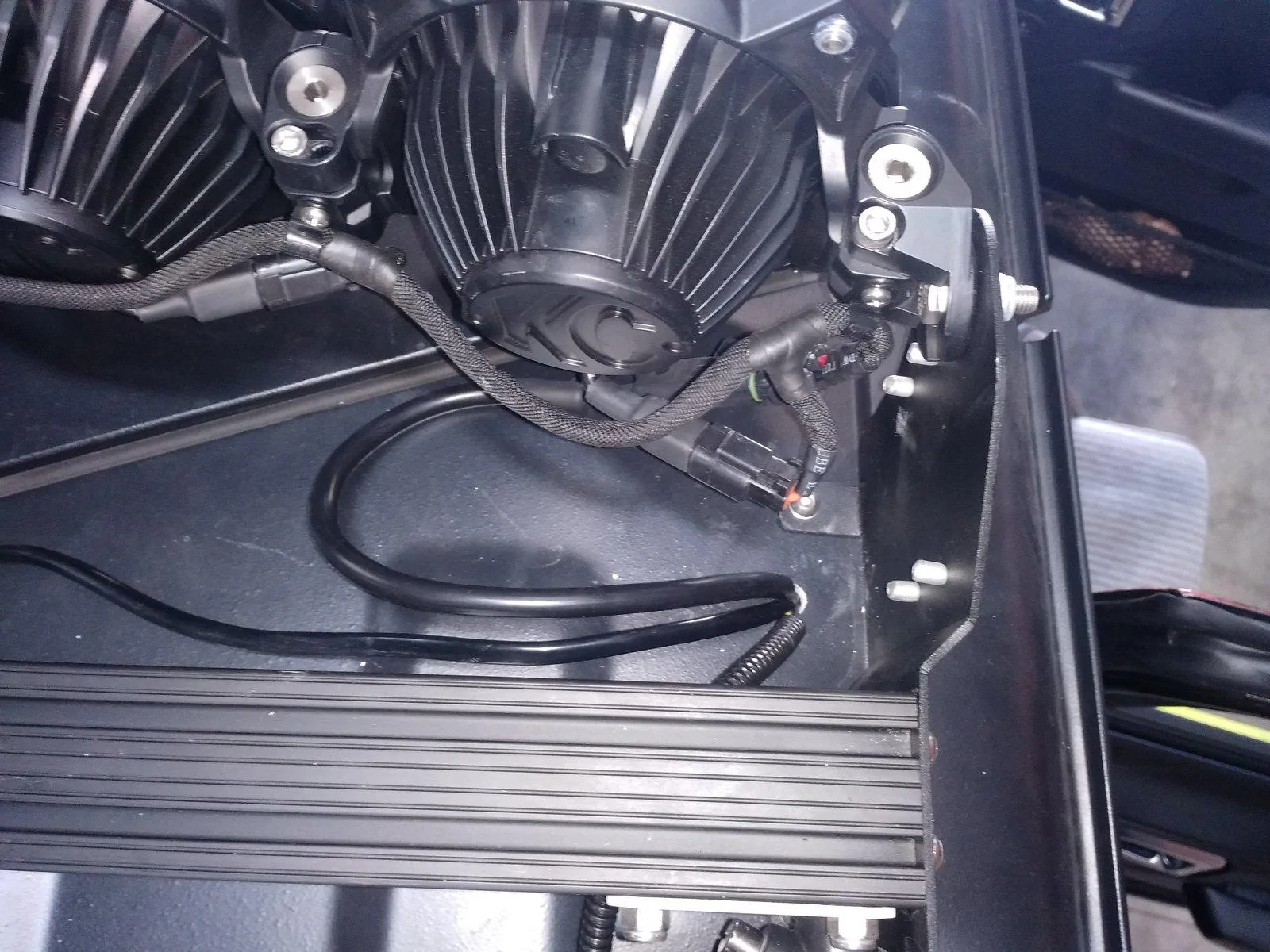

1. Drill hole in hardtop to match (or 1/8th smaller ) than the wire conduit.

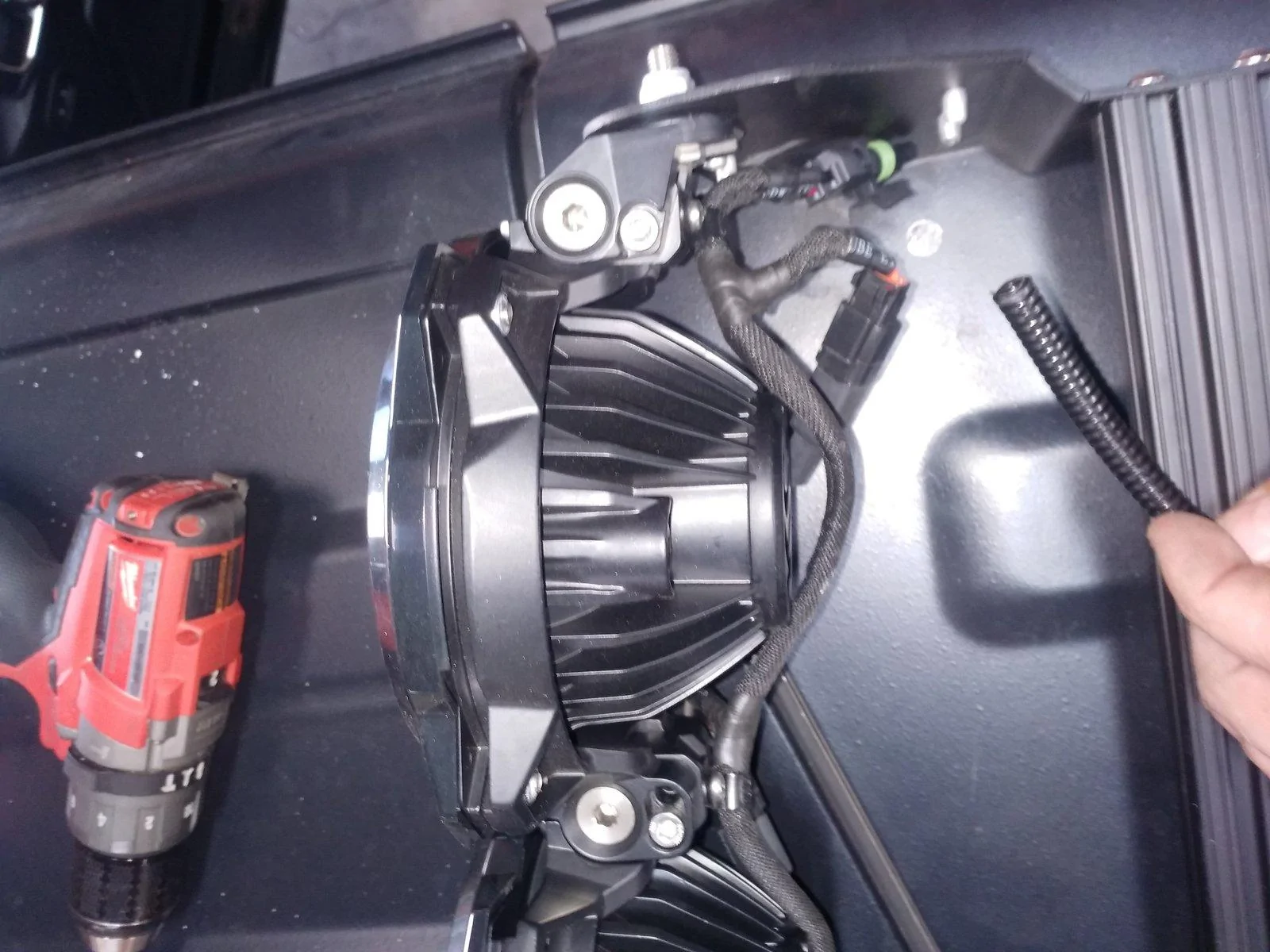

2. Conduit / tape wiring up to the hole.
3. Silicon conduit and wiring at the hole.
4. Pull 10 - 12 inches of wiring through. (cut if running disconnects for roof removal),

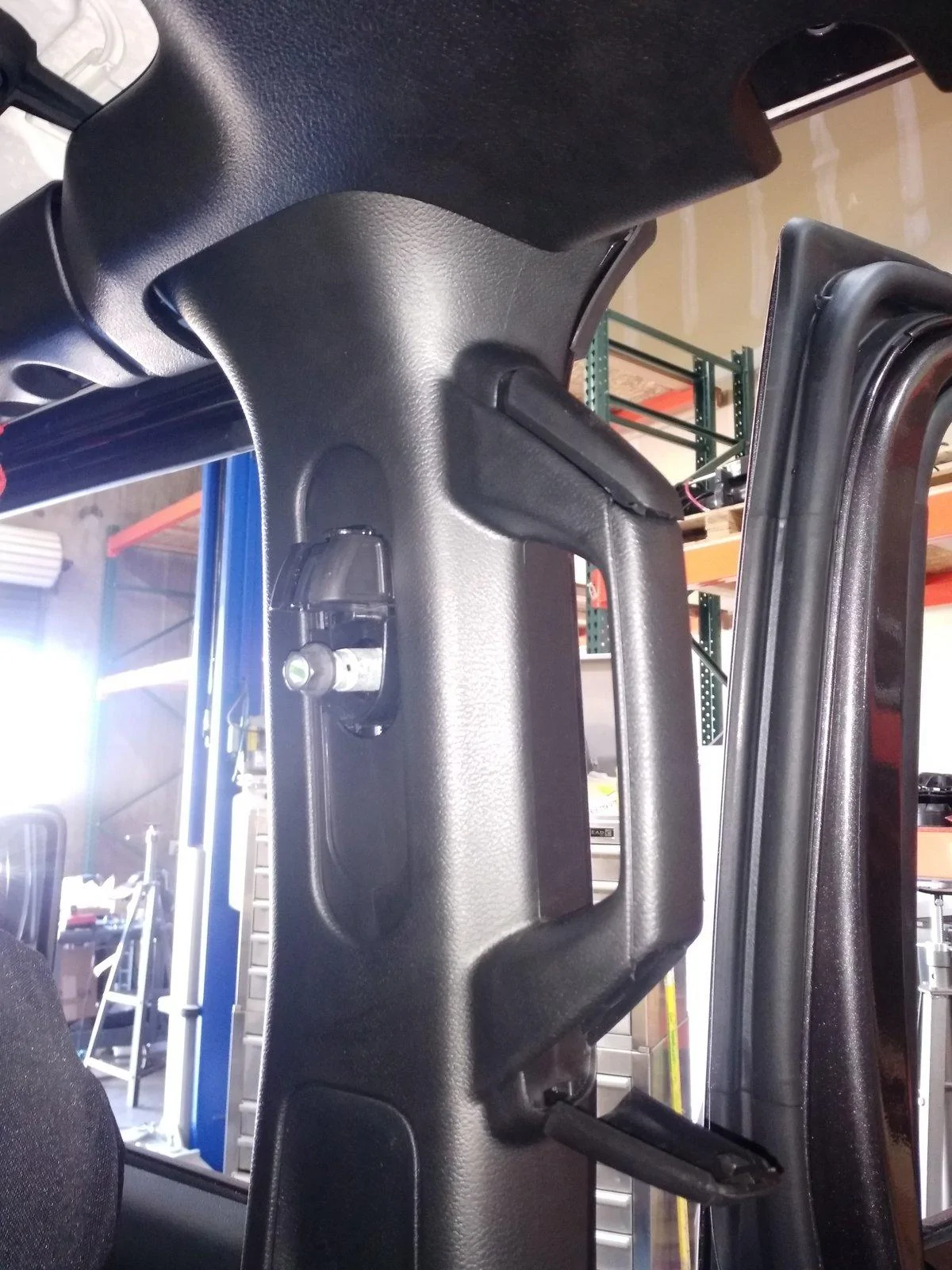

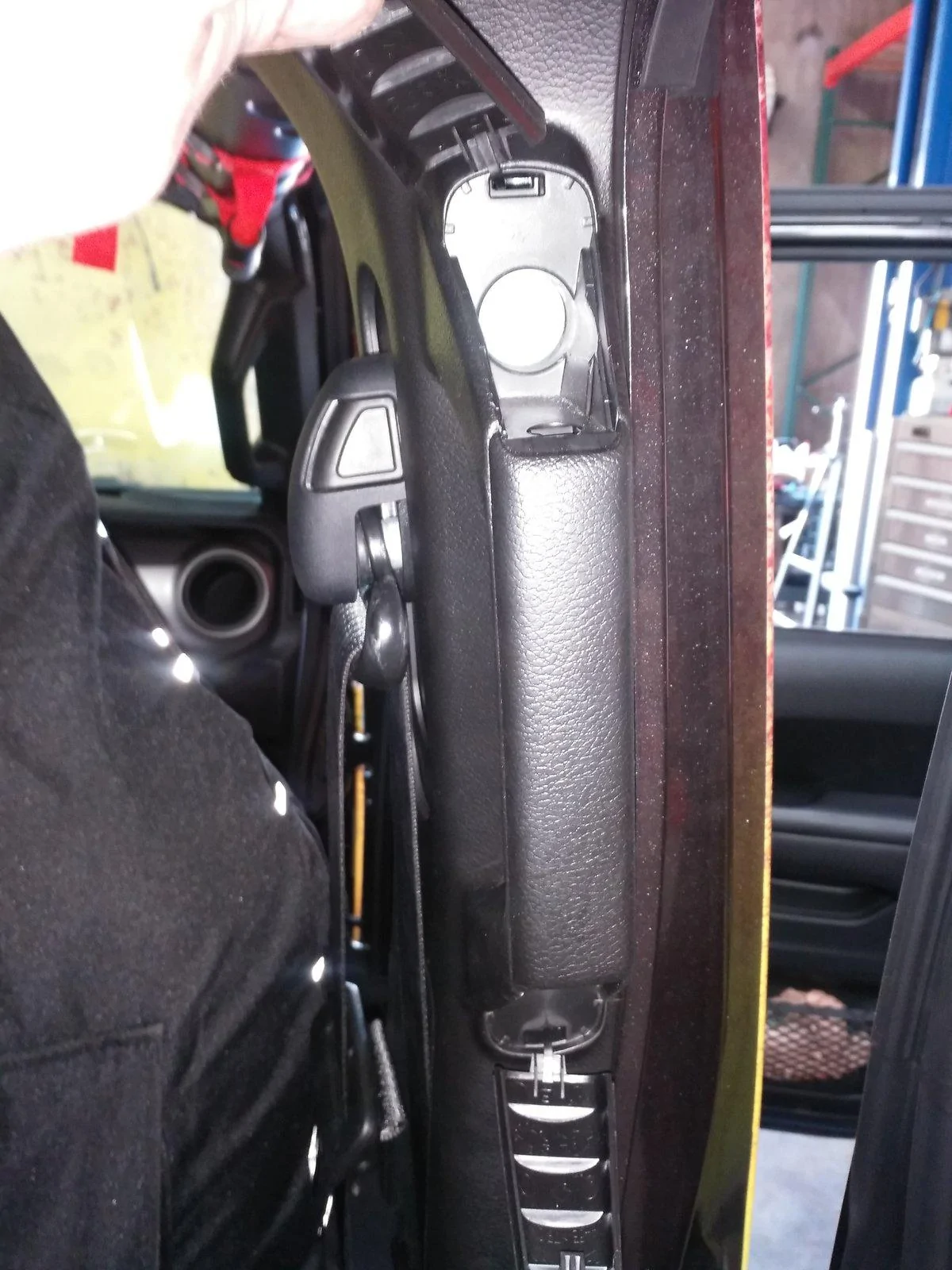

4.a. Remove foot plate, lower b pillar plastic trim, upper seat belt and grab handle, then remove upper trim and speaker cover / crossover trim.

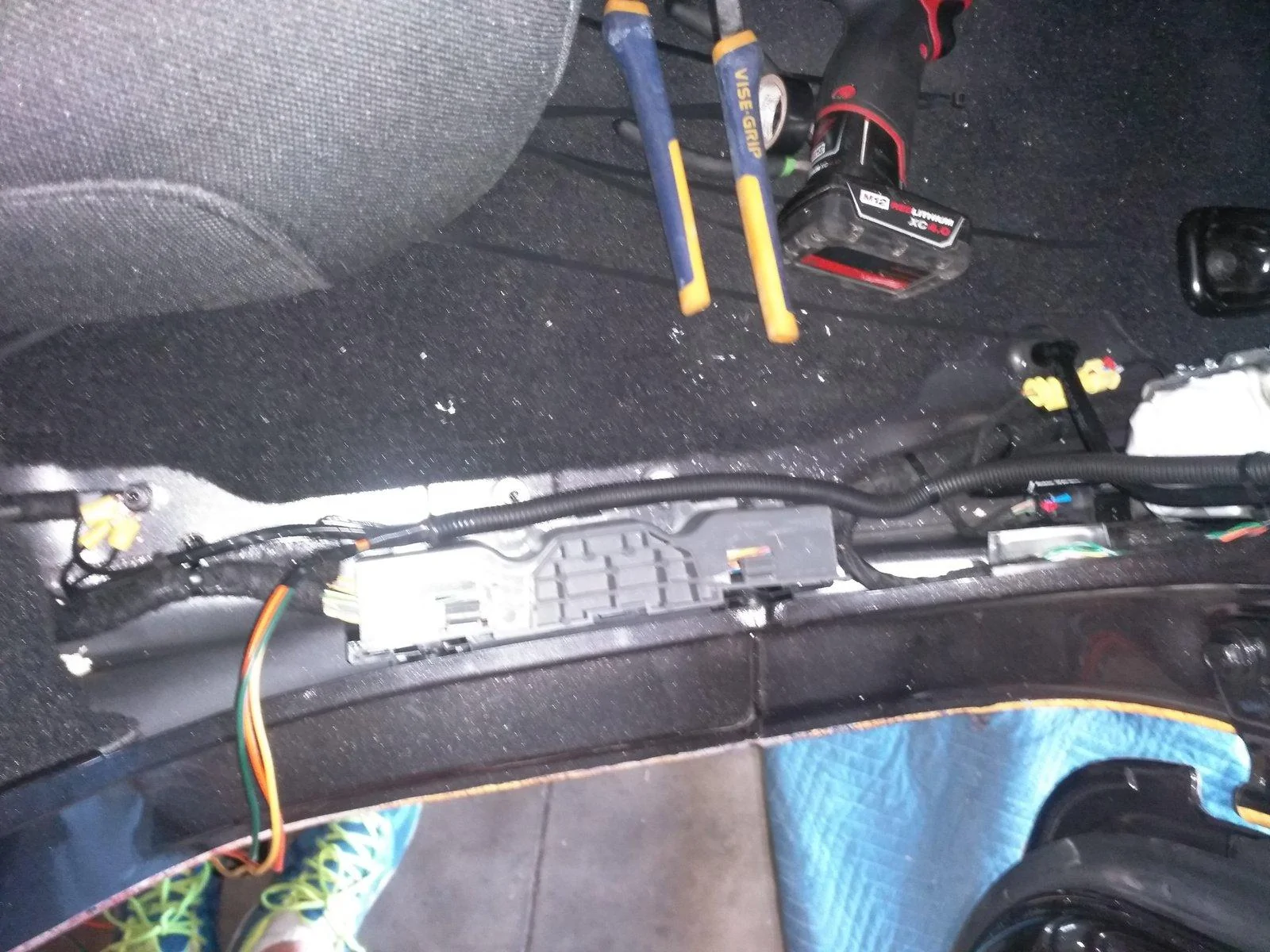

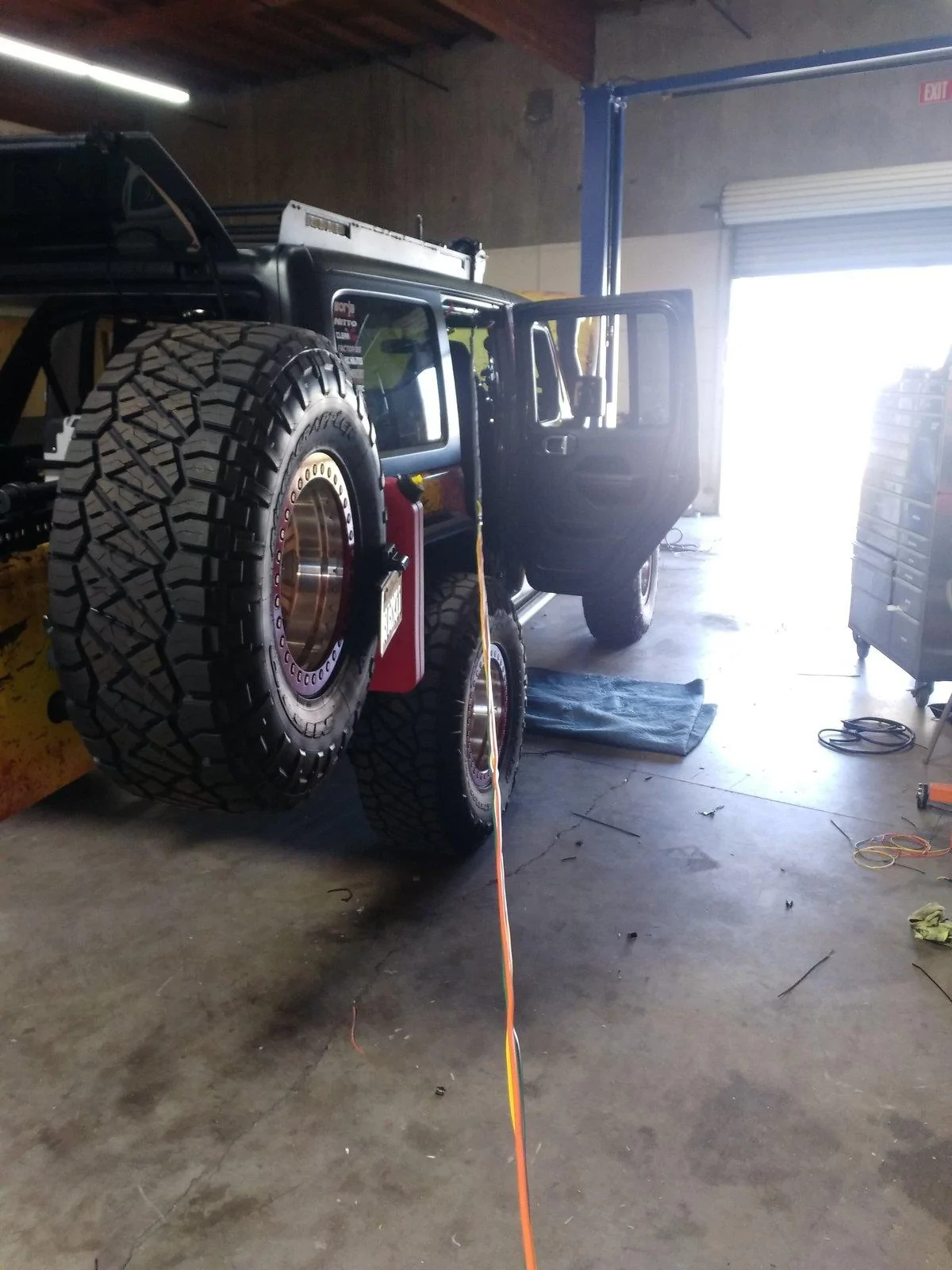

5. Measure out the wining length needed to run to the back wheel arch wiring rubber inlet and then back up to battery. Be Generous so you have enough left over to cut some off. There is a Negative spike at the rear of the right hand side foot skid once removed. Either terminate negative here / or run full length to the battery.

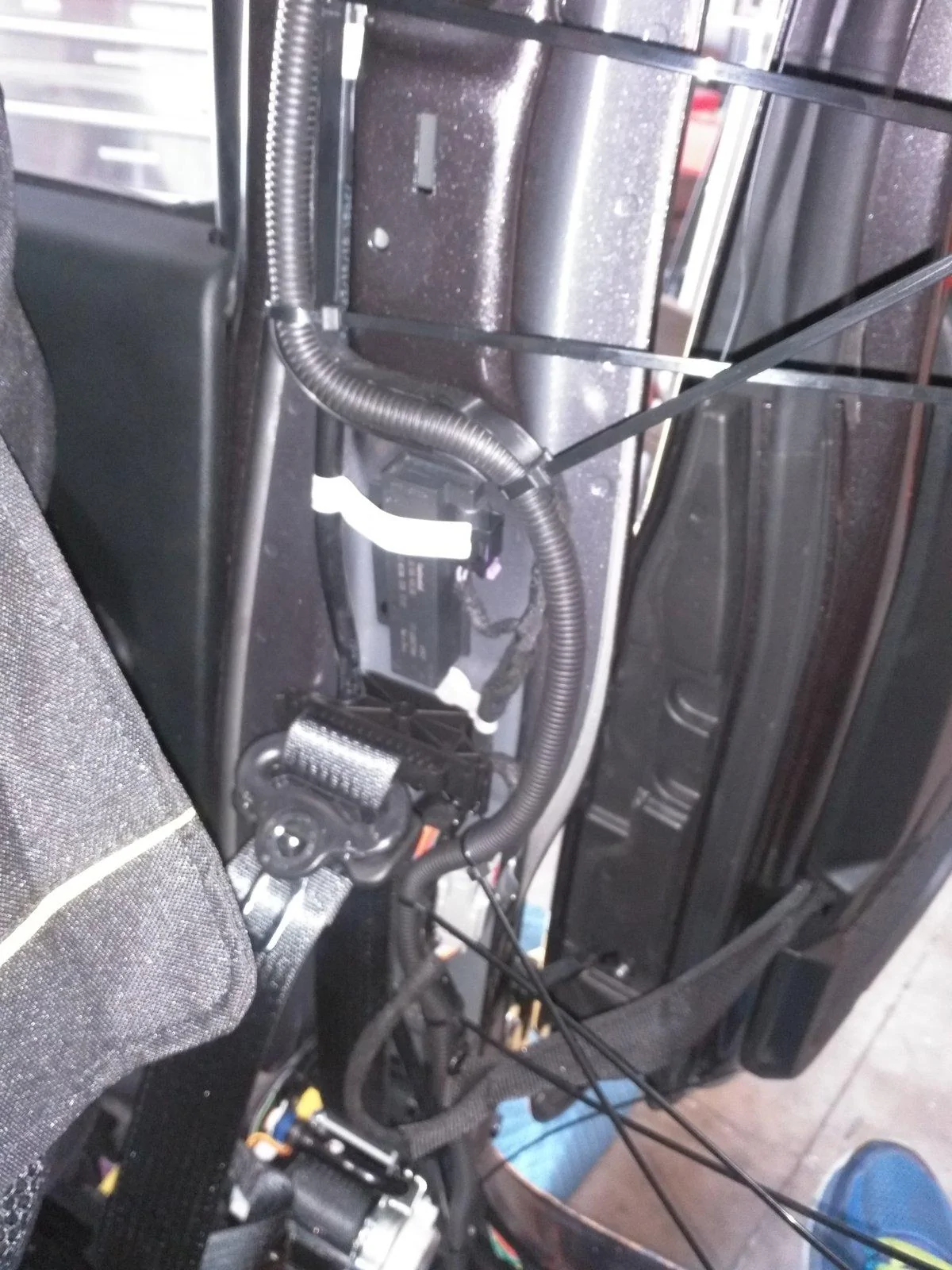

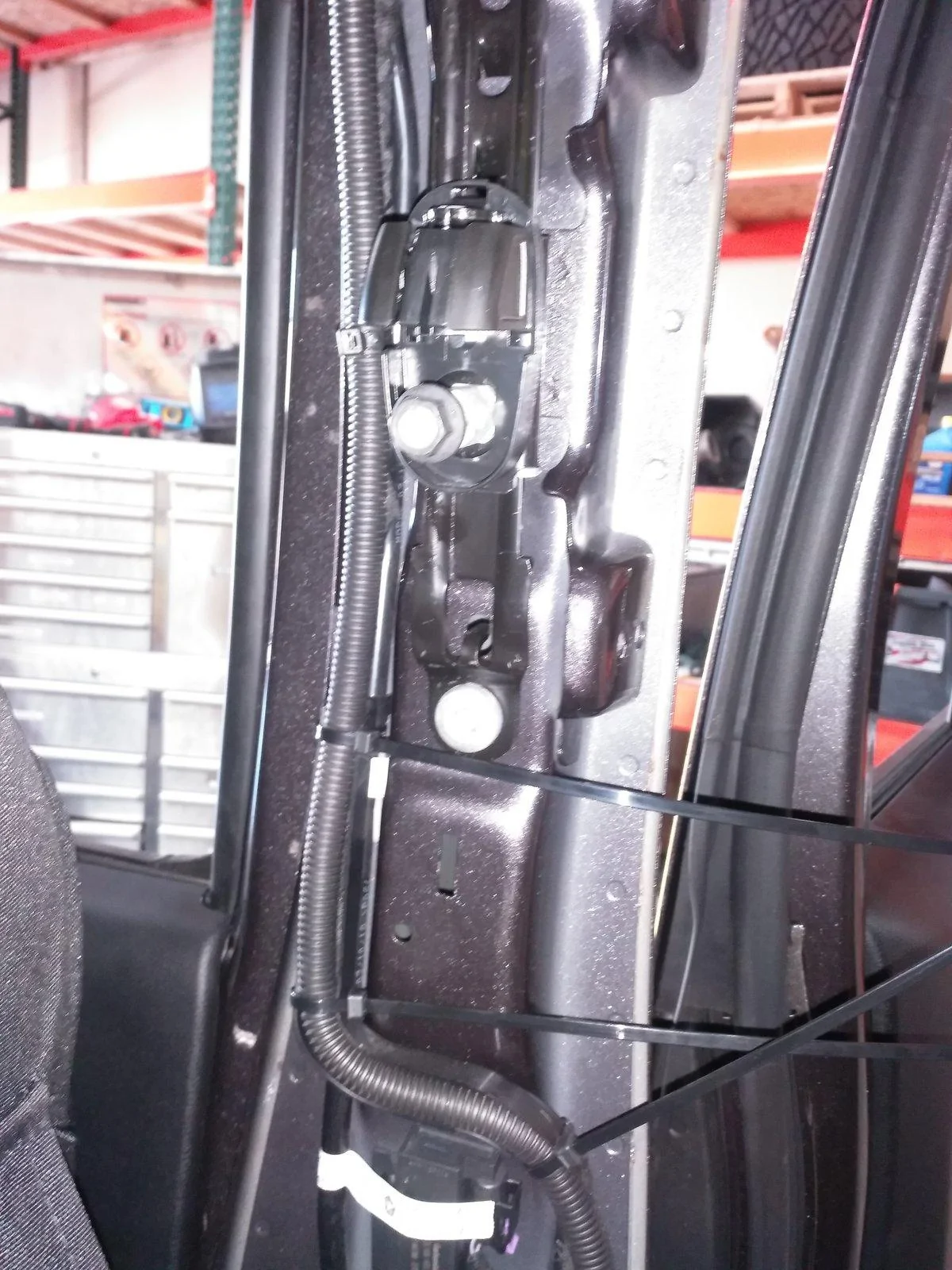

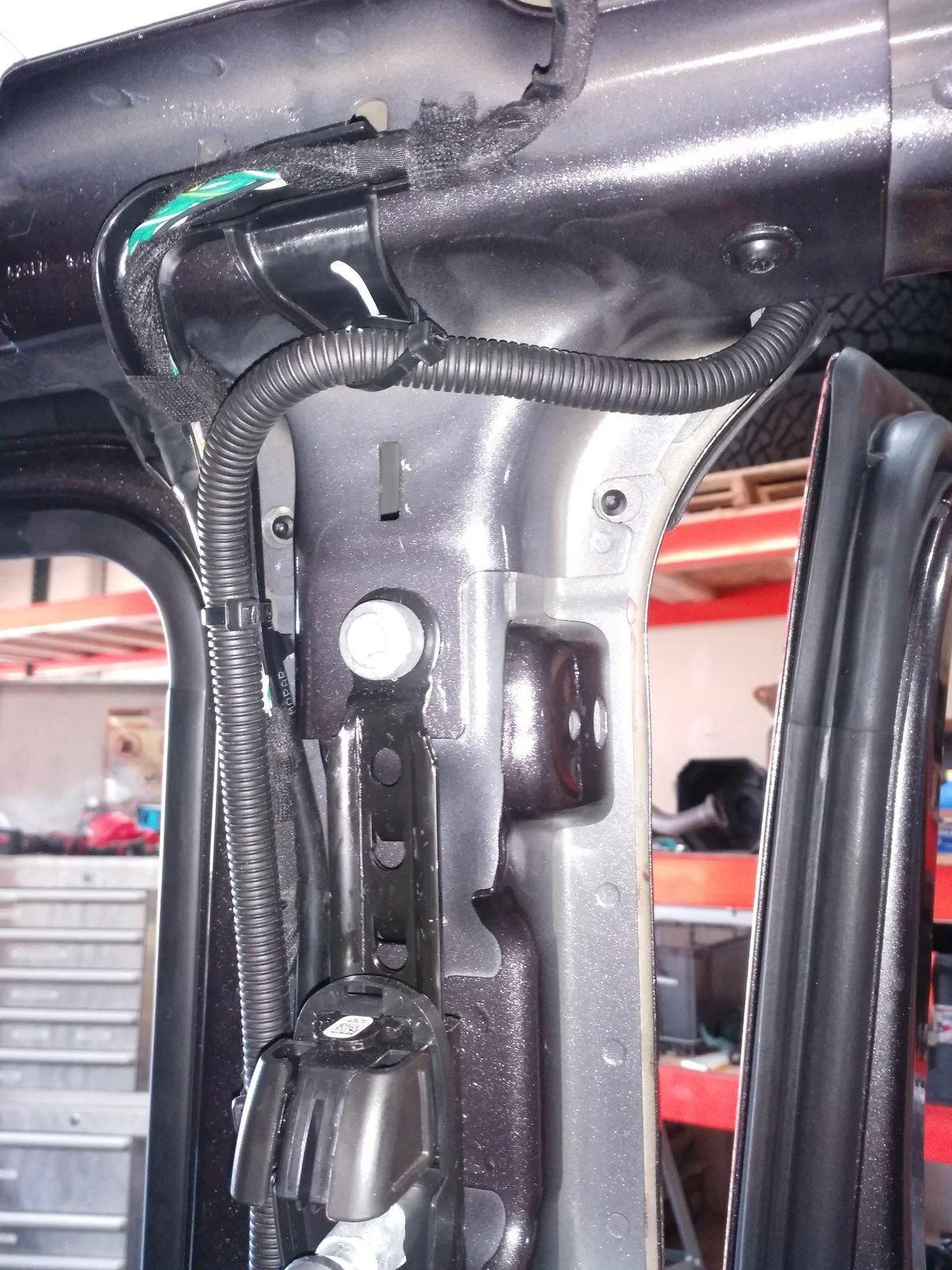

6. Run the wires as shown to avoid seat belt interference.

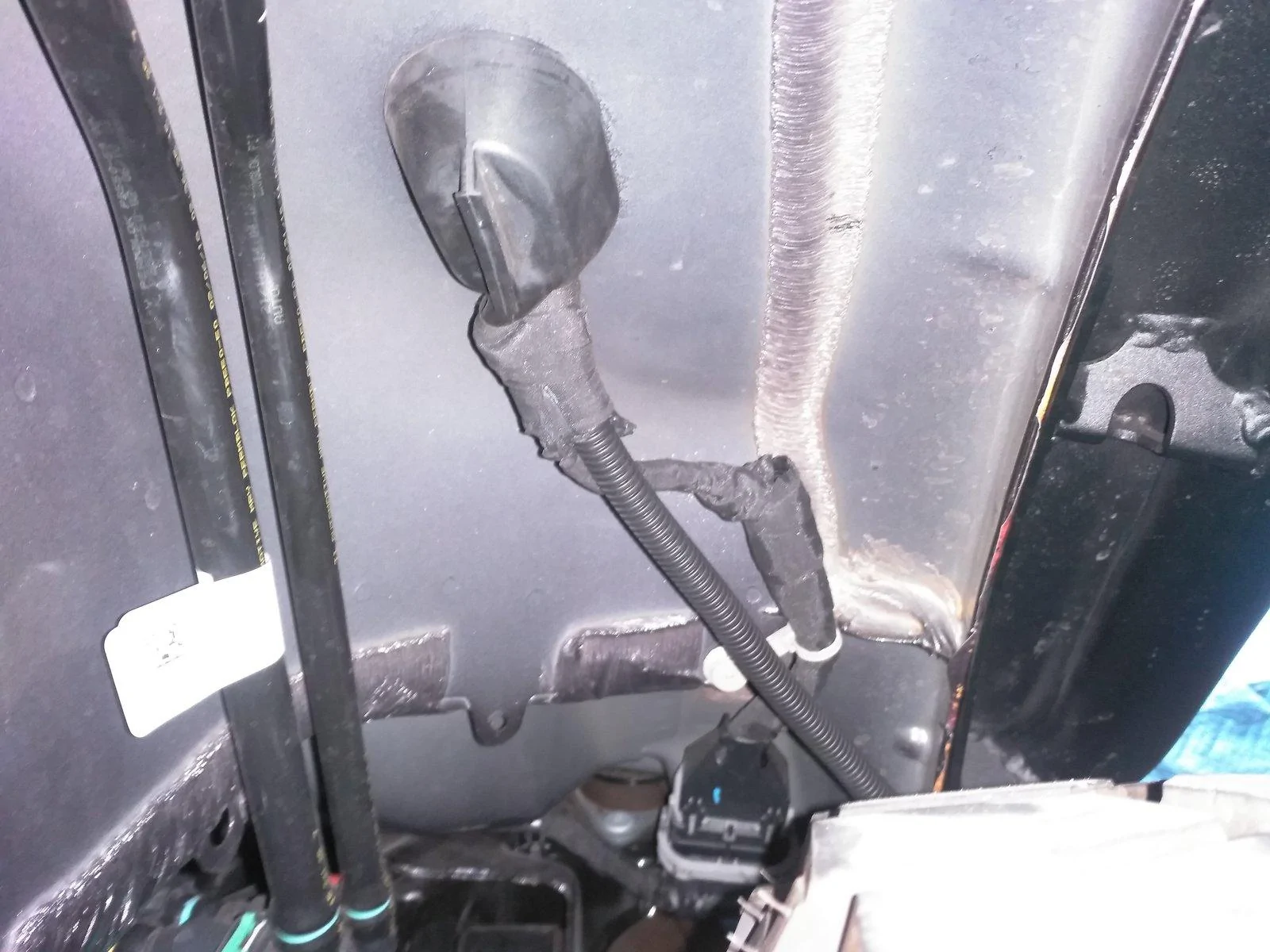

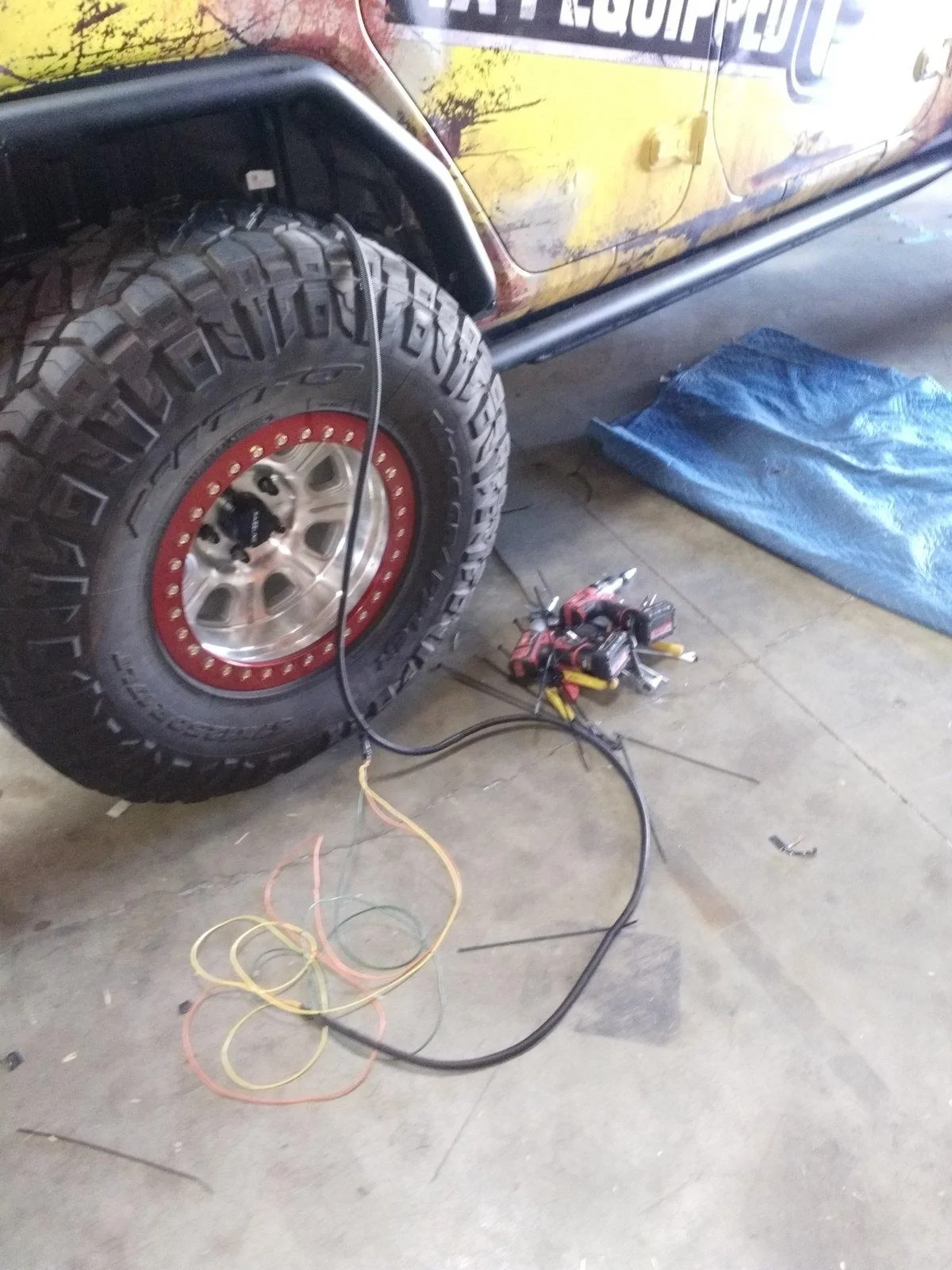

7. run wires to rear wheel arch and exit through the existing rubber wiring connector.
8. Run wires above chassis and back up to battery.
9. If you wish to run disconnects for the top removal, I used these,
https://www.amazon.com/gp/product/B00NEWBGR2/ref=oh_aui_detailpage_o01_s00?ie=UTF8&psc=1
Make sure you leave the supply battery positive as the protected wire when disconnected.

Use all other common sense for the wiring, including the use of wiring relays, fuses, etc. This is really just a quick help for those looking for a neat way to hide the wires from the roof into the cab.

Hint, you can run the wires to the (passenger/rhs) outside of the battery and up. Much easier to run if the inner fender flare is removed.

I will do a separate write up / youtube video on how to do a $20 budget wireless controller that can even be activated with your factory fey fob.






































OP
TJMJLWRANGLER

TJMJLWRANGLER

Member
First Name
Ethan
Joined
Oct 8, 2018
Messages
8
Reaction score
18
Location
San Diego CA
Website
www.ethanfickling.com
Vehicle(s)
2018 JL Sport S Wrangler
Occupation
Automotive Design Engineer
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #3
Stopped reading after "drill".
No thanks.
It took my 2 days of stressing about drilling holes for the rack. After I just went with it and installed the rack, then drilling an extra hole for the wiring seemed minor in nature. If you are looking at racks that you don't have to drill any holes in the hardtop, then you will probably find you neeed to make other compromises with altering the car.
