JLUR XR Overall Height

kansasboy91

Well-Known Member
First Name
Rory
Joined
Oct 13, 2021
Threads
18
Messages
70
Reaction score
86
Location
Kansas
Vehicle(s)
2022 JLURXR
I have a 22 JLUR Xtreme Recon on order (was looking for a turn key weekend warrior) and I’m wondering what the overall height will be to see how it might fit in my garage door. I see 73.6 inches for a stock Rubicon could I be looking at 76 or so inches over all? Obviously antenna will need to be shortened. And does the bow on the soft top make the top a little taller than the windshield? Sorry for all the questions but I’m coming from IFS and long time Ford fanboy and previous Bronco order holder. I kinda understand Jeep lifts but not really since some are more and some are less than advertised from what I’ve seen. Thank you for any and all help!
Sponsored



mwilk012

Well-Known Member
Joined
Mar 10, 2018
Threads
14
Messages
8,926
Reaction score
8,755
Location
Oklahoma
Vehicle(s)
2018 Ocean Blue JLU Rubicon
Occupation
Service
It will probably fit.
Yes, the soft top sticks up above the windshield/A pillar.
I don’t have an XR, but I have a Rubi with a 2”lift and the same tires and wheels as the XR. It’s about 75.5inches at its highest point.


OP
OP
kansasboy91

kansasboy91

Well-Known Member
First Name
Rory
Joined
Oct 13, 2021
Threads
18
Messages
70
Reaction score
86
Location
Kansas
Vehicle(s)
2022 JLURXR
Awesome! Thank you so much! I reall thought my garage door was lower than it is till I just measured it. My 2018 F150 barely fits but it has a level and that big shark fin on top. I like how nice everyone is on here and in the legendary keep community.

OP
OP
kansasboy91

kansasboy91

Well-Known Member
First Name
Rory
Joined
Oct 13, 2021
Threads
18
Messages
70
Reaction score
86
Location
Kansas
Vehicle(s)
2022 JLURXR

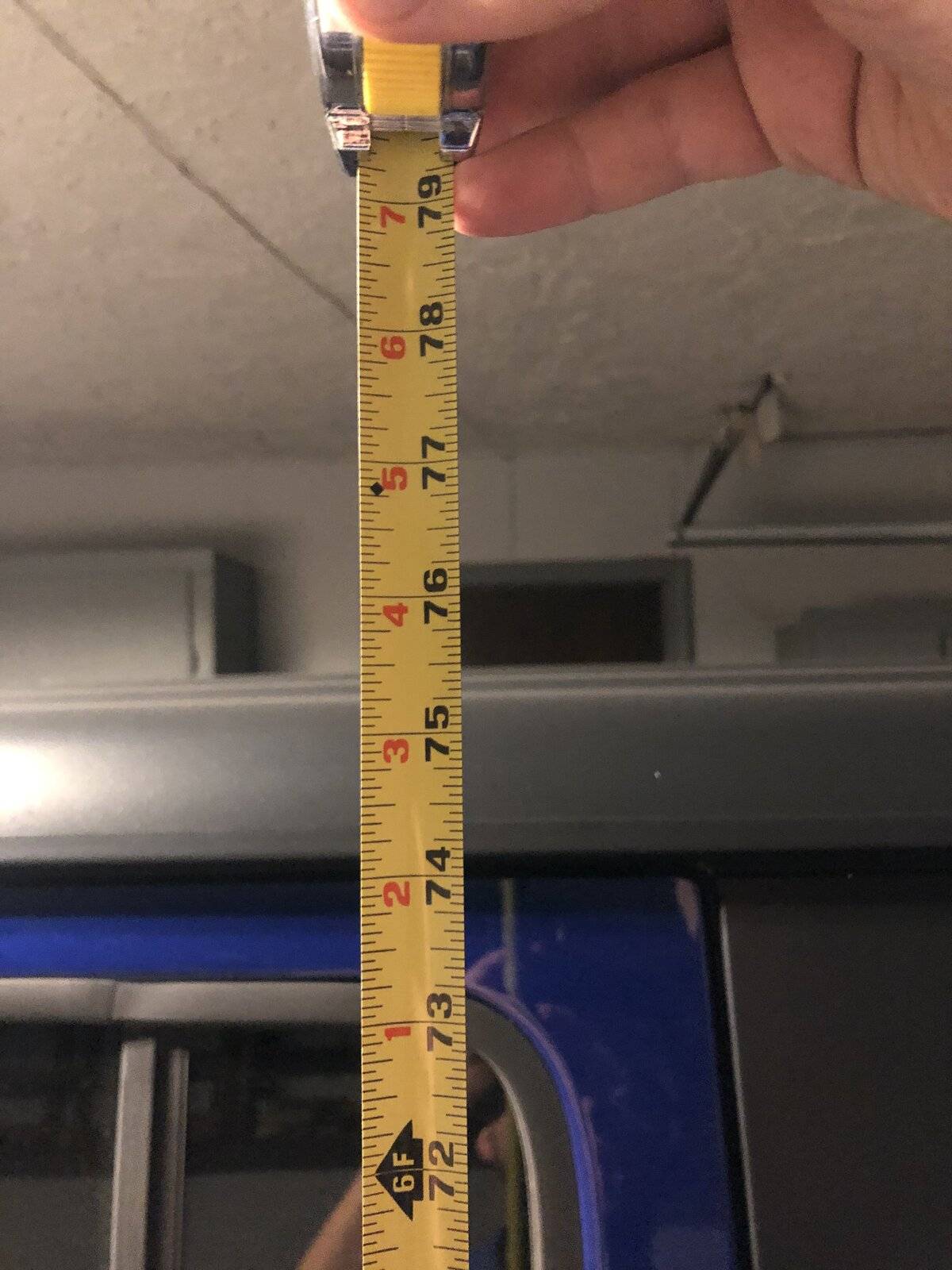

My JLUR XR with hard top is exactly 75" at the highest point. Add an inch or two for soft top.
On a semi related not what’s the step in height I.E. the tub lip?


Sponsored

rent

Well-Known Member
Joined
Jul 18, 2021
Threads
11
Messages
364
Reaction score
787
Location
Roaming Around
Vehicle(s)
2021 JLUR XR
On a semi related not what’s the step in height I.E. the tub lip?

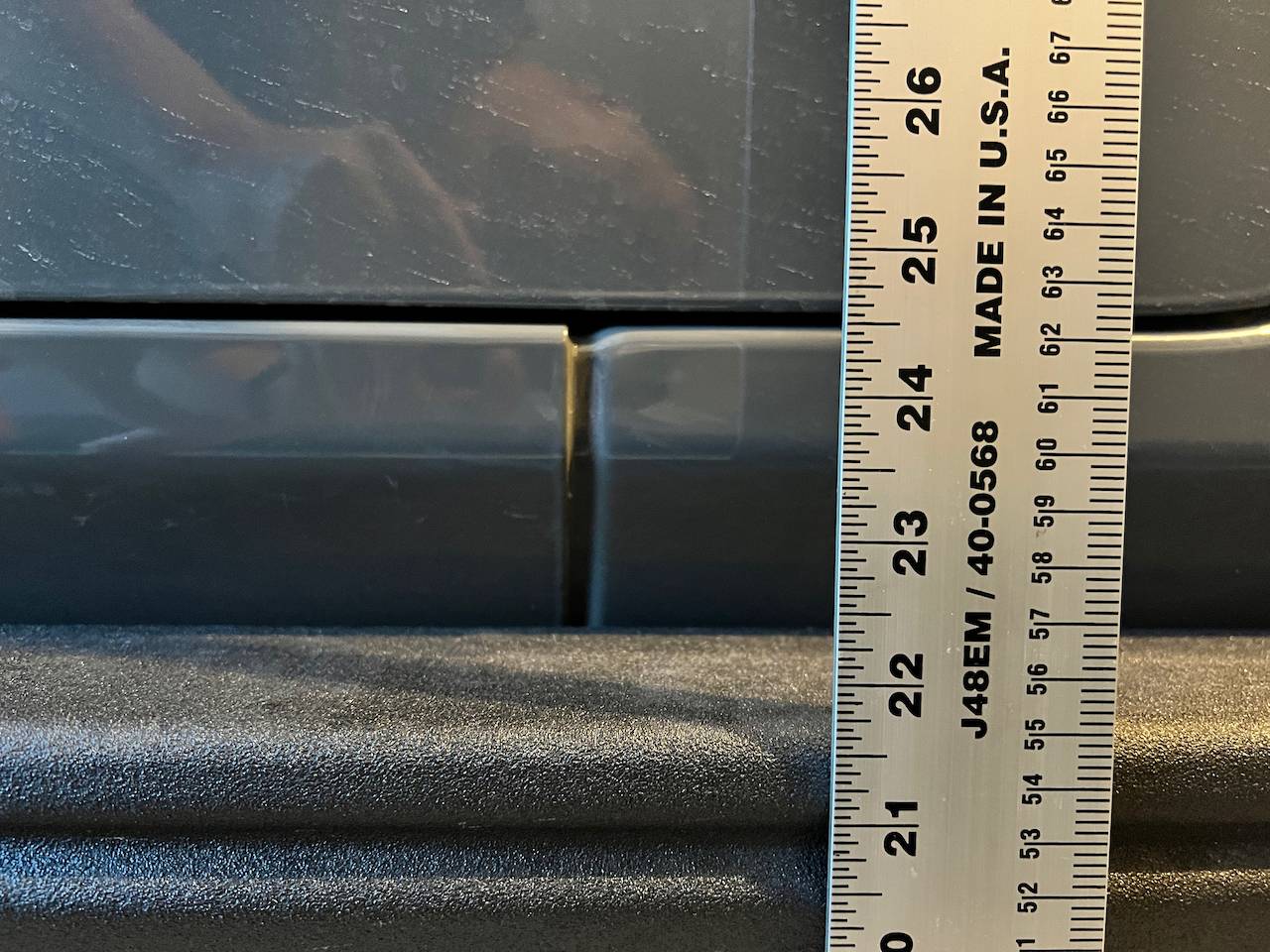

The lip is at 24.5" for the front, ~25" for the rear. Just to make sure - this is the part where the door sill gets applied to, or basically the bottom edge of the door.

Jeep Wrangler JL JLUR XR Overall Height IMG_3115

OP
OP
kansasboy91

kansasboy91

Well-Known Member
First Name
Rory
Joined
Oct 13, 2021
Threads
18
Messages
70
Reaction score
86
Location
Kansas
Vehicle(s)
2022 JLURXR
The lip is at 24.5" for the front, ~25" for the rear. Just to make sure - this is the part where the door sill gets applied to, or basically the bottom edge of the door.

That is good enough information for me! I ask because I’m 5’5 and have little legs and my wife isn’t very agile lol.
