First time posting here, so hopefully the formatting from my phone isn't too bad.

I understand the reasons behind Jeep squeezing out all the MPG they can get, but I can't handle a Jeep with a big plastic shield hanging in front of the axle. So I decided to remove it, this is where I realized how far down the JL smartbar motor hangs down compared to my old JK.

Those who had a JK Rubicon may have heard of the swaybar motor rotation mod. Basically involves rotating up the motor and using a different bolt hole for the rubber hanger. Boom, instant 2in more clearance to the swaybar motor.

So I checked the JL Rubicon to see if a similar mod can be done to improve appearance without the airdam and better protect the swaybar motor. See pictures below.

Everything still functions perfectly... so anyone understand why they do not come like this from the factory? Maybe someone else knows the reason and I will return it back to factory if necessary.



















Sponsored



aerosynch

Well-Known Member
First Name
Luis
Joined
Mar 21, 2018
Threads
9
Messages
173
Reaction score
419
Location
Miami, FL
Vehicle(s)
2022 JLURD
I was thinking about this the other day. Can you tell us what you are pointing at in several of the photos? Have you tried flexing it now and disconnecting to see if there is any binding? Thanks!

EDIT:

Found this video by Metalcloak on a JK that explains it well also and answered some questions:

http://www.metalcloak.com/product-p/3141.htm

Last edited:
OP
OP
WillysRubicon

WillysRubicon

Member
First Name
Matt
Joined
Apr 4, 2018
Threads
3
Messages
24
Reaction score
39
Location
East TN
Vehicle(s)
2022 JL Rubicon

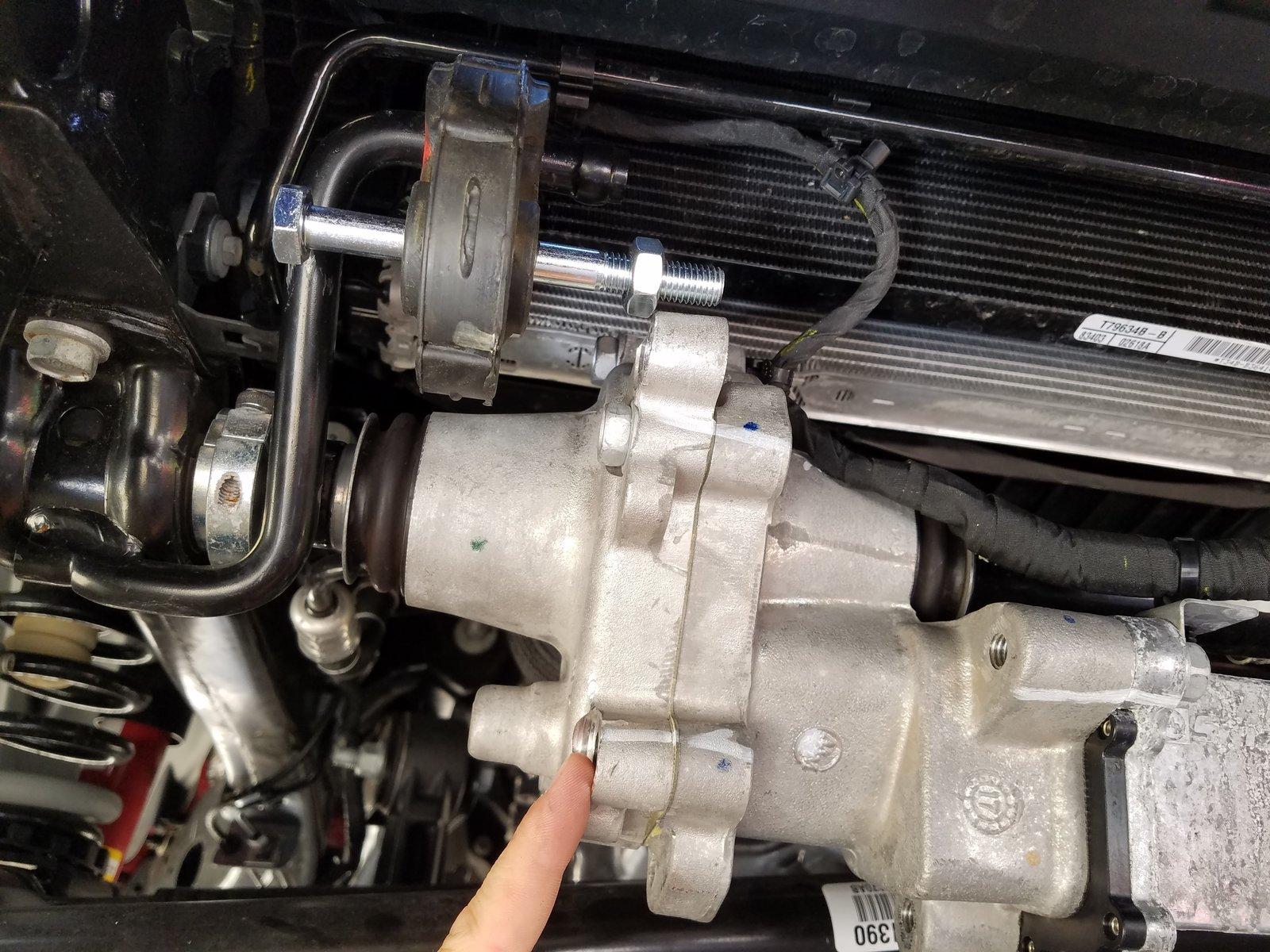

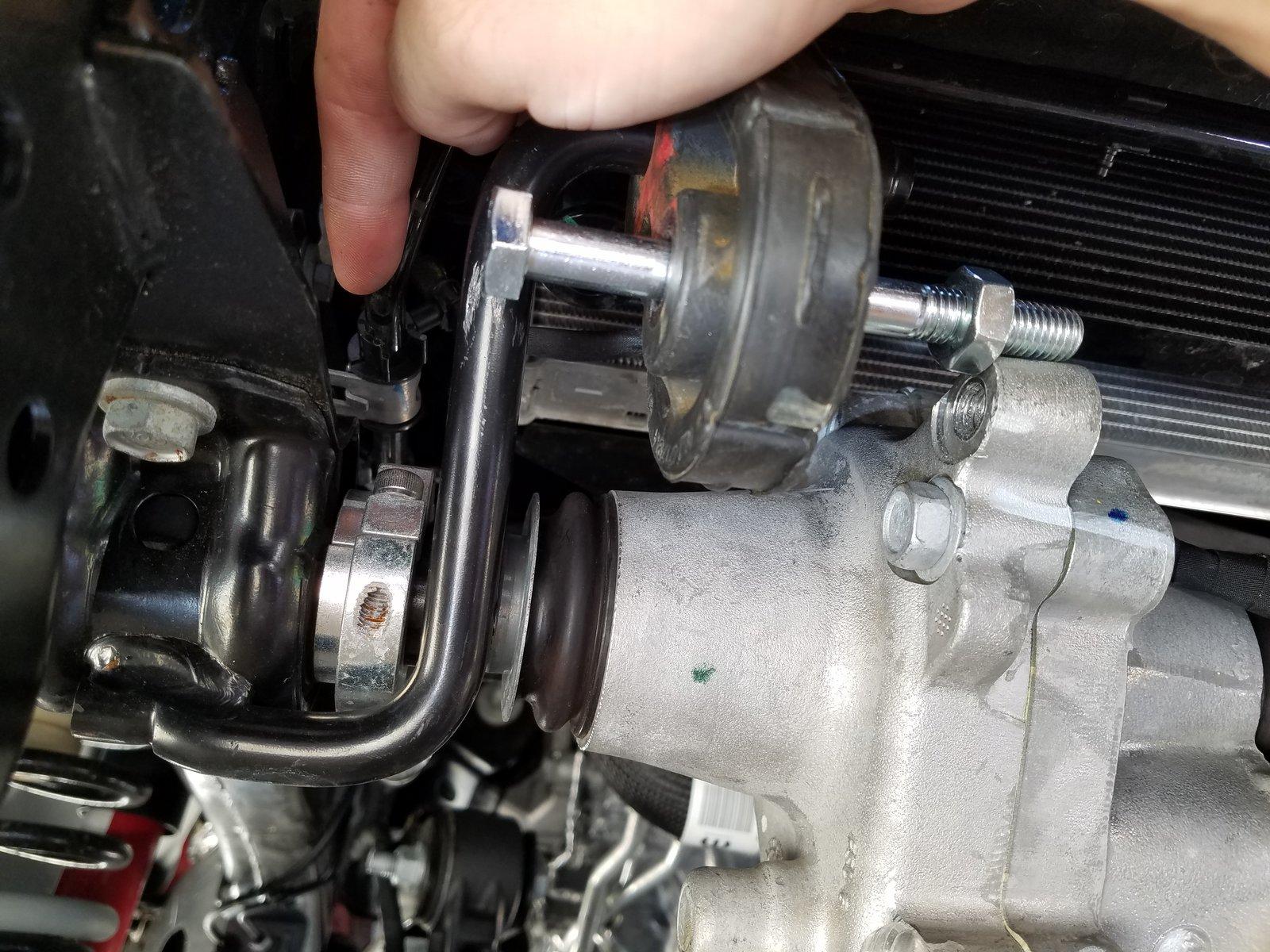

Yeah oops! Let me break it down. So in these pictures I am showing where I removed the shoulder bolt that goes in the hanger and which bolt I will remove from the housing to mount through the insulator.

The bolt in the comparison picture is not the best choice honestly and I am looking for a better replacement. It's the correct length but it needs more thread for better thread engagement in replacement hole. Best choice would honestly be to turn down the shoulder bolt 3/8" on a lathe.








OP
OP
WillysRubicon

WillysRubicon

Member
First Name
Matt
Joined
Apr 4, 2018
Threads
3
Messages
24
Reaction score
39
Location
East TN
Vehicle(s)
2022 JL Rubicon

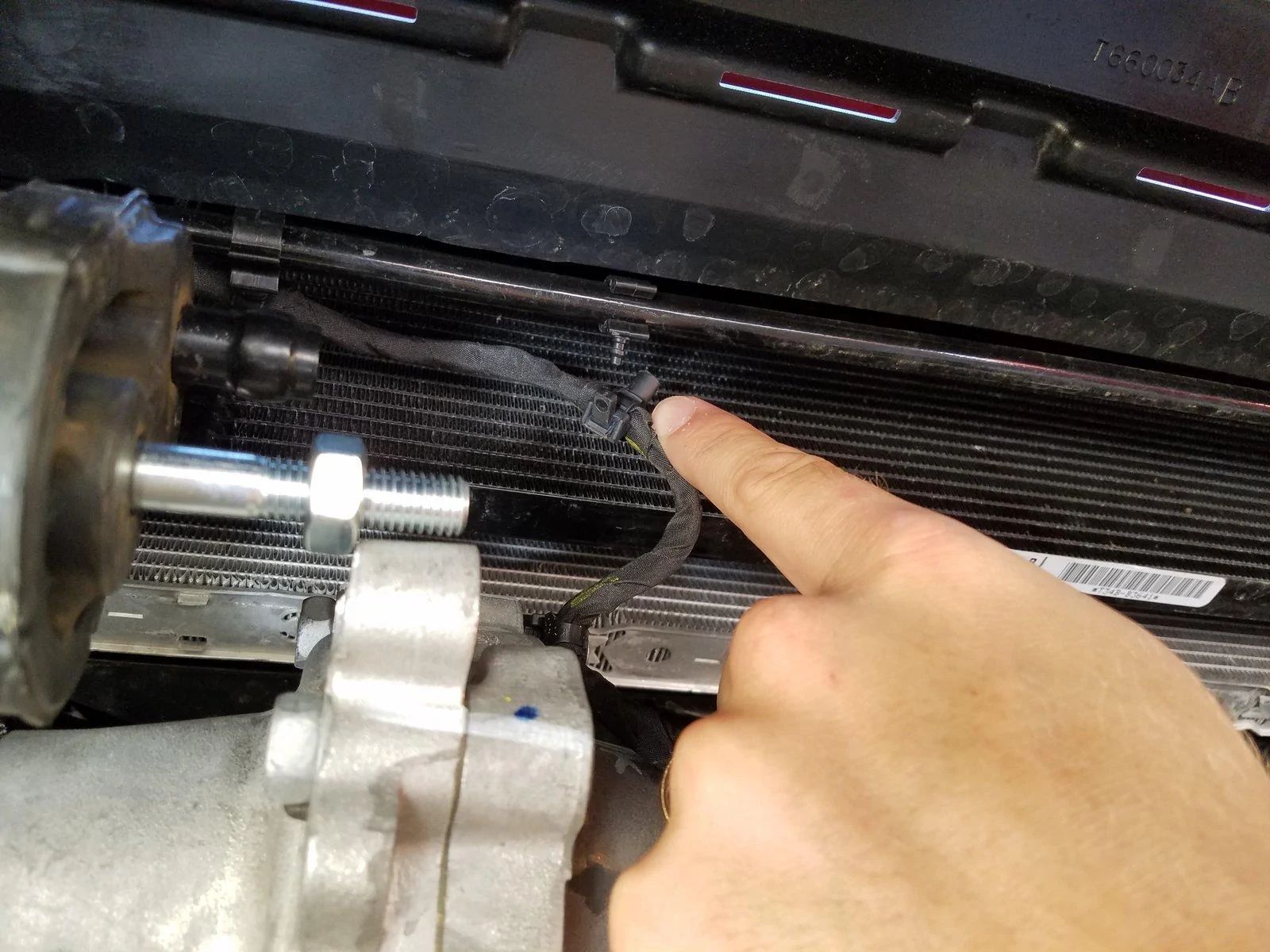

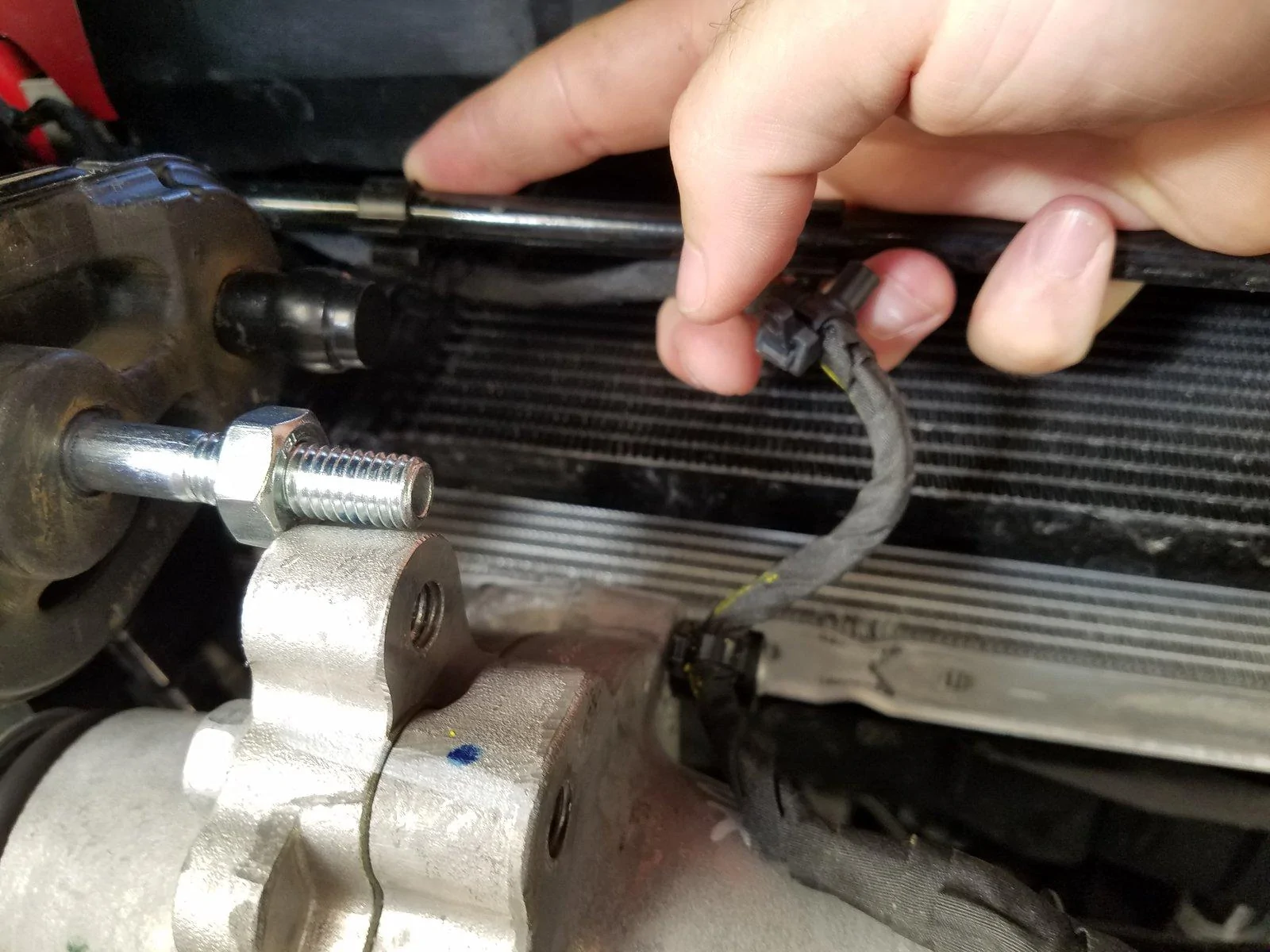

In these pictures I am pointing to the wiring harness that is clipped I think an AC line. When rotating the motor up the wiring harness needs to be unclipped in the closest connection.

There are two connections that hold the harness though, from what I see, I recommend sliding the second connection towards the passenger side along the AC(I think) line. This receives stress on the harness but still holds it up out of the way well.

The pictures are in this step by step order.






OP
OP
WillysRubicon

WillysRubicon

Member
First Name
Matt
Joined
Apr 4, 2018
Threads
3
Messages
24
Reaction score
39
Location
East TN
Vehicle(s)
2022 JL Rubicon
Last pictures, not sure how to post words next to each picture. So hopefully these all make sense, sorry.

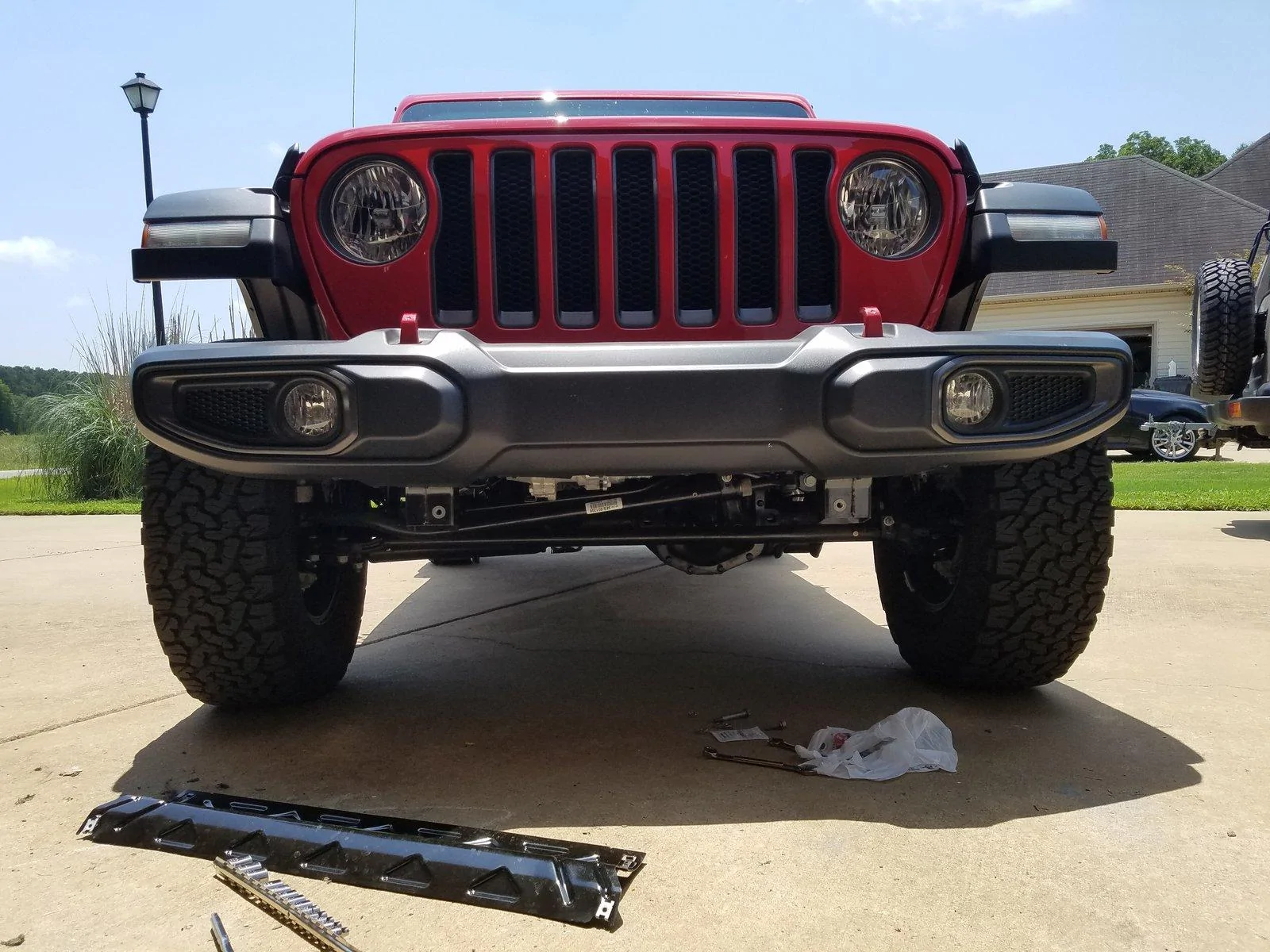

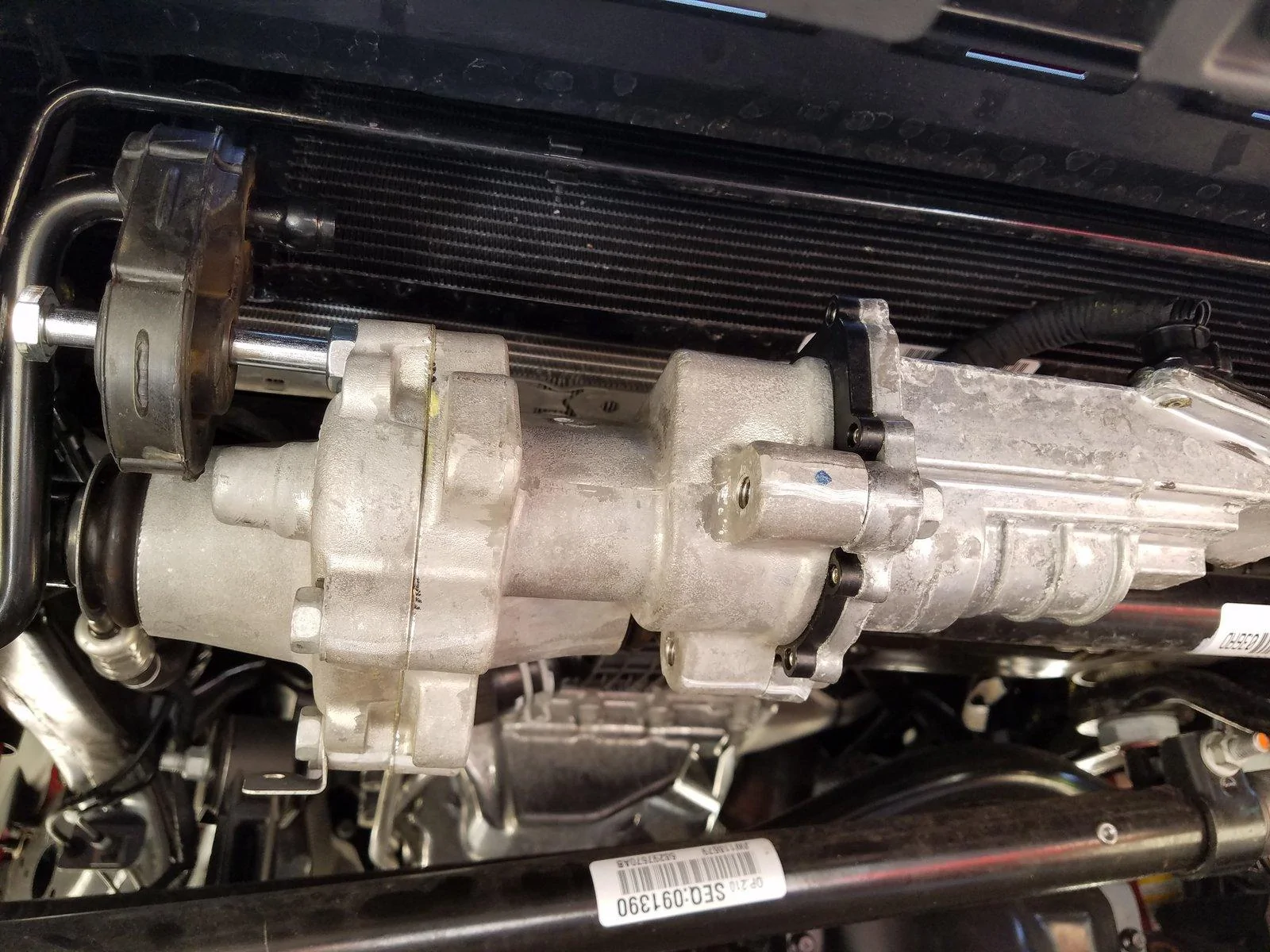

Firdt picture here shows the swaybar motor rotated and reassembled. And second picture is the jeep with all aurdams removed and swaybar motor rotated. Looks really great in person.

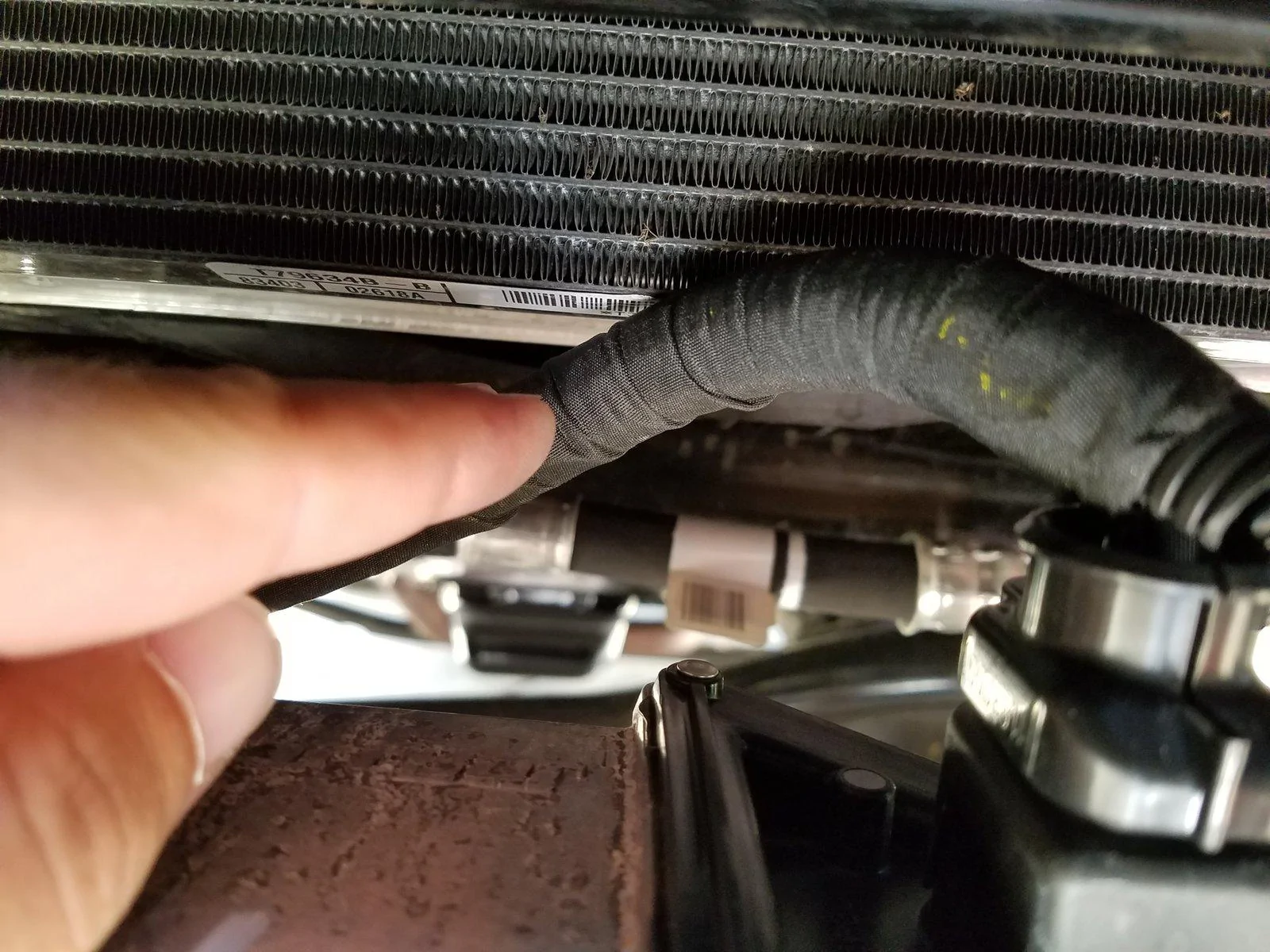

Last picture is the only concern. The wiring harness from the plug is very close to the condenser. But the wiring harness here was originally in from of the motor and is wrapped by 3 protective sleeves, so I think no concern, but I will monitor it.
