JLU 2018 3.6L engine Issue

Nissan

Well-Known Member
First Name
Nissan
Joined
Feb 23, 2019
Messages
60
Reaction score
33
Location
israel
Vehicle(s)
JL
Hello

Please provide your professional opinion
JLU 2018 with 37500 miles
While driving on the highway the engine shuts off
And after many attempts, I was able to start the vehicle
I heard knocks at the bottom of the engine
I immediately took the vehicle to a JEEP service center
After disassembling the motor we saw that all the connecting rod bearings were clean
And what's weird here is a connection drop
Found worn
Engine oil was replaced every 7500 miles with original MOPAR oil
What do you think caused the problem?

OIL Green.jpeg


WhatsApp Image 2021-07-12 at 14.49.41.jpeg


WhatsApp Image 2021-07-12 at 14.49.42 (1).jpeg


WhatsApp Image 2021-07-12 at 14.49.42.jpeg
Advertisement



Kreepin1

Well-Known Member
First Name
Kirk
Joined
Oct 27, 2020
Messages
489
Reaction score
660
Location
Central Illinois
Vehicle(s)
1982 CJ7, 2006 TJ, 2012 JKR, 2021 JLR
Build Thread
Link
I can't give you a professional opinion, but my guess is you lost oil pressure which is why the engine shut off. I can't think of any other way to spin rod bearings like that.

So the question is, why did you lose oil pressure?

OP
OP
Nissan

Nissan

Well-Known Member
First Name
Nissan
Joined
Feb 23, 2019
Messages
60
Reaction score
33
Location
israel
Vehicle(s)
JL
thank you very much for your answer
I wish I knew what could have caused the oil pressure loss


DaltonGang

Well-Known Member
Joined
Sep 29, 2018
Messages
1,540
Reaction score
1,903
Location
Houston, Tx
Vehicle(s)
2018 Wrangler JLU Sport S, Rubicon Suspension, Tires, and Rims. Firecracker Red
Sparkly Oil, not good. Was the Mopar Oil full synthetic??

OP
OP
Nissan

Nissan

Well-Known Member
First Name
Nissan
Joined
Feb 23, 2019
Messages
60
Reaction score
33
Location
israel
Vehicle(s)
JL
What do you mean by Sparkly Oil

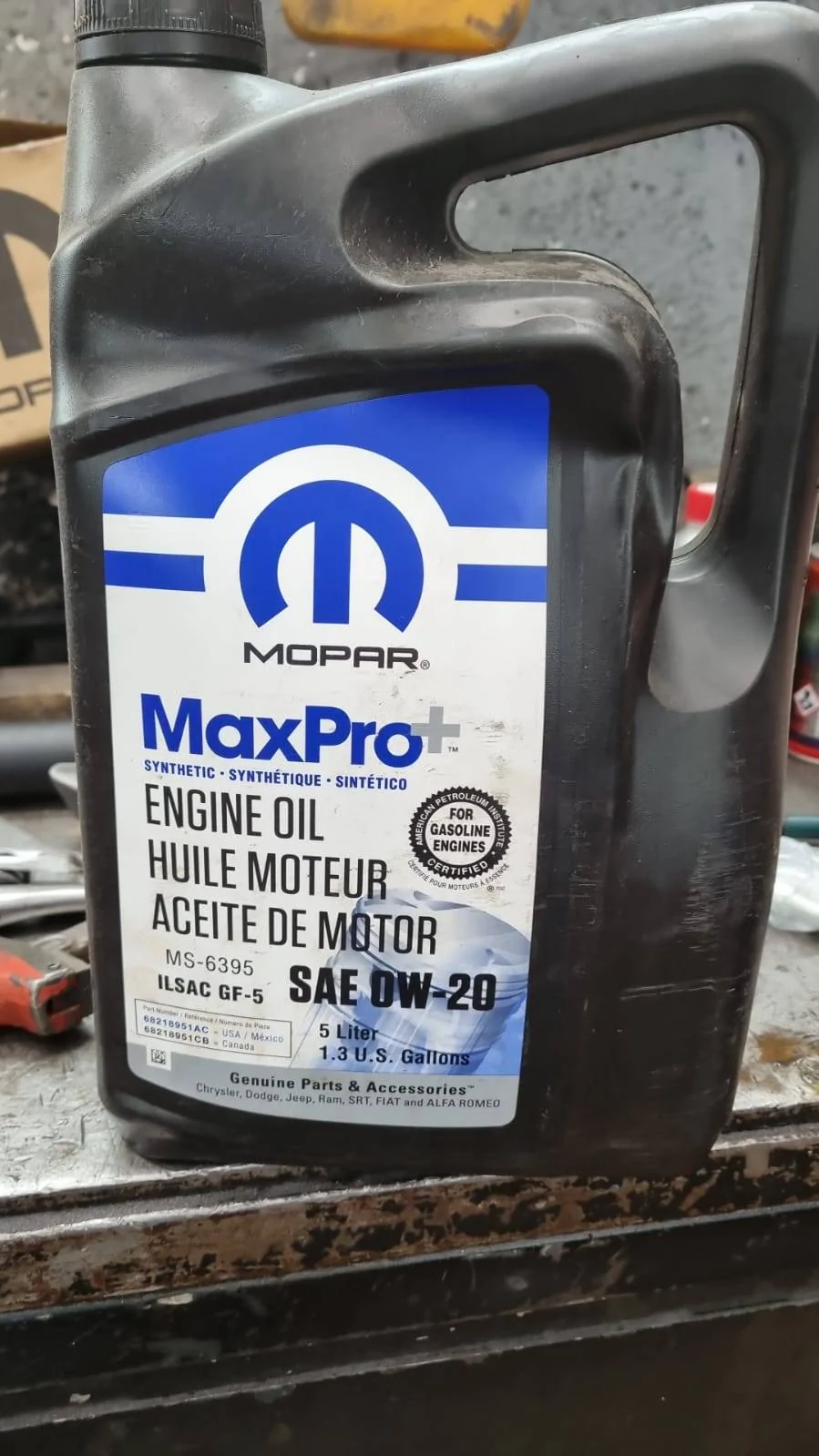

I sent you a picture of the oil I'm Use

MOPAR OIL.jpeg


mwilk012

Well-Known Member
Joined
Mar 10, 2018
Messages
5,103
Reaction score
4,731
Location
Oklahoma
Vehicle(s)
2018 Ocean Blue JLU Rubicon
What do you mean by Sparkly Oil

I sent you a picture of the oil I'm Use

MOPAR OIL.jpeg
Your oil is full of metal, that’s why it’s sparkling. That engine is toast.


Ridgway Jeeper

Well-Known Member
First Name
Frank
Joined
Jun 24, 2021
Messages
461
Reaction score
835
Location
Ridgway, CO
Vehicle(s)
2021 JLR
Occupation
Real Estate Agent
You are also showing the wrong side of the bearings. They look like they moved in the cap but what does the crank side face of the bearing look like? What does the crank journal look like?

That seems like a lot of metal in the oil, definitely looks like premature wear and likely a spun rod bearing, which was your "clunk" noise. Time for a new engine or a rebuild.


OP
OP
Nissan

Nissan

Well-Known Member
First Name
Nissan
Joined
Feb 23, 2019
Messages
60
Reaction score
33
Location
israel
Vehicle(s)
JL
You are also showing the wrong side of the bearings. They look like they moved in the cap but what does the crank side face of the bearing look like? What does the crank journal look like?

That seems like a lot of metal in the oil, definitely looks like premature wear and likely a spun rod bearing, which was your "clunk" noise. Time for a new engine or a rebuild.
I will send a photo of the inside
As I mentioned they look new


mwilk012

Well-Known Member
Joined
Mar 10, 2018
Messages
5,103
Reaction score
4,731
Location
Oklahoma
Vehicle(s)
2018 Ocean Blue JLU Rubicon
It’s not ruined because of the oil, the oil is the evidence, not the cause. Something caused a major loss of oil pressure. You will likely never know, as a detailed tear down is expensive and unnecessary. What was your indicated oil pressure when the noise started?


Ridgway Jeeper

Well-Known Member
First Name
Frank
Joined
Jun 24, 2021
Messages
461
Reaction score
835
Location
Ridgway, CO
Vehicle(s)
2021 JLR
Occupation
Real Estate Agent
I will send a photo of the inside
As I mentioned they look new
It is the crankshaft that spins inside the bearing. This is also where the oil comes from to lubricate the bearing. If there is not enough oil between the crank journal and the bearing face, the crank grabs the bearing and spins it causing the wear marks you see on the back side of the bearing and in the face of the connecting rod cap. Sometimes there is enough heat generated that the bearing welds itself to the crank.

Almost certainly caused by oil starvation to that rod journal. Why? who knows? As mentioned the oil should have been fine, the interval on changes a bit long for my taste but unlikely the cause.

I would agree that a detailed forensic is wasted effort. You need a rebuild or replacement regardless.

OP
OP
Nissan

Nissan

Well-Known Member
First Name
Nissan
Joined
Feb 23, 2019
Messages
60
Reaction score
33
Location
israel
Vehicle(s)
JL
Thanks for the explanation
Definitely, a new engine
But the manufacturer disclaims the warranty
