JL transfer case shift linkage adjustment

fat_head

Well-Known Member
Joined
Mar 28, 2018
Messages
808
Reaction score
1,584
Location
Texas
Vehicle(s)
2018 JLU

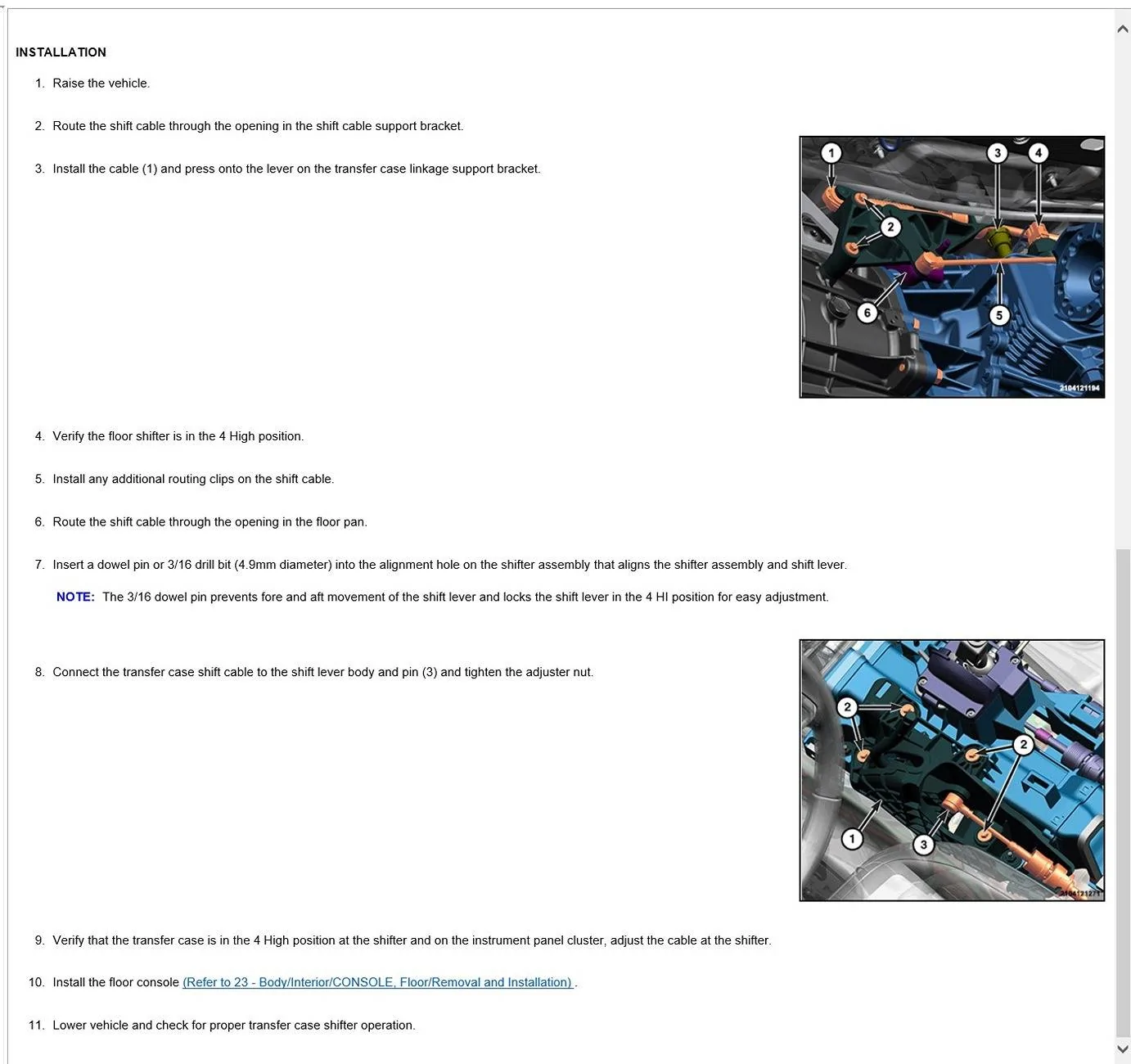

Does anyone have the a factory procedure for making this adjustment? I spent $120.00 on the manual and it doesn't say how. 😐


BJACK

Active Member
First Name
Brad
Joined
Aug 24, 2020
Messages
38
Reaction score
65
Location
MN,ND,AZ
Vehicle(s)
2019 JLUR 2021 JLUD

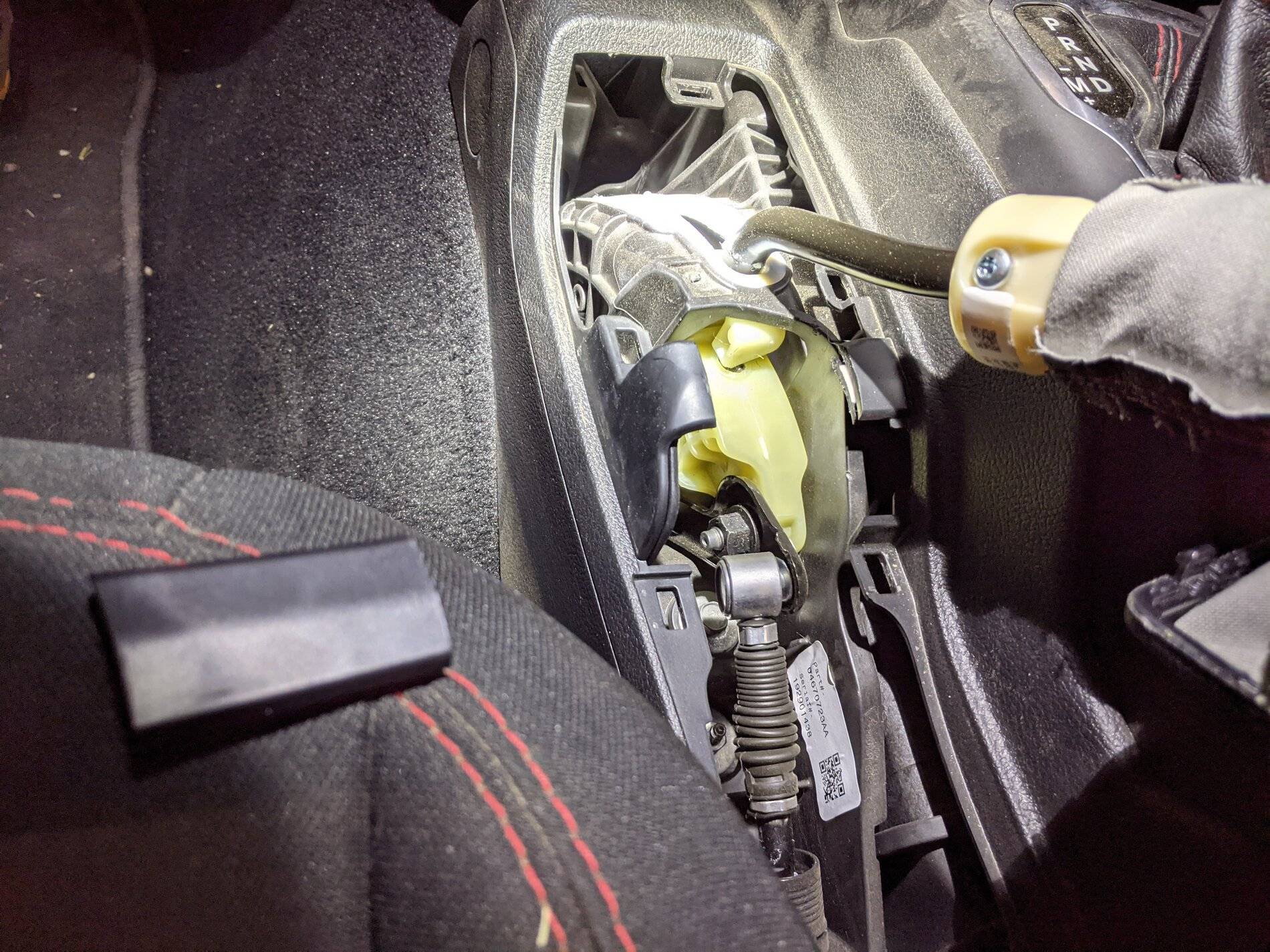

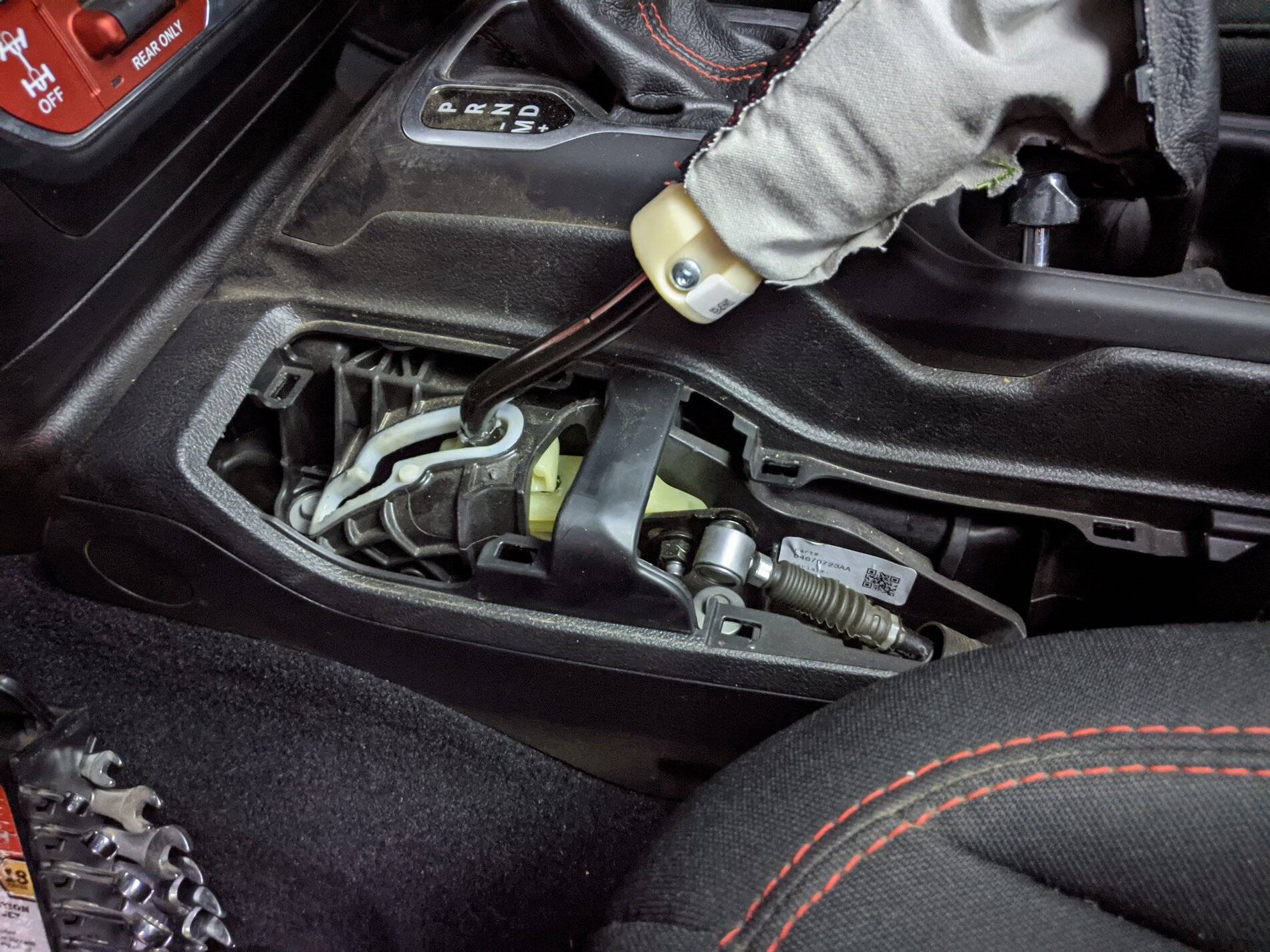

I don't have the factory procedure. But I just popped off the shifter boot and bezel around the shifter. Then cut the piece of plastic covering the adjustment nut. Loosened the nut and adjusted it to about the center. Works great now, took about 10 minutes.
