And the answer is - it’s complicated. (Read on)

The offset & backspacing debate has many right answers due to variance in what folks like and what actually works. The endless combination of wheels, tires and suspension plays a major role in the confusion. With your help this thread will become the JL Wrangler Forums “Go-to” for the offset & backspacing answers we’ve all been asking.

Instructions: Please copy and paste the below template into your reply and fill in ALL the fields.
  • JL Model: (Specify Rubicon, Sport or Sahara)
  • Wheel: (Specify Make & Model)
  • Offset: (Specify millimeter number and +/0/-)
  • Backspacing: (Specify in inches)
  • Tire Make: (Specify Make & Model)
  • Tire Size: (Ex, 285/75 17)
  • Lift: (Specify number of inches)
  • Rubbing: (Specify where and when)
  • Pictures: (Add images that show wheels/tires from the front, side and rear)





Advertisement


Last edited:
OP

Yovwmon

Well-Known Member
First Name
Adam
Joined
Sep 8, 2019
Messages
105
Reaction score
99
Location
OH
Vehicle(s)
Wrangler JL Altitude
  • Thread starter
  • Thread Starter
  • #2

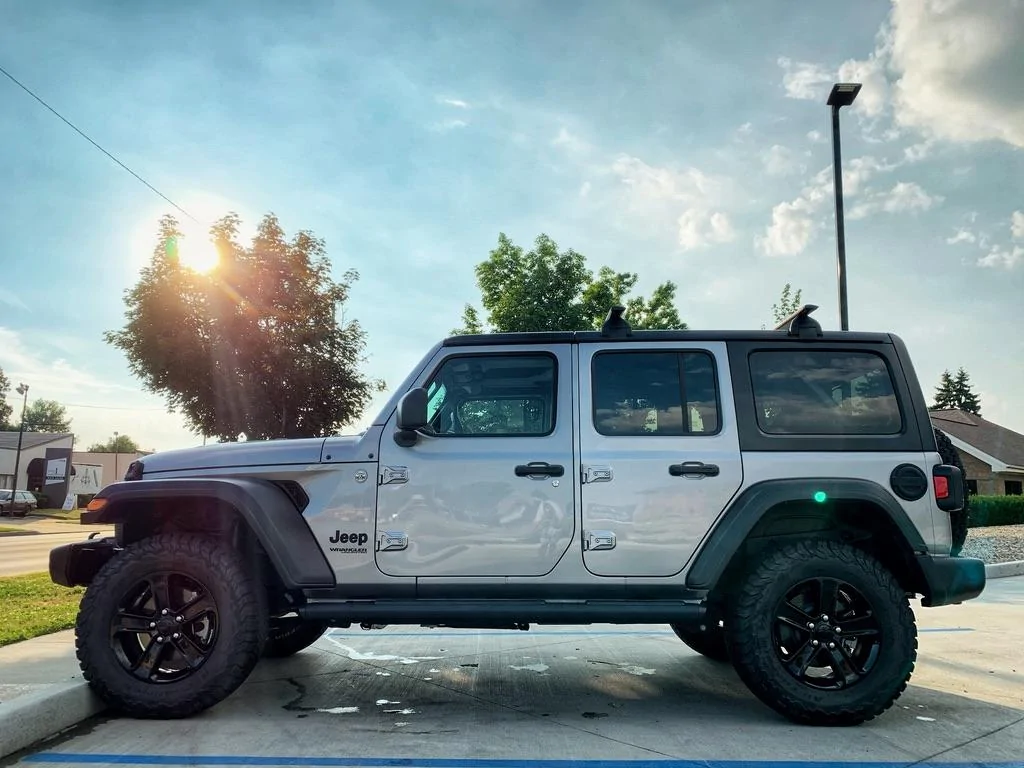

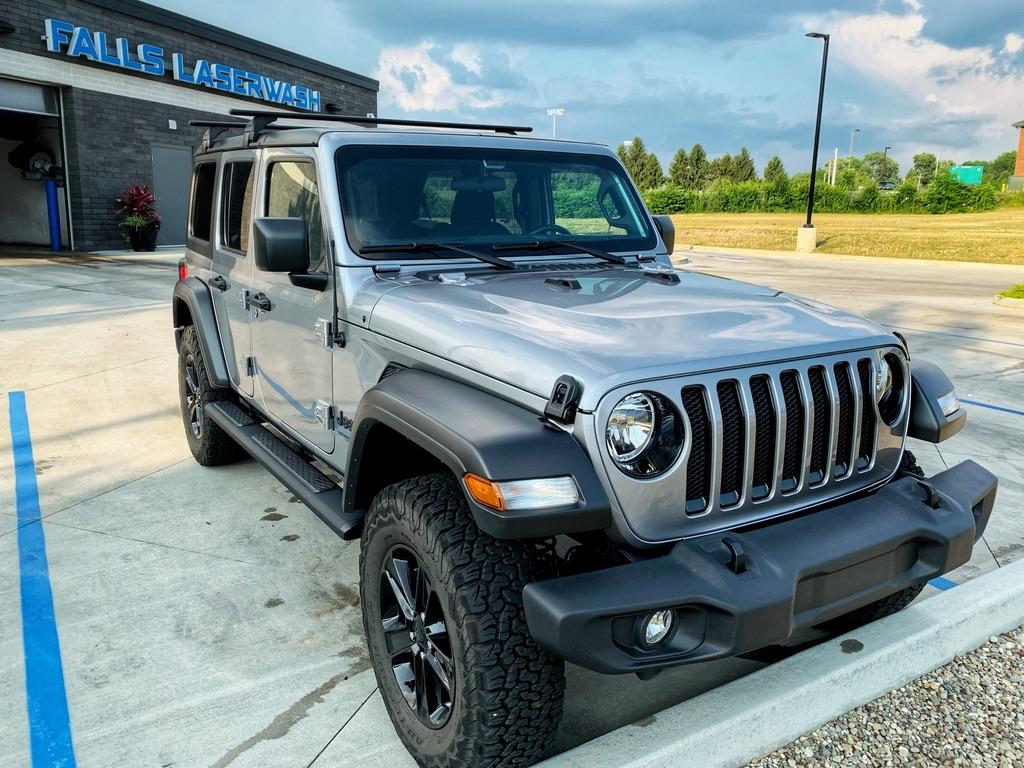

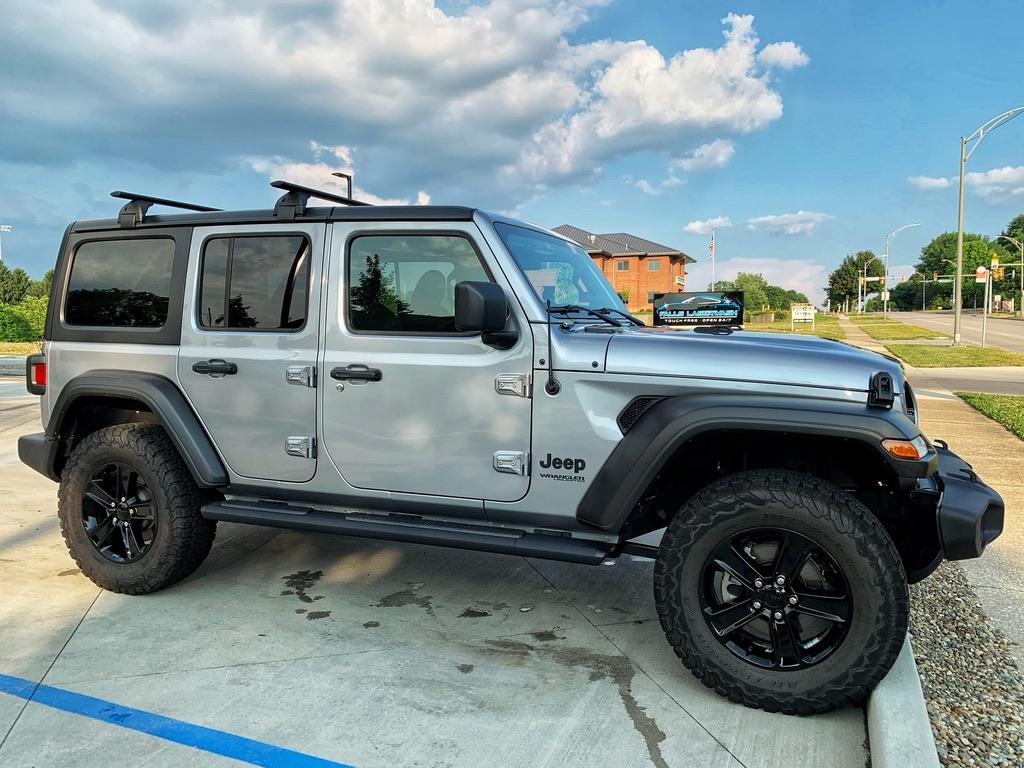

  • JL Model: Sport Altitude
  • Wheel: Stock 18” Altitude wheel
  • Offset: +44.5
  • Backspacing: 6”
  • Tire Make: BF Goodrich KO2
  • Tire Size: 275/70R 18
  • Lift: 2.25” Rubicon takeoff w/.50 leveling kit
  • Rubbing: No rubbing anywhere
  • Pictures:







Headbarcode

Well-Known Member
First Name
Mike
Joined
Aug 16, 2018
Messages
3,745
Reaction score
6,497
Location
LI, New York
Vehicle(s)
2019 JLUR Stingray 2.0 turbo
Vehicle Showcase
1

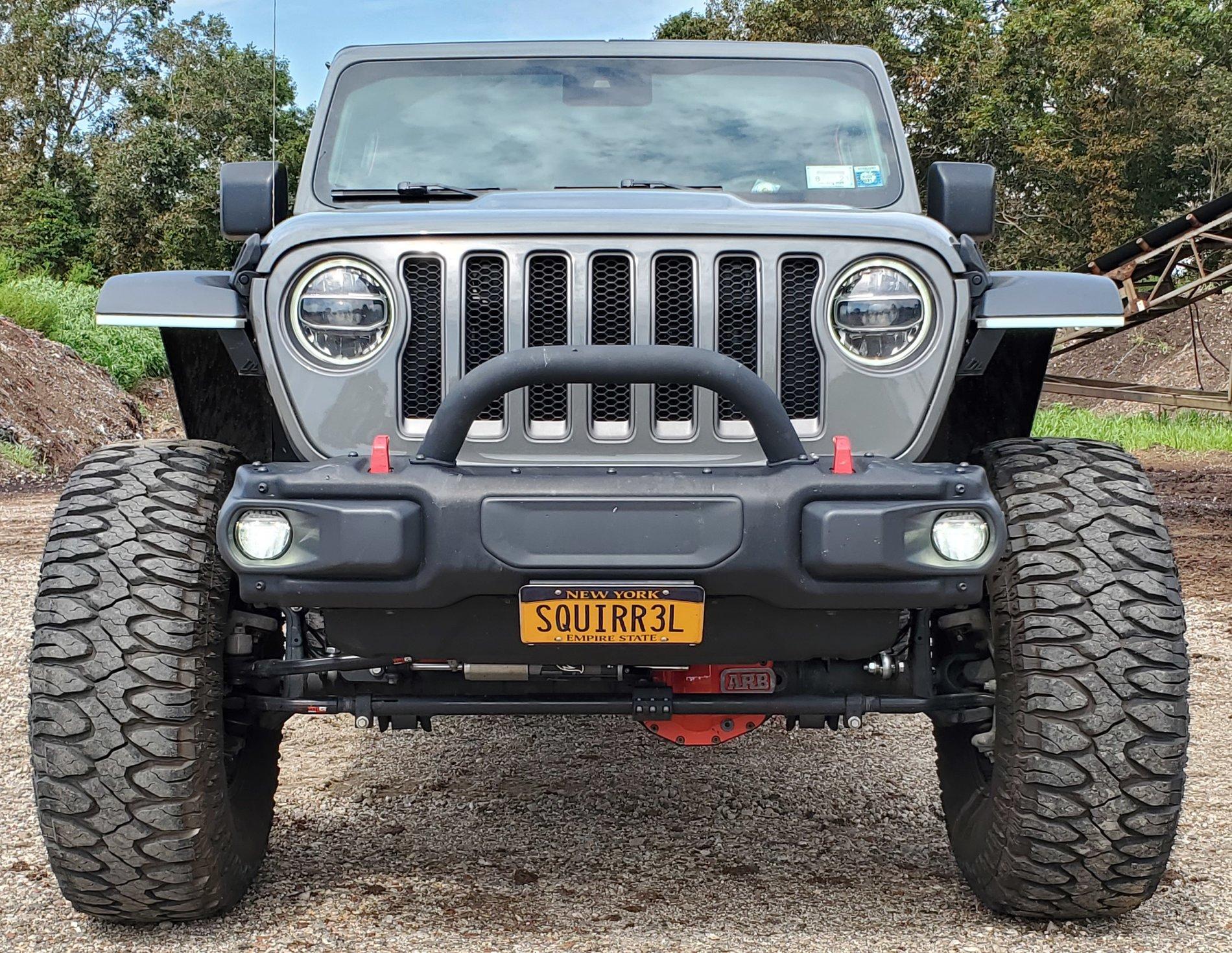

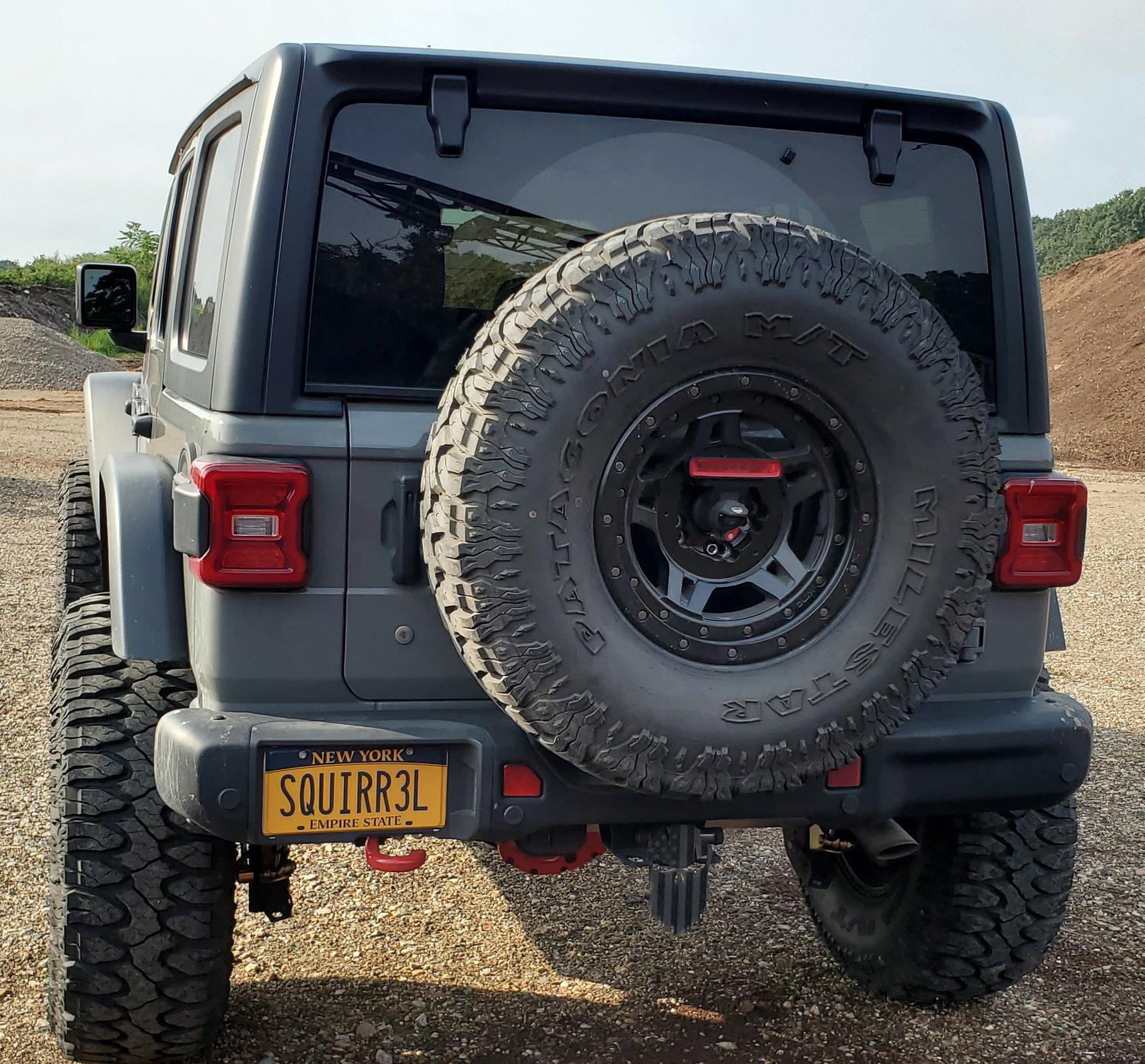

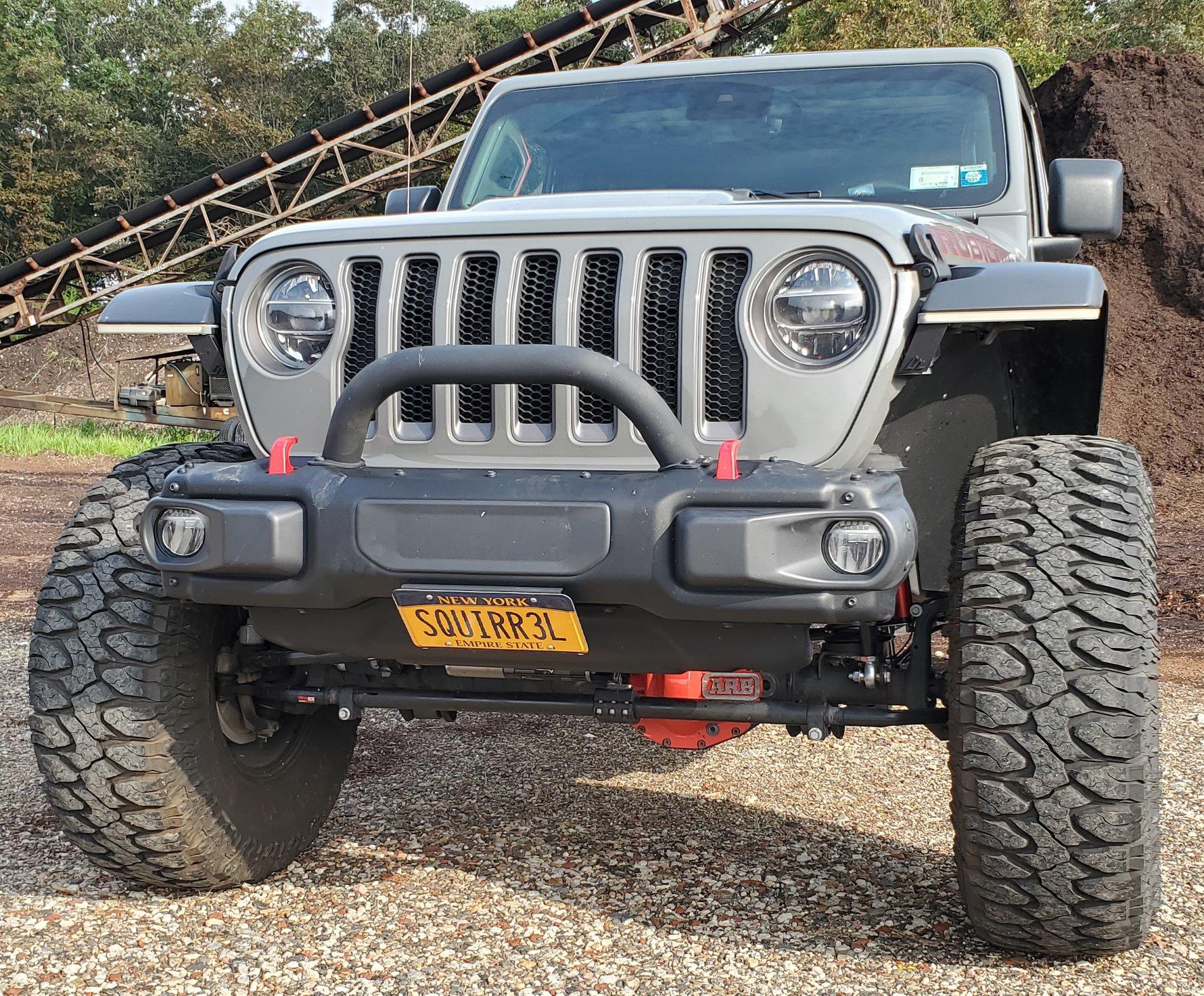

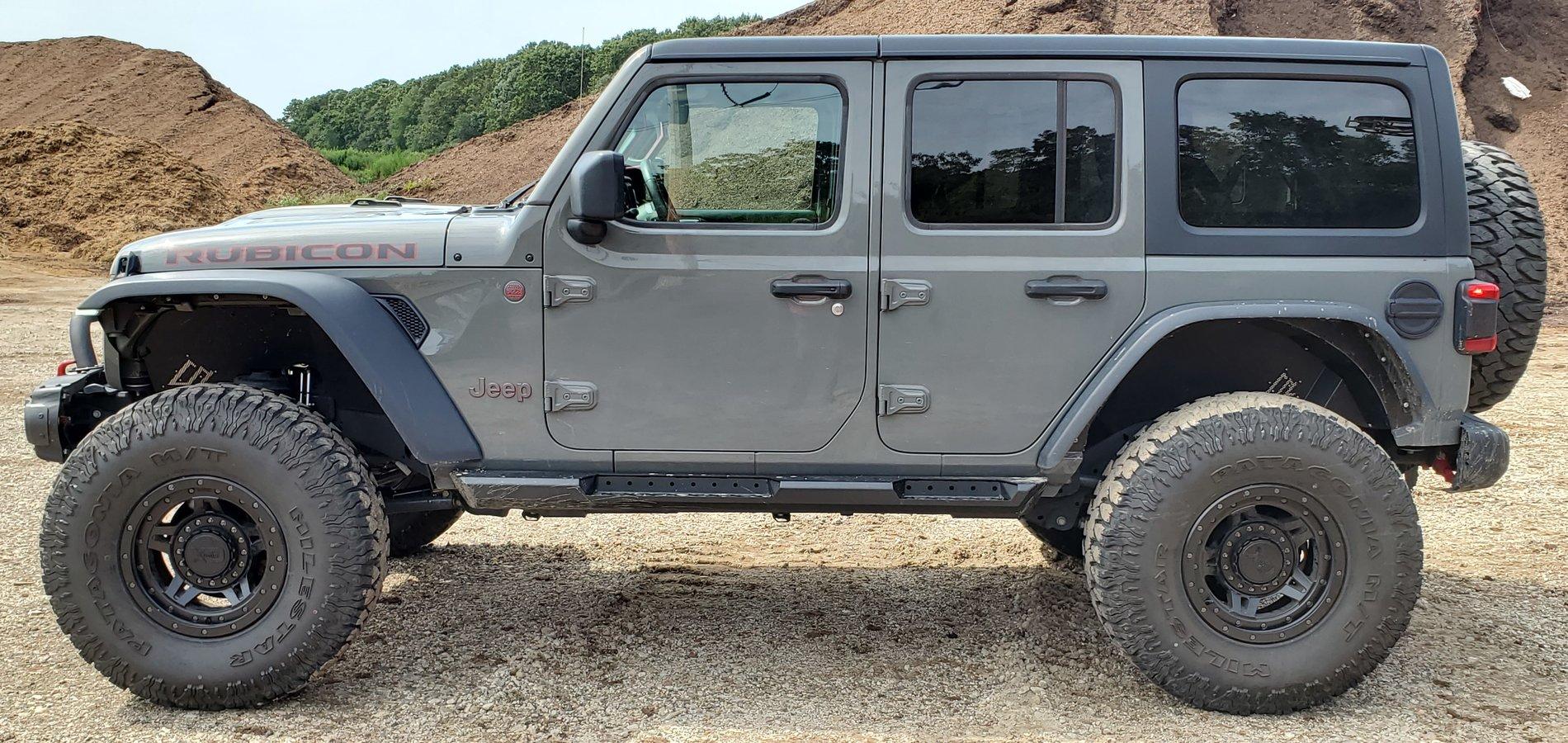

  • JL Model: Rubicon
  • Wheel: 17x9 KMC XD138 Brutes
  • Offset: -12mm
  • Backspacing: 4.53"
  • Tire Make: Milestar Patagonias
  • Tire Size: 38x13.50
  • Lift: 3.5" Metalcloak Gamechanger 6-pack edition/Synergy hybrid
  • Rubbing: Rear pinch seam (not yet trimmed)
  • Jeep Porn:


blnewt

Well-Known Member
First Name
Brad
Joined
Oct 8, 2018
Messages
3,927
Reaction score
3,803
Location
New Mexico
Vehicle(s)
2019 Jeep JL Sport S, 03 Toyota 4Runner, Infiniti G37, Toyota T100 (Retired 74 CJ-5, 80 CJ-7)
Hard act to follow there Mike @Headbarcode :( But here goes~

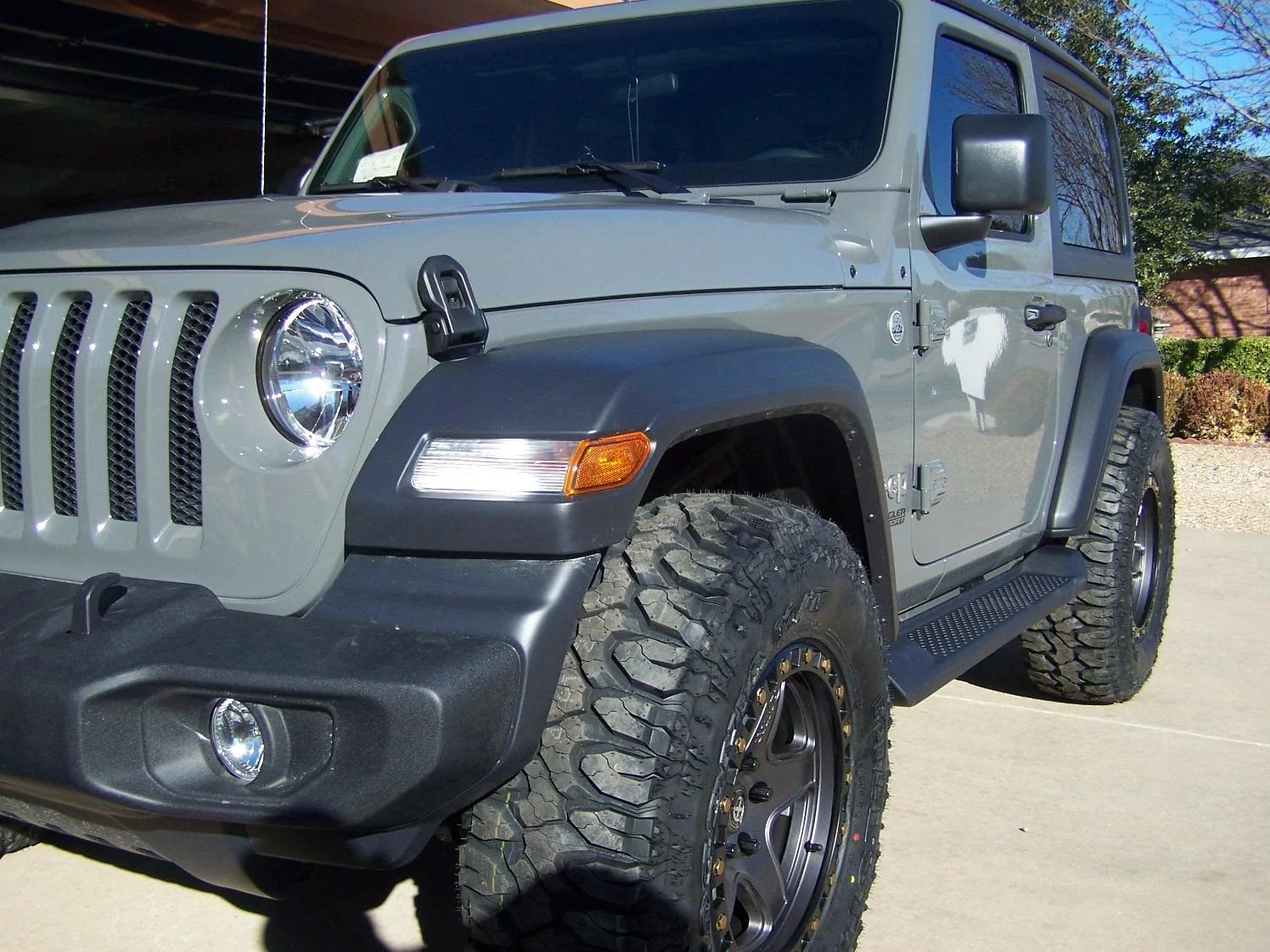

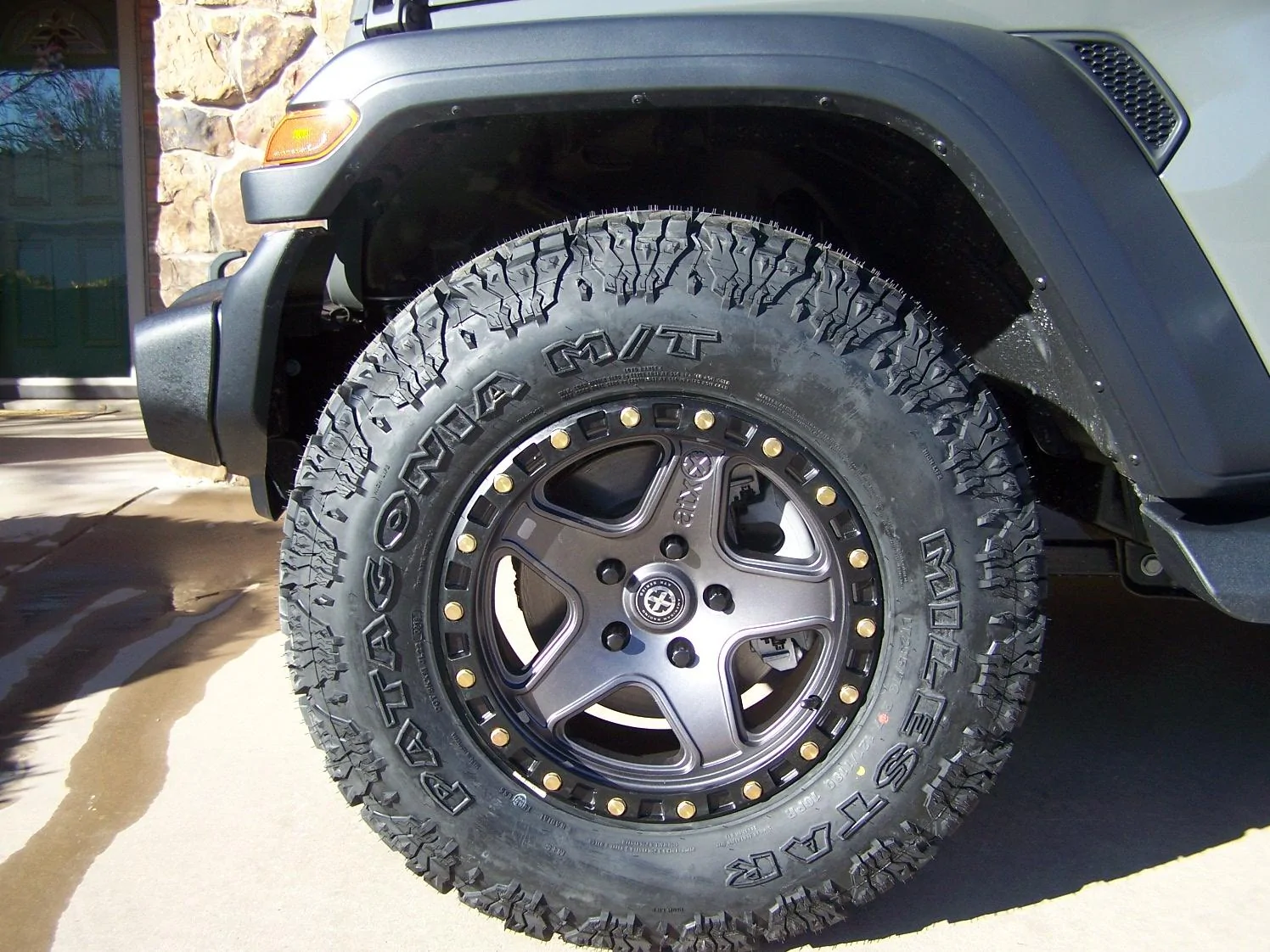

  • JL Model: (Specify Rubicon, Sport or Sahara) Sport S 2dr
  • Wheel: (Specify Make & Model) American Racing ATX Ravine (hubcentric) 17x8.5
  • Offset: (Specify millimeter number and +/0/-) +10
  • Backspacing: (Specify in inches) 4.7
  • Tire Make: (Specify Make & Model) Milestar Patagonia
  • Tire Size: (Ex, 285/75 17) 295/70/17
  • Lift: (Specify number of inches) 2" Rubicon Suspension Swap from JLUR w/ Hardtop, Tow and Steel Bumper pkgs
  • Rubbing: (Specify where and when) Plastic Euro fender inserts at full lock, since removed.

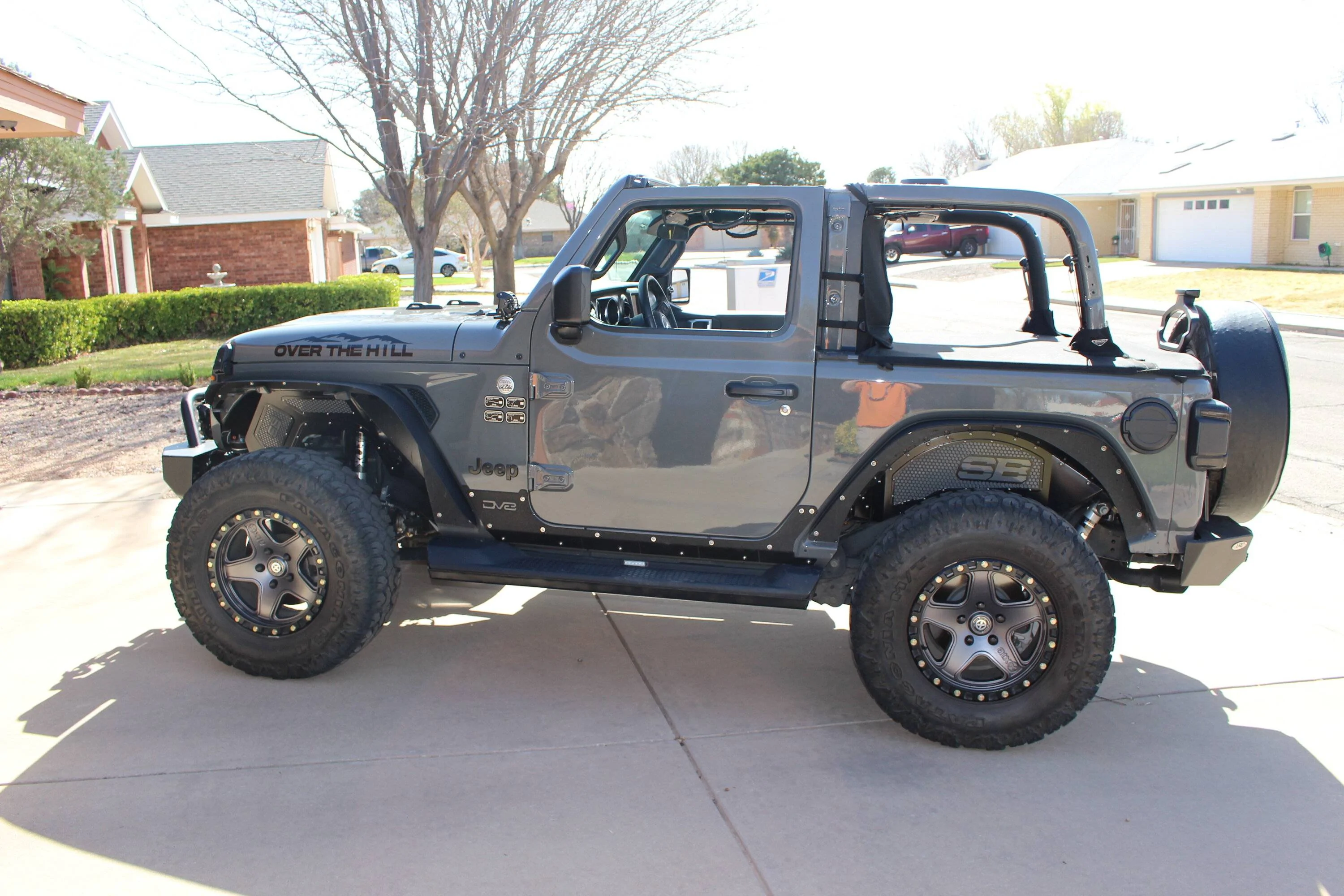

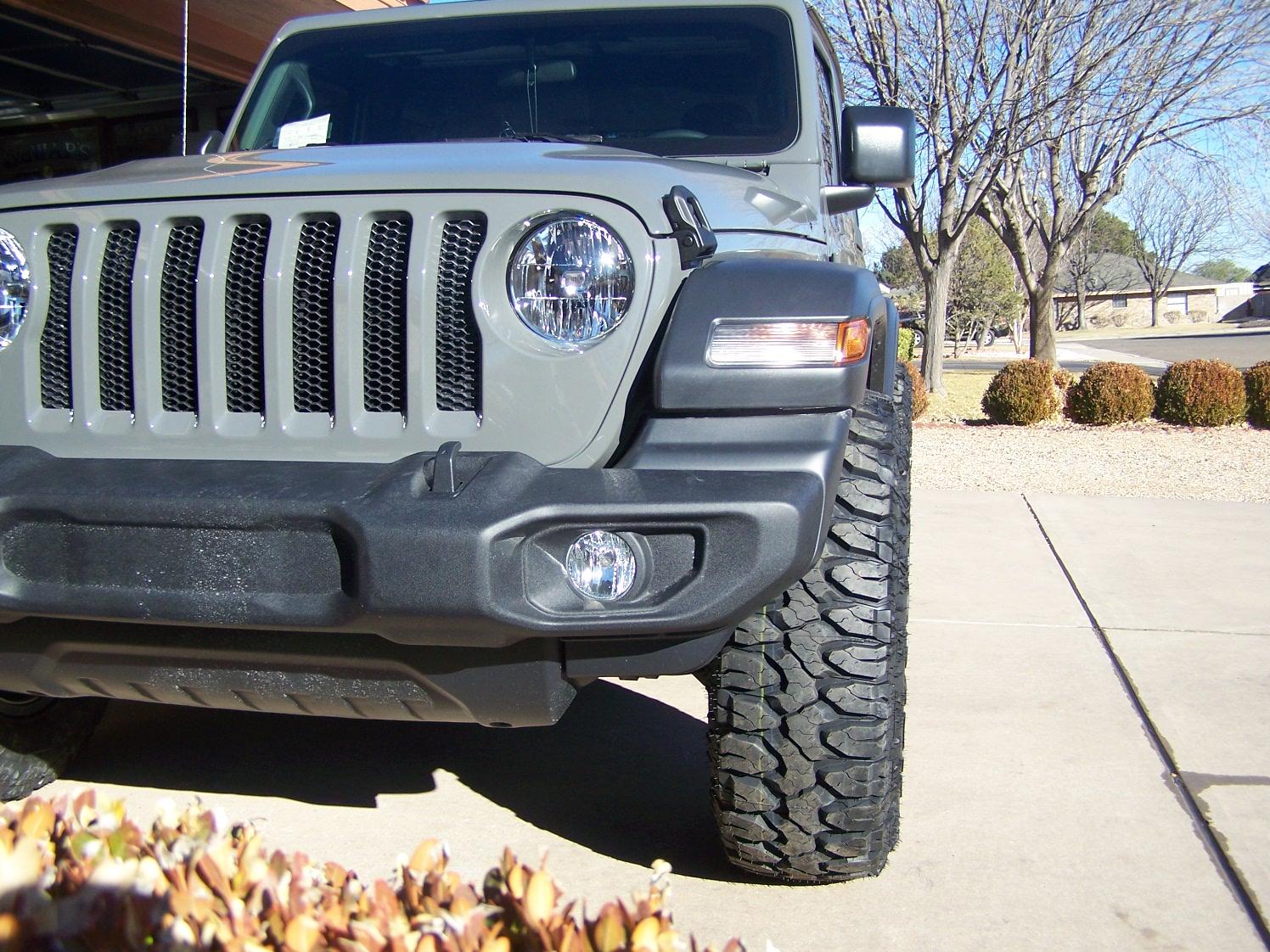

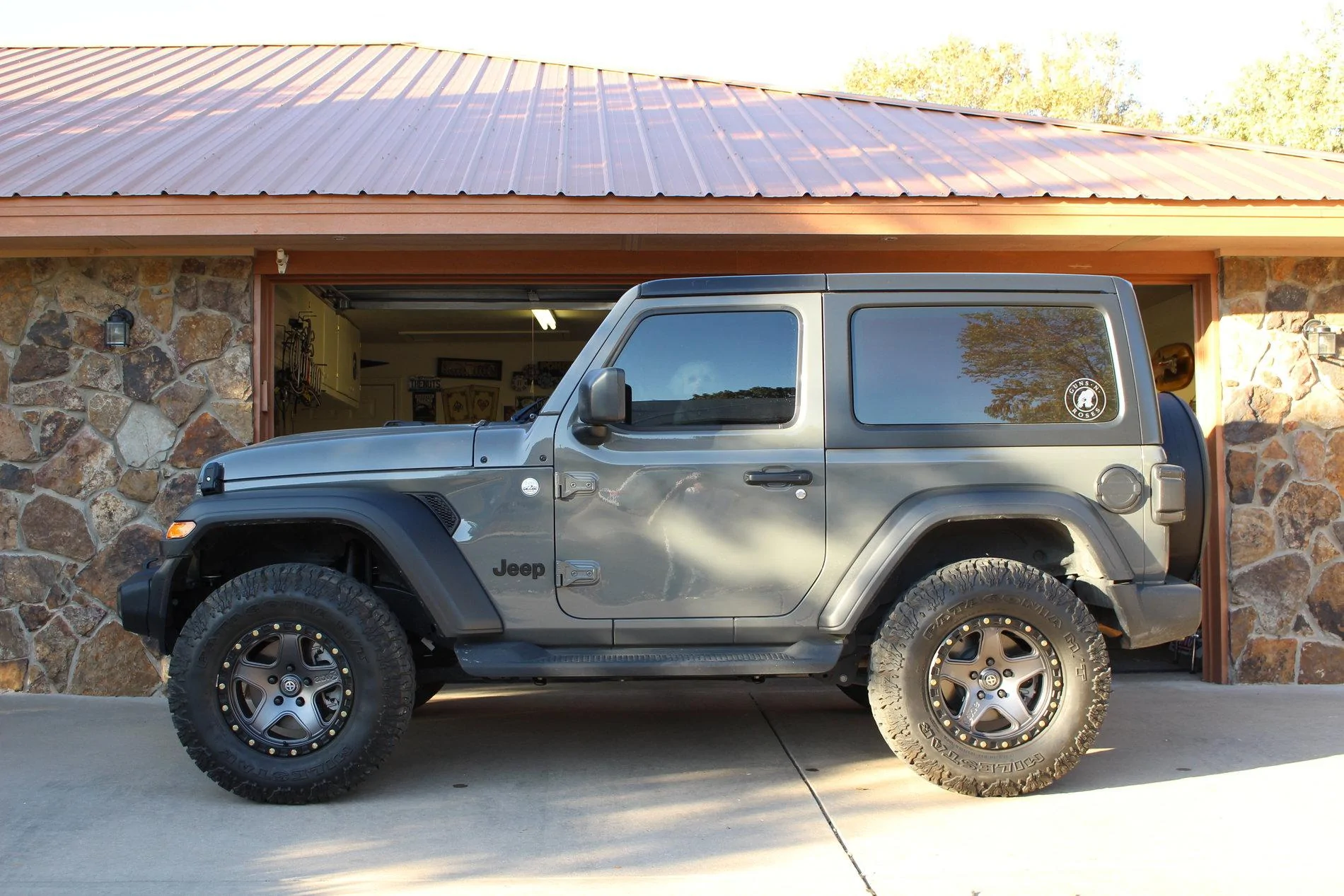

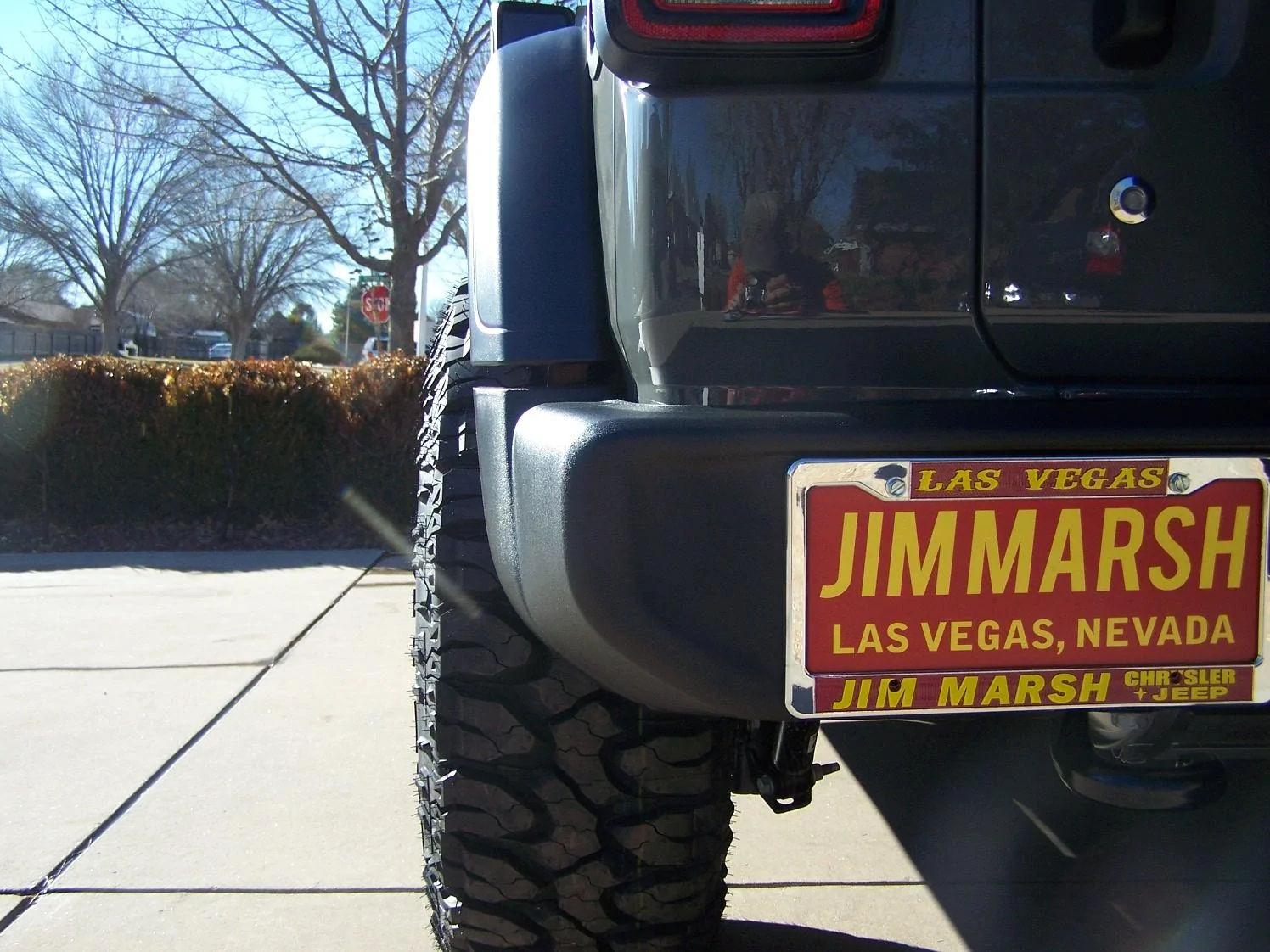

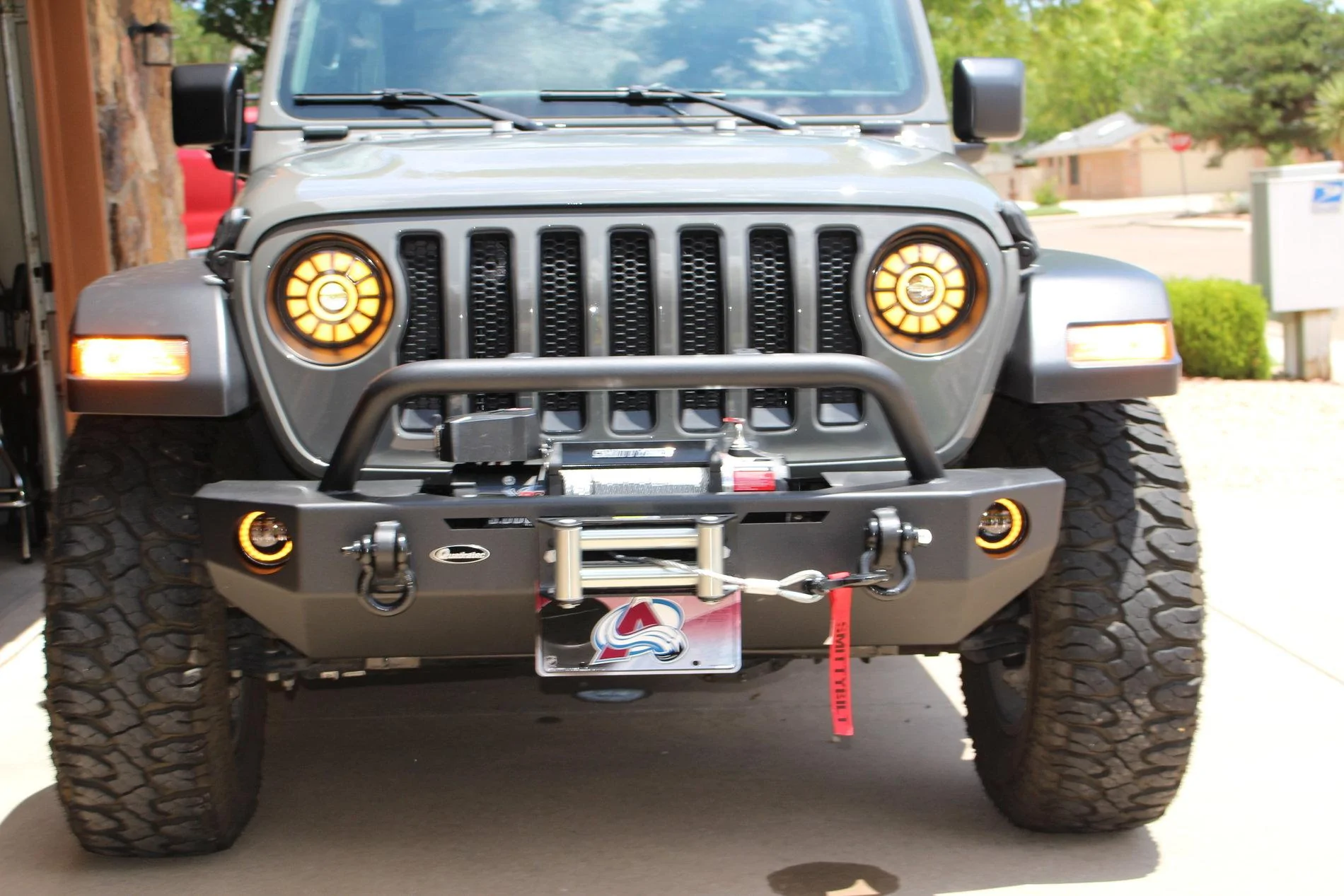

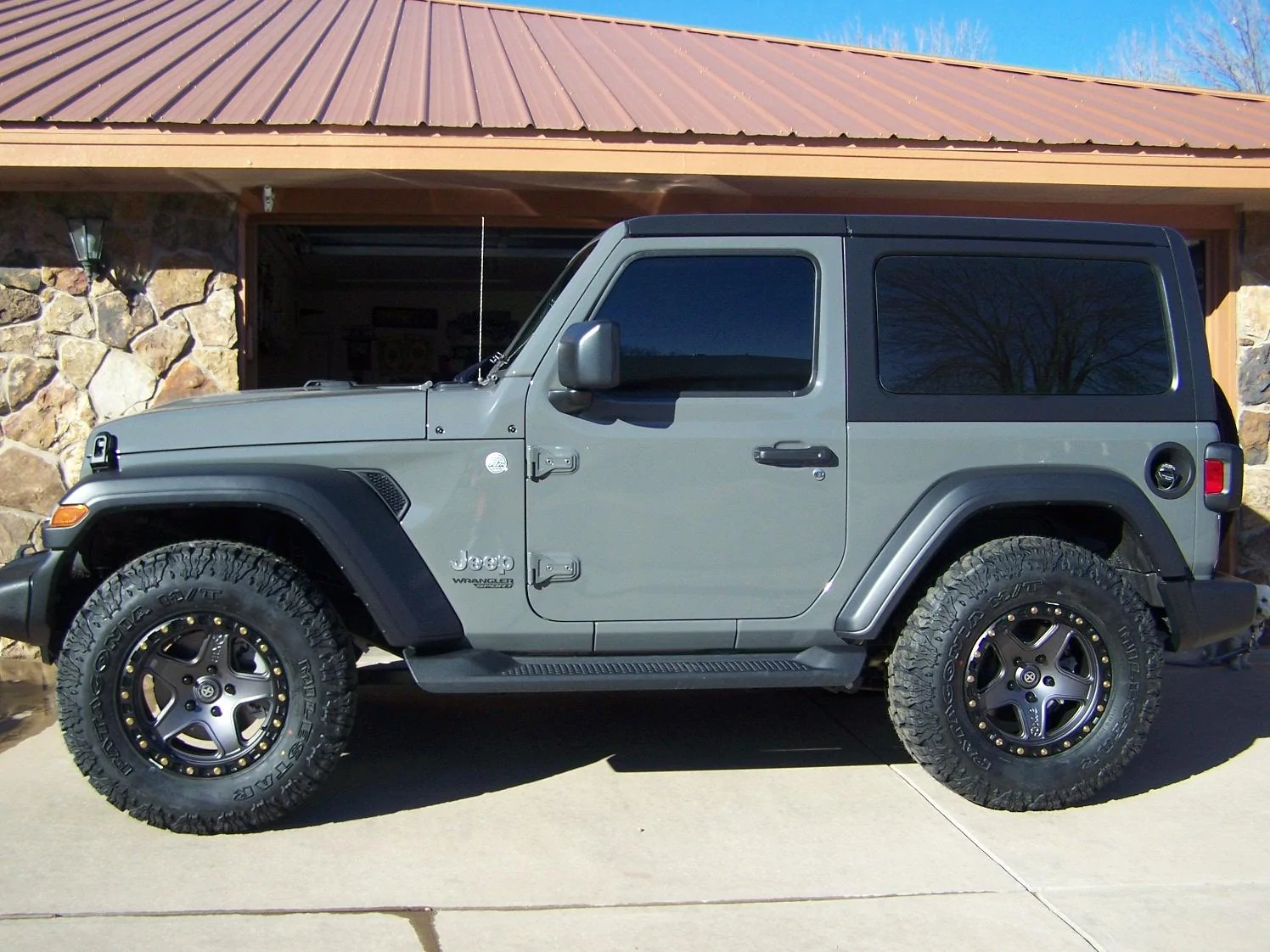

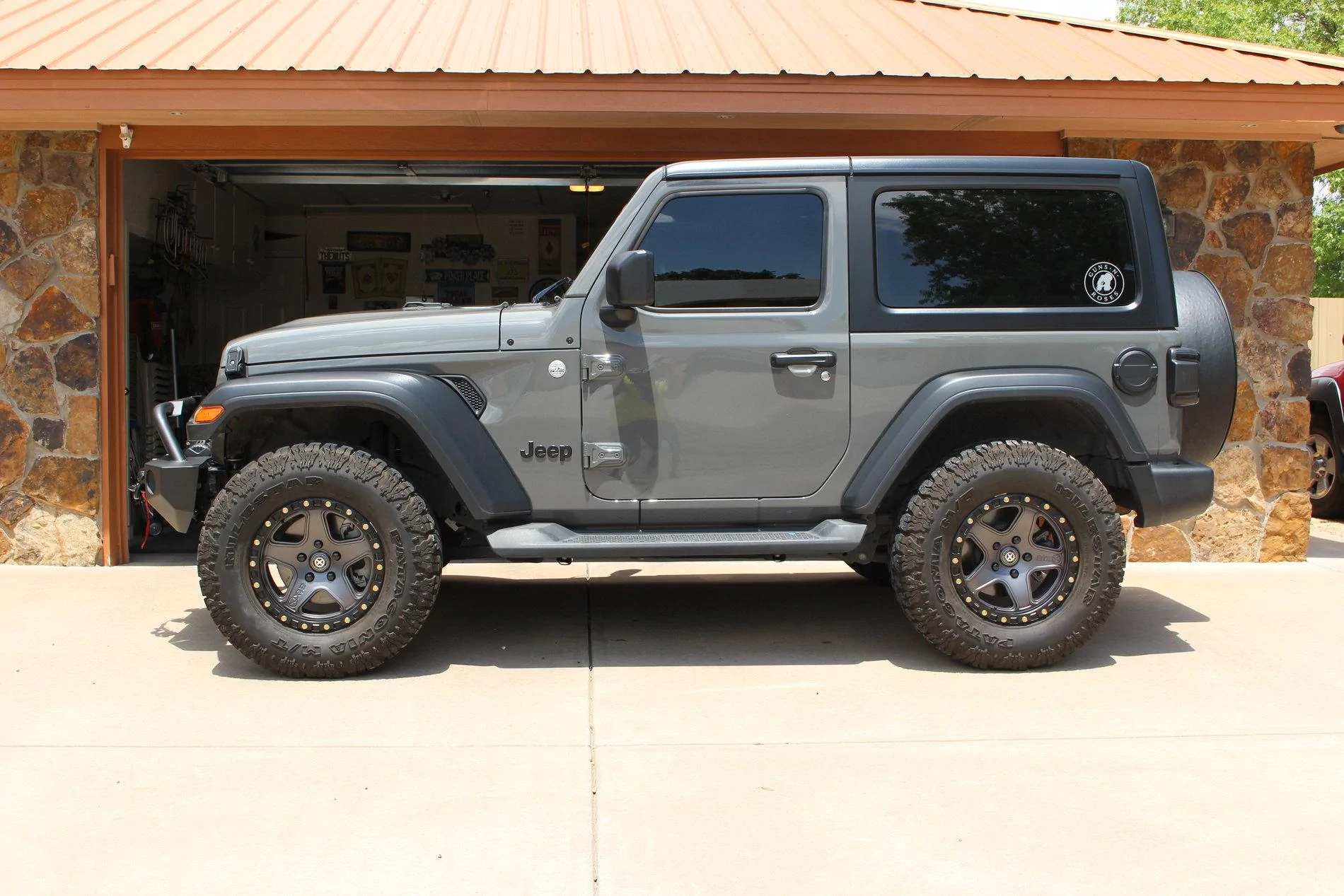

Pics 1 thru 5 are without any lift, pic 6 is w/ Rubicon Suspension Swap, pic 7 &8 is w/ Stubby bumper & winch (190 lbs total added) for a 1/2" drop in front.




ChattVol

Well-Known Member
Joined
Jun 29, 2018
Messages
2,445
Reaction score
2,566
Location
Tennessee
Vehicle(s)
JLU 4 door
  • JL Model: Rubicon
  • Wheel: 17x9 KMC XD138 Brutes
  • Offset: -12mm
  • Backspacing: 4.53"
  • Tire Make: Milestar Patagonias
  • Tire Size: 38x13.50
  • Lift: 3.5" Metalcloak Gamechanger 6-pack edition/Synergy hybrid
  • Rubbing: Rear pinch seam (not yet trimmed)
  • Jeep Porn:
Looks great...How many bumpstops? Would love to hear feedback after you wheel it and flex it fully. I've read where others have had solid rubbing with fender chop on the front inner liner & frame/brackets wheelin hard with 38x13.50 tires on 17x9 with 4.5 backspacing wheels. I'm running 37x12.50 Pats with 17x8.5 wheels with a backspacing that measures 4.6 with 2" bumpstops and it rubbed hard on the frame/brackets under the fender at full droop with 29" of extended shock in front. The axle shifts quite a bit when one side droops alot and you stuff the other side...I was surprised. Your crazy long travel 6 pack shocks will shift the axle even further.

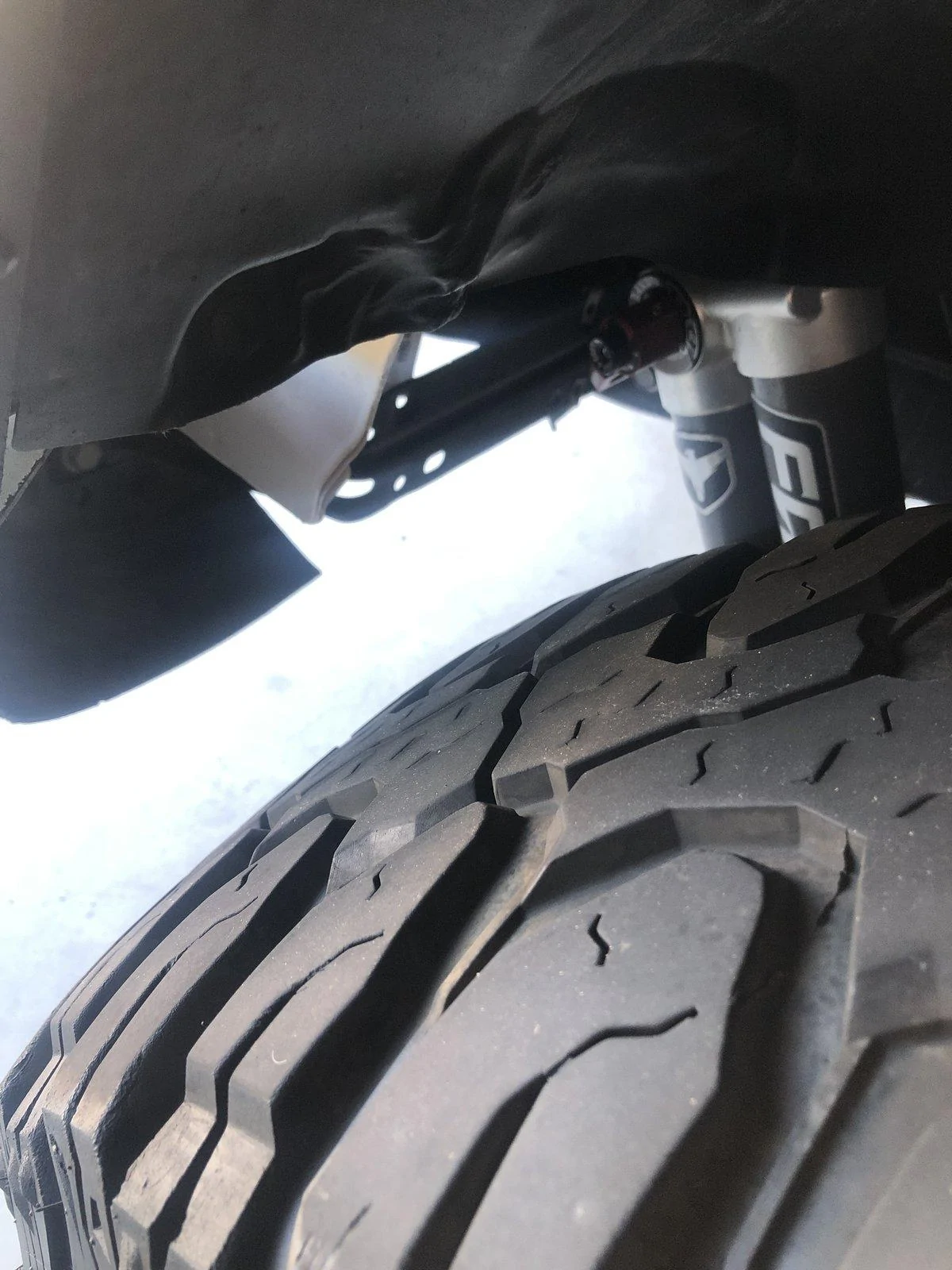

This where I had heavy rubbing up front.


Last edited:

ocrejects

Well-Known Member
First Name
Rick
Joined
Dec 20, 2017
Messages
590
Reaction score
269
Location
Orange County, CA
Vehicle(s)
2021 Rubicon, 2018 JLU Rubicon, 2018 Tiguan SE
Looks great...How many bumpstops? Would love to hear feedback after you wheel it and flex it fully. I've read where others have had solid rubbing with fender chop on the front inner liner & frame/brackets wheelin hard with 38x13.50 tires on 17x9 with 4.5 backspacing wheels. I'm running 37x12.50 Pats with 17x8.5 wheels with a backspacing that measures 4.6 with 2" bumpstops and it rubbed hard on the frame/brackets under the fender at full droop with 29" of extended shock in front. The axle shifts quite a bit when one side droops alot and you stuff the other side...I was surprised. Your crazy long travel 6 pack shocks will shift the axle even further.

This where I had heavy rubbing up front.

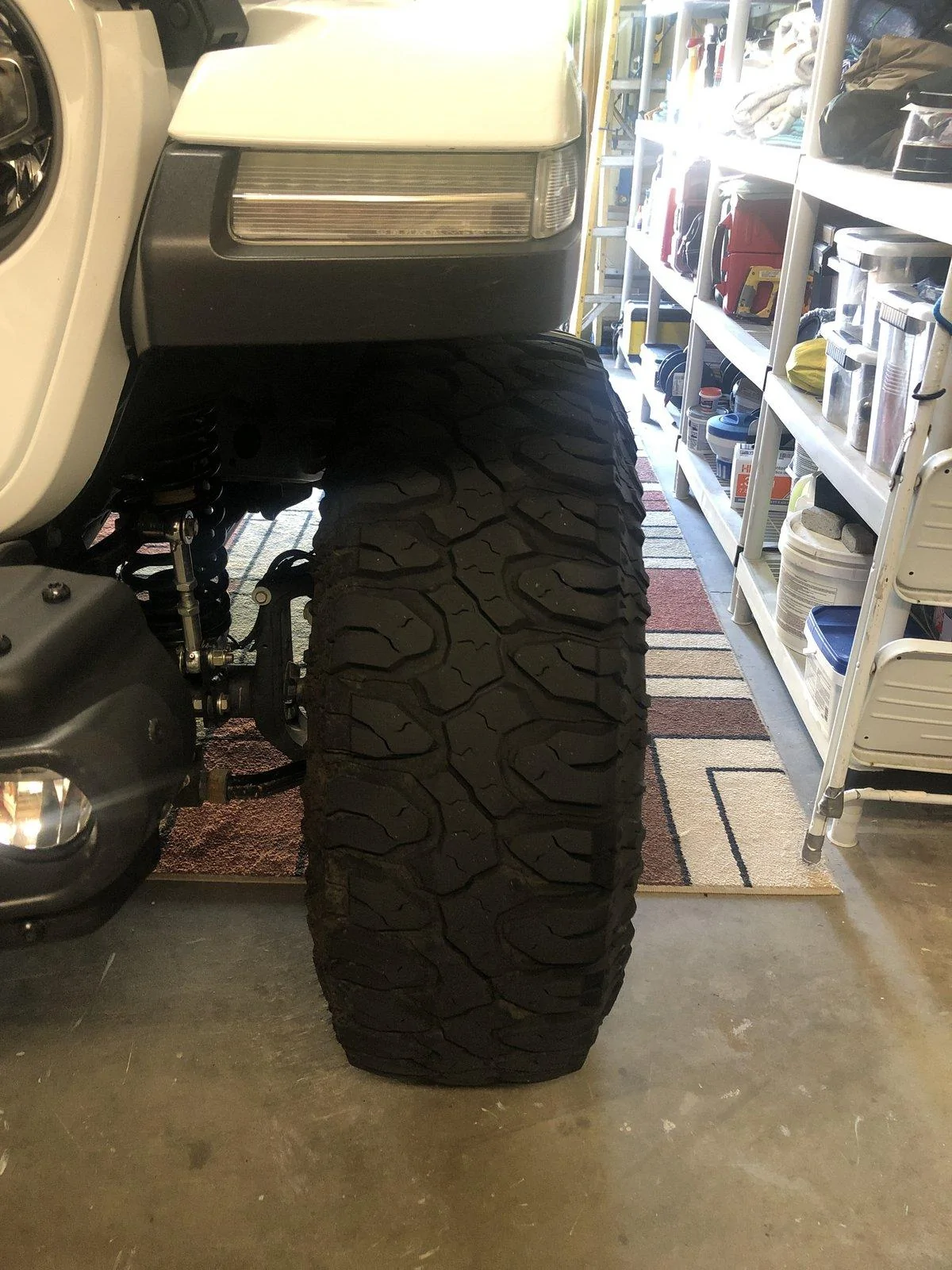

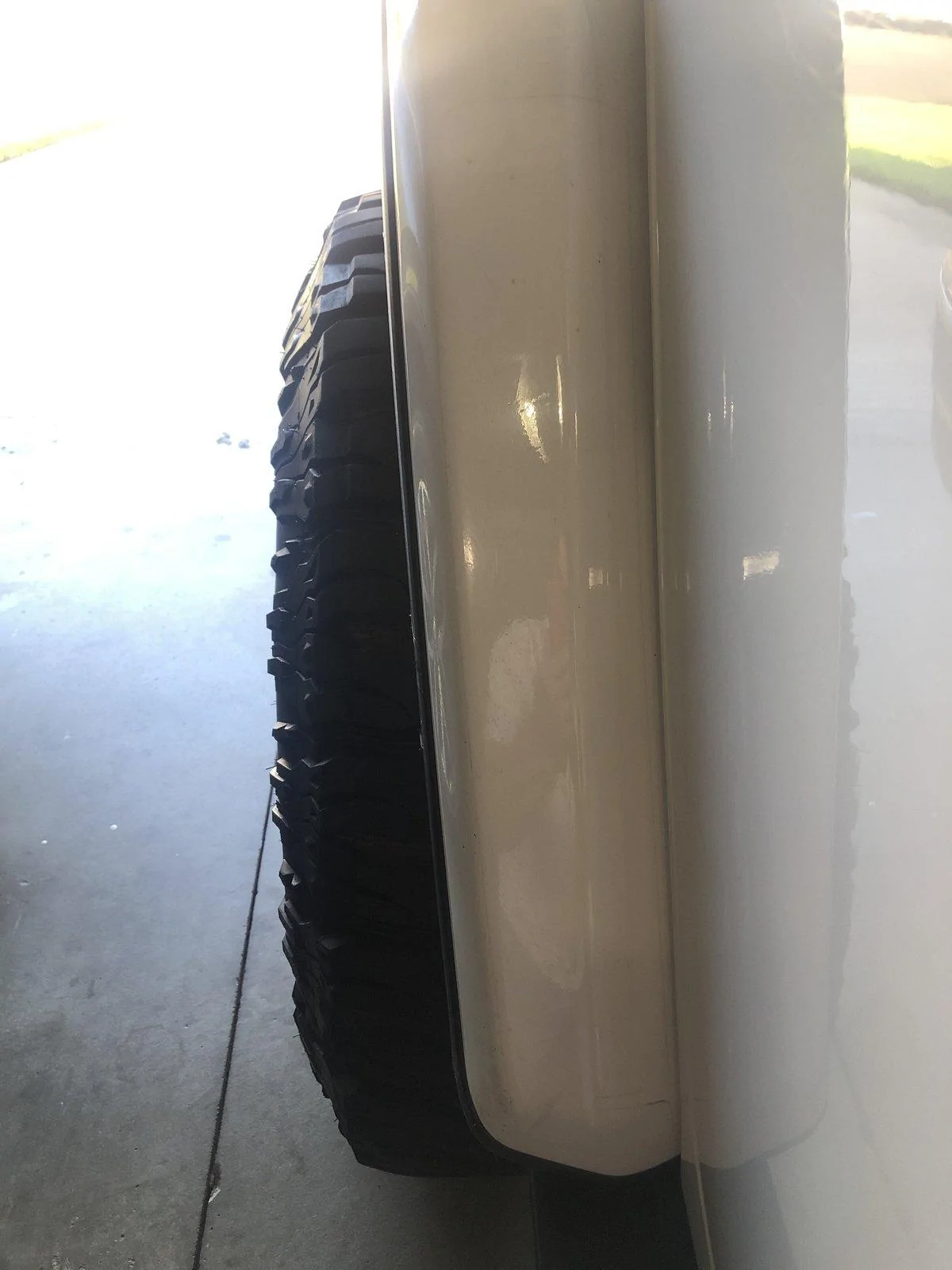

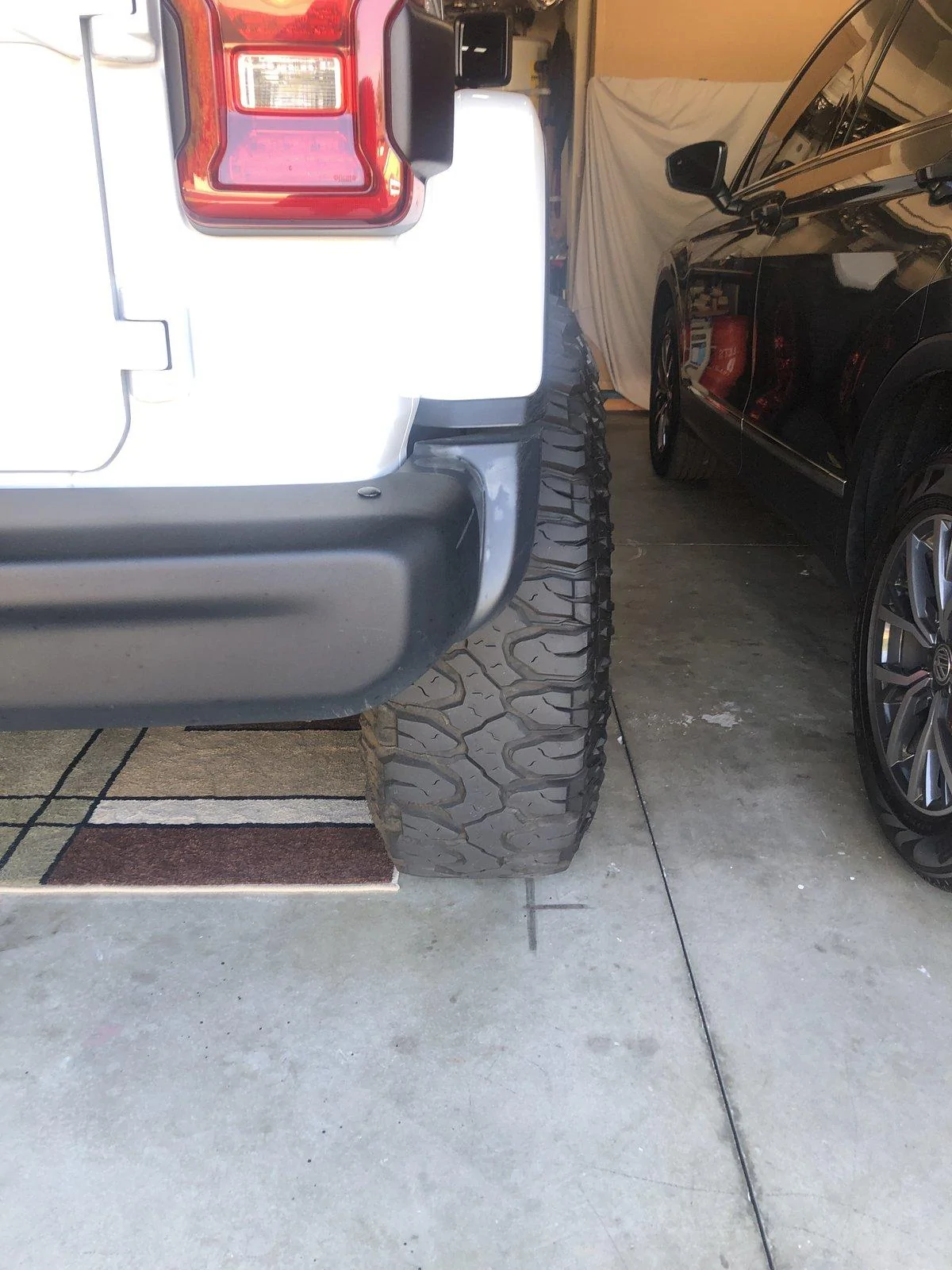

  • JL Model: Rubicon
  • Wheel: 17x9 Fuel Beadlocks Covert
  • Offset: -15mn
  • Backspacing: 4.5
  • Looks great...How many bumpstops? Would love to hear feedback after you wheel it and flex it fully. I've read where others have had solid rubbing with fender chop on the front inner liner & frame/brackets wheelin hard with 38x13.50 tires on 17x9 with 4.5 backspacing wheels. I'm running 37x12.50 Pats with 17x8.5 wheels with a backspacing that measures 4.6 with 2" bumpstops and it rubbed hard on the frame/brackets under the fender at full droop with 29" of extended shock in front. The axle shifts quite a bit when one side droops alot and you stuff the other side...I was surprised. Your crazy long travel 6 pack shocks will shift the axle even further.

    This where I had heavy rubbing up front.

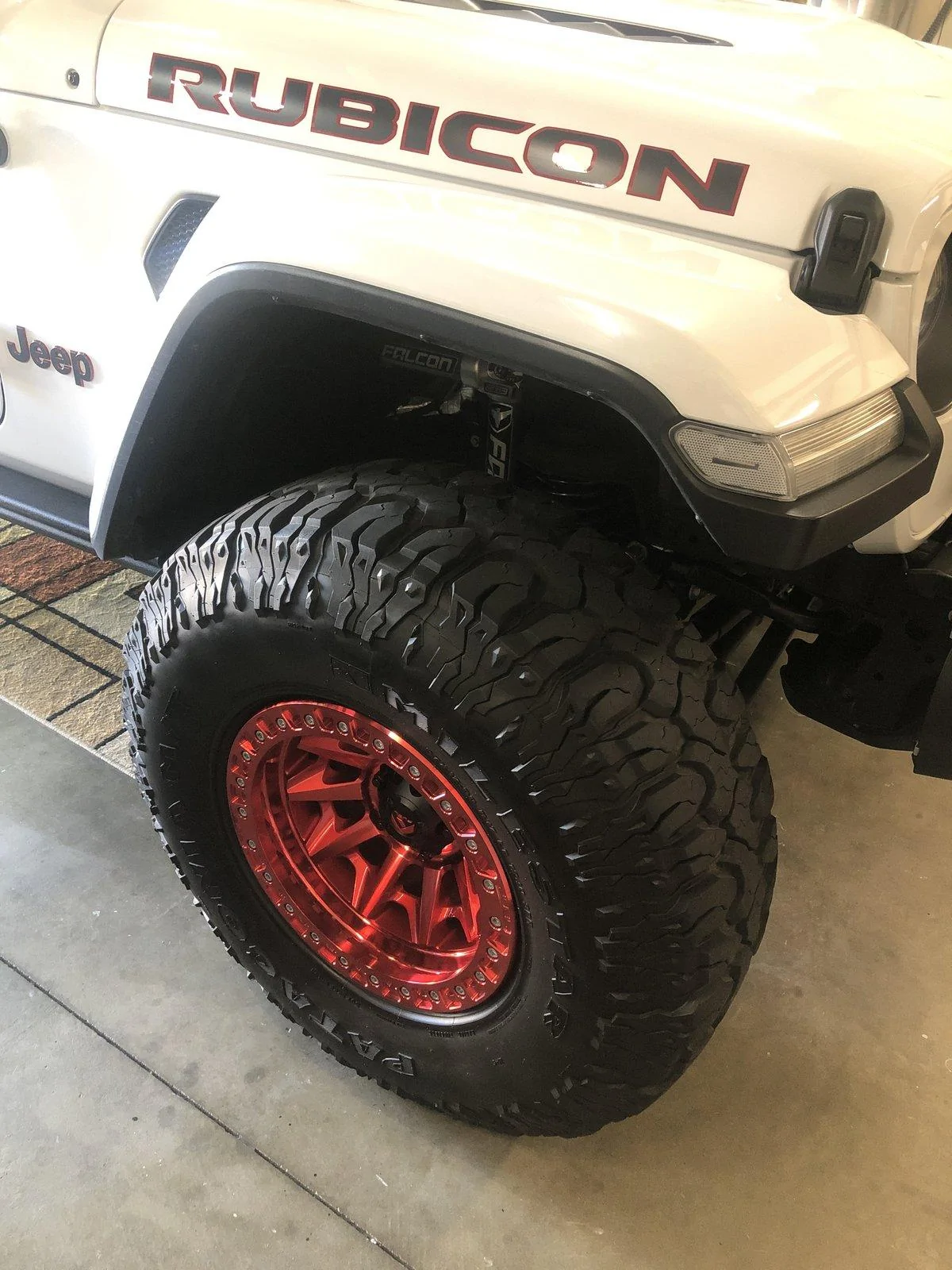

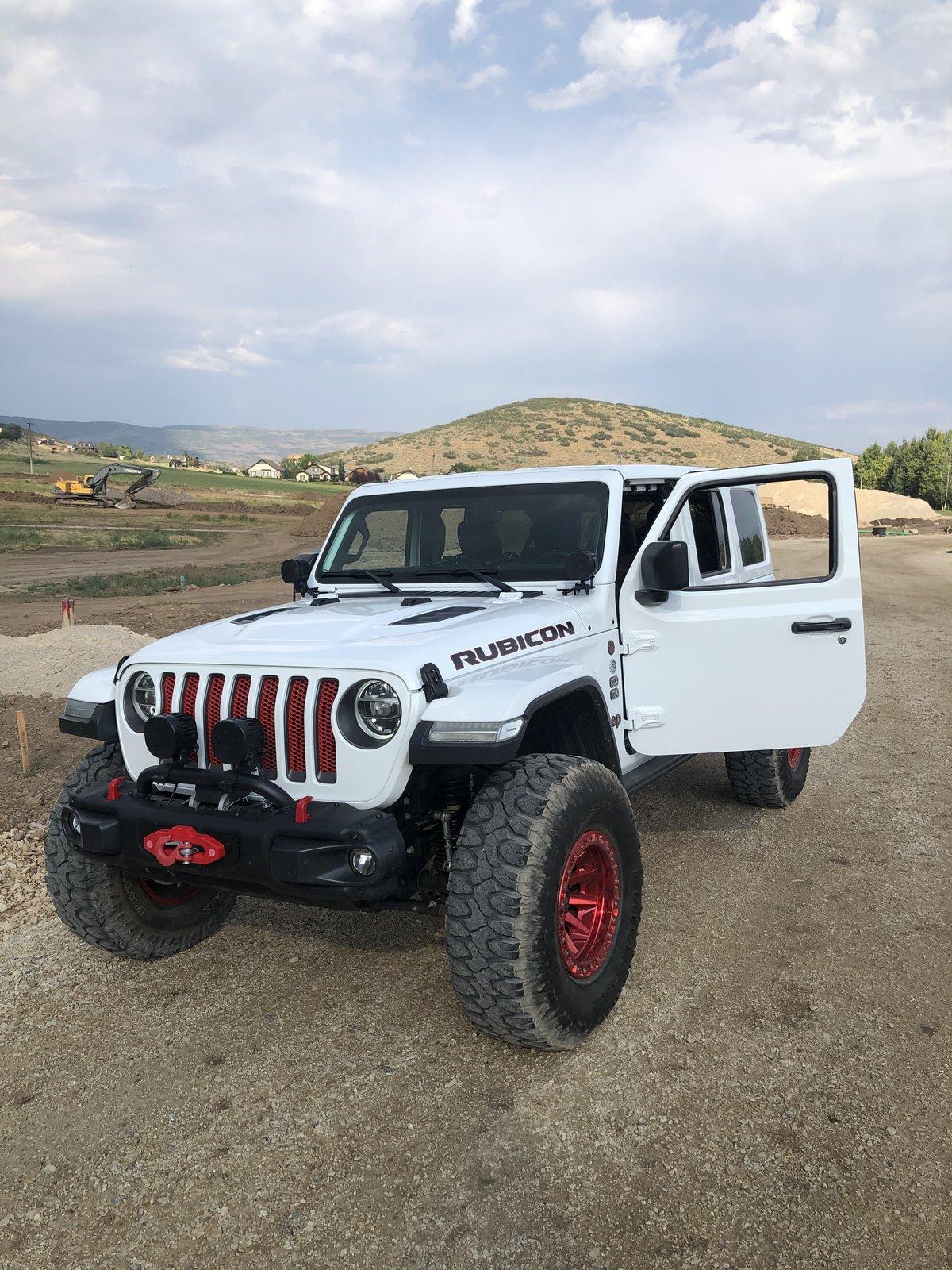

JL Model: Rubicon 2018
  • Wheel: 17x9 Fuel Covert Beadlocks
  • Offset: -15mm
  • Backspacing: 4.5”
  • Tire Make: Milestar Patagonias
  • Tire Size: 37x12.50x17
  • Lift: 2.5” Rock Krawler
  • Rubbing: very little, Rear Back plastic finder liner. Took off. No issues anywhere else.

















blnewt

Well-Known Member
First Name
Brad
Joined
Oct 8, 2018
Messages
3,927
Reaction score
3,803
Location
New Mexico
Vehicle(s)
2019 Jeep JL Sport S, 03 Toyota 4Runner, Infiniti G37, Toyota T100 (Retired 74 CJ-5, 80 CJ-7)
JL Model: Rubicon 2018
  • Wheel: 17x9 Fuel Covert Beadlocks
  • Offset: -15mm
  • Backspacing: 4.5”
  • Tire Make: Milestar Patagonias
  • Tire Size: 37x12.50x17
  • Lift: 2.5” Rock Krawler
  • Rubbing: very little, Rear Back plastic finder liner. Took off. No issues anywhere else.

Just dippin your toe in the shallow end I see :)
NICE!


ChattVol

Well-Known Member
Joined
Jun 29, 2018
Messages
2,445
Reaction score
2,566
Location
Tennessee
Vehicle(s)
JLU 4 door
  • JL Model: Rubicon
  • Wheel: 17x9 Fuel Beadlocks Covert
  • Offset: -15mn
  • Backspacing: 4.5
JL Model: Rubicon 2018
  • Wheel: 17x9 Fuel Covert Beadlocks
  • Offset: -15mm
  • Backspacing: 4.5”
  • Tire Make: Milestar Patagonias
  • Tire Size: 37x12.50x17
  • Lift: 2.5” Rock Krawler
  • Rubbing: very little, Rear Back plastic finder liner. Took off. No issues anywhere else.

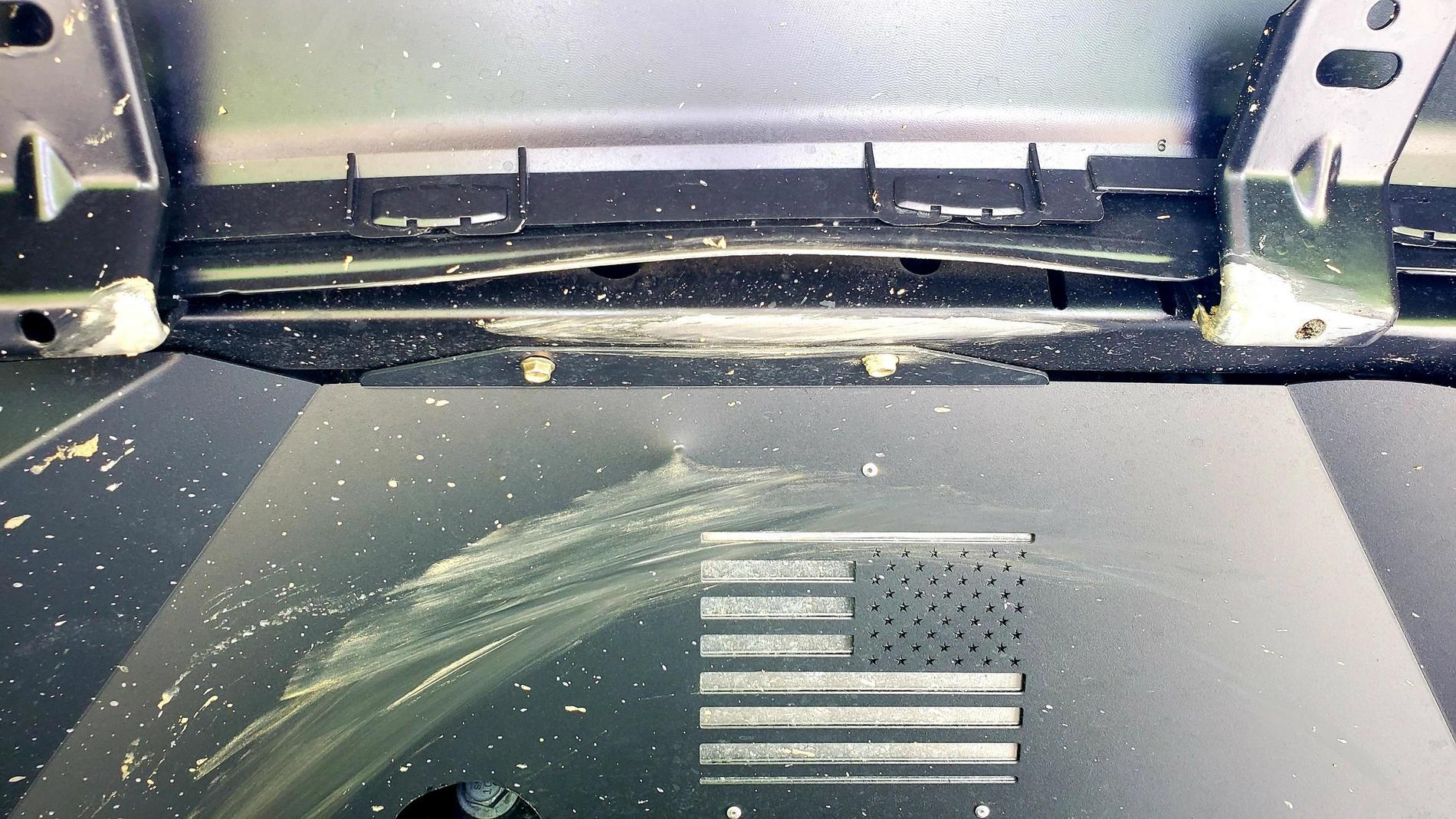

Nice! Any full flex pics? How many bumpstops? I had wheeled mine several times previously without any bad rubbing until I hit full flex.(one rear tire came off the ground) My shocks are also the RK 3.5" twin tube shocks that extend to 29"...that also contributed. I think 17x9 with 4.5 backspacing would be ideal with 37x12 50. With 38x13.50, I think it takes backspacing closer to 4.0 to clear at full flex. Mine also bottomed out here with rear tire 39" lifted:


sourdough

Well-Known Member
First Name
Ben
Joined
Nov 12, 2017
Messages
1,112
Reaction score
2,265
Location
93013
Vehicle(s)
'19 JLR dingy, Ram3500 diesel 4x4 Tiger RV
Build Thread
Link
Occupation
union sheet metal worker (retired 2008)
Vehicle Showcase
4
  • JL Model: rubicon
  • Wheel: AEV JL Pintler
  • Offset: 5.77 +25
  • Tire Make: cooper stt pro
  • Tire Size: 37x12.5r17
  • Lift: mopar approx 2.75
  • Rubbing: eleminated rubbing at rear liners with heat reshaping and front LCA's with steering stops out 1/4"
  • Pictures:
  • JL w new shoes 2.jpg

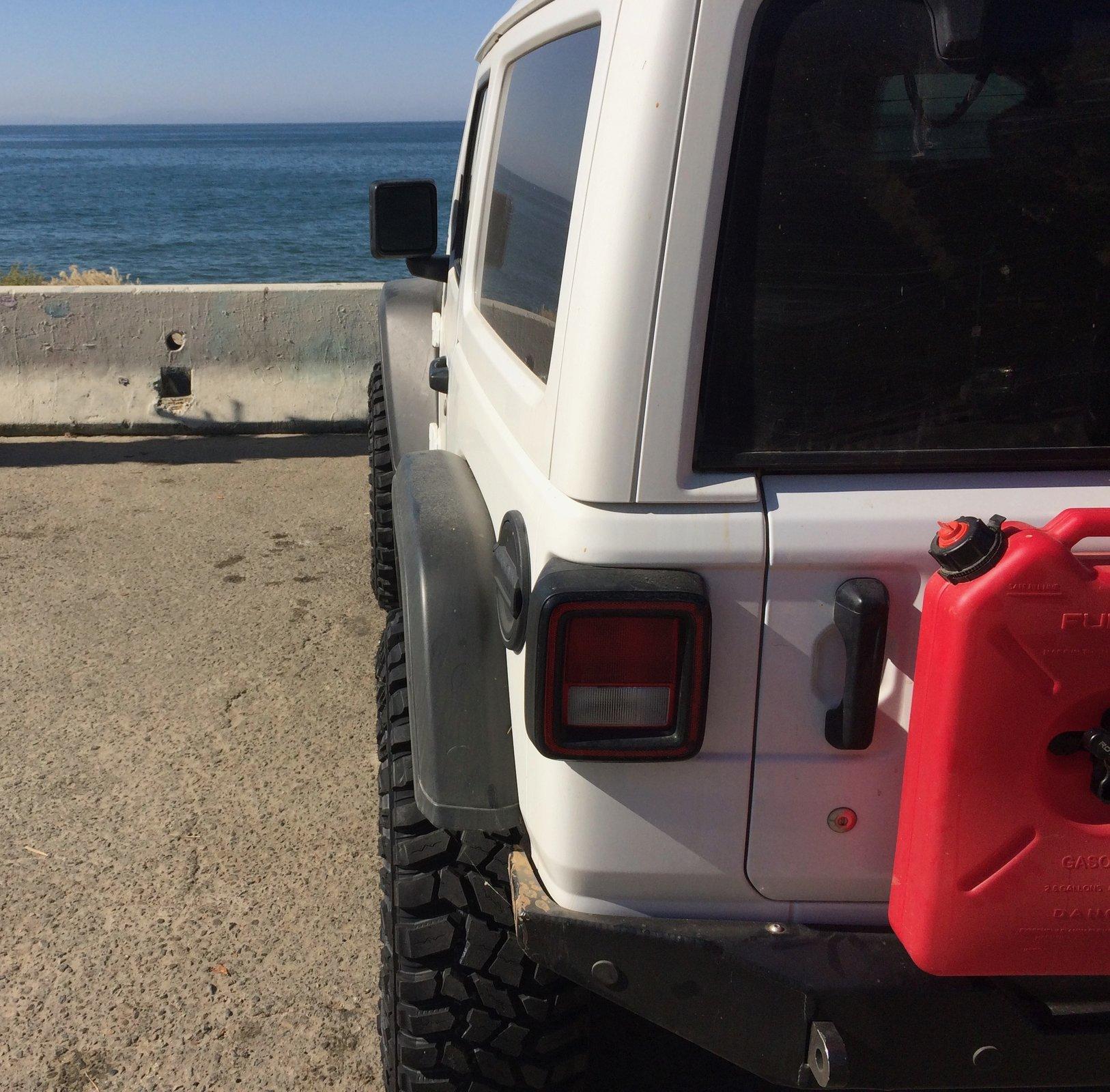

    JL tire stick out.jpeg

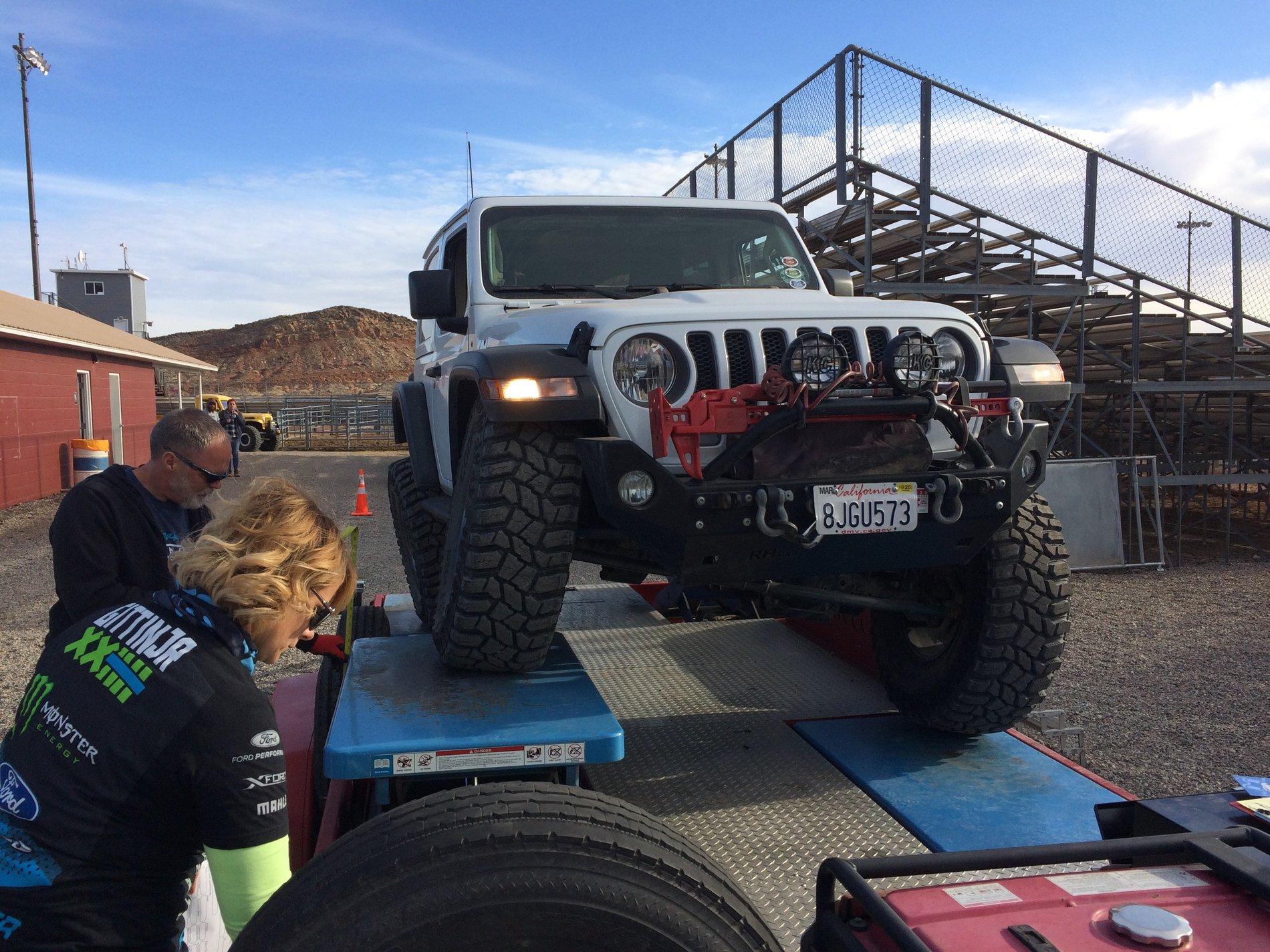

    JLR flexed frt..jpeg

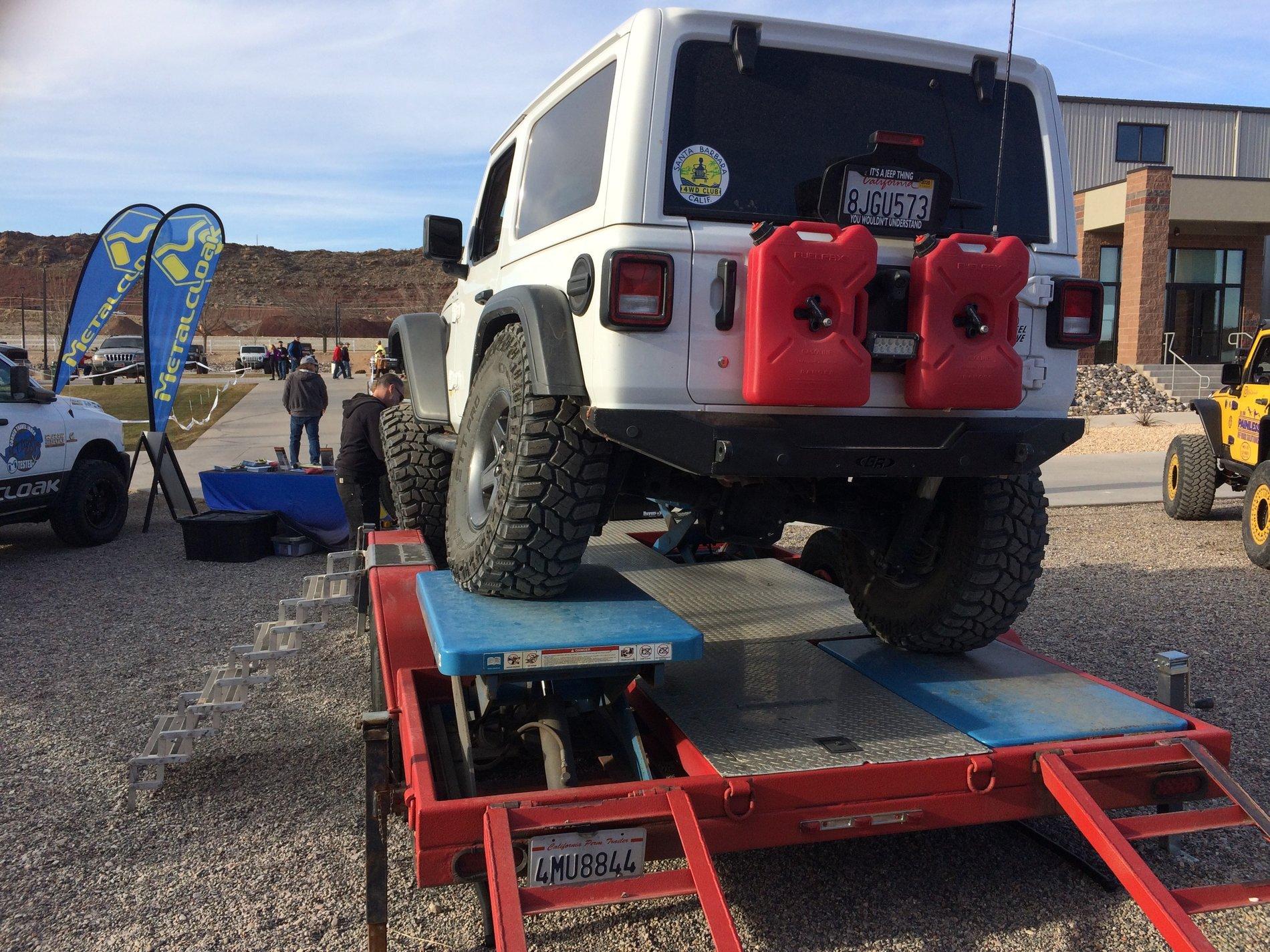

    JLR flexd rear.jpeg


ChattVol

Well-Known Member
Joined
Jun 29, 2018
Messages
2,445
Reaction score
2,566
Location
Tennessee
Vehicle(s)
JLU 4 door
  • JL Model: rubicon
  • Wheel: AEV JL Pintler
  • Offset: 5.77 +25
  • Tire Make: cooper stt pro
  • Tire Size: 37x12.5r17
  • Lift: mopar approx 2.75
  • Rubbing: eleminated rubbing at rear liners with heat reshaping and front LCA's with steering stops out 1/4"
  • Pictures:
  • JL w new shoes 2.jpg
    JL tire stick out.jpeg
    JLR flexed frt..jpeg
    JLR flexd rear.jpeg
Nice...love those tires. 37s will clear with wheels with higher backspacing with the mopar lift bc it doesn't have alot of travel. I think front shocks only extend to 26". What did your jeep score in that flex test?

Last edited:
OP

Yovwmon

Well-Known Member
First Name
Adam
Joined
Sep 8, 2019
Messages
105
Reaction score
99
Location
OH
Vehicle(s)
Wrangler JL Altitude
  • Thread starter
  • Thread Starter
  • #12

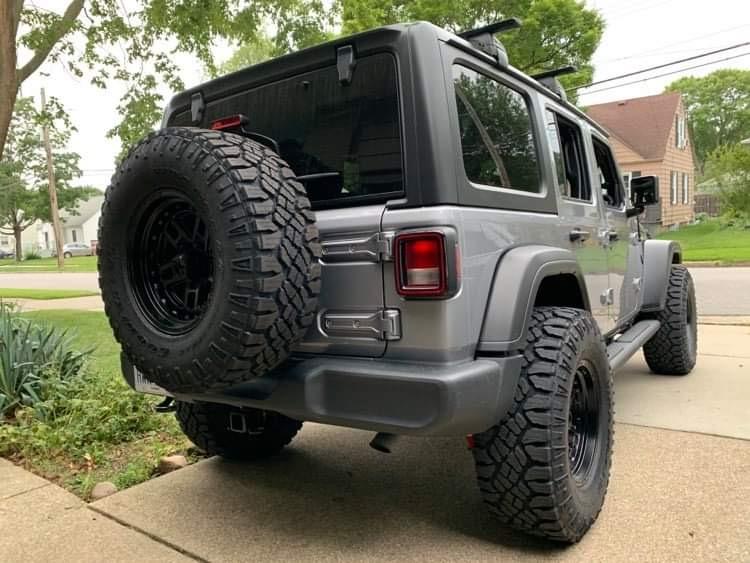

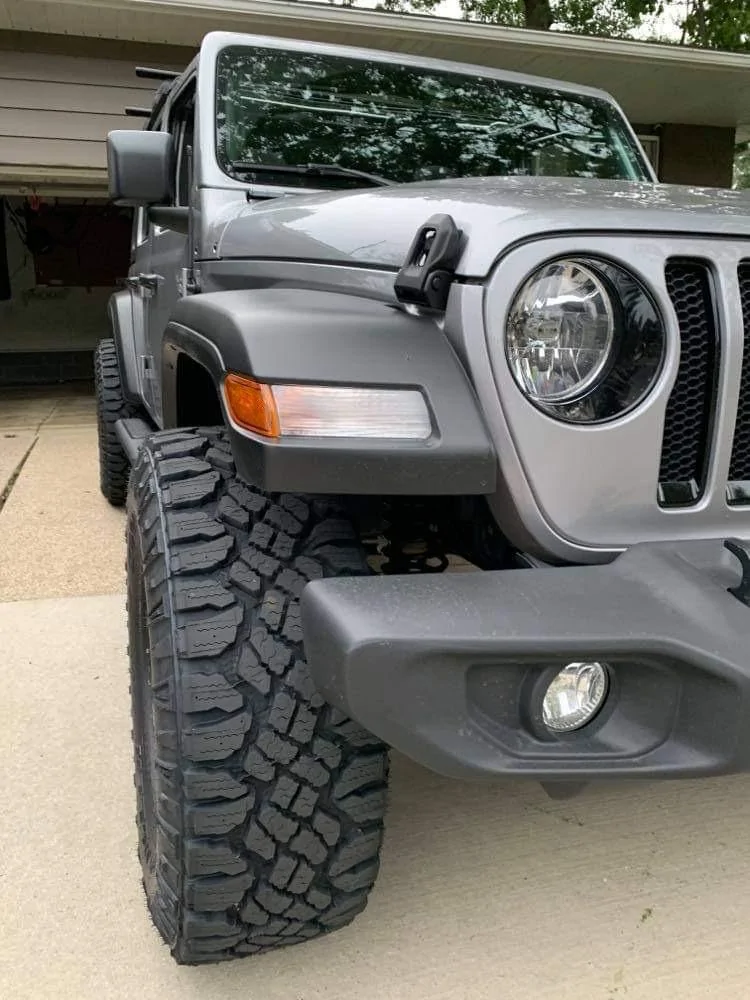

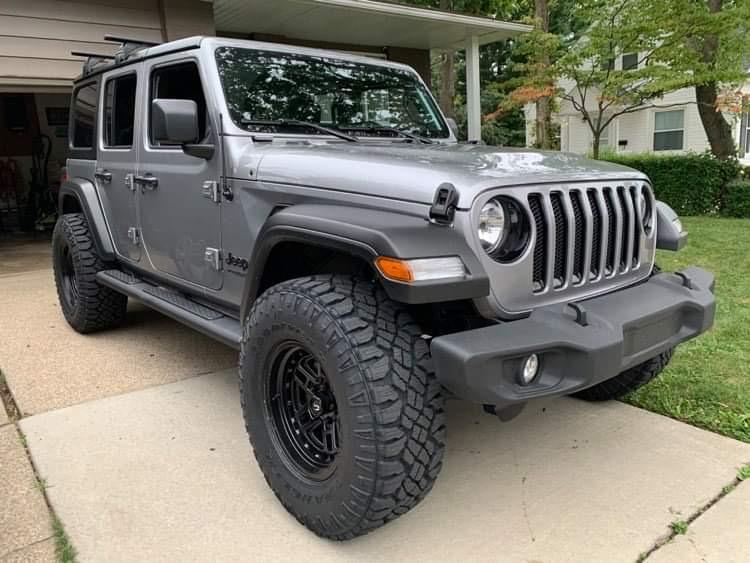

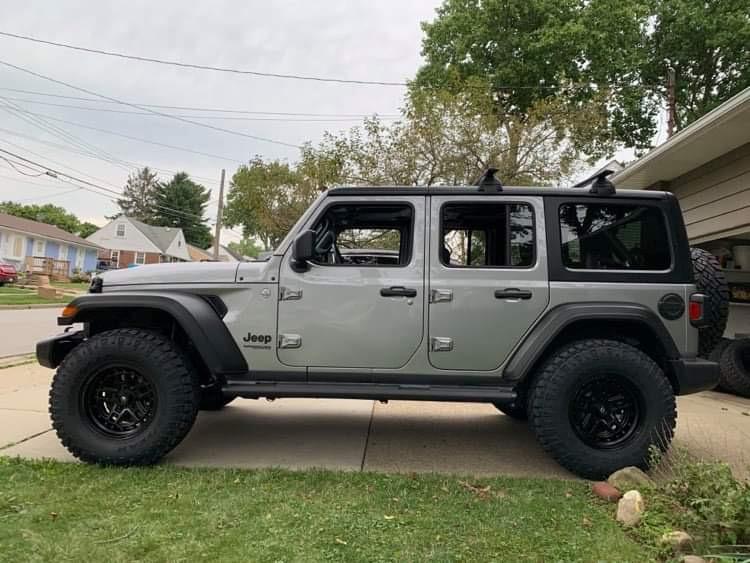

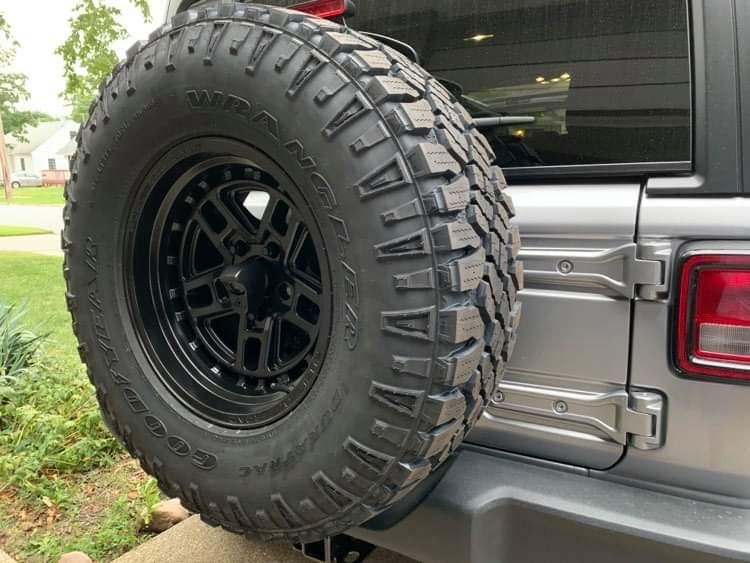

  • JL Model: Sport Altitude
  • Wheel: 17” Fuel Nitro
  • Offset: -12
  • Backspacing: 4.25
  • Tire Make: Goodyear Duratrac
  • Tire Size: 315/70R 17
  • Lift: 2.25” Rubicon takeoff w/.50 leveling kit
  • Rubbing: No rubbing anywhere under normal road driving. Vehicle rides incredibly well, very stable and these D load tires feel so much better on bumps than what the BF Goodrich Ko2 E load did.











Jerrybizzle

Well-Known Member
First Name
Jerry
Joined
Aug 28, 2018
Messages
308
Reaction score
253
Location
Idaho
Vehicle(s)
2019 JLUR
Occupation
Tech
[*]JL Model: JLUR
[*]Wheel: gfx tr 10
[*]Offset: +12
[*]Backspacing: ~5.5
[*]Tire Make: mastercraft courser mxt
[*]Tire Size: 37 12.5 17
[*]Lift: mopar 2.5-3
[*]Rubbing: super mild on inner fenders when off roading. Not enough to be bothersome
[*]Pictures:















ocrejects

Well-Known Member
First Name
Rick
Joined
Dec 20, 2017
Messages
590
Reaction score
269
Location
Orange County, CA
Vehicle(s)
2021 Rubicon, 2018 JLU Rubicon, 2018 Tiguan SE
[*]JL Model: JLUR
[*]Wheel: gfx tr 10
[*]Offset: +12
[*]Backspacing: ~5.5
[*]Tire Make: mastercraft courser mxt
[*]Tire Size: 37 12.5 17
[*]Lift: mopar 2.5-3
[*]Rubbing: super mild on inner fenders when off roading. Not enough to be bothersome
[*]Pictures:

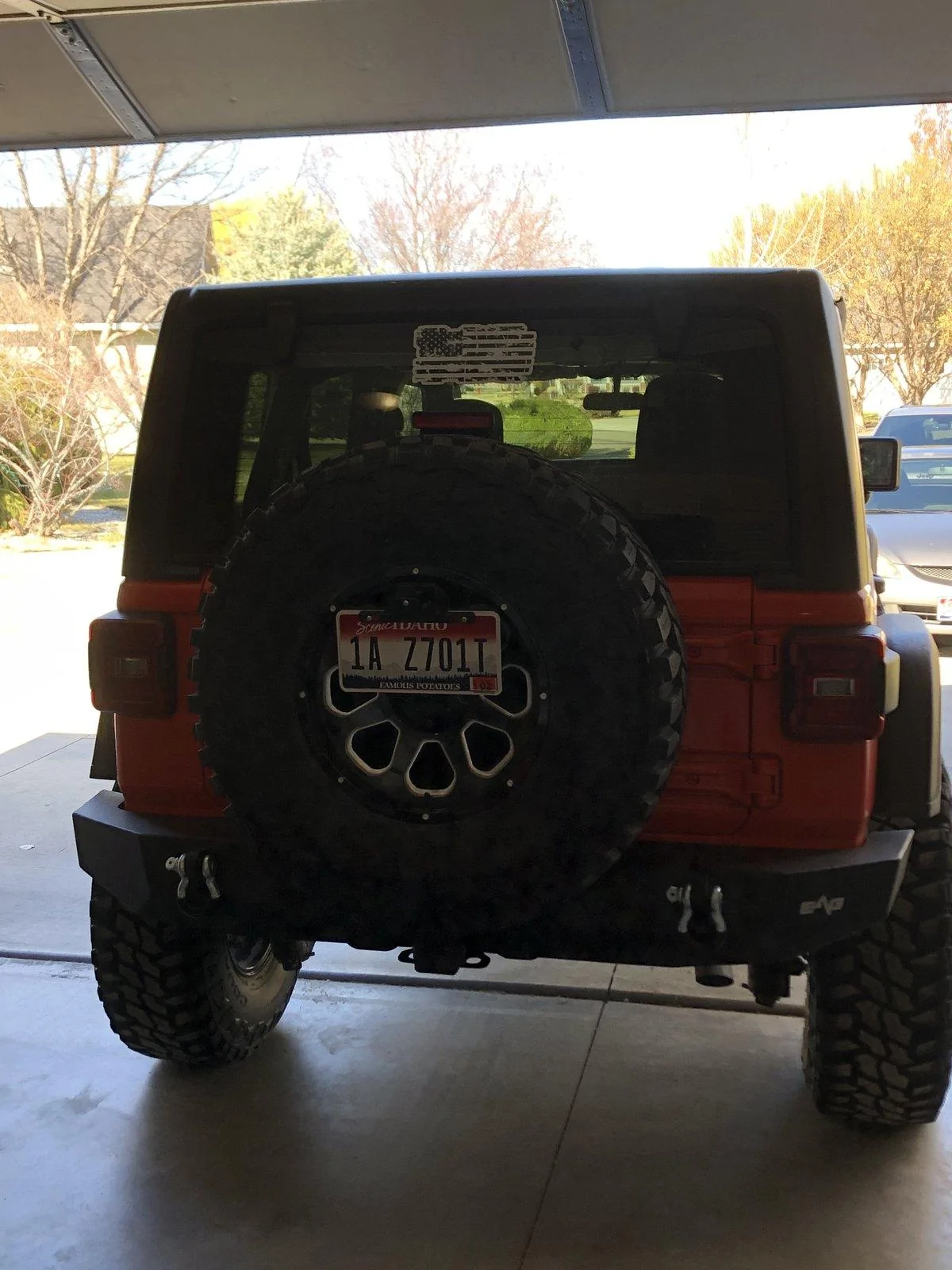

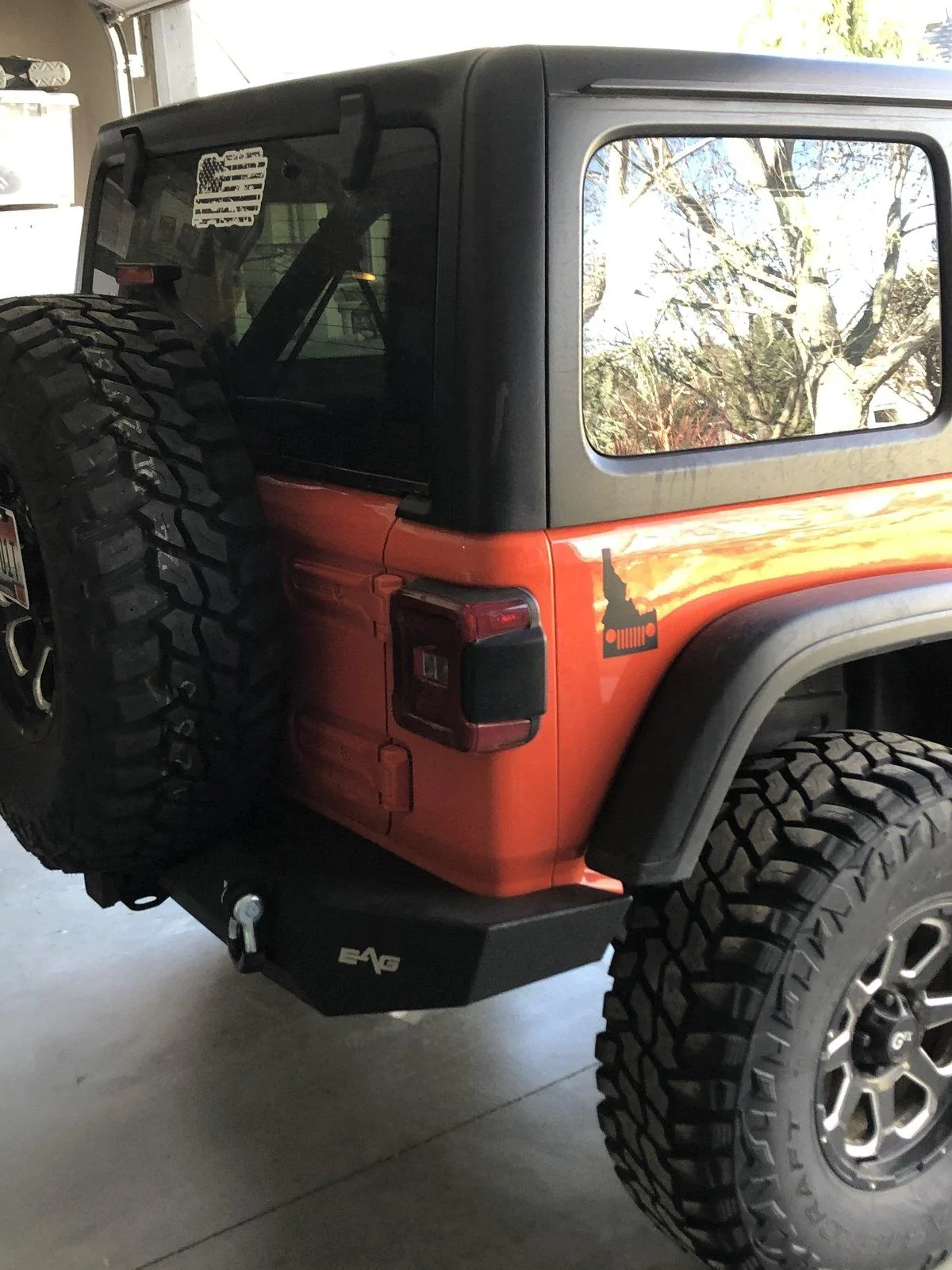

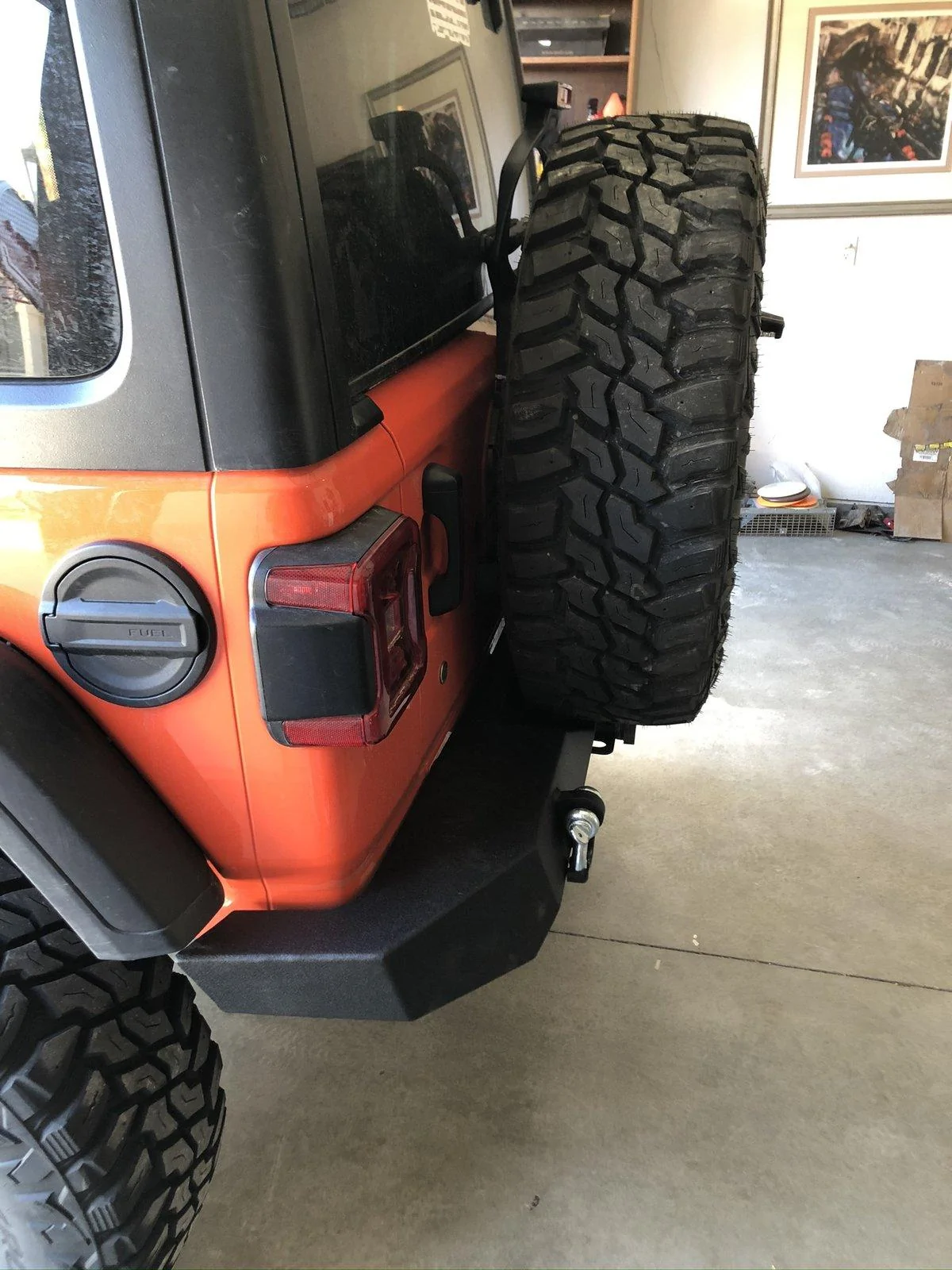

Who makes your back bumper?


Jerrybizzle

Well-Known Member
First Name
Jerry
Joined
Aug 28, 2018
Messages
308
Reaction score
253
Location
Idaho
Vehicle(s)
2019 JLUR
Occupation
Tech
Who makes your back bumper?
EAG from amazon but I think it’s discontinued. Wanted a full wrap around which was kind of hard to find. I have eag front and rear bumper along with the sliders. Been real happy with them for the price. About $800 for all 3.
