I wanted to order Mopar Part# 82219010AB JK Wheels and put them on my JL. Dealership that I inquired through states that JK Wheels will absolutely NOT fit on a JL - something about JL's no longer being 5x5. Is this true?

If so, what bolt pattern or specs do I need to look out for when ordering aftermarket wheels? Fuel is telling me wheels should fit on my JL no problem. I just want to make sure I order the right thing.
Advertisement



1quick1

Moderator
Staff member
Moderator
Joined
Oct 16, 2017
Messages
1,561
Reaction score
1,902
Location
Colorado
Vehicle(s)
2018 JLUS
Vehicle Showcase
1
I'm 99.9% sure the wheels are the same. Hell, aren't the "upgraded" Rubicon wheels just JK Hard Rock wheels?


Fuel Fire Desire

Well-Known Member
Joined
Feb 17, 2018
Messages
338
Reaction score
344
Location
Michigan
Vehicle(s)
2018 JLU Sport S, 2020 JT Sport

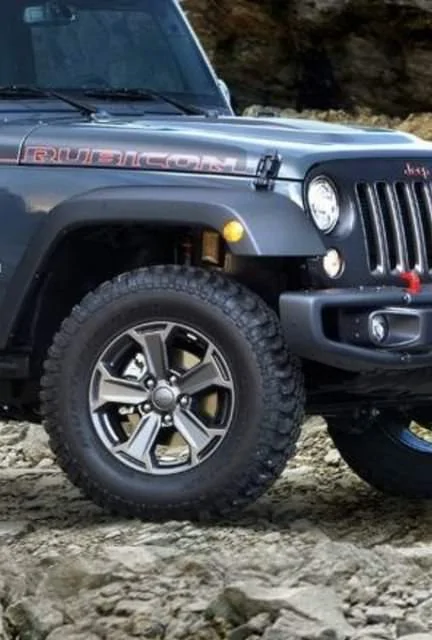

Hell.....the Sport S rims are the last JK Rubicon wheels, but painted a different color. Literally the same wheel.







1quick1

Moderator
Staff member
Moderator
Joined
Oct 16, 2017
Messages
1,561
Reaction score
1,902
Location
Colorado
Vehicle(s)
2018 JLUS
Vehicle Showcase
1

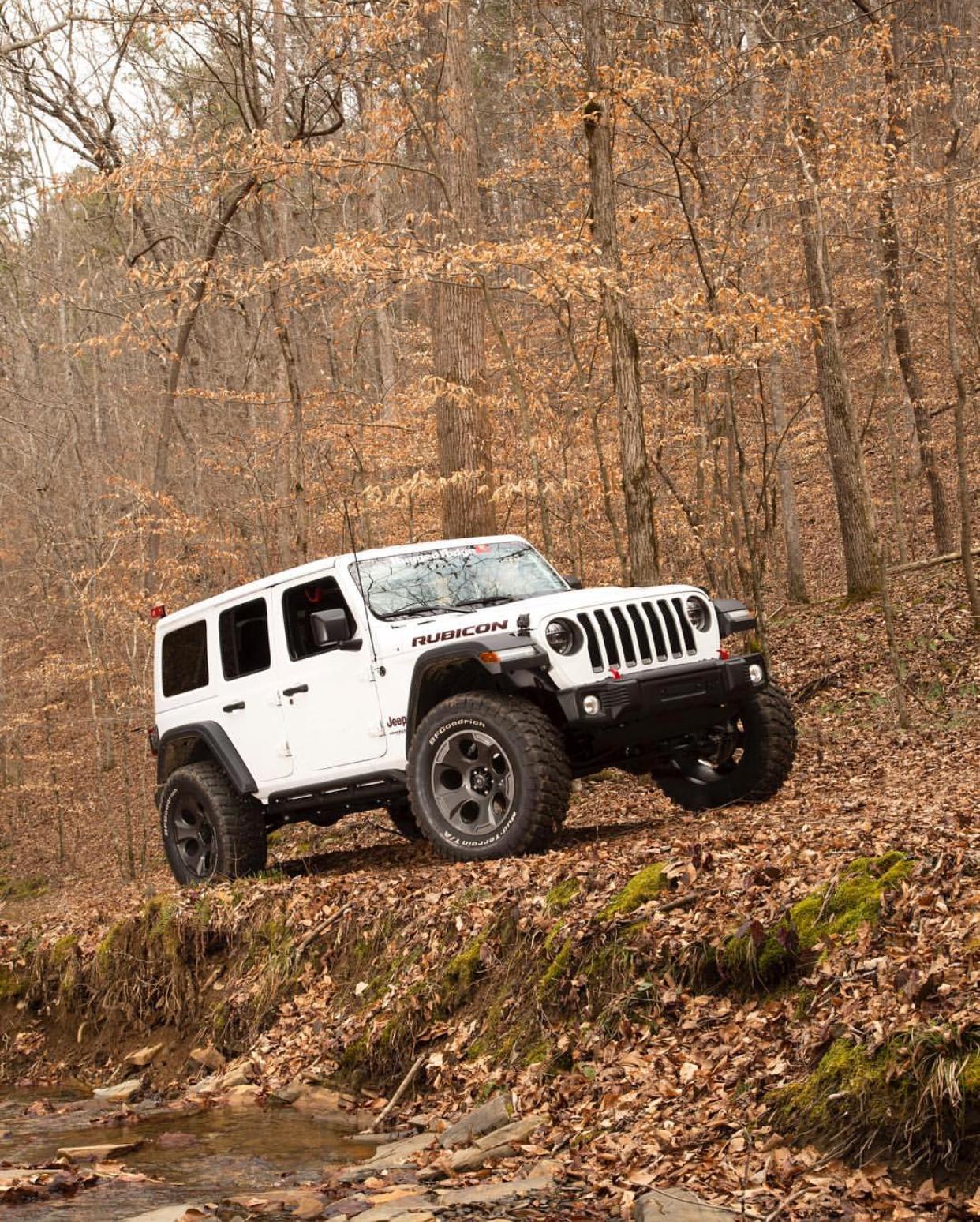

Those look similar to JK Sahara or special edition wheels although I do think those are aftermarket.


Armycop

Well-Known Member
First Name
Jay
Joined
Aug 16, 2017
Messages
617
Reaction score
510
Location
Yelm, WA
Vehicle(s)
2012 JK Wrangler, 2010 Camaro SS, 2017 Passat R-Line
Those are Rugged Ridge Drakon wheels.


emilboya

Well-Known Member
First Name
Emil
Joined
May 8, 2017
Messages
373
Reaction score
699
Location
TX
Vehicle(s)
Hummer H3 (Sold) & Jeep JL
Occupation
Process Engineer
Hell.....the Sport S rims are the last JK Rubicon wheels, but painted a different color. Literally the same wheel.





Holy cow i did not even realize how similar they were. But if you notice the positioning of the bolts are different. Still it's crazy how the color of the rim can make such a difference, good catch!


Jack P.

Active Member
First Name
Jack
Joined
Dec 19, 2017
Messages
27
Reaction score
25
Location
Georgia
Vehicle(s)
2018 JLU Sport, 1979 Power Wagon, 1974 CJ5, 2004 Rubicon, 1991 Mustang
Occupation
Sales Consultant
Stay away from that dealer until they get some training.... The offset on JK wheels is not the exact spec the JL will use, but they bolt up 100%. The item that changed are the lug nuts, they are now M14 instead of 1/2".
I couldn't agree more with this considering i work for a dealer now in sales but spent years on the service side. It seemed nobody (to include wheel companies) could give any insight pertaining to the difference. To elaborate more on what you were saying about studs/lugs and wheel fitment, Yes the JK wheels with go on there as they are both 5x5 lug pattern. No they WILL NOT bolt up safely. The lug bore on the JL wheel is considerably larger, not allowing the lug nut to seat fully into the wheel as it should. There is also less back spacing on the JL wheel.


SwrvnMrvin

Active Member
First Name
Vin
Joined
Mar 18, 2018
Messages
32
Reaction score
45
Location
Las Vegas, NV
Vehicle(s)
2018 JLU Sport, 2015 Jeep Renegade Lattitude

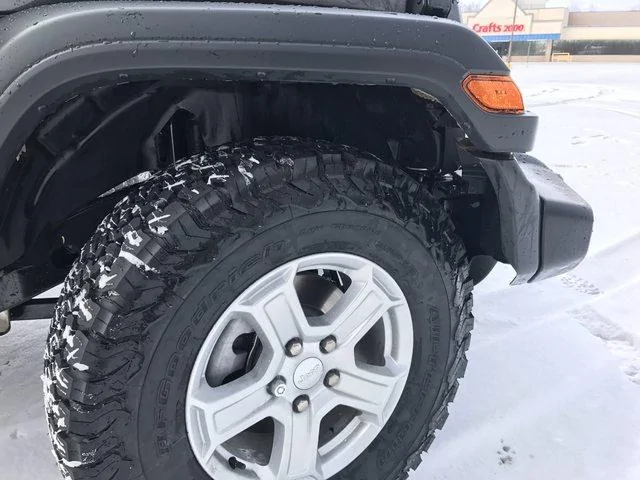

Just throwing this out there, I have JK Recon Rubicon wheels and tires on my JL currently (Jeep dealer had them on there already) I checked how the lug nuts mate in with the contact surface with the wheel. Looked good. 20180313_185859.jpg


emilboya

Well-Known Member
First Name
Emil
Joined
May 8, 2017
Messages
373
Reaction score
699
Location
TX
Vehicle(s)
Hummer H3 (Sold) & Jeep JL
Occupation
Process Engineer
Just throwing this out there, I have JK Recon Rubicon wheels and tires on my JL currently (Jeep dealer had them on there already) I checked how the lug nuts mate in with the contact surface with the wheel. Looked good. 20180313_185859.jpg

That looks great!


JeepU4IA

Well-Known Member
First Name
Rod
Joined
Jan 30, 2018
Messages
776
Reaction score
1,090
Location
Los Angeles
Vehicle(s)
2014 Dodge Charger R/T, 2018 Jeep Wrangler JLU Sport

Fuel Fire Desire

Well-Known Member
Joined
Feb 17, 2018
Messages
338
Reaction score
344
Location
Michigan
Vehicle(s)
2018 JLU Sport S, 2020 JT Sport
