It's been a few weeks since I bought her. What's been done thus far...


Removed hardtop (stowed in garage) put on soft top.
Wheels n Tires (decided on the chrome wheels).
Tinted windshield (silver) and front side doors (20% black).
Automatic electric step rails (raise/lower when the doors close/open).
Spare tire tailgate mount to compensate for the larger tire.
Bad a$$ alarm, no details


Still to do...
Upgrade the stereo.

Spray the mirrors, tail light mounts, n door handles to color match (a weekend project). And maybe the bumpers?
Apply a ceramic coating.


Have a Blessed Day :)
~justin









Advertisement



boxs

Active Member
Joined
Mar 13, 2021
Messages
36
Reaction score
66
Location
Arizona
Vehicle(s)
21 MB GLC63 Coupe, 21 Rubicon 392
Occupation
Done working!
It's been a few weeks since I bought her. What's been done thus far...


Removed hardtop (stowed in garage) put on soft top.
Wheels n Tires (decided on the chrome wheels).
Tinted windshield (silver) and front side doors (20% black).
Automatic electric step rails (raise/lower when the doors close/open).
Spare tire tailgate mount to compensate for the larger tire.
Bad a$$ alarm, no details


Still to do...
Upgrade the stereo.

Spray the mirrors, tail light mounts, n door handles to color match (a weekend project). And maybe the bumpers?
Apply a ceramic coating.


Have a Blessed Day :)
~justin


boxs

Active Member
Joined
Mar 13, 2021
Messages
36
Reaction score
66
Location
Arizona
Vehicle(s)
21 MB GLC63 Coupe, 21 Rubicon 392
Occupation
Done working!
Great looking ride, mine is on a rail car as we speak. What brand automatic rails did you use? Did you do the install? Boxs

OP
OP
JustinB

JustinB

Well-Known Member
Joined
Nov 23, 2020
Messages
85
Reaction score
78
Location
Arkansas
Vehicle(s)
Jeep Cherokee, Ninja 650, Jeep 392
Great looking ride, mine is on a rail car as we speak. What brand automatic rails did you use? Did you do the install? Boxs
Thank You Very Much 🙂

AMP Research Power Step XL, model 77132-01A. They drop 3" lower than the original version, and I'm definitely glad I went that route! Also, be sure to get the bypass switch, sold separately. Yes, I did the install. No shops locally had them or could get them timely. Luckily I bought the last one's in that model off of Amazon. Not sure if/when more will be available. There are other models but not sure it'll satisfy a short human.

Amazon.com: AMP Research 77132-01A PowerStep XL Electric Running Boards for 2018-2021 Jeep Wrangler JL, 4-Door, Black: Automotive


boxs

Active Member
Joined
Mar 13, 2021
Messages
36
Reaction score
66
Location
Arizona
Vehicle(s)
21 MB GLC63 Coupe, 21 Rubicon 392
Occupation
Done working!
Thank You Very Much 🙂

AMP Research Power Step XL, model 77132-01A. They drop 3" lower than the original version, and I'm definitely glad I went that route! Also, be sure to get the bypass switch, sold separately. Yes, I did the install. No shops locally had them or could get them timely. Luckily I bought the last one's in that model off of Amazon. Not sure if/when more will be available. There are other models but not sure it'll satisfy a short human.

Amazon.com: AMP Research 77132-01A PowerStep XL Electric Running Boards for 2018-2021 Jeep Wrangler JL, 4-Door, Black: Automotive


boxs

Active Member
Joined
Mar 13, 2021
Messages
36
Reaction score
66
Location
Arizona
Vehicle(s)
21 MB GLC63 Coupe, 21 Rubicon 392
Occupation
Done working!
Thanks for the info Justin. How long did it take to install?

OP
OP
JustinB

JustinB

Well-Known Member
Joined
Nov 23, 2020
Messages
85
Reaction score
78
Location
Arkansas
Vehicle(s)
Jeep Cherokee, Ninja 650, Jeep 392
Thanks for the info Justin. How long did it take to install?
I took my time, the directions were kinda patchy so I had to fill in with 'what makes sense' and keep an eye on the remaining bolts n nuts as to not end up with a few left over, lol. 7 hours, I started it late Saturday morning and finished that evening. Another 2 hours on Tuesday to put the switch in. It arrived after the rails. No double work as the switch wires ran a different way than the rail wires.


ErAcEr

Well-Known Member
First Name
Matthew (Mateo)
Joined
Jun 6, 2019
Messages
177
Reaction score
218
Location
Indianapolis, IN
Vehicle(s)
2018 JLU, 2018 Kawasaki Z900, 2013 Kawasaki Vulcan Vaquero 1700
Occupation
Engineer/Technician
Is the silver front window tint at 20% as well?

OP
OP
JustinB

JustinB

Well-Known Member
Joined
Nov 23, 2020
Messages
85
Reaction score
78
Location
Arkansas
Vehicle(s)
Jeep Cherokee, Ninja 650, Jeep 392
Is the silver front window tint at 20% as well?
It's a 50% silver, so it's a bit more translucent, it let's more light pass through the film. A silver film works different than a charcoal/black. It reflects heat/light vs a black that absorbs the heat/light. A tinted windshield in silver greatly helps with oncoming headlight staring effects at night. Not to mention it looks pretty trick and people can't see in very easily. In all reality a car can stay cooler with a 50% silver vs a less translucent 20% black, it's just that silver film on the side windows isn't cosmetically appealing on most cars where a black film almost always looks great. Silver looks GREAT on the windshield though!!!


Benorozco

Member
First Name
Benjamín
Joined
Jun 15, 2021
Messages
11
Reaction score
7
Location
New lenox il
Vehicle(s)
2021 jeep wrangler 392
Thank You Very Much 🙂

AMP Research Power Step XL, model 77132-01A. They drop 3" lower than the original version, and I'm definitely glad I went that route! Also, be sure to get the bypass switch, sold separately. Yes, I did the install. No shops locally had them or could get them timely. Luckily I bought the last one's in that model off of Amazon. Not sure if/when more will be available. There are other models but not sure it'll satisfy a short human.

Amazon.com: AMP Research 77132-01A PowerStep XL Electric Running Boards for 2018-2021 Jeep Wrangler JL, 4-Door, Black: Automotive
Would you help me out with the wiring diagram for the 4 wires


ErAcEr

Well-Known Member
First Name
Matthew (Mateo)
Joined
Jun 6, 2019
Messages
177
Reaction score
218
Location
Indianapolis, IN
Vehicle(s)
2018 JLU, 2018 Kawasaki Z900, 2013 Kawasaki Vulcan Vaquero 1700
Occupation
Engineer/Technician
It's a 50% silver, so it's a bit more translucent, it let's more light pass through the film. A silver film works different than a charcoal/black. It reflects heat/light vs a black that absorbs the heat/light. A tinted windshield in silver greatly helps with oncoming headlight staring effects at night. Not to mention it looks pretty trick and people can't see in very easily. In all reality a car can stay cooler with a 50% silver vs a less translucent 20% black, it's just that silver film on the side windows isn't cosmetically appealing on most cars where a black film almost always looks great. Silver looks GREAT on the windshield though!!!
Thanks! Thats what I was wondering about. I have 5% on all other windows and my front is untouched but the Wife always complains about the sun in front and thought about having a 5% sun strip but it wouldn't be low enough to please her. The A-holes around here drive with their brights on at night, so I guess with that thought will the 50% do any good for the sun that she complains about? SIDE NOTE: I dont really care about the ppl driving with brights thats why i put aftermarket LED and hit em with my brights *upgraded fog lights too but inverted them so they point up hehehe really blinding when I need to return the A-hole flavor 🤩

OP
OP
JustinB

JustinB

Well-Known Member
Joined
Nov 23, 2020
Messages
85
Reaction score
78
Location
Arkansas
Vehicle(s)
Jeep Cherokee, Ninja 650, Jeep 392
Would you help me out with the wiring diagram for the 4 wires

Sure, the 4 wires were hard for me as well. My eyes simply could not see the wire colors, more specifically the colored strip, i.e. violet/WHITE, violet/Grey. I could see the violet yellow and the plane violet.

They really are there though. Just be aware. There are actually 3 plug-ins. I disconnected 2 plugs totally unaware of the 3rd, and the 3rd plug was the one I needed. You only need to disconnect 2 plugs though (for an easier access to tap into the wires) the White and Blue plug. The wires are truly small. See the chart, it's pretty straight forward.

E.g. Driver Front Input - Purple (this on the AMP 'brain' taps into the Jeep's white CONNECTOR's violet wire.

I'd suggest putting a little piece of tape to mark the 4 wires you need to tap into on the Jeep. This way you can go through all the wires just to make sure you don't see a violet gray wire that looks more violet gray than the one you picked. There's a bunch of wires in there, all very thin, so make sure you have good lighting. I initially tapped into a wrong wire and nothing fried, thank goodness. My 19 year old son with eyes that same age was able to find my violet gray wire, this the hardest wire for me to identify.





Benorozco

Member
First Name
Benjamín
Joined
Jun 15, 2021
Messages
11
Reaction score
7
Location
New lenox il
Vehicle(s)
2021 jeep wrangler 392
Thankyou Jusntin for taking the time to respond. Do you have any pictures of the wiring by chance

OP
OP
JustinB

JustinB

Well-Known Member
Joined
Nov 23, 2020
Messages
85
Reaction score
78
Location
Arkansas
Vehicle(s)
Jeep Cherokee, Ninja 650, Jeep 392
Thankyou Justin for taking the time to respond. Do you have any pictures of the wiring by chance
I'm sorry. No, I didn't take any pictures. I did google search it, "Jeep Wrangler 2020 Door Triggers", (as it's the same wire schematics) and found some pictures and videos. But in the end that helped very little. I did considers it but again the wires are so small.

I may not have mentioned but I'd suggest disconnecting all 3 connectors from the Body Computer, or whatever that computer box thing does, although only 2 of the connectors are needed to tap into. After doing such the whole wiring assembly is able to drop down to the floor for a much easier access. From there cut the electrical tape back a few inches to separate the wires for better wire separation and find/look.

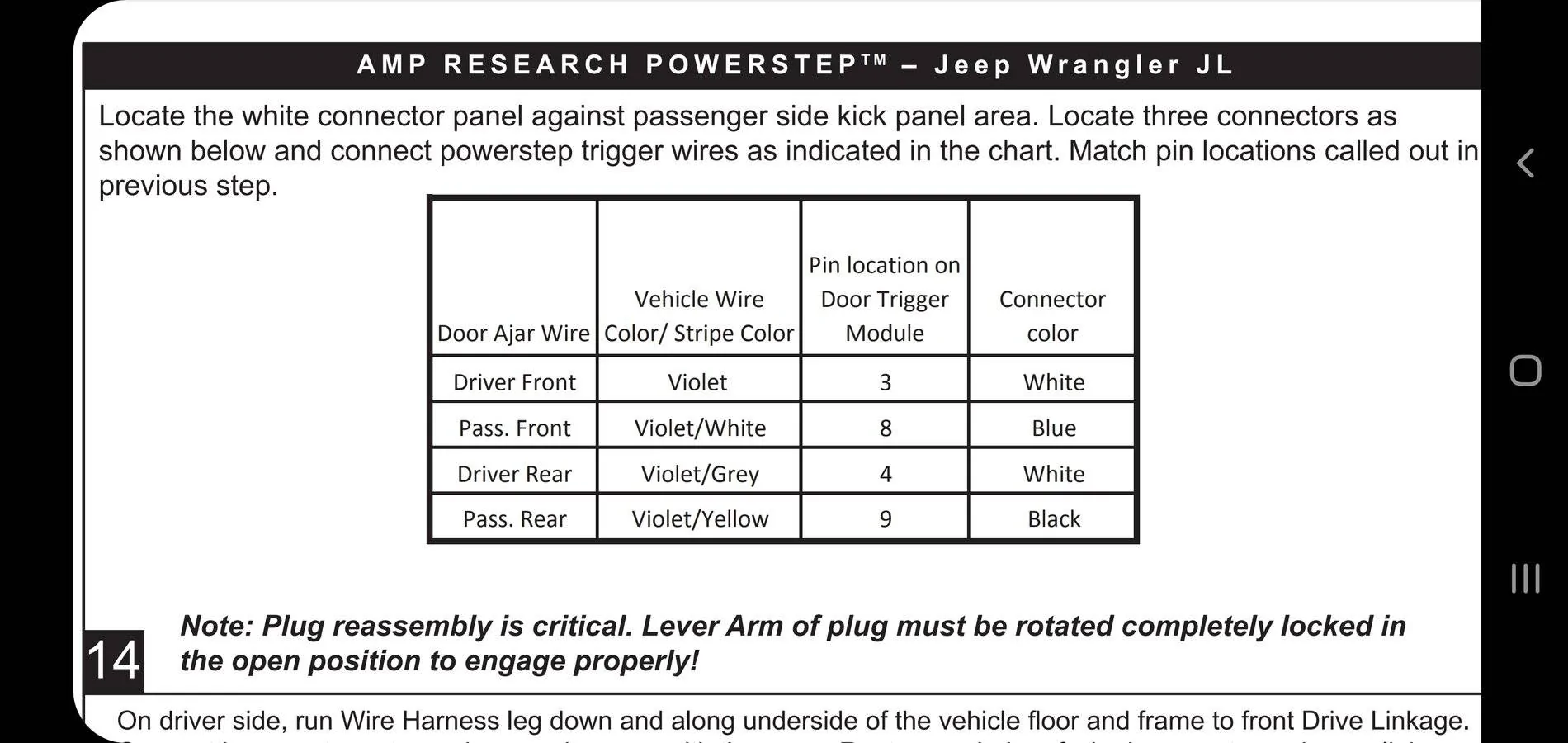

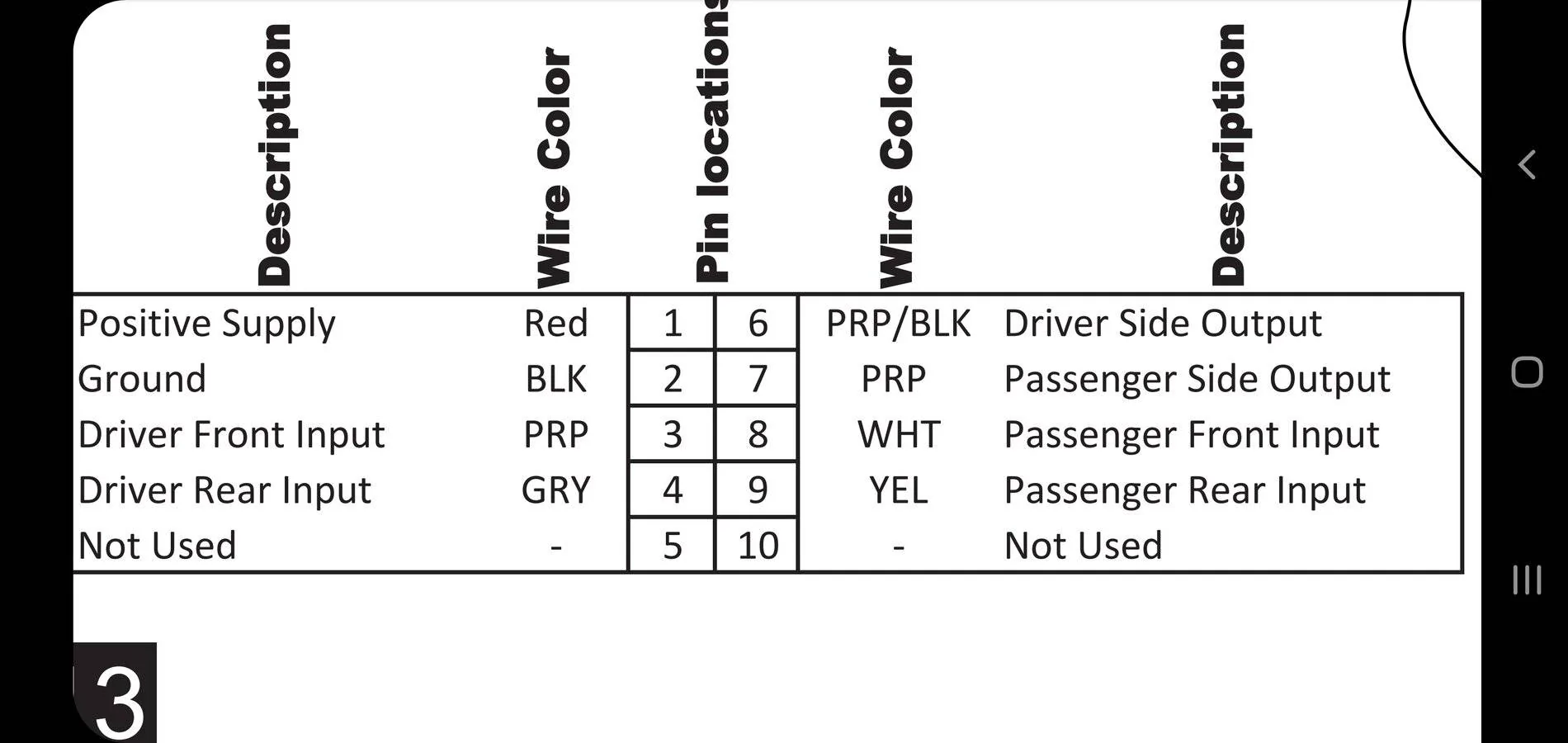

OH MY!!! TAKE NOTE!!! ::: Ok, I just took a better look at the wire diagram pictures I sent you. These pics I actually google searched as I couldn't find the install manual that came with my steps (it's in the garage somewhere.?.) I kept mentioning there are only 2 connectors you'll access to tap into, and that is correct; however, the diagram I sent you is showing a White, Blue, and Black connector that entails where the wires are to be located. IT IS ONLY THE WHITE AND BLUE connectors that harness the wires you need. The connector labeled Black should actually be labeled White. You need to find the violet yellow wire in the white connector's harness. So, your AMP's Passenger Rear Input (yellow wire) taps into the Jeep's Passenger Rear white connector's violet yellow wire.
