John VonJeep

Well-Known Member
Joined
Sep 27, 2021
Messages
367
Reaction score
1,201
Location
Middle of Nowhere
Vehicle(s)
Many

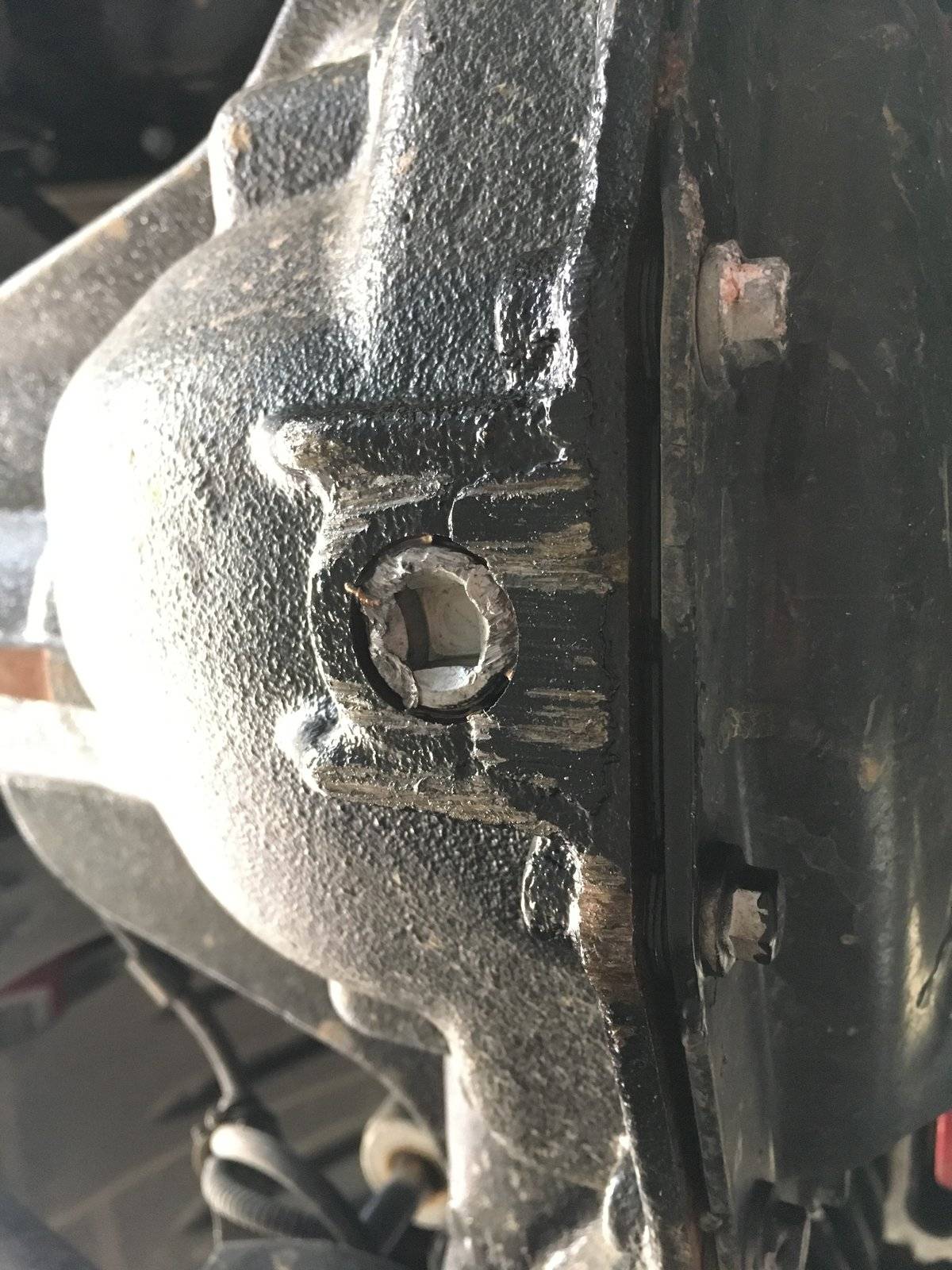

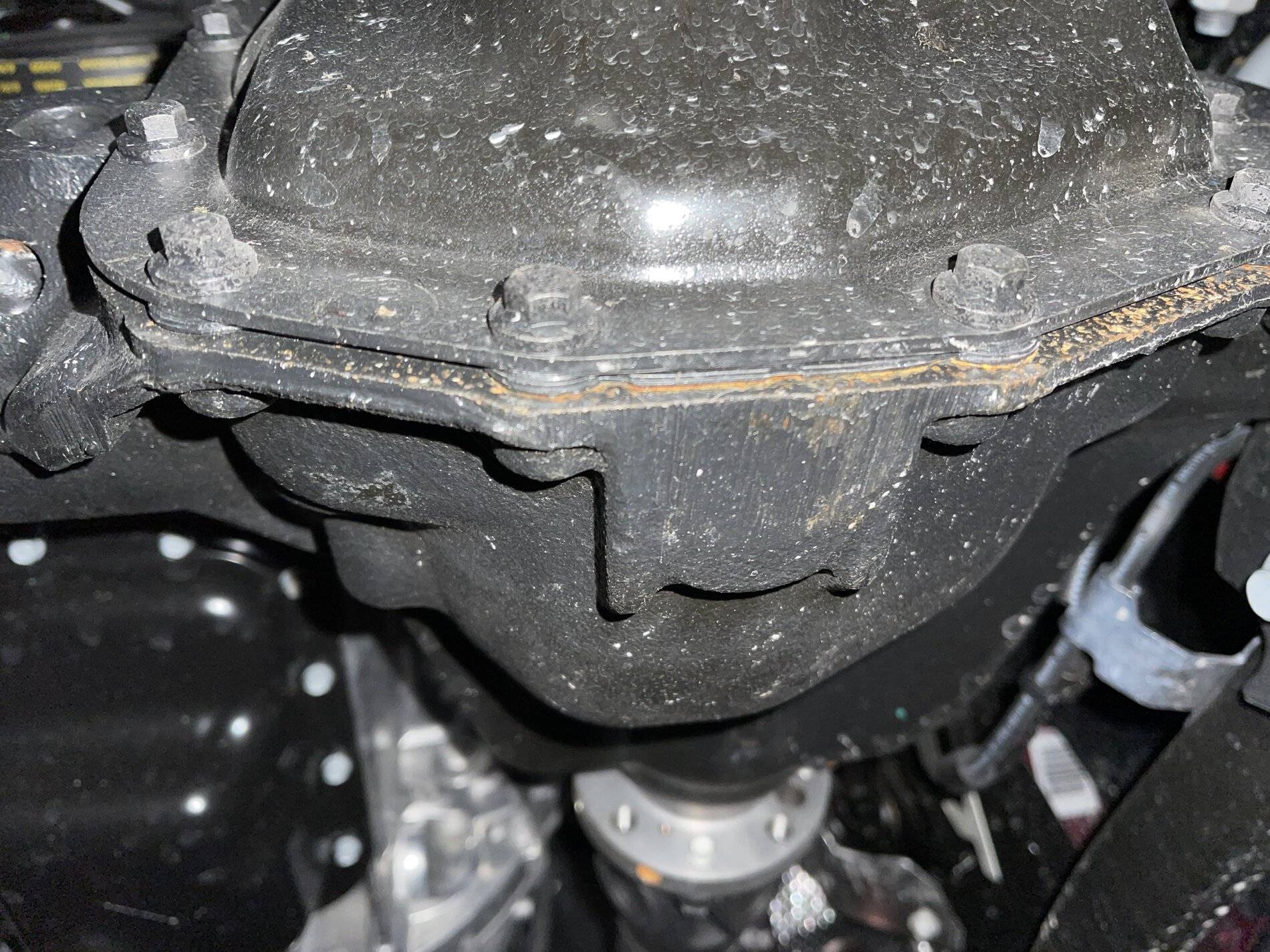

Checked my XR this morning. The rumors are true. The front Rubi diff no longer has a drain plug. I wonder if this is a parts-related change, or a design-related change. In any event, I don’t like it.

Advertisement



bjm00se

Well-Known Member
First Name
Bullwinkle
Joined
Jan 26, 2021
Messages
154
Reaction score
372
Location
California
Vehicle(s)
Lifted Tacoma Reg Cab, JLUR 6sp ordered 11/3/21
Glad you brought up the point and counterpoint.

Not sure it's all Rubicons. I *think* it's only been seen so far on eXtreme Recons.

I have a Rubicon on order. It would actually make me happier if it's done this way.


The Last Cowboy

Well-Known Member
First Name
Joe
Joined
Jul 2, 2020
Messages
1,871
Reaction score
3,310
Location
San Antonio, TX
Vehicle(s)
2020 JL Willys 2 door
Occupation
Wandering Vaquero
Of course, this is the argument for removing it:

This is exactly why. It’s not that hard to loosen the bolts to drain it, plus you can clean it better that way.


AcesandEights

Well-Known Member
First Name
Aces
Joined
Aug 19, 2021
Messages
529
Reaction score
968
Location
So. Oregon
Vehicle(s)
2021 Jeep Rubicon 2D
I would always remove the diff cover anyway. Seems odd to have a drain plug on something you'd want to inspect anyway, especially in the place where it is most likely to be damaged. Makes it quicker for the quicky-lube places, but not an advantage for someone that does their own work and wants to look things over.


OllieChristopher

Well-Known Member
First Name
Chris
Joined
Aug 19, 2021
Messages
560
Reaction score
675
Location
Southern CA
Vehicle(s)
2005 GMC 2WD Sierra, 4.3, NV3500, 3:73/TruTrac
I see no reason for a drain plug on a diff. In fact the Jeep's are the only vehicles I have ever seen with a drain plug. I find it odd and concerning that it would put someone out to do something as simple as removing a diff cover to drain fluid.


ekim

Well-Known Member
First Name
Mike
Joined
Aug 15, 2020
Messages
68
Reaction score
66
Location
NJ
Vehicle(s)
2000 TJ
I see no reason for a drain plug on a diff. In fact the Jeep's are the only vehicles I have ever seen with a drain plug. I find it odd and concerning that it would put someone out to do something as simple as removing a diff cover to drain fluid.
Ha try that on a Ford 9" style diff :).


gato

Well-Known Member
Joined
Apr 4, 2021
Messages
622
Reaction score
766
Location
New England
Vehicle(s)
2021 JLUR

Murphydog

Well-Known Member
Joined
Jun 1, 2019
Messages
327
Reaction score
390
Location
Seattle
Vehicle(s)
2014 BMW X3, 2021 JLUR ordered 6/10, delivered 9/2
I will double check, but I think it was missing from my Rubicon as well. V6 eTorque delivered in early September.

OK - can of worms here, quick glance at the maintenance plan it says to change front and rear axle fluid at 40,000 miles if using your vehicle for police, taxi, fleet off-road or frequent trailer towing.
it doesn't seem to list any light duty (my words) interval for changing.

So is 40K a reasonable mileage to change front and rear diff fluids?


OllieChristopher

Well-Known Member
First Name
Chris
Joined
Aug 19, 2021
Messages
560
Reaction score
675
Location
Southern CA
Vehicle(s)
2005 GMC 2WD Sierra, 4.3, NV3500, 3:73/TruTrac
Ha try that on a Ford 9" style diff :).
We are not talking a Ford 9". In the case of those (and a lot of Toyota diffs) then it is a very simple third member removal. Only difference is having to remove the driveshaft.


guarnibl

Well-Known Member
Joined
Apr 3, 2017
Messages
1,732
Reaction score
1,422
Location
Scottsdale
Vehicle(s)
'21 JLUR 392 XR, '21 JTR, '21 JLR, '09 JK
I will double check, but I think it was missing from my Rubicon as well. V6 eTorque delivered in early September.

OK - can of worms here, quick glance at the maintenance plan it says to change front and rear axle fluid at 40,000 miles if using your vehicle for police, taxi, fleet off-road or frequent trailer towing.
it doesn't seem to list any light duty (my words) interval for changing.

So is 40K a reasonable mileage to change front and rear diff fluids?
I change mine annually given I wheel quite a bit. I'd argue if you do, and enter water -- you should change more frequently. At the same time, potting the sensors as preventive is a common thing owners should consider doing early on. In my case, my lockers were already starting to have issues engaging after 3k miles. Mine will get potted after break in at first oil change which I'll be doing at 3k.
