I need more volts for coffee maker

@OUTDOORTREE

Well-Known Member
First Name
Bob
Joined
May 9, 2018
Threads
61
Messages
573
Reaction score
929
Location
Yakima, WA USA
Vehicle(s)
2018 Rubicon JLU
Vehicle Showcase
1
Got a oxx coffee box today for the Jeep and really like it but the AC plug does not have enough juice. How can I get more juice to the rear cargo area.

It needs 120 volts

https://oxx.com/coffeeboxx/

I would love to make this work in the JL Rubicon. Do I need an inverter ran to back of the Jeep. Do I run that off the battery?



Zazoh

Well-Known Member
First Name
Brian
Joined
Sep 30, 2018
Threads
9
Messages
1,396
Reaction score
6,021
Location
San Antonio TX
Vehicle(s)
2018 JLU Rubicon Sting-Gray
Occupation
Software Engineer
Got a oxx coffee box today for the Jeep and really like it but the AC plug does not have enough juice. How can I get more juice to the rear cargo area.

It needs 120 volts

https://oxx.com/coffeeboxx/

I would love to make this work in the JL Rubicon. Do I need an inverter ran to back of the Jeep. Do I run that off the battery?
You should have an AC outlet in the passenger seating area. It is a 120 volt outlet supporting a device that requires up to 150 watts. Not sure how many watts the coffee maker needs, but because it has to heat water it may be higher than 150 watts.

EDIT: The CoffeeBox requires 1450 Watts. The onboard inverter will not work.

OP
OP
@OUTDOORTREE

@OUTDOORTREE

Well-Known Member
First Name
Bob
Joined
May 9, 2018
Threads
61
Messages
573
Reaction score
929
Location
Yakima, WA USA
Vehicle(s)
2018 Rubicon JLU
Vehicle Showcase
1
You should have an AC outlet in the passenger seating area. It is a 120 volt outlet supporting a device that requires up to 150 watts. Not sure how many watts the coffee maker needs, but because it has to heat water it may be higher than 150 watts.
Thank you it needs 1450 Watts. What are my best option of it is possible?


Zazoh

Well-Known Member
First Name
Brian
Joined
Sep 30, 2018
Threads
9
Messages
1,396
Reaction score
6,021
Location
San Antonio TX
Vehicle(s)
2018 JLU Rubicon Sting-Gray
Occupation
Software Engineer
Thank you it needs 1450 Watts. What are my best option of it is possible?
I only know about the onboard inverter. Let’s see if anyone has suggestions about an after market one.



sdynak

Well-Known Member
Joined
Sep 18, 2018
Threads
2
Messages
258
Reaction score
270
Location
NJ
Vehicle(s)
18 JLU Sahara
That unit is pretty power hungry.. should go slightly oversized with a inverter so you don’t run into overload issues say a 2k would be best. Something like this.. I don’t know much about this specific unit just pointing out what is needed itself. Do your own research on brands etc. it will require a pretty good size DC cable as this kit uses 2 each for power and ground. Also.. some appliances do not like power from a digital wave form and a pure sine wave form like in your home is the best option you may want to consider although they do cost more. Whatever you do make sure it works before doing a full install.

https://www.amazon.com/POTEK-2000W-Power-Inverter-Outlets/dp/B01N9PREQR


Todkavonic

Well-Known Member
First Name
Nate
Joined
Sep 11, 2018
Threads
7
Messages
182
Reaction score
228
Location
Onalaska, WI
Vehicle(s)
Moto Guzzi, Ducati, BMW, Lincoln, Land Rover
Let's see...

Con: 1) Looks like you have to spend $140 on an inverter to get the necessary wattage. 2) You need to pack ground coffee or beans and a grinder (hand-held would suffice). 3) You need to bring or have access to filtered water or an inline filter with the machine. 4) You possibly need sugar/milk/cream, measuring spoon, mug/yeti. 5) there's clean up and cleaning materials. 6) the above will occupy space.

Pro: coffee!

That's a no-brainer if ever I saw one

/love coffee
//drinking some right now

Last edited:


BVGeezer

Well-Known Member
First Name
Jack
Joined
Apr 4, 2018
Threads
12
Messages
114
Reaction score
124
Location
Buena Vista, CO
Vehicle(s)
1982 Toyota FJ40 Land Cruiser, 2013 F150, 2018 Jeep Ribicon, Polaris 1000 XP, 2 750 Artic Cat quads
Occupation
Retired
Check out 12V coffee makers for use in RVs. Know nothing about quality or required wattage. Found 388 on Amazon.


RussJeep1

Banned
Banned
Banned
Joined
Oct 12, 2016
Threads
139
Messages
2,544
Reaction score
1,989
Location
Westchester, NY
Vehicle(s)
JLU Sahara
I had read (red) here, I can't find the thread at the moment, that one of the dual battery kit makers for the JK is releasing their product for the JL, that may also have, besides the benefits of dual batteries that the JK enjoyed, those batteries replacing the JL's ESS battery.

I can't speak to the electronics of batteries in series or parallel possibly generating more wattage or how that's done.

As alluded to, finding the path of least resistance (no pun intended) here may be best, whether that involves the pre-packaged thermos or the small generator, if fresh coffee is worth it to you enough.

Good luck. Let us know what you did.


Jeepsterfreak

Well-Known Member
Joined
Jan 2, 2017
Threads
9
Messages
2,147
Reaction score
1,296
Location
USA
Vehicle(s)
Honda, Future JLU

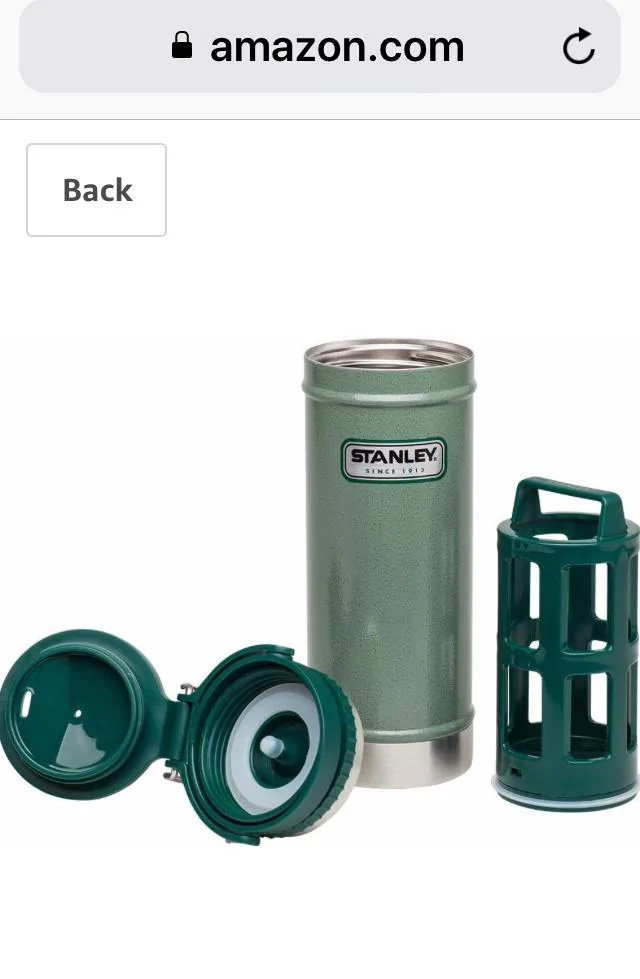

Stanley Travel Coffee Press

Use the engine exhaust header heat to heat the water. No power needed. :)


OP
OP
@OUTDOORTREE

@OUTDOORTREE

Well-Known Member
First Name
Bob
Joined
May 9, 2018
Threads
61
Messages
573
Reaction score
929
Location
Yakima, WA USA
Vehicle(s)
2018 Rubicon JLU
Vehicle Showcase
1
I don’t even drink coffee. Got for hot cocoa for and Instant hot water for soups.


Gaust

Well-Known Member
First Name
Todd
Joined
Aug 12, 2018
Threads
4
Messages
168
Reaction score
62
Location
Portland, Oregon
Vehicle(s)
2018 Wrangler JLU Rubicon, 2018 Renegade Trailhawk
If you decide to add an inverter make sure you run an appropriate size wire to the battery with a fuse at the battery. Also make sure you ground the unit to bare metal.
