I have the 3.6 engine. How many batteries do I have? I only find one when I’m looking, but I read that there may be 2.





Advertisement



WranglerMan

Well-Known Member
First Name
Will
Joined
May 8, 2018
Messages
2,333
Reaction score
1,568
Location
Katy Texas
Vehicle(s)
2018 Wrangler JLU Sahara
Occupation
Gas Pipeliner
Vehicle Showcase
1
Yes there are two, the second one is a smaller ESS battery that is buried under the first one

OP

drdriller

Well-Known Member
First Name
John
Joined
Nov 24, 2018
Messages
265
Reaction score
175
Location
Houston
Vehicle(s)
2019 jl
  • Thread starter
  • Thread Starter
  • #3
Shoot, you mean you need to pull out bigger battery to get to the smaller EES under it?


MidMo

Active Member
Joined
Dec 19, 2018
Messages
26
Reaction score
21
Location
Mid Missouri
Vehicle(s)
1999 TJ / 2001 WJ / 2017 Ram 3500HD / 2019 JLU Moab
From what I've seen on video...yes. It's under the main battery and to the rear of it. It's not to convenient to get to.


krucam

Well-Known Member
First Name
Mark
Joined
Aug 11, 2018
Messages
92
Reaction score
149
Location
DFW, TX
Vehicle(s)
Nissan Xterra, 2019 JLR ordered 12/22/2018
Occupation
FAA
Do the 2.0 T4 have 3 total? 2 under hood, 1 48V along the frame underneath?


WranglerMan

Well-Known Member
First Name
Will
Joined
May 8, 2018
Messages
2,333
Reaction score
1,568
Location
Katy Texas
Vehicle(s)
2018 Wrangler JLU Sahara
Occupation
Gas Pipeliner
Vehicle Showcase
1
I could think of one reason putting it where they did and that would be most ppl won’t even try to pull the second battery and will take it to the dealer, the engineers honestly could have made room somewhere so it was more easily accessible

OP

drdriller

Well-Known Member
First Name
John
Joined
Nov 24, 2018
Messages
265
Reaction score
175
Location
Houston
Vehicle(s)
2019 jl
  • Thread starter
  • Thread Starter
  • #10
I was just wondering. Does the Jeep still run if one battery dies?


SecondTJ

Well-Known Member
Joined
Jan 9, 2019
Messages
1,017
Reaction score
869
Location
Il
Vehicle(s)
Jeep
Do the 2.0 T4 have 3 total? 2 under hood, 1 48V along the frame underneath?
You might be thinking of the cooling systems, of which the 2.0 has three different ones

1) engine
2) intercooler
3) 48V battery


ToolMan514

Well-Known Member
First Name
Tim
Joined
Mar 2, 2018
Messages
646
Reaction score
1,084
Location
Montréal, Québec, Canada
Vehicle(s)
'18 Rubicon Unlimited
Vehicle Showcase
1
I was just wondering. Does the Jeep still run if one battery dies?

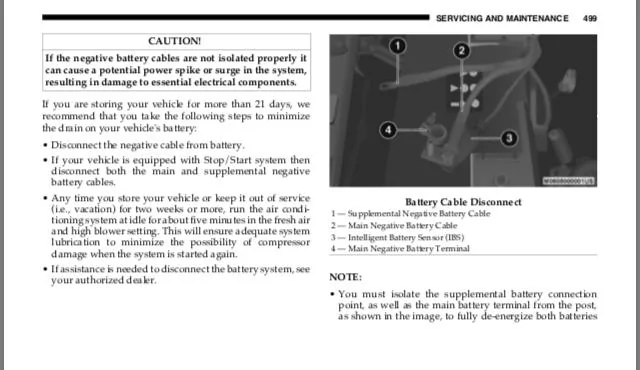

The 3.6L Wrangler will not run (start) if either battery is too low, or bad. Also, jump-starting is a longer process, since the AUX battery must come back up to normal voltage before it will start. Since the vehicle electronics need constant power through a stop-start cycle, they run on only on the AUX and the main battery cranks the starter and ignition. Battery charge voltage will fluctuage a lot too -- from 12V to 14V -- depending on what state the system is in. Most of this is in the Owner's Manual.

OP

drdriller

Well-Known Member
First Name
John
Joined
Nov 24, 2018
Messages
265
Reaction score
175
Location
Houston
Vehicle(s)
2019 jl
  • Thread starter
  • Thread Starter
  • #14
Thanks jeepsterfreak. They didn’t put an owners manual in my 19 jl


cns721

Well-Known Member
First Name
Chris
Joined
Sep 10, 2018
Messages
211
Reaction score
134
Location
Rochester NY
Vehicle(s)
'04 WJ, '13 JKU Sahara, '18 WK2 High Altitude, '19 JLUR
Occupation
Software Developer
Thanks jeepsterfreak. They didn’t put an owners manual in my 19 jl
You actually can request a manual to be sent to you for free through Jeep Customer Service. I got mine and it is THICK.
