Is this the configuration currently in your JL? If so send me your VIN as it will help filter out the correct wiring

-Benny
Yes, and PM sent, thanks so much Benny!
Advertisement


OP
OP
AllMoparParts.com

AllMoparParts.com

Well-Known Member
Peak Sponsor (Level 2)
First Name
Benny
Joined
Mar 8, 2018
Messages
1,096
Reaction score
493
Location
NY
Vehicle(s)
2018 JL
Yes, and PM sent, thanks so much Benny!
OK thanks but it looks like the wiring application is not up to date on this VIN yet so I will lookup the Base version being that you mentioned it does not have Alpine.

Let me know if the attached PDF has what you need

-Benny


Attachments

Sting_NC_USA

Well-Known Member
First Name
Michael
Joined
Mar 25, 2018
Messages
995
Reaction score
949
Location
Greensboro, NC
Vehicle(s)
2018 Jeep Wrangler JL Unlimited Rubicon
Build Thread
Link
Vehicle Showcase
1
OK thanks but it looks like the wiring application is not up to date on this VIN yet so I will lookup the Base version being that you mentioned it does not have Alpine.

Let me know if the attached PDF has what you need

-Benny
Benny, this looks exactly like what I need. I'll be able to get to the wiring this afternoon and will confirm. Regardless, thanks a TON for securing this for me/us!


For those who may also need these color codes, the following is what the chart says. Remember, this is what is believed to be out there for the Base System (Non-Alpine and 7-inch screen).


Left Front Windshield Grey/Violet (+) and Grey/Yellow (-)
Left Front Kick


Right Front Windshield Dark Green/Violet (+) and Dark Green/Yellow (-)
Right Front Kick


Left Rear Sound Bar Grey/Green (+) and Grey/Dark Green (-)


Right Rear Sound Bar Dark Green/Green (+) and Dark Green/Grey (-)​

Last edited:

MikeinMD

Well-Known Member
First Name
Mike
Joined
Jan 22, 2018
Messages
304
Reaction score
618
Location
Maryland
Vehicle(s)
1968 Mustang Convertible, 2003 Z71 Suburban, 2018 JLU Sahara
I would like to get a parts list and price of adding a trench cover/flat floor like in the leather option package for behind the rear seats. When I ordered my Jeep I didn't know that the flat floor was only with the leather option on the Rubicon.
I'd like to know about pricing on this as well.

OP
OP
AllMoparParts.com

AllMoparParts.com

Well-Known Member
Peak Sponsor (Level 2)
First Name
Benny
Joined
Mar 8, 2018
Messages
1,096
Reaction score
493
Location
NY
Vehicle(s)
2018 JL
I'd like to know about pricing on this as well.
While we are still confirming fitment and any additional necessary hardware here are the parts we are certain that are required

4 Door JL's
https://parts.allmoparparts.com/oem-parts/mopar-mat-cargo-6bn61tx7aa
https://parts.allmoparparts.com/oem-parts/mopar-rail-cargo-68294651ac
https://parts.allmoparparts.com/oem-parts/mopar-rail-cargo-68294650ac

*2 Door JL's
https://parts.allmoparparts.com/oem-parts/mopar-mat-cargo-6bn60tx7aa
*no rail system available for 2 doors

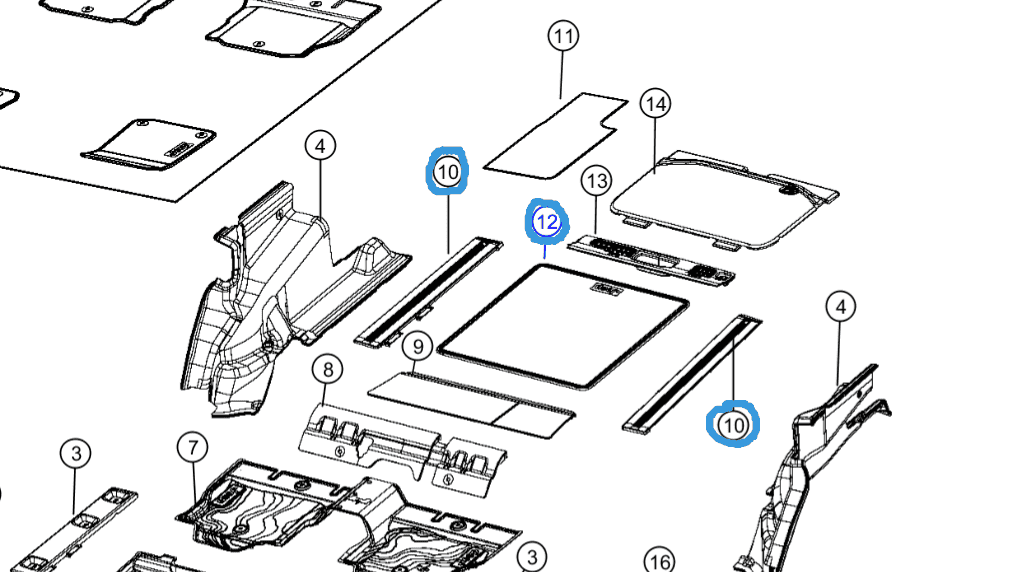

The image below shows whats included


-Benny


klhjeep2018

Well-Known Member
First Name
Kevin
Joined
Mar 15, 2018
Messages
688
Reaction score
681
Location
Harpers Ferry, WV
Vehicle(s)
2018 Rubicon JL
Occupation
Sales manager
Benny, So the Trail Rail Cargo system is only sold in separate pieces? You have marked 10,11 and 12.

Thanks


MikeinMD

Well-Known Member
First Name
Mike
Joined
Jan 22, 2018
Messages
304
Reaction score
618
Location
Maryland
Vehicle(s)
1968 Mustang Convertible, 2003 Z71 Suburban, 2018 JLU Sahara
While we are still confirming fitment and any additional necessary hardware here are the parts we are certain that are required

The image below shows whats included


-Benny
Benny, I may have misquoted the other thread, but the one I am looking for is the gap hider that only comes with the leather seats. It may possibly be number 9 above, but I can't be sure.

OP
OP
AllMoparParts.com

AllMoparParts.com

Well-Known Member
Peak Sponsor (Level 2)
First Name
Benny
Joined
Mar 8, 2018
Messages
1,096
Reaction score
493
Location
NY
Vehicle(s)
2018 JL
Benny, So the Trail Rail Cargo system is only sold in separate pieces? You have marked 10,11 and 12.

Thanks

There is no "kit" to add this as an accessory at this time so yes it would be piece by piece. It's actually 2x #10 as there is a Left and Right , not #11 . Of course this does not include the tailgate rail parts but if your interested we can provide those too?

-Benny

OP
OP
AllMoparParts.com

AllMoparParts.com

Well-Known Member
Peak Sponsor (Level 2)
First Name
Benny
Joined
Mar 8, 2018
Messages
1,096
Reaction score
493
Location
NY
Vehicle(s)
2018 JL
OP
OP
AllMoparParts.com

AllMoparParts.com

Well-Known Member
Peak Sponsor (Level 2)
First Name
Benny
Joined
Mar 8, 2018
Messages
1,096
Reaction score
493
Location
NY
Vehicle(s)
2018 JL

klhjeep2018

Well-Known Member
First Name
Kevin
Joined
Mar 15, 2018
Messages
688
Reaction score
681
Location
Harpers Ferry, WV
Vehicle(s)
2018 Rubicon JL
Occupation
Sales manager
The Gap Hider is standard on the rubicon ? So this part would not be needed right, 6jx46tx7ac.


OP
OP
AllMoparParts.com

AllMoparParts.com

Well-Known Member
Peak Sponsor (Level 2)
First Name
Benny
Joined
Mar 8, 2018
Messages
1,096
Reaction score
493
Location
NY
Vehicle(s)
2018 JL
The Gap Hider is standard on the rubicon ? So this part would not be needed right, 6jx46tx7ac.
From my understanding the gap hider is standard on Leather equipped vehicles. Since Leather is still optional in a Rubicon it would be dependent on this.

-Benny
