Homebuilt tire carrier

FirecrackerRubi

Active Member
First Name
Steven
Joined
Jul 28, 2019
Messages
41
Reaction score
54
Location
USA
Vehicle(s)
2019 Firecracker red Rubicon Unlimited
Guys,
This is my first attempt at building a tire carrier so bear with me. I am not a professional fabricator nor welder so please keep that in mind.

Parts list:
https://www.ruffstuffspecialties.com/catalog/STIRES.html Spare tire spindle $80
https://www.ruffstuffspecialties.com/catalog/R2125.html Swing out tire carrier latch $36.50
https://www.ruffstuffspecialties.com/catalog/R2215.html Locking T-Handle pull pin $20.00
https://www.motobilt.com/product/jeep_jl_spare_tire_tag_relocation_kit_camera_mount $149.00
LOD camera extension cable 10' not listed on website. Call for special order - $63
2"x3"x3/16" = 4'. $0 I had the steel already
2"x2"x3/16" = 6'. $0 I had the steel already
1'x1'x3/8" plate. $0 I had the steel already

Day one build pics below:

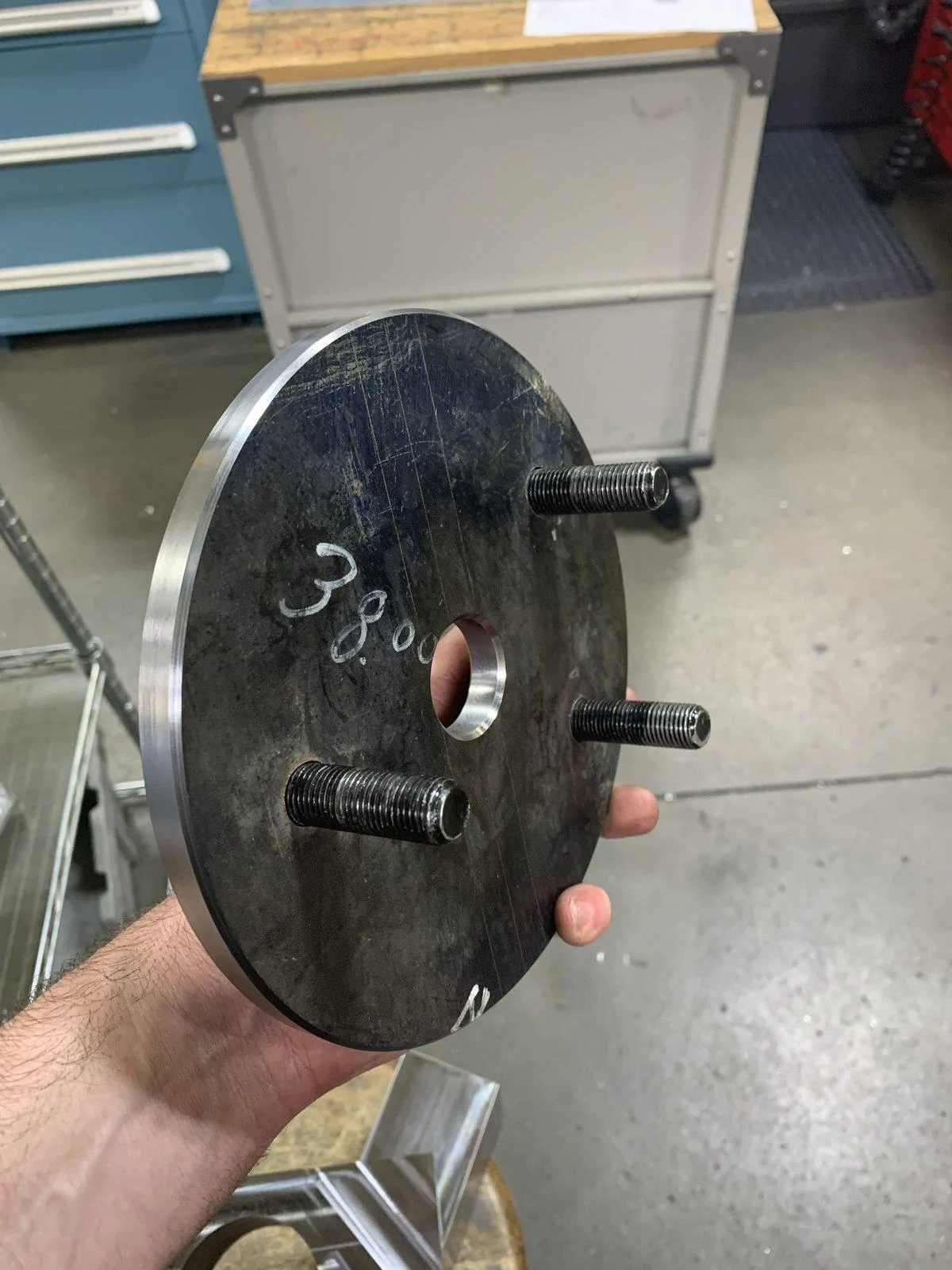

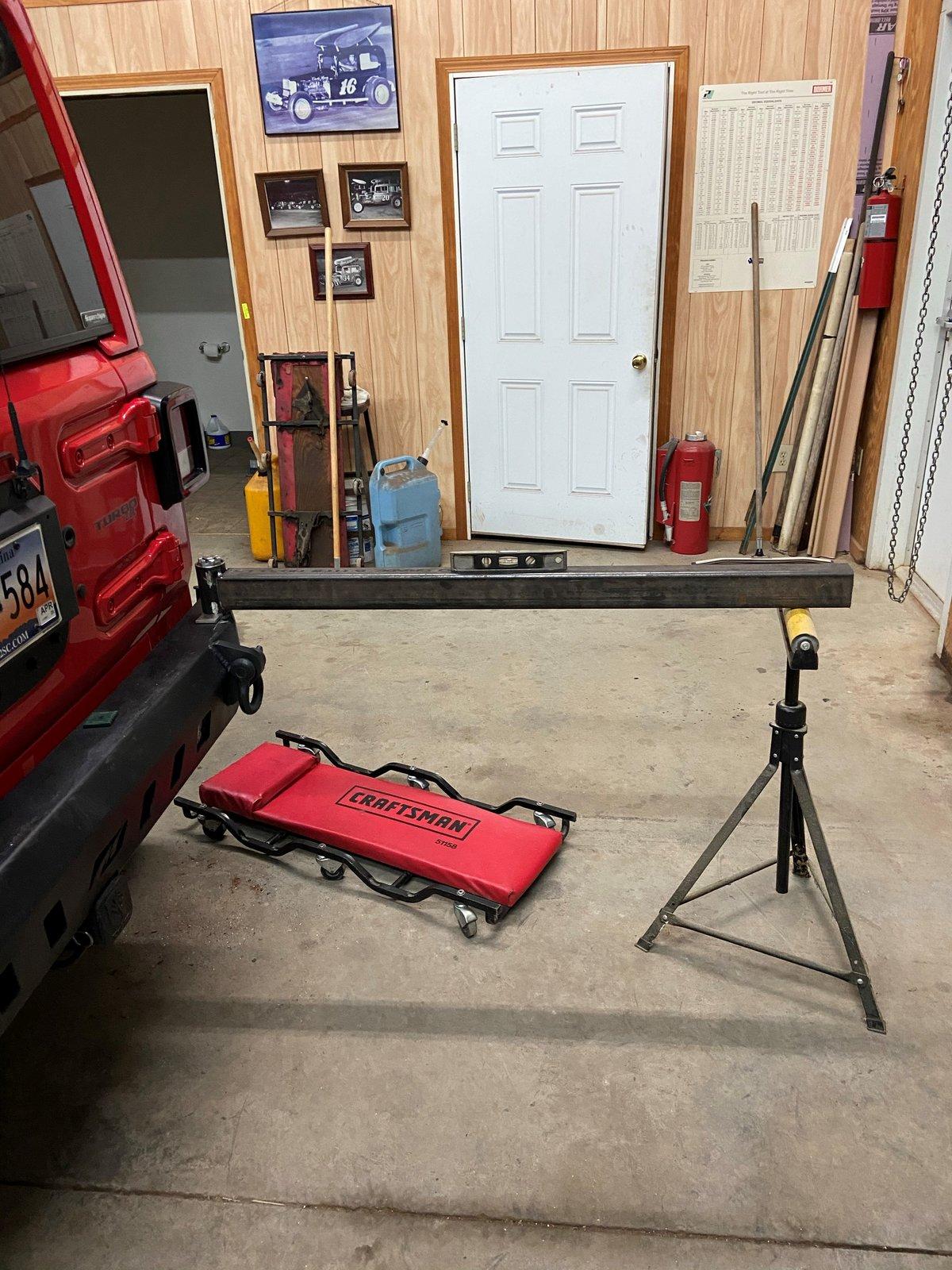

carier level.jpg

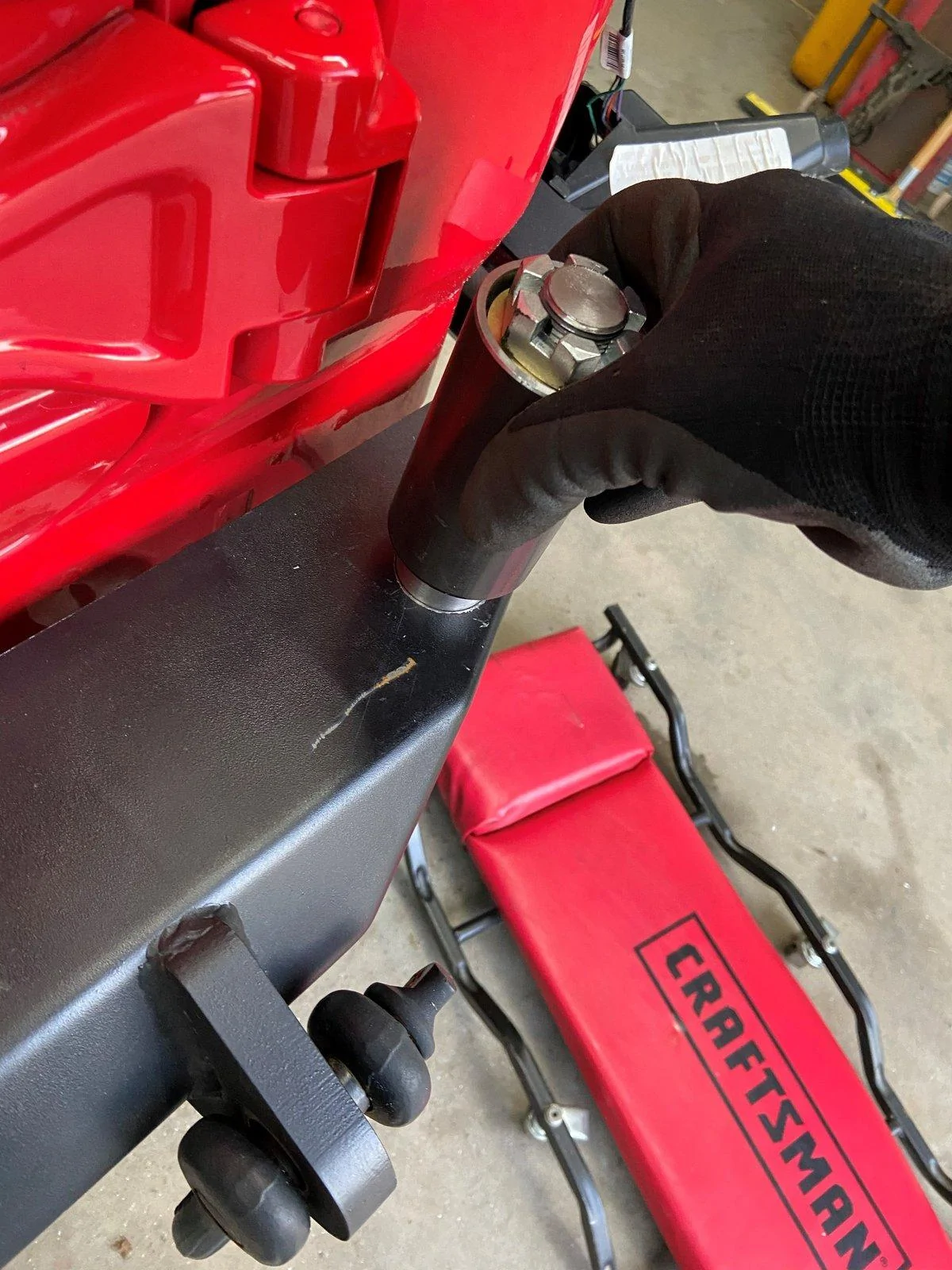

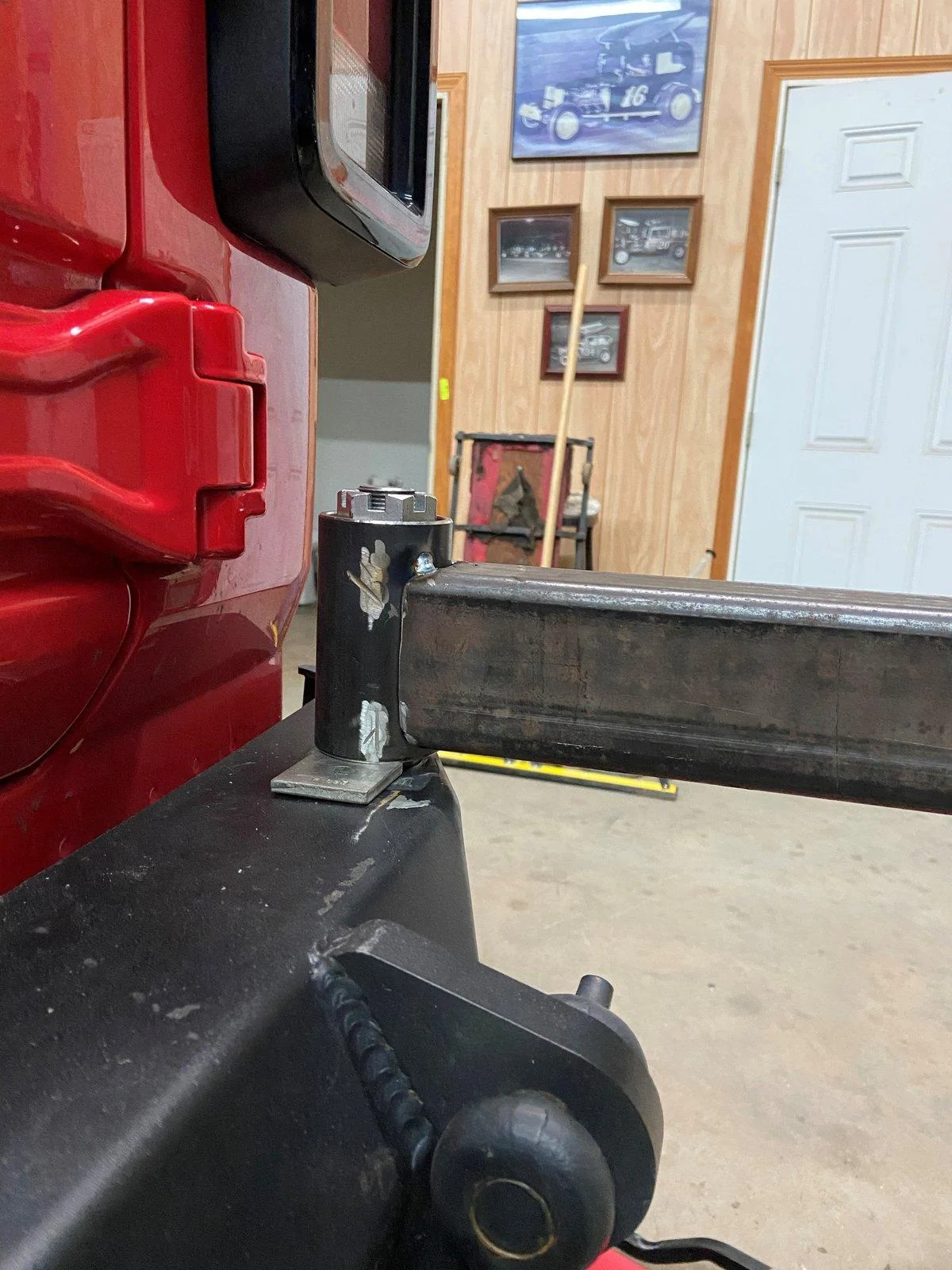

spindle swing test fit.jpg

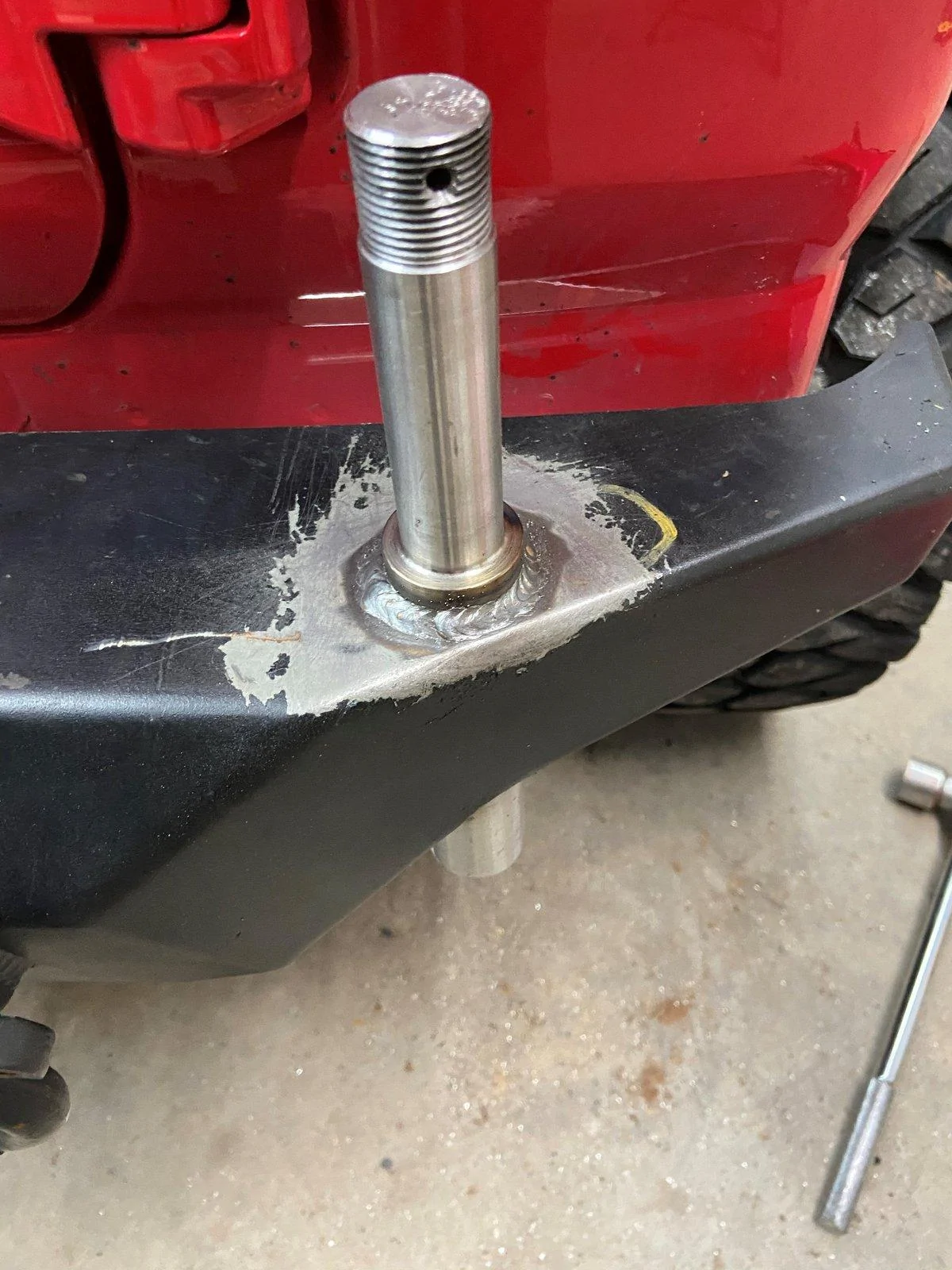

Spindle welded.jpg

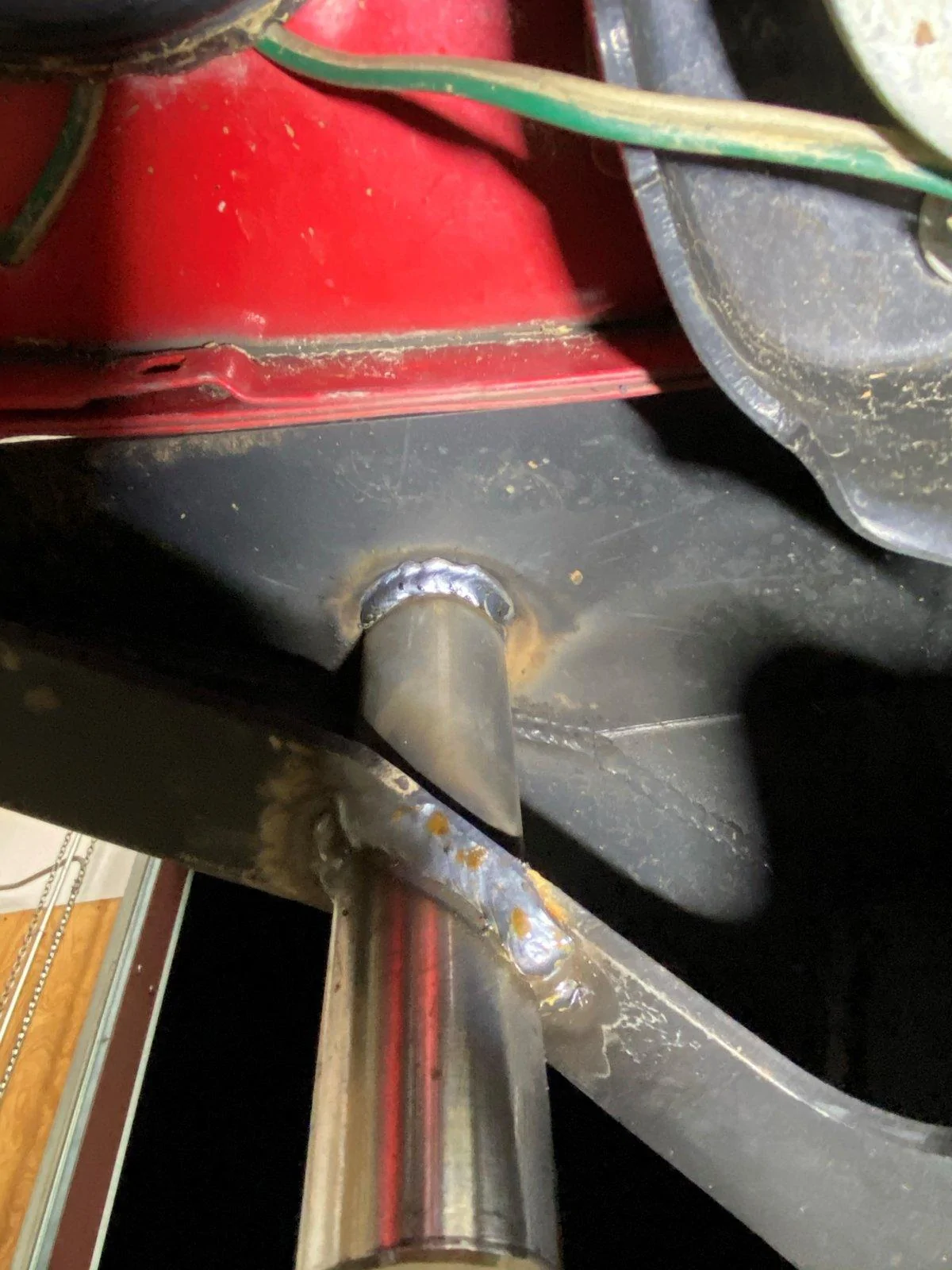

spindle welded 2.jpg

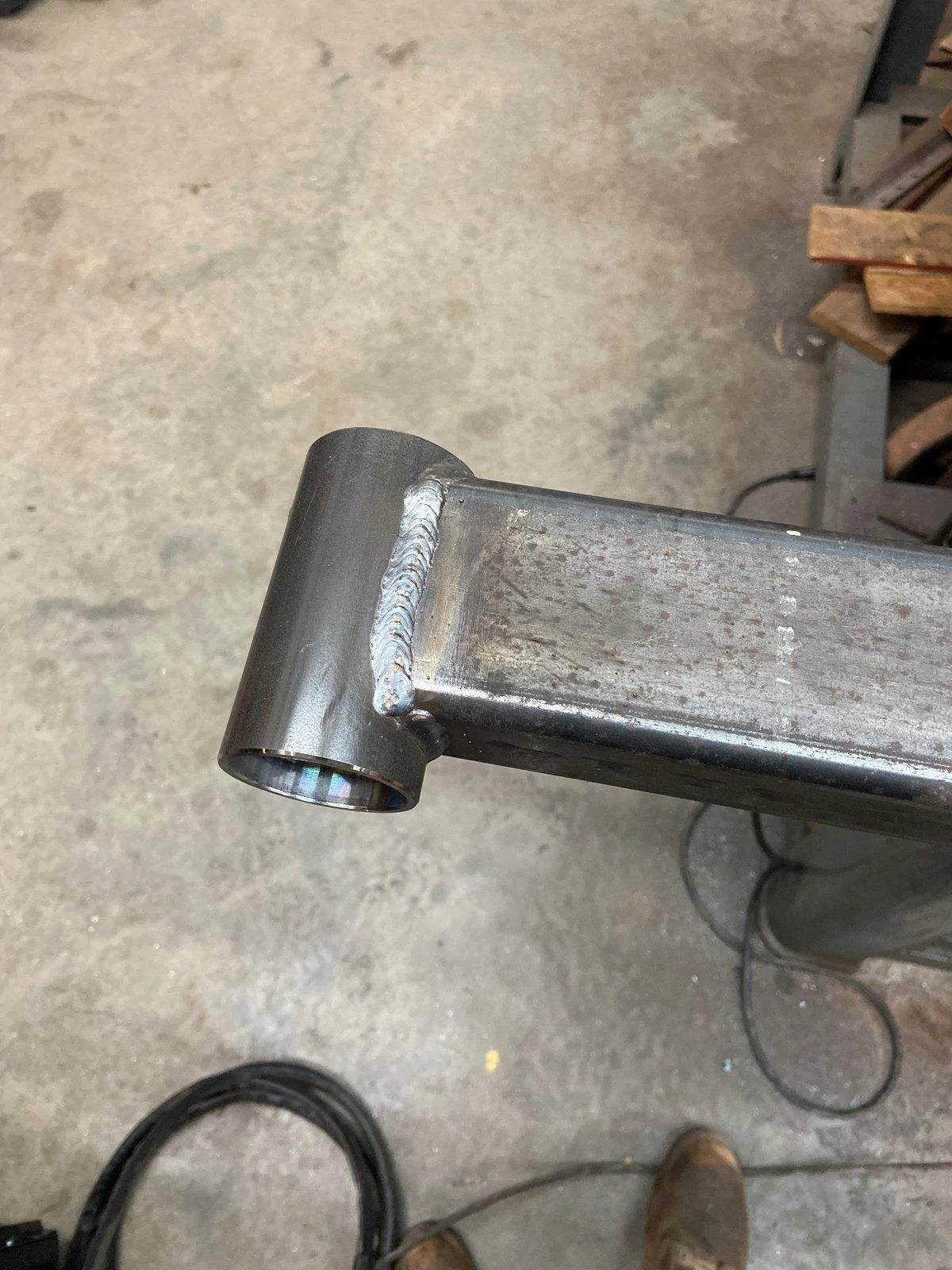

swing arm welded.jpg



Hopefully I'll finish the uprights today after work then paint and wiring on Sat. Stay tuned.
Thanks for looking.



Advertisement





sourdough

Well-Known Member
First Name
Ben
Joined
Nov 12, 2017
Messages
593
Reaction score
1,274
Location
Carpinteria
Vehicle(s)
Ram3500 diesel 4x4 Tiger RV, JLR dingy
Build Thread
Link
Occupation
doing retired thing
Vehicle Showcase
1
Glad to see a DIY project on this JL forum. Your welds do look good, especially for a “not a welder”.


UTES

Well-Known Member
First Name
Hunter
Joined
Jan 16, 2020
Messages
64
Reaction score
40
Location
Salt Lake City
Vehicle(s)
2020 Diesel Sahara, 2018 AMG GT, 2019 MB GLC
Occupation
Retired LEO
You have done an excellent job.

Hunter

OP

FirecrackerRubi

Active Member
First Name
Steven
Joined
Jul 28, 2019
Messages
41
Reaction score
54
Location
USA
Vehicle(s)
2019 Firecracker red Rubicon Unlimited
  • Thread starter
  • Thread Starter
  • #5
Day 2 and completion.

Again, I'm not a fabricator nor welder. This design won't win any awards but I've already put close to 300 miles on it. No rattling or shaking whatsoever. I do plan to attached my pull pin on the spindle end of the bumper to hold it open if the jeep is on an incline. I also "might" add a gas strut to it so it doesn't swing so freely.

Swing arm on table weld.jpg

Swing arm stop 1.jpg

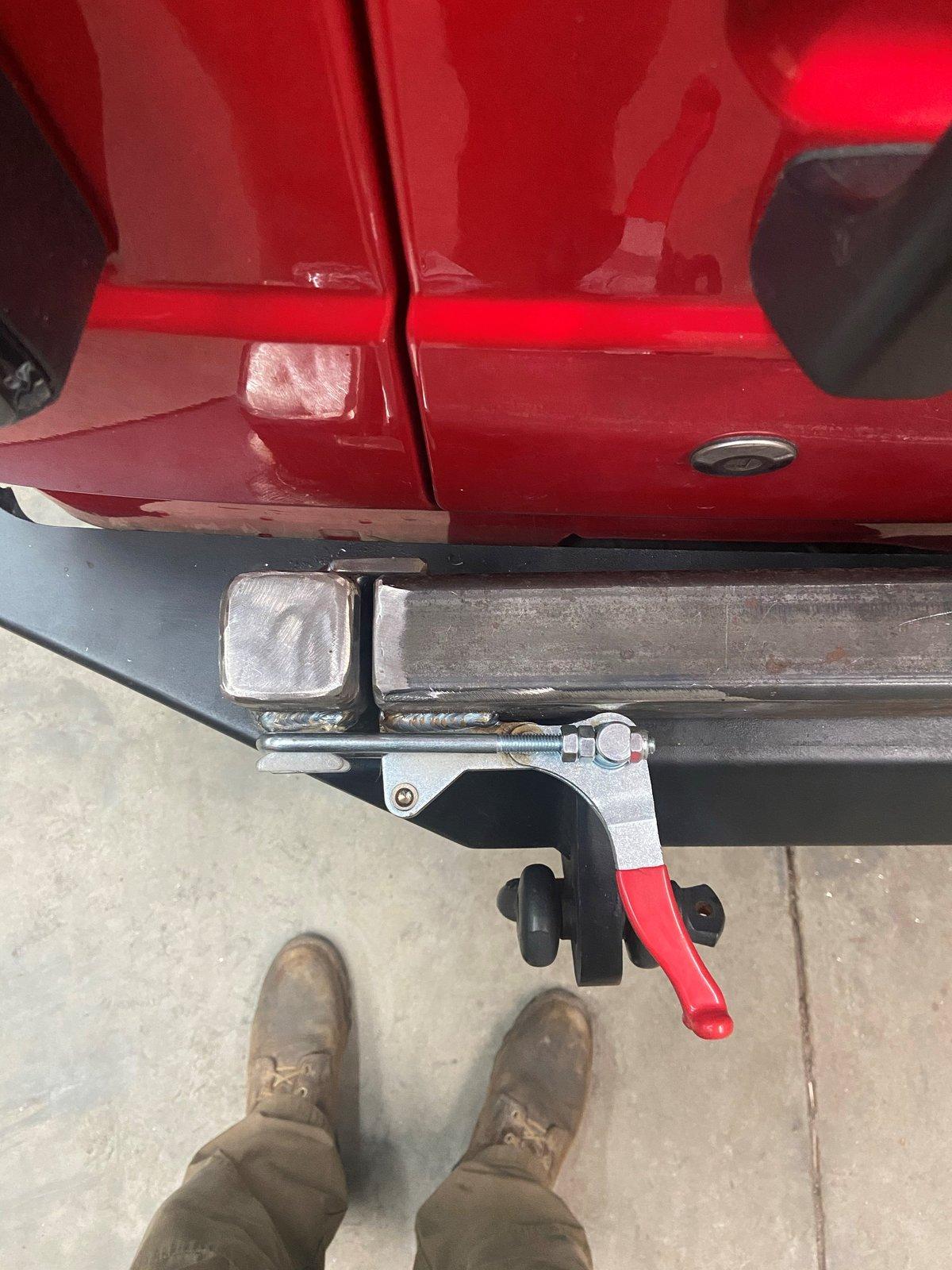

Swing arm attached to bumper.jpg

latch weled on bumper.jpg

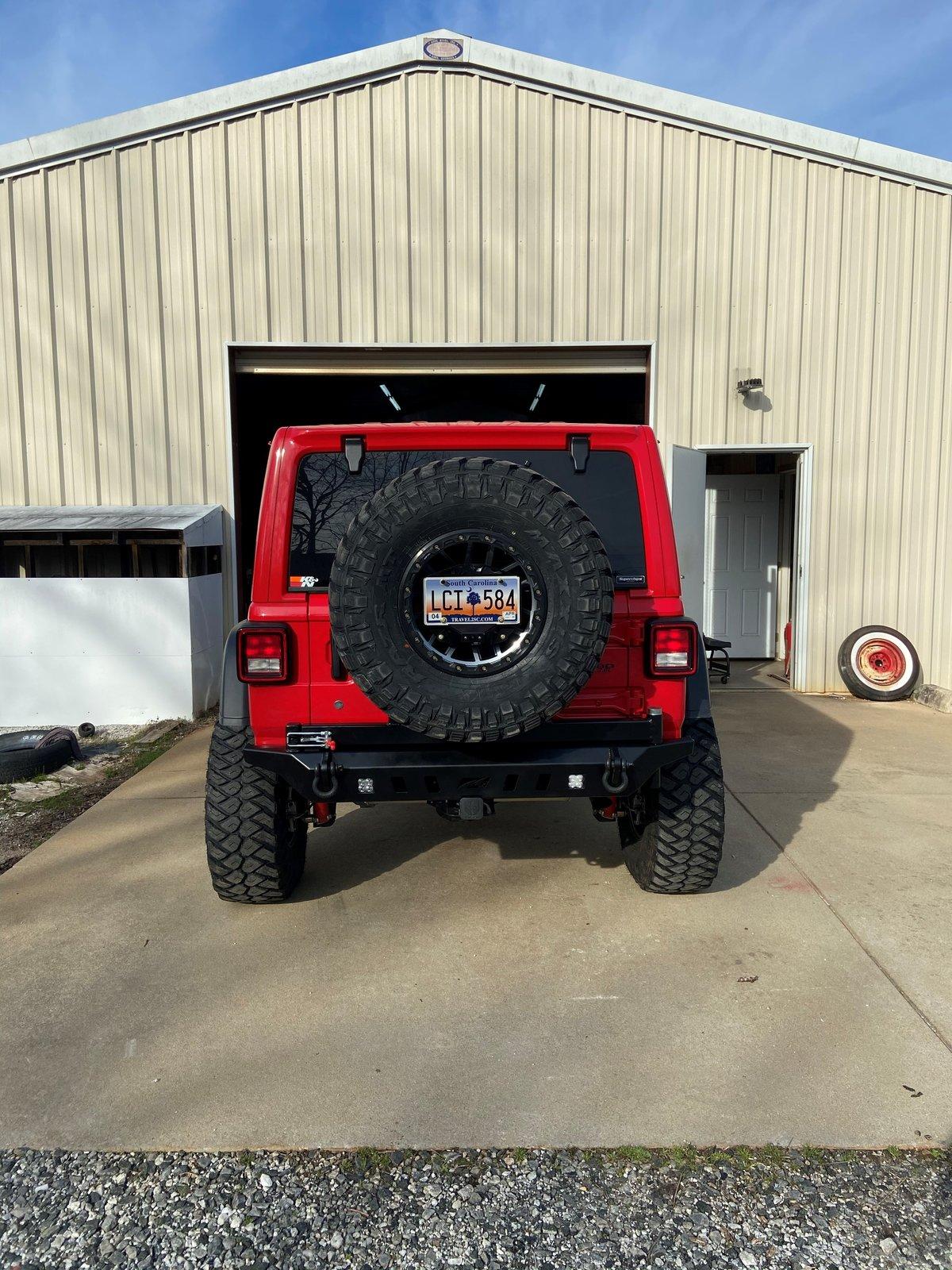

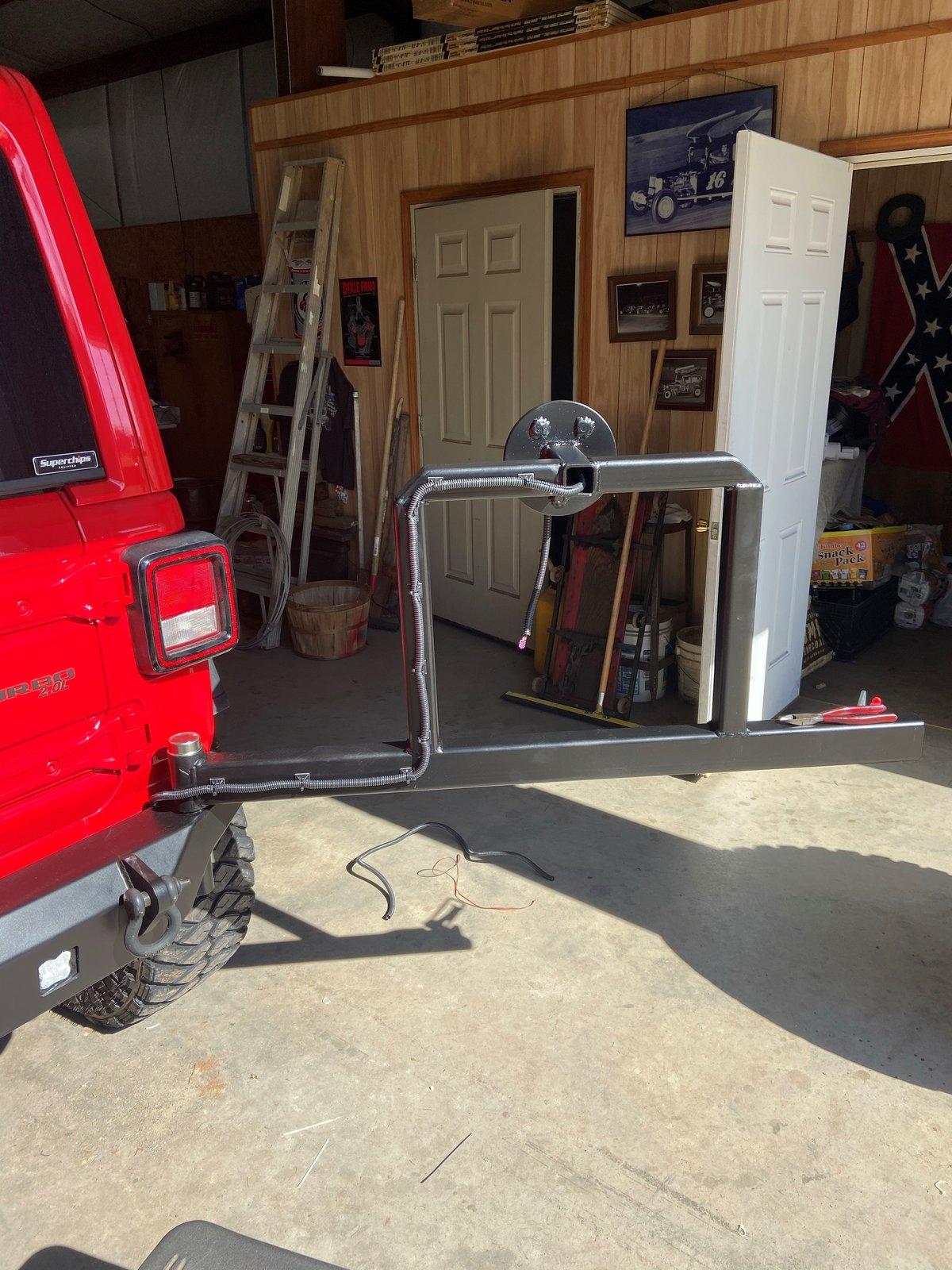

attached and wired.jpg

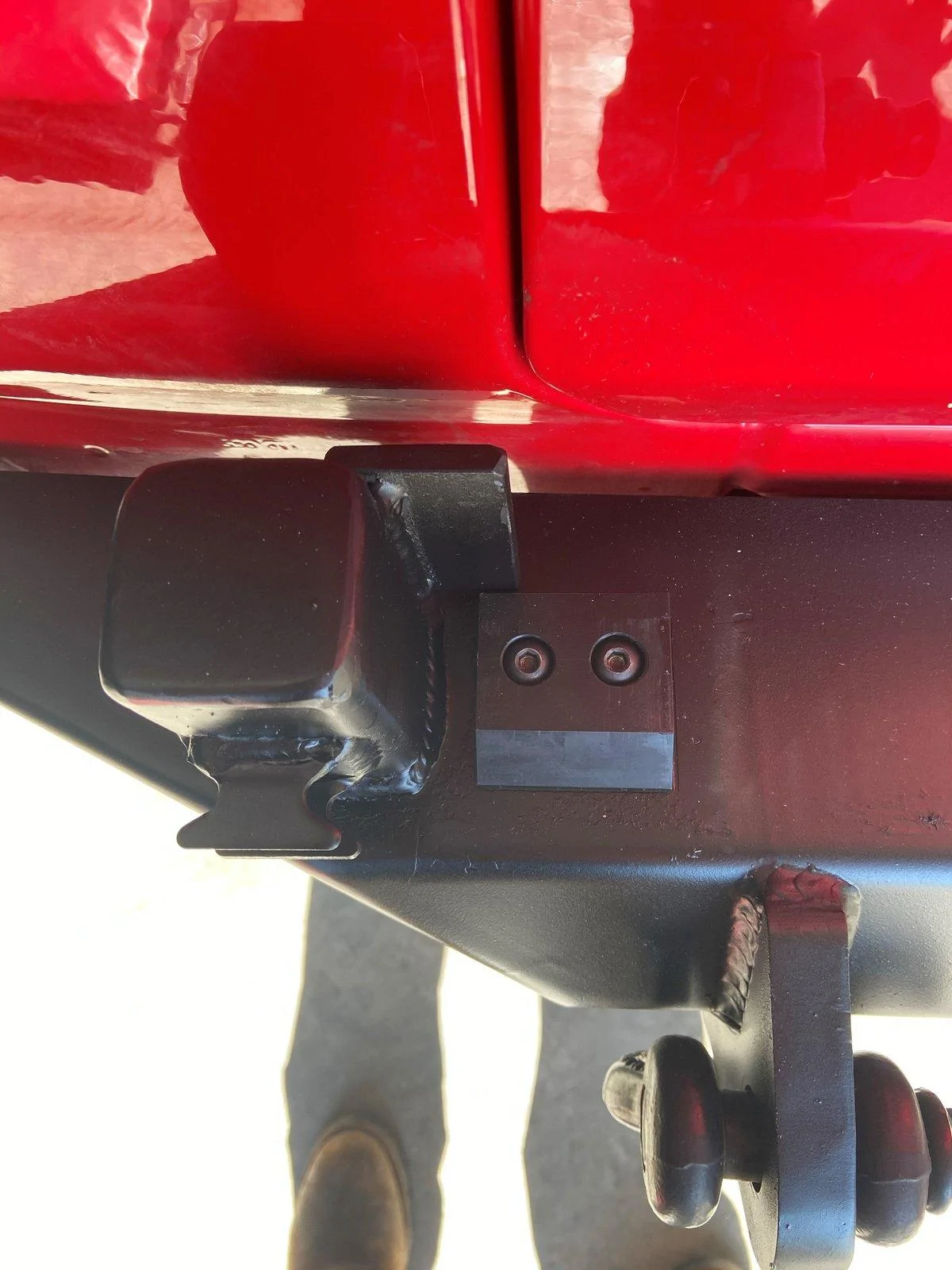

stop painted and delrin.jpg
