    So I wanted a dash rail system but I didn't want to pay the prices that they are selling for so I made my own, still a bit f a refinement in progress but I am pretty happy with how it came out.


    The heart of the system is aluminum t slotted framing that is commonly used in industrial and commercial settings for building fixtures, tools, and machines among other uses. https://www.mcmaster.com/t-slotted-framing

    BOM:

    The rail

    1 30mm x 30mm x 24in black rail https://www.mcmaster.com/5537T511 (i did see it when i ordered that they sold by the inch as well if i was to reorder i would do about 18", the gap between the mounts its ~11 inches)
    1 4 pack of m6 x 1mm t-nuts with screws https://www.mcmaster.com/5537T867
    2 m6 x 1mm x 8mm screw from local hardware store
    2 strips of metal about 20mm wide and about 8 inches or so long I got a sheet of 22 gauge weldable steel at the local hardware store and cut it into strips would have like to use 18 gauge but they didn't have any in stock

    Cost for rail:
    mcmaster - $14 + $11 tax & ship = $25
    hardware store - $8
    Total $33

    Mounts
    1 RAM t bolt 1" ball https://www.amazon.com/gp/product/B00FE66K86/ref=ppx_yo_dt_b_asin_title_o02_s00?ie=UTF8&psc=1
    1 RAM short double socket arm 1" ball https://www.amazon.com/gp/product/B005KWPJ04/ref=ppx_yo_dt_b_asin_title_o03_s00?ie=UTF8&psc=1
    1 RAM cell phone mount 1" ball https://www.amazon.com/gp/product/B0055PH0XA/ref=ppx_yo_dt_b_asin_title_o02_s00?ie=UTF8&psc=1
    1 Go Pro Camera Mount https://www.amazon.com/gp/product/B07CWR1ZML/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1

    Cost for mounts:
    Phone - $44
    Go Pro - $15
    Total - $59

    All In $92

    Instructions

    Build and install time ~1 hour

    Tools Used:
    Hammer
    Bench Vice
    Angle Grinder
    Phillips head screw driver
    Allen Key set
    Set of punches
    Pliers
    3/16" Drill bit
    1/4" Drill bit
    Electric Drill
    Flat files
    Marker
    Calipers
    Straight edge


    Steps
    Note easier to fold down windshield before starting

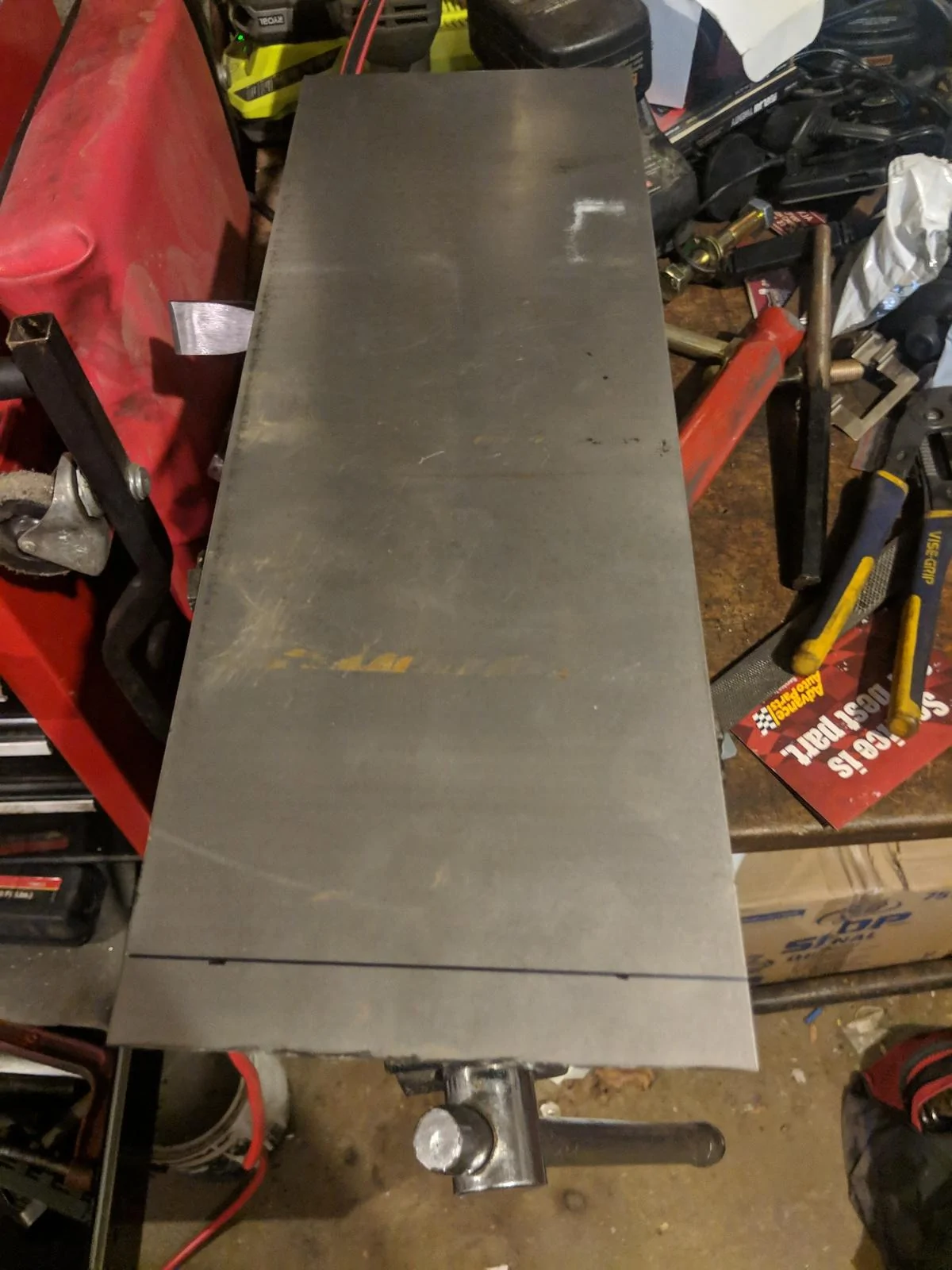

    1. Cut the steel sheet into 20 mm wide strips and deburr the edged using the angle grinder and file to make mounting brackets

    2. Remove center dash pad and the two phillips head screws

    3. Measure and bend the steel brackets to fit the profile of the dash

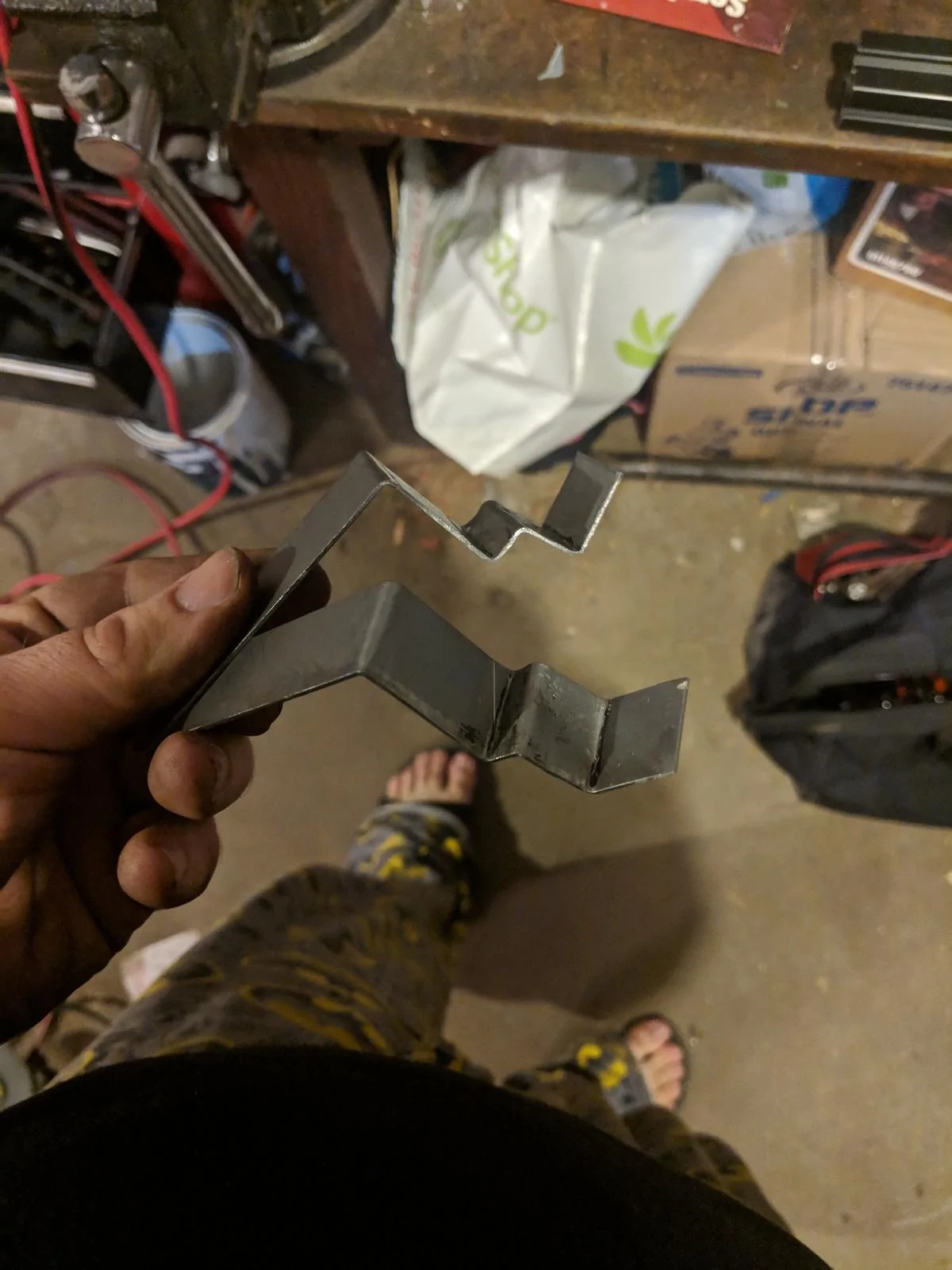

    should end up looking something like this

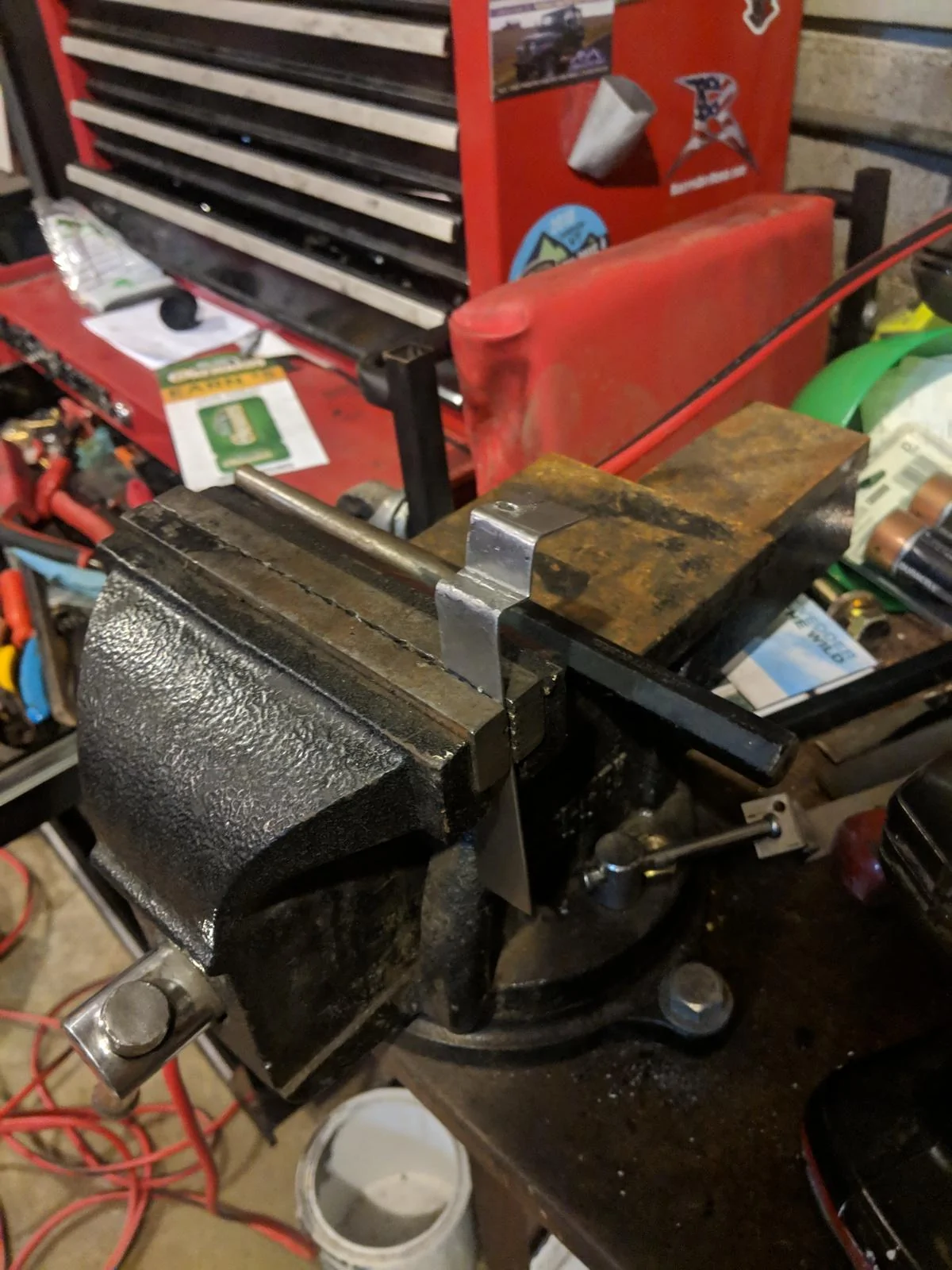

    Using a bench vice and a hammer makes the job much easier as well as some large punches and pliers to help make the small bends

    4. Mark holes on the steel brackets for the dash screws and use the 3/16" bit to drill the hole

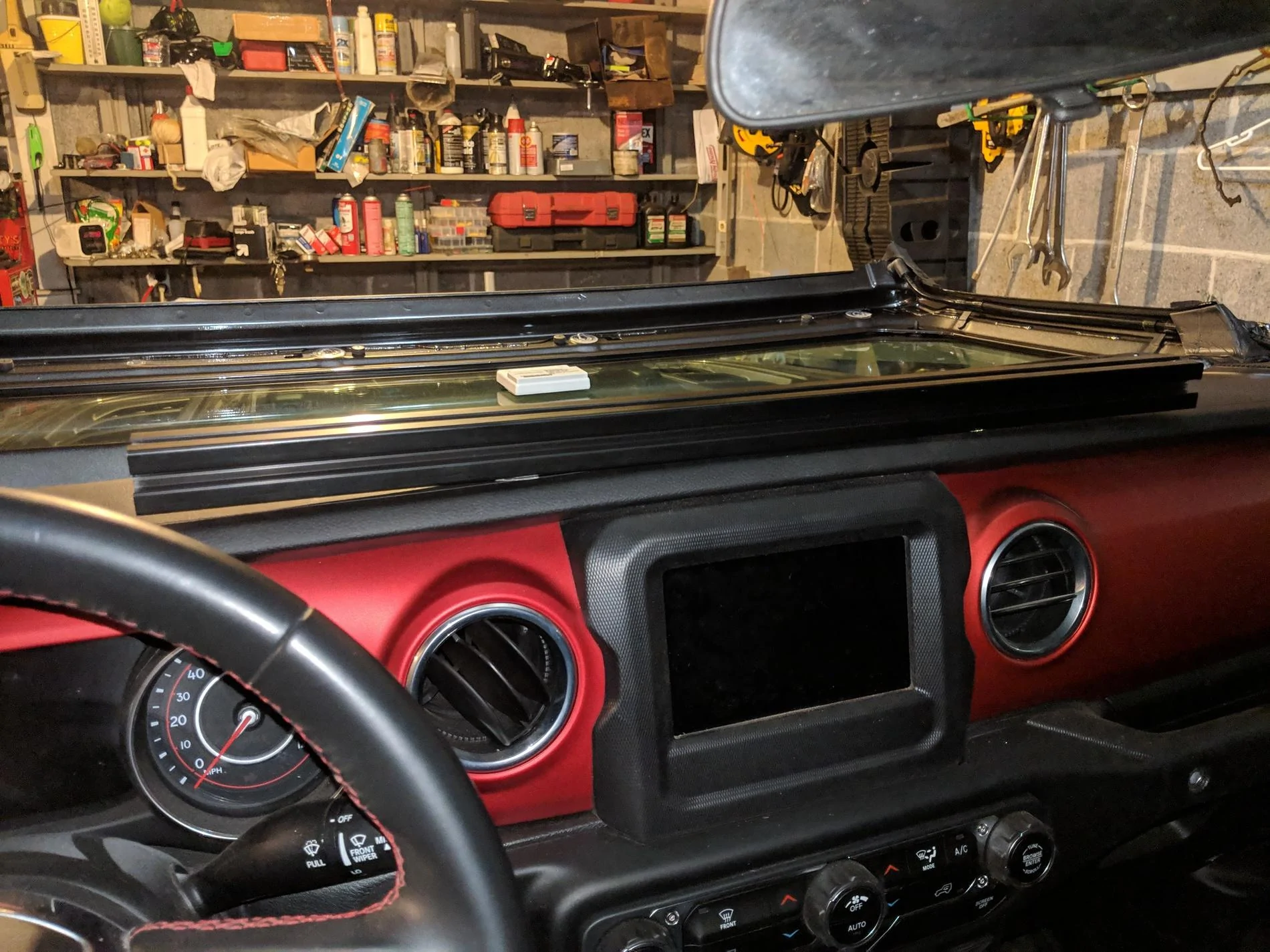

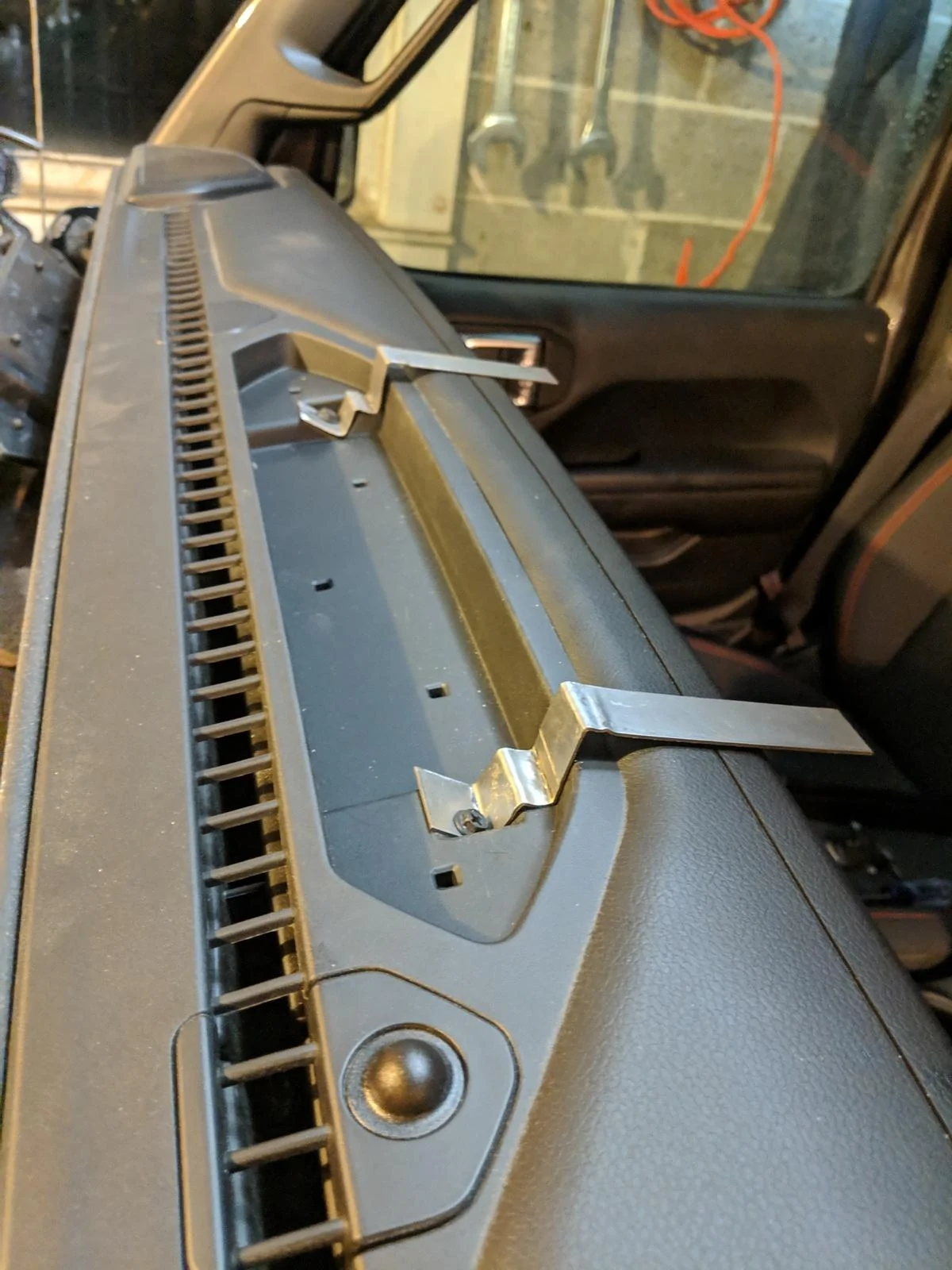

    5. Install the metal brackets and place the rail on top where you like it to be seated and mark on the bracket the rail position
    6. Drill a 1/4" hole on each bracket half the width of the rail away from the marked rail position and then trim off any excesses bracket using the angle grinder and file to deburr

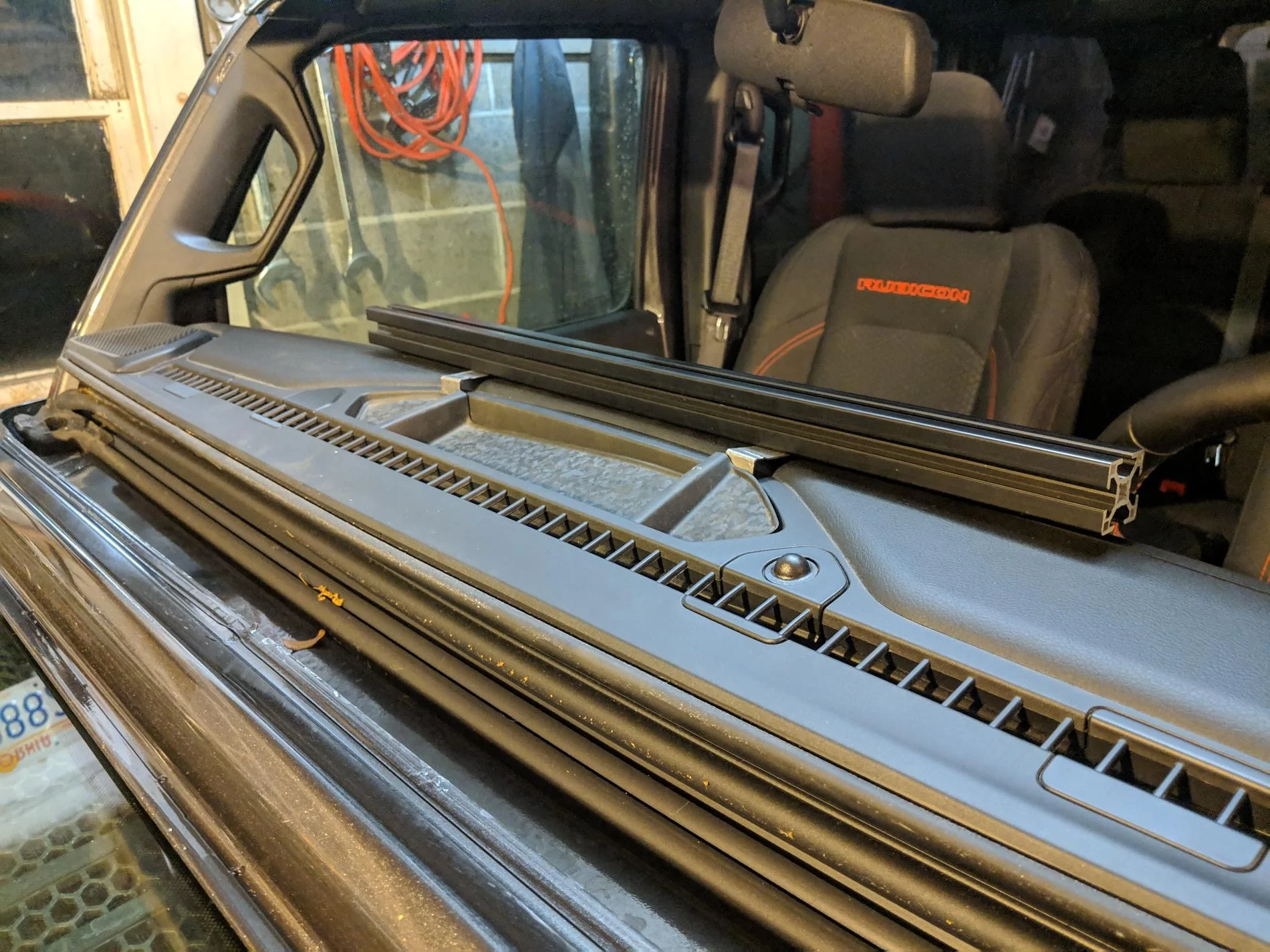

    7. slide in 2 t nuts int he bottom of the rail and thread the shorter m6 screws through the bracket and into the t nut, position the brackets to be gaped about ~11 in (measure between dash screw mounts) an positioned equidistant from the ends of the rail tighten to snug but can still move things around
    8. Screw to dash and adjust as needed remove and crank down t nut screws and reattach

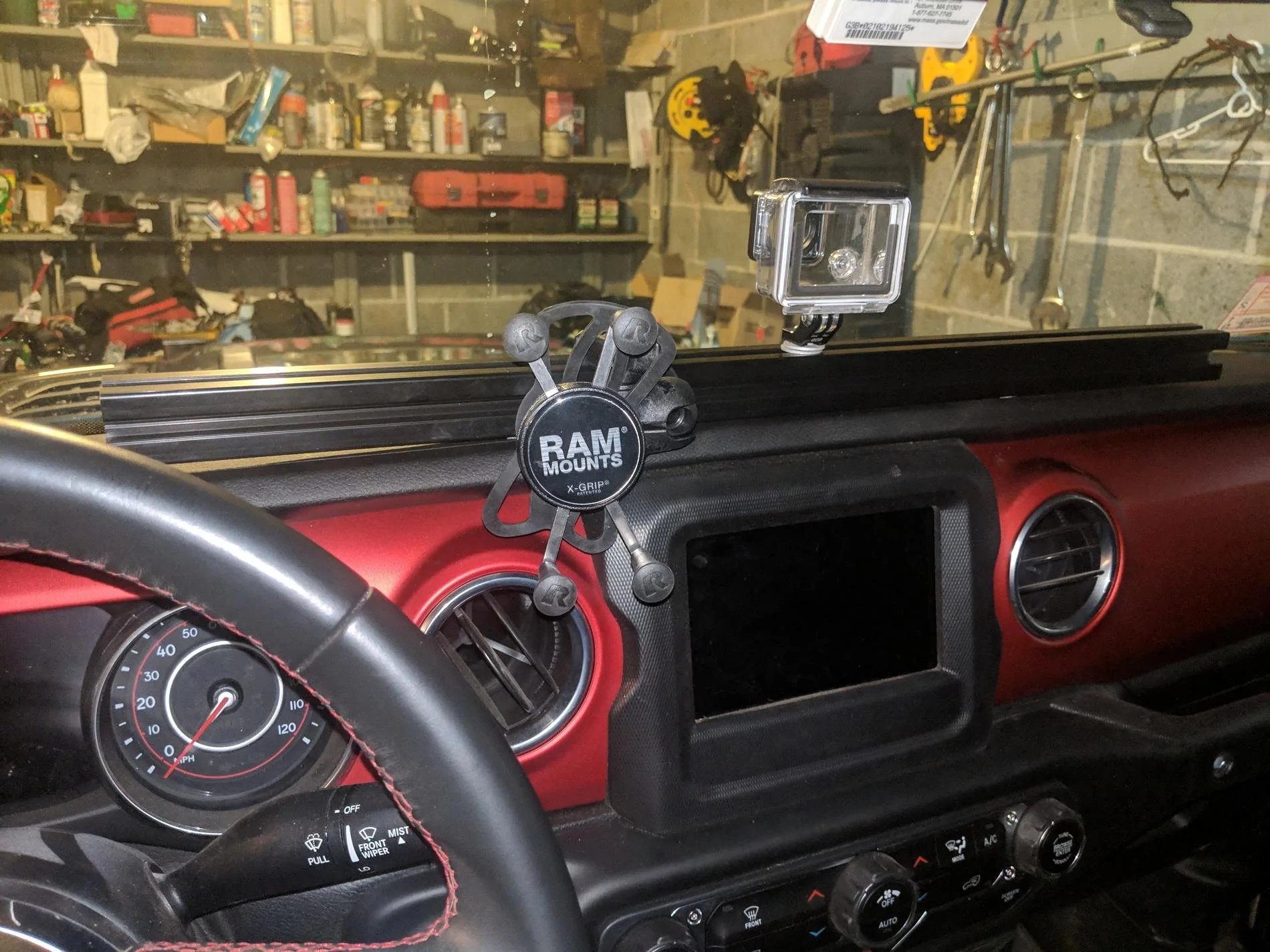

    Then you are done with the rail

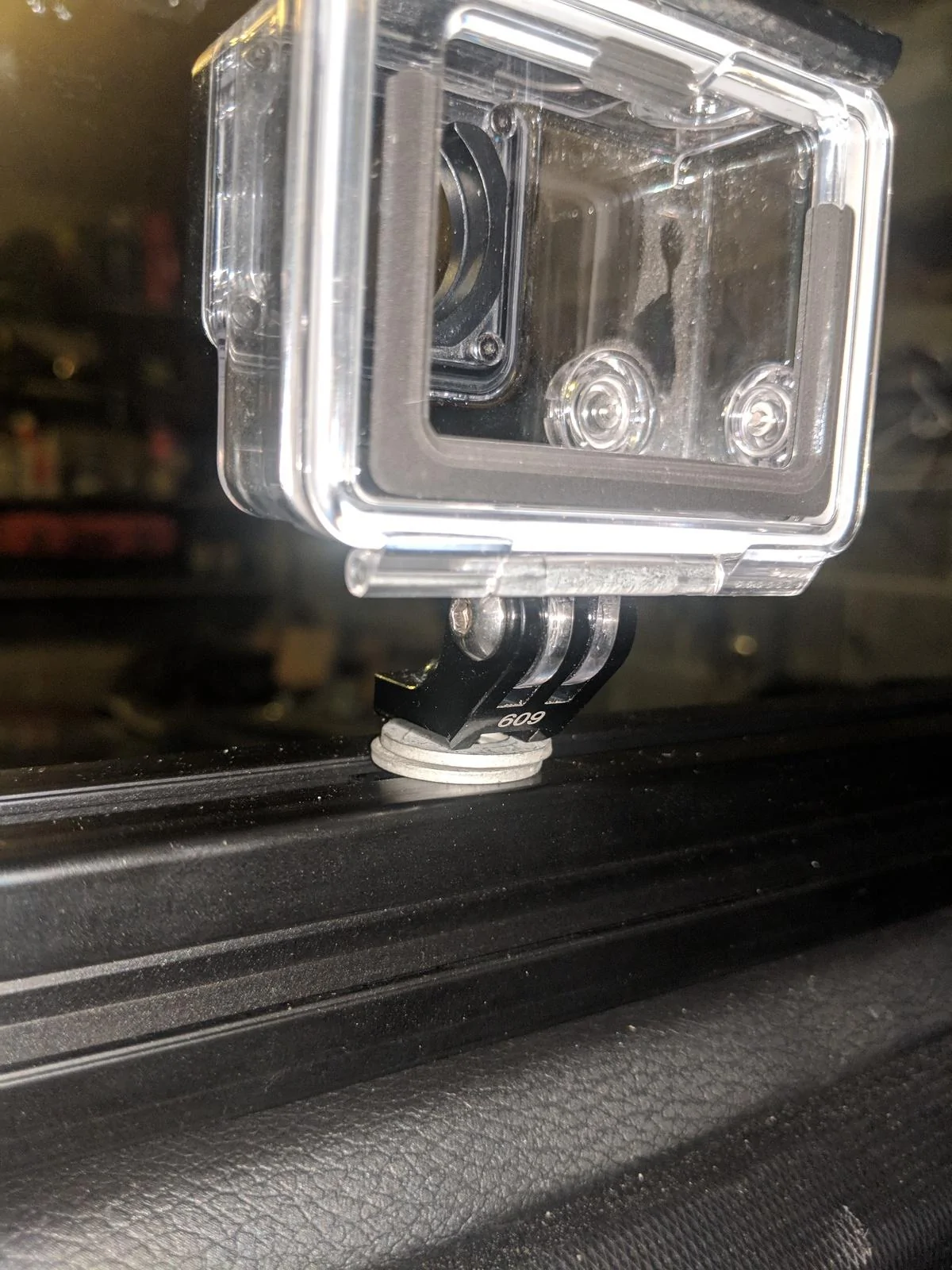

    For the go pro mount I unscrewed the the handle bar mount from the go pro mount and just drilled out the base screw hole for the go pro mount to 1/4" and used a left over t-nut and longer screw and stacked a few washers to fill the gap

    JohnJG and JAY like this.
  2. ResqFE

    ResqFE Well-Known Member

    First Name:
    Ron
    Vehicle(s):
    2018 JL Unlimited
    Joined:
    Feb 22, 2018
    Location:
    Lancaster, CA
    Posts:
    275
    Liked:
    187
    I like that idea. I plan on tinkering with Kydex material to make something similar. More to come.

  3. JohnJG

    JohnJG Active Member

    First Name:
    John
    Vehicle(s):
    2019 Toyota Tacoma TRD OR4x4 Dbl Cab Long Bed loaded
    Joined:
    Sep 28, 2018
    Location:
    Midwest City, OK
    Posts:
    32
    Liked:
    22
    Occupation:
    USMC Ret DAV
    #3 Mar 10, 2019
    Last edited: Mar 10, 2019
    Brilliant! Having a slot on the front and top is brilliant. With the Vector JL track being only on top, mounting arms won't angle down as far as I'd like, and are a bit too high. You're solution is the perfect fix. Thanks for sharing.

  4. karynm8621

    karynm8621 Well-Known Member

    First Name:
    Karyn
    Vehicle(s):
    2018 Wrangler JLU Sahara
    Joined:
    May 10, 2018
    Location:
    NH
    Posts:
    123
    Liked:
    56
    Minitech sells end caps for that rail that will give it a nice finished look

  5. mrhumble1

    mrhumble1 Well-Known Member

    First Name:
    Jason
    Vehicle(s):
    JL Rubicon, 2-Door, Manual
    Joined:
    Feb 11, 2019
    Location:
    Denver, CO
    Posts:
    175
    Liked:
    206
    Nice safety boots you've got on there. Hopefully you don't drop anything on your toes!!! ;-)
