Hiding wires

Surfwagon

Well-Known Member
First Name
Steve
Joined
Jun 30, 2020
Threads
19
Messages
85
Reaction score
54
Location
Carlsbad, CA
Vehicle(s)
2019 JLU Sport S

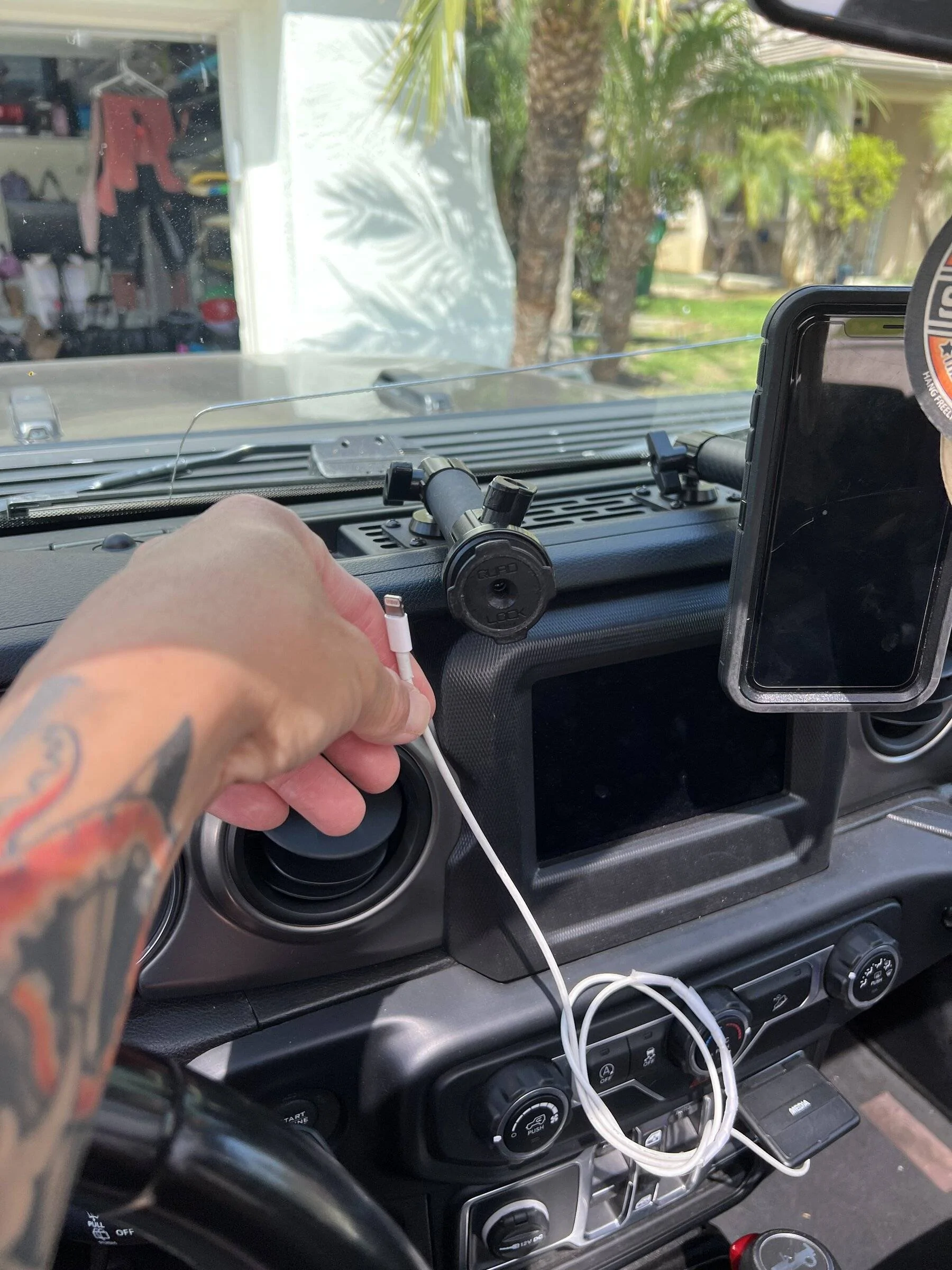

Just as title says, I’d like to hide my CarPlay cable, as well as extra charging cable into my dash and come up to my Rubigrid phone mount.

I don’t like the wires hanging down in front of everything. Any solutions out there?



GATORB8

Well-Known Member
First Name
Matt
Joined
May 30, 2021
Threads
13
Messages
4,247
Reaction score
5,019
Location
CLT NC
Vehicle(s)
21 JLURe
Wireless carplay modules are around $100.


rcadden

Well-Known Member
First Name
Ricky
Joined
May 4, 2021
Threads
69
Messages
1,702
Reaction score
3,248
Location
Fort Worth, TX
Vehicle(s)
2021 Hydro Blue Sahara Altitude
Build Thread
Link
Occupation
Marketing
Somewhere on the forum is a post (maybe in the DIY section?) of someone who did that really cleanly, with a USB-C port at the top in the little dash tray area. Super nice and clean looking.


MerPinXEss

Well-Known Member
Joined
Jan 18, 2022
Threads
5
Messages
162
Reaction score
386
Location
Kdale NC
Vehicle(s)
‘21 4xe JLU
Can run it behind the trim panels, if you're jsut trying to minimize the cord.


JP29

Well-Known Member
First Name
Zach
Joined
Jun 14, 2020
Threads
17
Messages
492
Reaction score
800
Location
Olathe
Vehicle(s)
2020 JL Sport

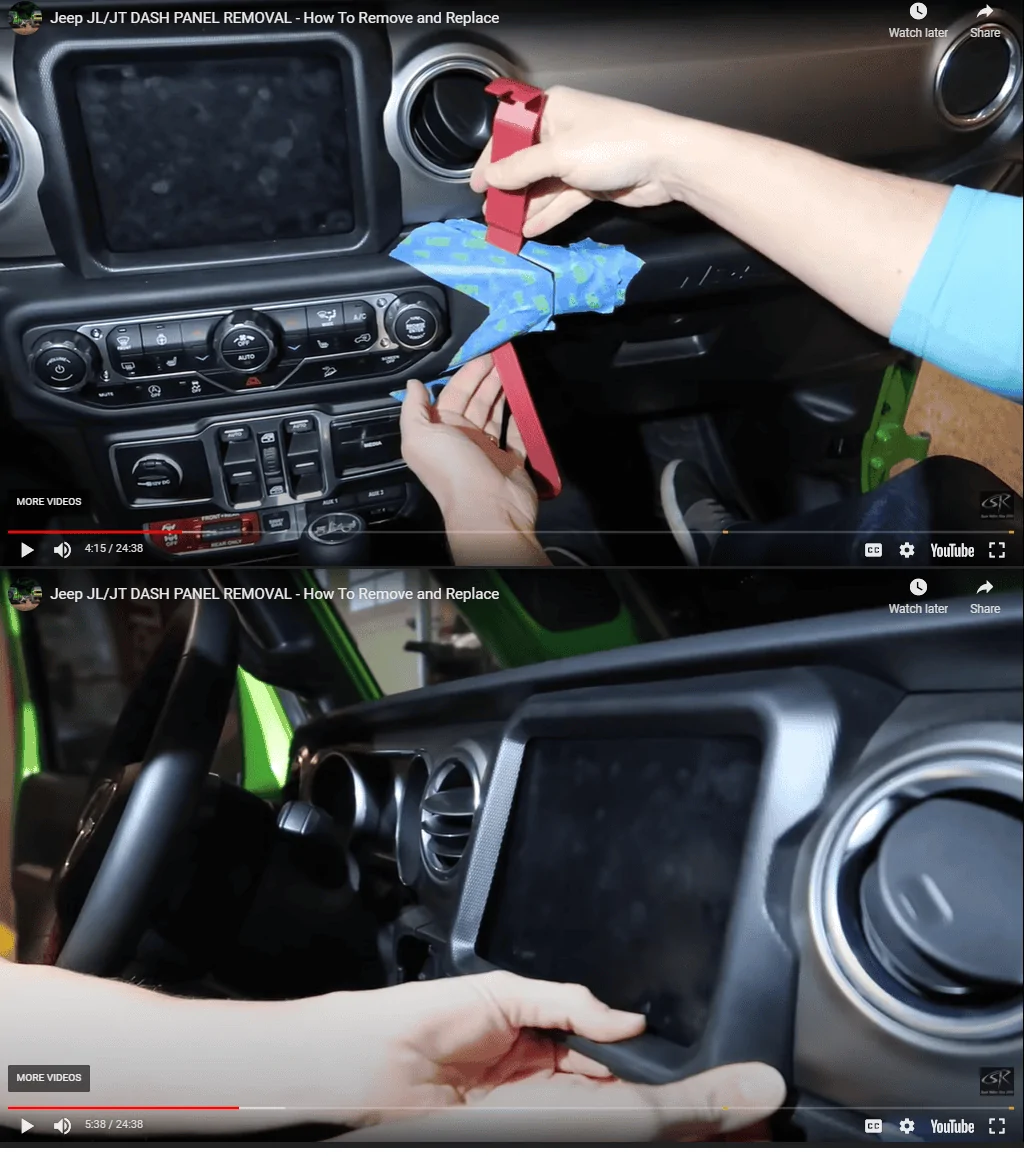

Think you'd need to plug a long USB cable in to the center console port, run it up along the center trim, in behind the central dash panel, and then tie in to a USB female to female somewhere on the top portion of the dash. Probably a good idea to find the thread already referenced where another guy did this. If it were just for mo pawah babeh, I'd say get a 12v pigtail which goes between the 12v lighter and it's power plug, and then add a USB A stepdown off that. But if you need the Carplay function, you're stuck running a cable to one of the OE USB ports.



ConqSoft

Well-Known Member
First Name
Keith
Joined
May 25, 2020
Threads
45
Messages
855
Reaction score
1,808
Location
Wake Forest, NC
Vehicle(s)
2020 JL 2 Door Rubicon 6 Speed
Occupation
Systems Analyst
Vehicle Showcase
1
Think you'd need to plug a long USB cable in to the center console port, run it up along the center trim, in behind the central dash panel, and then tie in to a USB female to female somewhere on the top portion of the dash. Probably a good idea to find the thread already referenced where another guy did this. If it were just for mo pawah babeh, I'd say get a 12v pigtail which goes between the 12v lighter and it's power plug, and then add a USB A stepdown off that. But if you need the Carplay function, you're stuck running a cable to one of the OE USB ports.
This is what I did also, but newer Wranglers have issues with CarPlay and the USB port in the center console, so probably not a good solution. Mine is a 2020 and I've had no issues using this port for CarPlay.





micahpop

Well-Known Member
First Name
Jake
Joined
Mar 1, 2021
Threads
13
Messages
303
Reaction score
525
Location
Brea, CA
Vehicle(s)
2020 JLUR

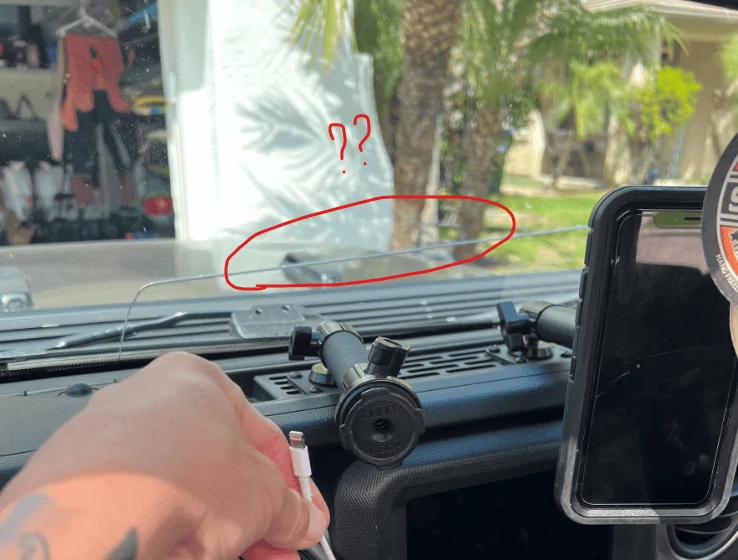

Sorry, this has nothing to do with your topic but what is that line on your windshield?



BUSHRVN

Well-Known Member
First Name
MONTE
Joined
Nov 30, 2021
Threads
2
Messages
117
Reaction score
269
Location
ALBERTA
Vehicle(s)
WRANGLER JLU SAHARA HIGH ALTITUDE 3.0

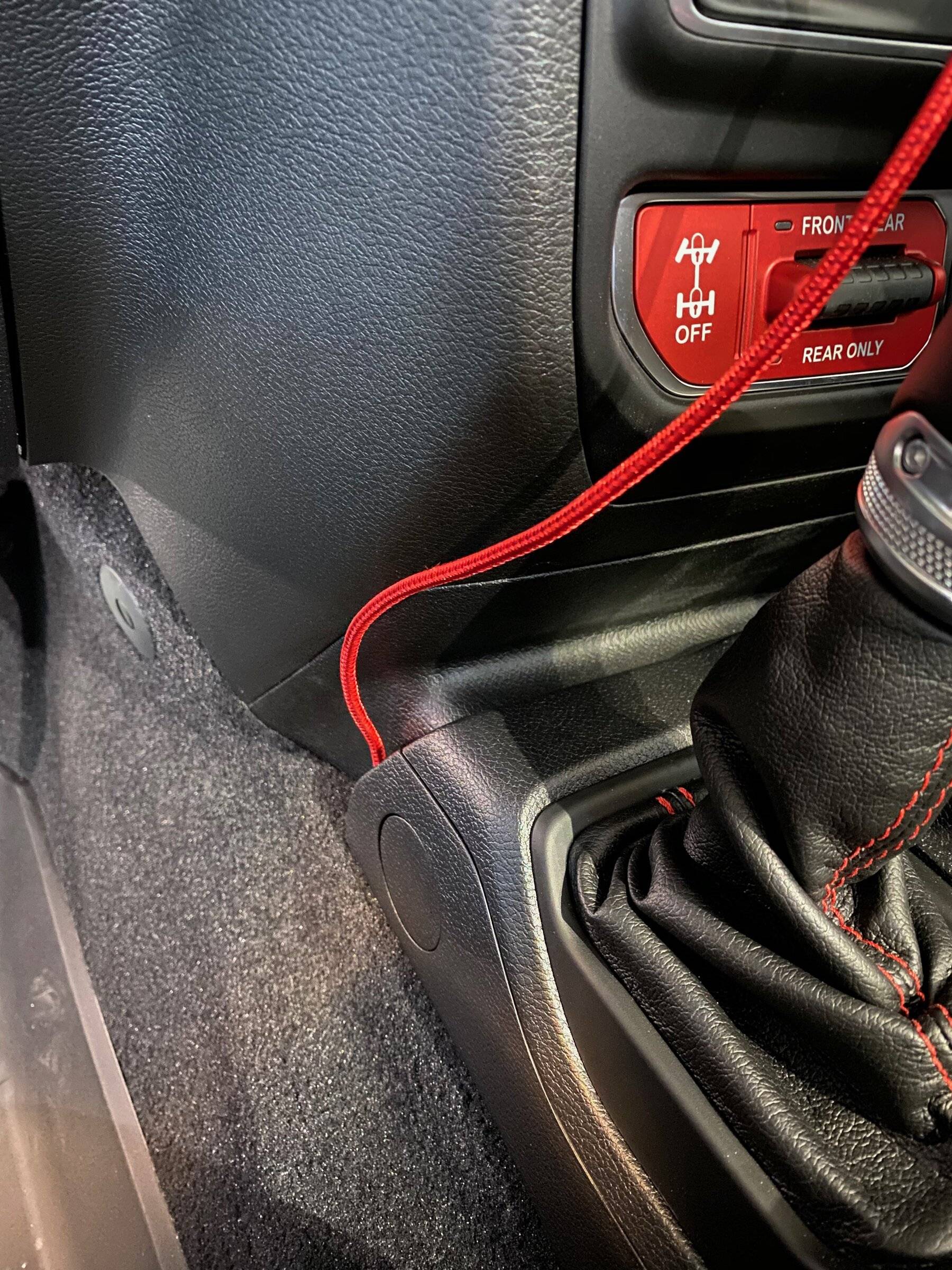

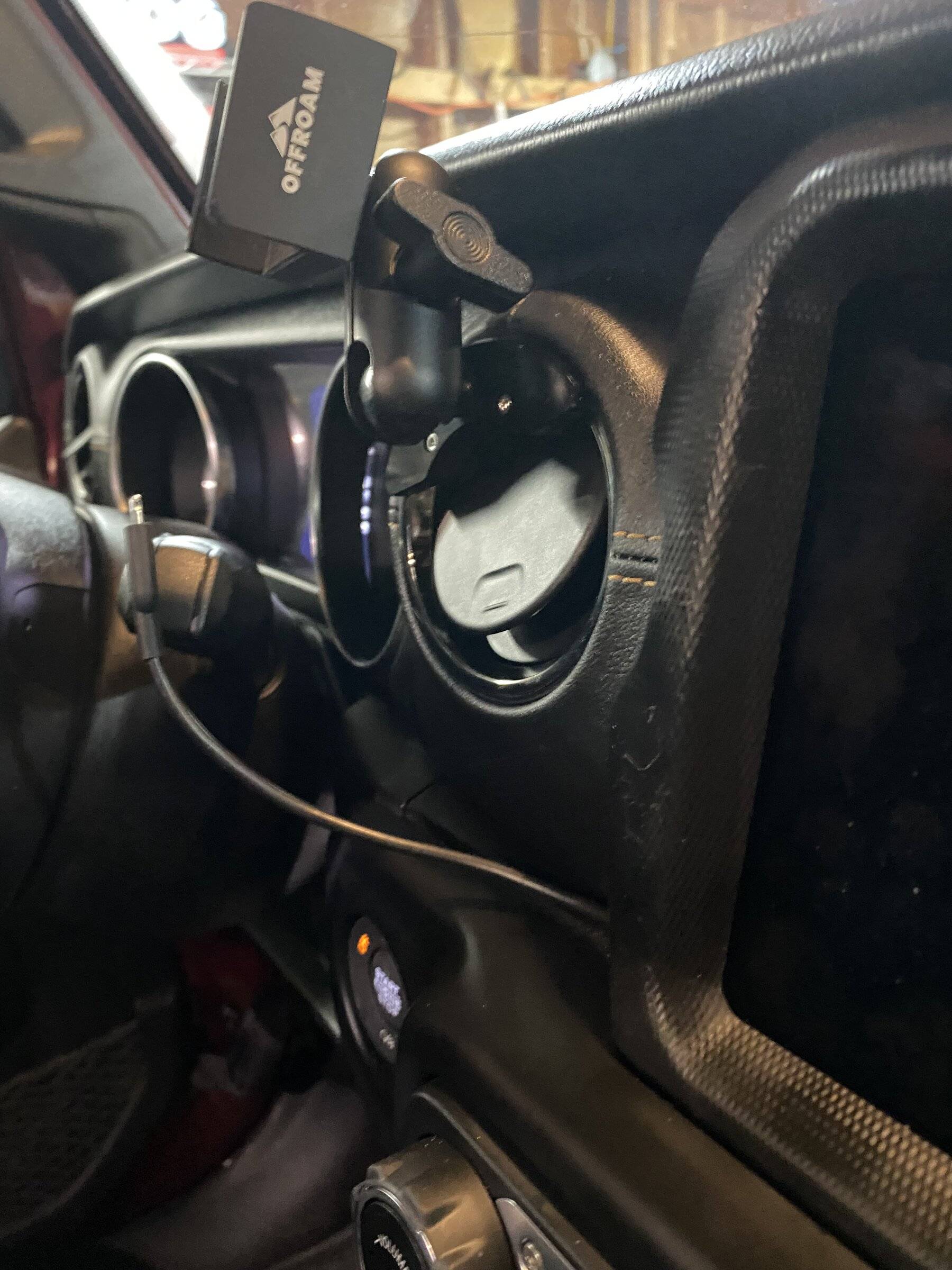

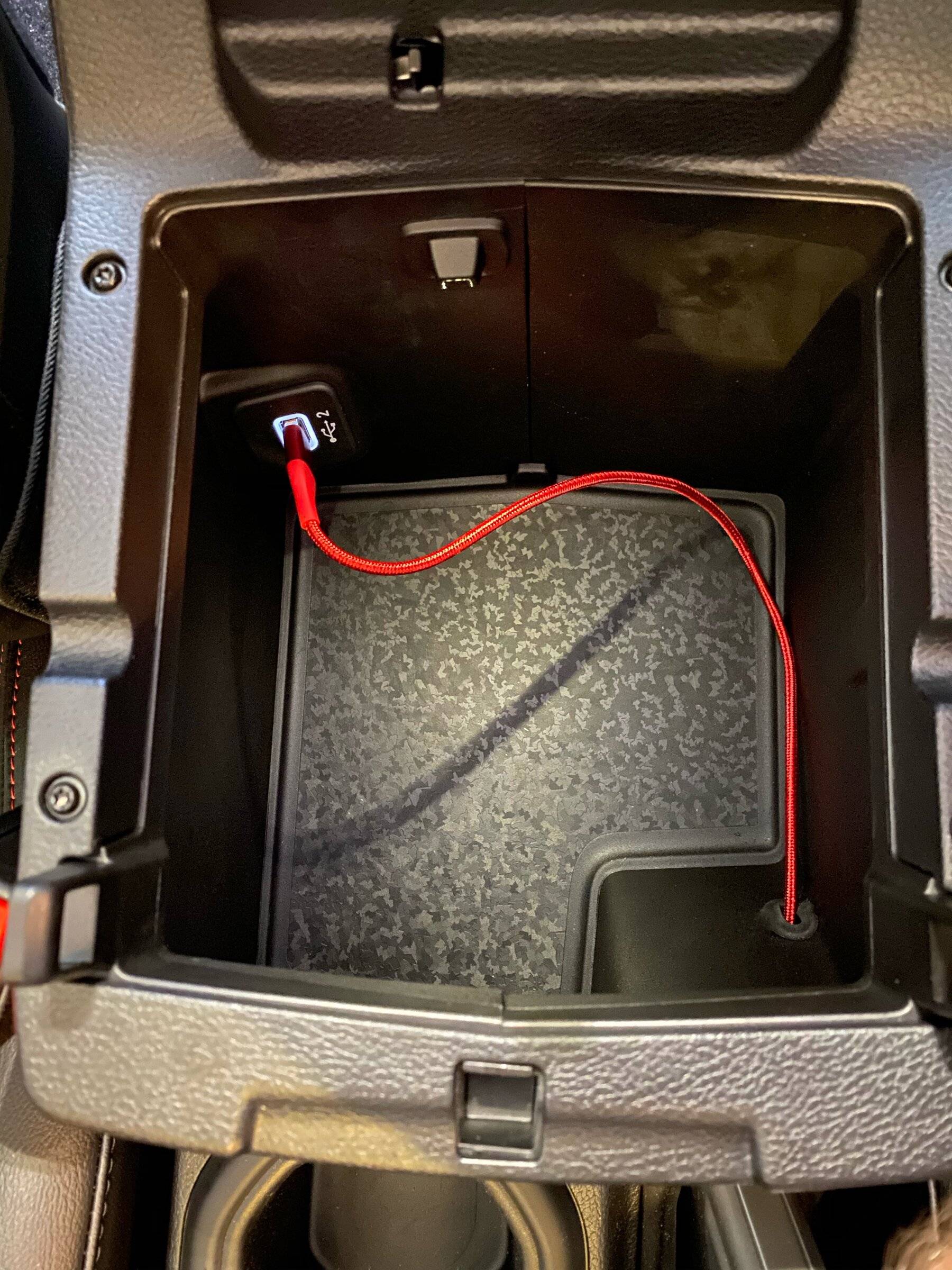

Not a very good picture but I ran the wire from the armrest plug, through a hole I made in the bottom corner of the bin( like a previous poster shows) and under the consol up under the dash and out from under the stereo face trim. I carved a tiny notch in the trim the size of the wire. You could have it come out at the top corner too, where ever you want it.
I’d go take a better picture of it if I had my Jeep, it’s at the body shop getting the tailgate hinges redone on warranty.


Initial-Jeep

Well-Known Member
First Name
. Julian
Joined
Oct 23, 2021
Threads
0
Messages
349
Reaction score
472
Location
. Greensboro, North Carolina
Vehicle(s)
'22 392XR Tuscadero, PT Cruiser Dream Cruisers 2&4
Occupation
. Software Engineer, Retired Air Force
mo pawah babeh
MO POWAH BABEH!




I'm wondering if running through the firewall to the fuse box wouldn't be much harder. (I have to do that anyway to install a dashcam.)



Captain Skip

Well-Known Member
First Name
Skip
Joined
Oct 13, 2020
Threads
39
Messages
231
Reaction score
307
Location
New Hampshire
Vehicle(s)
2020 Wrangler JL Sport S
Occupation
Happily retired

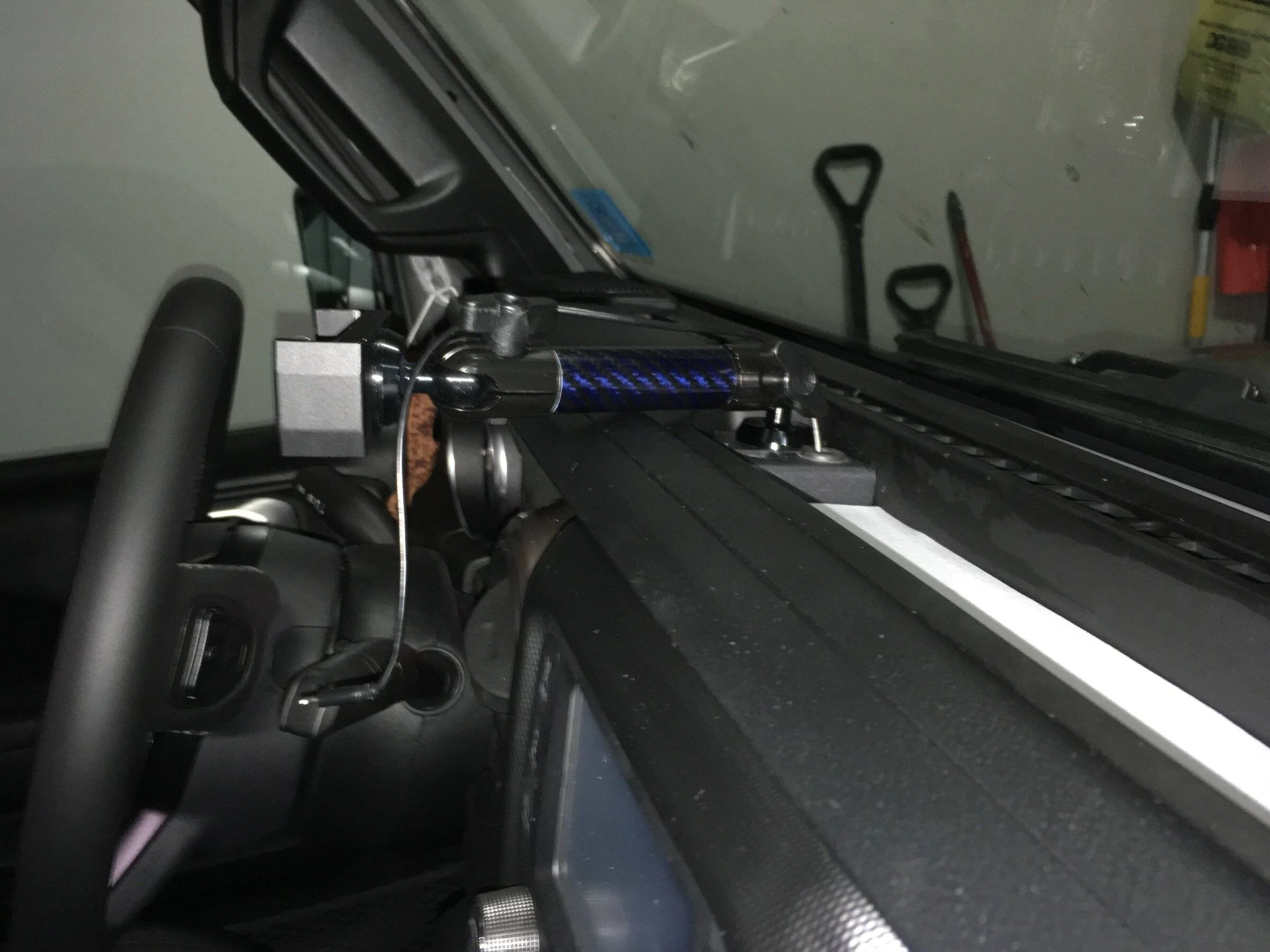

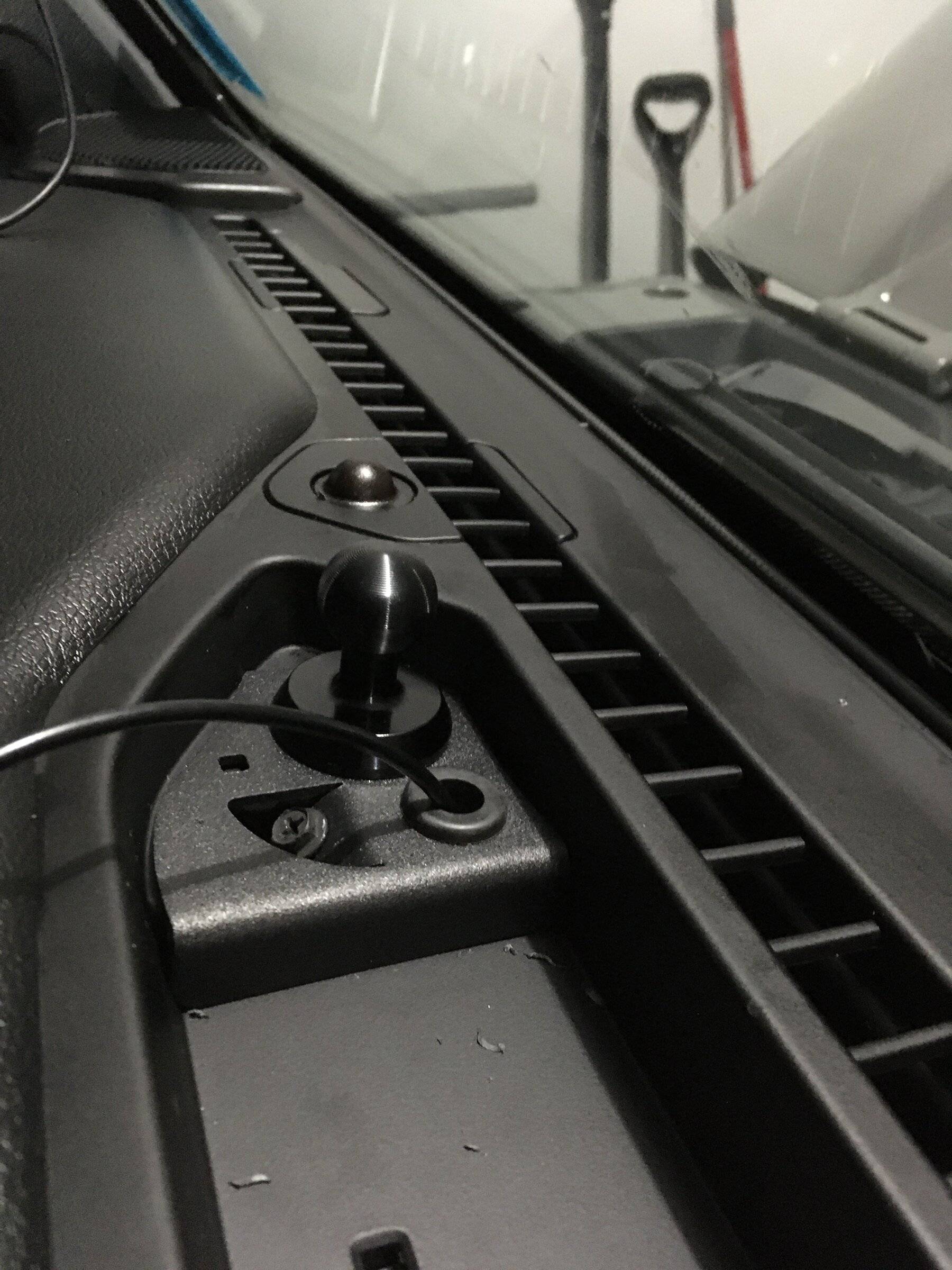

I have a Bulletpoint mount for my phone. My OCD wouldn't let wires hang down in front of my dash either. I took the dash apart and snaked the power cord up behind everything. Then I drilled a hole in the top of dash under the Bulletpoint base plate, drilled a matching hole in the baseplate then added a rubber grommet to protect the wire from chaffing. I added a USB powerpoint under the dash behind the steering kick panel where I can get at it and plugged the power cord in there.


Captain Skip

Well-Known Member
First Name
Skip
Joined
Oct 13, 2020
Threads
39
Messages
231
Reaction score
307
Location
New Hampshire
Vehicle(s)
2020 Wrangler JL Sport S
Occupation
Happily retired

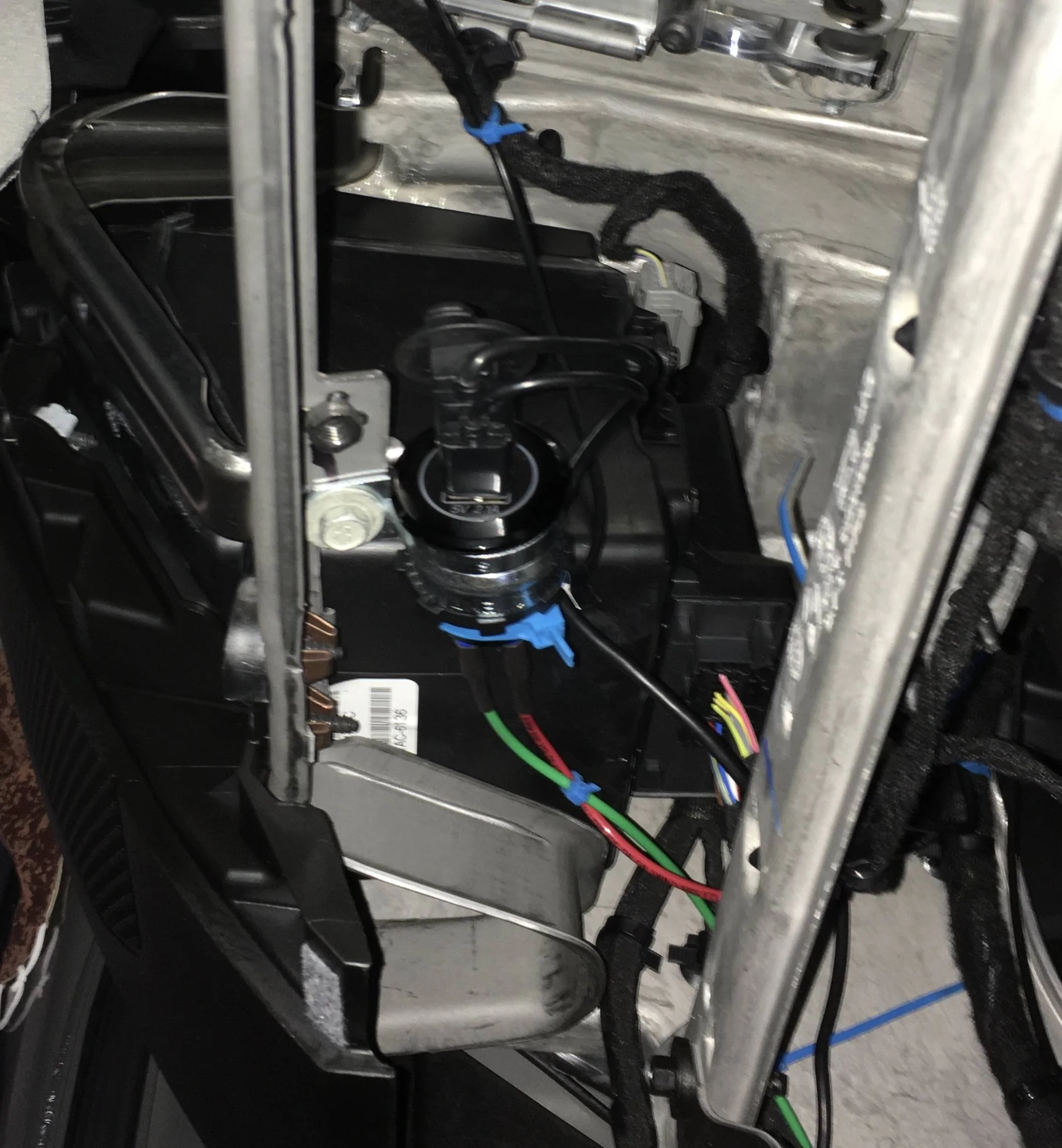

Here's where I put the power connector for the phone cable. It's right behind the steering column kick panel where I can reach it. I also plugged my dash cam into it after hiding the wire that runs to that. The silver bolt to the left of the power point is OEM. I used a 3/4" EMT conduit clamp to hold it in place with that bolt, then zip tied for a little extra holding power.


jimmym1981

Well-Known Member
Joined
Sep 27, 2021
Threads
3
Messages
299
Reaction score
388
Location
Chicago
Vehicle(s)
.
This is great! I was just looking to figure this aspect out myself because of my cord OCD. Where did you jump the power off of?
