Help needed, need bolt size

Chipe

Well-Known Member
First Name
Chip
Joined
Jun 22, 2019
Messages
545
Reaction score
692
Location
Manchester, CT
Website
www.gracewindsor.org
Vehicle(s)
2018 JLU Sahara; 2018 Nissan Altima SR
Occupation
Episcopal Priest
Vehicle Showcase
1
Does anyone know or can anyone find out what size bolts hold the 2018 JLU steering stabilizer bracket to the axle? There are 3 bolts that hold it on to the axle side. The guys that did my alignment also stripped these bolts and then threw them away! I called the dealer and they had a hard time finding them, then they said they found them and they are $20 each. OMG. THey are like m10's and 1 inch or so long. $20?

Thank you!!!





Advertisement



RubenZ

Well-Known Member
First Name
Ruben
Joined
Jun 24, 2018
Messages
1,756
Reaction score
1,552
Location
Deep South Texas
Website
myjlproject.com
Vehicle(s)
2020 Toyota Tacoma TRD Off-Road, 18’ Toyota 4Runner
Does anyone know or can anyone find out what size bolts hold the 2018 JLU steering stabilizer bracket to the axle? There are 3 bolts that hold it on to the axle side. The guys that did my alignment also stripped these bolts and then threw them away! I called the dealer and they had a hard time finding them, then they said they found them and they are $20 each. OMG. THey are like m10's and 1 inch or so long. $20?

Thank you!!!
Do you need this right away? I took off my bracket that goes onto axle because of my steersmarts setup. I'd be happy to just send the bolts to you if I can find them. I'm pretty sure I left them on the axle

OP
Chipe

Chipe

Well-Known Member
First Name
Chip
Joined
Jun 22, 2019
Messages
545
Reaction score
692
Location
Manchester, CT
Website
www.gracewindsor.org
Vehicle(s)
2018 JLU Sahara; 2018 Nissan Altima SR
Occupation
Episcopal Priest
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #3
Do you need this right away? I took off my bracket that goes onto axle because of my steersmarts setup. I'd be happy to just send the bolts to you if I can find them. I'm pretty sure I left them on the axle
No, I don't need them right away, and how gracious of you to offer them to me. I will take you up on this kind offer and pm you my address. I'd like to cover shipping though.


oceanblue2019

Well-Known Member
First Name
John
Joined
Apr 13, 2019
Messages
2,099
Reaction score
2,781
Location
Maryland
Vehicle(s)
2019 JLUR 2.0L Auto
Do you need this right away? I took off my bracket that goes onto axle because of my steersmarts setup. I'd be happy to just send the bolts to you if I can find them. I'm pretty sure I left them on the axle
Jeepers helping Jeepers. Good on you!

OP
Chipe

Chipe

Well-Known Member
First Name
Chip
Joined
Jun 22, 2019
Messages
545
Reaction score
692
Location
Manchester, CT
Website
www.gracewindsor.org
Vehicle(s)
2018 JLU Sahara; 2018 Nissan Altima SR
Occupation
Episcopal Priest
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #6
Amen!


RubenZ

Well-Known Member
First Name
Ruben
Joined
Jun 24, 2018
Messages
1,756
Reaction score
1,552
Location
Deep South Texas
Website
myjlproject.com
Vehicle(s)
2020 Toyota Tacoma TRD Off-Road, 18’ Toyota 4Runner

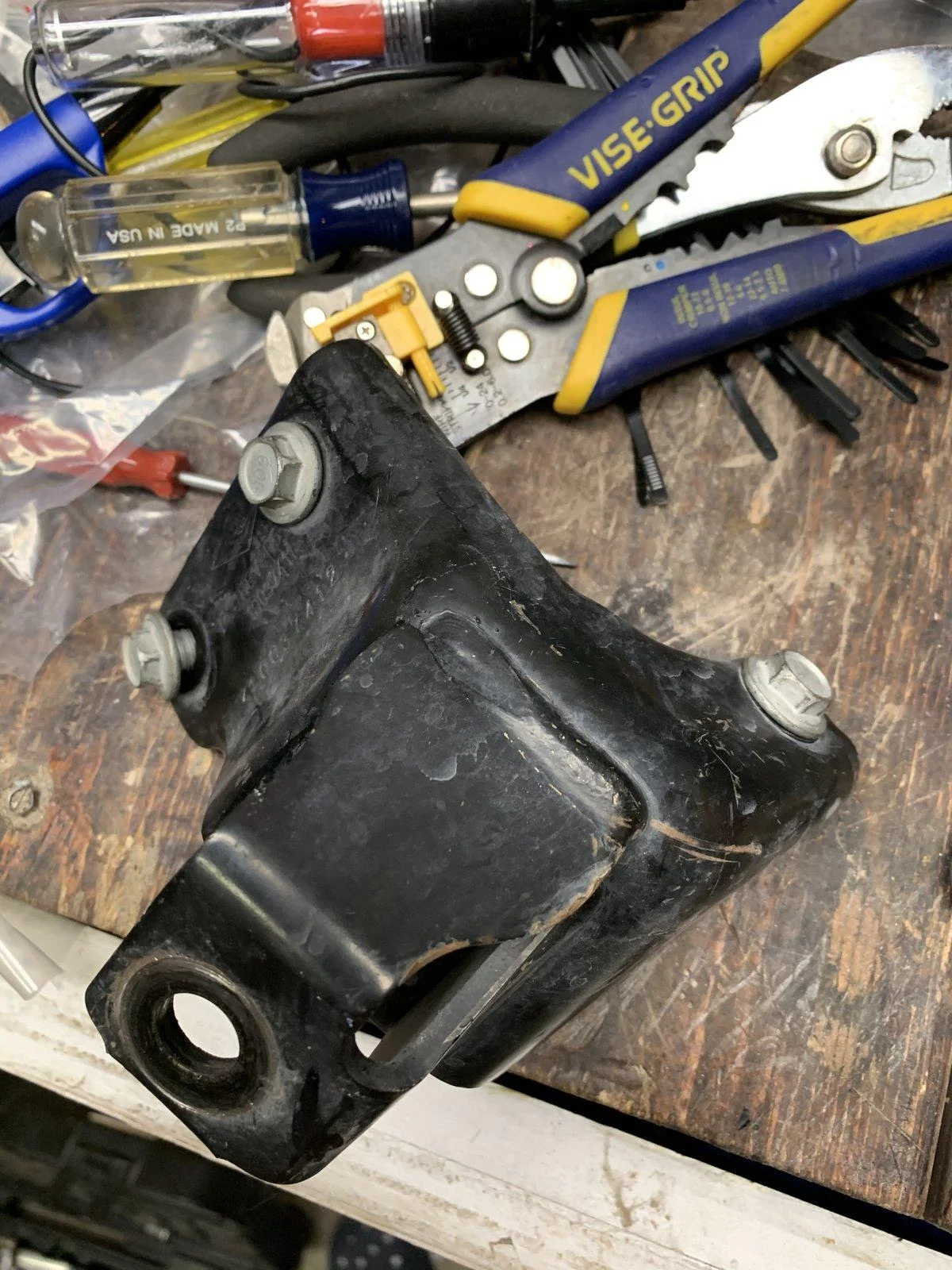

You’re in luck. It’s these right that you need?
