Help choosing mounts for light bar and side shooters!

Newyorkyan

Active Member
First Name
Yan
Joined
Dec 12, 2018
Threads
9
Messages
44
Reaction score
28
Location
New york
Vehicle(s)
2018 wrangler rubicon
I am looking to buy both a 50in light bar and add dual side shooters on my JLUR (think the look would be really nice). I just need help to decide which mount to buy that will fit both the light bar and the side shooters. I like the artec industries dual LED cube light mount, but not sure how I can add a mount for the 50n light bar as well? I really like rigid cube lights, but still need help with which 50in light bar to buy that won't break the bank. Any help would be appreciated!! Also I do not have the auxillary switch package so would wiring these lights up be more difficult?
Sponsored


Last edited:

nerubi

Well-Known Member
First Name
Mike
Joined
Nov 28, 2018
Threads
23
Messages
3,995
Reaction score
5,363
Location
Nebraska
Vehicle(s)
2019 JLR, 2020 VW Tiguan
Occupation
Retired
Vehicle Showcase
1
Jeep rewire done.jpg
Jeep rewire done.jpg
Jeep rewire done.jpg
I am looking to buy both a 50in light bar and add dual side shooters on my JLUR (think the look would be really nice). I just need help to decide which mount to buy that will fit both the light bar and the side shooters. I like the artec industries dual LED cube light mount, but not sure how I can add a mount for the 50n light bar as well? I really like rigid cube lights, but still need help with which 50in light bar to buy that won't break the bank. Any help would be appreciated!! Also I do not have the auxilary switch package so would wiring these lights up be more difficult?
Have you had a 50" light bar before? Most people complain about the whistling noise.
The aux switches are big time saver. Otherwise you need to determine where you will get the power, where to put the switches, best way to get the wiring inside, add relays (and find room for the relays). On my JK I have pillar spot lights, side lights, on bumper I have driving lights, on back additional back up lights, and rock lights underneath. I also added daytime driving lights synced with the low beam and high beam and the turn signals. I set up my own fuse box by running an additional battery wire to a separate fuse box and wired everything from there.

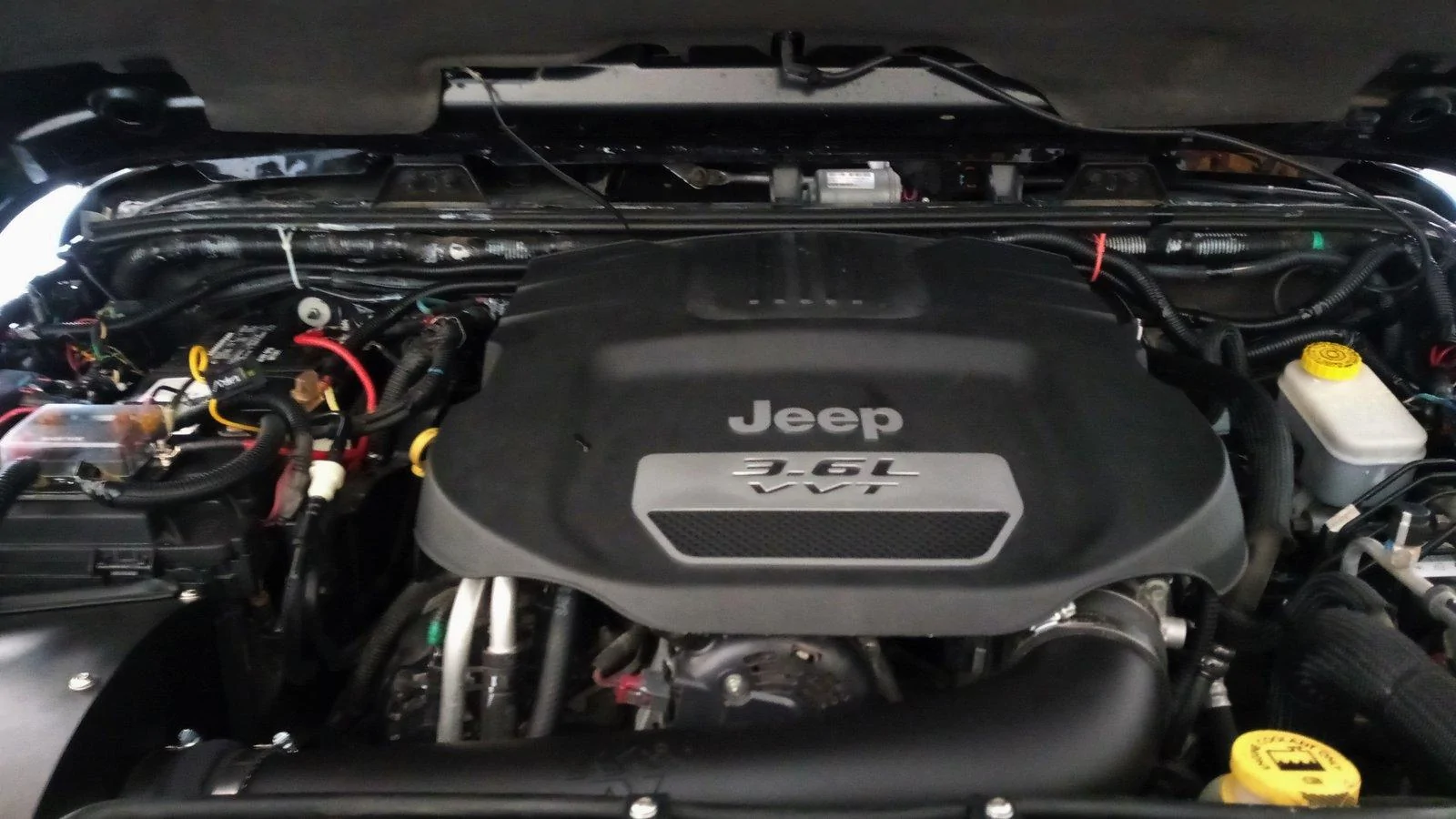

Don't know why it put the picture in 3 times but won't let me delete them. The fuse box is at the far left with the bright red wire from the battery to power it.
