    This info will come in handy after tall tire install and your headlights need re-aiming.

    JL Headlight Adjustment:

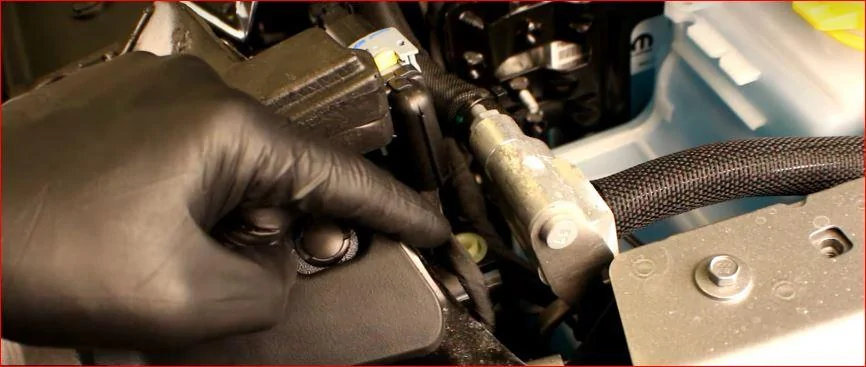

    Looking down at the adjuster's, you turn them clockwise (turn to the right) to go UP and counter clockwise (turn to the left) to go DOWN.




    The video will show you where the headlight aiming adjustment screws are on the JL/JlU.

    You will also learn grill removal and headlight assembly removal.

    If you just want headlight aiming info, fast forward in video to 8:53 min. mark.
