Hardwire radar detector in 2020

cjmdwyer

Active Member
First Name
Chris
Joined
Aug 22, 2018
Messages
37
Reaction score
84
Location
Arizona
Vehicle(s)
2020 JLUR 2.0 sting gray
Trying to hardwire radar detector in 2020 Rubicon and the mirror does not look like my 2018 I had. Mirror is autodimming but now the 911 and assist buttons are in roof not on mirror stalk. Wire colors are different as well. There is a conector in the roof area for the 911 and assist but not sure if colors to use as there is no pink with yellow stripe. Anybody hardwired off the mirror on a 2020 yet???
Advertisement



crbrenny

Well-Known Member
First Name
Chad
Joined
Sep 3, 2019
Messages
196
Reaction score
106
Location
Tampa, FL
Vehicle(s)
2019 JLUR Sting Grey; 2021 JLR Gecko
Build Thread
Link
Occupation
Engineer
Vehicle Showcase
1
I can try to look up a diagram tomorrow


chris4prez

Well-Known Member
First Name
Chris
Joined
Sep 14, 2019
Messages
132
Reaction score
54
Location
Tampa
Vehicle(s)
'20 JLUR
2020 JLUR with same setup as you and I following the below and was able to set mine up.

https://www.jlwranglerforums.com/forum/threads/hard-wire-radar-detector.11899/page-2

As goin2drt said:

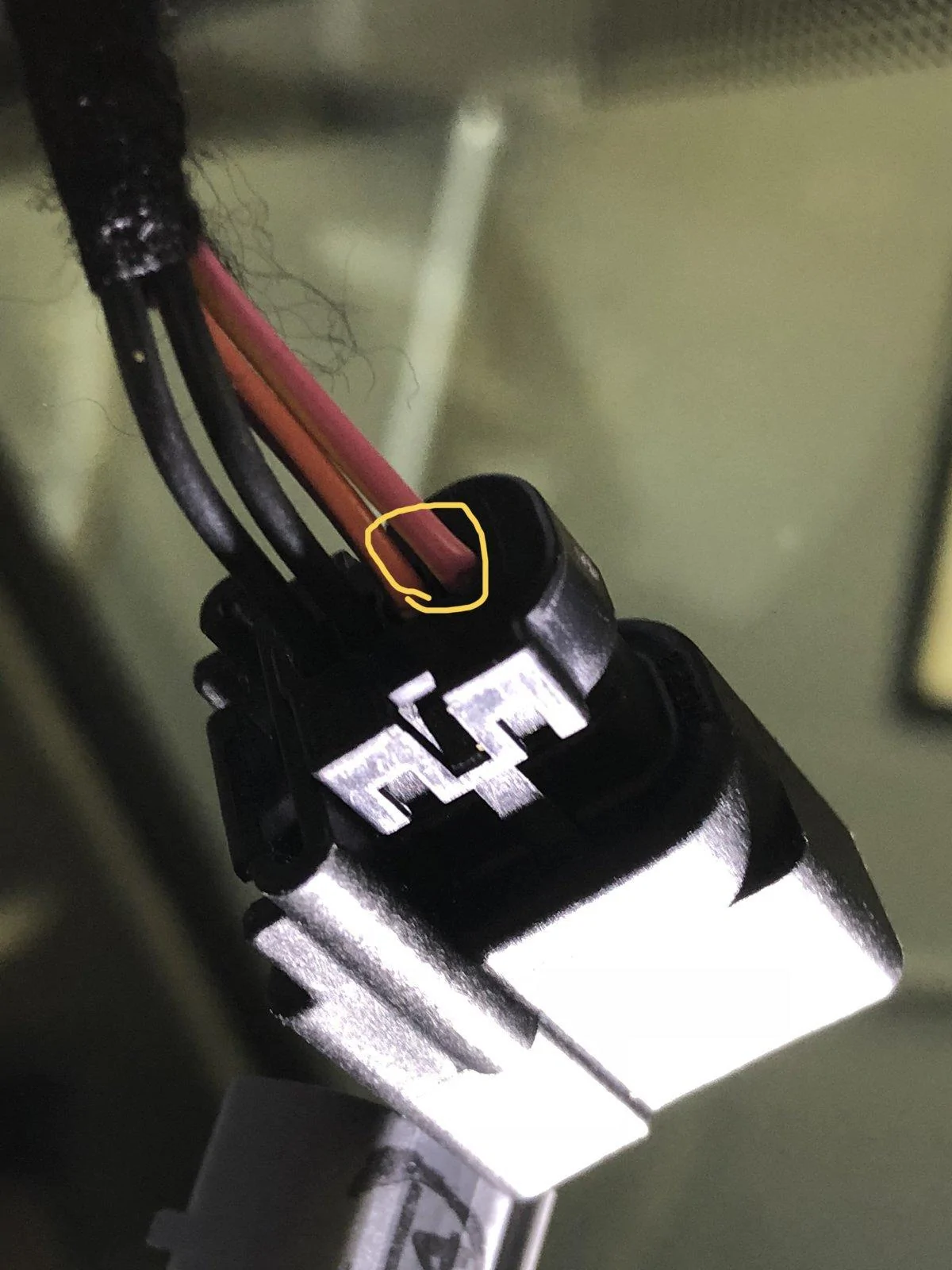

You jam in the end of the cord right where I circled. Right up against the pink wire and push down.in. Then do the same with the black.


I also further confirmed I was using the right wire by confirming with a voltage detector that I had the one showing voltage only while vehicle ignition on doing the same thing show here:

Skip Video to 10:50 mark
