Getting Through Firewall on Driver’s Side (MT)?

safety_glasses

Well-Known Member
Joined
May 16, 2018
Messages
162
Reaction score
94
Location
USA
Vehicle(s)
2018 JLU Rubicon
Anyone know the best way to get through the firewall in the drivers side? I router power cables through the passenger side using the big rubber grommet but I don’t see an easy way through the drivers side.

I want to route some coax. I would appreciate any help.
Advertisement



dchemphill1

Well-Known Member
First Name
David
Joined
Oct 20, 2020
Messages
318
Reaction score
605
Location
Nebraska
Vehicle(s)
2020 Wrangler Rubicon Recon
Occupation
School Administrator

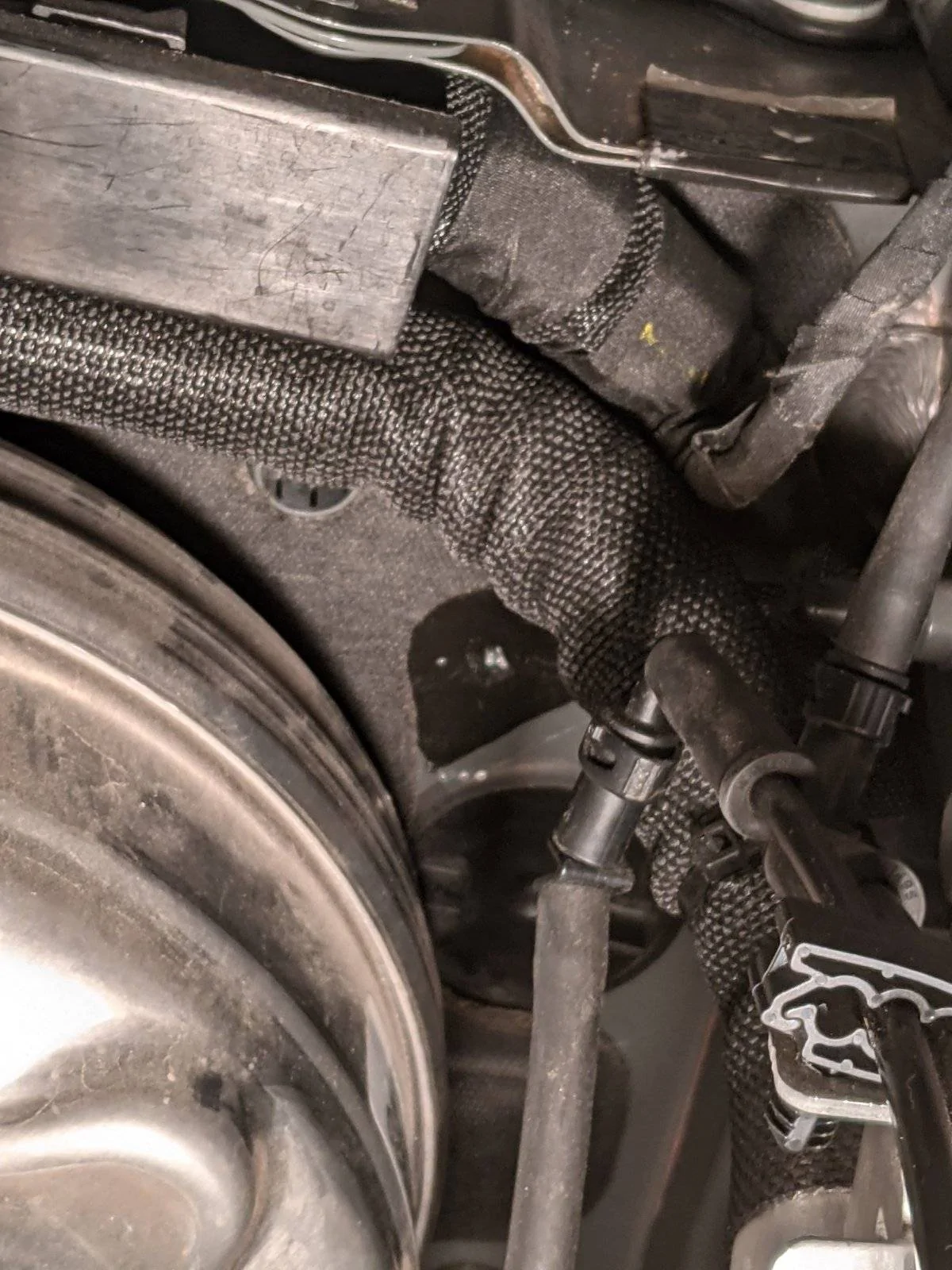

You should have plastic cap on an opening on the driver side. I do in my 2020 jl?

This is the view with hood up and looking at the area in front of driver side dash and footwell.

OP
OP
safety_glasses

safety_glasses

Well-Known Member
Joined
May 16, 2018
Messages
162
Reaction score
94
Location
USA
Vehicle(s)
2018 JLU Rubicon
You should have plastic cap on an opening on the driver side. I do in my 2020 jl?

This is the view with hood up and looking at the area in front of driver side dash and footwell.
Thanks. I’ll look for that. If so I guess I can just drill through it and then seal it?


Toycrusher

Well-Known Member
Joined
Oct 2, 2019
Messages
1,134
Reaction score
1,522
Location
Texas
Vehicle(s)
JLUR
That's where your clutch master cylinder sits. I just drilled through in that general area (a litle below the master cylinder) to pass my wires. It is double wall, so a bit of a pain. I inserted a grommet and used rtv to seal it up


DavidArmen

Well-Known Member
First Name
David
Joined
Sep 19, 2020
Messages
782
Reaction score
667
Location
Hollywood, CA
Vehicle(s)
2021 Red JLUR
Since you have a manual, you will not have that opening because as the above poster said, your clutch uses that hole.


Rhinebeck01

Well-Known Member
Joined
May 9, 2018
Messages
7,944
Reaction score
10,149
Location
.
Vehicle(s)
2018 2dr. Rubi
@safety_glasses

IF you have an automatic tranny JL, you will find a removable plug on the driver's side firewall.
On the inside of the JL it is right where the clutch pedal hardware would come through.

The part number for this plug is 68336758AC PLUG-DASH.

You can easily remove the plug and drill holes it in to pass wire(s) through. Pops back on easily. Be sure to seal up around wires well with silicone.

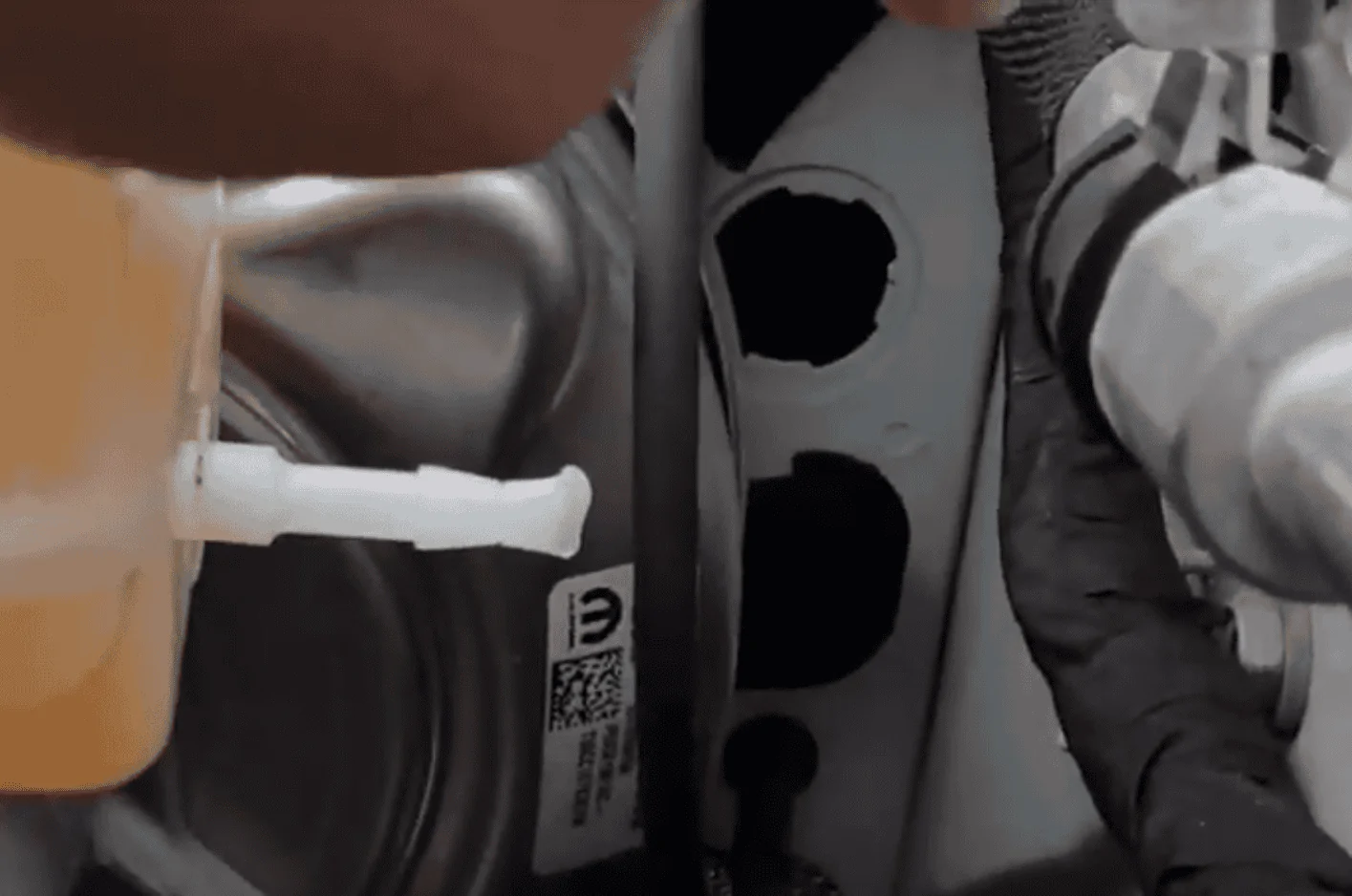

firewall plug location.png

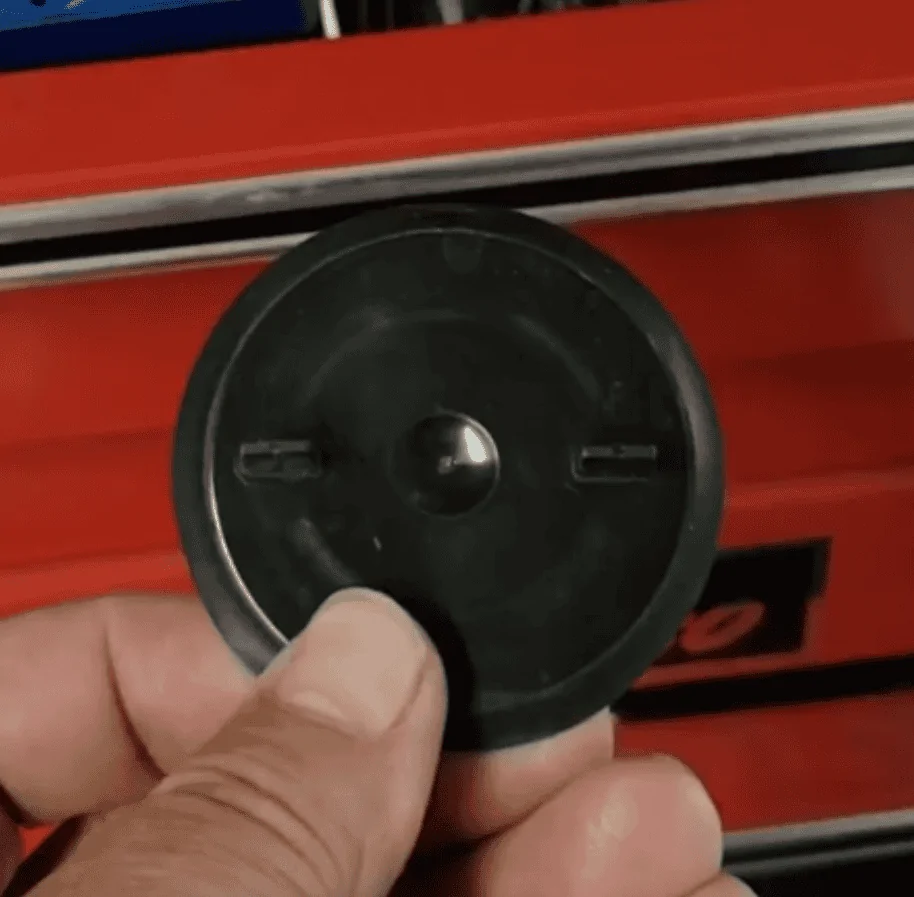

firewall plug.png

OP
OP
safety_glasses

safety_glasses

Well-Known Member
Joined
May 16, 2018
Messages
162
Reaction score
94
Location
USA
Vehicle(s)
2018 JLU Rubicon
Thanks for the feedback. I have the manual so yeah mine is blocked.


FLjeeper

Well-Known Member
First Name
Jason
Joined
Feb 1, 2021
Messages
586
Reaction score
744
Location
Melbourne, Florida
Vehicle(s)
2021 Jeep Rubicon JLU
Check out this thread..... https://www.jlwranglerforums.com/fo...-grommet-to-get-wires-through-firewall.41004/

particularly #6

I am currently doing research now on the best way to get wires through the firewall also on a MT, and this may be a viable option. I am going to continue to deep dive this forum because I have found some great tips and tricks that have saved me time and money. I'll post if I find anything.
