Genesis Off-Road Dual Battery Kit

PhoenixM3

Well-Known Member
Joined
Oct 28, 2017
Threads
13
Messages
431
Reaction score
883
Location
Colorado
Vehicle(s)
2022 GR86, 2023 Wrangler JLURD
Rookie question for a guy who's never owned a Jeep. Why two batteries again? Redundancy, or to support winch, air compressor, etc...?

OP
OP
BillyHW

BillyHW

Well-Known Member
Joined
Aug 7, 2017
Threads
97
Messages
1,870
Reaction score
1,794
Location
CAN
Vehicle(s)
-
Rookie question for a guy who's never owned a Jeep. Why two batteries again? Redundancy, or to support winch, air compressor, etc...?
For me it's going to be for camping purposes so I can run an ARB refrigerator, a medical device and a laptop (off the secondary battery) so that there is enough juice for these accessories to last overnight and also for peace of mind that I'll always be able to start the jeep up again in the morning (off the main battery that is not being used overnight).

Other people have other purposes. Speculating here, but if you use a lot of exterior lights without the engine running, or if you want to use your winch without the engine running, you may want a dual battery kit too.

I think some people also use it for running big audio without the engine running.


aCeMedic13

Well-Known Member
First Name
Ambrose
Joined
Dec 29, 2017
Threads
9
Messages
197
Reaction score
559
Location
San Antonio, Texas
Vehicle(s)
2018 Jeep Wrangler JLU Rubicon
Occupation
RN/Paramedic
Vehicle Showcase
1


You know... to power this stuff... :like:



Getting ready for a 4 day trip. :jk:


Sponsored

CaliMat

Well-Known Member
Joined
Jun 22, 2017
Threads
3
Messages
102
Reaction score
59
Location
San Diego
Vehicle(s)
JLUR

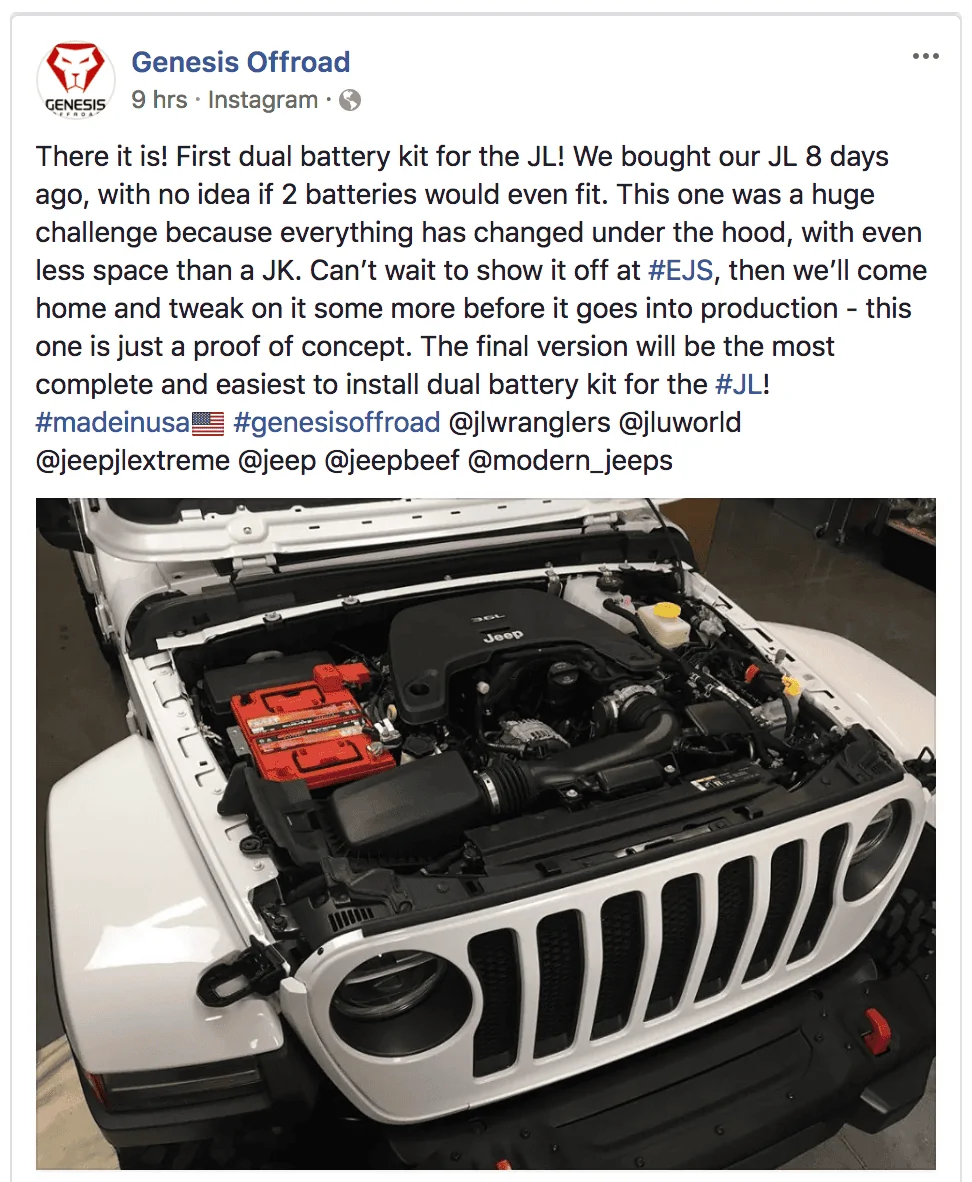

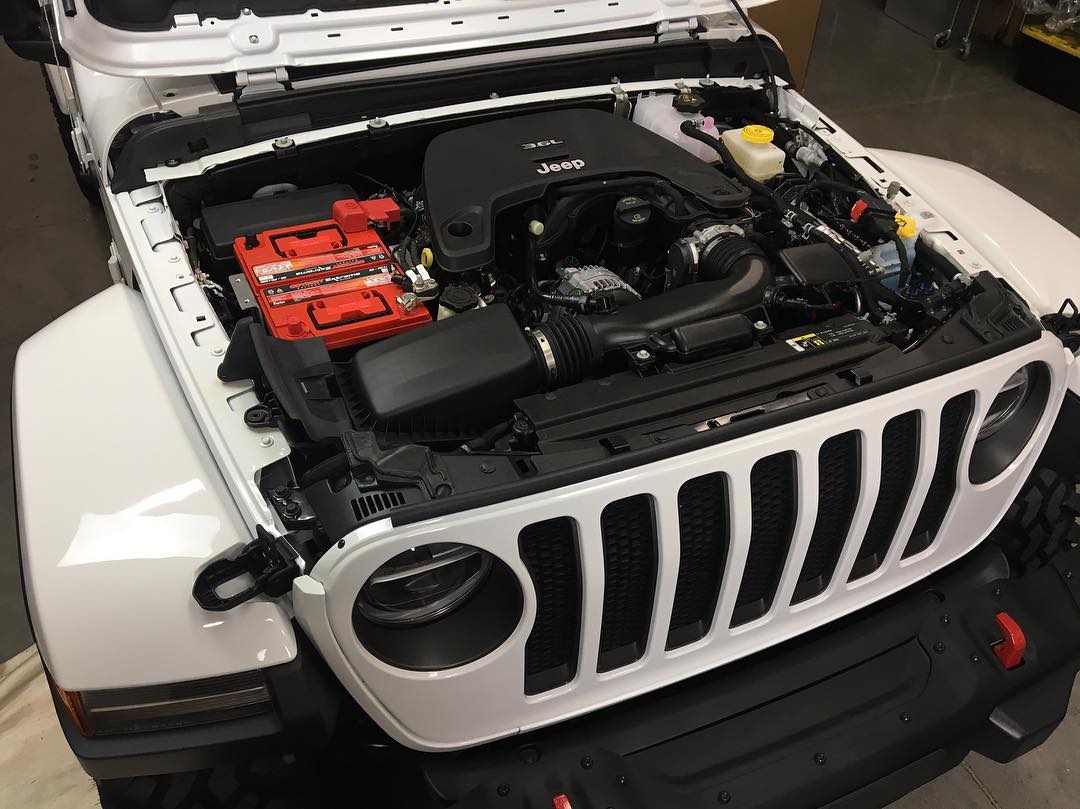

If you look at the pic you can clearly see two batteries. I doubt they got rid of the smaller aux battery. So yes there are three batteries.

OP
OP
BillyHW

BillyHW

Well-Known Member
Joined
Aug 7, 2017
Threads
97
Messages
1,870
Reaction score
1,794
Location
CAN
Vehicle(s)
-
If you look at the pic you can clearly see two batteries. I doubt they got rid of the smaller aux battery. So yes there are three batteries.
On their facebook page they mentioned they got rid of the smaller aux battery. They said it wasn't a good idea to have lead-acid starter battery types hooked up together with dual purpose/marine batteries. Also those batteries are a bit taller than stock so the new tray goes a bit deeper down.

From what I've been able to research the small aux battery was only used independently during a engine stop/start event to keep the computer and interior operating, when a relay disconnects it from the starter circuit. I think the new secondary battery they put in the kit will be taking over those duties. I suspect the drain on the secondary battery from this operation will be pretty negligible considering how short the stop/start events are.

Of course, I'm going to be shutting off ESS anyways, so it won't matter anyways to me.

There's a diagram here showing how the ESS probably works with the small aux battery.

https://www.yuasa.co.uk/info/technical/auxiliary-back-batteries-explained/

And I suspect they will be assigning the duties currently being assigned to the small aux to the new full-size secondary.

Of course I don't know for sure and I'm just speculating.


Firecracker Rubi

Well-Known Member
First Name
John
Joined
Feb 12, 2018
Threads
0
Messages
94
Reaction score
157
Location
Tampa/Orlando
Vehicle(s)
2018 JLUR
This was the best engineered modification I did to my JK. I will buy this just because I was so impressed with the JK product.


Sponsored

Man-of-methods

Well-Known Member
First Name
Paul
Joined
Dec 16, 2017
Threads
9
Messages
573
Reaction score
662
Location
Texas
Vehicle(s)
2018 Jeep Wrangler JLUR (His) 2018 Jeep Wrangler JLUS (Hers)
Vehicle Showcase
1
So what does this Genesis dual battery upgrade cost?


Beowulf

Well-Known Member
Joined
Dec 24, 2017
Threads
60
Messages
461
Reaction score
349
Location
Colorado
Vehicle(s)
Jeep Wrangler Rubicon Unlimited
What group size for the JL kit?

EDIT: Just watched the video. Group 25 it is.


Pipebndr

Active Member
First Name
Matt
Joined
Jan 29, 2018
Threads
1
Messages
43
Reaction score
68
Location
Napa CA
Vehicle(s)
1943 Ford GPW 2018 JLUR
Occupation
Retired Automotive business owner, ASE Master Tech

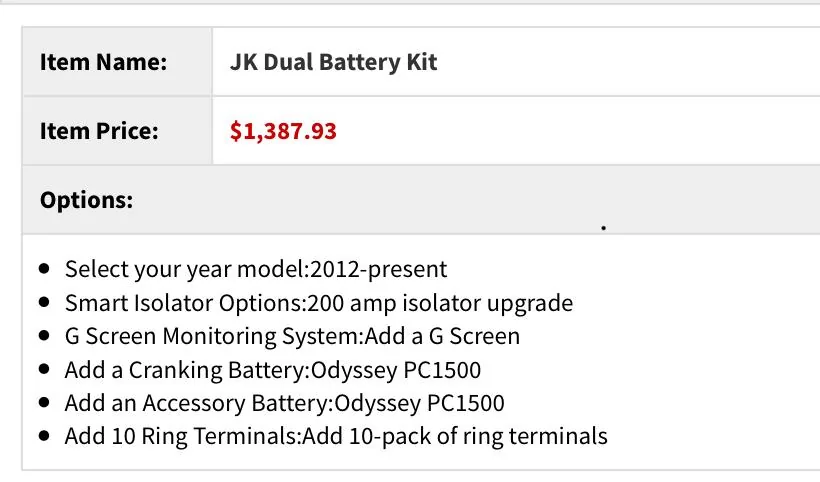

This is the pricing for the JK,
