Functional Limb Risers

azjl#3

Well-Known Member
First Name
Scott
Joined
Sep 24, 2022
Threads
5
Messages
1,053
Reaction score
1,272
Location
North AZ
Vehicle(s)
2023 Sarge Green JLR
After going to the local OHVs a few times, my JLU is taking quite a beating from branches. I know most people with limb risers are doing it for cosmetic reasons, but I'm looking for some truly functional risers to get the branches up and over the hood/pillars/windshield. What's out there? I see a few kits out there that drill/rivet to the inner A pillar, but I will have a Maximus-3 roof rack going on in a few weeks and would highly prefer to tie in to that. Thoughts?
Cordless reciprocating saw, no more branches.
Sponsored



kkarnage

Well-Known Member
Joined
May 6, 2020
Threads
24
Messages
186
Reaction score
179
Location
USA
Vehicle(s)
2022 392, 2020 JLUR, 2015 JKR
Occupation
Retired
Wanted to say thank you to @BullMoose1776 for putting this together. Just made a set of these myself for my 392 from this list. Way sleeker than anything else out there. Love the minimalist look to them.

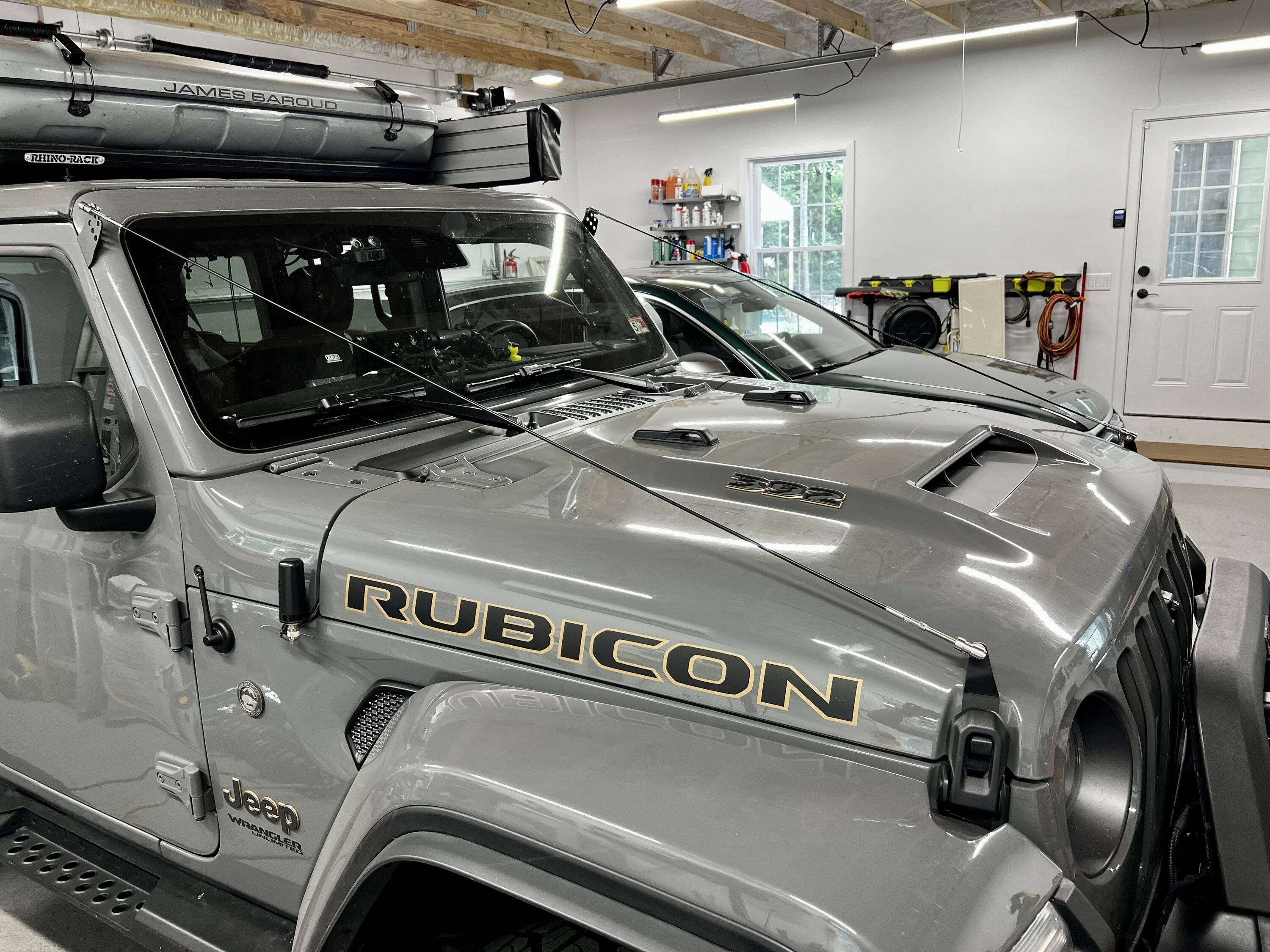

Jeep Wrangler JL Functional Limb Risers IMG_6094


Here's the list:

You can choose any brand of Limb Risers you want, and you might be able to start there and make them work. I didn't like the heavy turnbuckles. I just wanted a sheathed wire, so that made it much more complex (and costly) for me to complete.

STEINJAGER: Qty: 1, SJ Part# J0030493, Price Each $50.99, Description: 5 Pack, 1/4-28 x 1/4-28 Stainless Steel Quick Disconnect Cable Ball Joint, SQi250 $50.99

WICKS AIRCRAFT SUPPLY: Stud End; Break Strength Min :2000; Cable Diameter 1 :1/8; Sold By: Each; Thread Size: 1/4-28 $7.00 (x8) (you need 4 but you should Buy 8 in case you miss measure, which is easy to do.) $56

AMAZON: Muzata 165ft Black Vinyl Coated Wire Rope 1/8" Overmolded to 3/16" for 1/8" Black Cable Railing System Stainless Steel Aircraft Cable 7x7 Strand Indoor Outdoor Decking Stair Balustrade DIY WR17 WP1 (165 FEET) $75

AMAZON: Marine Bolt Supply; Stainless Steel Thin Jam Nylon Insert Lock Nuts 1/4-28 (pack of 25) $11.95

AMAZON: BLIKA 10 Ton Hydraulic Crimping Tool and Cable Cutter, Hydraulic Wire Battery Cable Lug Terminal Crimper Crimping Tool with 9 Dies, Wire Swaging Tool for 1/8" to 3/16" Cable Railing Hardware $65

AMAZON:KOLEMO Limb Risers Kit Compatible with for 1997-2021 Jeep Wrangler JK/TJ/JL Through The Jungle Protector Obstacle Eliminate Rope $40


BullMoose1776

Well-Known Member
First Name
Bull
Joined
Feb 11, 2019
Threads
68
Messages
1,477
Reaction score
2,368
Location
South Texas
Vehicle(s)
2019 Jeep Wrangler Unlimited Rubicon
Build Thread
Link
Occupation
Project Manager
Wanted to say thank you to @BullMoose1776 for putting this together. Just made a set of these myself for my 392 from this list. Way sleeker than anything else out there. Love the minimalist look to them.

Jeep Wrangler JL Functional Limb Risers IMG_6094
They look great!

OP
OP
SlickRickMotoADV

SlickRickMotoADV

Well-Known Member
First Name
Rick
Joined
Mar 9, 2021
Threads
25
Messages
574
Reaction score
421
Location
El Sobrante, CA
Vehicle(s)
2019 Wrangler Unlimited Sahara, 2017 Miata Club RF
Wanted to say thank you to @BullMoose1776 for putting this together. Just made a set of these myself for my 392 from this list. Way sleeker than anything else out there. Love the minimalist look to them.

Jeep Wrangler JL Functional Limb Risers IMG_6094
How have they been working for you? I'm considering picking this project up again, especially since it looks like you have the same roof rack as I do.


Brew211

Well-Known Member
Joined
Jun 18, 2018
Threads
41
Messages
807
Reaction score
704
Location
Peoria, Arizona
Vehicle(s)
2018 JLURM, Tundra, 2022 JLU 392 XR
Vehicle Showcase
1
Here's the list:

You can choose any brand of Limb Risers you want, and you might be able to start there and make them work. I didn't like the heavy turnbuckles. I just wanted a sheathed wire, so that made it much more complex (and costly) for me to complete.

STEINJAGER: Qty: 1, SJ Part# J0030493, Price Each $50.99, Description: 5 Pack, 1/4-28 x 1/4-28 Stainless Steel Quick Disconnect Cable Ball Joint, SQi250 $50.99

WICKS AIRCRAFT SUPPLY: Stud End; Break Strength Min :2000; Cable Diameter 1 :1/8; Sold By: Each; Thread Size: 1/4-28 $7.00 (x8) (you need 4 but you should Buy 8 in case you miss measure, which is easy to do.) $56

AMAZON: Muzata 165ft Black Vinyl Coated Wire Rope 1/8" Overmolded to 3/16" for 1/8" Black Cable Railing System Stainless Steel Aircraft Cable 7x7 Strand Indoor Outdoor Decking Stair Balustrade DIY WR17 WP1 (165 FEET) $75

AMAZON: Marine Bolt Supply; Stainless Steel Thin Jam Nylon Insert Lock Nuts 1/4-28 (pack of 25) $11.95

AMAZON: BLIKA 10 Ton Hydraulic Crimping Tool and Cable Cutter, Hydraulic Wire Battery Cable Lug Terminal Crimper Crimping Tool with 9 Dies, Wire Swaging Tool for 1/8" to 3/16" Cable Railing Hardware $65

AMAZON:KOLEMO Limb Risers Kit Compatible with for 1997-2021 Jeep Wrangler JK/TJ/JL Through The Jungle Protector Obstacle Eliminate Rope $40
This looks perfect, awesome job!!!
I'm hoping to ask for some help, I'm having a hard time find and search the product from Wicks Aircraft Supply, any chance you can find the link or product number? Thank you.


Sponsored

patternman

Well-Known Member
First Name
George
Joined
Sep 24, 2018
Threads
3
Messages
320
Reaction score
344
Location
Phoenix AZ
Vehicle(s)
2019 JLUS, 2014 & 2001 Indian
@Brew211

I haven't done this mod but I believe this is what you're looking for.
MS21259-4RH (shows out of stock)
You would strip the overmold on the portion of cable that inserts into cable end and crimp
with the Wire Swaging Tool.


Brew211

Well-Known Member
Joined
Jun 18, 2018
Threads
41
Messages
807
Reaction score
704
Location
Peoria, Arizona
Vehicle(s)
2018 JLURM, Tundra, 2022 JLU 392 XR
Vehicle Showcase
1
@Brew211

I haven't done this mod but I believe this is what you're looking for.
MS21259-4RH (shows out of stock)
You would strip the overmold on the portion of cable that inserts into cable end and crimp
with the Wire Swaging Tool.
Thank you!


Brew211

Well-Known Member
Joined
Jun 18, 2018
Threads
41
Messages
807
Reaction score
704
Location
Peoria, Arizona
Vehicle(s)
2018 JLURM, Tundra, 2022 JLU 392 XR
Vehicle Showcase
1

whitee27

Member
First Name
Chris White
Joined
Dec 19, 2018
Threads
3
Messages
12
Reaction score
7
Location
Binghamton NY
Vehicle(s)
2020 Jeep JLUR
Here's the list:

You can choose any brand of Limb Risers you want, and you might be able to start there and make them work. I didn't like the heavy turnbuckles. I just wanted a sheathed wire, so that made it much more complex (and costly) for me to complete.

STEINJAGER: Qty: 1, SJ Part# J0030493, Price Each $50.99, Description: 5 Pack, 1/4-28 x 1/4-28 Stainless Steel Quick Disconnect Cable Ball Joint, SQi250 $50.99

WICKS AIRCRAFT SUPPLY: Stud End; Break Strength Min :2000; Cable Diameter 1 :1/8; Sold By: Each; Thread Size: 1/4-28 $7.00 (x8) (you need 4 but you should Buy 8 in case you miss measure, which is easy to do.) $56

AMAZON: Muzata 165ft Black Vinyl Coated Wire Rope 1/8" Overmolded to 3/16" for 1/8" Black Cable Railing System Stainless Steel Aircraft Cable 7x7 Strand Indoor Outdoor Decking Stair Balustrade DIY WR17 WP1 (165 FEET) $75

AMAZON: Marine Bolt Supply; Stainless Steel Thin Jam Nylon Insert Lock Nuts 1/4-28 (pack of 25) $11.95

AMAZON: BLIKA 10 Ton Hydraulic Crimping Tool and Cable Cutter, Hydraulic Wire Battery Cable Lug Terminal Crimper Crimping Tool with 9 Dies, Wire Swaging Tool for 1/8" to 3/16" Cable Railing Hardware $65

AMAZON:KOLEMO Limb Risers Kit Compatible with for 1997-2021 Jeep Wrangler JK/TJ/JL Through The Jungle Protector Obstacle Eliminate Rope $40
What a great job. One question I have is why didn't you go this route from Steinjager? Steinjager sells these https://steinjager.com/shop/Exterio...IY-Cables-49.5-inches-overall-length-J0045635 which can be bought at different lengths. I bought them for my JK and just use a set of mounts similar to what you used "AMAZON:KOLEMO Limb Risers Kit Compatible with for 1997-2021 Jeep Wrangler JK/TJ/JL Through The Jungle Protector Obstacle Eliminate Rope $40". It would save on the extra stuff needed. Or am I missing something? Thanks
