FRAM Ultra @20K Miles
- Thread starter CarbonSteel
- Start date
- Watchers 15
DanW
Well-Known Member

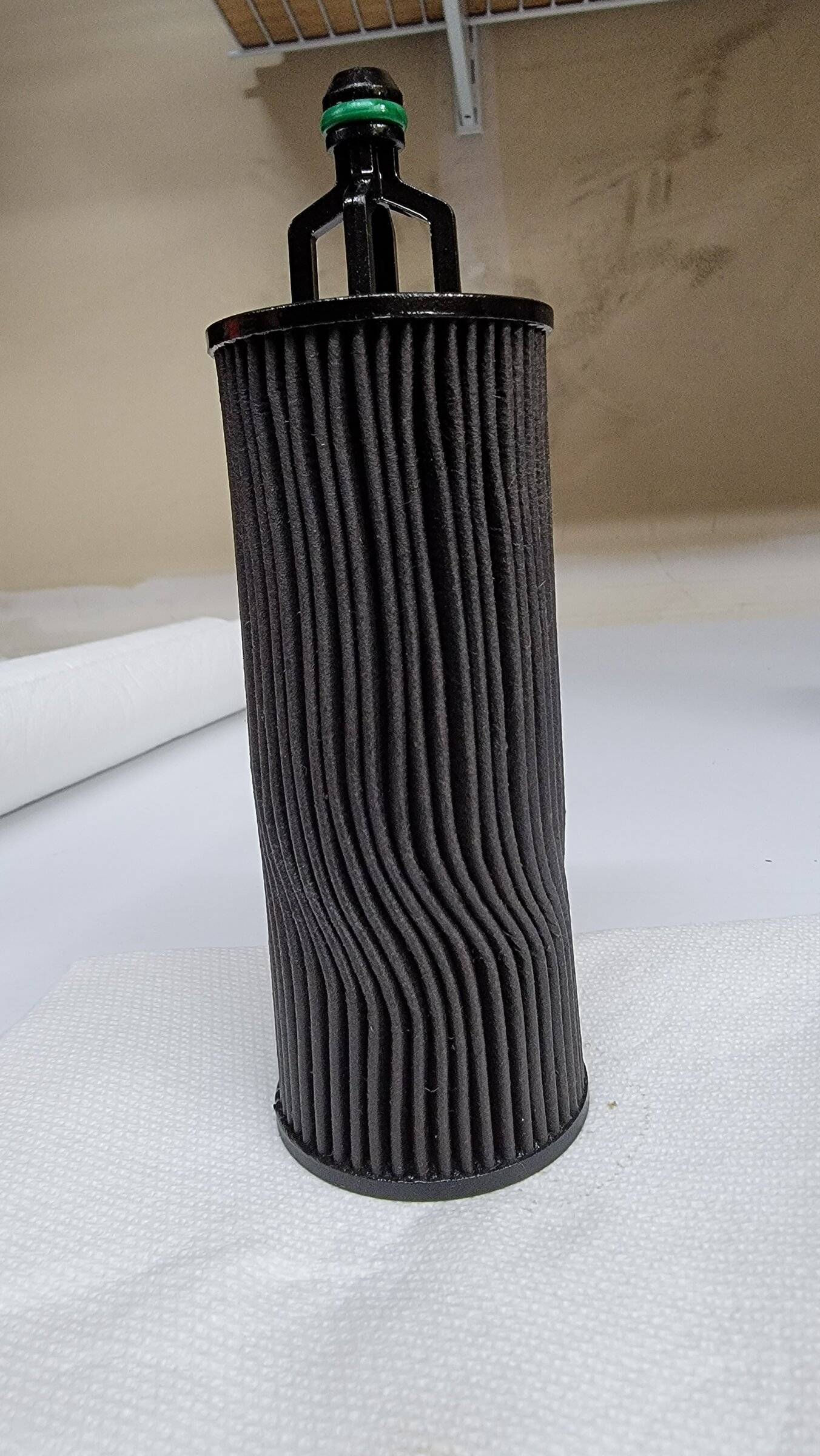

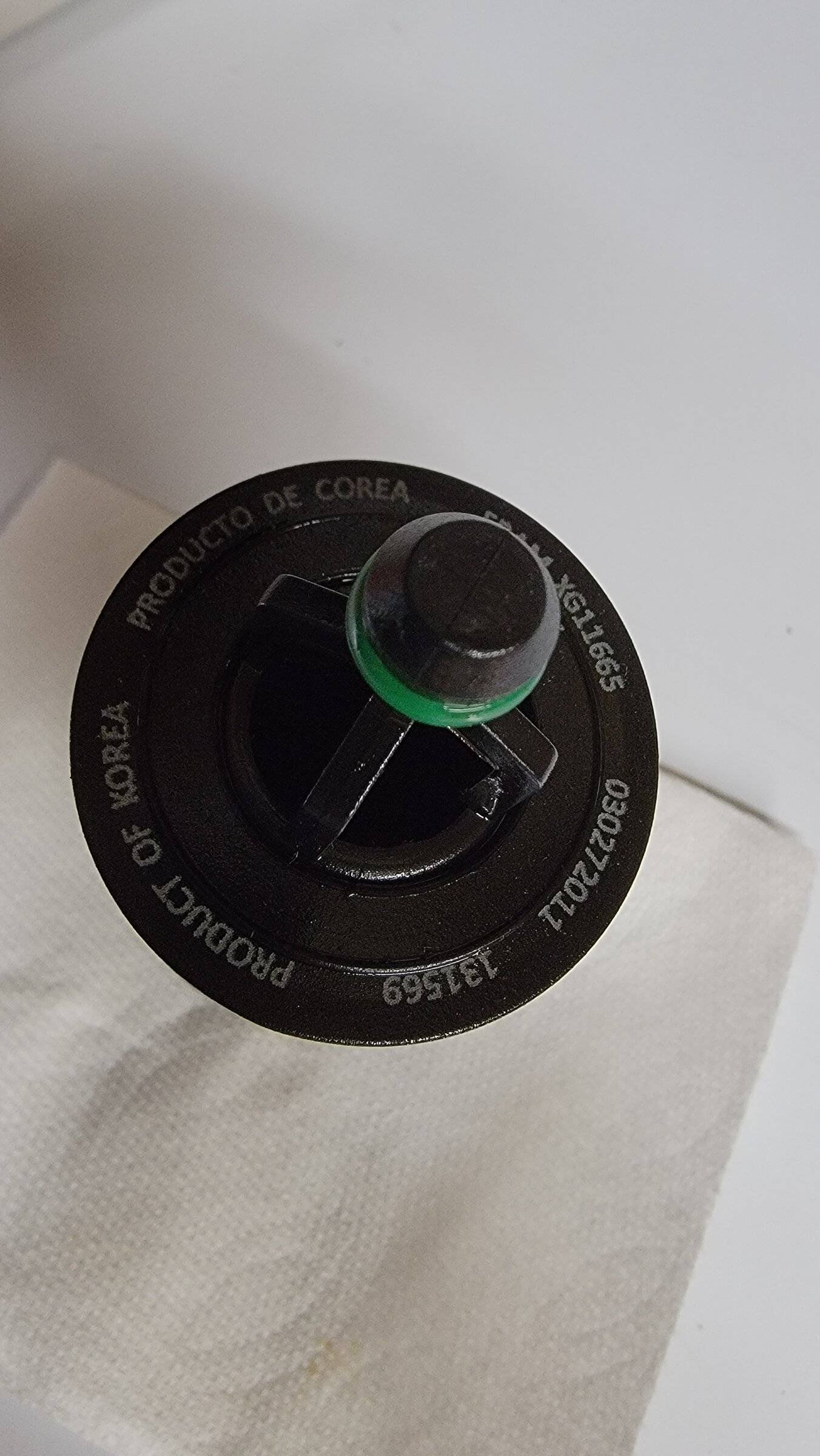

It looks good! Looks like Shell RGT did a nice job, too! Years ago, I had a Pontiac Solstice with a 2.4 Ecotec. It used cartridge filters. I remember the media fraying after only a few thousand miles, so I moved on to other filters that didn't have that issue. This sucker looks better with 20k on it than those did at less than 3k.Changed the rear axle and engine oil today. Here are some photos of the oil filter after 20K miles. There were 4 OCs (5K each) with Rotella Gas Truck on this filter.
@DanW
Enjoy!
The Pentastar twist on it looks no worse than a 5k OCI, either.
I will be running two 5k OCI's on Ultras and if (when) the UOA's look good, I'll go to 3. But this gives confidence that the filters have no trouble holding together for their advertised 20k. Impressive! After tearing one apart and seeing how strong they really are, I'd bet they'd hold together well past 20k.
OP
OP
CarbonSteel
Well-Known Member
- Thread starter
- #4
The better question is why not? FRAM Ultras are rated for 20K miles and have an efficiency rating of 99.9% at 20um.
Somehow, I think you think changing them more often is better, so how is it better? What would be different if I changed them more often?
Based upon the countless UOAs that I have done, I can tell you there would be nothing different.
Chocolate Thunder
Well-Known Member
Traditional logic of lubrication is usually the opposite - longer oil change intervals (20K or more) while changing filtration media more frequently (4 or 5K). Why’d you flip it around choose to do the opposite? Just curious.
Sponsored
The Last Cowboy
Well-Known Member
- First Name
- Joe
- Joined
- Jul 2, 2020
- Threads
- 23
- Messages
- 5,465
- Reaction score
- 10,707
- Location
- San Antonio, TX
- Vehicle(s)
- 2020 JL Willys 2 door
- Occupation
- Wandering Vaquero
Fram Ulra is probably the best oil filter on the market right now. But I would have changed at no more than 10k miles. A 20k mile rating is under ideal conditions, I would think. Not worth the risk.
OP
OP
CarbonSteel
Well-Known Member
- Thread starter
- #7
Until the point where a filter becomes clogged, it becomes more and more efficient and filters more effectively. On a properly running engine, there is very little material being trapped so clogging a synthetic media filter like the Ultra would take double the miles (if not more) for which it is rated.
In the case of RGT, it is not a long drain oil and the TBN was between 1.95 and 2.80 in 5K miles. Therefore, it makes no sense to try and extend it past that OCI.
Thus, I run the filter for its rated mileage and the oil according to the UOA results.
OP
OP
CarbonSteel
Well-Known Member
- Thread starter
- #8
What is the risk? I done this with multiple Ultra filters on different vehicles and have had zero issues. I am always puzzled by the thoughts around using a filter for its rated FCI.
calemasters
Well-Known Member
- First Name
- Allen
- Joined
- Sep 14, 2020
- Threads
- 65
- Messages
- 1,246
- Reaction score
- 1,659
- Location
- Springfield, Mo.
- Vehicle(s)
- 2021 Rubicon Unlimited, & Escalade
- Occupation
- Retired Mechanical Engineer
For one thing, following the recommended maintenance will help avoid any warranty questions.
I always use the Mopar filter. It may not be the best oil filter, but if the Mopar oil filter causes a lubrication related failure, Jeep is liable. With a non Mopar brand, there could be battle.
I did know of an incident where an ACDelco filter ruptured and the customer lost his engine because of the filter failure. GM replaced the engine, no questions asked. So there's that.
OP
OP
CarbonSteel
Well-Known Member
- Thread starter
- #10
Meh...that is not a concern for me. The FRAM Ultra has backed media so the chances of rupturing are next to nil and if it did and caused an issue FRAM has a warranty and the Magnuson–Moss Warranty Act would be in full play here as well.
I would be concerned about using a cellulose filter like a Mopar for longer than 1 OC because it could rupture, the same for AC Delco. There are only two filters on the market (that I have seen) which have backed media and that is the FRAM Ultra and the Purolator Boss.
@DanW - tore a FRAM Ultra apart a while back:
https://www.jlwranglerforums.com/fo...s-to-wring-its-filters-out.49733/post-1218917
Sponsored
multicam
Well-Known Member
- First Name
- Tanner
- Joined
- Feb 11, 2019
- Threads
- 8
- Messages
- 1,925
- Reaction score
- 5,501
- Location
- near Kansas City
- Vehicle(s)
- 2018 4Runner, 2019 JLR
- Vehicle Showcase
- 1
By the way...... speaking of Fram Ultra filters for the 3.6L... I’ve been having issues finding them lately. Did Fram change the part number? Or is SoCal just weird?
DanW
Well-Known Member
Supply issues. There's probably a bunch of them on a container ship off-shore, sitting.....waiting.
Order from Walmart.com or Amazon. I have a stash of probably 4 of them along with a bunch of Mobil 1 filters I got a few years ago on clearance. I have so many of those I bought my wife a Jeep so I could use them all up.
But I vastly prefer the Fram. The fram has filtered consistently better according to UOAs. And its about 20x as strong. I can pretty easily tear apart the media on the M1 after an OCI. It was fine and there's no issue with it handling the pressures of an engine, but that Fram Ultra was a BEAR to tear apart, even using pliars and vice grips and LOTS of muscle. I was shocked at how hard it was.
I'll ultimately run those M1 filters, but only for one 5k OCI. They just don't filter as well. Not even close.
OP
OP
CarbonSteel
Well-Known Member
- Thread starter
- #13
Same part number - XG11665. Likely have to order online. I found a few recently at my local WM, but they are usually out of stock.
srt20
Well-Known Member
Ive used that filter in my Durango with 10K OCI for the last 130k miles. 10K is when the EVIC wants the oil changed so I just change filter at same time. And when I first started with Ultra's they were 10K rated.
DanW
Well-Known Member
If you can't find an Ultra, the Tough Guard, or TG11665 has very good filtration, too. Better than nearly all filters on the market. Even the lowly Extra Guard 11665 has better filtration than most premium filters. And they are very cheap.
