First JL OIL CHANGE.... , COMPLETED W/ DIY INSTRUCTIONS AND PICS

  1. Dynomite1371

    Dynomite1371 Well-Known Member

    First Name:
    Ed
    Vehicle(s):
    2018 JLUR, Granite, Steel bumper, Safety, Cold Weather, Tow package, Premium Alpine, Black Leather and Mopar "self draining" Mats
    Joined:
    Dec 13, 2017
    Location:
    Maryland
    Posts:
    1,425
    Liked:
    2,000
    Occupation:
    Police Officer
    #1 Feb 14, 2018
    Last edited by a moderator: Feb 15, 2018
    @1100 miles! Ok, I decided to get the first oil change completed. I had mild weather, for once, and since I plan to do all my own routine service and I want to run full synthetic, I just decided to get it done . First, a big shout out goes to @DanW for all his help. I decided to go with Mobile 1, "Extended Performance" I plan to do my own oil changes between 5/6k in the future. There's a lot of information out there, so do your own oil research. (let's not turn this thread into "what's the best oil" thread) . Anyway it's about as straight forward and easy as it gets. Having been raised doing my own oil changes, this one can be done in the amount of it would have taken me to pull the filter in some vehicles.

    Steps:

    #1 Set your drain pan

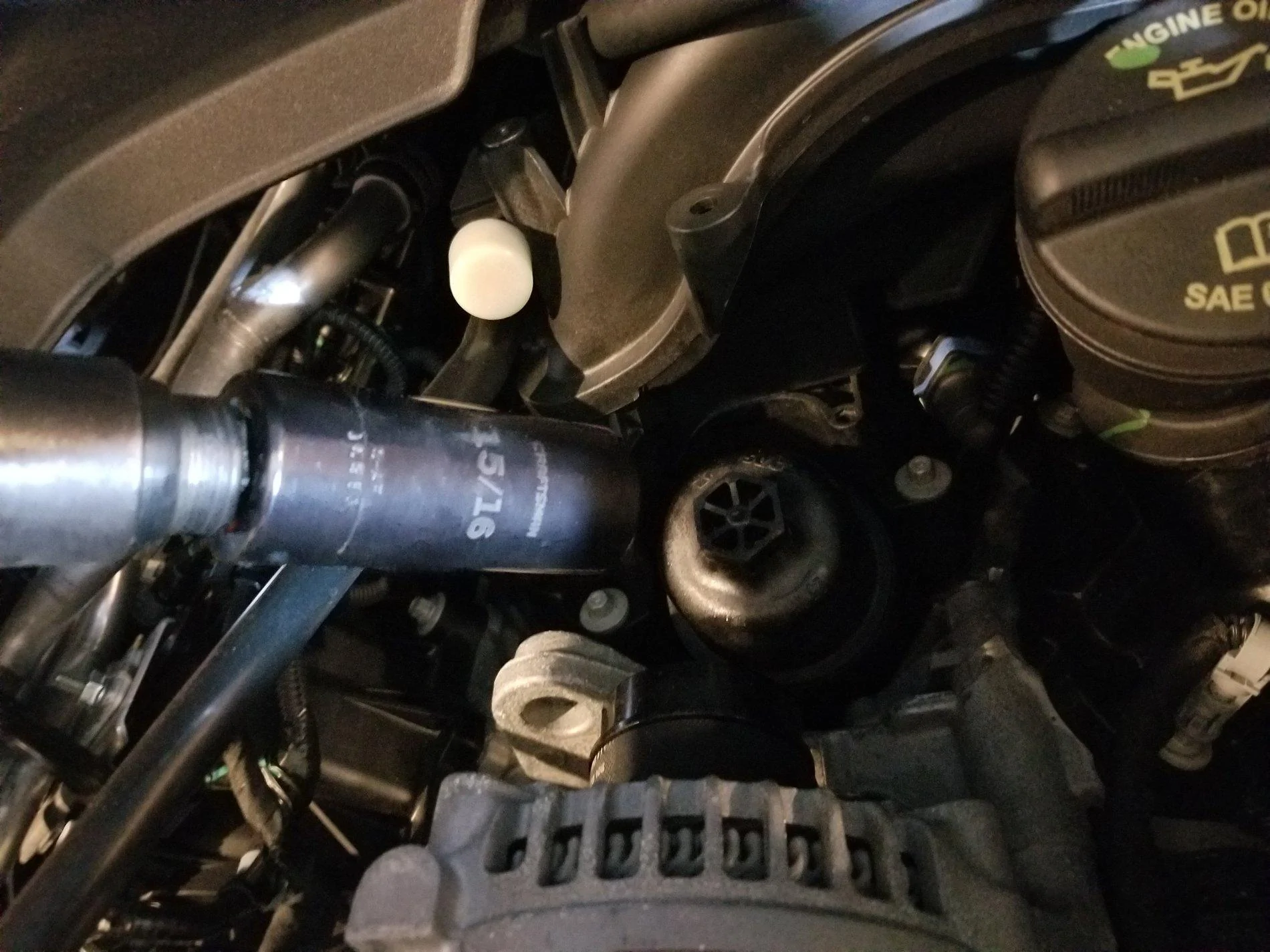

    #2 Loosen the filter cap with 15/16ths socket. (top, front and center in engine bay)
    #3 Drain oil in pan (don't miss) (1/2 socket first)
    #4 Remove oil filter and pull apart from cap
    #5 Remove old Ring withwstraight edgee Attatch new O Ring to cap and then press new filter into cap. (lightly run some oil on the new O ring before attaching to cap)
    #6 After old drains, (5-10 minutes) , level ground is recommended.
    #7 Clean pan with rag and replace oil drain nut w-1/2 "socket (do not over tighten quarter turn pass initial stop)

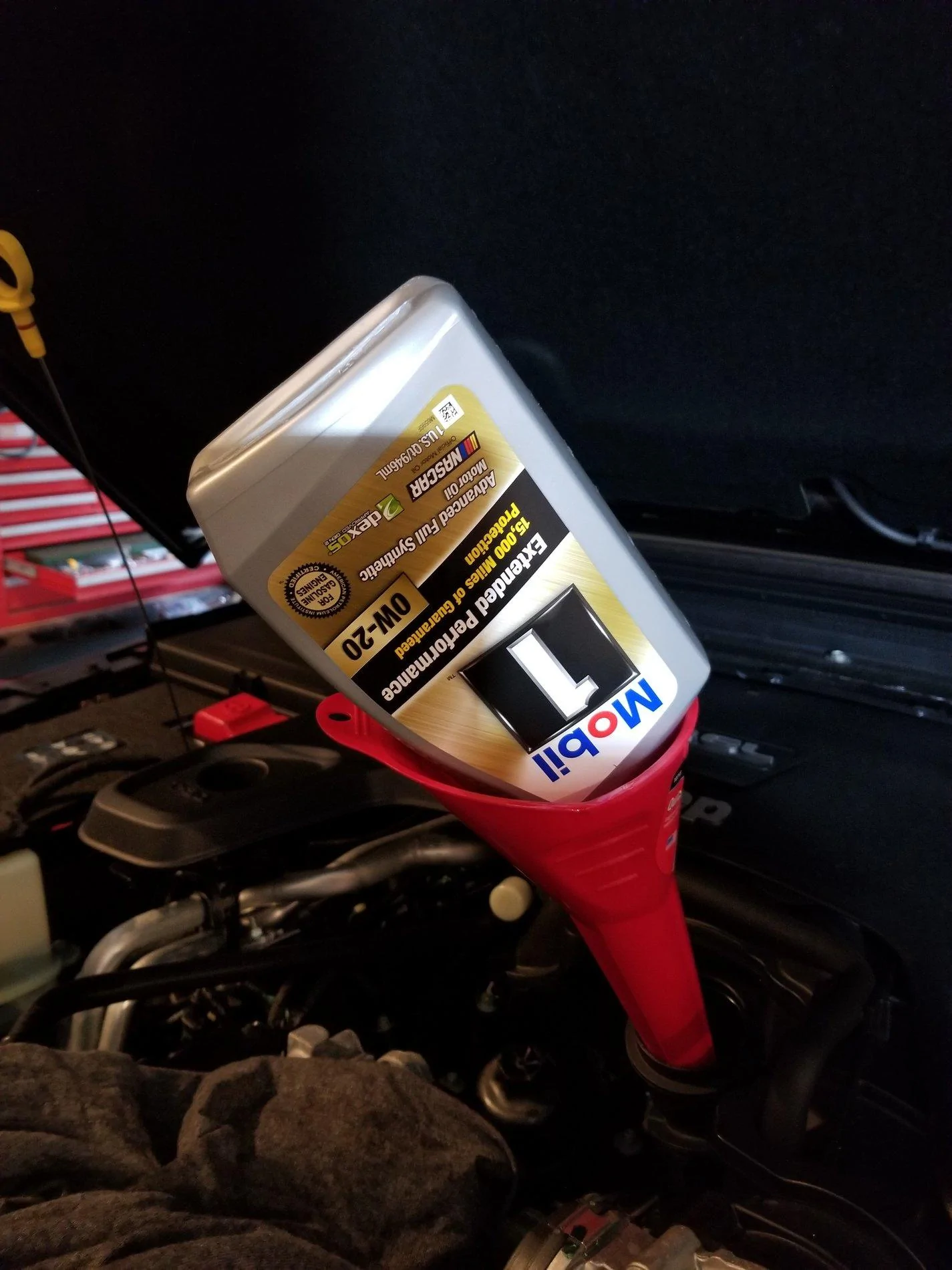

    #8 Pull dipstick, and fill with 5 quarts!
    #9 Wipe dipstick and check oil leverl (new oil is hard to see on the stick)
    #10 I drove it, got it hot, and rechecked the oil level. 5 QUARTS IS IT!

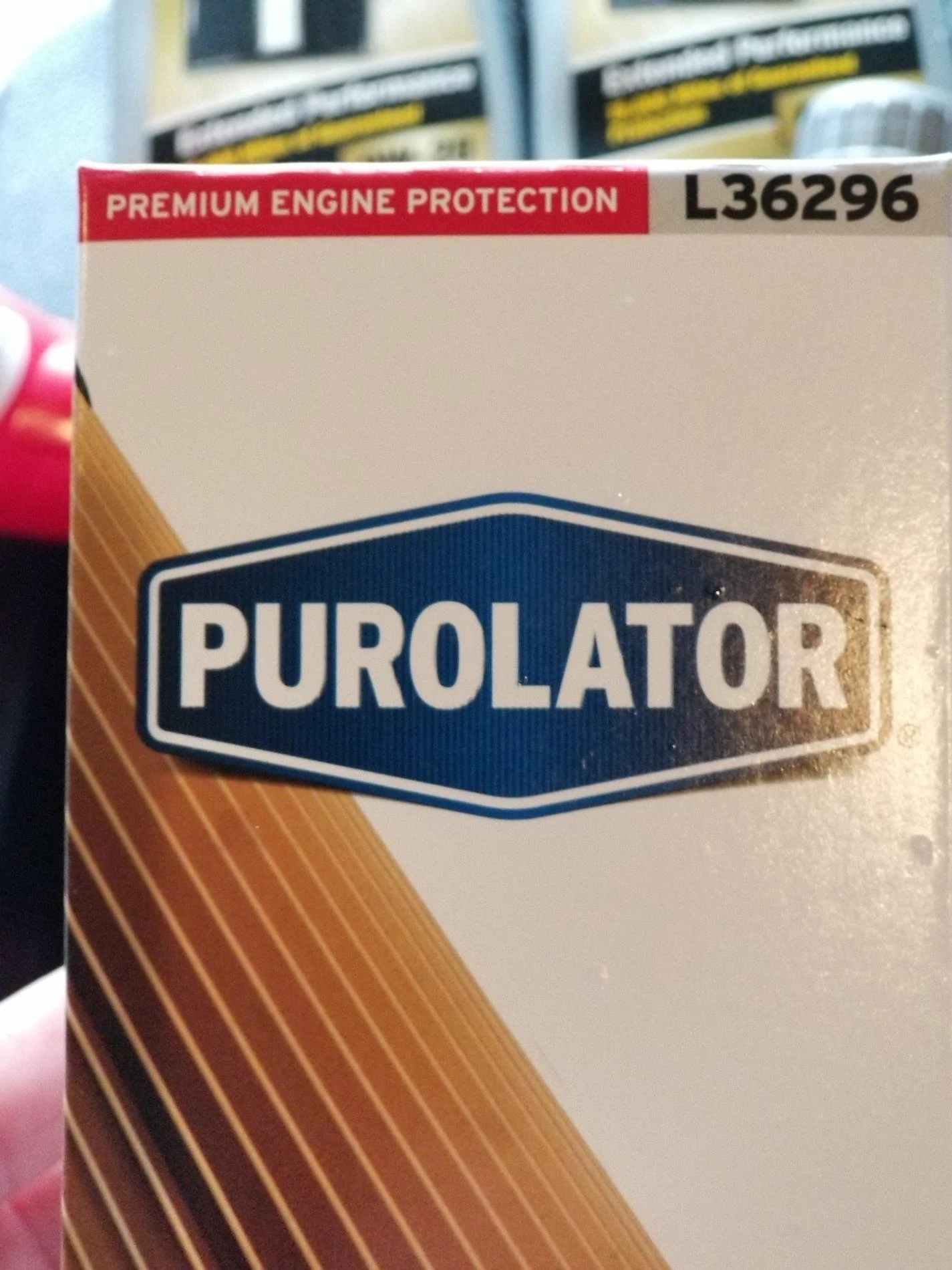

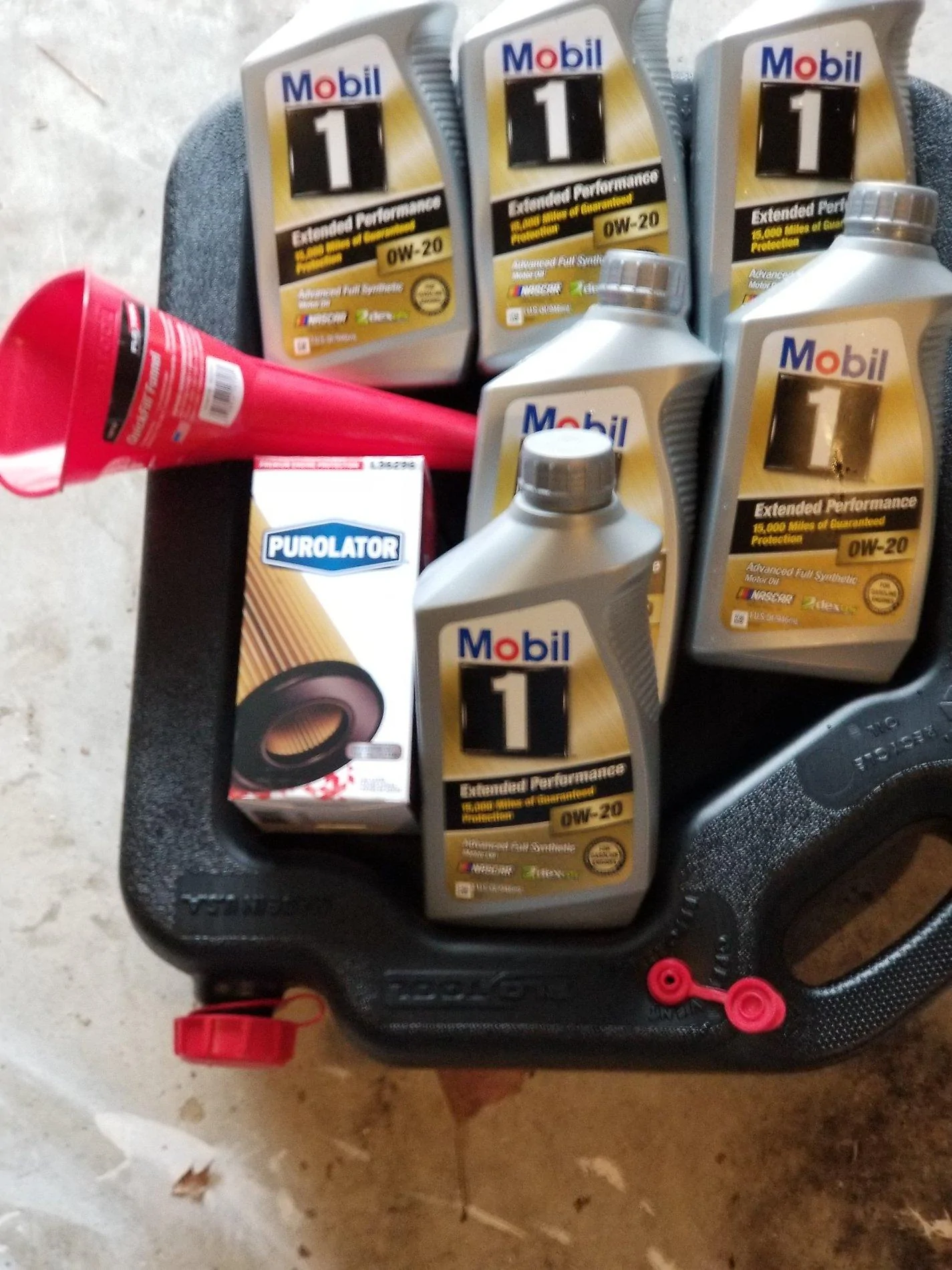

    Side notes: To get the $sale on the oil that was running I needed to buy 5 quarts with a filter ($32.99). They only had the Purolator filter. Cross referenced from Mopar # (see pics) Same filter as in the 2016 GCGC and up.

    More notes: While driving on my "get it hot" drive I I checked the cluster display under Oil Life. It still showed 86‰. After getting home I turned vehicle off, re-checked the oil level.. then put the vehicle in run mode {2 button presses with for off brake} Pressed the gas pedal to the floor 3 times, then re-checked the cluster display. It read 100‰

    Last notes: The original filter looked good after 1100 miles. The Purolator I had to get (only one they had) is rated @5k miles. So my next change may come a bit earlier than the planned 5/6k changes.

    I checked the old oil with a magnet and didn't notice any metal shavings.

    20180211_110335.jpg 20180211_132151.jpg 20180211_132128.jpg 20180211_110411.jpg 20180211_113407.jpg 20180211_114436.jpg

    Kraty1, YY1985YY, DrDee and 29 others like this.
  2. OP
    OP
    Dynomite1371

    Dynomite1371 Well-Known Member

    First Name:
    Ed
    Vehicle(s):
    2018 JLUR, Granite, Steel bumper, Safety, Cold Weather, Tow package, Premium Alpine, Black Leather and Mopar "self draining" Mats
    Joined:
    Dec 13, 2017
    Location:
    Maryland
    Posts:
    1,425
    Liked:
    2,000
    Occupation:
    Police Officer

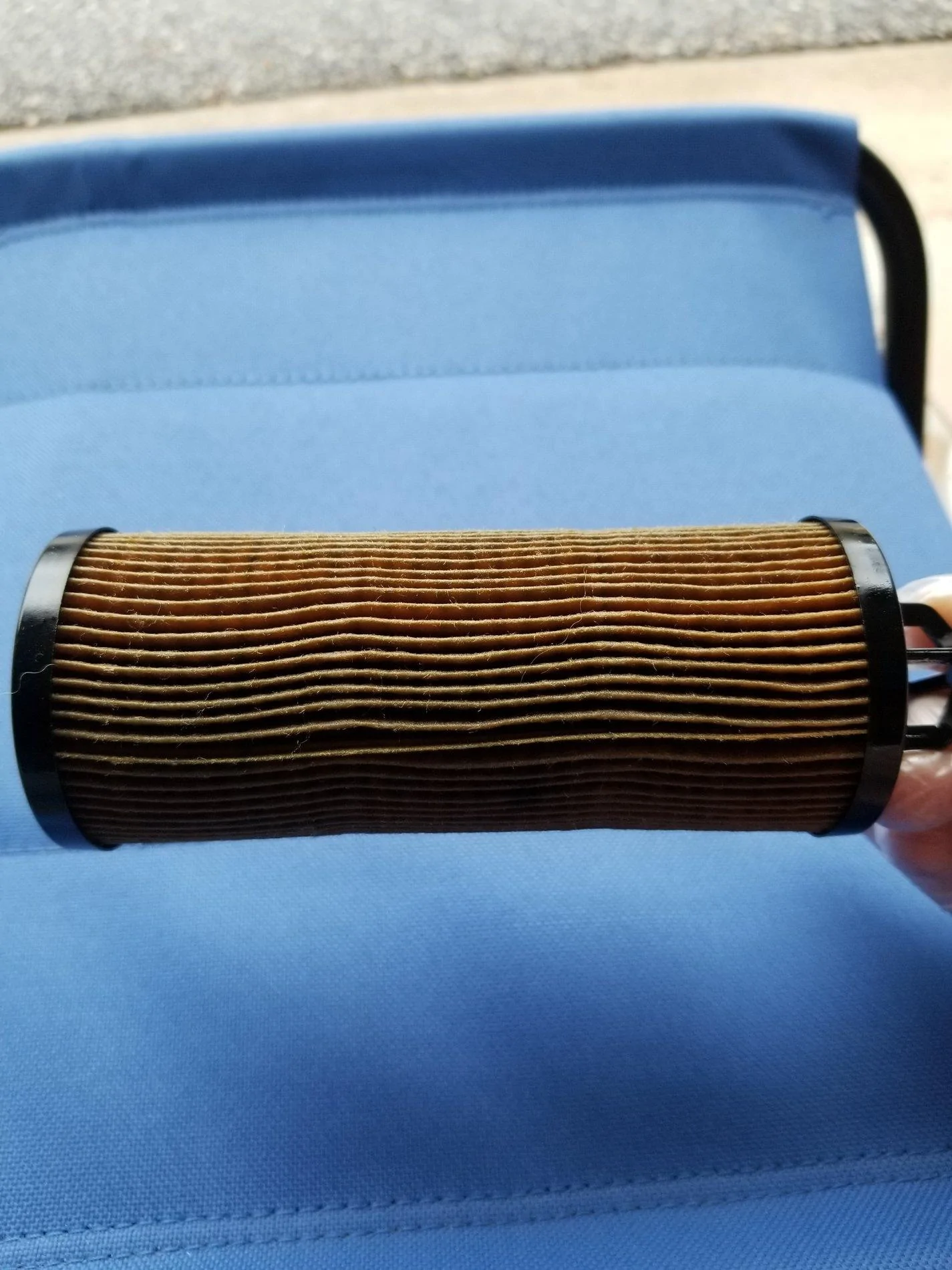

    That filter pic is the old btw. And cold starts are quiet now, not one second of knock noticed.

  3. Rambeaux

    Rambeaux Well-Known Member

    First Name:
    John J
    Vehicle(s):
    2018 Willys JKU
    Joined:
    Sep 9, 2016
    Location:
    Cajun Country
    Posts:
    175
    Liked:
    373
    Occupation:
    Aircraft Doctor
    Nice write up. Thanks for taking the time.


    DrDee, multicam, jedwards849 and 9 others like this.
  4. smuddy

    smuddy Well-Known Member

    First Name:
    shane
    Vehicle(s):
    JLUR
    Joined:
    Dec 7, 2017
    Location:
    atlanta
    Posts:
    457
    Liked:
    488
    don't you get 2 free oil changes per year with the "jeep wave" program?

  5. robplumm

    robplumm Well-Known Member

    Vehicle(s):
    2012 JKUR in Dozer
    Joined:
    Aug 14, 2017
    Location:
    Newport News, VA
    Posts:
    141
    Liked:
    73
    Interesting...qt less oil than the JK(U)?

    Same easy process obviously...

    Smarrtazz and Jeep4Life like this.
  6. FatBoy01

    FatBoy01 Banned

    Vehicle(s):
    2014 Wrangler Sahara; 2001 Harley FatBoy; 2018 Wrangler Rubicon JL (Ordered)
    Joined:
    Feb 9, 2018
    Location:
    NY
    Posts:
    1,287
    Liked:
    1,294
    Occupation:
    Retired @ 55
    #6 Feb 14, 2018
    Last edited: Mar 8, 2018
    @Ed ... Can you go to your JLU and try 13mm for oil drain plug and 24mm for oil filter cap. Unless the 2018 3.6L has changed, I think you will find the 13mm and 24mm is the way to fly.

  7. OP
    OP
    Dynomite1371

    Dynomite1371 Well-Known Member

    First Name:
    Ed
    Vehicle(s):
    2018 JLUR, Granite, Steel bumper, Safety, Cold Weather, Tow package, Premium Alpine, Black Leather and Mopar "self draining" Mats
    Joined:
    Dec 13, 2017
    Location:
    Maryland
    Posts:
    1,425
    Liked:
    2,000
    Occupation:
    Police Officer
    Yes, But I've had some issues with dealers service departments. So I'm done. Not to mention, the cost savings (after freebies) is great.

  8. OP
    OP
    Dynomite1371

    Dynomite1371 Well-Known Member

    First Name:
    Ed
    Vehicle(s):
    2018 JLUR, Granite, Steel bumper, Safety, Cold Weather, Tow package, Premium Alpine, Black Leather and Mopar "self draining" Mats
    Joined:
    Dec 13, 2017
    Location:
    Maryland
    Posts:
    1,425
    Liked:
    2,000
    Occupation:
    Police Officer
    I believe those are the correct metrics numbers you listed, I have a combo socket set that will do either or. I just chose to list the standard size, not the metric.

    WES IV, Jeep4Life and BoisetheCat like this.
  9. smuddy

    smuddy Well-Known Member

    First Name:
    shane
    Vehicle(s):
    JLUR
    Joined:
    Dec 7, 2017
    Location:
    atlanta
    Posts:
    457
    Liked:
    488
    I hear ya! I had changed my front and rear diff fluid one time. Brought it in for one of my free oil changes and they said I needed new diff fluid and graciously told me what the charge would be. Told them to suck it...that I just changed it. They obviously didn't even check to see the fluid...they just went by the maint schedule.

    Jeep4Life likes this.
  10. OP
    OP
    Dynomite1371

    Dynomite1371 Well-Known Member

    First Name:
    Ed
    Vehicle(s):
    2018 JLUR, Granite, Steel bumper, Safety, Cold Weather, Tow package, Premium Alpine, Black Leather and Mopar "self draining" Mats
    Joined:
    Dec 13, 2017
    Location:
    Maryland
    Posts:
    1,425
    Liked:
    2,000
    Occupation:
    Police Officer
  11. FatBoy01

    FatBoy01 Banned

    Vehicle(s):
    2014 Wrangler Sahara; 2001 Harley FatBoy; 2018 Wrangler Rubicon JL (Ordered)
    Joined:
    Feb 9, 2018
    Location:
    NY
    Posts:
    1,287
    Liked:
    1,294
    Occupation:
    Retired @ 55
    #11 Feb 14, 2018
    Last edited: Feb 15, 2018
    Yes, now calls for 5 quarts of oil, not 6.

    The 2018 3.6-liter Pentastar V6 offering ... engine displacement and outputs remain unchanged from 2017 at 285 horsepower (209 kW) and 260 pound-feet (353 Nm) with RPM peaks for those outputs also staying the same (6,400 and 4,800 respectively).

    Compression ratio, is 11.3:1 .

    Now rated at 17 mpg city, 23 mpg highway, 19 mpg combined (13.8/10.2/12.4 l/100km) for the standard transmission and 18/23/20 mpg (13.1/10.2/11/8 l/100km) for the automatic transmission-equipped model.

    **Above info edited at 6:20pm on 2/14/18, to correct error in compression ratio and where engine is manufactured.

  12. OP
    OP
    Dynomite1371

    Dynomite1371 Well-Known Member

    First Name:
    Ed
    Vehicle(s):
    2018 JLUR, Granite, Steel bumper, Safety, Cold Weather, Tow package, Premium Alpine, Black Leather and Mopar "self draining" Mats
    Joined:
    Dec 13, 2017
    Location:
    Maryland
    Posts:
    1,425
    Liked:
    2,000
    Occupation:
    Police Officer
    It looks like there's a reset function in the oil life cluster screen by holding "ok" button. So not sure if my oil reading just reset itself after start and stop or the old gas pedal method worked. So, once I saw 100% I did not hit the "ok button on the steering wheel.

    Smarrtazz and Jeep4Life like this.
  13. DanW

    DanW Well-Known Member

    First Name:
    Dan
    Vehicle(s):
    18 JLUR, 08 JKUR, 15 Ford Transit 350, 04 WJ 4.7, 17 Renegade, 99 Merc E430 S
    Joined:
    Mar 2, 2017
    Location:
    Indiana
    Posts:
    5,381
    Liked:
    6,160
    Garage Profiles:
    2
    Great write up! Mopar filter looked like it should! I doubt there is a vehicle made with a petrol engine that has easier oil change access than the JL.

    I'll be running the same oil on my next go around. First change will be on or about the 24th of February.

  14. OP
    OP
    Dynomite1371

    Dynomite1371 Well-Known Member

    First Name:
    Ed
    Vehicle(s):
    2018 JLUR, Granite, Steel bumper, Safety, Cold Weather, Tow package, Premium Alpine, Black Leather and Mopar "self draining" Mats
    Joined:
    Dec 13, 2017
    Location:
    Maryland
    Posts:
    1,425
    Liked:
    2,000
    Occupation:
    Police Officer
    That makes buying it easier with the 5 quart jugs. I bought 6 not knowing. Extra is good..

  15. DanW

    DanW Well-Known Member

    First Name:
    Dan
    Vehicle(s):
    18 JLUR, 08 JKUR, 15 Ford Transit 350, 04 WJ 4.7, 17 Renegade, 99 Merc E430 S
    Joined:
    Mar 2, 2017
    Location:
    Indiana
    Posts:
    5,381
    Liked:
    6,160
    Garage Profiles:
    2
    That oil will flow FAST and it sounds like the anti drainback valve is good to go!

    I tried a Mobil 1 filter on the first oil change in my JK and it had horrible dry start noise. The anti drainback valve function is crucial and easy to take for granted. The adbv in that Mobil 1 filter model of filter didn't like the mounting angle in the JK. It became a well known issue. I switched to Motorcraft FL400S and no more noise. I since switched to the Fram Ultra Guard and it does well, too.
