Door wiring harness

First Name
Eric
Joined
Jul 5, 2020
Messages
6
Reaction score
1
Location
PA
Vehicle(s)
2020 JLU Sahara
I want to change my front right lower plastic trim out.
That piece contains the door for the wiring harness. After separating wiring harness that connects to the door it looks like the other part of harness is clipped onto the trim. Hard to tell but appears to be a Xmas tree fastener holding it? Anyone ever remove this? Need to get that off to swap the trim out. Thx!!!

Last edited:

nerubi

Well-Known Member
First Name
Mike
Joined
Nov 28, 2018
Messages
4,001
Reaction score
5,280
Location
Nebraska
Vehicle(s)
2019 JLR, 2020 VW Tiguan
Occupation
Retired
Vehicle Showcase
1
I want to change my front right lower plastic trim out.
That piece contains the door for the wiring harness. After separating gather part that connects to the door it looks like the other part of harness is clipped onto the trim. Hard to tell but appears to be a Xmas tree fastener holding it? Anyone ever remove this? Need to get that off to swap the trim out. Thx!!!
Can't understand which part you are talking about. How about a picture.


Gregj

Well-Known Member
First Name
Greg
Joined
Dec 15, 2018
Messages
1,322
Reaction score
1,999
Location
West Texas
Vehicle(s)
JLU Rubicon, JLU Sport, upgrades in progress!

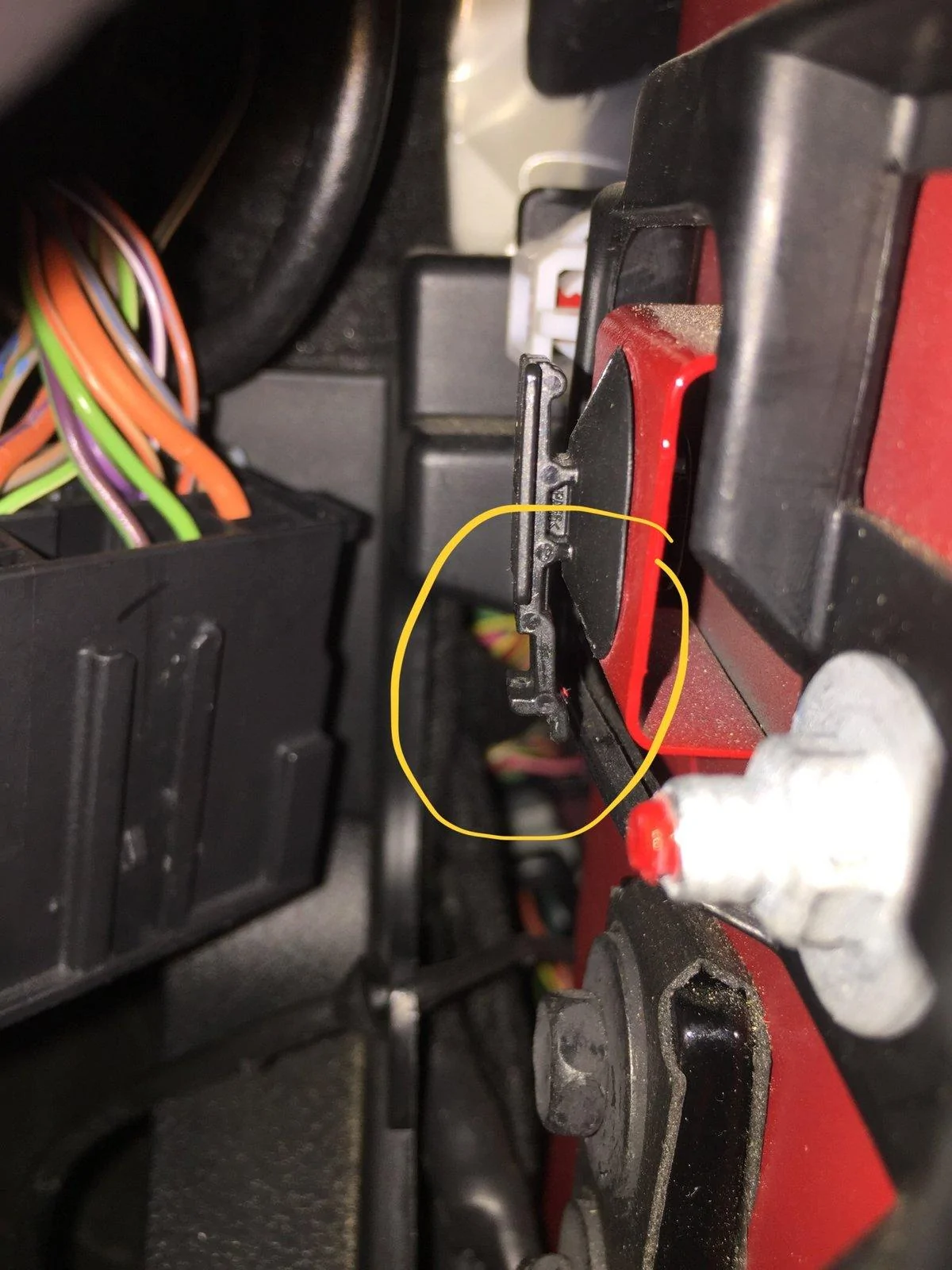

If you are talking about the body side of the door connector it is easy to release from the clip. From the bottom side the release is between the connector and the body. Use a tool (screwdriver or something similar) and press the tab towards the body and away from the connector and pull down on the connector. Circled in yellow in this picture.
