JL WRANGLER DOOR REMOVAL

Tools Needed

  • Torx #T50 Bit
  • Torx #T40 Bit
  • Ratchet
  • Torque Wrench

Front Door Removal and Reinstall (2-Door and 4-Door Models)

1. To prevent any window damage and to help make it easier to carry your doors, be sure to roll down the glass windows before you start removing your doors.

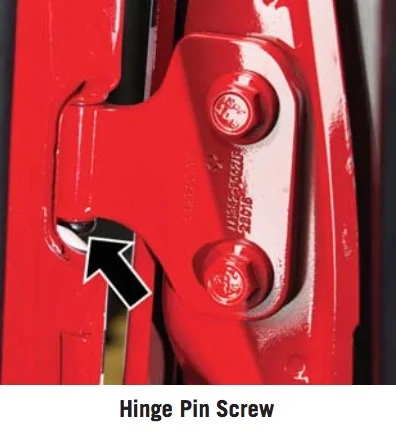

2. Use a Torx #T50 bit to remove the hinge pin screws from the upper and lower outside hinges.
NOTE: There are special holes in the cargo tray under your rear trunk floor where you can store these hinge pin screws and nuts.

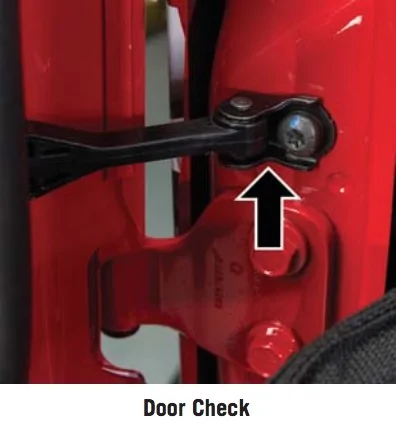

3. Use a Torx #T40 bit to remove the screw from the metal door check.

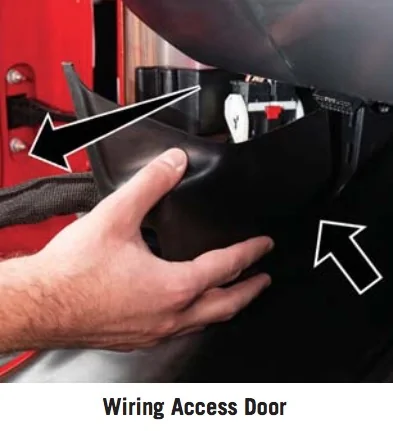

4. Remove the plastic access panel (which houses your door wiring) under your dash by sliding the plastic panel along the door frame until the tabs detach.
NOTE: Do not pry back the panel because it will break. Make sure to slide it off instead.

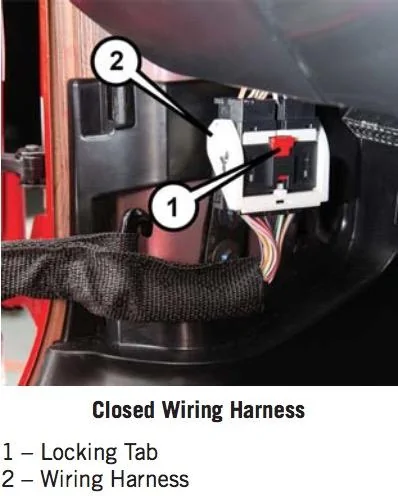

5. Unlock the now exposed wiring harness by pulling up on the red locking tab. The wiring harness and locking tab are shown in the photo below.




6. Next, push and hold down the black security tab under the wiring harness and lift the harness (white lever) into the open position.

7. With the wiring harness now open, pull downward on the wiring connector to unplug it. Store the writing connector in your lower door basket.

8. The door is now ready to be removed. With the door open, lift the door until their hinge pins clear the hinges.

9. To reinstall the door(s), perform the previous steps in the opposite order.
NOTE: The upper hinge has a longer pin, which can be used to assist in guiding the door into place when reinstalling.
NOTE: Hinge pin can break if overtightened during door reinstall (Max Torque: 10 N·m / 7.5 ft· lb).




Rear Door Removal and Reinstall (4-Door Model)

1. To prevent any window damage and to help make it easier to carry your doors, be sure to roll down the glass windows before you start removing your doors.

2. Slide your front seats to the forward most position for easier access to the rear door jam and wiring access panel.

3. Use a Torx #T50 bit to remove the hinge pin screws from the upper and lower outside hinges.
NOTE: There are special holes in the cargo tray under your rear trunk floor where you can store these hinge pin screws and nuts.

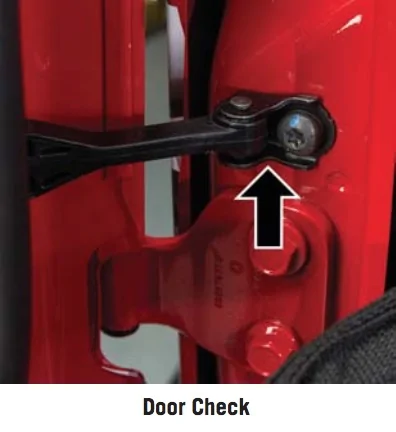

4. Use a Torx #T40 bit to remove the screw from the metal door check.

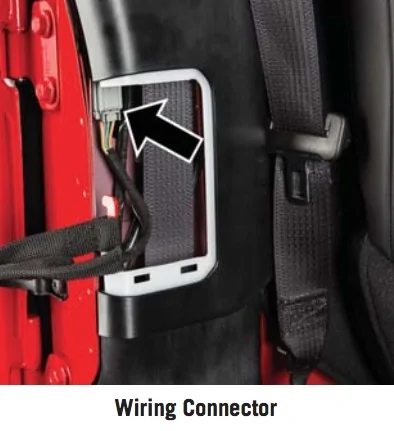

5. Locate the plastic wiring access door/panel at bottom of the B-pillar and pry open door/panel (as shown in photo below).



6. Unplug the now exposed wiring connector by squeezing the tab on the base of the wiring harness (as shown by the arrow in the photo above) and pull down to unplug the wiring harness. Store the wiring hardness in the door basket.

7. The door is now ready to be removed. With the door open, lift the door until their hinge pins clear the hinges.

8.
To reinstall the door(s), perform the previous steps in the opposite order.
NOTE: The upper hinge has a longer pin, which can be used to assist in guiding the door into place when reinstalling.
NOTE: Hinge pin can break if overtightened during door reinstall (Max Torque: 10 N·m / 7.5 ft· lb).
