DIY Door Installation Pin Guides

  1. Jebiruph

    Jebiruph Well-Known Member

    First Name:
    Jerry
    Vehicle(s):
    2018 JLU, 2000 TJ, 2019 Kl
    Joined:
    Feb 18, 2018
    Location:
    Iowa
    Posts:
    707
    Liked:
    696
    #1 Jun 4, 2019
    Last edited: Jun 4, 2019
    With all the door removal/installation taking place, I thought I'd share these door pin guides I made with 3/8 OD, 3/16 ID vacuum tube cut to 1 1/4" length. They make it much easier to install the doors. I push them on just far enough for them to stay on, then pull them off after the door is installed.

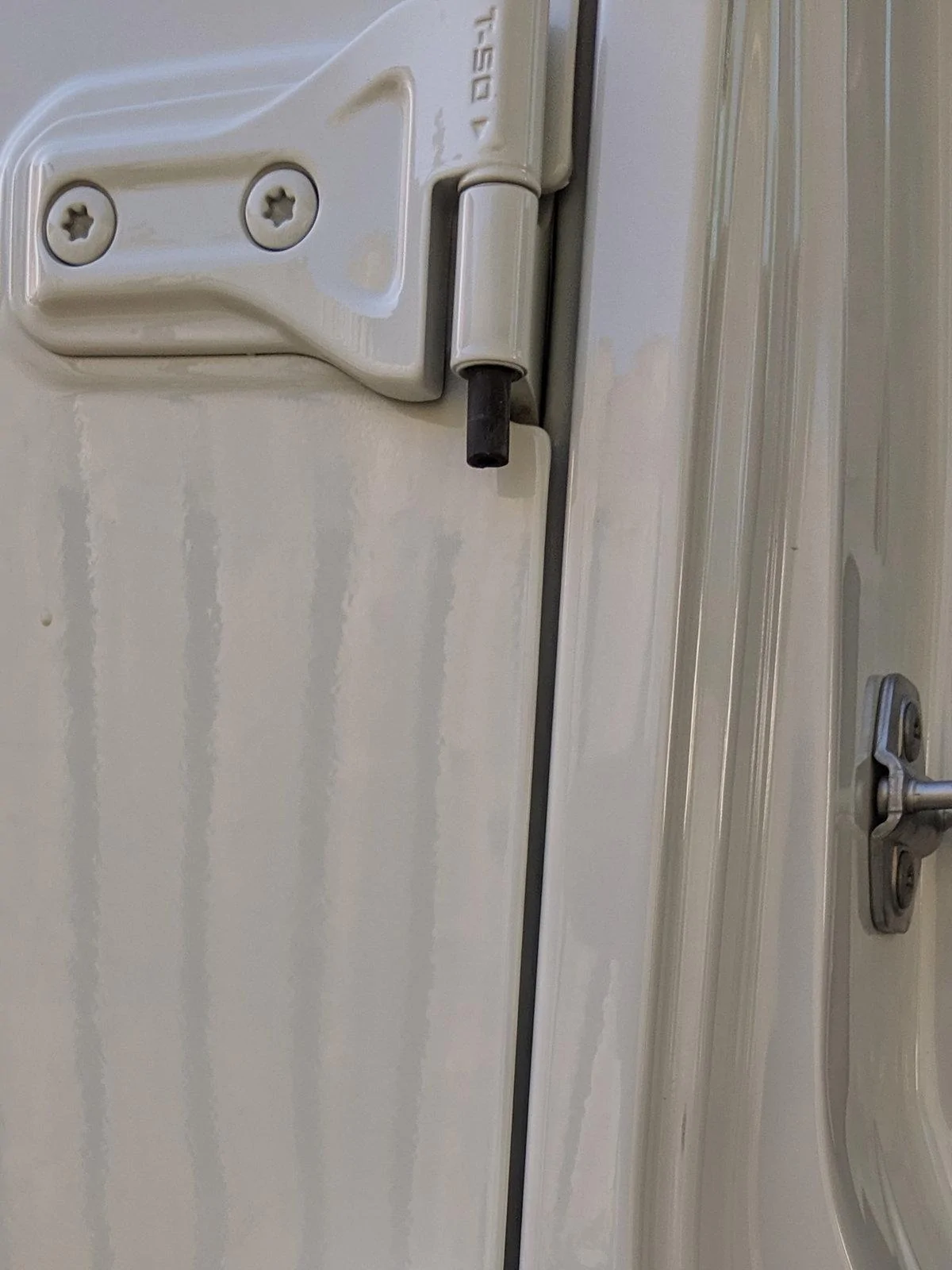

    hinge tubes 2.jpg

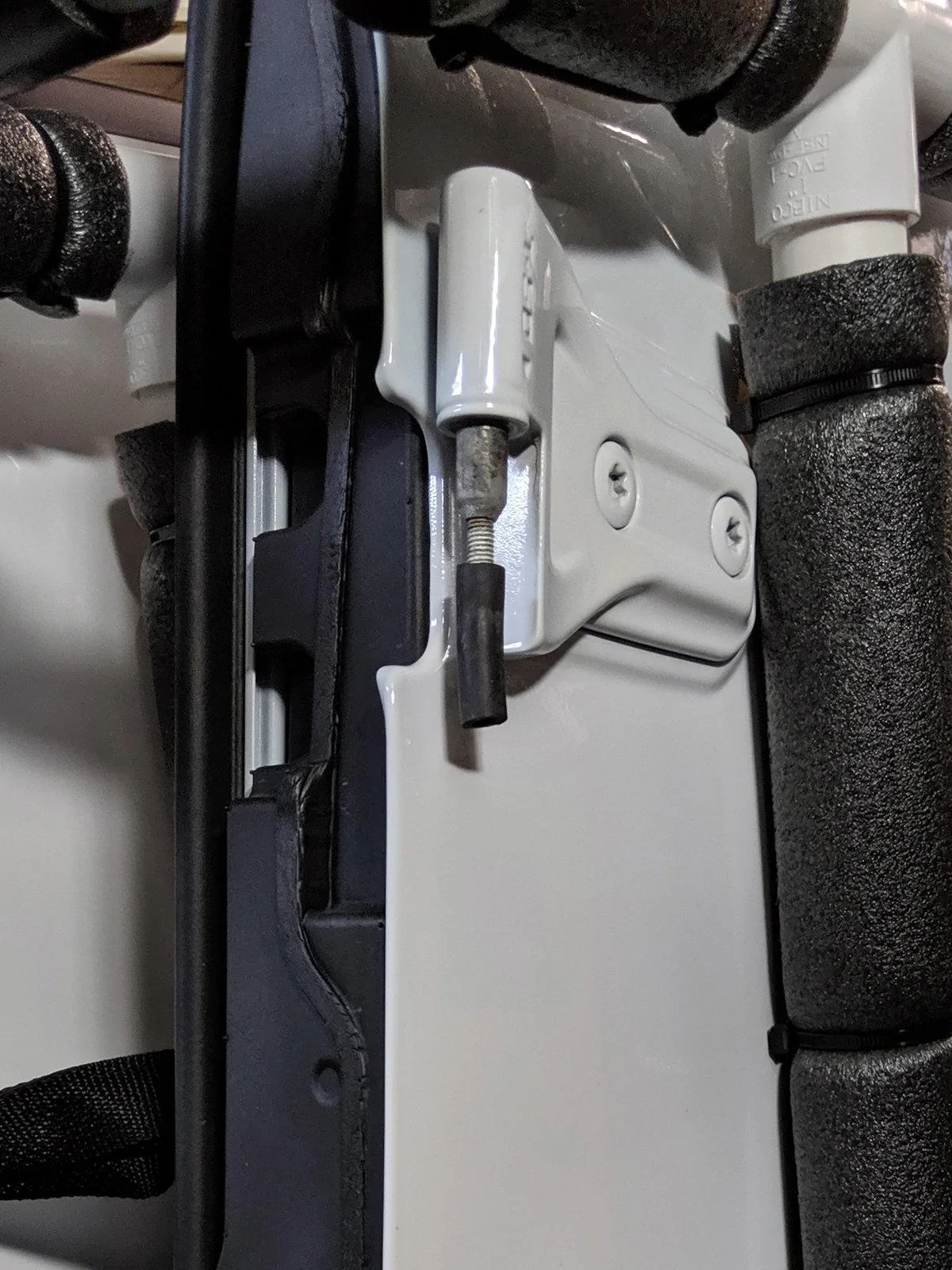

    hinge tubes 3.jpg

  2. Chocolate Thunder

    Chocolate Thunder Well-Known Member

    Vehicle(s):
    2019 Wrangler Unlimited Rubicon
    Joined:
    Feb 20, 2018
    Location:
    Texas
    Posts:
    1,937
    Liked:
    2,265
    I’ve only removed the doors a few times, but how does this help make it easier?

  3. RichD

    RichD Well-Known Member

    First Name:
    Rich
    Vehicle(s):
    2018 Sport S
    Joined:
    Jul 22, 2018
    Location:
    Boston
    Posts:
    171
    Liked:
    114
    I imagine that it let's you line up the pins to the hole without damaging the hinge or the threads. Great idea Jerry!

    Jebiruph likes this.
  4. OP
    OP
    Jebiruph

    Jebiruph Well-Known Member

    First Name:
    Jerry
    Vehicle(s):
    2018 JLU, 2000 TJ, 2019 Kl
    Joined:
    Feb 18, 2018
    Location:
    Iowa
    Posts:
    707
    Liked:
    696
    This is correct. There's no metal to metal contact when trying to align the pins to the hinges.

  5. OP
    OP
    Jebiruph

    Jebiruph Well-Known Member

    First Name:
    Jerry
    Vehicle(s):
    2018 JLU, 2000 TJ, 2019 Kl
    Joined:
    Feb 18, 2018
    Location:
    Iowa
    Posts:
    707
    Liked:
    696
    And now that I think about, I should have made a slanted cut to make it easier to "spear" the guide into the hinge.

  6. Chocolate Thunder

    Chocolate Thunder Well-Known Member

    Vehicle(s):
    2019 Wrangler Unlimited Rubicon
    Joined:
    Feb 20, 2018
    Location:
    Texas
    Posts:
    1,937
    Liked:
    2,265
    Oh! Now I see. I didn’t have a problem because the doors are pretty light, but I can see how that might be an issue for some people especially if you’re doing it in the dark or it’s windy etc.

  7. OffroadTreks

    OffroadTreks Well-Known Member

    First Name:
    Mike
    Vehicle(s):
    2018 Jeep JLU 2.0TE
    Joined:
    May 13, 2019
    Location:
    Boise, Idaho
    Posts:
    239
    Liked:
    282
    Garage Profiles:
    1
    I didn't realize people had difficulty aligning two pins.
