Hello all!

This is not my idea: i've seen a few guys do it and i really liked it, so wanted to show my process in this. I am not a painting pro, so dont take this process as bible. Just wanted to put out my ideas, even if it's just a starting place for others.

Tools Needed (I will explain all as we go)
  • Spray Paint (Paint matched)
  • Spray Paint (Primer) Optional depending on color
  • Spray Paint (Clear Coat)
  • Exacto Knife
  • Painters Tape
  • Trim Tool or FlatHead
  • (Optional)
  • M4x16mm screws
  • #10 Washers
  • Black touch up paint
First remove the speaker grills. The fronts are held in by clips. Simply use a trim tool or flathead to pry up. They should come off easily. The rears are help in by 4 screws each - 4.5mm allens will get these out.

Be sure to wipe your grills down with a degreaser/cleaner and wipe with water.

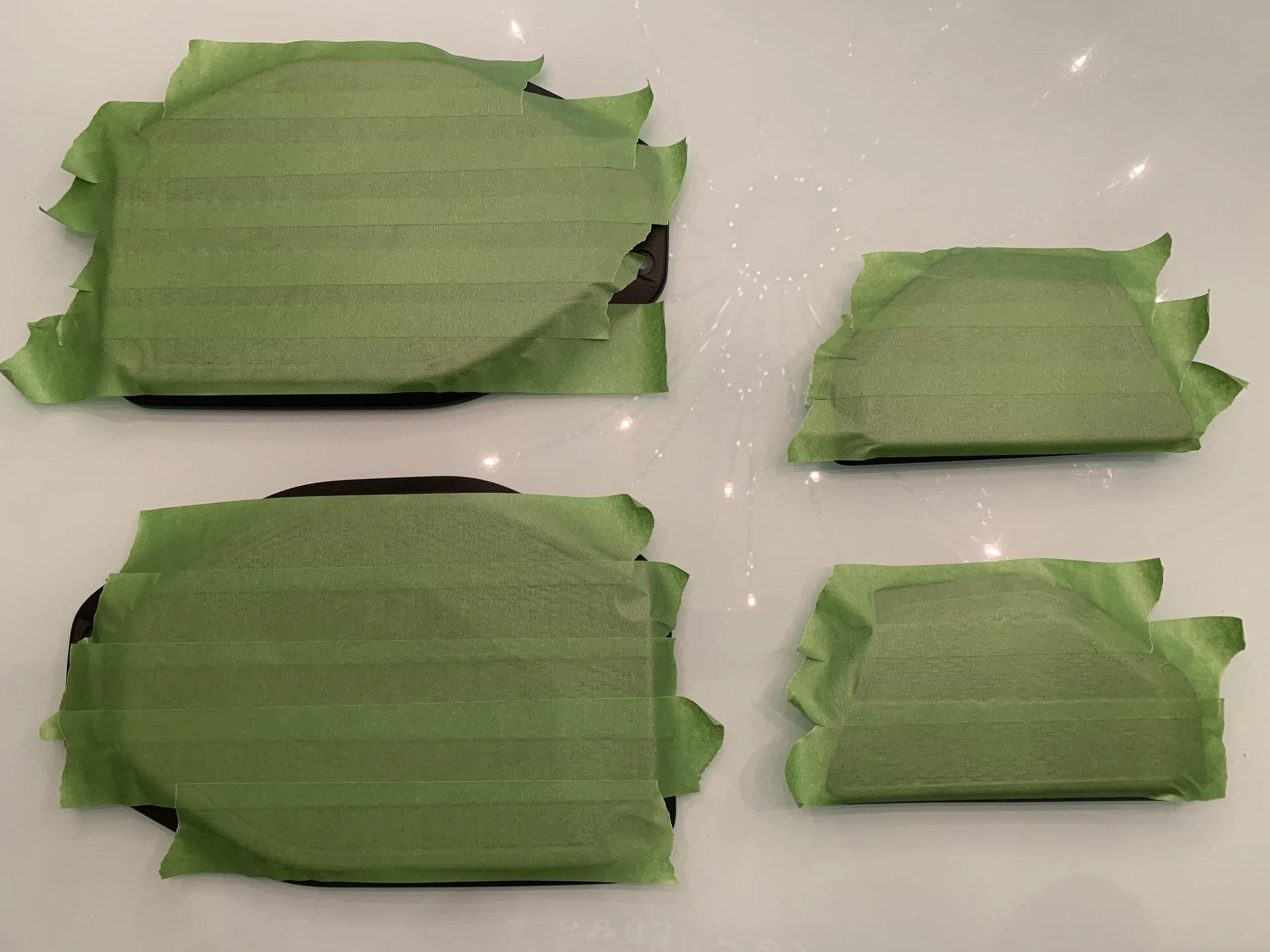

Once you have the grills removed, we'll use painters tape to cover the all grills:

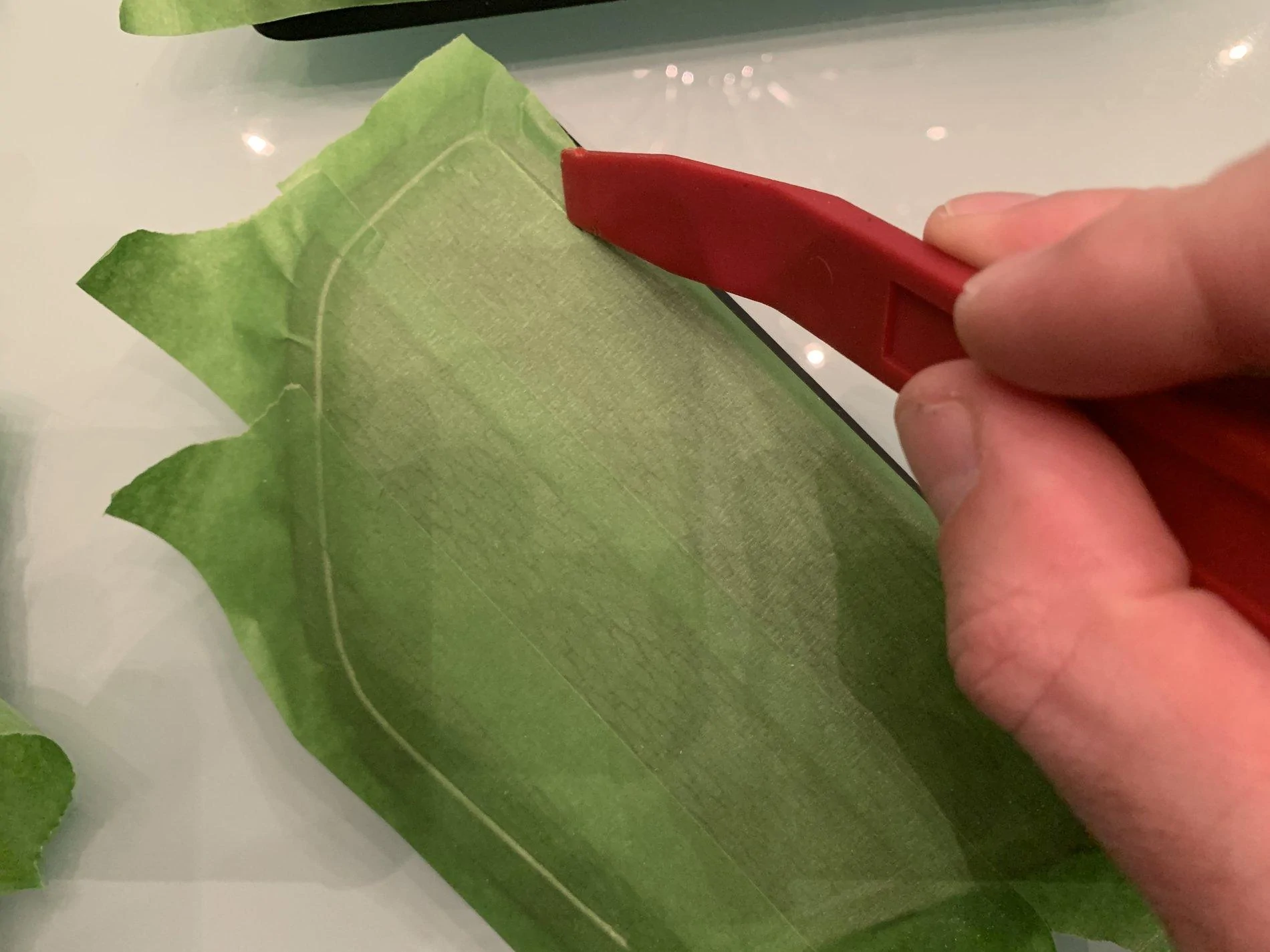

Using a trim tool or flathead, push down and follow the "indents" around the grill. This will help to cut the painters tape (to shape):

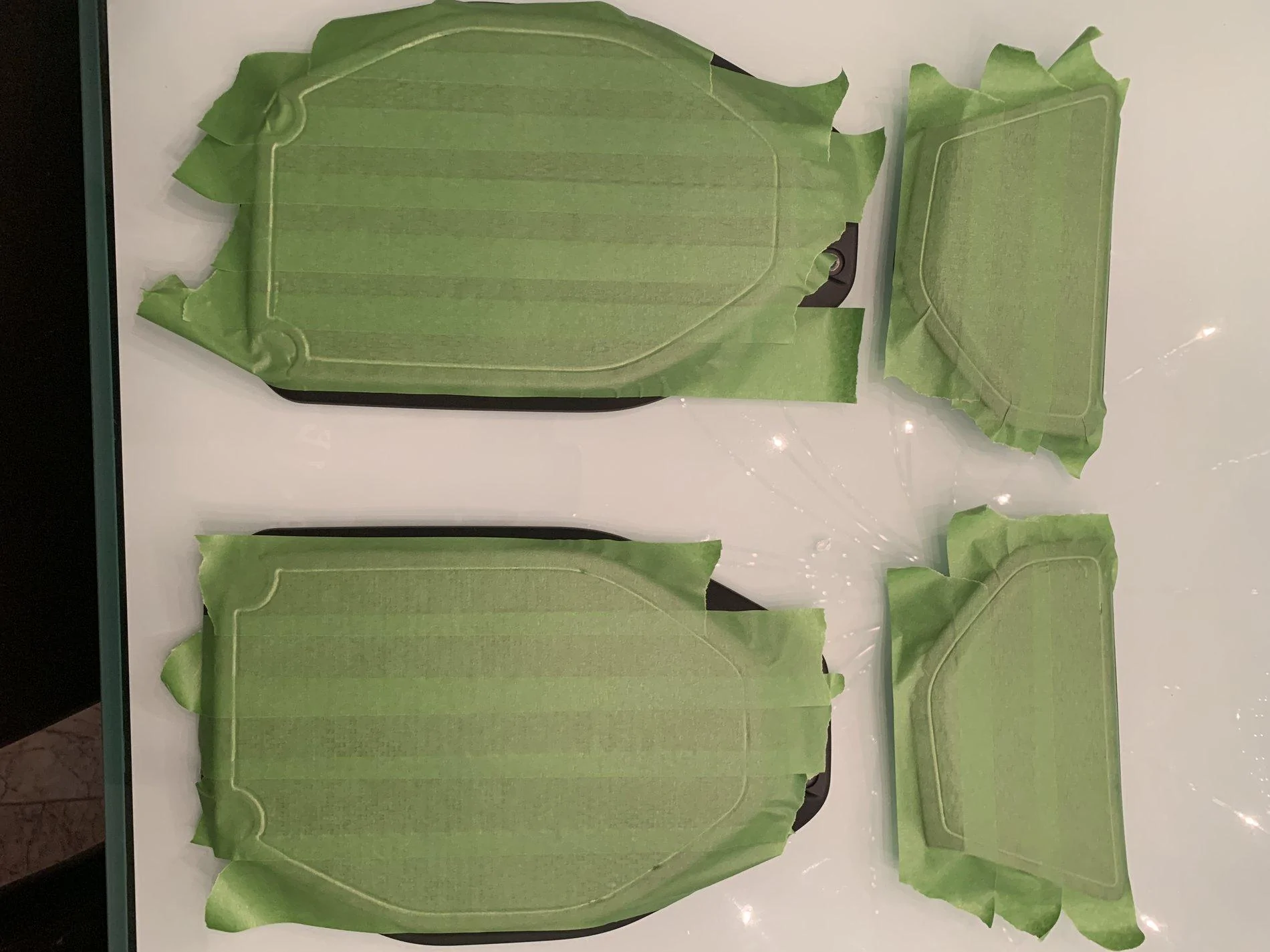

Showing all grills with pushed down indents:

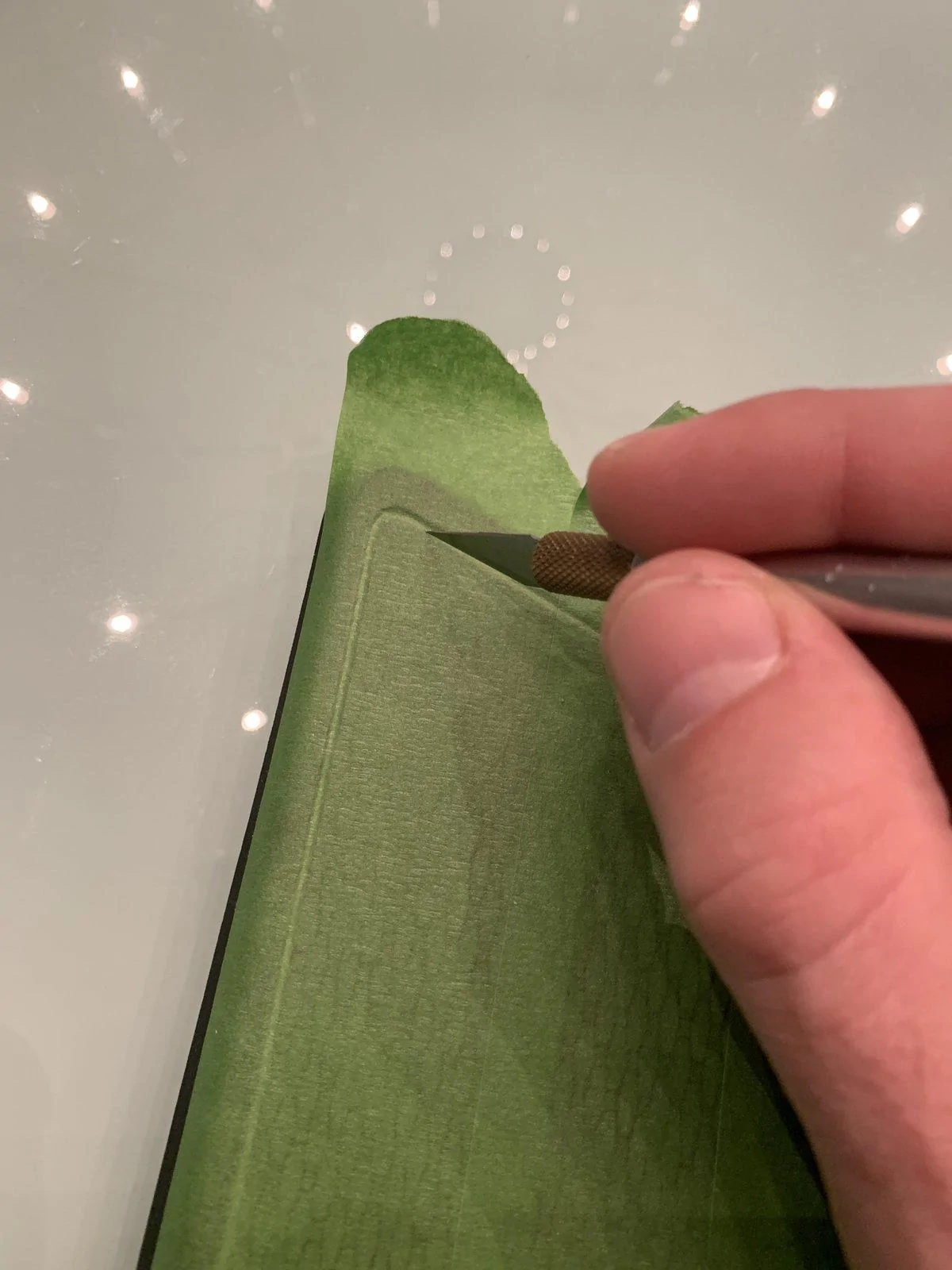

Take your exacto knife and follow your indents, to create the shape of where the paint will land:

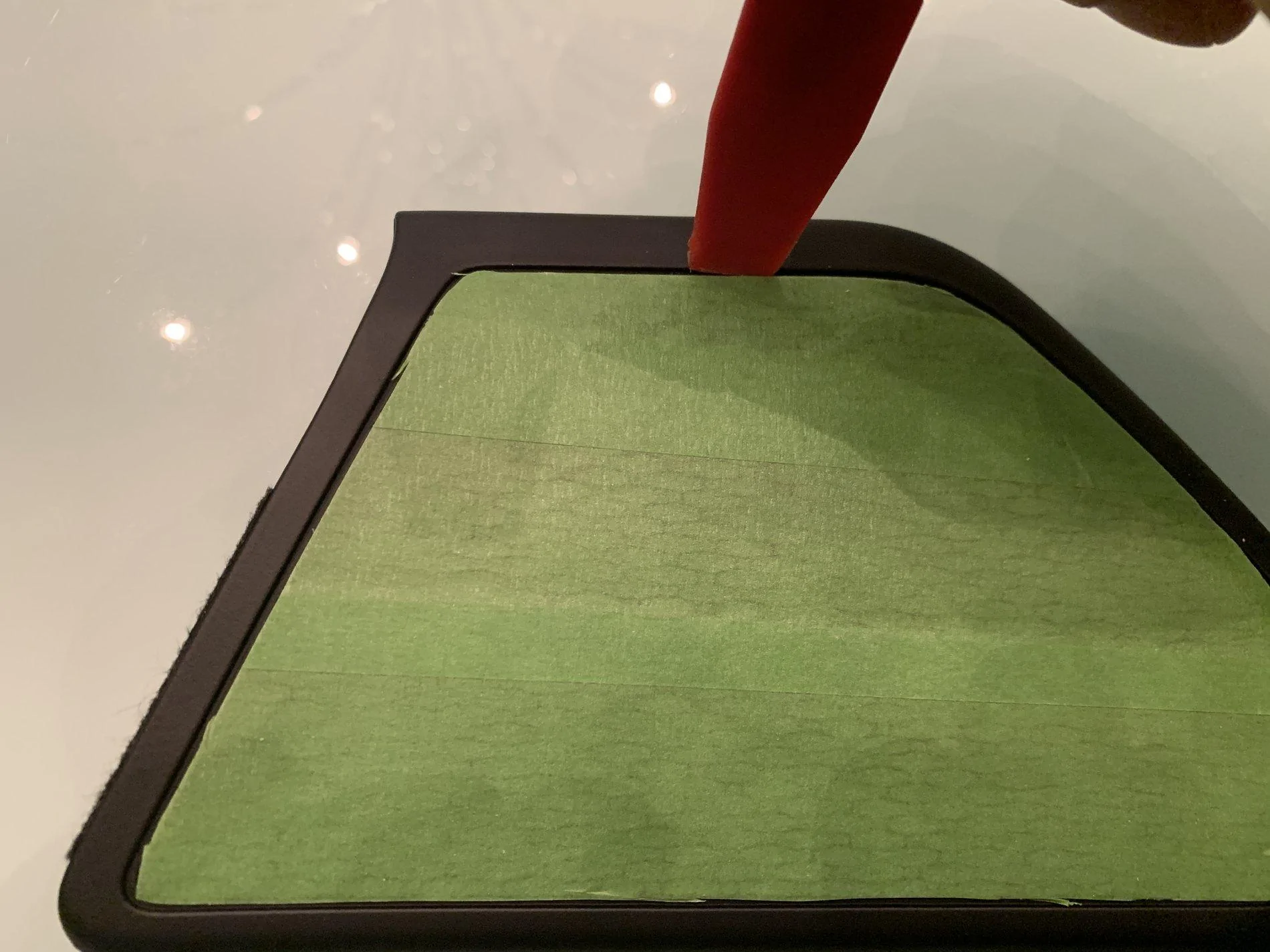

After you cut and pull away the tape, the tape might not be exactly close to the ridge (depending on how well you cut). Use a trim tool to "run the channel" or push the tape back towards the middle:

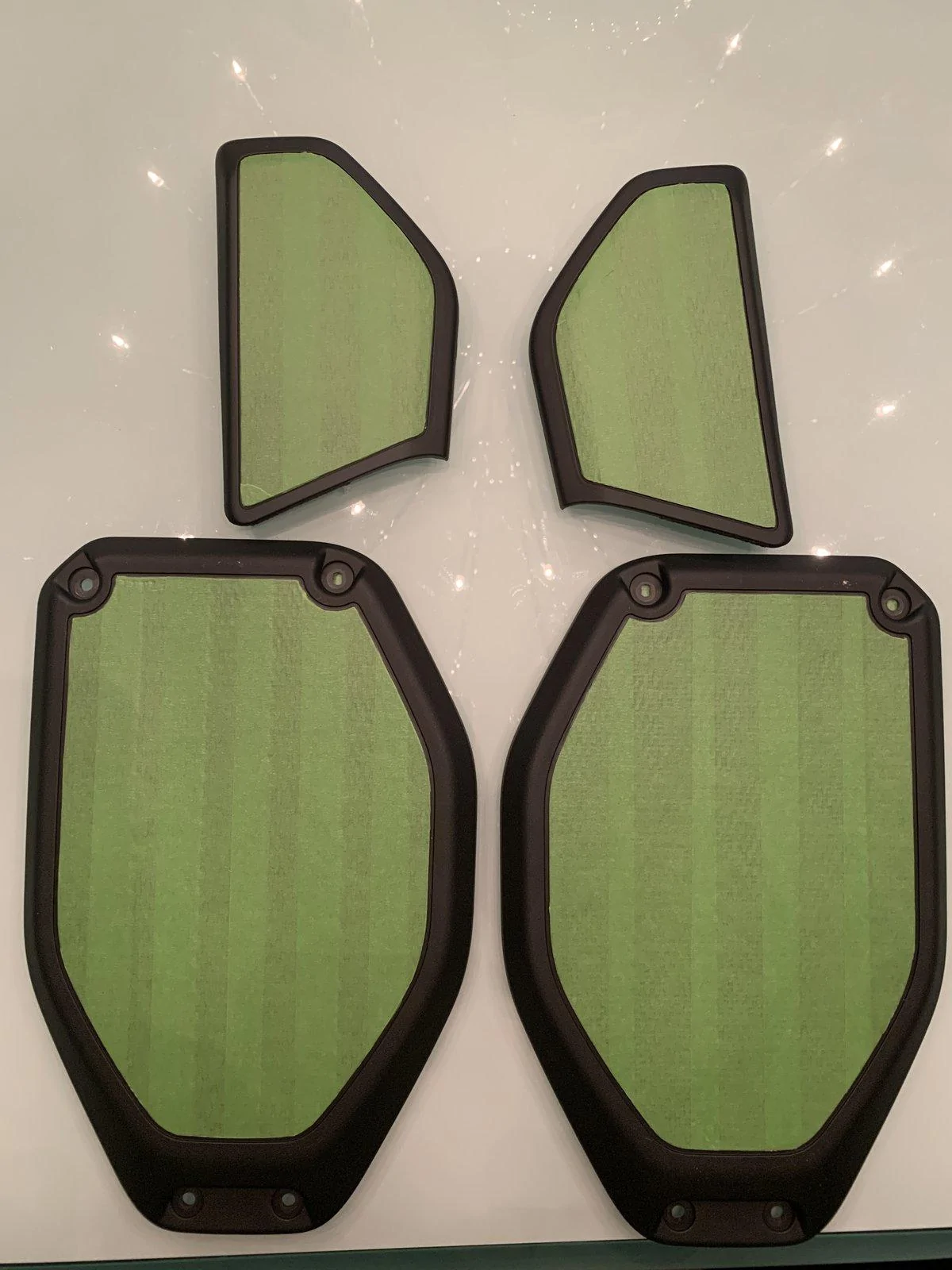

All 4 trimmed and prepped. Ready for paint. Be sure to give 1 last wipedown with water (Soap if you feel the need)

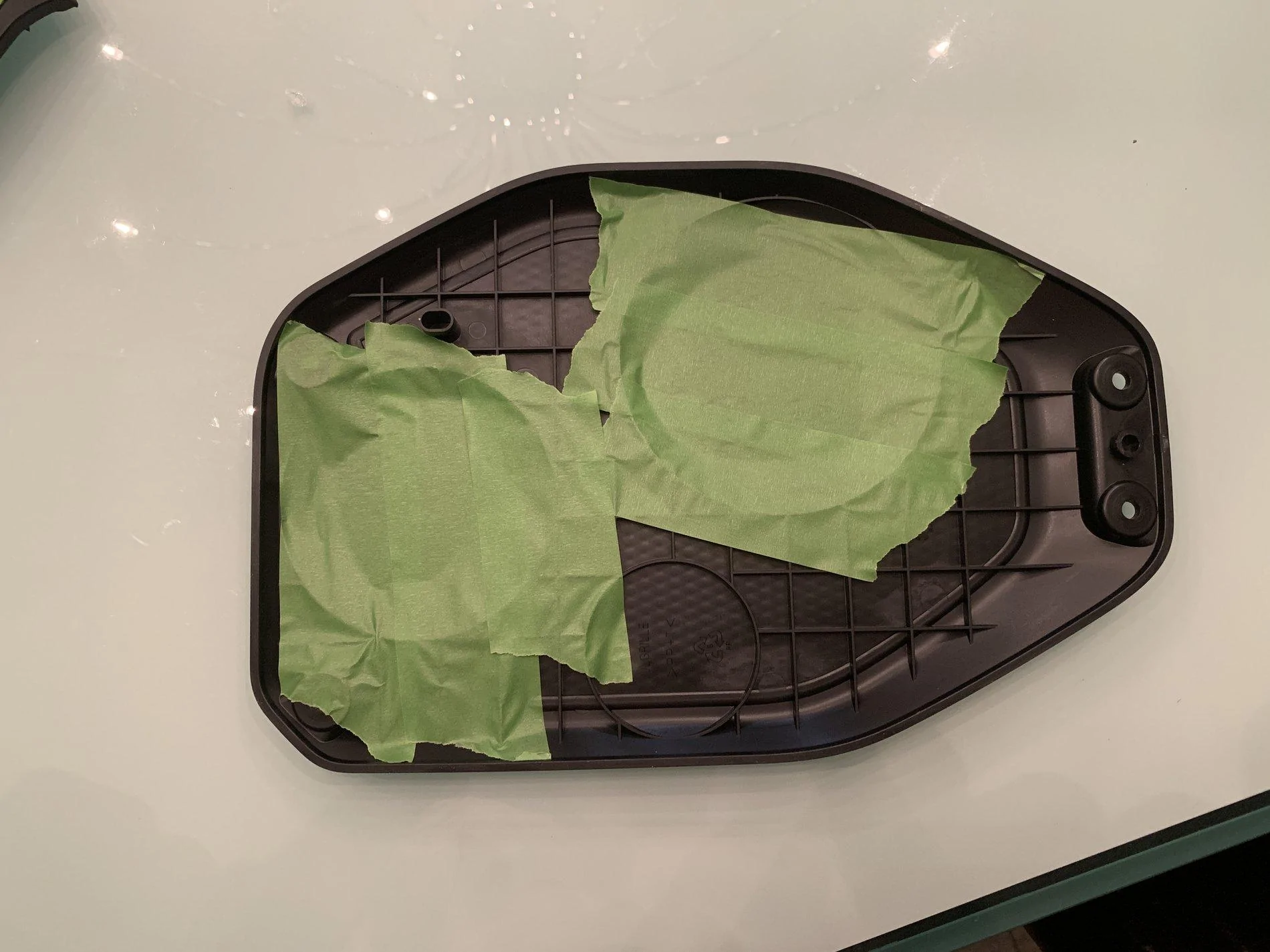

For the rear grills, i would suggest taping the speaker holes on the back of the grill. It will help spray not come back up and accidentally show paint on the grill (from the underside). You shouldn't have to worry about the fronts:


Since the front grills have tabs, they are already elevated, but i would suggest using something to elevate the rears, so paint is not adhering to both your grill and your painting surface. I used a cut 2x4 and an old box of plugs. (You can see how i already did my Mojito grills in this pic):


READY TO PAINT.
I bought color-matched paint from paintscratch.com. 1 can should do all 4 grills.
I bought clearcoat from Amazon.- https://www.amazon.com/gp/product/B00W2D806Y/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1. You should only need 1/2 can for 4 grills.

NOTE - Besides the Hyper White, i would suggest using a white primer as a base. My Mojito turned out great, but i can tell that it's "slightly" darker than my Jeep's Mojito. If i were to do this again, i would prime first.

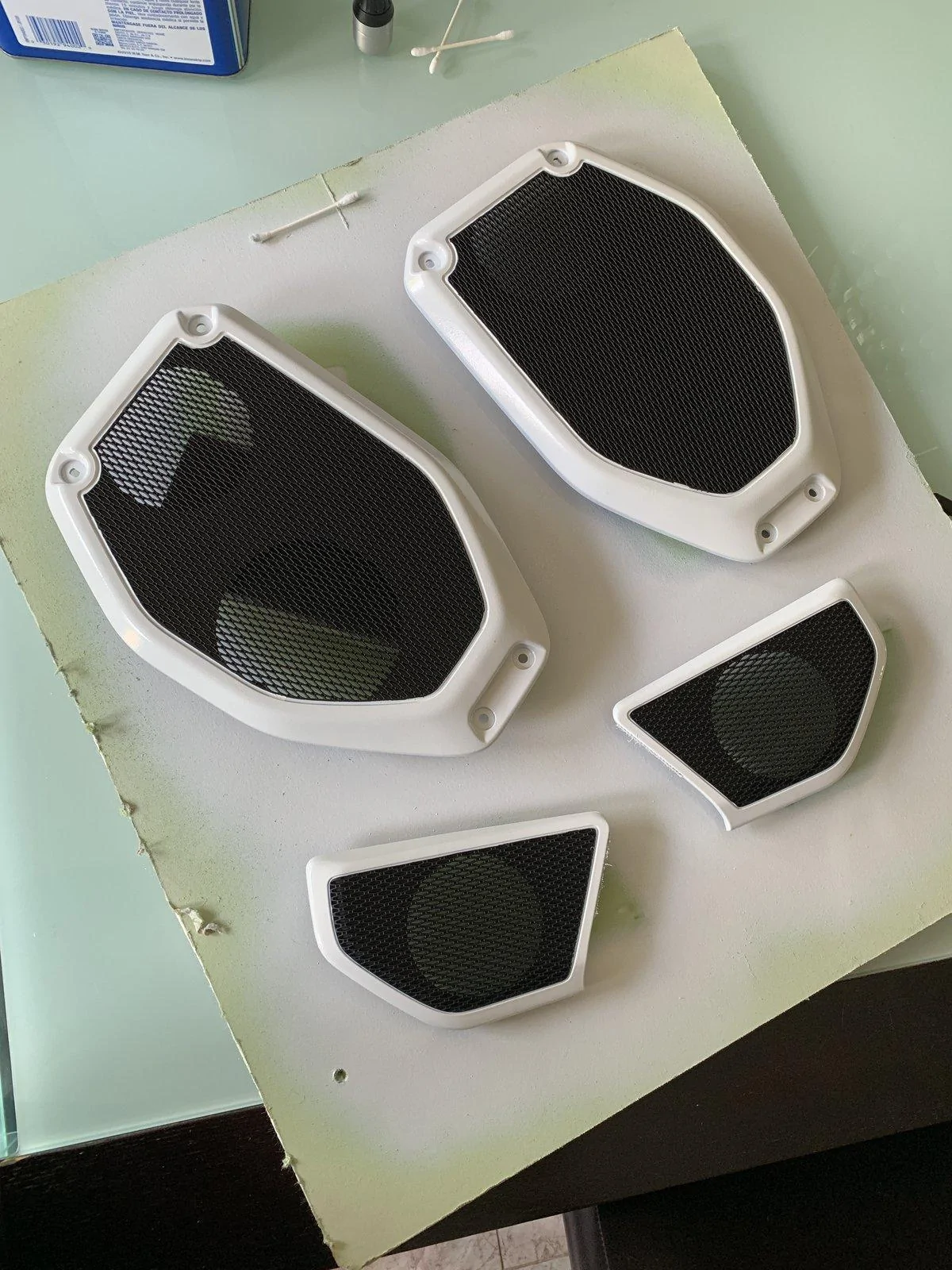

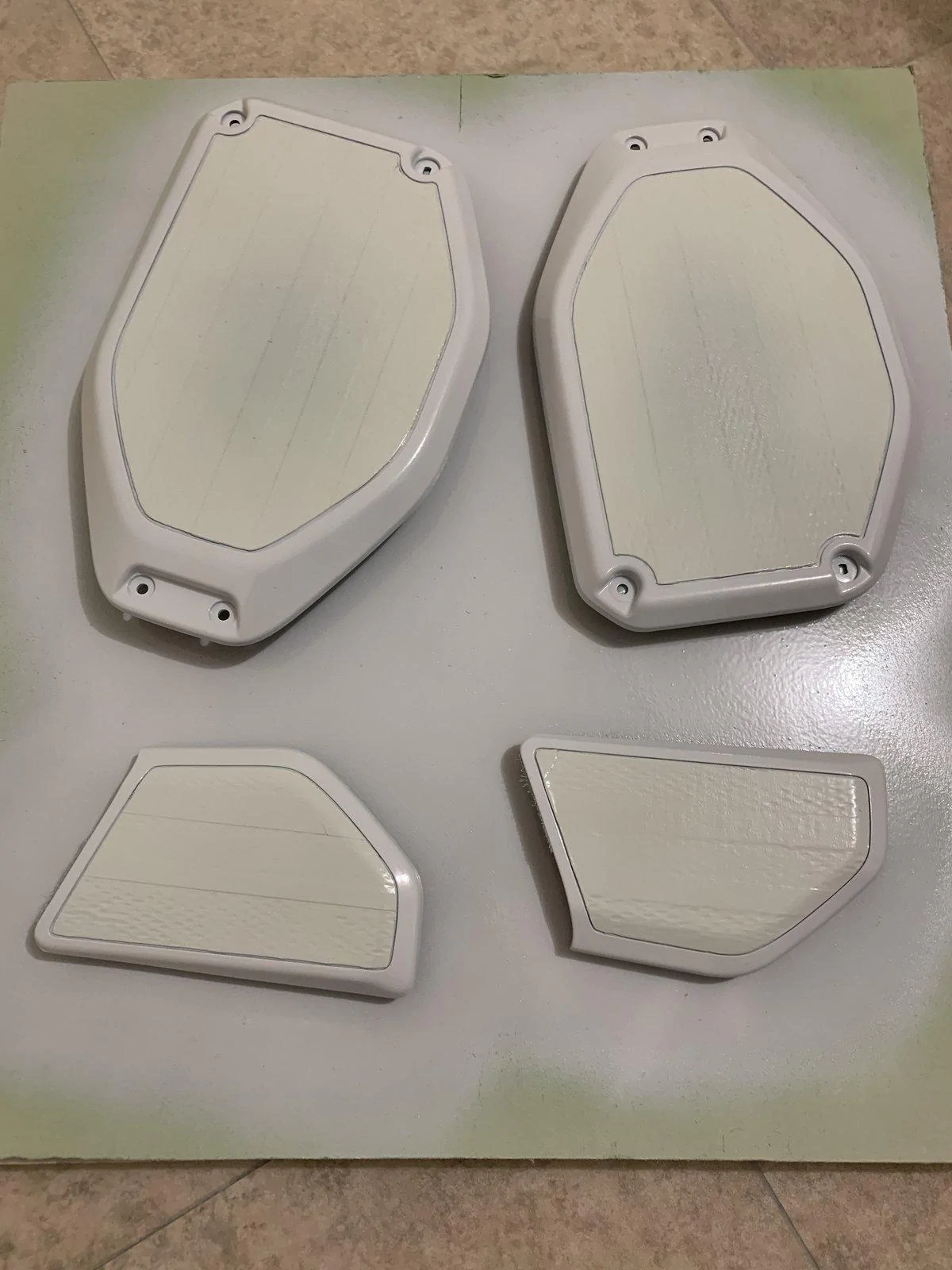

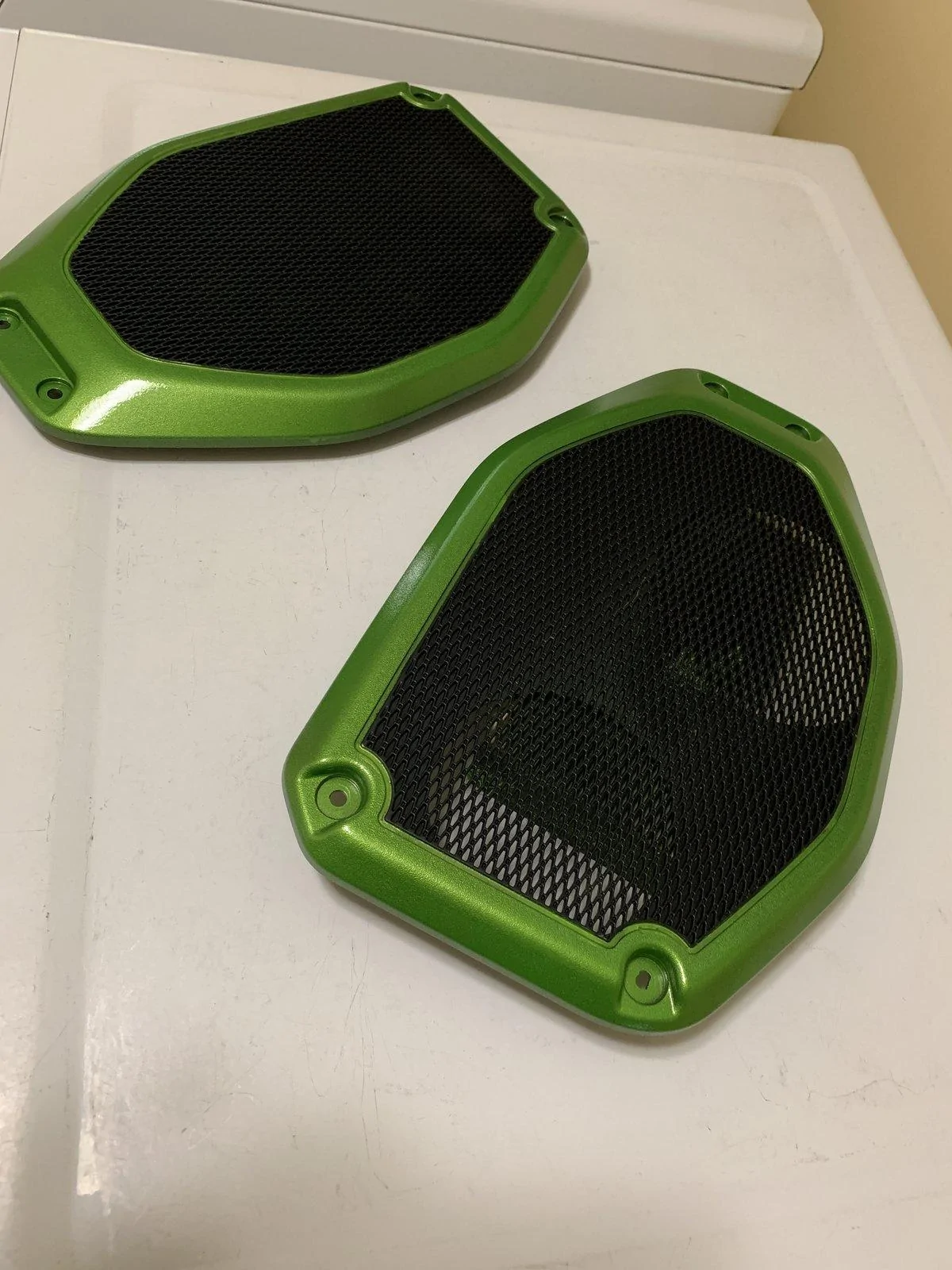

Make sure to shake your cans properly prior to spray and during the spraying process. Hold the can about 10-12 inches from the grills, make sure to use nice even strokes and fully depress the spray nozzle. I did 2 coats at the same time, rotating around the grills as i went. The point of the 2 coats was to make sure that i was spraying everything, the screw holes and the bottoms of the outside - wanted to make sure that i had good even coverage. I did 4 rounds total of color - 4 double rounds, based on my comment above. I did 2 rounds of clear. I painted color 1 day and let dry overnight, then did the clear the next day and let dry overnight:

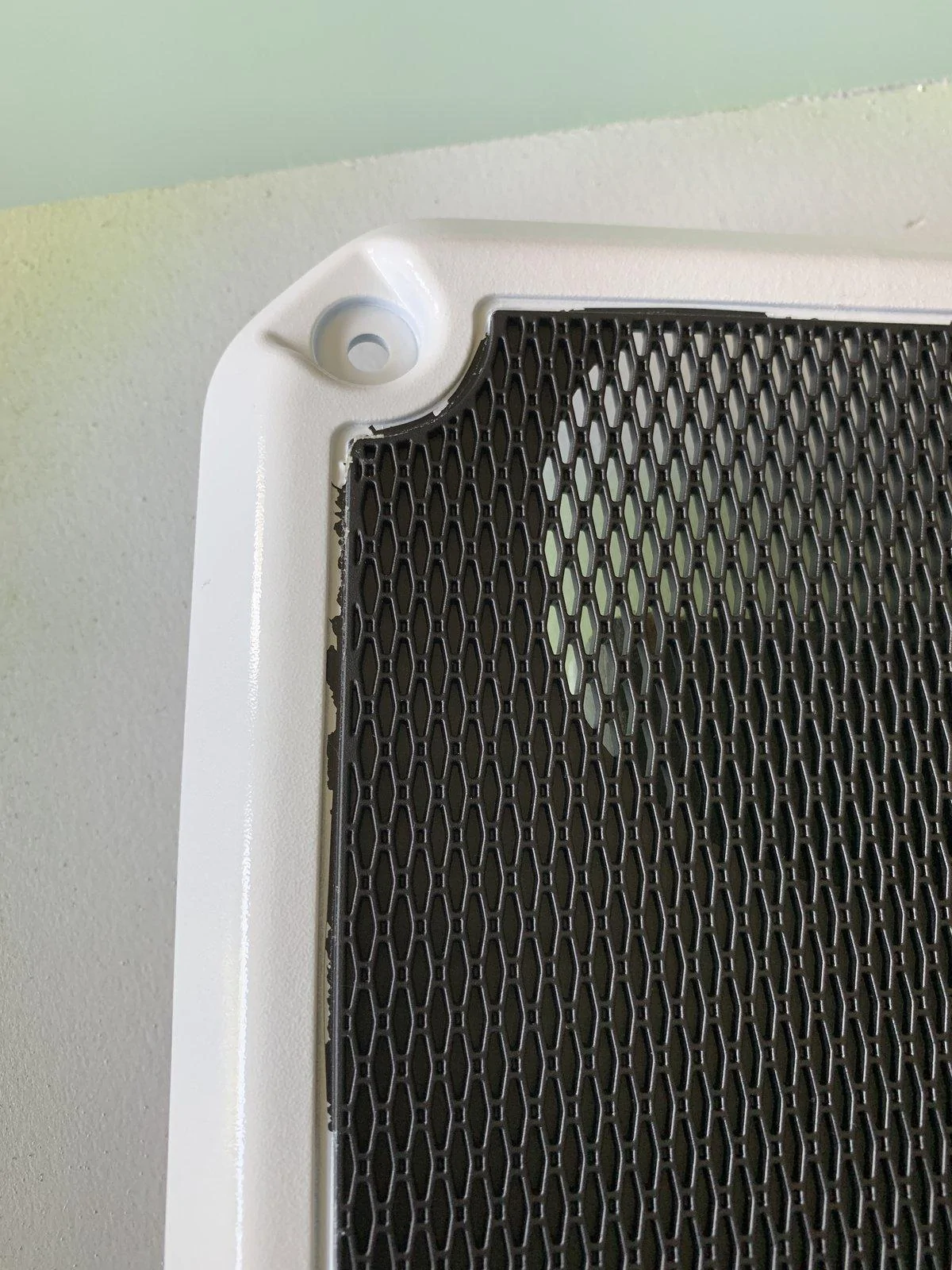

When you remove the tape, it may pull some paint from the channels:


I used a touchup pen to paint these. I only did 1 coat, but feel free to do more. A steady hand wins on this one. Paint thinner and a Qtip will help with any unwanted paint that happened to get on your grill:





Here's an optional section. I didnt want to use the same chrome screws that came off of the grills and i liked the contrast of black, so i ordered some new screws (from eBay). They are M4-16mm button head socket cap - https://www.ebay.com/itm/M4-0-70-x-...hash=item1cb5ec8db3:m:mwB3pnP3O3P4WwEr_ZUA5xQ

I also used some #10 washers and painted those (twice) with scrap black gloss touchup paint:

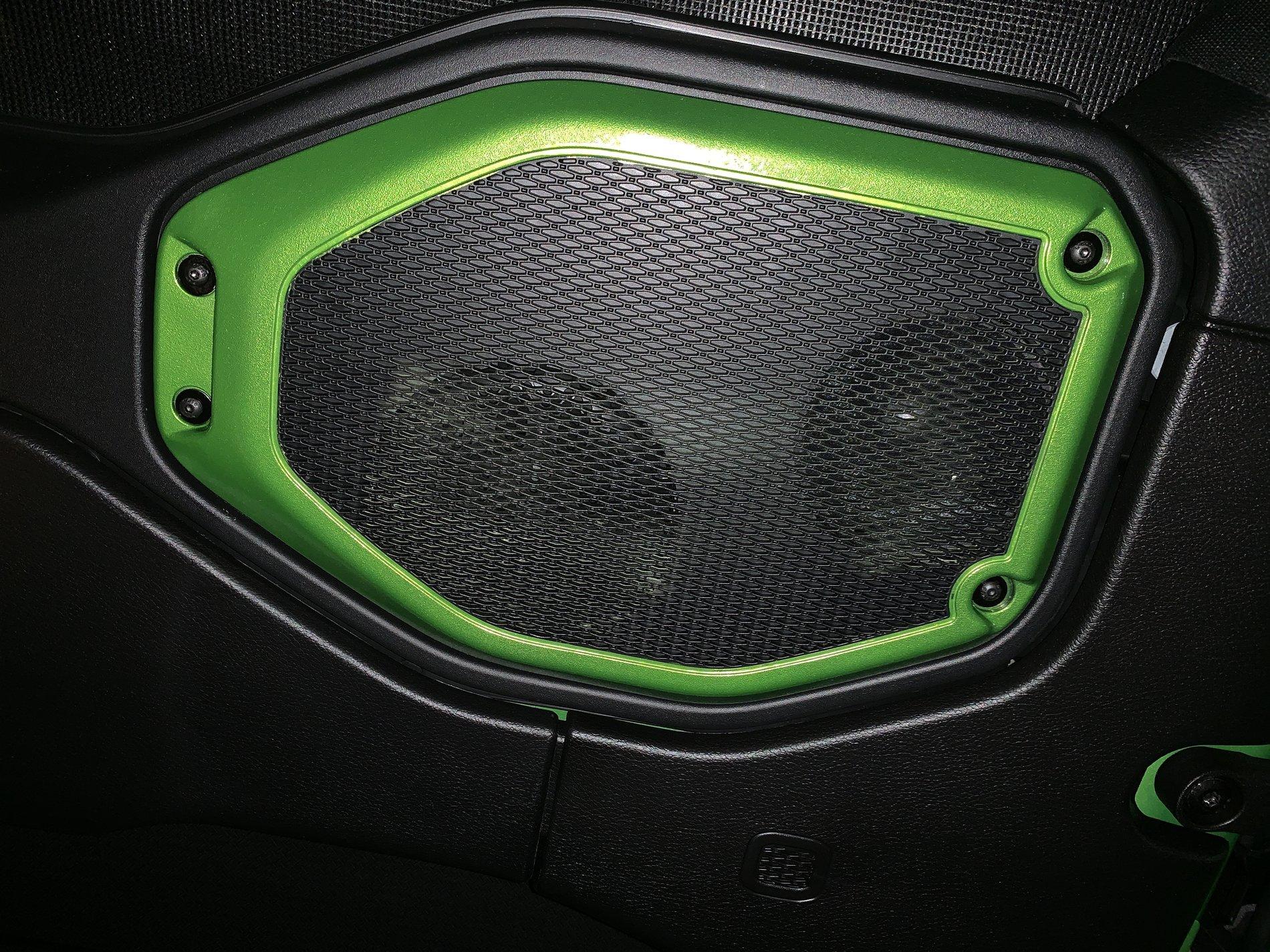

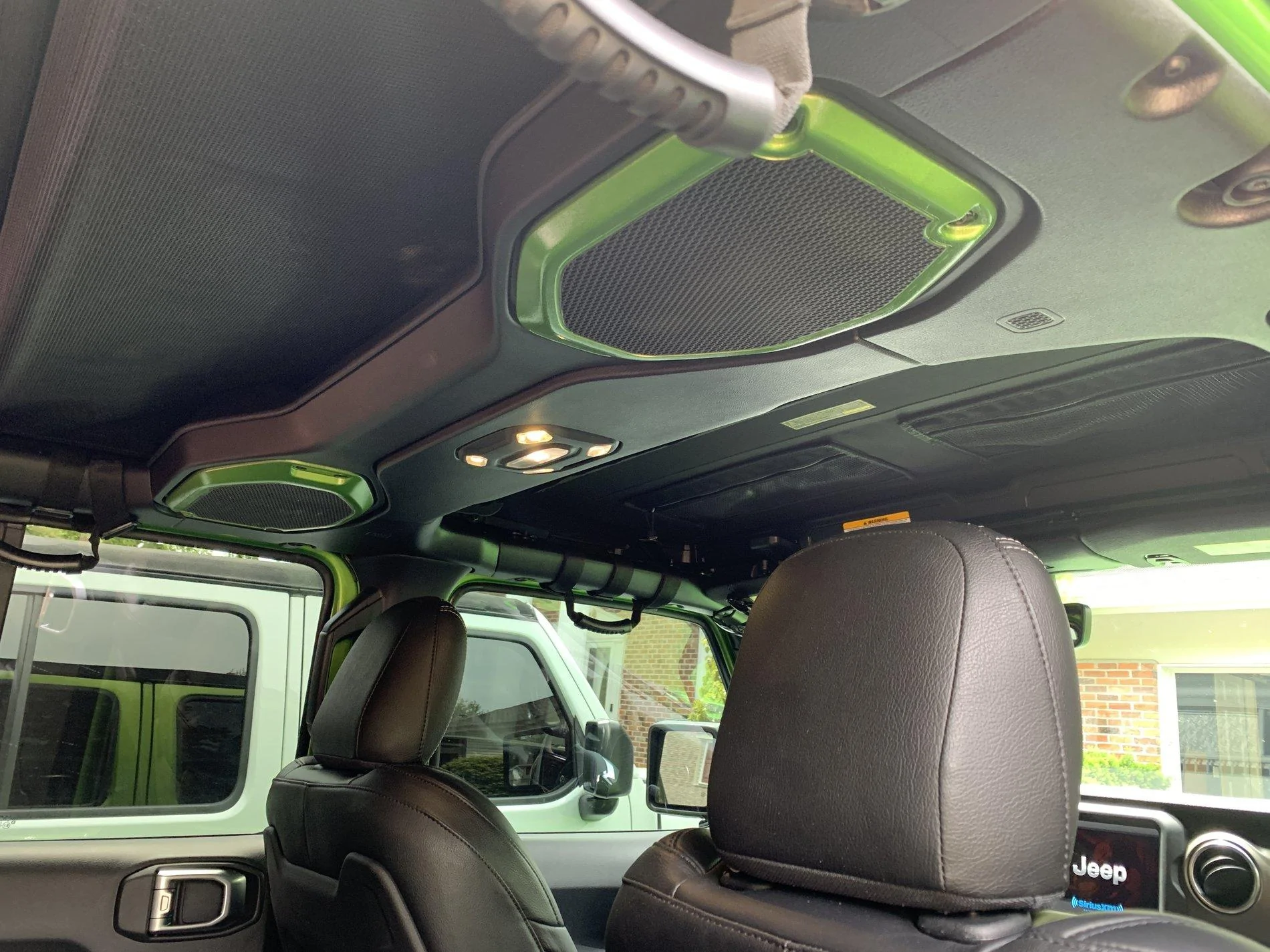

Reinstalled:


Enjoy, improve on the process...keep MODDIN!:like::rock:
Advertisement


Last edited:

Fastmover

Well-Known Member
First Name
Bob
Joined
Jan 30, 2018
Messages
260
Reaction score
397
Location
Ottawa
Vehicle(s)
2019 2.0L Billet JLR: Ordered 1/9. Delivered 2/13. Picked up 3/5.
Occupation
Retired
Vehicle Showcase
1
Hello all!

This is not my idea: i've seen a few guys do it and i really liked it, so wanted to show my process in this. I am not a painting pro, so dont take this process as bible. Just wanted to put out my ideas, even if it's just a starting place for others.
Excellent mod and write-up! Thanks for sharing.


knick33

Well-Known Member
First Name
Hank
Joined
Feb 21, 2018
Messages
104
Reaction score
51
Location
Virginia
Vehicle(s)
JLU Rubicon (Ordered)

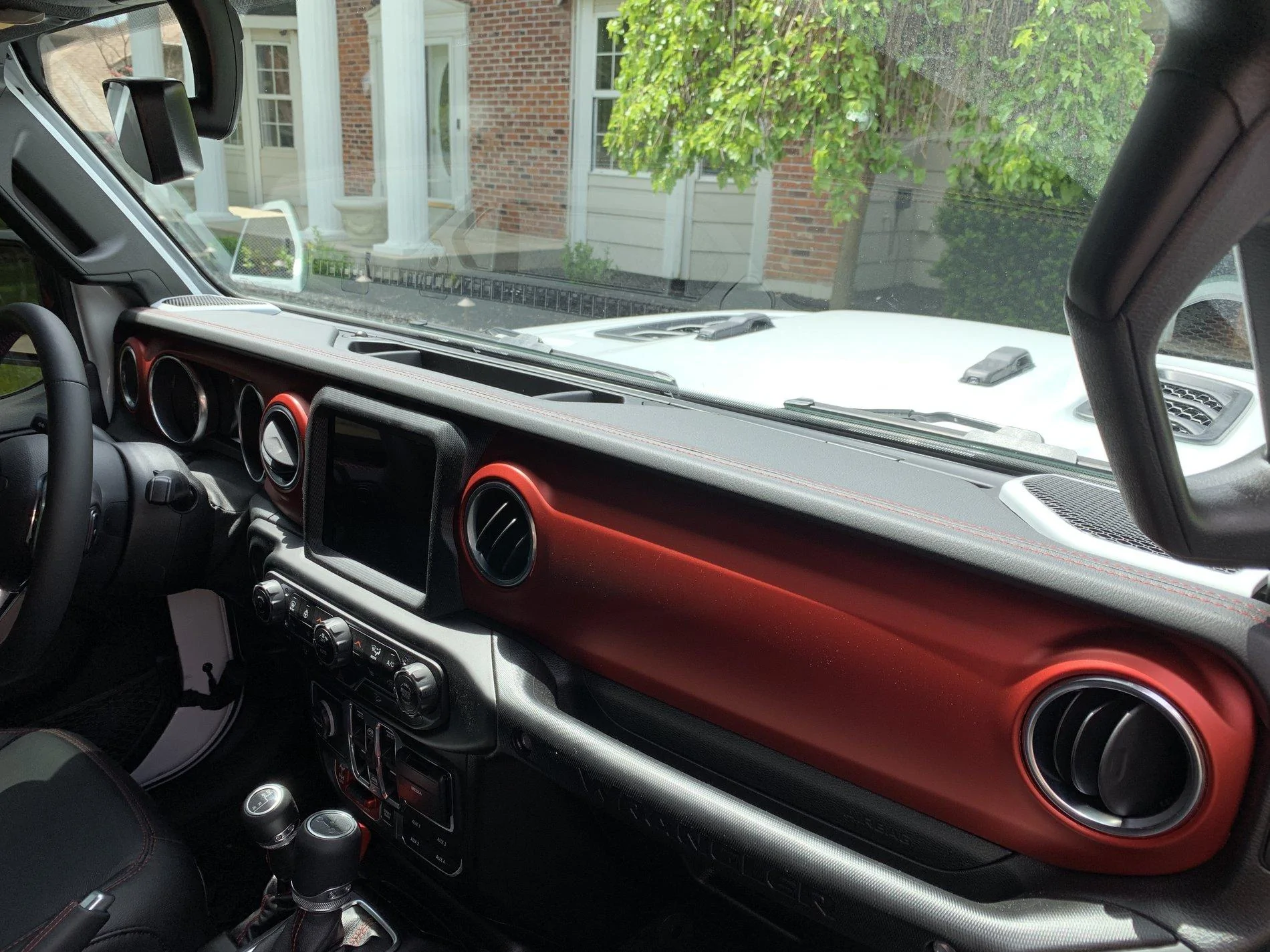

It would be cool to match the red dash, but it's probably impossible to find a match.


F1REFLY

Active Member
First Name
D.J.
Joined
Oct 21, 2018
Messages
27
Reaction score
4
Location
Chesapeake Beach, MD
Vehicle(s)
Wrangler Rubicon JL, Patriot
It would be cool to match the red dash, but it's probably impossible to find a match.
That's actually is a great question ..anyone know what the color is for the dash? for the red accents on the Rubicon's? Or where to find this info?


Turbo_punkn

Well-Known Member
First Name
Greg
Joined
Nov 2, 2018
Messages
420
Reaction score
250
Location
Bath, pa
Vehicle(s)
2018 JL
Looks good!!! Might attempt this soon, still have a few cans of the touch up paint left from my wheels. I wanna do the dash first.


Goheels050917

Well-Known Member
First Name
Dustin
Joined
Oct 11, 2018
Messages
385
Reaction score
442
Location
Raleigh - Durham, NC
Vehicle(s)
2018 Jeep Wrangler JLU (SOLD - March 2021)
Occupation
SD-WAN Engineer - Technical Author

Squibbles

Well-Known Member
Joined
Apr 20, 2019
Messages
141
Reaction score
78
Location
Albuquerque
Vehicle(s)
GTI, Ranger
Was it hard to match the paint to the exterior? If you or somebody you know has a paint gun you could probably get some factory paint for an okay price. Definitely gonna cost more but a perfect match is worth it.


Turbo_punkn

Well-Known Member
First Name
Greg
Joined
Nov 2, 2018
Messages
420
Reaction score
250
Location
Bath, pa
Vehicle(s)
2018 JL
Was it hard to match the paint to the exterior? If you or somebody you know has a paint gun you could probably get some factory paint for an okay price. Definitely gonna cost more but a perfect match is worth it.
I paid around $13 a can at the dealer. They’re very small cans too!

OP
OP
jlewissystem

jlewissystem

Well-Known Member
First Name
J
Joined
Jan 24, 2019
Messages
1,086
Reaction score
2,085
Location
STL
Vehicle(s)
2019 JLUR MANUAL Mojito!
Build Thread
Link
Vehicle Showcase
1
That's actually is a great question ..anyone know what the color is for the dash? for the red accents on the Rubicon's? Or where to find this info?
I dont have the quick answer on this question - good question. If no one else can chime in, you might consider going to a powdercoater, just to reference their colors. They have a TON of colors to choose from. You can take their color samples out to your Jeep to find which color it is. From there, find someone to provide that color in a spray can.

Was it hard to match the paint to the exterior? If you or somebody you know has a paint gun you could probably get some factory paint for an okay price. Definitely gonna cost more but a perfect match is worth it.
I paid around $13 a can at the dealer. They’re very small cans too!
As i put in the thread, you can buy pre-mixed color-matched colors. I bought from PaintScratch.com, but like @Turbo_punkn mentioned, you can get it at the dealer.....or amazon or other places. They're typically available....just gotta look:like:


Turbo_punkn

Well-Known Member
First Name
Greg
Joined
Nov 2, 2018
Messages
420
Reaction score
250
Location
Bath, pa
Vehicle(s)
2018 JL
I dont have the quick answer on this question - good question. If no one else can chime in, you might consider going to a powdercoater, just to reference their colors. They have a TON of colors to choose from. You can take their color samples out to your Jeep to find which color it is. From there, find someone to provide that color in a spray can.




As i put in the thread, you can buy pre-mixed color-matched colors. I bought from PaintScratch.com, but like @Turbo_punkn mentioned, you can get it at the dealer.....or amazon or other places. They're typically available....just gotta look:like:

Had I know ahead of time how much I was gonna need for my wheels I definitely would have bought from paint scratch. I bought like $100 worth of those dam little cans.

OP
OP
jlewissystem

jlewissystem

Well-Known Member
First Name
J
Joined
Jan 24, 2019
Messages
1,086
Reaction score
2,085
Location
STL
Vehicle(s)
2019 JLUR MANUAL Mojito!
Build Thread
Link
Vehicle Showcase
1
Had I know ahead of time how much I was gonna need for my wheels I definitely would have bought from paint scratch. I bought like $100 worth of those dam little cans.
HA! I did the same thing through paintscratch, but bought the full rattles. I think they were $20 a can (12oz i think). I bought 4 for "whatever". Sucks to pay so much for paint in general, but the outcomes are nice.......not like theres much of anything thats cheap in the Jeep world :)


Turbo_punkn

Well-Known Member
First Name
Greg
Joined
Nov 2, 2018
Messages
420
Reaction score
250
Location
Bath, pa
Vehicle(s)
2018 JL
HA! I did the same thing through paintscratch, but bought the full rattles. I think they were $20 a can (12oz i think). I bought 4 for "whatever". Sucks to pay so much for paint in general, but the outcomes are nice.......not like theres much of anything thats cheap in the Jeep world :)
I searched all over trying to find a paint close to punk’n but nothing was even close. I hated having to buy the expensive stuff but I’m glad I did. Looks a lot better matched.

OP
OP
jlewissystem

jlewissystem

Well-Known Member
First Name
J
Joined
Jan 24, 2019
Messages
1,086
Reaction score
2,085
Location
STL
Vehicle(s)
2019 JLUR MANUAL Mojito!
Build Thread
Link
Vehicle Showcase
1
I actually got the color name from FCA for the (what WE call Rubi Red) dash.

It's called:

REDICAL RED
Good dig! Do you know if they have a paint code for it?
