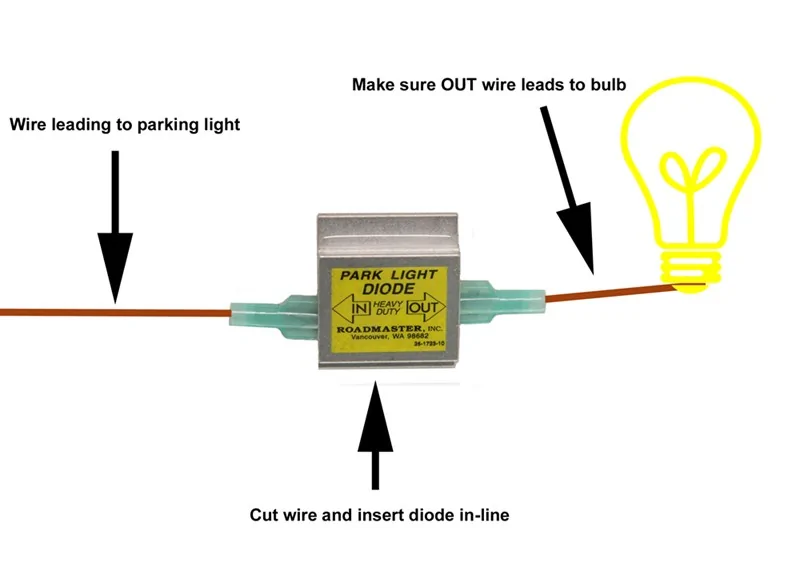

    For those looking for an easy to use.. to install, diode, that does not require any soldering, this diode is an alternative for you. Yes, it is pricier ($11.00+-) then the run of the mill diode.

    Can be purchased at amazon.com, e.trailer.com and elsewhere.

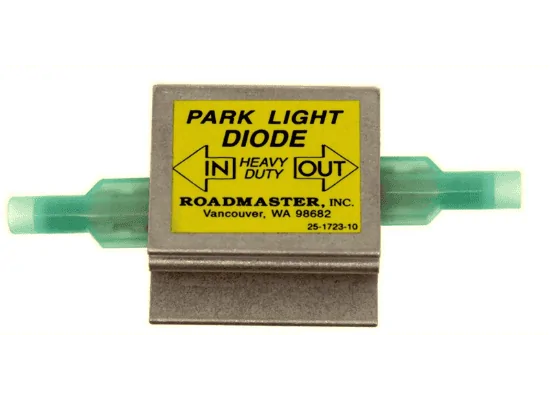

    Roadmaster 690 Single Park Light Diode

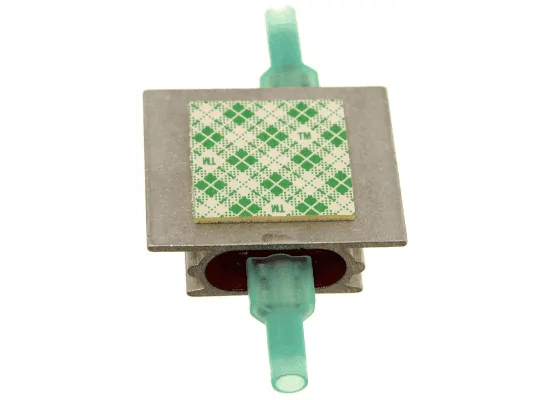

    The diode comes with the 2 spade connectors and double sided tape on back, as shown in the pic.



  2. bryan

    bryan Well-Known Member

    First Name:
    Bryan
    Vehicle(s):
    Mini, F250, Corolla, Forester, 2019 JLUR
    Joined:
    Jun 20, 2018
    Location:
    Utah
    Posts:
    113
    Liked:
    77
    Garage Profiles:
    1
    I am not an electrics expert, but I believe a diode is a semiconductor device that only passes current in a single direction (until it reaches a breakdown point). If you're just connecting another LED (light emitting diode) in parallel to your backup light, what current are you trying to block? I'm assuming this device must be used in more complicated applications than the illustration above. So when would I need this?

    Thanks!

  3. Fcmalie

    Fcmalie Member

    First Name:
    Todd
    Vehicle(s):
    2018 Wrangler JLU
    Joined:
    Jul 13, 2018
    Location:
    Ripon, California
    Posts:
    20
    Liked:
    10
    Someone posted where they had wired LED backup lights in to turn on with both shifting into reverse and an auxiliary switch for just lighting up the area. They put the diode on each line to not get any stray power from whichever source is turning the light on at the time.

  4. Rick12785

    Rick12785 Well-Known Member

    First Name:
    Rick
    Vehicle(s):
    2018 JL Sahara
    Joined:
    Mar 21, 2018
    Location:
    Charlotte, NC
    Posts:
    122
    Liked:
    202
    So if you are just connecting LED's to the back-up lights the diode is not needed?
