Diode Dynamics LED Mod

vilacr

Well-Known Member
Joined
Jan 23, 2018
Messages
109
Reaction score
32
Location
Alabama
Vehicle(s)
2018 Jeep Wrangler Sahara JL
I'm interested in this as well


72commando

Well-Known Member
First Name
Dan
Joined
Jan 2, 2018
Messages
124
Reaction score
123
Location
Nashville
Vehicle(s)
'72 Jeep Commando, '18 JLU sport s
mine arrive sometime today. Ill post a clip of them installed late today or tomorrow.


JMONEZ

Well-Known Member
First Name
Jared
Joined
Nov 29, 2017
Messages
342
Reaction score
206
Location
el dorado hills CA
Vehicle(s)
2019 JLUR
Occupation
Self employed
Vehicle Showcase
1
Installed mine yesterday, very simple total 5 min install for both sides. Looks better than stock amber bulb but still need to run the parking lights or headlights for them to work on sport, since no auto DRL when in drive.


Diode Dynamics

Well-Known Member
Summit Sponsor (Level 3)
First Name
John
Joined
Feb 28, 2017
Messages
659
Reaction score
173
Location
St. Louis, Missouri
Website
www.diodedynamics.com
Vehicle(s)
2018 Jeep Wrangler
Installed mine yesterday, very simple total 5 min install for both sides. Looks better than stock amber bulb but still need to run the parking lights or headlights for them to work on sport, since no auto DRL when in drive.
Thank you for ordering with us!

Have you taken any pictures with them installed yet?

Nick C.


JMONEZ

Well-Known Member
First Name
Jared
Joined
Nov 29, 2017
Messages
342
Reaction score
206
Location
el dorado hills CA
Vehicle(s)
2019 JLUR
Occupation
Self employed
Vehicle Showcase
1

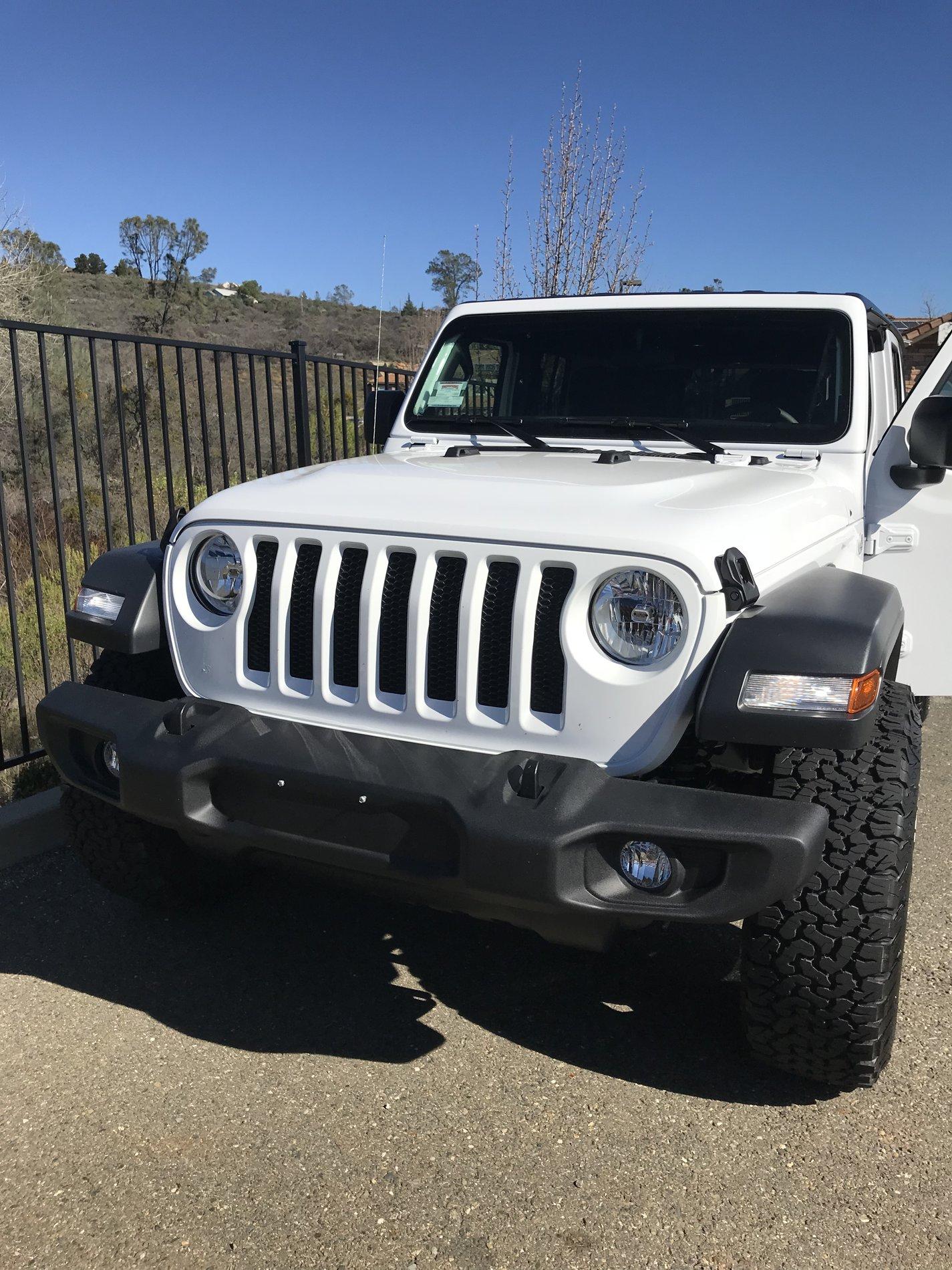

Yes, but unfortunately in the direct sunlight, here’s the only pic I have. I’ll get more


OP
OP
TPFilm1994

TPFilm1994

Well-Known Member
First Name
Tom
Joined
Nov 13, 2017
Messages
252
Reaction score
335
Location
Wilmington, NC
Vehicle(s)
2015 JKU Sport S
Installed mine yesterday, very simple total 5 min install for both sides. Looks better than stock amber bulb but still need to run the parking lights or headlights for them to work on sport, since no auto DRL when in drive.
I wonder if drl can be flashed by the dealer? Did you get the resistors?


Diode Dynamics

Well-Known Member
Summit Sponsor (Level 3)
First Name
John
Joined
Feb 28, 2017
Messages
659
Reaction score
173
Location
St. Louis, Missouri
Website
www.diodedynamics.com
Vehicle(s)
2018 Jeep Wrangler
I wonder if drl can be flashed by the dealer? Did you get the resistors?
It may be possible, but it's not something we've looked into. I know the Challenger's DRLs are configurable via the dash. You can turn the inner amber LED DRLs off & on with the dash.

Nick C.


72commando

Well-Known Member
First Name
Dan
Joined
Jan 2, 2018
Messages
124
Reaction score
123
Location
Nashville
Vehicle(s)
'72 Jeep Commando, '18 JLU sport s

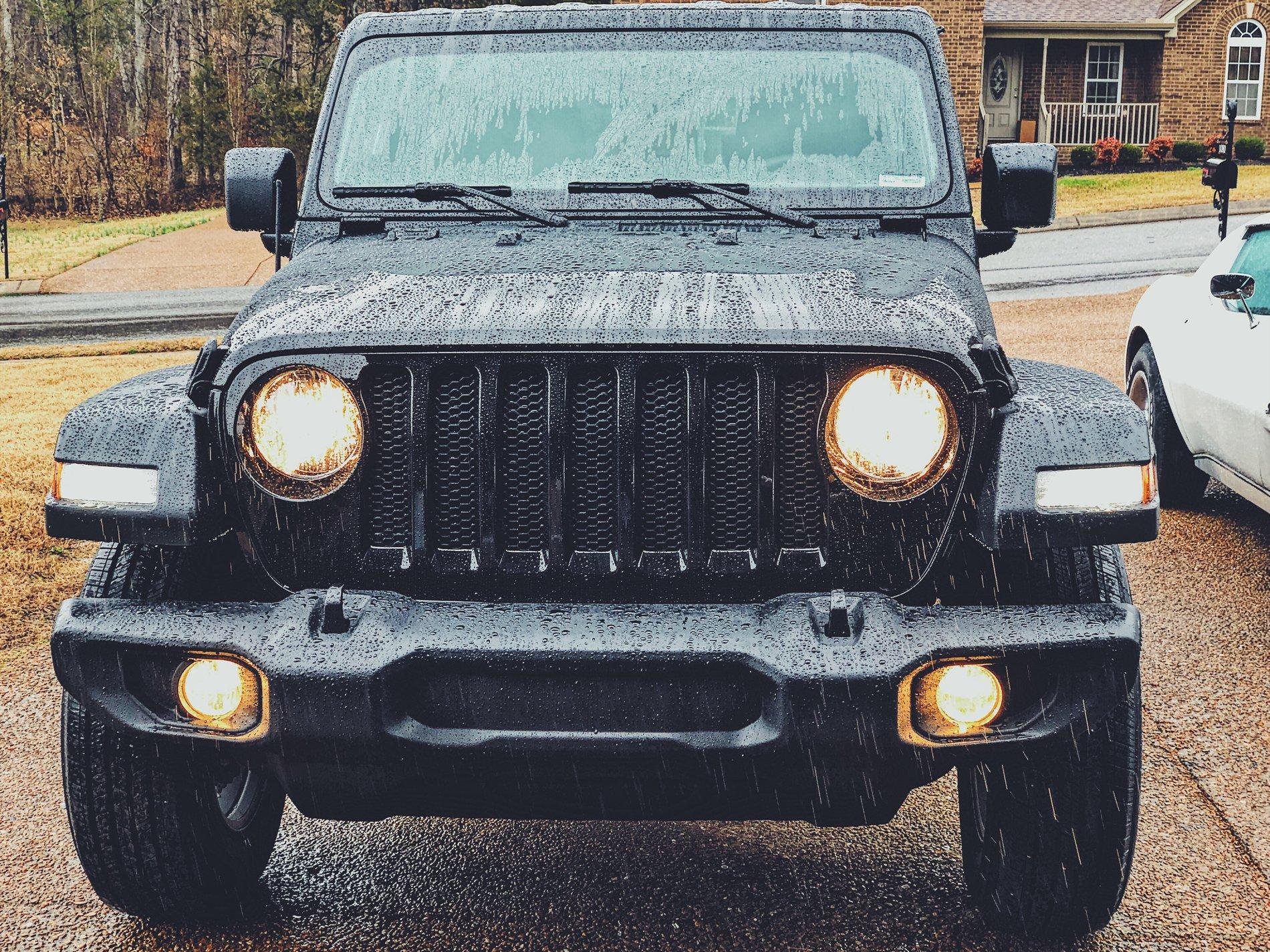

Came in the mail and installed in 5-10 mins. Nice clear led white and much brighter blinker. Rainy daytime pic here ill post a night pic later.



72commando

Well-Known Member
First Name
Dan
Joined
Jan 2, 2018
Messages
124
Reaction score
123
Location
Nashville
Vehicle(s)
'72 Jeep Commando, '18 JLU sport s
Diode Dynamics are you guys expecting to have headlights in the future? I plan to get headlights and fog lights together when available.


Diode Dynamics

Well-Known Member
Summit Sponsor (Level 3)
First Name
John
Joined
Feb 28, 2017
Messages
659
Reaction score
173
Location
St. Louis, Missouri
Website
www.diodedynamics.com
Vehicle(s)
2018 Jeep Wrangler
Diode Dynamics are you guys expecting to have headlights in the future? I plan to get headlights and fog lights together when available.
Our engineering team is working on a dual-filament version of our SL1 LED headlight bulb replacement, but I don't have an ETA or time-frame on their release. We do have replacement LED fog lights available for the JL: Diode Dynamics: Fog Light LEDs for 2018+ Jeep JL Wrangler

Unfortunately, we didn't have time to get installed pictures on the JL we had in the studio, but we plan on having another one in soon!

Nick C.


JMONEZ

Well-Known Member
First Name
Jared
Joined
Nov 29, 2017
Messages
342
Reaction score
206
Location
el dorado hills CA
Vehicle(s)
2019 JLUR
Occupation
Self employed
Vehicle Showcase
1
I wonder if drl can be flashed by the dealer? Did you get the resistors?
I didn’t get the resistors, my local dealer says they don’t know about DRL’s or if or how they can be turned on.


mchinchi

Member
First Name
Michael
Joined
Jan 29, 2018
Messages
13
Reaction score
21
Location
Heath
Vehicle(s)
2018 Jeep Wrangler JL Sport
I want to put on the resistors but I’m not sure what wires to connect them to. On the front drivers side there is a white wire with green stripe, white wire with red stripe, and black wire. Anybody know which 2 wires I hook it up to?

Update: I connected the white wire with green stripe and the black wire and everything seems to be working just fine.

Last edited:

72commando

Well-Known Member
First Name
Dan
Joined
Jan 2, 2018
Messages
124
Reaction score
123
Location
Nashville
Vehicle(s)
'72 Jeep Commando, '18 JLU sport s
I installed without resistors and have no issues. No fast blinking or errors.

Correction, After a few drives the fast blink started and my screen says blink light issue. Ordered resisiters lets see if it fixes it.
