Cold Temperature Impact on All-Electric Range?

Oilburner

Well-Known Member
Joined
Dec 20, 2019
Messages
476
Reaction score
769
Location
You'll never find me
Vehicle(s)
Jeeps

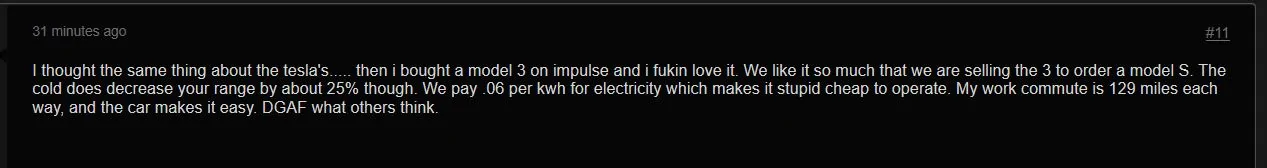

Was reading another forum & saw this:



Anyone with EV experience run into this? 25% of all-battery range would be significant.
Advertisement



greensprit

Well-Known Member
Joined
Jan 13, 2021
Messages
67
Reaction score
72
Location
Boston
Vehicle(s)
Jeep JK, 4xe on order
Based on my experience with my Model S and Volvo PHEV; the answer is "it depends". If the vehicle is left outside, not plugged in and cold (<40 degrees), when you start driving the car will drain a bunch of battery power to warm both the battery pack and the cabin; this will drop your range by 25%. If however you keep the car in a heated garage, or if you leave it plugged in and schedule pre-conditioning then the battery will be warm when you unplug and so the range impact is probably more like 10% depending on how much cabin heat you want.


Asterix2112

Well-Known Member
First Name
John
Joined
Dec 28, 2020
Messages
134
Reaction score
207
Location
Vienna, Va
Vehicle(s)
Wrangler 4xe
Most defiantly YES! I am on my 2nd electric car (the 4xe coming will be my 3rd). I remember with my BMW i3 and it's 80 mile range, in the summer I could get to work and back (about 60 miles) no problem, but in the winter the range extender would almost always kick in before I got home. Yes, cold weather sucks the range out of your battery big time. It's just the way it is, nothing the car makers did wrong. So yes, if we get, what is it, 24 miles electric on a nice 70 degree day, I will be expecting around 16 or so on a 32 degree day...

Note, this is just the battery itself. Obviously if you have a cold car and crank the heat, it will take even more. That's why I always pre-condition while plugged in before leaving.


hybrid3.0

Well-Known Member
First Name
Erin
Joined
Jan 4, 2021
Messages
70
Reaction score
73
Location
46032
Vehicle(s)
2018 JGC
Battery's like to be kept and operate most efficiently at the same temperatures as we humans do say approximately 75 deg F. The 4xe battery is cooled by refrigerant from the engine and heated with engine coolant depending on conditions to maintain the ideal temperature range. Its location tucked under the passenger seat also allows it to benefit from inside cabin temperature management. This does mean you have to run the engine in temperature extremes to benefit: that's why the 4xe is a PHEV as opposed to a pure EV.


Fusilli Jerry

Well-Known Member
First Name
Pete
Joined
May 30, 2019
Messages
143
Reaction score
224
Location
South Dakota
Vehicle(s)
2019 Wrangler Unlimited Rubicon (2.0T, 8spd)
Wait...the guy commutes 129 miles EACH WAY?

well suck me sideways


SolarWizard

Well-Known Member
Joined
Dec 11, 2019
Messages
517
Reaction score
512
Location
SD, CA / Tampa, FL
Vehicle(s)
Model Y Performance / Diesel Gladiator soon
Occupation
energy management tech for homes and businesses
Depends on what the definition of cold is but lithium ion battery
ies are seriously impacted by what I would call Cold. Ie 30 degrees and below


JandS

Well-Known Member
Joined
May 20, 2016
Messages
129
Reaction score
122
Location
Midwest
Vehicle(s)
4xe | Exige S | R wagon | V Wagon | MB S65
Was reading another forum & saw this:



Anyone with EV experience run into this? 25% of all-battery range would be significant.
In arctic conditions, range drops by approximately half.

Running the heater kills EV range as well, to the point where people will bundle up to get more range. I lol at that. Right now, EVs put buyers in the penalty box which is why hybrids still have their place.


JeepinPete

Well-Known Member
First Name
Pete
Joined
Jun 18, 2020
Messages
63
Reaction score
46
Location
PA
Vehicle(s)
'19 Mojito JLUR, '95 Land Cruiser
Been lurking for awhile now. Former Chevy Volt owner. Cold definitely affects range. I would see 40% reduction on the coldest days (0F). That was with running the gas engine first, then switching over to the battery. I would expect higher losses in a Wrangler due to the conventional drivetrain layout (hypoid gears in a solid axle have higher losses that a fwd setup).

Pete


TDangelo1219

Well-Known Member
First Name
Tony
Joined
Jan 3, 2021
Messages
75
Reaction score
96
Location
Mountain Home, AR
Vehicle(s)
2021 Jeep Wrangler Sahara 4Xe
My experience is if you use the heater you'll lose about 25% of your range. Many times I'll use the seat heaters and turn off the heat until my windows fog up. Then I realize I just saved 10 cents. In short cold weather WILL lower the range. To what degree depends a lot on each driver.


Geesmill

Well-Known Member
First Name
Gees
Joined
Dec 28, 2020
Messages
62
Reaction score
29
Location
Durango
Vehicle(s)
GMC Duramax; Chevy Volt
We have a 2014 Chevy Volt. During the summers I could squeeze 50 miles all electric, during the winters it is down to 30-35 all electric. Engine comes on intermittently when temps are below 37 F to keep everything warm, so it is just going off of the calculations. If temps are above 37 F all electric operation is possible but turning on heat definitely drops mileage.


Windshieldfarmer

Well-Known Member
First Name
Randy
Joined
Feb 27, 2020
Messages
893
Reaction score
1,312
Location
Wichita, Ks
Vehicle(s)
2015 JKU, 2020 JlU on order
If the heater in the Jeep is not electric I suspect range impacts shouldn’t exceed 10 or 15%. In my Tesla my heater is what kills the range...
