Caster Specification for the JL

Dank

Active Member
First Name
Dan
Joined
Jun 11, 2018
Messages
29
Reaction score
31
Location
So. Cal
Vehicle(s)
2018 JLUR
Just had my JLU at the alignment shop checking the alignment after I installed the lift and they did not have the JL in there system, so they used the JKU specifications to set everything up. The Toe is pretty straight forward and I assume it's about the same for the JK, but the Caster is what I'm curious about. The JK range is 3.2 min and 5.2 max, my setting ended up being 4.6 for the left and 4.4 for the right. The lift is the EVO 2.5 Enforcer with adjustable lower arms.



Advertisement





CloakedJL

Well-Known Member
Summit Sponsor (Level 3)
First Name
Jon
Joined
Jul 16, 2018
Messages
80
Reaction score
104
Location
Sacramento, CA
Website
metalcloak.com
Vehicle(s)
2018 Jeep JL
Occupation
Sales/Tech Support- Metalcloak
We have been seeing the best results in the low to mid 5s. Have a couple of customers even running up close to 6 degrees with a 3.5" lift.

OP

Dank

Active Member
First Name
Dan
Joined
Jun 11, 2018
Messages
29
Reaction score
31
Location
So. Cal
Vehicle(s)
2018 JLUR
  • Thread starter
  • Thread Starter
  • #3
I ended up changing mine to 5.9 left and 6.0 right and the Jeep drive completely different, very stable with no wander. The JL spec looks to be 4.80 + - 1.00, I'm clearly on the high side but very happy with drive so far.


anotheraznguy

Well-Known Member
Joined
Jul 30, 2018
Messages
579
Reaction score
766
Location
Tracy California
Vehicle(s)
Mojito JLUR
Vehicle Showcase
1

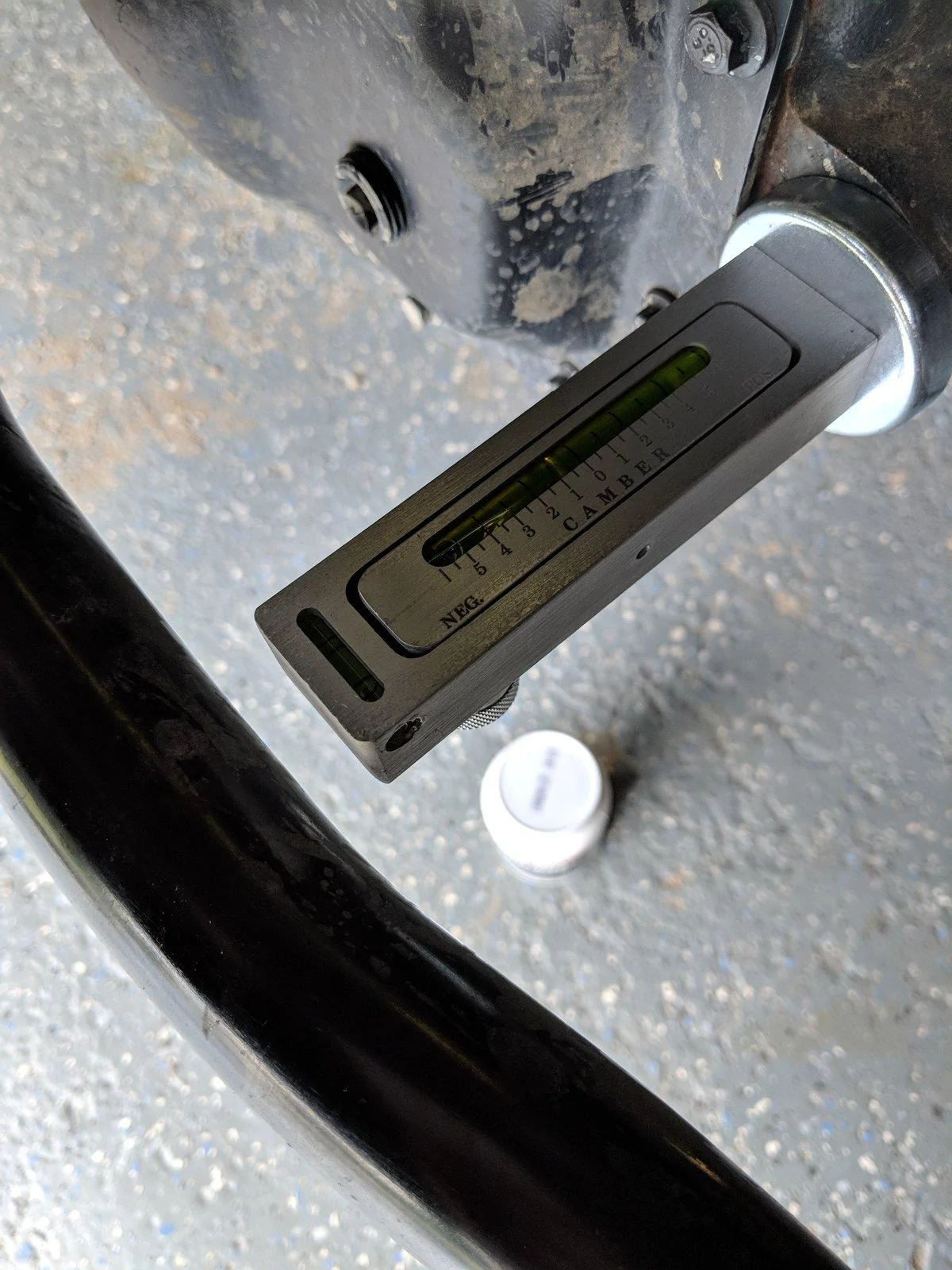

Off the axle

Are you sure that is correct?

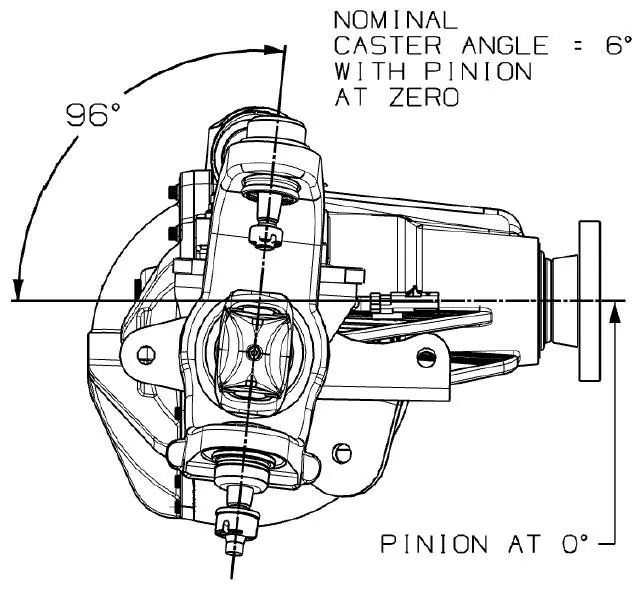

This image is from a jk. The 2 holes in front of the axle if it measure 0 = 6 degrees caster. I am wondering if there is an image for the JL showing what it would be. I am not getting a consistent measurement on the front axle and i tried the top of the upper ball joint
