Broken front locker connector.

Alacon01

Well-Known Member
First Name
Cody
Joined
Apr 15, 2018
Messages
209
Reaction score
280
Location
Fayetteville
Website
www.instagram.com
Vehicle(s)
2018 JLUR
Vehicle Showcase
1
Anyone experience this, I forgot to disconnect it while installing my lift so it's totally my fault. the connector itself seems fine, and there was not enough stress to pop out any of the wire holders. I caught it pretty quick before the full axle weight was on the connector.

Does anyone know if there is a way to clear the service 4wd code. If it is supposed to clear on it's own I'll go ahead and assume I broke it and will have to re-wire in a new connector.

Thanks in advance.
Advertisement



Jkohler

Well-Known Member
First Name
Jeremy
Joined
Mar 6, 2018
Messages
237
Reaction score
130
Location
Utah
Vehicle(s)
2018 jl rubicon 2017 Jeep Grand Cherokee 2017 ram 3500
It should clear on it's own if the connection is good. I forgot to re-connect my rear one as soon as I did the light went off.

OP
OP
Alacon01

Alacon01

Well-Known Member
First Name
Cody
Joined
Apr 15, 2018
Messages
209
Reaction score
280
Location
Fayetteville
Website
www.instagram.com
Vehicle(s)
2018 JLUR
Vehicle Showcase
1
So as a resolution here, and hopefully some reads this when they do it, because its an easy mistake to make.

The issue for me was no slacking the line pulled one of the 4 pins out of the connector.

The fix is to gently pry apart the connector cover, pup up the little top piece that holds the pins in place, slide the pin back into it's socket, then you place the cover back over it and plug it back in.




Once I pulled the cover off the missing pin popped right up.


Here is a side view of the cover you need to pup up to slide the pin back in place.


all pins back in place with stops up.


Then just close everything back up.

IMG_20180708_115650 (1).jpg


flyinbrian929

Member
First Name
Brian
Joined
May 10, 2018
Messages
24
Reaction score
39
Location
florida
Vehicle(s)
2018 JLUR
Had the same problem. I ordered a new wire harness and will cut it in farther up to ensure the water resistant connection at locker.

OP
OP
Alacon01

Alacon01

Well-Known Member
First Name
Cody
Joined
Apr 15, 2018
Messages
209
Reaction score
280
Location
Fayetteville
Website
www.instagram.com
Vehicle(s)
2018 JLUR
Vehicle Showcase
1
Had the same problem. I ordered a new wire harness and will cut it in farther up to ensure the water resistant connection at locker.
I was thinking i'd have to do that as well, I don't doubt that mine is as good as oem, however I was questioning it when I had it open. If i had thought about if before now I would have packed it with dielectric grease. I guess we'll see what happens.


Ejpaints

Member
First Name
Elena
Joined
May 15, 2019
Messages
8
Reaction score
5
Location
Arizona
Vehicle(s)
2018 JLUR firecracker red
Build Thread
Link
Occupation
Aerospace Industrial Engineering Technician
Had the same problem. I ordered a new wire harness and will cut it in farther up to ensure the water resistant connection at locker.
I hope you're still here to answer this. Where did you get the wire harness. My husband did this yesterday, the wires broke flush with the plug, and every so called replacement part is only a 2 wire harness vs the 4 wire we actually have.


flyinbrian929

Member
First Name
Brian
Joined
May 10, 2018
Messages
24
Reaction score
39
Location
florida
Vehicle(s)
2018 JLUR
I hope you're still here to answer this. Where did you get the wire harness. My husband did this yesterday, the wires broke flush with the plug, and every so called replacement part is only a 2 wire harness vs the 4 wire we actually have.[/QUW

Went dealer got part number ordered online it was like 50$ at dealer 30$ online. Plug and play no cutting required.


alphalife9

Well-Known Member
First Name
David
Joined
Nov 6, 2017
Messages
367
Reaction score
183
Location
Rio Rancho, NM
Vehicle(s)
Z51 C6, Sting Gray JLUR
The dealer gave me part number 68403564AD for the "right side chassis harness" which includes the front and rear locker wires and the connectors at the axle. Price is $220+ and not in stock.

Any chance you could share the part number the dealer gave you or the dealer you called so I can ask them?

I appreciate your help! My lockers aren't working but more annoyingly neither is my cruise control since these broke.


303rider

Well-Known Member
First Name
Soleil
Joined
Feb 19, 2019
Messages
152
Reaction score
74
Location
Denver, CO
Vehicle(s)
2018 Jeep Wrangler Rubicon JLU
Vehicle Showcase
1
Had the same problem. I ordered a new wire harness and will cut it in farther up to ensure the water resistant connection at locker.
Can you post where you got the harness or the part number?


frostai

Member
First Name
Tristani
Joined
Aug 4, 2018
Messages
10
Reaction score
3
Location
Puerto Rico
Vehicle(s)
JLR

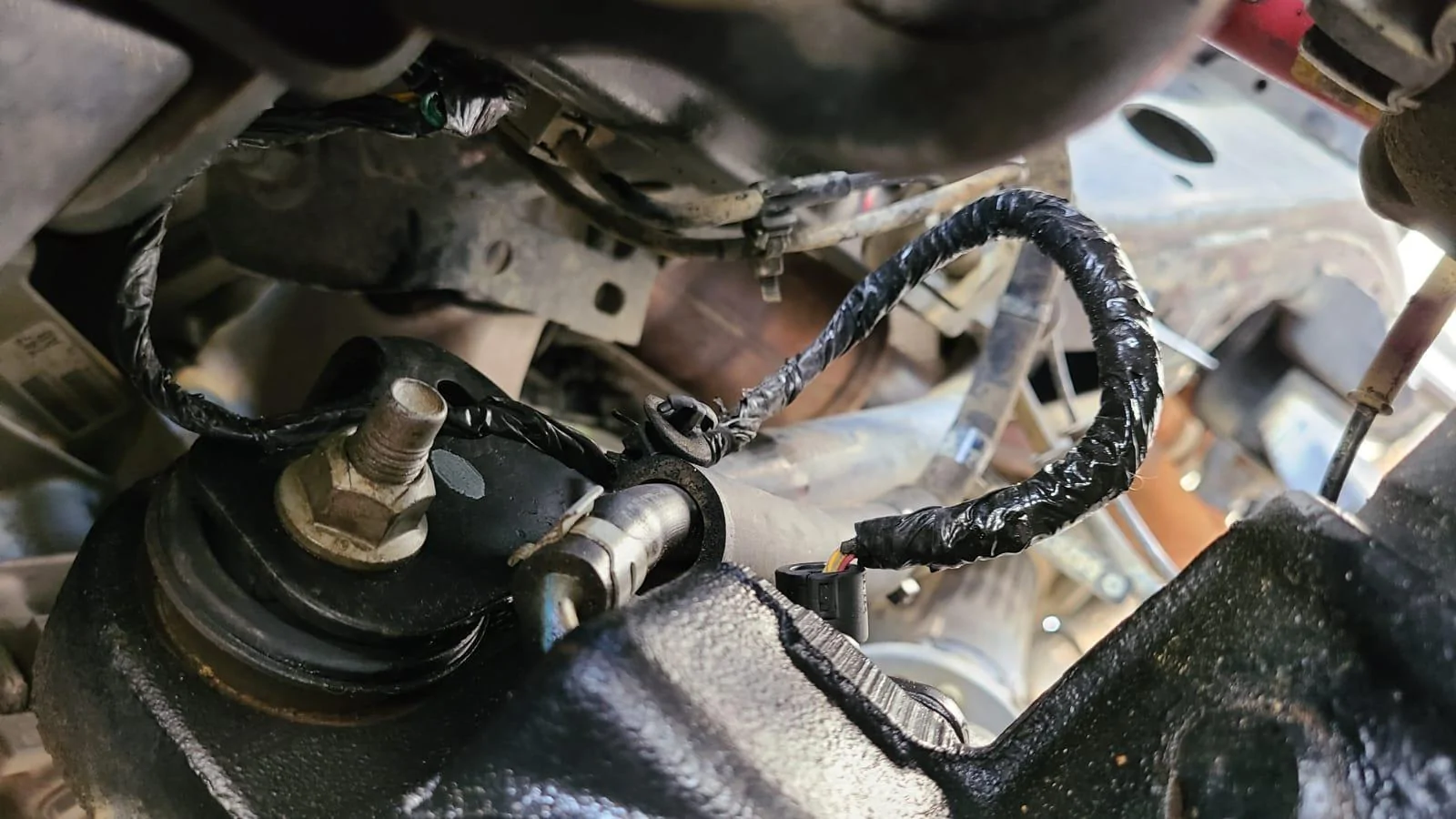

Took mine to the dealer for same problem, they did a repair job. Not happy at all with the work done, they cut the original plug a few inches above the frame and spliced the cables and wrapped them in electrical tape. Very disappointing considering this is a 60k vehicle with 20k miles.
WhatsApp Image 2020-11-18 at 8.35.10 AM.jpeg


Skystak

Member
First Name
Wayne
Joined
Nov 17, 2020
Messages
23
Reaction score
1
Location
Florida
Vehicle(s)
Jeep 2020 JL
I broke the plastic tab, wires are fine. Anyone update this please on how to get new tab?


DrGroovenstein

Active Member
Joined
Feb 9, 2018
Messages
38
Reaction score
8
Location
CA
Vehicle(s)
BMW 335is, Honda Pilot
Same here ... Need the part number for the 4 wire harness. Anybody have it?
