Brake controller?

144treks

Member
First Name
Steve
Joined
Dec 22, 2020
Messages
7
Reaction score
4
Location
Maryland
Vehicle(s)
2021 JLRU 3.0L Diesel, 2006 Liberty 2.8L Diesel
Mopar lists one for the JL but for the life of me I can't find that pictures location in the JL. So is it simply a stock pic and the controller will end up in some strange place? Has anyone actually installed a controller and also was it a different brand? If I am going to bastard this machine the after market controllers have a tried and true record.
Advertisement



CouchPotato

Active Member
Joined
Mar 4, 2019
Messages
33
Reaction score
19
Location
Las Vegas
Vehicle(s)
2019 JLUR
I bought the mopar brake controller and the Tekonsha 3073-P harness needed to install it. The install location is up under the dash on the left, actually right by where the controller plugs into the harness. If you can lie on your back under the dash on the driver's side to where you can see the existing plug for the brake controller harness, you will be able to make sense of the install location on the diagram.

This thread has photos of the connector. The mopar controller mounts to the metal brace with the 4 holes in. https://www.jlwranglerforums.com/forum/threads/diy-trailer-brake-controller-install.28814/

When I went to actually do the installation and realized what a pain it is to reach the install location, and that you lose the only 12v outlet in the dash, I decided to go with a Redarc Tow-Pro instead, which also has the manual override mode for off-road use.

OP
OP
144treks

144treks

Member
First Name
Steve
Joined
Dec 22, 2020
Messages
7
Reaction score
4
Location
Maryland
Vehicle(s)
2021 JLRU 3.0L Diesel, 2006 Liberty 2.8L Diesel
Thank you. I realize now I should have searched a little harder for the answer. Again, thank you.


Plongson

Well-Known Member
First Name
Paul
Joined
May 8, 2020
Messages
251
Reaction score
275
Location
So. Utah
Vehicle(s)
2020 Wrangler Rubicon JL Diesel, 1984 Jeep Cherokee XJ
Occupation
Retired engineer and business owner. Vibration analyst, reliability specialist.
Vehicle Showcase
1
Follow this link and your questions will be answered...It's a PITA but it will all be essentially OEM in the end and look great.

Controller install

And, just relocate the power plug...this is a better location anyway.



north53overland

Well-Known Member
First Name
Troy
Joined
Jan 5, 2021
Messages
70
Reaction score
71
Location
Edmonton
Vehicle(s)
2021 JLUR (incoming), 2013 Fiat 500T
I bought the mopar brake controller and the Tekonsha 3073-P harness needed to install it. The install location is up under the dash on the left, actually right by where the controller plugs into the harness. If you can lie on your back under the dash on the driver's side to where you can see the existing plug for the brake controller harness, you will be able to make sense of the install location on the diagram.

This thread has photos of the connector. The mopar controller mounts to the metal brace with the 4 holes in. https://www.jlwranglerforums.com/forum/threads/diy-trailer-brake-controller-install.28814/

When I went to actually do the installation and realized what a pain it is to reach the install location, and that you lose the only 12v outlet in the dash, I decided to go with a Redarc Tow-Pro instead, which also has the manual override mode for off-road use.
Curious where did you mount your Red-Arc? Our Jeep arrives in March'ish and we will need to tow with it quickly. I had a P3 in my previous '11 Cherokee which is a great controller, but want more integrated now. Using the Mopar would have been nice, but don't want to delete the 12V outlet.

If you have a picture of your final install with the Red-Arc, could you post it or DM me? Cheers.


CouchPotato

Active Member
Joined
Mar 4, 2019
Messages
33
Reaction score
19
Location
Las Vegas
Vehicle(s)
2019 JLUR

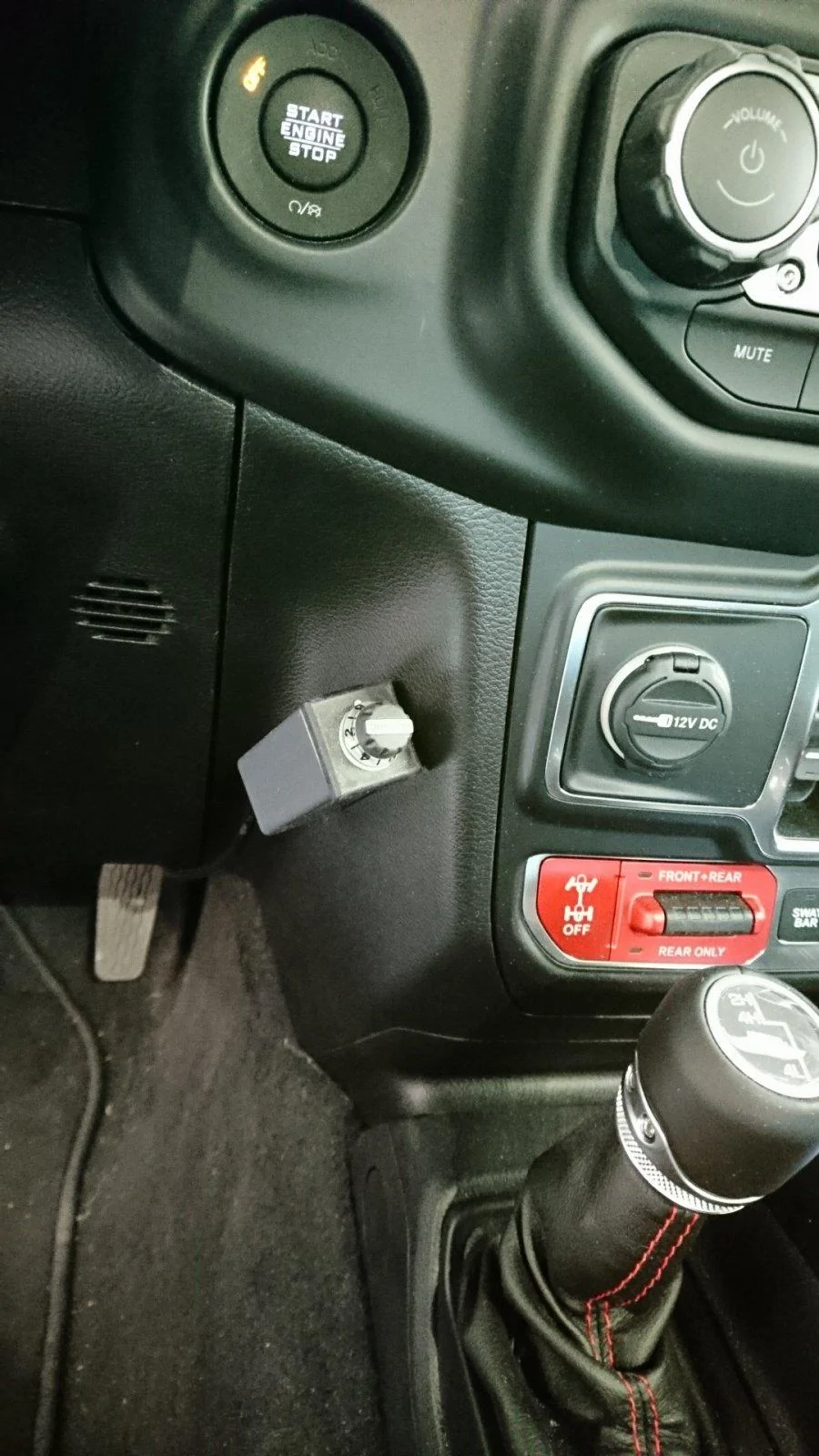

There aren't many good mounting locations for the knob due to its depth behind the surface. I've seen a few mounted in the kick panel below the steering wheel. I wanted it somewhere out of the way that I could easily see and reach it. So I used some PVC bar from Amazon to make a small mount that I could put wherever I wanted.
