AUX Switches Prewired?

Archie PJ

Member
First Name
John
Joined
Jun 22, 2020
Messages
18
Reaction score
17
Location
SD
Vehicle(s)
2020 Jeep Wrangler Unlimited Sahara Punk"n
I am curious if any of the 4 Aux switches are "prewired" to any particular locations, or if you use them do you have to go all the way back to the switches. TIA Cheers.



Advertisement





WRGLR-JL

Active Member
Joined
Feb 1, 2020
Messages
35
Reaction score
82
Location
PA
Vehicle(s)
2019 Wrangler JL
Vehicle Showcase
1
I installed the aux switch bank in my Sport S. The set up places 4 hot leads in the engine bay on the passenger side as well as 4 hot leads under the glove box on the passenger side in the Jeep.


Fatboy97

Member
Joined
Jul 25, 2020
Messages
16
Reaction score
29
Location
N.C.
Vehicle(s)
2 Door Rubicon JL
I am curious if any of the 4 Aux switches are "prewired" to any particular locations, or if you use them do you have to go all the way back to the switches. TIA Cheers.
The switches themselves are already wired. The wires that you connect to are located under the hood next to the battery. There is also wires under the dash below the glove box. Check your owners manual it will show you. They are really easy to connect to.

OP
Archie PJ

Archie PJ

Member
First Name
John
Joined
Jun 22, 2020
Messages
18
Reaction score
17
Location
SD
Vehicle(s)
2020 Jeep Wrangler Unlimited Sahara Punk"n
  • Thread starter
  • Thread Starter
  • #5
Thank you all for the replies. And I'll read those 13 pages....if I can get the manual out of that bag :LOL:


nerubi

Well-Known Member
First Name
Mike
Joined
Nov 28, 2018
Messages
3,523
Reaction score
3,985
Location
Nebraska
Vehicle(s)
2019 JLR, 2020 VW Tiguan
Occupation
Retired
Vehicle Showcase
1
Do you mean where you connect to them? There are 4 wires near
Thank you all for the replies. And I'll read those 13 pages....if I can get the manual out of that bag :LOL:
That's not the manual in the bag - more of a quick start guide. My manual is 619 pages long and my Uconnect manual is 218 pages long.

He is referring to the forum thread.


Shooting or Jeeping

Well-Known Member
Joined
May 27, 2018
Messages
920
Reaction score
1,328
Location
Mansfield, Texas
Vehicle(s)
2020 JLUR, 2019 RAV4
Yes, as noted, there are 4 wires running to the battery area and 4 under the glove box. Those match the 4 switches. To add an accessory, you simply connect to one of those and ground. Very simple. Then you can change the settings to the setup you want on the dash.


Jerkeejoe

Active Member
First Name
Joe
Joined
Jul 5, 2020
Messages
35
Reaction score
30
Location
Nevada
Vehicle(s)
2020 Rubicon Recon
Super easy. I just wired 4 pod lights to my aux 4 switch this morning.

I’m going to add a pigtail connector in the cab for a compressor this week also.


Rhinebeck01

Well-Known Member
Joined
May 9, 2018
Messages
4,849
Reaction score
5,429
Location
.
Vehicle(s)
2018 Wrangler JL Rubi
Yes, as noted, there are 4 wires running to the battery area and 4 under the glove box. Those match the 4 switches. To add an accessory, you simply connect to one of those and ground. Very simple. Then you can change the settings to the setup you want on the dash.
Actually, there are 6 in the passenger foot well. There are 4 in the engine compartment, near the battery.

In the passenger foot well, your have Aux 1, 2, 3, 4 and an ignition switched and a direct to battery wires.

Engine compartment does not have ignition switched or direct to battery wires.

For anyone interested, the direct to battery and ignition switched wires, are rated at 10 amp, not 15 amp or 40 amp like Aux 1, 2, 3, 4.

OP
Archie PJ

Archie PJ

Member
First Name
John
Joined
Jun 22, 2020
Messages
18
Reaction score
17
Location
SD
Vehicle(s)
2020 Jeep Wrangler Unlimited Sahara Punk"n
  • Thread starter
  • Thread Starter
  • #10
I'm still just getting into the info about this. One poster said per his reading of the manual that 2 are 15A and 2 are 40A. Question: do they run through a fuse or is that owner provided based on the accessory installed?


Rhinebeck01

Well-Known Member
Joined
May 9, 2018
Messages
4,849
Reaction score
5,429
Location
.
Vehicle(s)
2018 Wrangler JL Rubi
I'm still just getting into the info about this. One poster said per his reading of the manual that 2 are 15A and 2 are 40A. Question: do they run through a fuse or is that owner provided based on the accessory installed?
ALL 6, I mentioned are fused on the JL's end lets say.

But, you can place you own fuse in line with a lesser amp fuse if you need protection at lower amp range. So you'd have the fuse on JL's end and the one you inserted inline with your accessory.

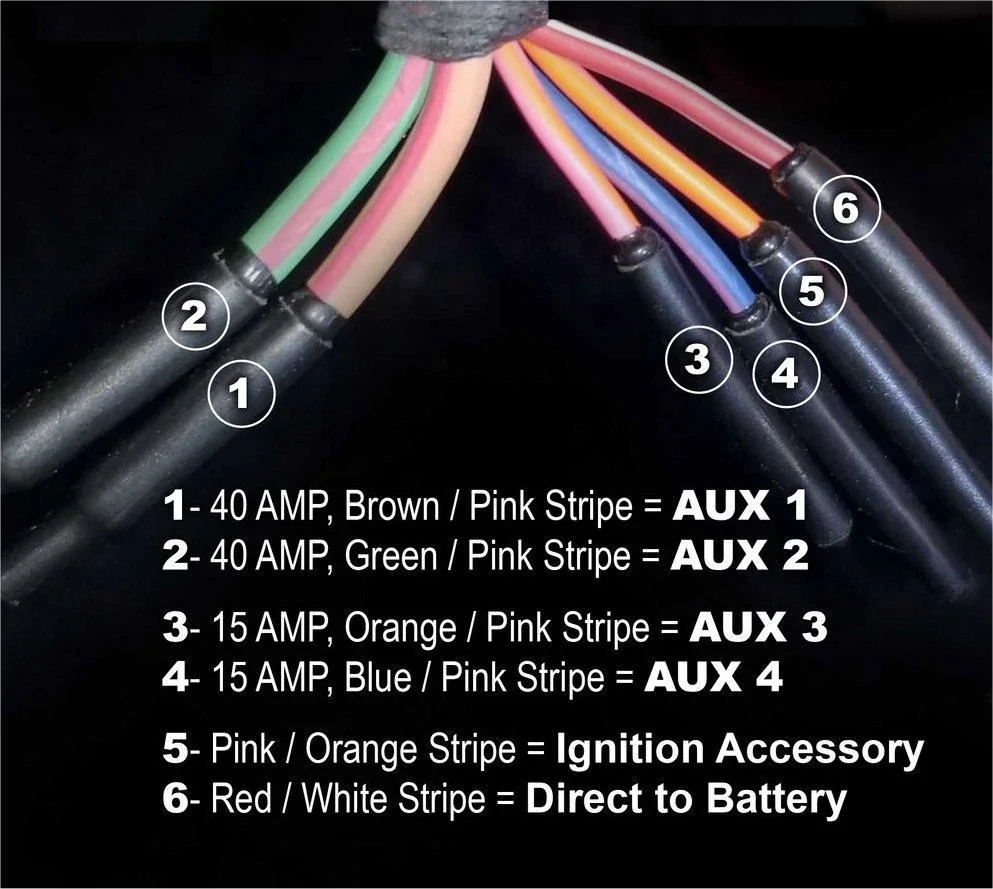

12v source wires.jpeg


Rhinebeck01

Well-Known Member
Joined
May 9, 2018
Messages
4,849
Reaction score
5,429
Location
.
Vehicle(s)
2018 Wrangler JL Rubi
@Archie PJ

Here is a list of the fuses in the PDC. I colored the Aux 1, 2, 3, 4 fuse listings, blue and made them bold font.

F01 Spare
F02 Starter 40 Amp Green Cartridge
F03 IBS 5 Amp Tan Micro
F04 Fuel Pump MTR/FPCM 20 Amp Yellow Micro
F05 Security Gateway 5 Amp Tan Micro
F06 Spare
F07 LTR Cool Pump — If Equipped 15 Amp Blue Micro
F08 TCM-8HP CYGNUS 15 Amp Blue Micro
F09 Spare
F10 KIN/RF HUB/ESCL 15 Amp Blue Micro
F11 UCI Port (USB & AUX) 10 Amp Red Micro
F12 HIFI Ampliftier 25 Amp Clear Micro
F13 Spare
F14 Spare
F15 IPC/SWITCH BANK-HD ELEC 15 Amp Blue Micro
F16 Spare
F17 Spare
F18 AC CLUTCH 10 Amp Red Micro
F19 Spare
F20 CBC 1-INTERIOR LIGHTS 30 Amp Pink Cartridge
F21 REAR WIPER 20 Amp Yellow Micro
F22 ECM/PCM/MGU WAKE UP/PPU WAKE UP 10 Amp Red Micro
F23 PCM/ECM 10 Amp Red Micro
F24 Spare
F25 MOD_SBW 10 Amp Red Micro
F26 CBC 2-EXTERIOR LIGHTS #1 40 Amp Green Cartridge
F27 Front Wipers 30 Amp Pink Cartridge
F28 CBC 3-POWER LOCKS 40 Amp Green Cartridge
F29 CBC 4-EXTERIOR LIGHTS #2 40 Amp Green Cartridge
F30 Spare
F31 DIAGNOSTIC PORT 10 Amp Red Micro
F32 HVAC CTRL MOD/SCL/OCM/DPDM 10 Amp Red Micro
F33 PTS/IRCM/AIRBAG DISABLE LMPS 10 Amp Red Micro
F34 ESC/EHPS/SBCM WAKE UP 10 Amp Red Micro
F35 BRAKE VAC PMP — If Equipped 30 Amp Pink Cartridge
F36 TRLR TOW MOD — If Equipped 30 Amp Pink Cartridge
F37 TRLR TOW CONN 7W — If Equipped 30 Amp Pink Cartridge
F38 ECM 20 Amp Blue Cartridge
F39 Spare
F40 DTCM/AXLE LOCK FT_RR 15 Amp Blue Micro
F41 IC/SGW WAKE UP 15 Amp Blue Micro
F42 PCR CTRL FEED (ESS)/SPARE (BSG) — If Equipped 10 Amp Red Micro
F43 PWR OUTLET (CARGO) BATT 20 Amp Yellow Micro
F44 IRCAM HEATERS 10 Amp Red Micro
F45 PWR OUTLET (CARGO) IGN* 20 Amp Yellow Micro
F46 AUTO HDLP LVL MOD/LVL MTR/HDLP SW 10 Amp Red Micro
F47 Spare
F48 Spare
F49 ORC 10 Amp Red Micro
F50 HD ACC — If Equipped 10 Amp Red Micro
F51 DSRC/USB/ISRVM/CSGM 10 Amp Red Micro
F52 CIGAR LTR 20 Amp Yellow Micro
F53 Spare
F54 Spare
F55 Spare
F56 IN-CAR TEMP SENSOR 10 Amp Red Micro
F57 Frt Drvr Htd Seat 20 Amp Yellow Micro
F58 Frt Pass Htd Seat 20 Amp Yellow Micro
F59 Spare
F60 CSWM (HTD STR WHEEL) 15 Amp Blue Micro
F61 LBSS/RBSS 10 Amp Red Micro
F62 Spare
F63 ORC 10 Amp Red Micro
F64 Spare
F65 Spare
F66 HVAC BLOWER MTR FRT 40 Amp Green Cartridge
F67 Spare
F68 Spare
F69 MGU (BSG) — If Equipped 5 Amp Tan Micro
F70 INJ/IGN COIL (GAS)/GLO PLUG MOD (DSL) 25 Amp Clear Micro
F71 Spare
F72 HD ELEC ACC PKG — If Equipped 10 Amp Red Micro
F73 PWR TOP LT 20 Amp Blue Cartridge
F74 PWR TOP RT 20 Amp Blue Cartridge
F75 PPU-BPCM & APM (BSG) — If Equipped 10 Amp Red Micro
F76 ECM (GAS)/PCM (DSL) 20 Amp Yellow Micro
F77 HTD MIRRORS 10 Amp Red Micro
F78 COMP/INTRUSION/SIREN/INTRUSION SNSRS 10 Amp Red Micro
F79 SMART BAR CTRL MOD 20 Amp Yellow Micro
F80 PCM 15 Amp Blue Micro
F81 REAR DEFROSTER (EBL) 30 Amp Pink Cartridge
F82 FUEL HTR — If Equipped 30 Amp Pink Cartridge
F83 GLOW PLUG — If Equipped 60 Amp Yellow Cartridge
F84 UREA HTR CTRL UNIT — If Equipped 30 Amp Pink Cartridge
F85 PM SENSOR — If Equipped 10 Amp Red Micro
F86 BRAKE VAC PMP 2 — If Equipped 30 Amp Pink Cartridge
F87 SUPPLY/PURGING PMP — If Equipped 10 Amp Red Micro
F88 NOx SENSOR #1/ #2 — IF Equipped 20 Amp Blue Cartridge
F89 SCCM/CRUISE CTL/DTV 10 Amp Red Micro
F90 TRLR TOW PARK LMP — If Equipped 20 Amp Blue Cartridge
F91 HORN 20 Amp Yellow Micro
F92 HD ACCY #2 — If Equipped 40 Amp Green Cartridge
F93 HD ACCY #1 — If Equipped 40 Amp Green Cartridge

F94 TPM/CORAX 10 Amp Red Micro
F95 Spare
F96 PWR MIRROR SW 10 Amp Red Micro
F97 RADIO/TBM 20 Amp Yellow Micro
F98 SW BANK-HD ELEC/OFF ROAD 10 Amp Red Micro
F99 Spare
F100 ESC-ECU & VALVES 30 Amp Pink Cartridge
F101 DTCM 30 Amp Pink Cartridge
F102 DUAL USB PORT 15 Amp Blue Micro
F103 HD ACCY #3 — If Equipped 15 Amp Blue Micro
F104 PPU COOL PUMP — If Equipped 15 Amp Blue Micro
F105 ICS/HVAC 10 Amp Red Micro
F106 ESC-PUMP MTR 40 Amp Green Cartridge
F107 TRLR TOW STOP/TURN LT — If Equipped 20 Amp Yellow Micro
F108 HD ACCY #4 — If Equipped 15 Amp Blue Micro
F109 TRLR TOW STOP/TURN RT — If Equipped 20 Amp Yellow Micro
F110 POWER INVERTER 30 Amp Pink Cartridge
F111 TRLR TOW BACKUP — If Equipped 20 Amp Blue Cartridge
