Aux switches - Im Looking for instructions

mlotero

Well-Known Member
First Name
Mauricio
Joined
Feb 26, 2018
Messages
156
Reaction score
373
Location
Boynton Beach
Vehicle(s)
JLUR
Occupation
Sr IT Manager
Anyone has documentation or step by step guides? I want to install a light bar on my bumper using the aux switches





Advertisement



Torero

Well-Known Member
First Name
J. Diego
Joined
Apr 21, 2018
Messages
816
Reaction score
738
Location
Illinois
Vehicle(s)
JL Rubicon, FJ Cruiser, BMW Z3, F650,GL63 AMG, STI
There is some level of explanation in the owner manual.


OnlyOne

Well-Known Member
Joined
Feb 17, 2018
Messages
1,539
Reaction score
2,736
Location
Eagle, Colorado
Vehicle(s)
2020 F150 3.5 /2019 Mustang GT PP1 A10 whipped
Really nothing to it. Run a wire from your harness wire of your choosing under the hood, to your lights. Done. Two 40 amps and two 15 amps are your choices. 5-10 minutes maybe. It will take you longer to mount them, than wire them.


Lurvis33

Well-Known Member
First Name
Luke
Joined
Dec 1, 2017
Messages
1,586
Reaction score
6,194
Location
Lewisville, TX
Vehicle(s)
‘18 Sting-Gray Sahara
Vehicle Showcase
1
I’ve done a lot of looking into this as well and I’m still confused which color wires are which for the two 40 amp and the two 15 amp.


OnlyOne

Well-Known Member
Joined
Feb 17, 2018
Messages
1,539
Reaction score
2,736
Location
Eagle, Colorado
Vehicle(s)
2020 F150 3.5 /2019 Mustang GT PP1 A10 whipped
I’ve done a lot of looking into this as well and I’m still confused which color wires are which for the two 40 amp and the two 15 amp.
The two 40 amps are the larger wires.

Aux 1 = pink/tan 40amp
Aux 2 = green/purple 40amp
Aux 3 = orange 15amp
Aux 4 = purple 15amp


Lurvis33

Well-Known Member
First Name
Luke
Joined
Dec 1, 2017
Messages
1,586
Reaction score
6,194
Location
Lewisville, TX
Vehicle(s)
‘18 Sting-Gray Sahara
Vehicle Showcase
1
The two 40 amps are the larger wires.

Aux 1 = pink/tan 40amp
Aux 2 = green/purple 40amp
Aux 3 = orange 15amp
Aux 4 = purple 15amp

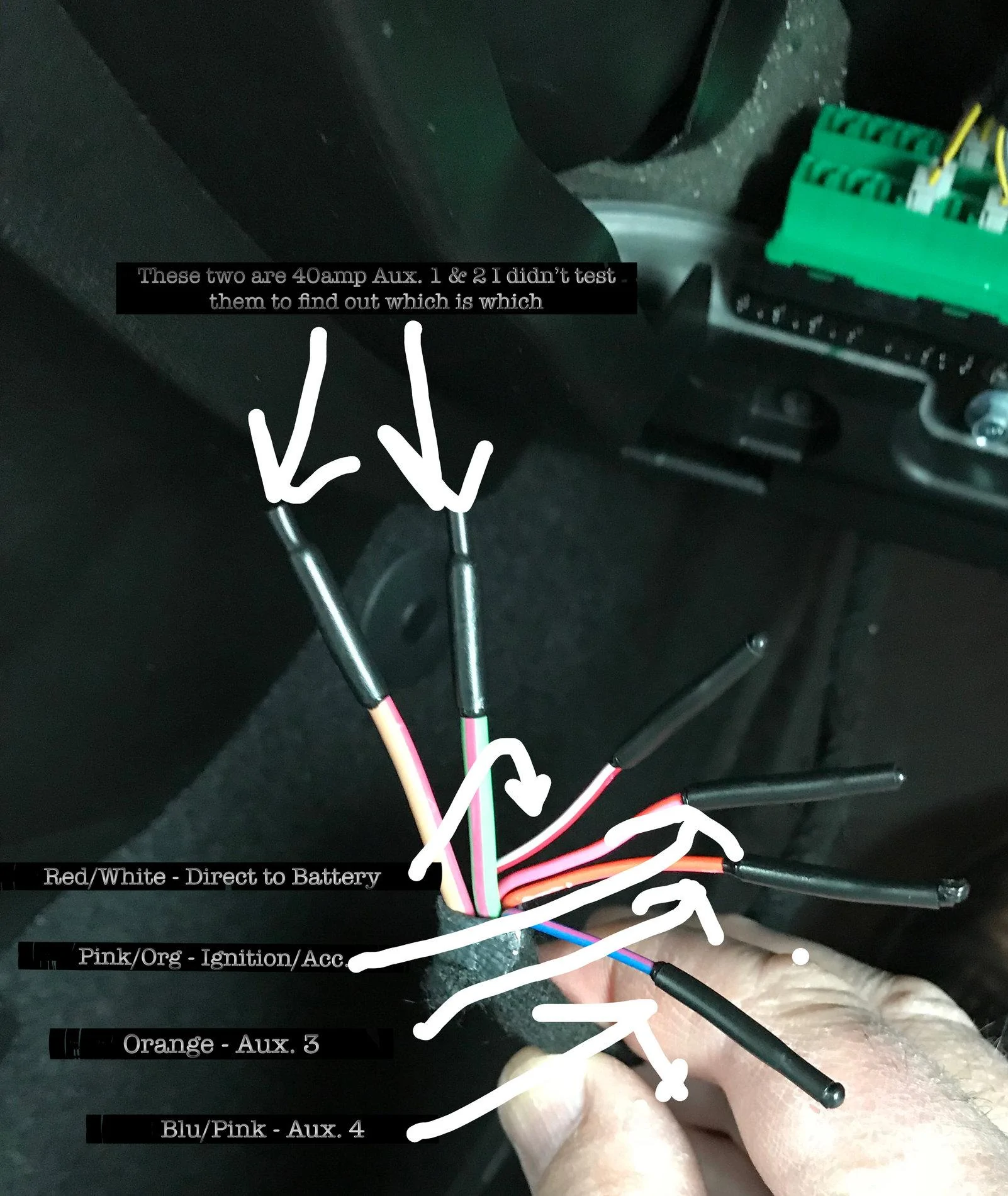

Woah, looking back at the picture from another thread, I never noticed they were different thicknesses. It makes perfect sense now, thanks! :idea:



TroyBoy

Well-Known Member
First Name
Troy
Joined
Jun 14, 2017
Messages
1,308
Reaction score
1,337
Location
Vancouver Island, Canada
Vehicle(s)
2018 JLUR

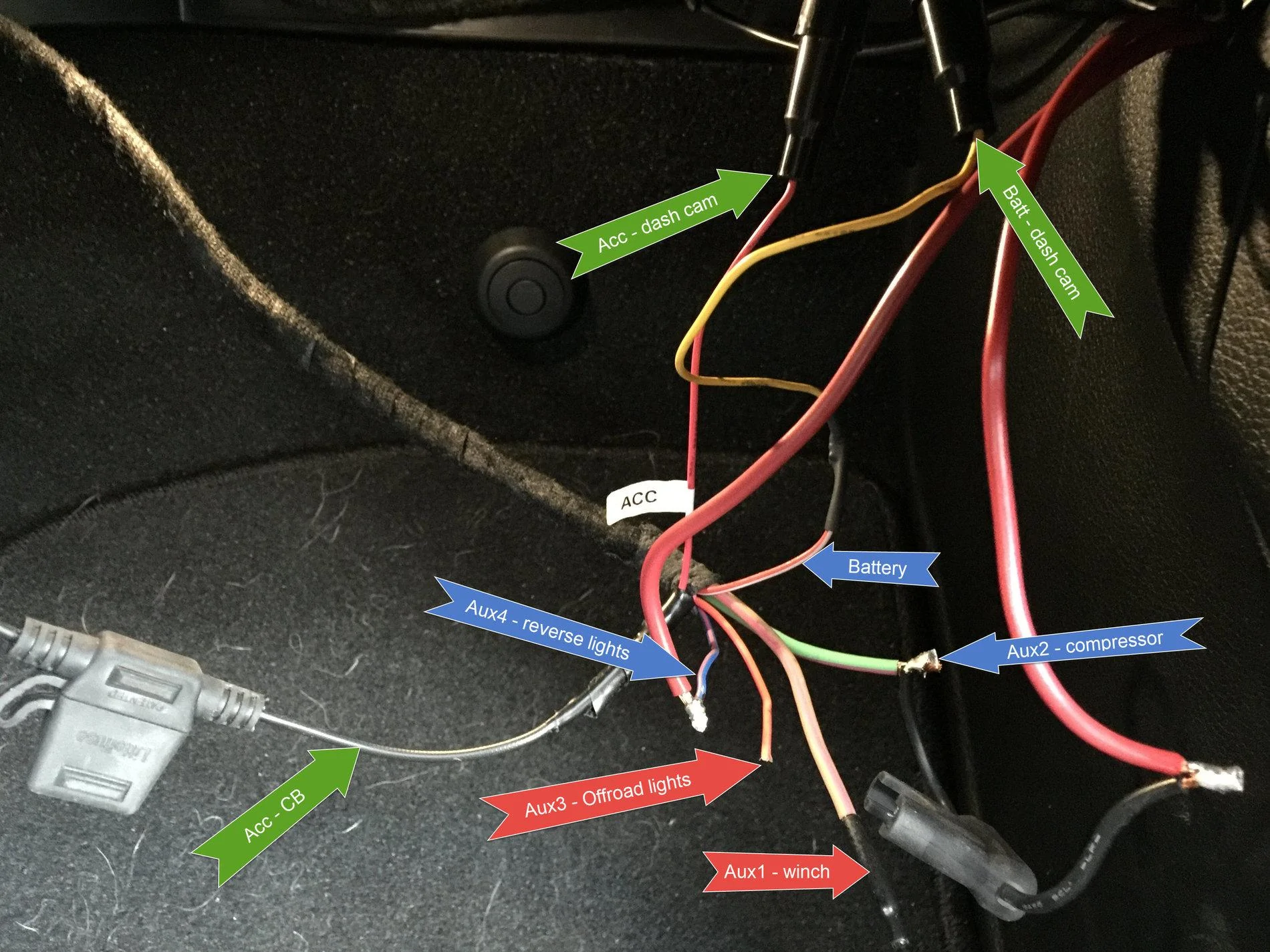

Thought I would share my wiring mess:
aux wiring.JPG



Notes:
The Aux1 and Aux3, RED tags, are capped off becuase I used the wires in the engine compartment for them.
The two big red wires(12 and 14awg) are WAY WAY overkill but it is what I had so I used it.
Aux2 is 40amp so I added a fuse because my compressor wire just runs a relay using a 2amp fuse.
Aux4 is 15amp and directly runs my LED reverse lights which I do not have yet. No fuse needed as 15amps is fine.
Aux1 is 40amps and it also just runs a relay in the engine compartment. Do not hook a winch directly to aux wires!


Candsevo7

Member
First Name
simon
Joined
May 10, 2019
Messages
12
Reaction score
1
Location
United Kingdom
Vehicle(s)
CRD JKU x2 , 2.2 JLU
where are the ends of the wire located ? are they factory fused ?


Stry

Member
First Name
Bob
Joined
Mar 17, 2019
Messages
15
Reaction score
9
Location
Wellsboro, PA
Vehicle(s)
2019 JLUR
where are the ends of the wire located ? are they factory fused ?
Per the Owner's Manual, they are factory fused. Connections are located under instrument panel and under hood behind battery.
